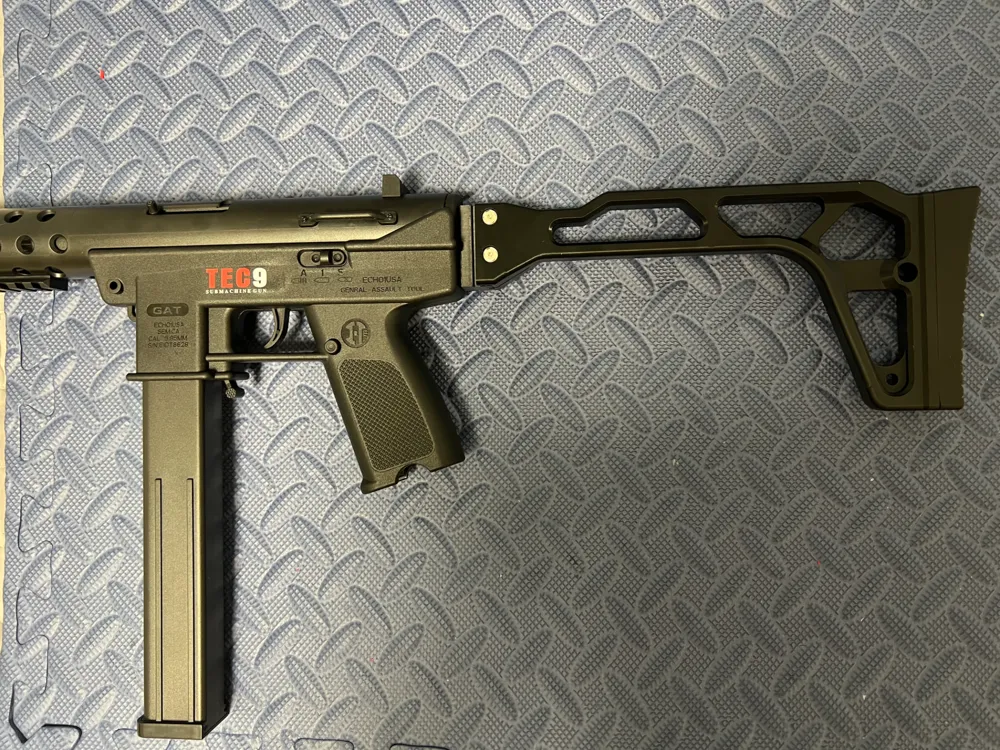

Handy TEC9 Stock Buttstock TEC-9

Newly purchased Handy TEC9 from PDD, found that the tail has M4 screw holes, convenient for installing the buttstock, so I designed the corresponding buttstock. If your version does not have screw holes, the connecting part needs to use glue, please note.

Two versions are designed:

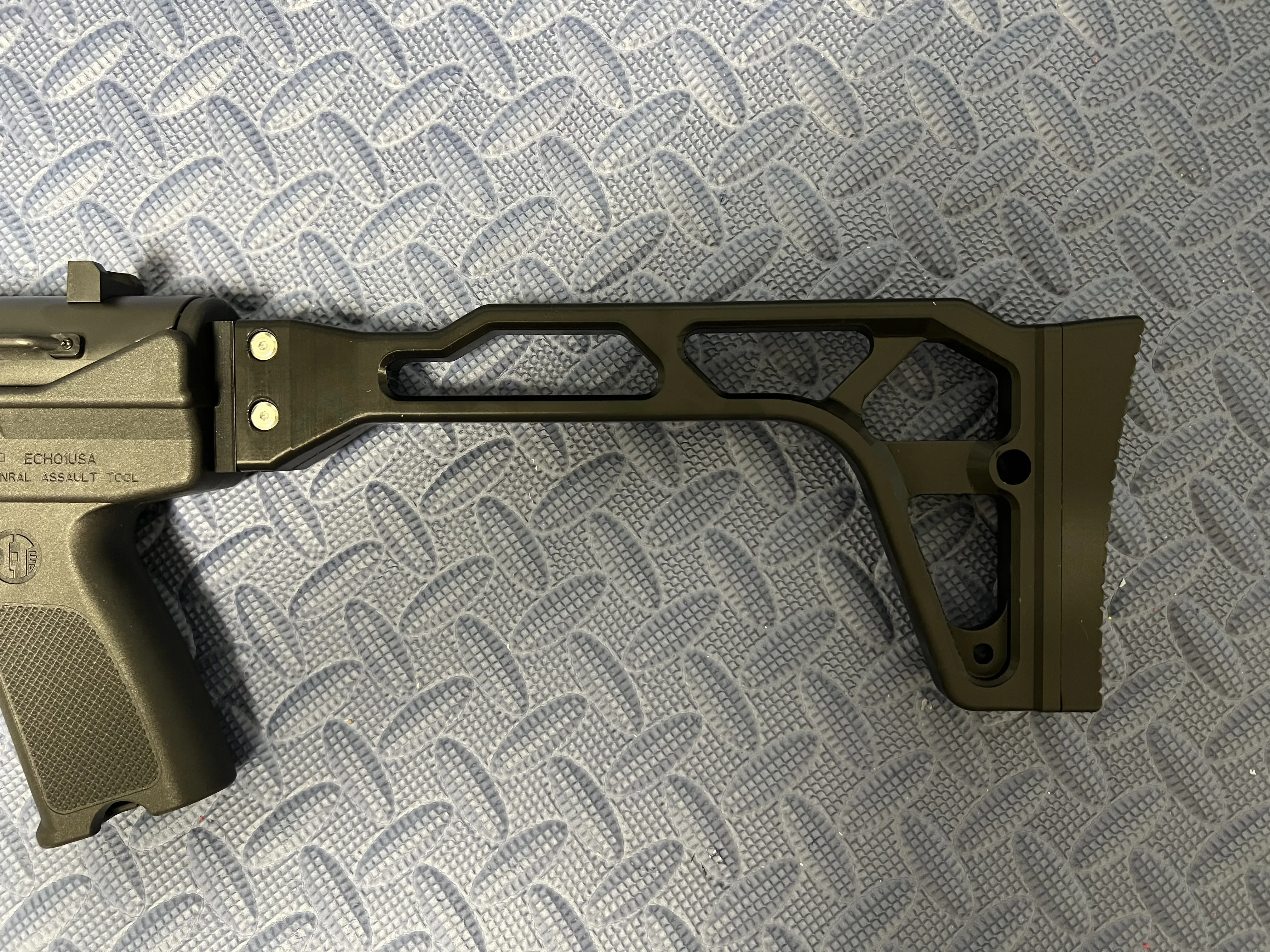

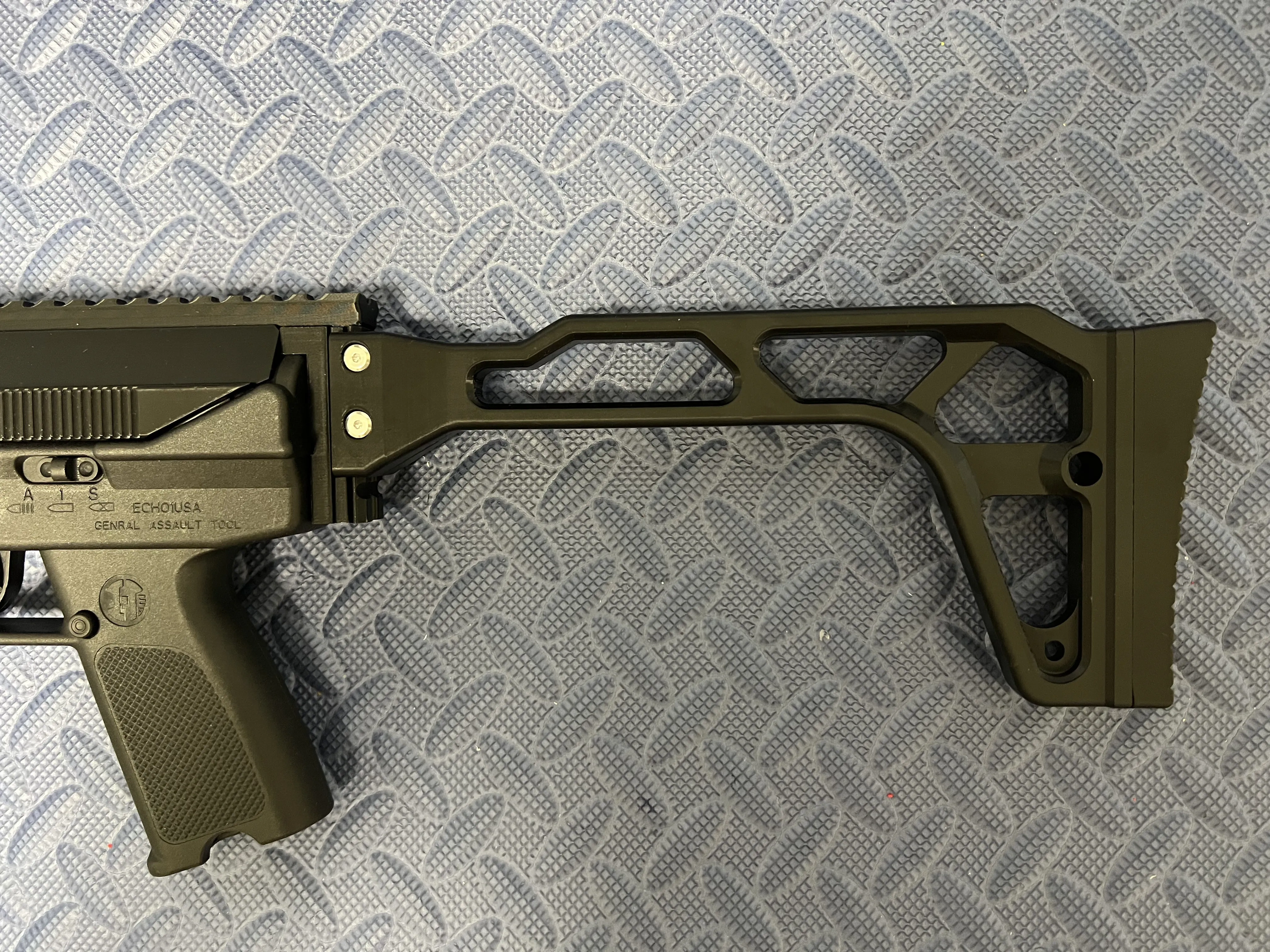

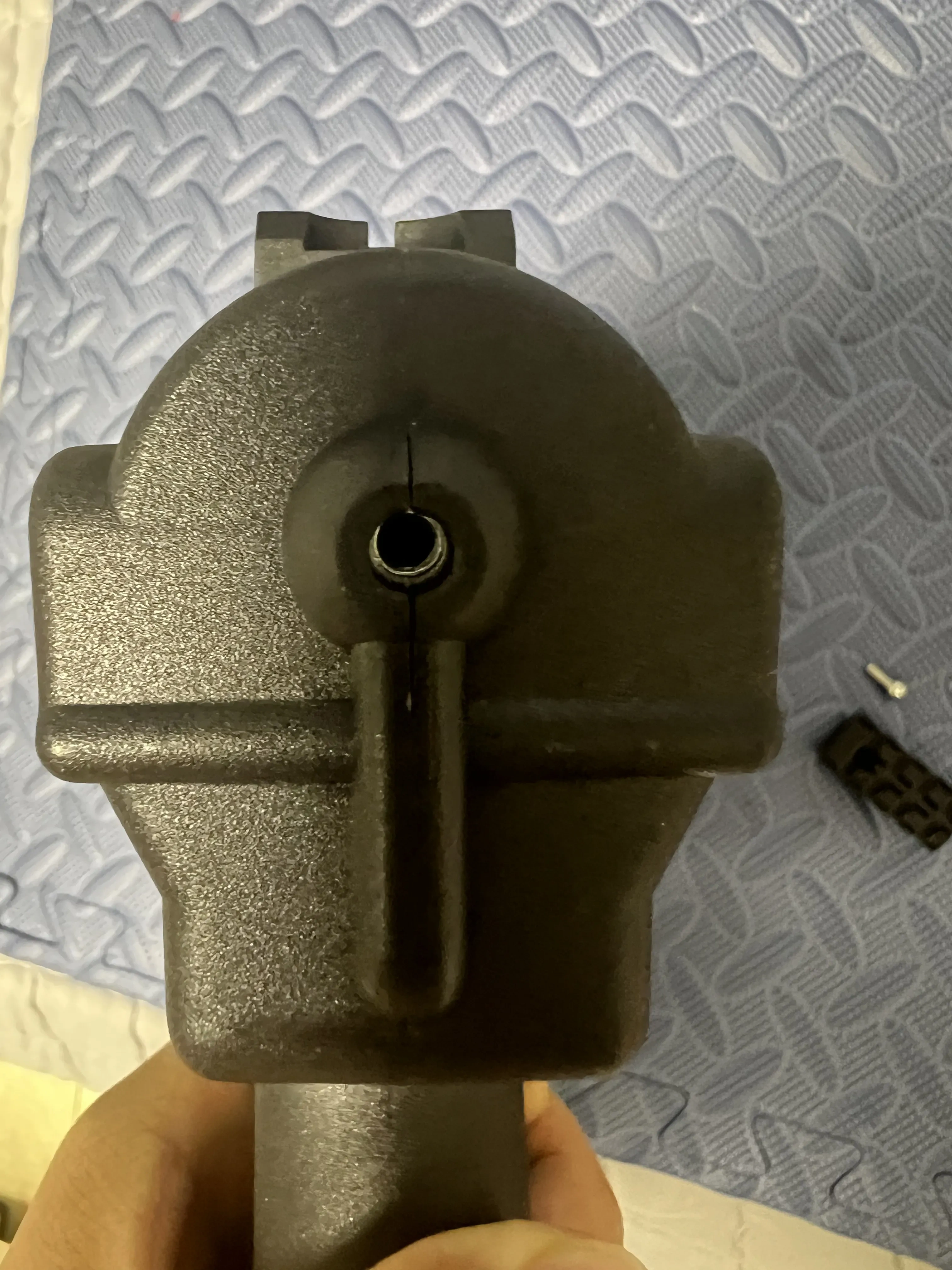

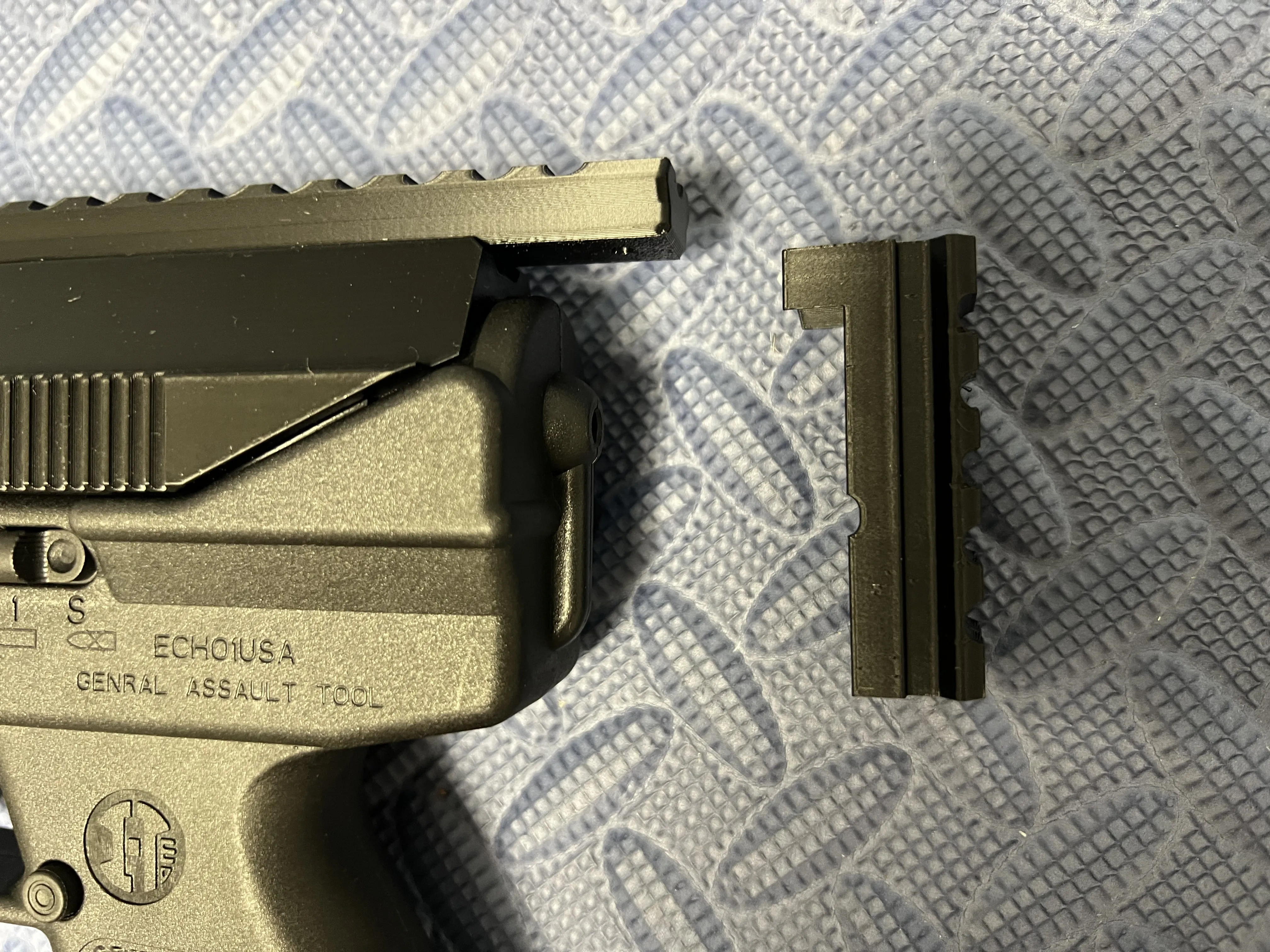

1) Version 1: Suitable for the original TEC9, use the M4 screw at the tail of the TEC9 to secure the connecting part, then fix the buttstock part to the connecting part with two sets of M4*25mm locking screws;

(If your version does not have screw holes, glue is needed when fixing the connecting part to the main body)

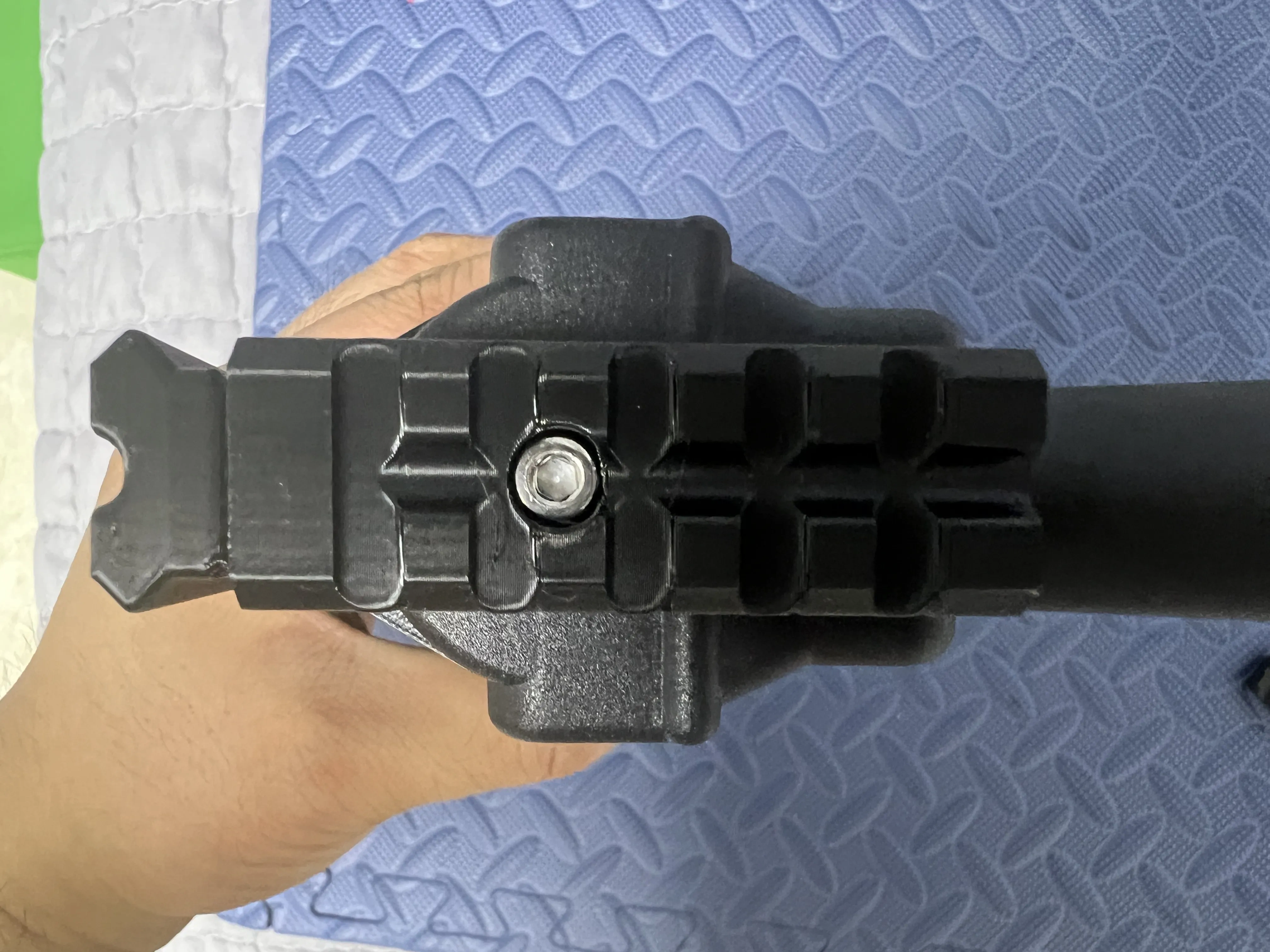

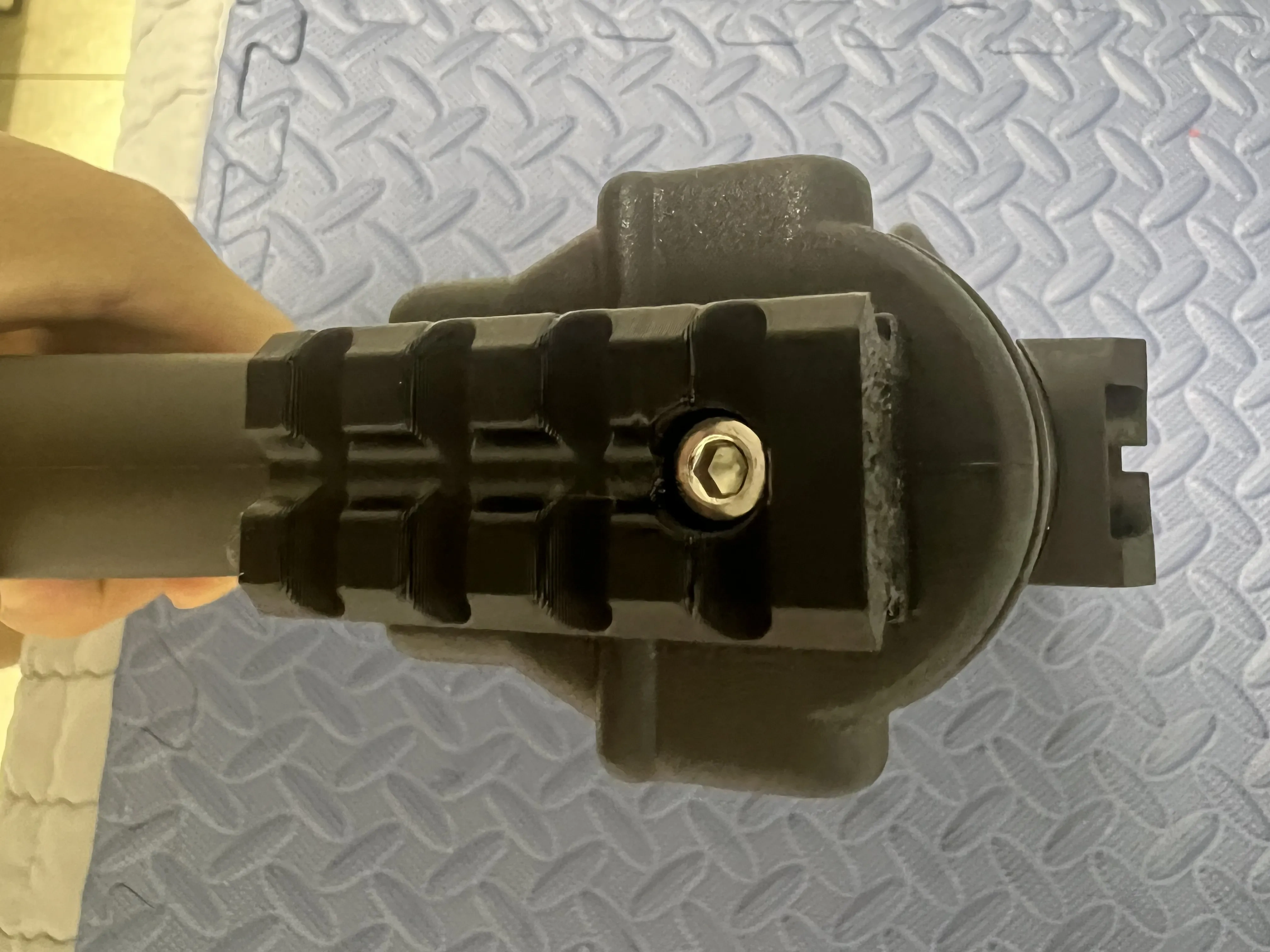

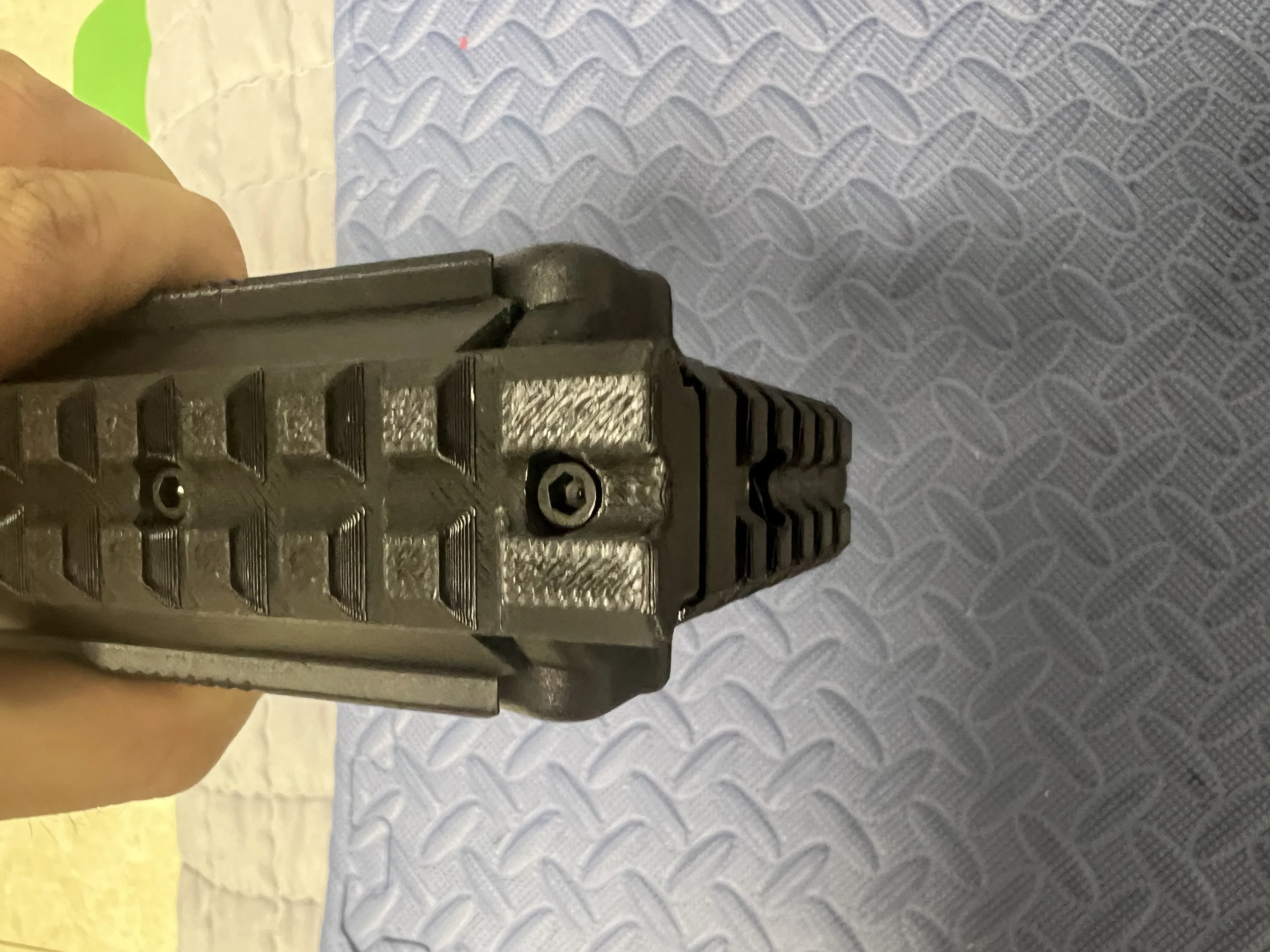

2) Version 2: Matched with Deep Blue’s upper receiver designed by the boss, the Picatinny rail part is redesigned and extended. Based on version 1, the Picatinny rail and the connecting part can be fixed with screws, further increasing the strength; Use the M4 screw at the tail of the TEC9 to secure the connecting part, then fix the buttstock part to the connecting part with two sets of M4*25mm locking screws;

This upper receiver’s link: https://makerworld.com/zh/models/1344794-handy-tec-9-custom-rail-upper-receiver-with-suppre?from=search#profileId-1386114

(If your version does not have screw holes, glue is needed when fixing the connecting part to the main body)

Hardware list:

1) Version 1:

①M4*12 screws x1;----used to fix the connecting part and the TEC9 body;

②M4*25 locking screws x2;----used to fix the buttstock;

③M3*10 screws x2;----used to fix the buttstock pad;

2) Version 2:

①M4*12 screws x1;----used to fix the connecting part and the TEC9 body;

②M4*25 locking screws x2;----used to fix the buttstock;

③M3*10 screws x9;----6 for fixing the Picatinny rail, 1 for fixing the Picatinny rail and the connecting part, 2 for fixing the buttstock pad;

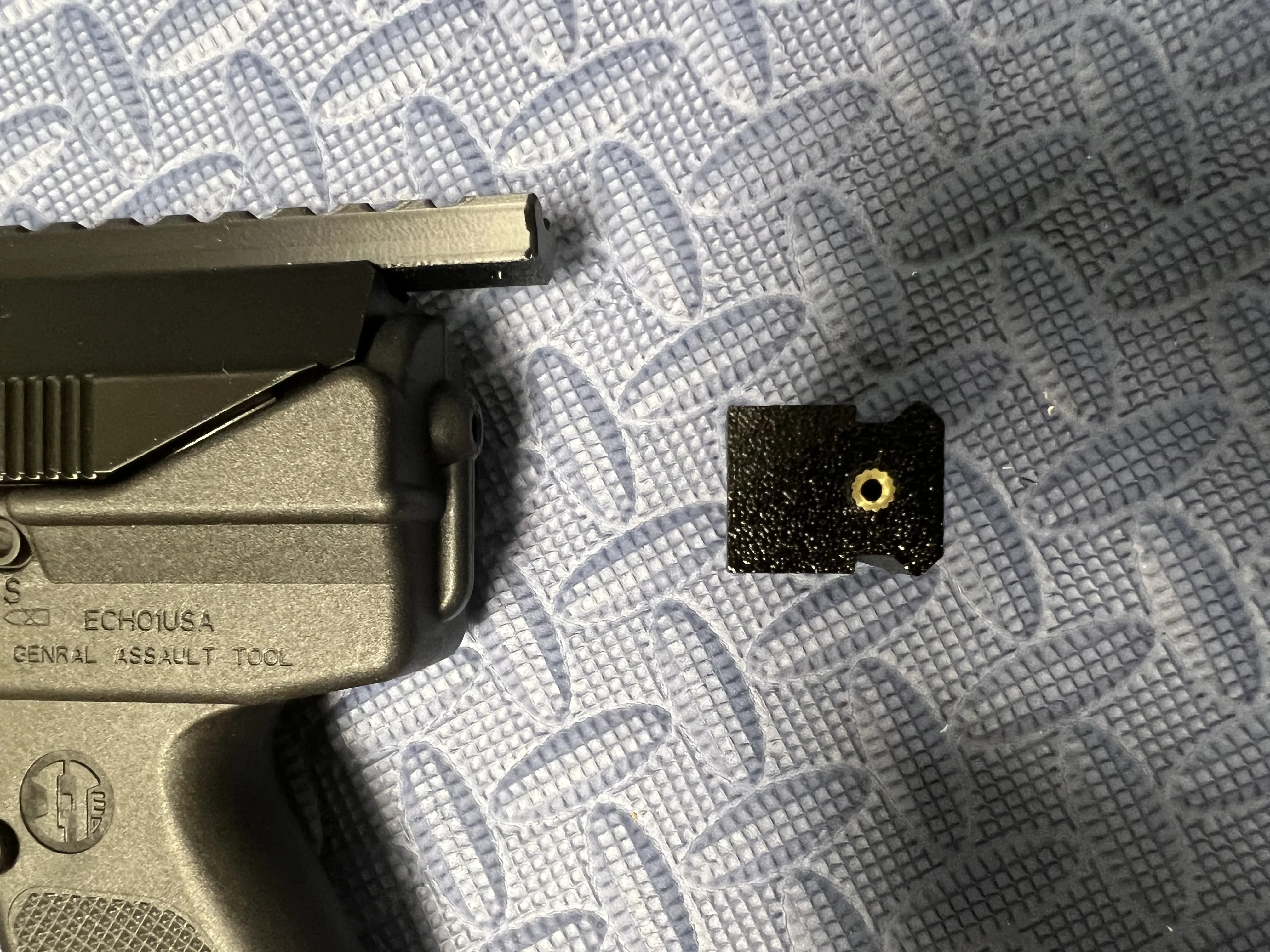

④M3*3*5 hot melt screws x1;----installed on the connecting part; (because the upper receiver matched with version 2 uses hot melt screws, for consistency and increased strength, version 2 also uses one hot melt screw)
