Air conditioner ventilation duct 80 mm diameter
Print Profile(0)
Bill of Materials
Description

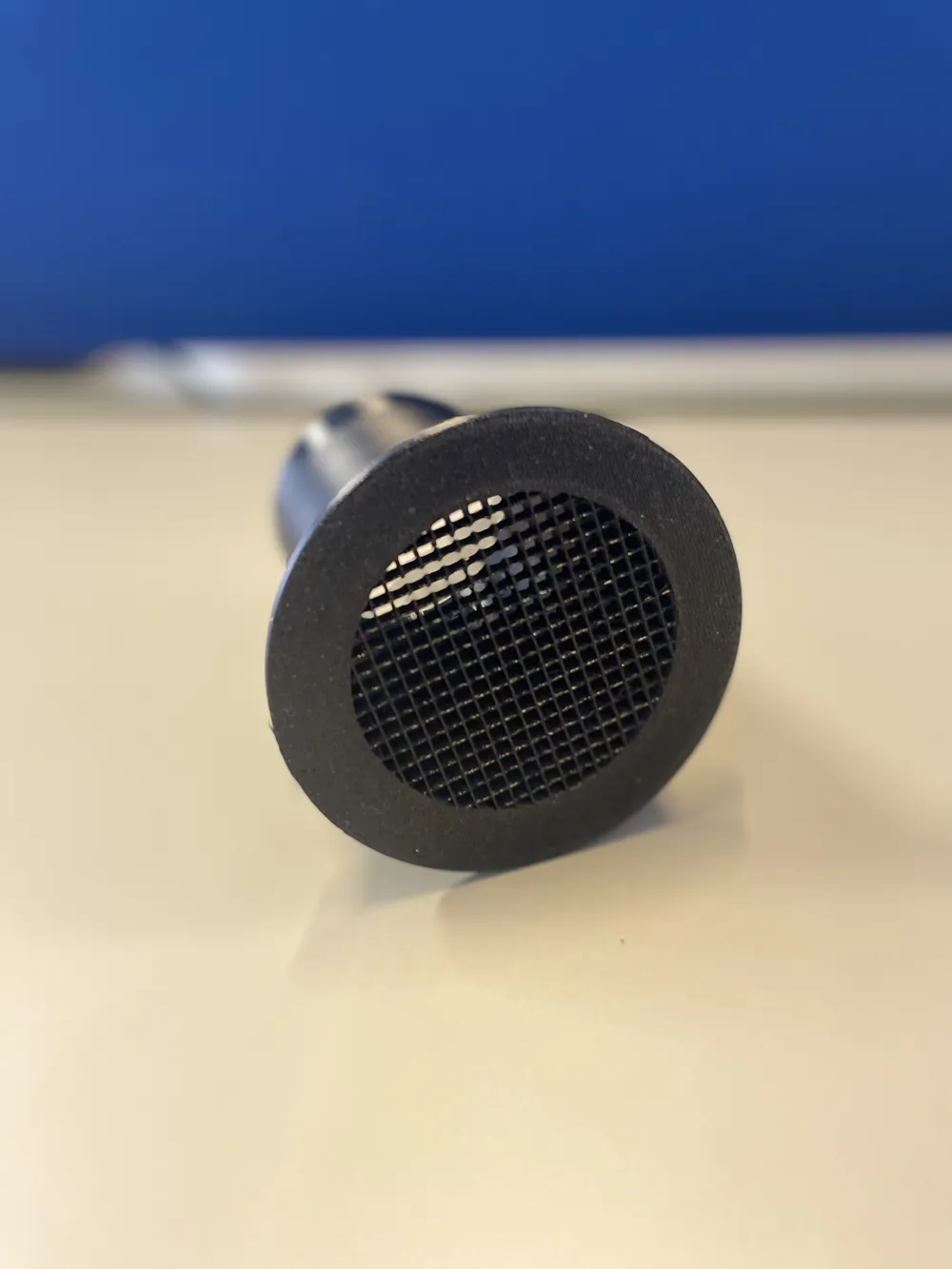

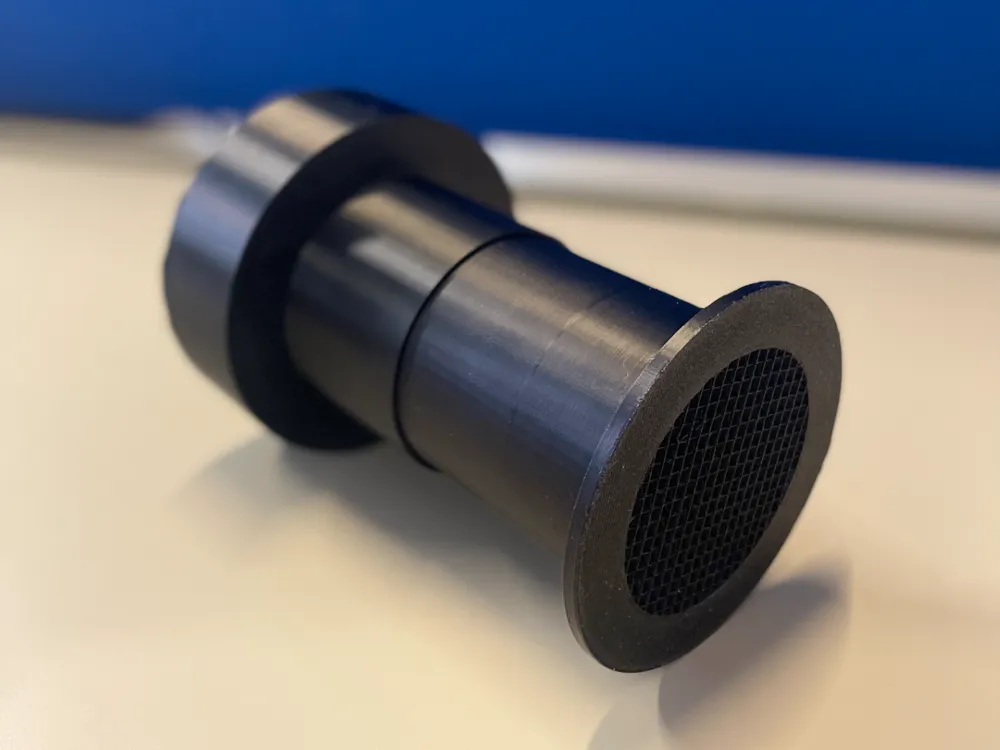

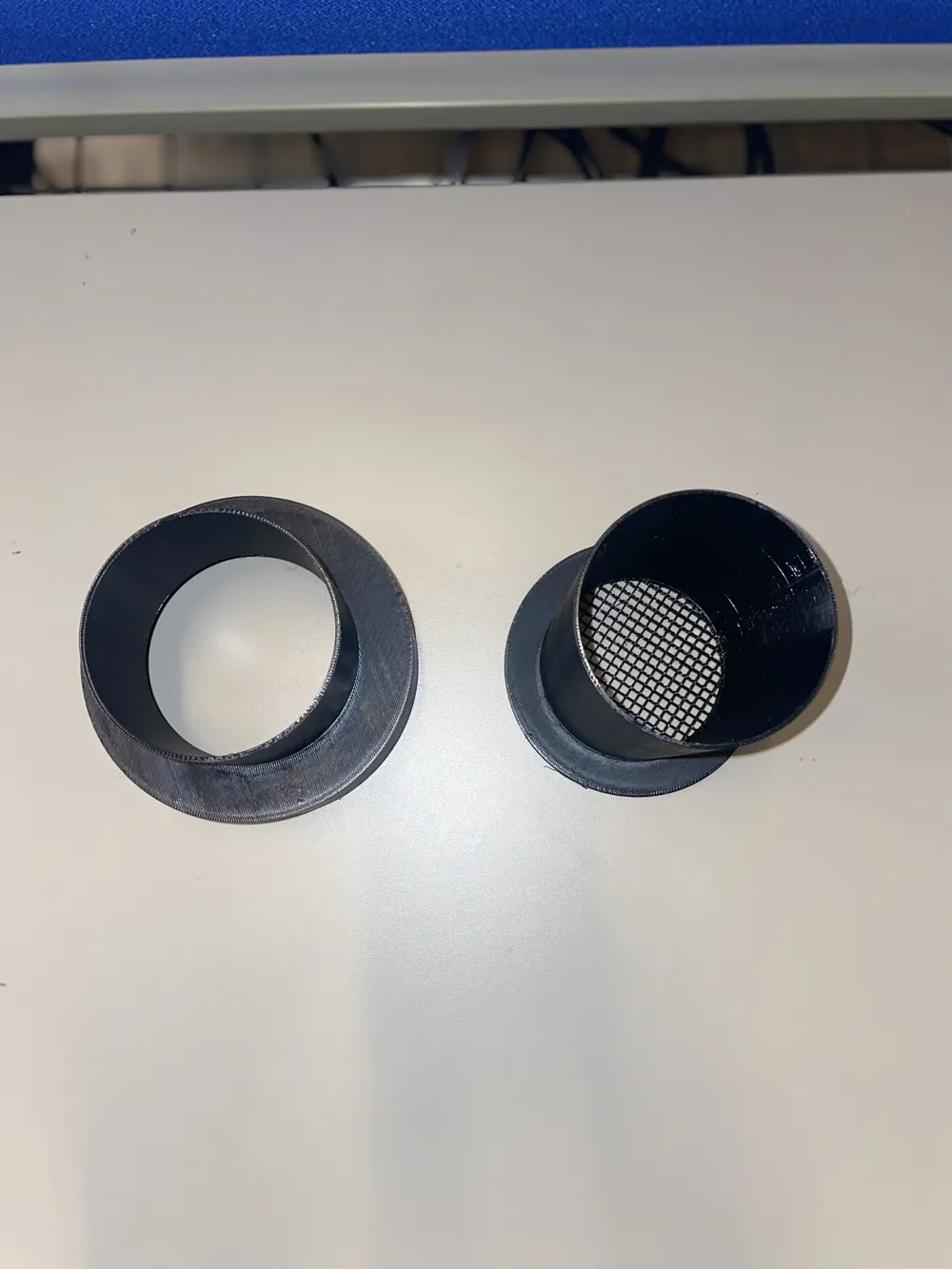

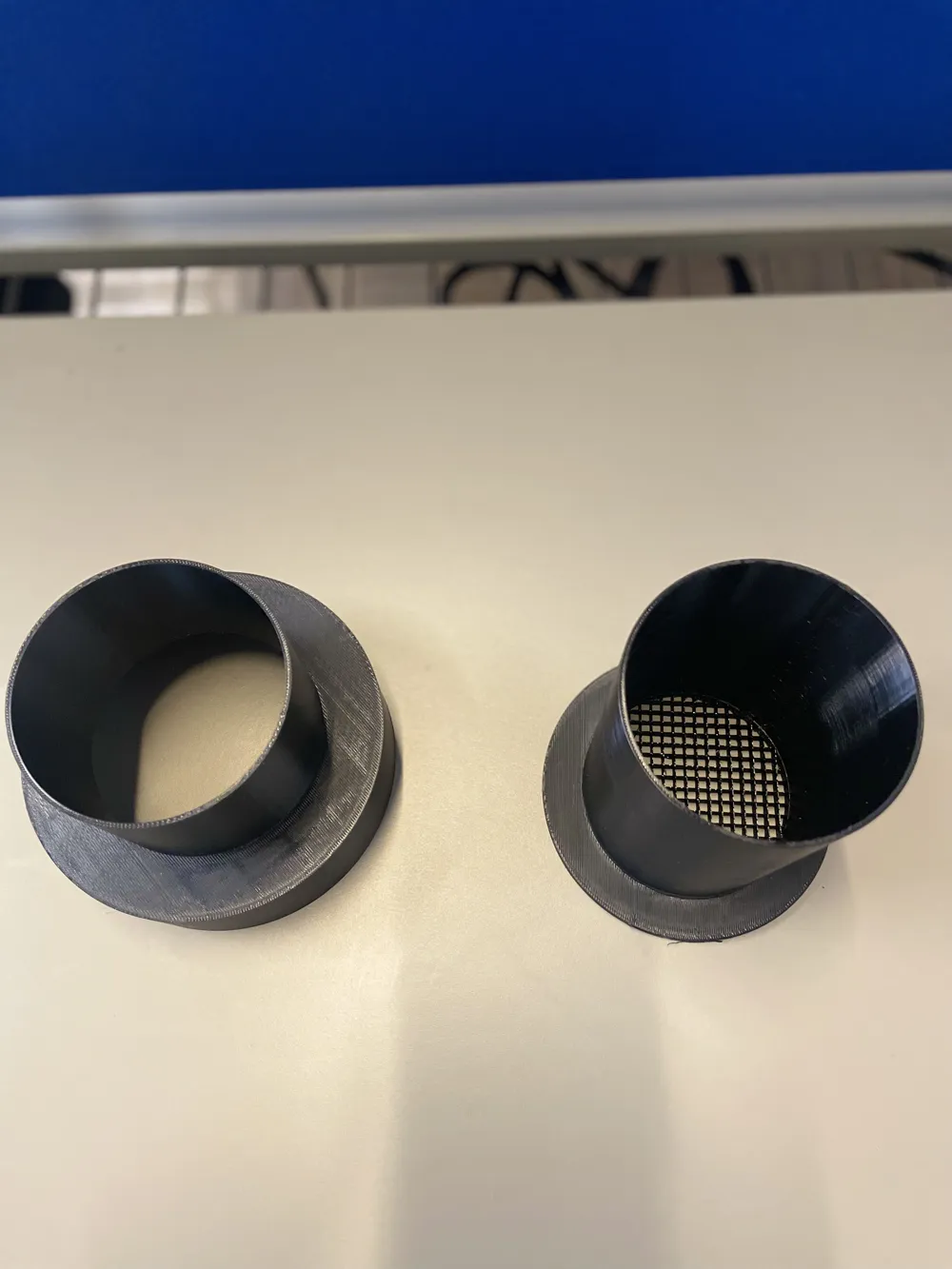

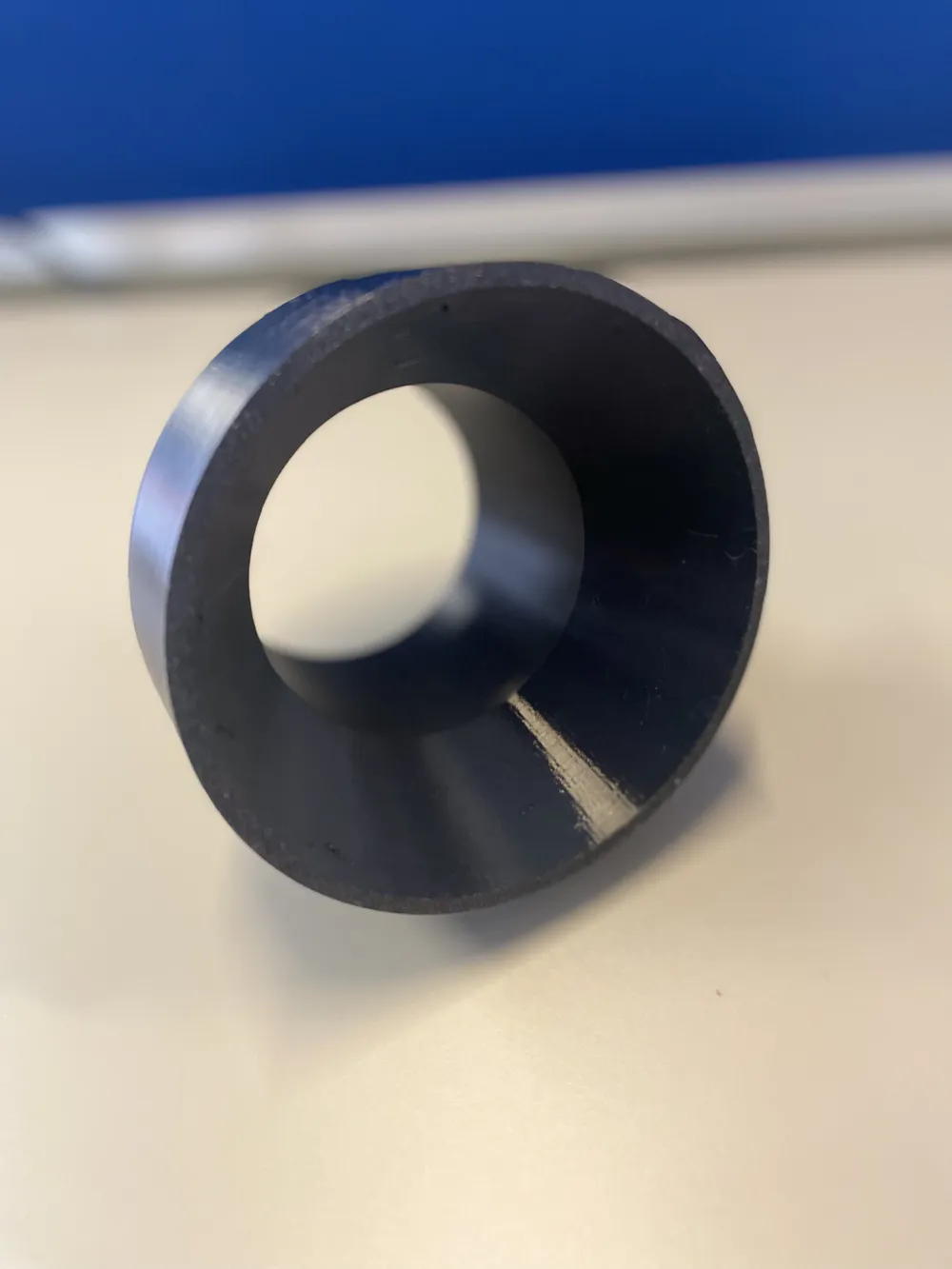

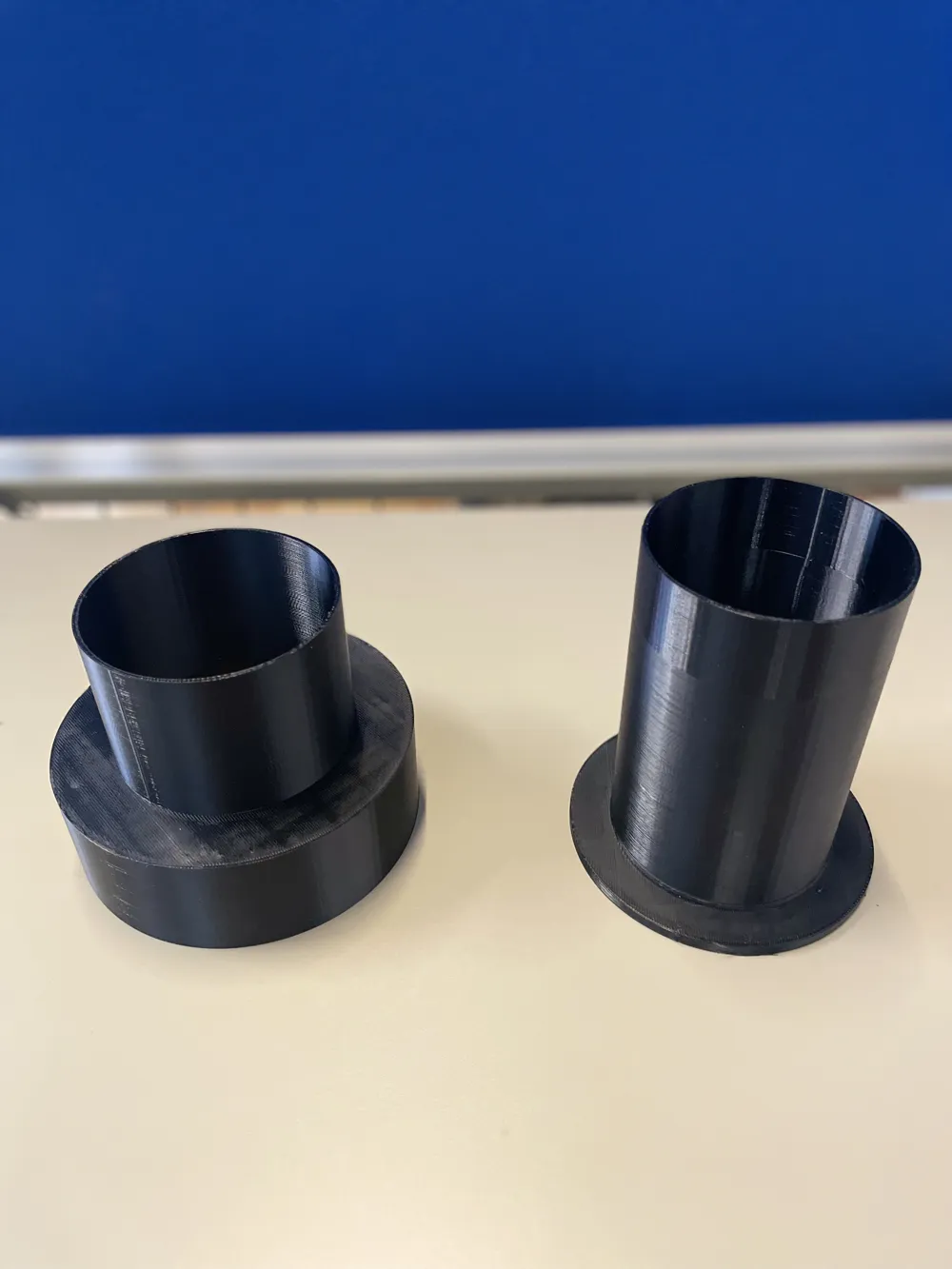

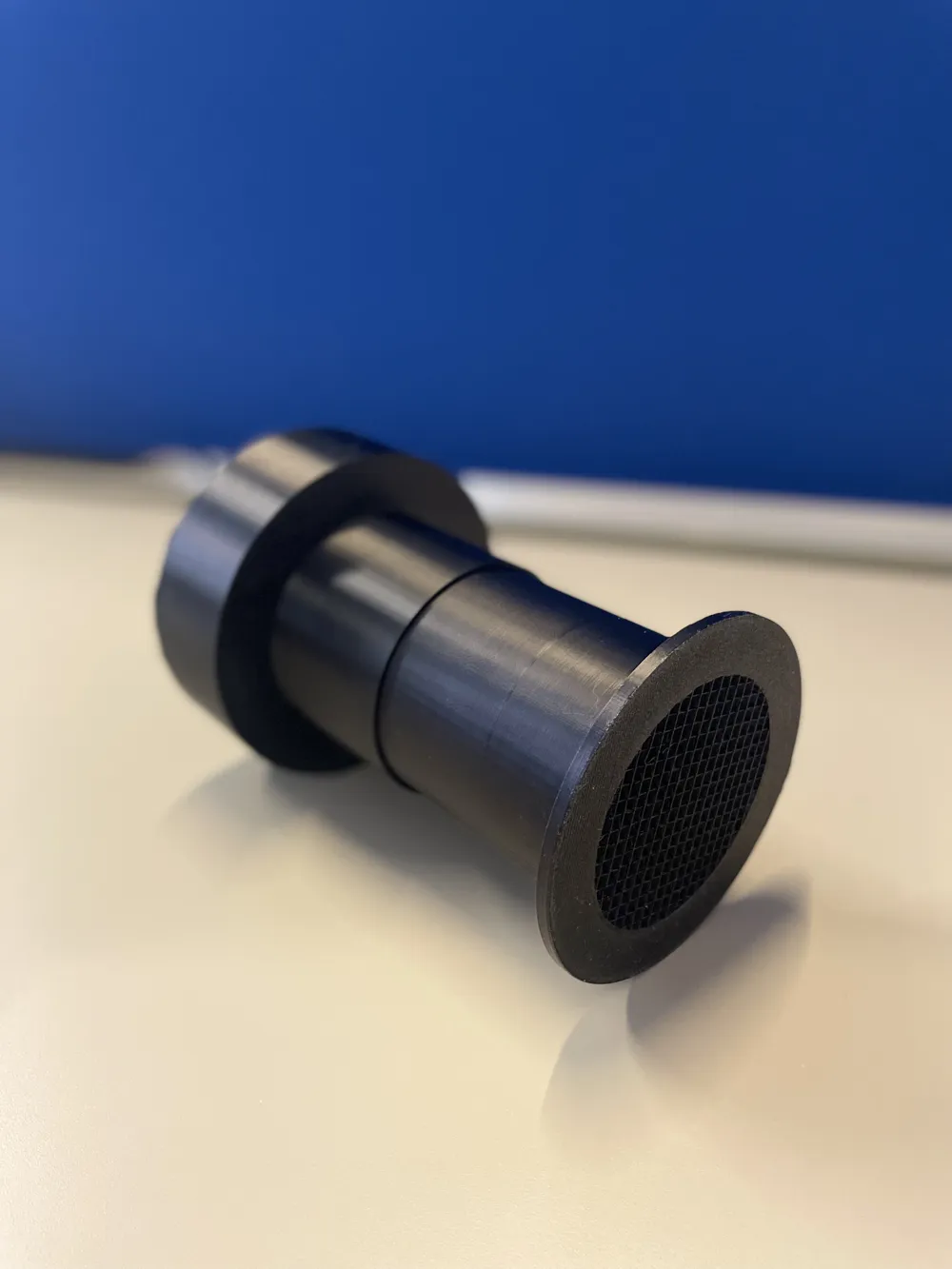

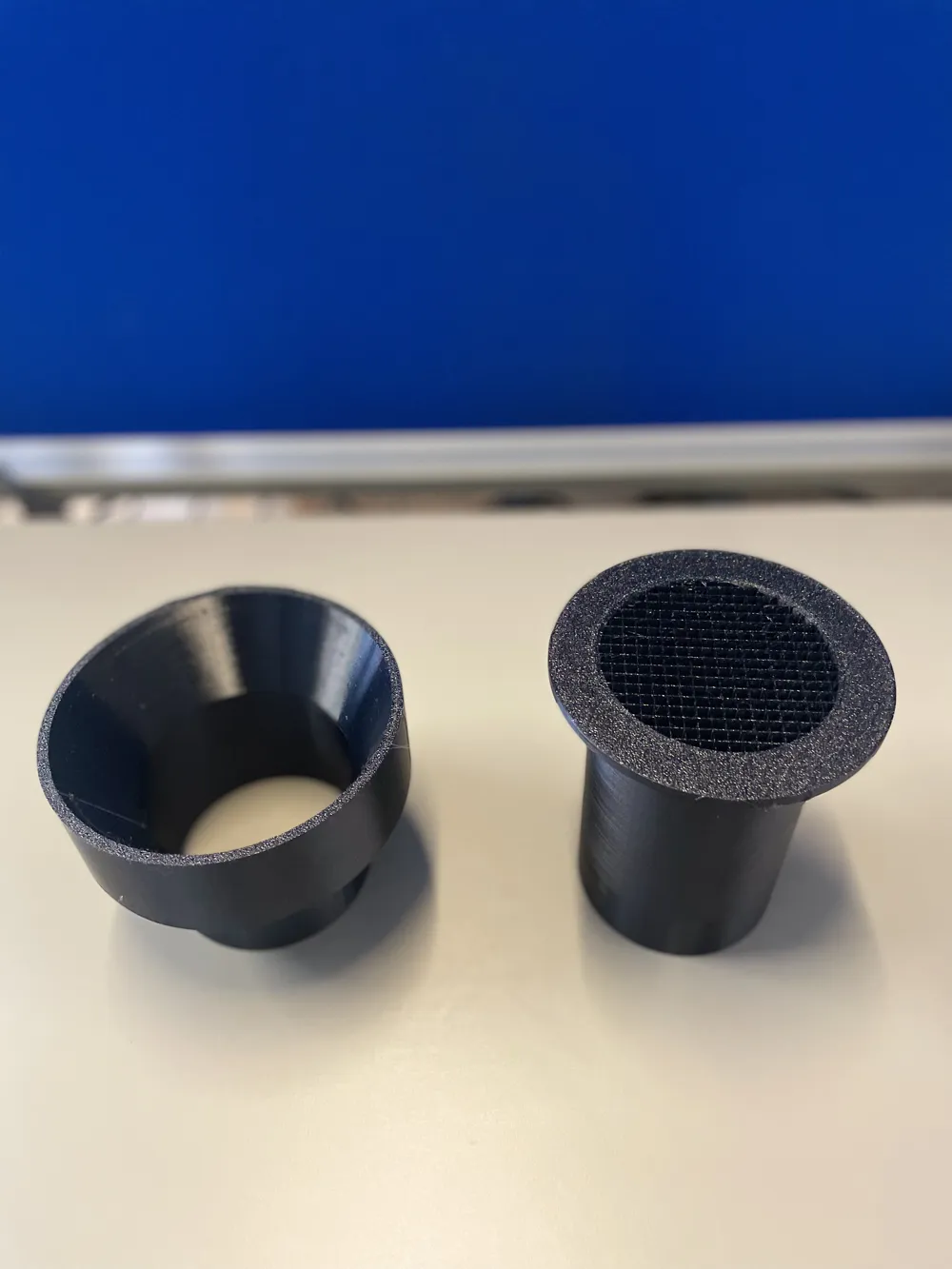

This set of two snap-fit tubes allows for a through-wall connection for a split air conditioner, with an external insect/dust filter and an internal nozzle equipped with a seasonal closure cap.
- Recommended material: PETG, for its mechanical strength and thermal stability.
- Parametric and customizable: adapt the diameter to your hole (here tested on Ø 80 mm).
- Screwless assembly: the two pieces fit together perfectly thanks to the studied tolerances.
- Verified features: functional tests and photos available in the gallery; it is advisable not to modify the tolerances to maintain the correct snap-fit.
- If necessary, use a little silicone if you want to keep the tube fixed and glued in the wall hole.

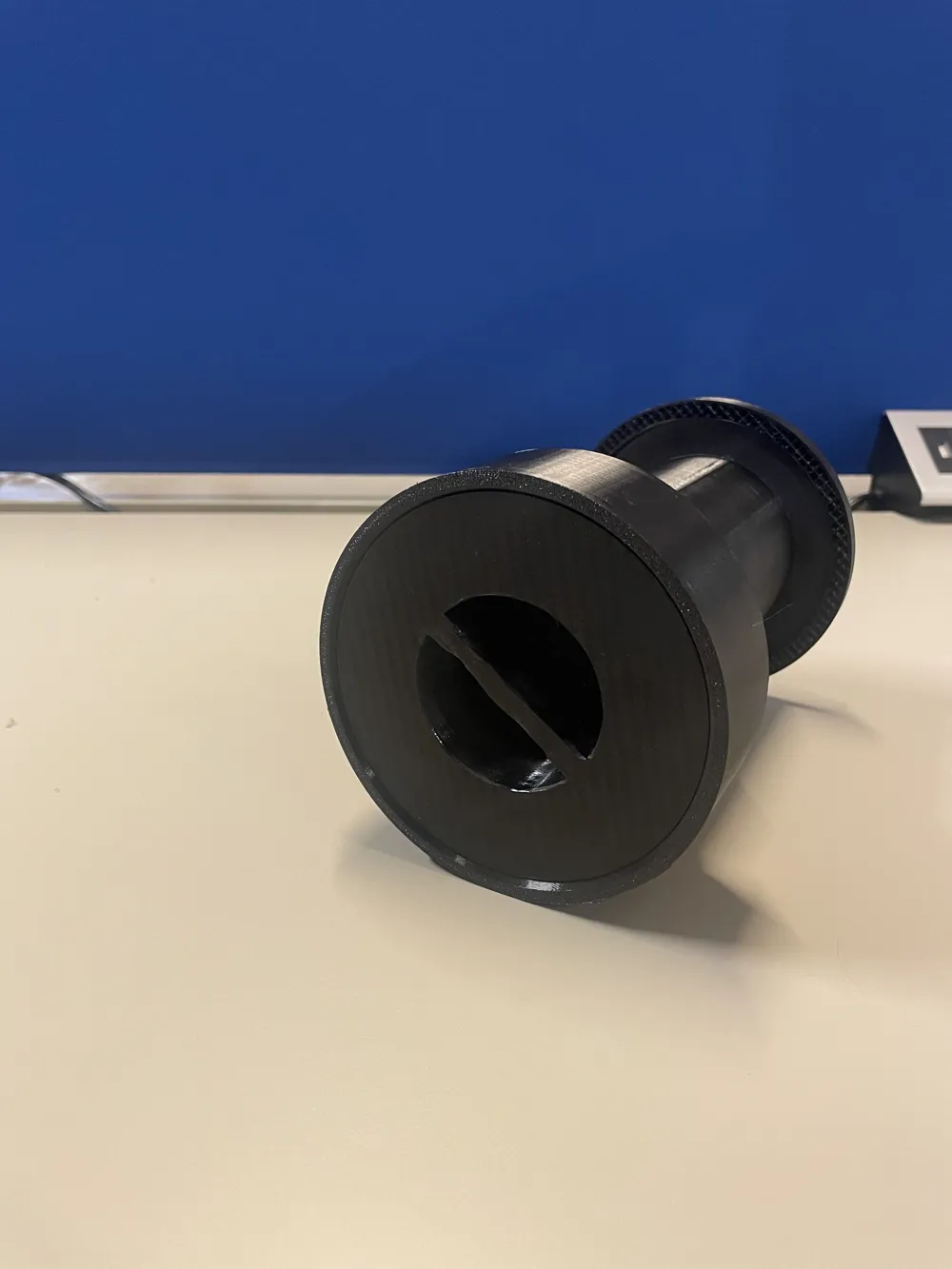

- Integrated closure cap protects the internal passage when the air conditioner/flipper is stopped or detached so as not to leave the internal tube slot open.
