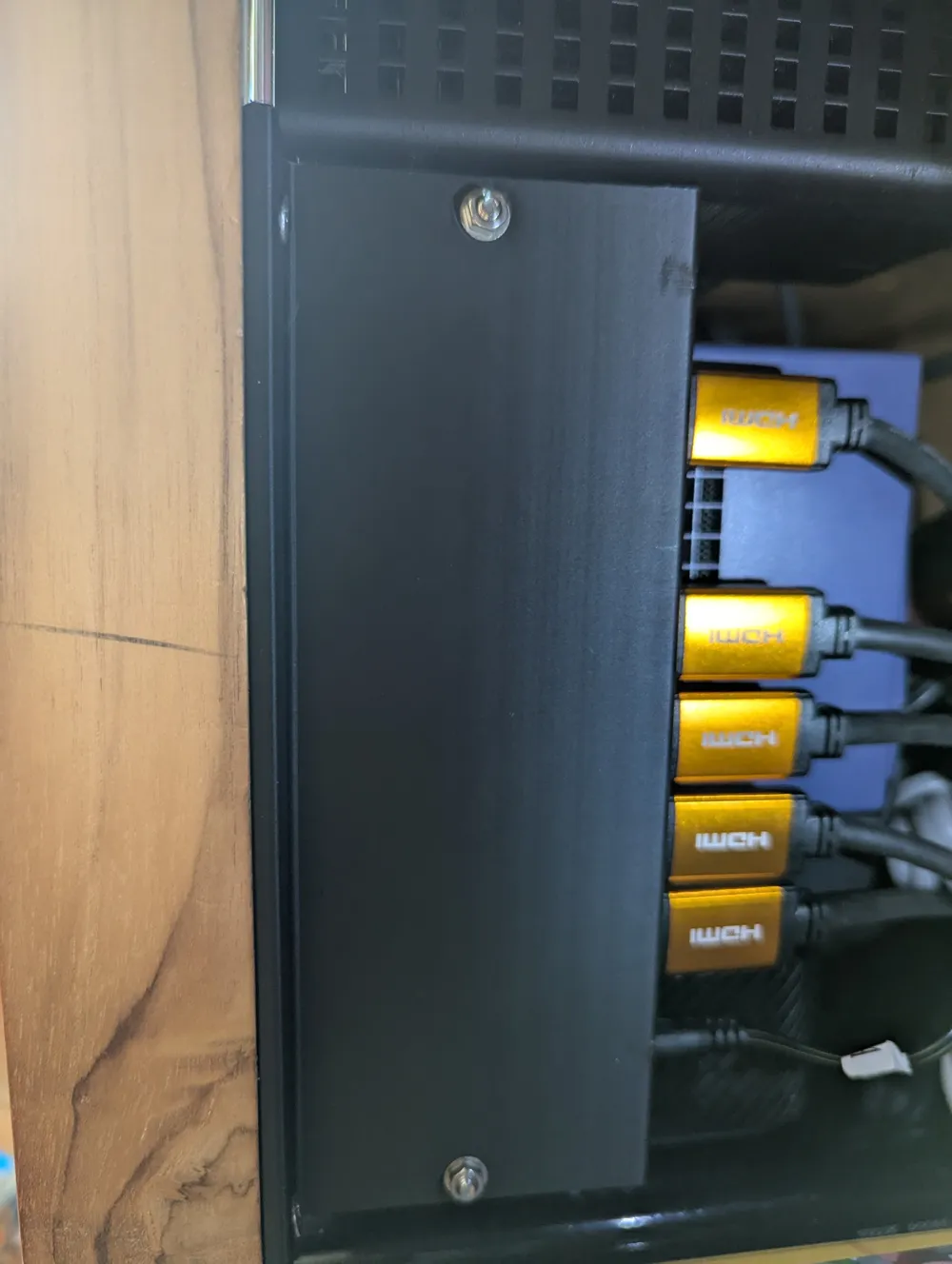

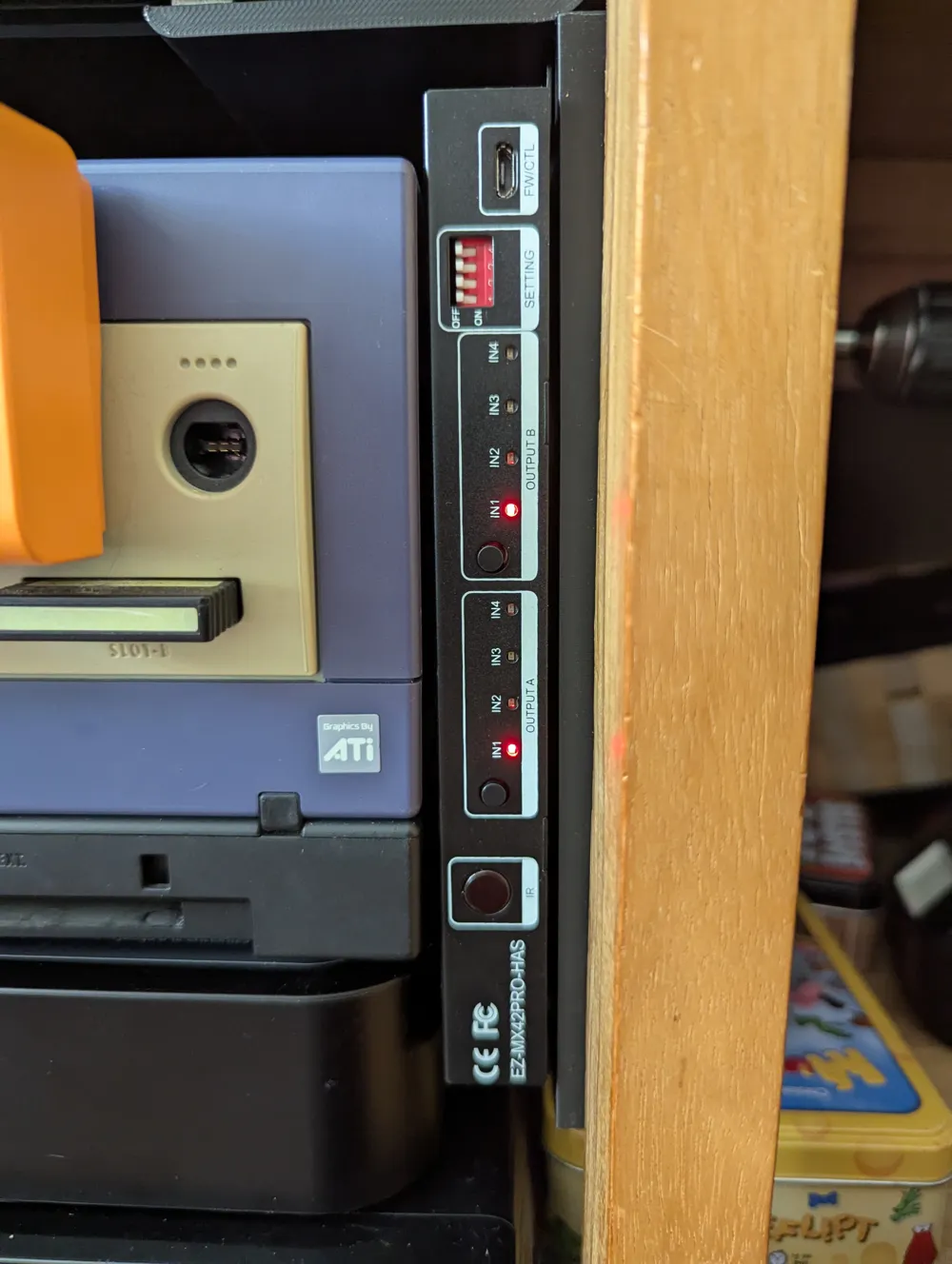

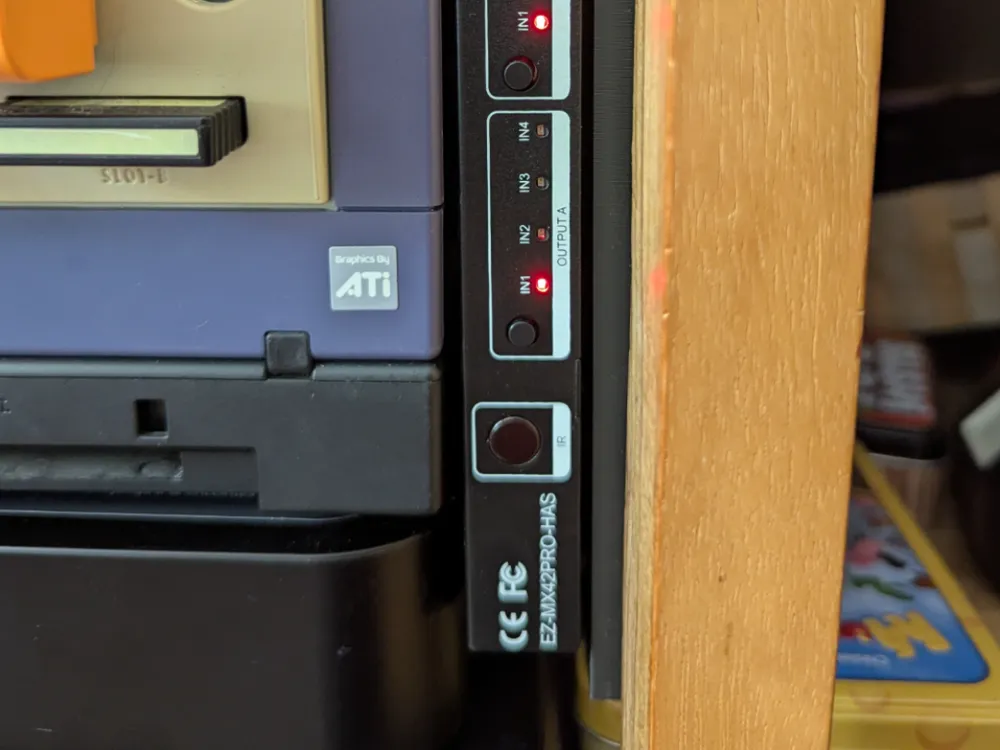

A simple bracket for a HDMI Matrix 4 in 2 Out (EzCoo)

To side mount it to our TV closet.

Should fit any device with width of 18.75 cm between the bolts you can use 2x M4x12 bolts and 2x m4 nuts 4x washers 4-6m
