NERV box for arduino with 16x2 screen and keyboard
Print Profile(1)
Description
Box for electronics in colors of Eva unit 1 from Neon Genesis Evangelion
I used it with arduino but you can use raspberry or whatever

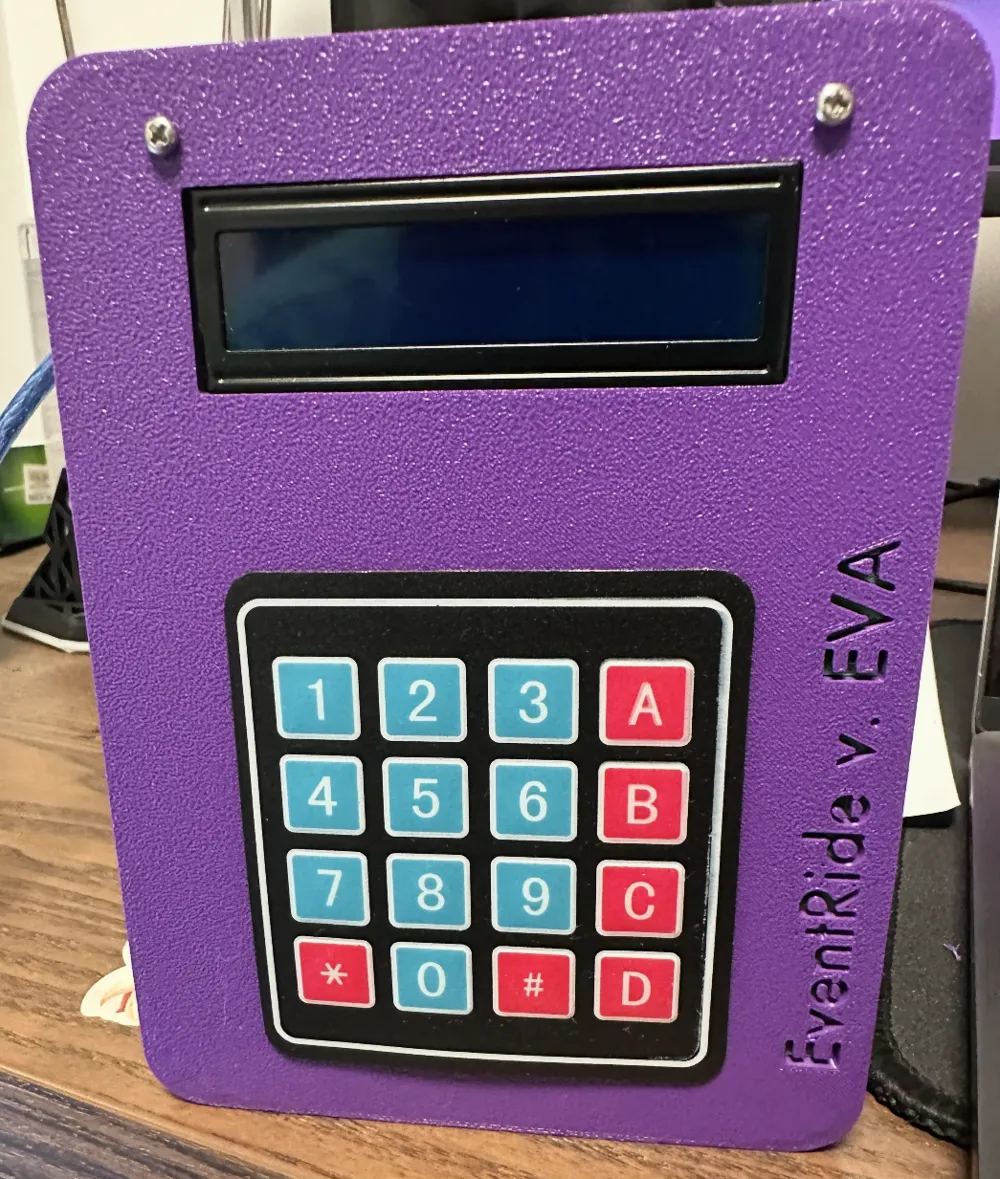

Has built in gap for 16x2 screen and 4x4 matrix keyboard

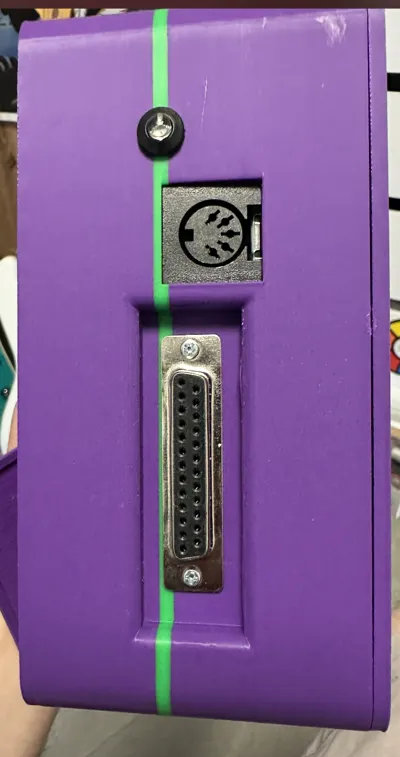

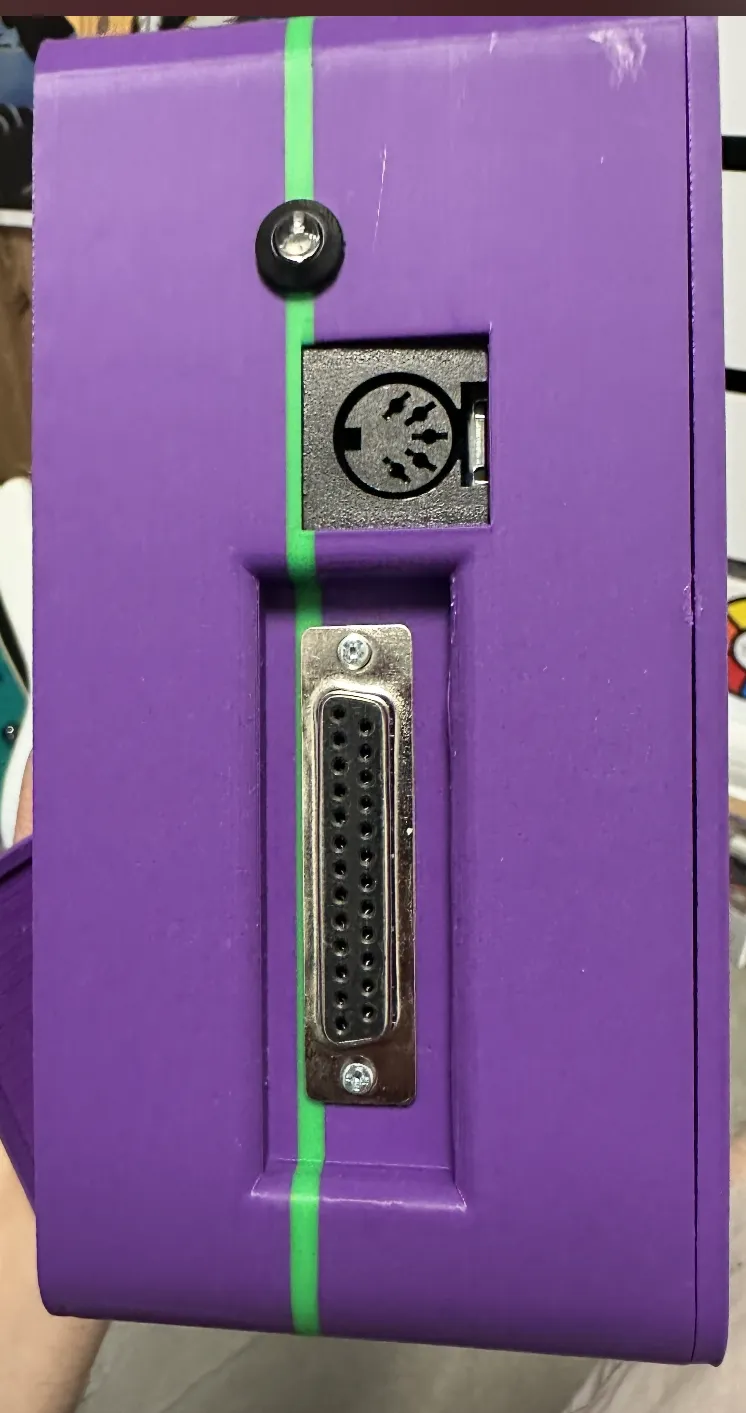

Two box versions: One with db25 port, LED holder 10mm and midi hole and second one with only Led hole.
Used glue gun for midi and led to stay in place but they fit well and dont really need. Midi is tight fit.
Used screws for db 25 and screen (need to drill holes of your liking)
keyboard has sticker on the back so it sticks.

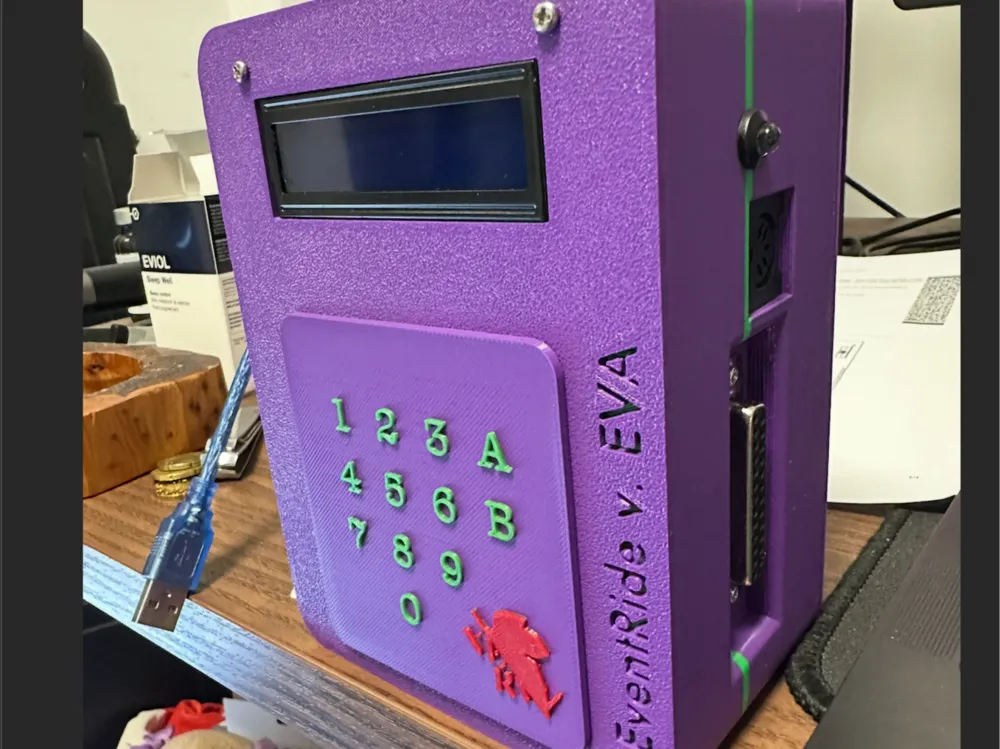

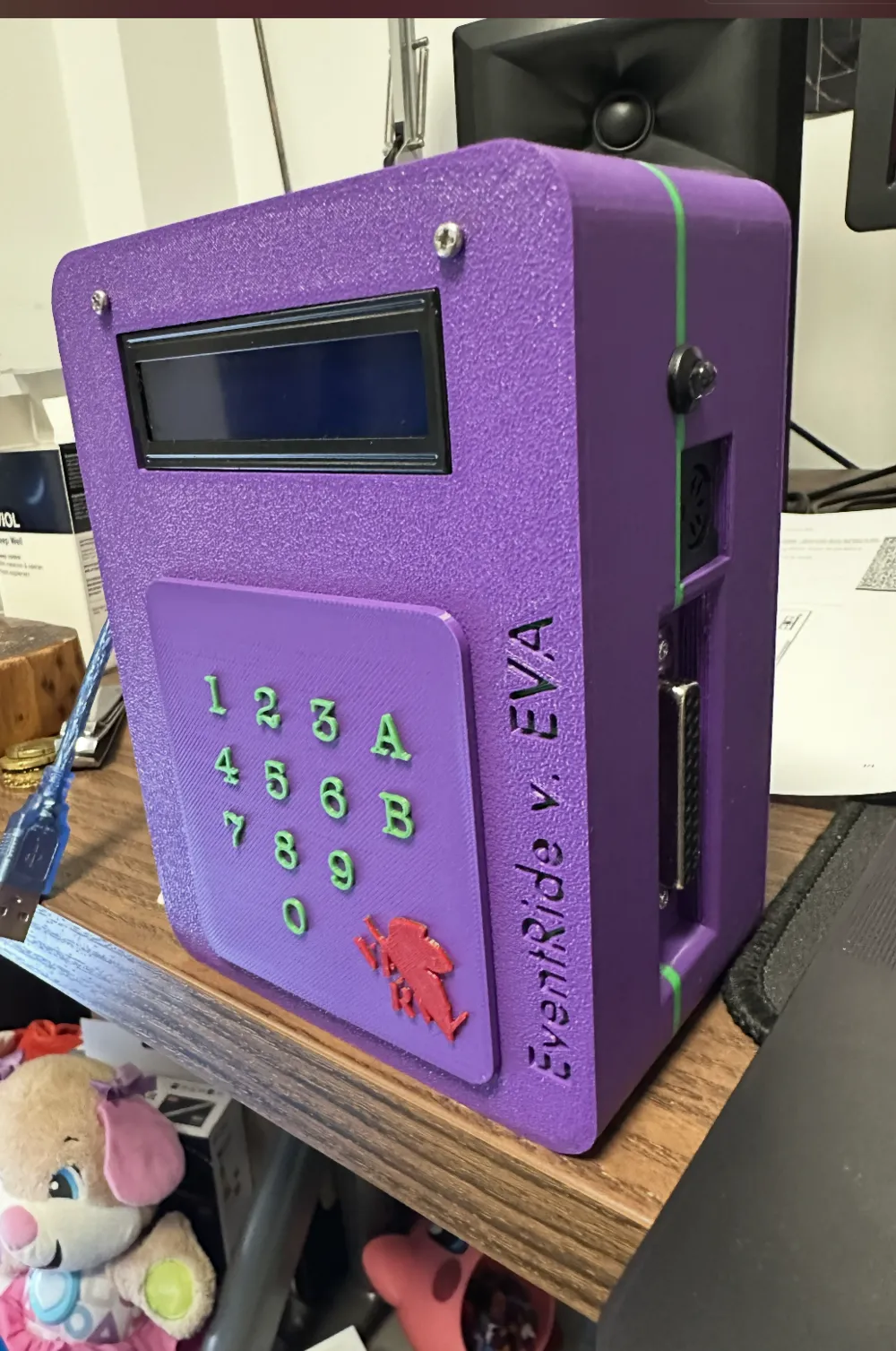

Made a cover for the keyboard aswell but its kinda hard to hit the keys but still you can. can feel the click of the buttons. (Needs support)
Used 2x3 magnets to hook the box to the cover.

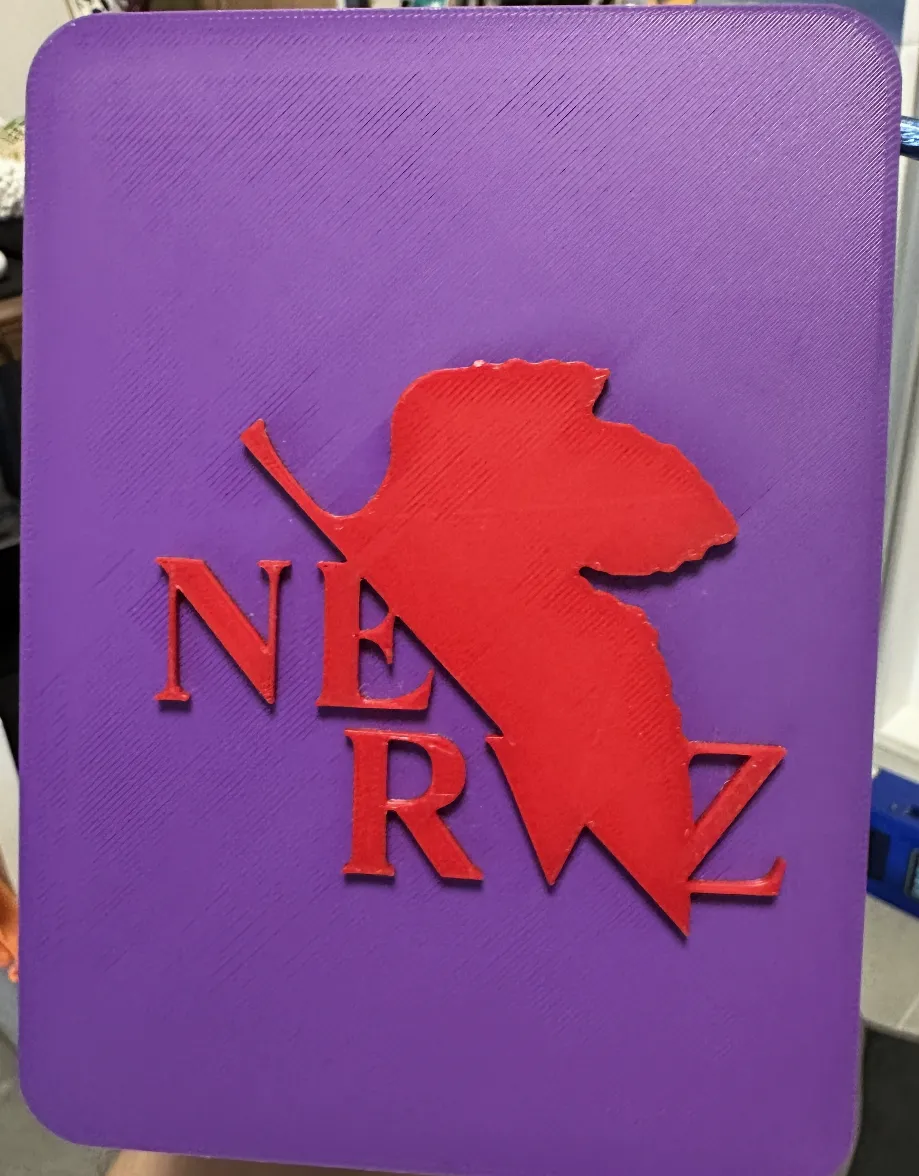

Logo is kinda altered spelling NERV Z :P
Whole on left side for cable
Box can be printed without support but it is reccomended
Used: 2x3 magnets
Glue gun
Screws with nut

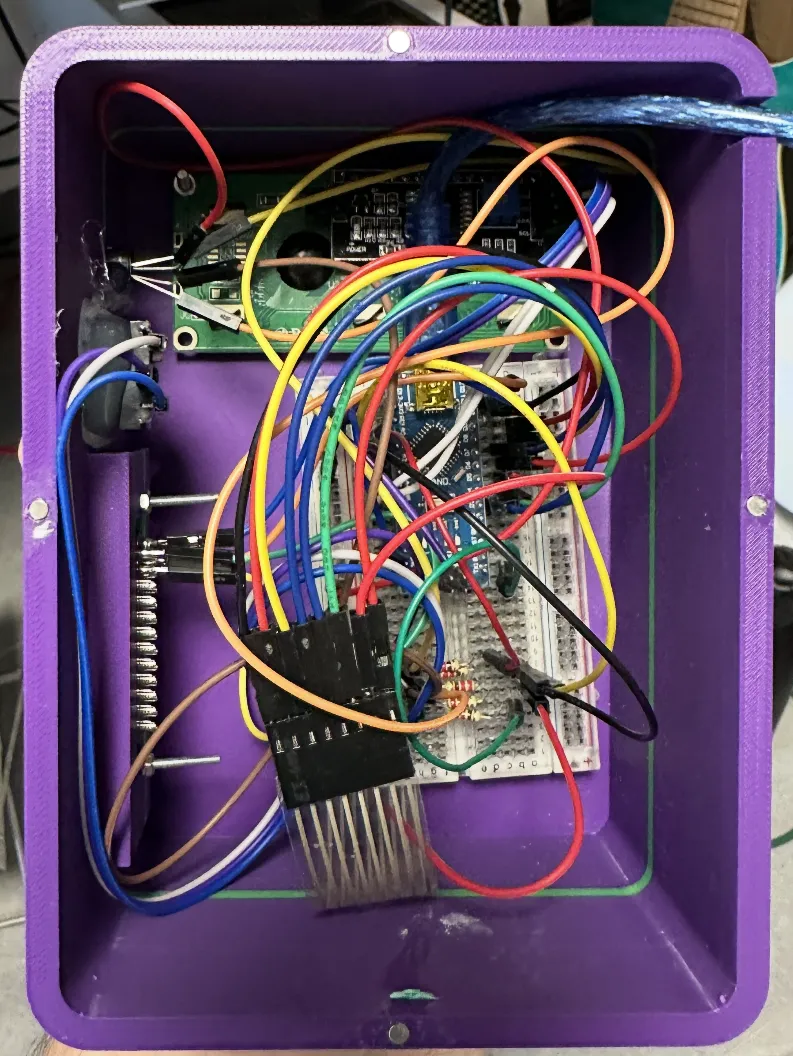

mini breadboard to hold arduino with back sticker
Hope you enjoy
