Print-in-place hinged pipe clamp uses 3d printed screws and nuts. Clamps onto pipe diameters from about 29.5mm to 35mm.
(Think broomstick) Should be able to scale this to some degree, but that has not been tested. Hinge clearances are 0.4mm.
Screws will easily shear if overtightened. Locking nuts provided to avoid loosening. You can use actual screws and nuts if desired. A ¼-20 bolt will fit through the provided roll nut (use 2) and works well. But again, don't overtighten.
The printed screws and nuts are failing for too many people in the comments below, recommend using standard hardware.

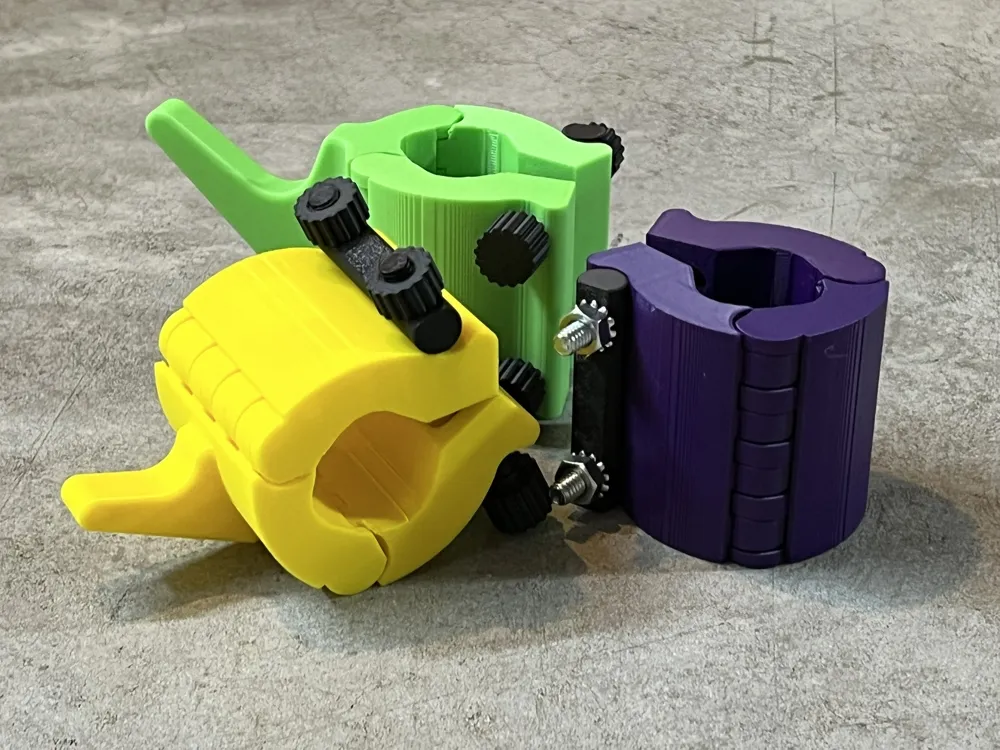

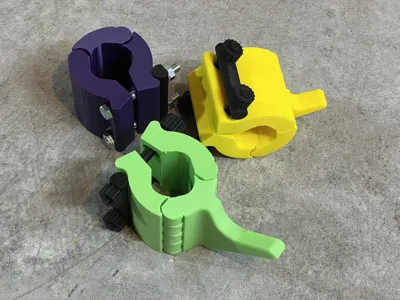

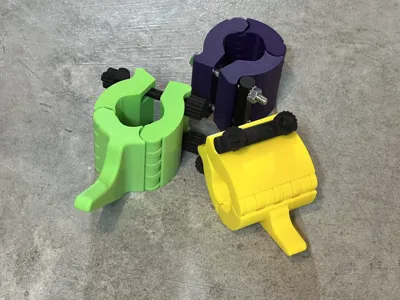

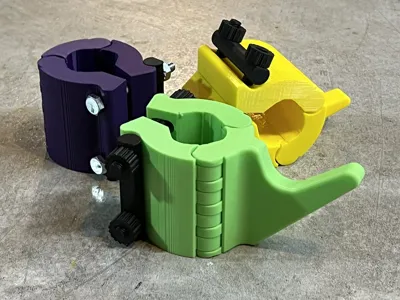

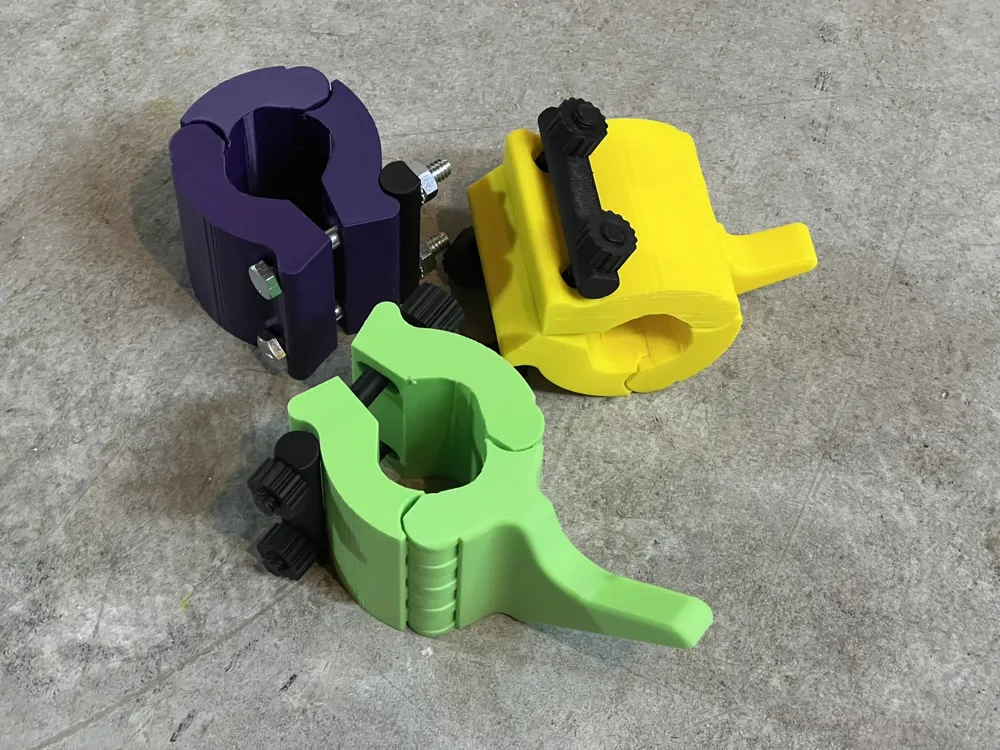

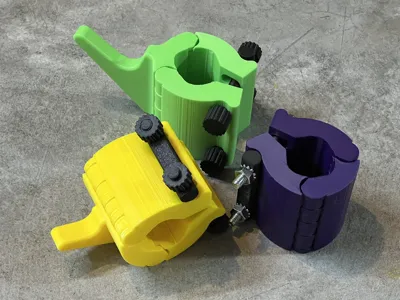

4 Versions (separate print profiles)

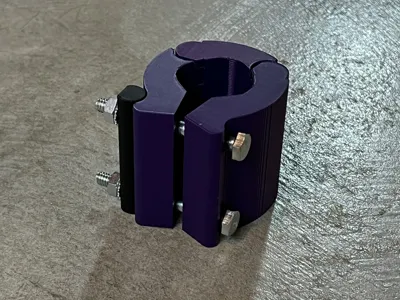

- Standard Pipe Clamp (purple, shown with ¼-20 screws and nuts)

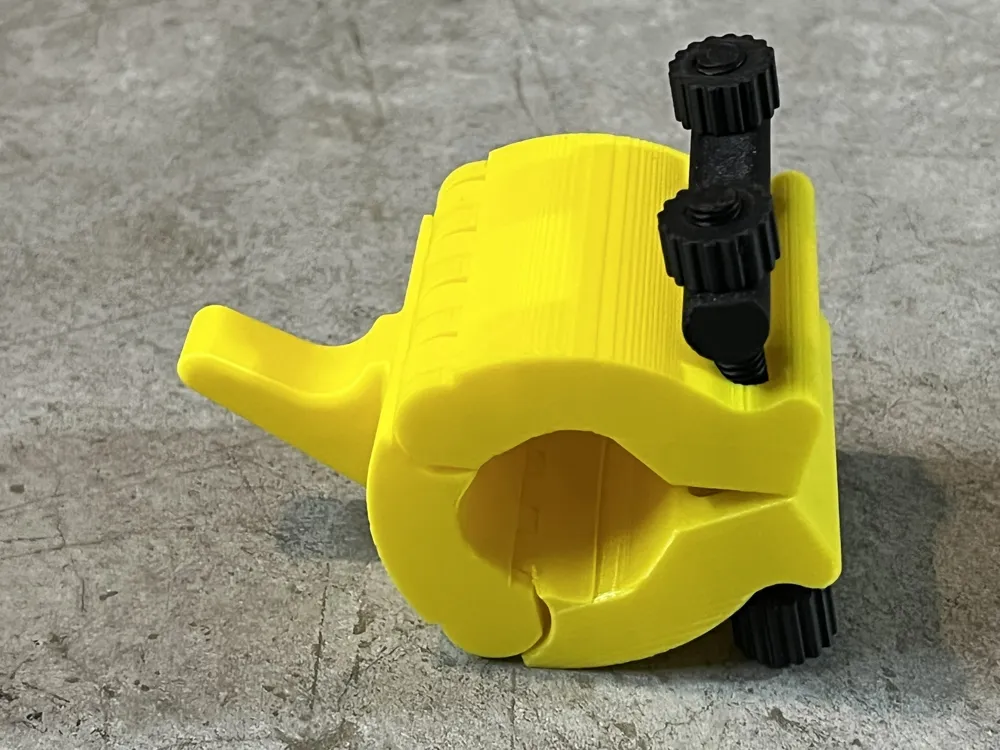

- Pipe Clamp - Horizontal Hook (yellow)

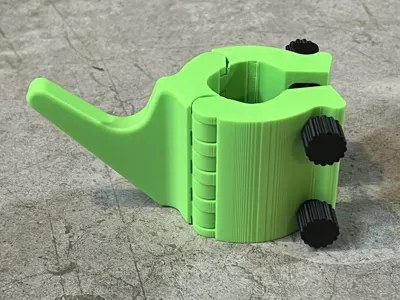

- Pipe Clamp - Vertical Hook (green)

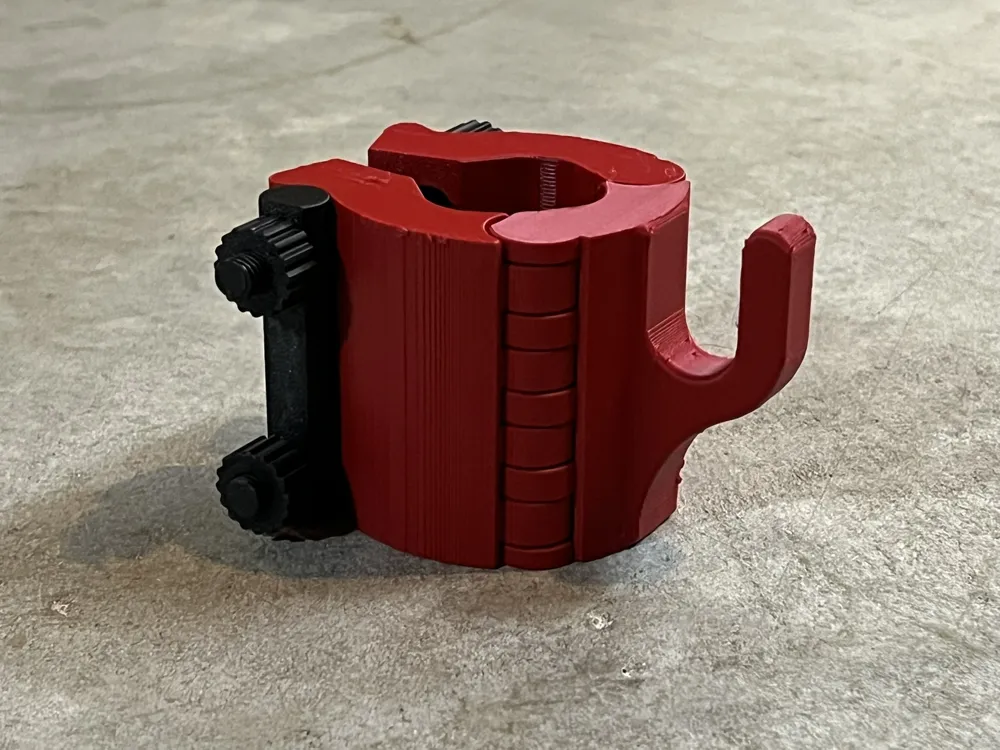

- Pipe Clamp - Vertical Hook 2 (red)
Version History
- 6/30/2025 - Original release.
- 8/2/2025 - Added Vertical Hook 2

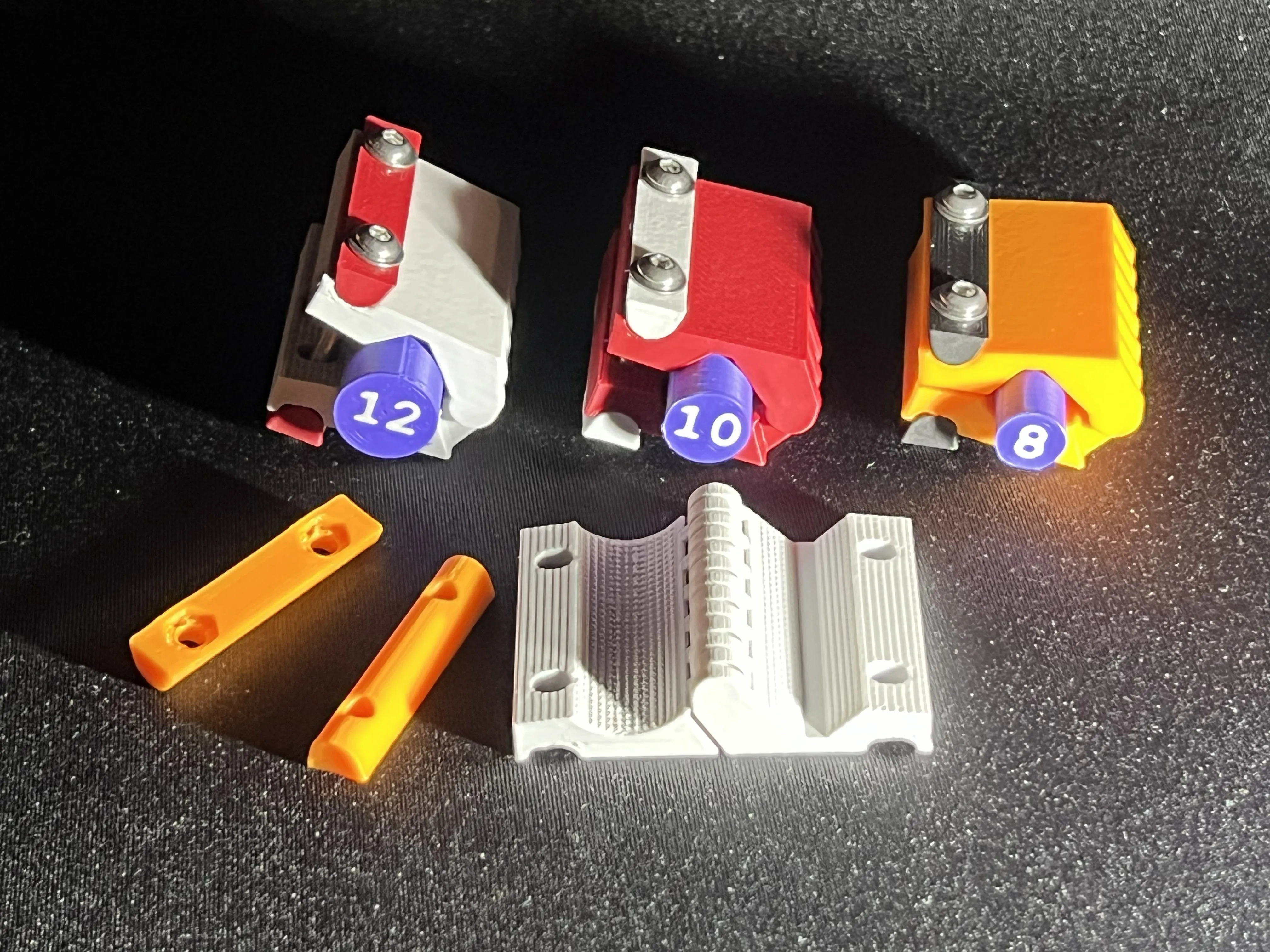

- 6/3/2026 - Added a smaller version, for 8mm-12mm pipe. Find it here:
