Daisy Red Ryder M-Lok Handguard - Ranger

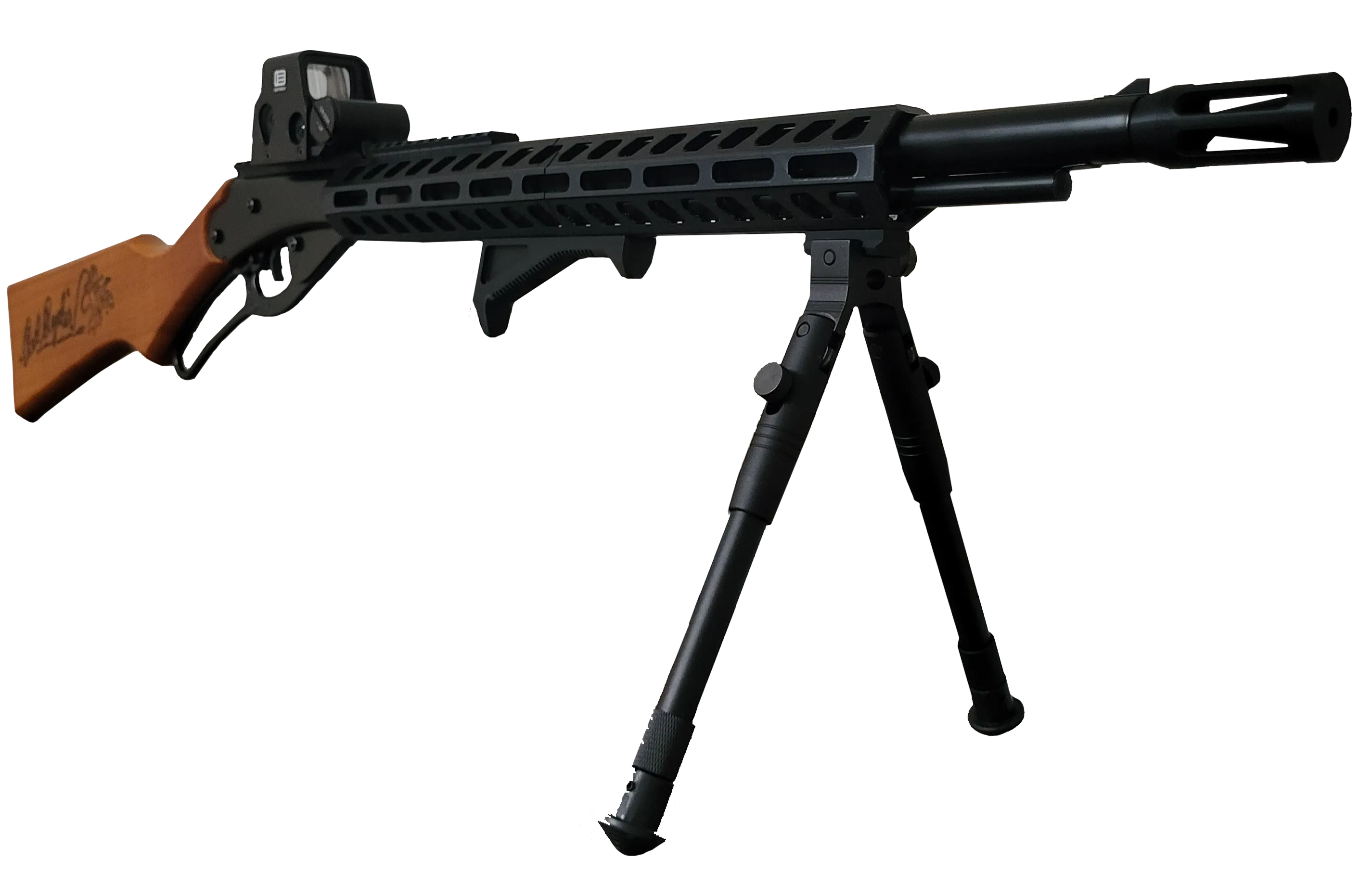

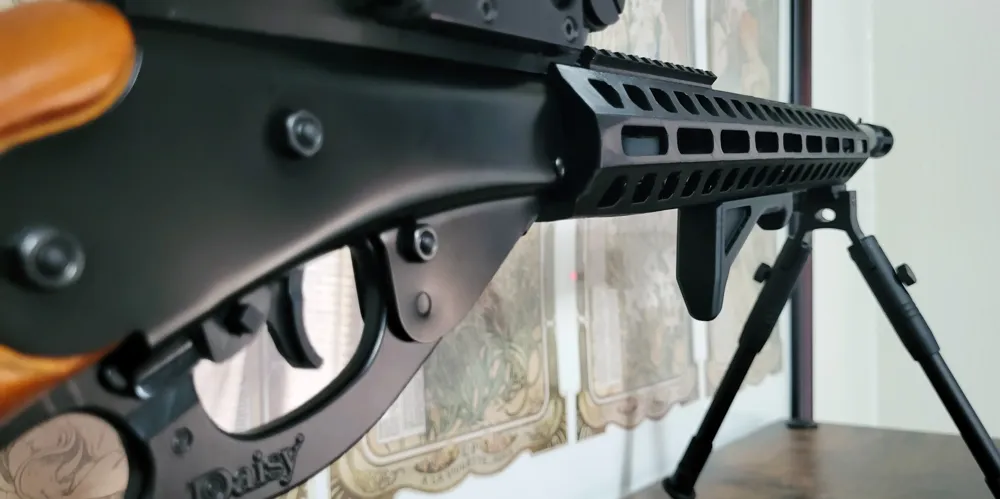

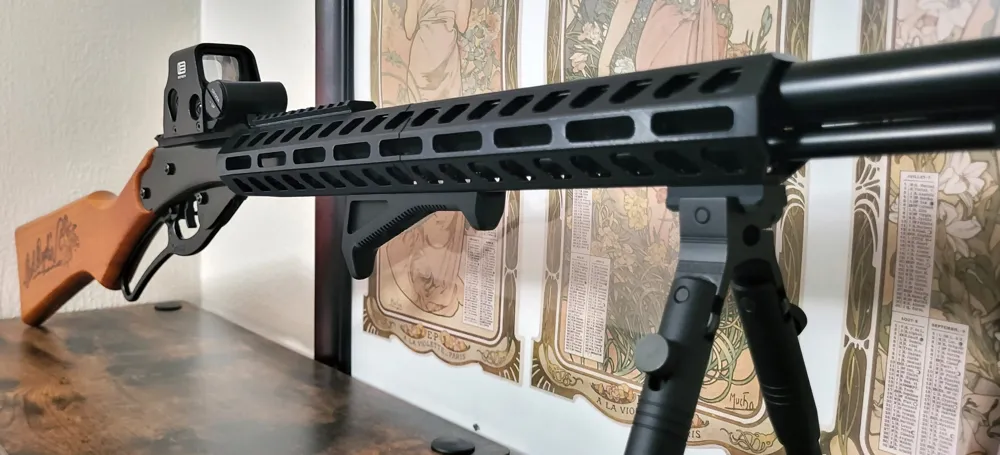

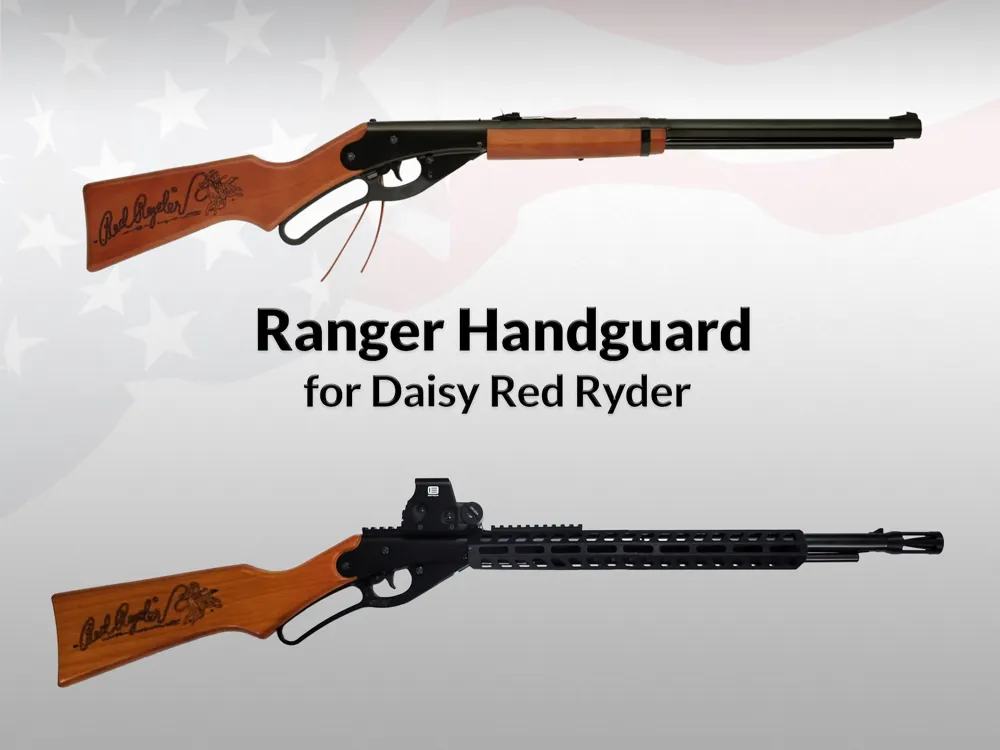

This is a M-LOK handguard for the Daisy Red Ryder air rifle. It is printed in two halves that dovetail together.


Features:

• M-LOK slots along the sides and bottom for mounting accessories.
• 15 inches in length, providing plenty of customization space.
• 2 versions, one with and without a top picatinny rail.

Designed to install with no permanent modifications to your rifle.

I printed my own prototypes in PLA+ and they have held up very well.

Installation Instructions

⚠️ Safety First ⚠️
Before starting any modification:

• Make sure the airgun is unloaded
• Engage the safety

Step 1: Remove the Original Handguard

• If your handguard has a metal collar, slide it forward toward the muzzle and off the barrel.
• Next, remove the Phillips screw from the bottom of the stock handguard.
  The original handguard should slide off easily with no resistance.

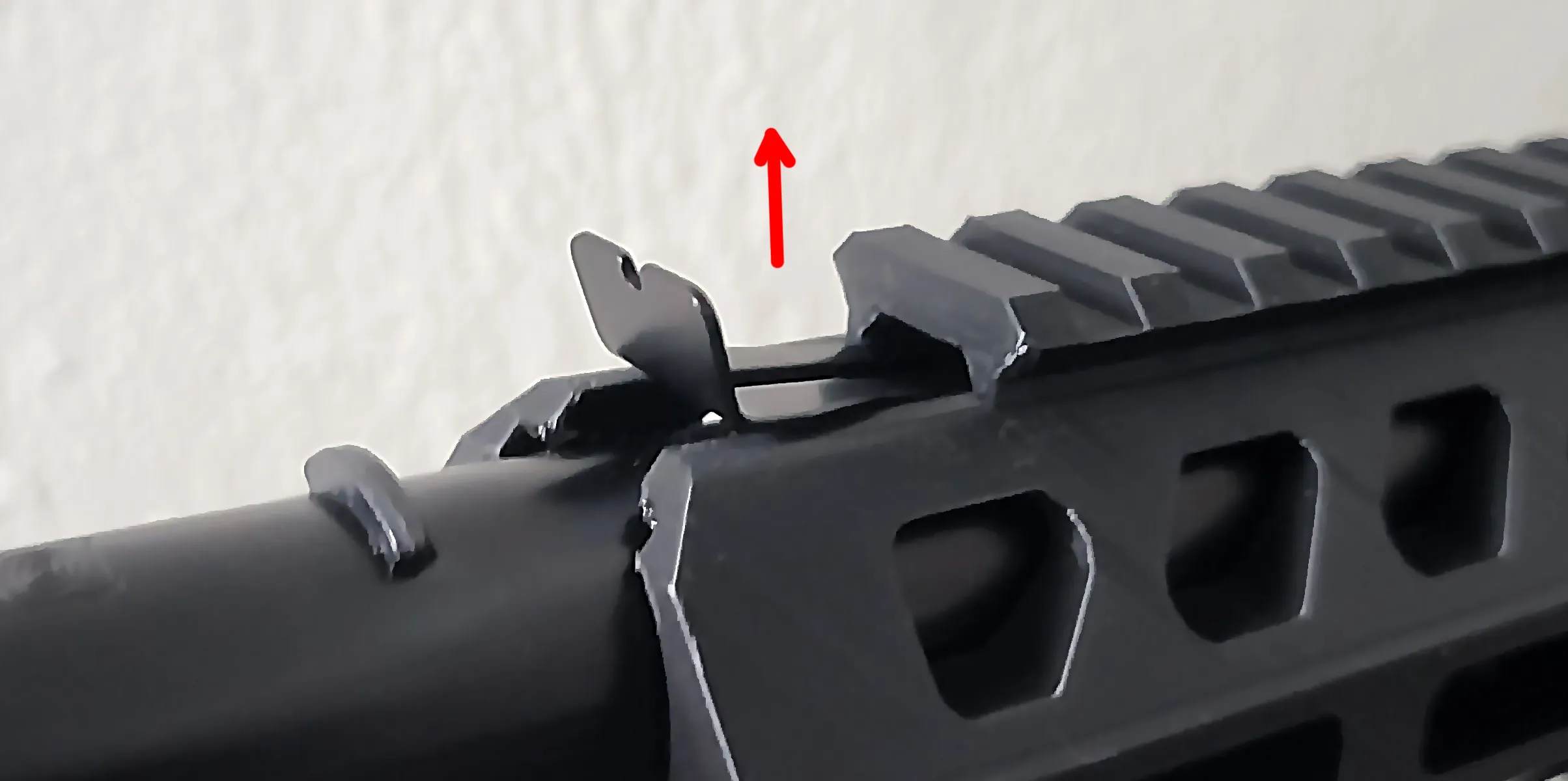

Step 2: Remove the Front Sight

Before installing the handguard, the front sight must be removed.

• The proper method is demonstrated in this video: Watch here

Step 3: Assemble the Handguard Halves

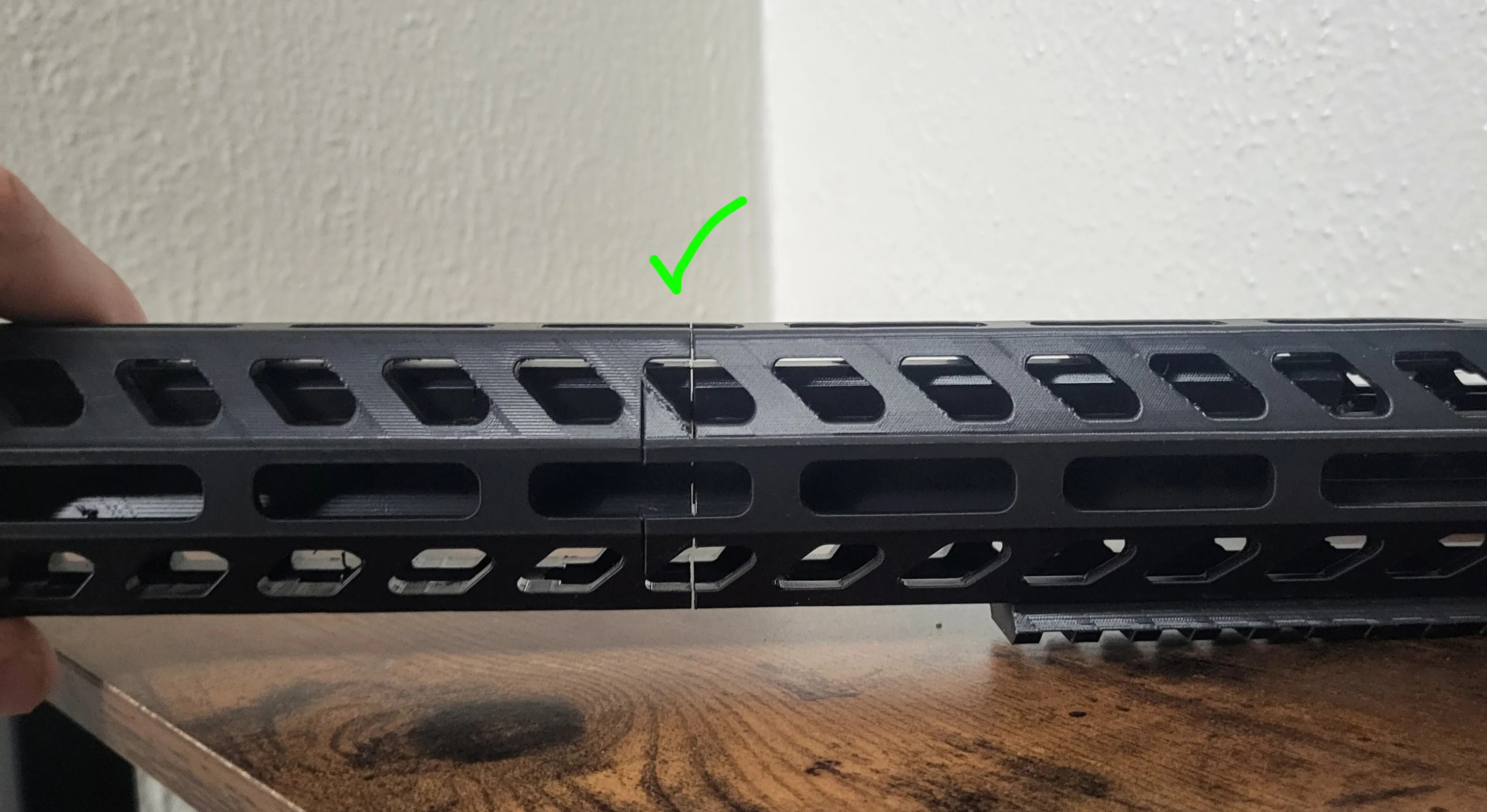

• Align the two halves of the handguard at the dovetail. Ensure they are oriented properly.

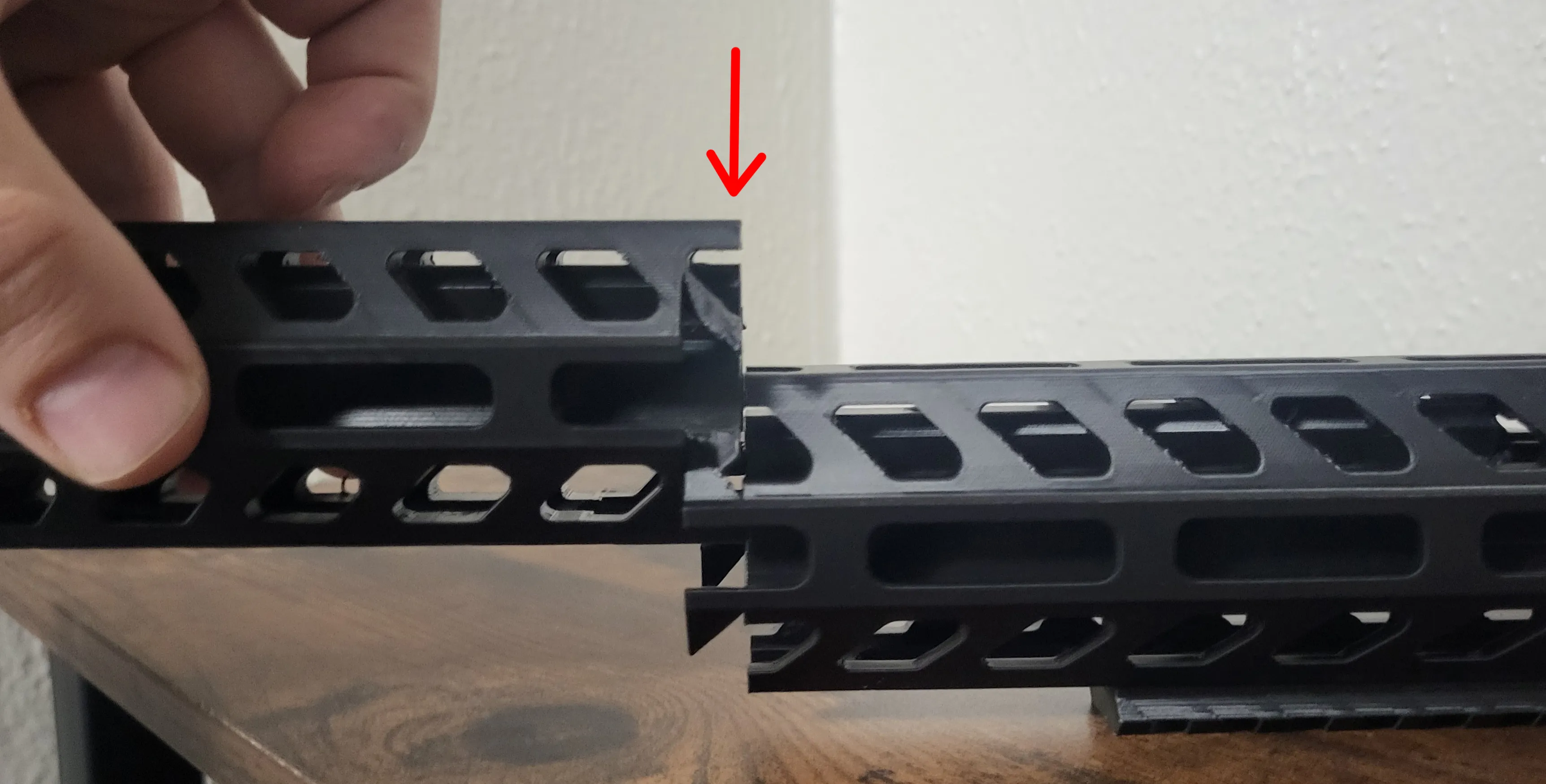

• Carefully slide the halves together until they are fully joined.

Step 4: Install the New Handguard

• Slide the assembled handguard over the barrel.

  •      Press down on the BB loading door if the handguard gets stuck on it.

  •      Ensure the rear sight goes on top of the handguard.





• Push it forward until it seats fully against the rifle body.
• Reinsert the Phillips screw through the bottom of the handguard to secure it.
• Reinstall the front sight.

The handguard might also fit an Umarex Marlin BB rifle, I do not have one to test fitment.

Complete the kit with my Air Stripper Muzzle Brake and Underbarrel Picatinny Rail.
Follow me for more Daisy airgun mods!
