MONOFILAMENT Identity Disc - TRON: Legacy

After much delay, the IDENTITY DISC BACK MOUNT has finally been released!

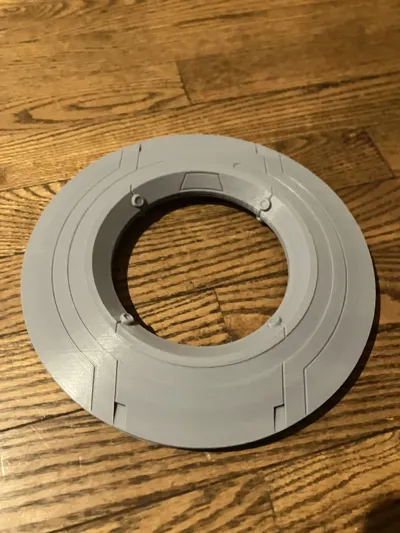

This is an alternate version of my Identity Disc model, reworked to not require multi-filament/AMS printing. All parts and plates use only one filament color each, and are intended to be assembled after being printed. It uses no electronics, though glow-in-the-dark filament is recommended. Also consider the compatible Identity Disc Wall Mount for easy display!

PRINTING GUIDE:

• You might want to scale the little cylinders down to like 98% scale. The tolerance is a little tight because they're meant to fit into a diagonal cylindrical hole…
• All plates should be printed twice with the exception of plates with either Spacer piece, and/or plates with the square Pegs.

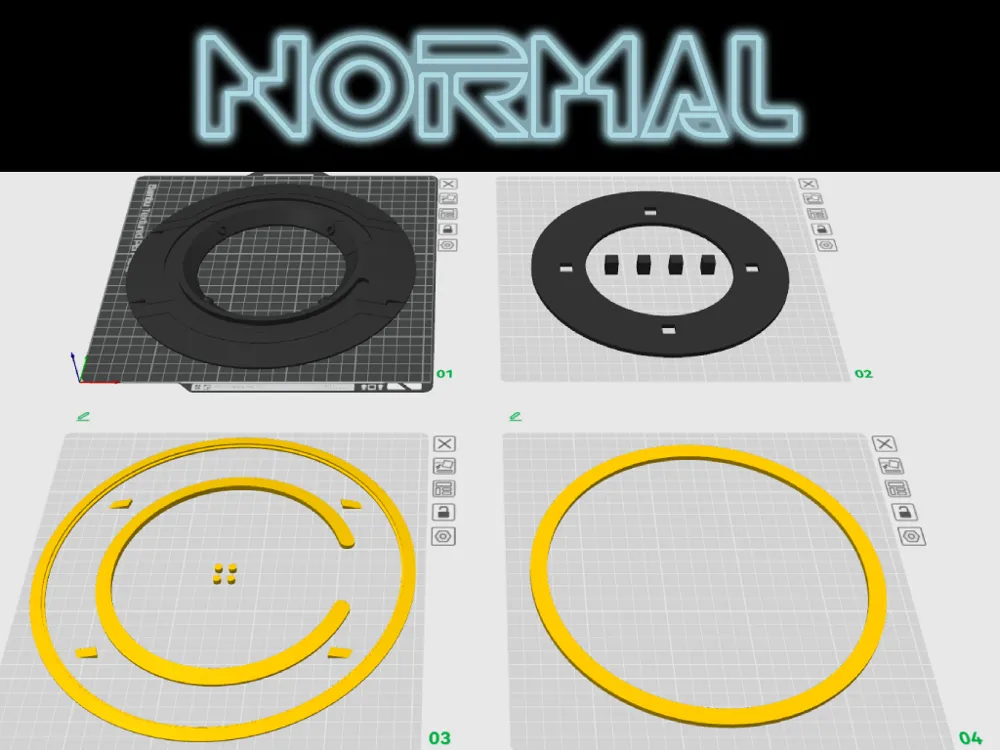

• The “Normal” profile includes a full-sized Disc Blade which may be too large for some printers and a two-piece Spacer, with the outside intended to be printed with the highlight color.

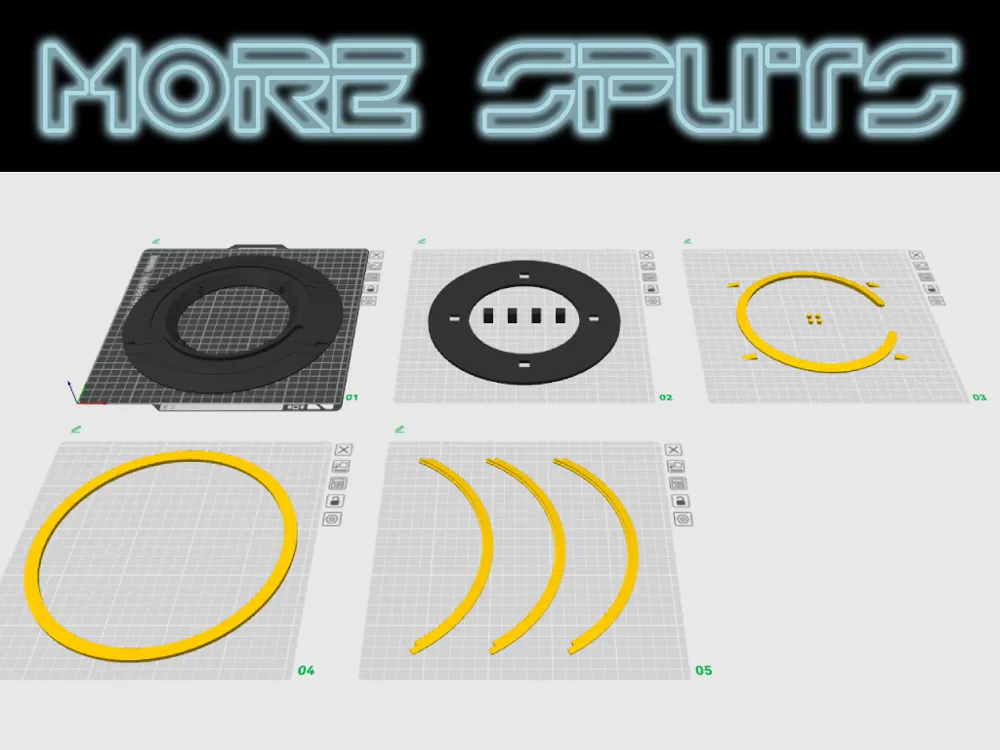

• The “More Splits” profile splits the Disc Blade into thirds, allowing it to fit on most printers. It also contains the two-piece Spacer.

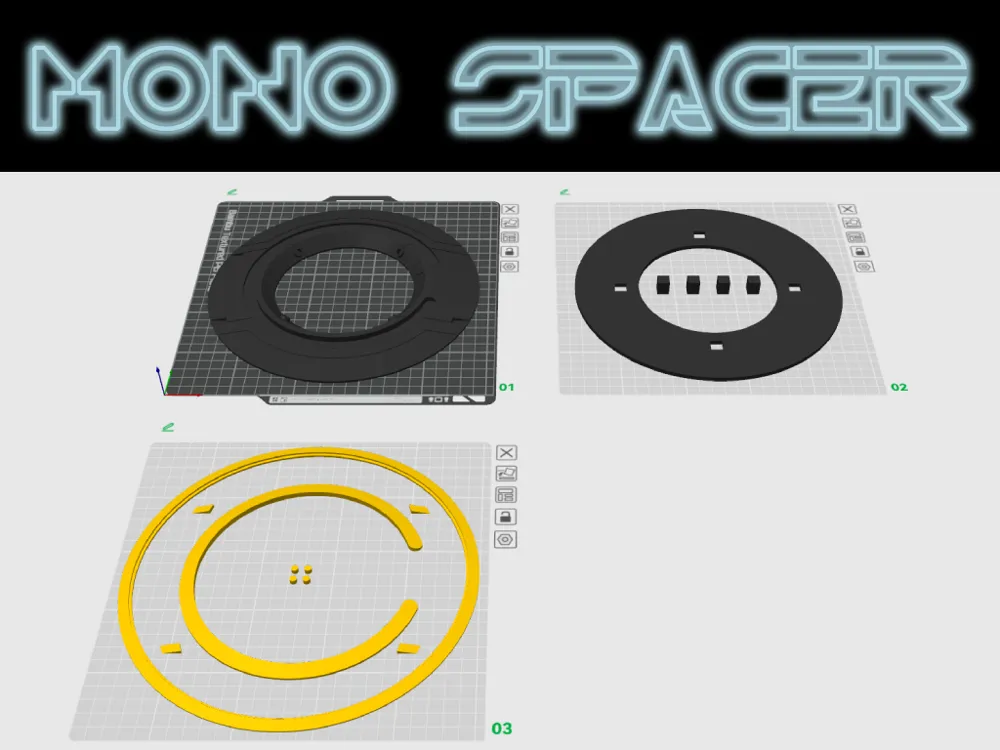

• The “Monocolor Spacer” profile includes a full-sized Disc Blade, but combines the Spacer pieces into one large Spacer intended to be printed as the base color.

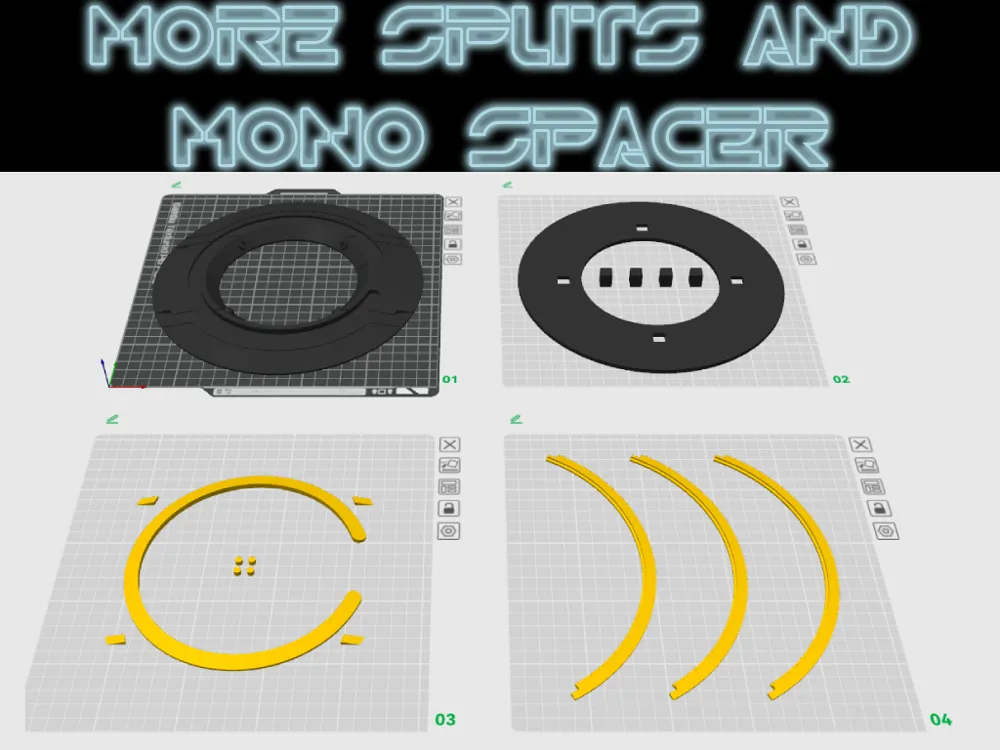

• The “More Splits and Mono Spacer” profile splits the Disc Blade into thirds and combines the Spacer pieces into one large Spacer.

Made with Fusion 360.
