Oreo Cable Winder, 27g fully disassembled! Makes a great desk ornament~ Practicality first
Print Profile(14)
Description
-----2026/05/25 Important Update-----
(Please select the print profile with "05/25 Update" text)
Thank you all for your love and support This is an important update that fixes almost all issues
Note: The small size is only suitable for Apple and Samsung original thin cables, thin cables, thin cables

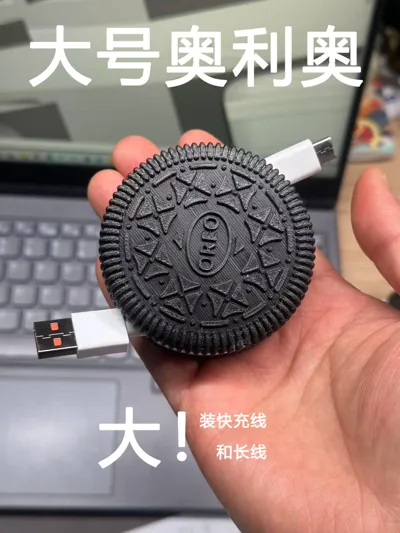

The large size is suitable for fast charging cables and thin cables longer than 1.5m
Installation Instructions

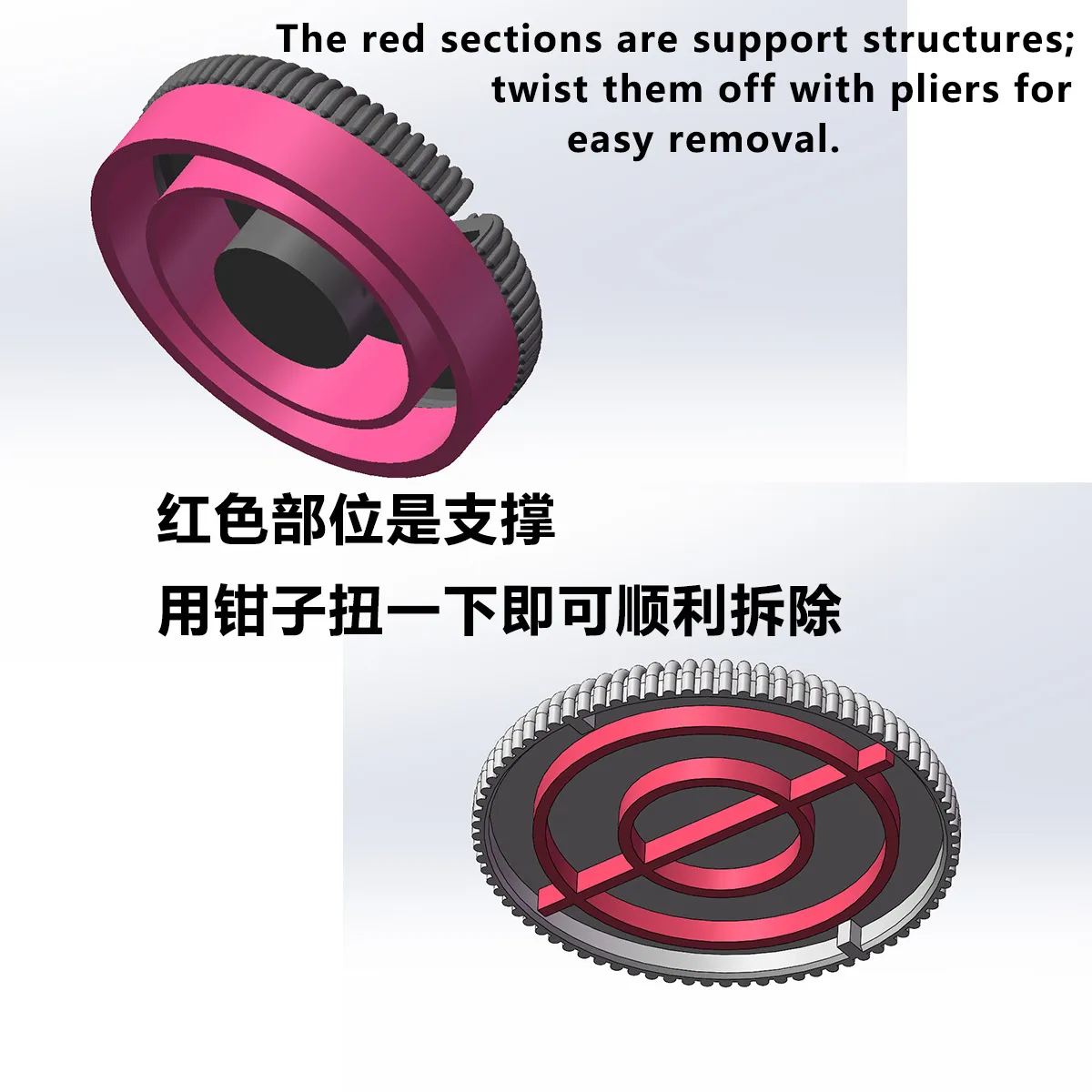

The outermost ring support must be loosened by twisting it with pliers before breaking it off, otherwise it can easily damage the structure Currently, no better support removal method has been found
Usage instructions, it's an animated GIF, if it doesn't move please click to view it
Optimized details:
- 1、Optimized top cover size and central rotating shaft structure - Solves the problem of easy winding but difficult unwinding (It basically won't get stuck anymore)
- 2、No disassembled parts compared to the old version Eliminates the slightly complex assembly process
- 3、Added custom-drawn supports Actual measurements show that both the support surface and removal difficulty are significantly better than supports generated by slicing software The software may prompt for overhangs, please ignore them

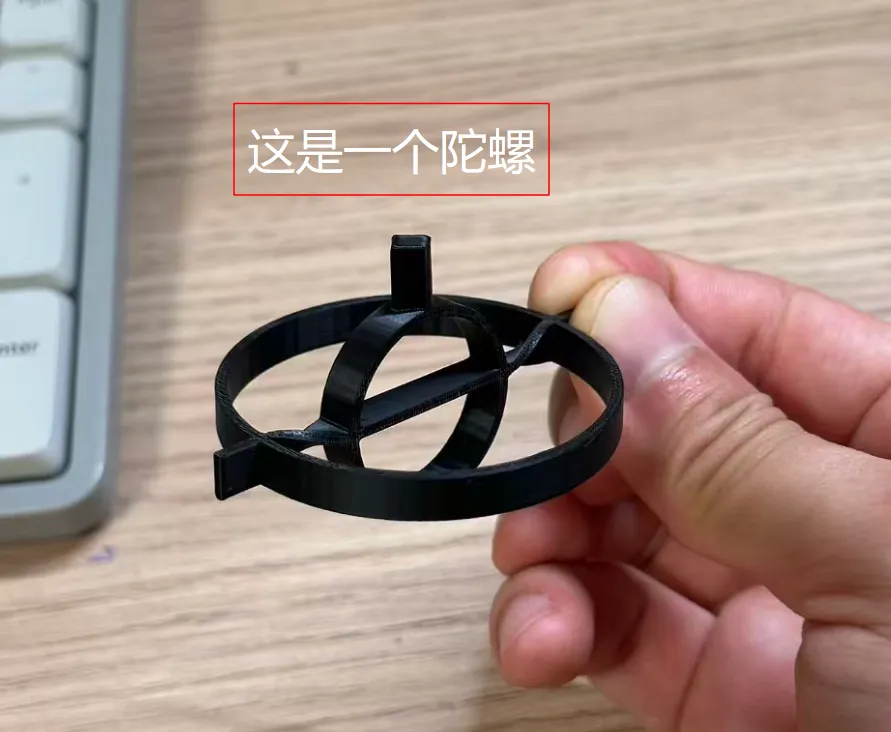

- 4、One of the supports for the large Oreo has been changed to a gyroscope It's a hidden easter egg for waste utilization
If you don't like supports, you can try the previous print profiles (The previous print profiles had many disassembled parts for zero support and had issues with difficulty pulling out the cable)
The size has not changed, so the old Oreo base is still universal
--The following is the content from the old version!!!--

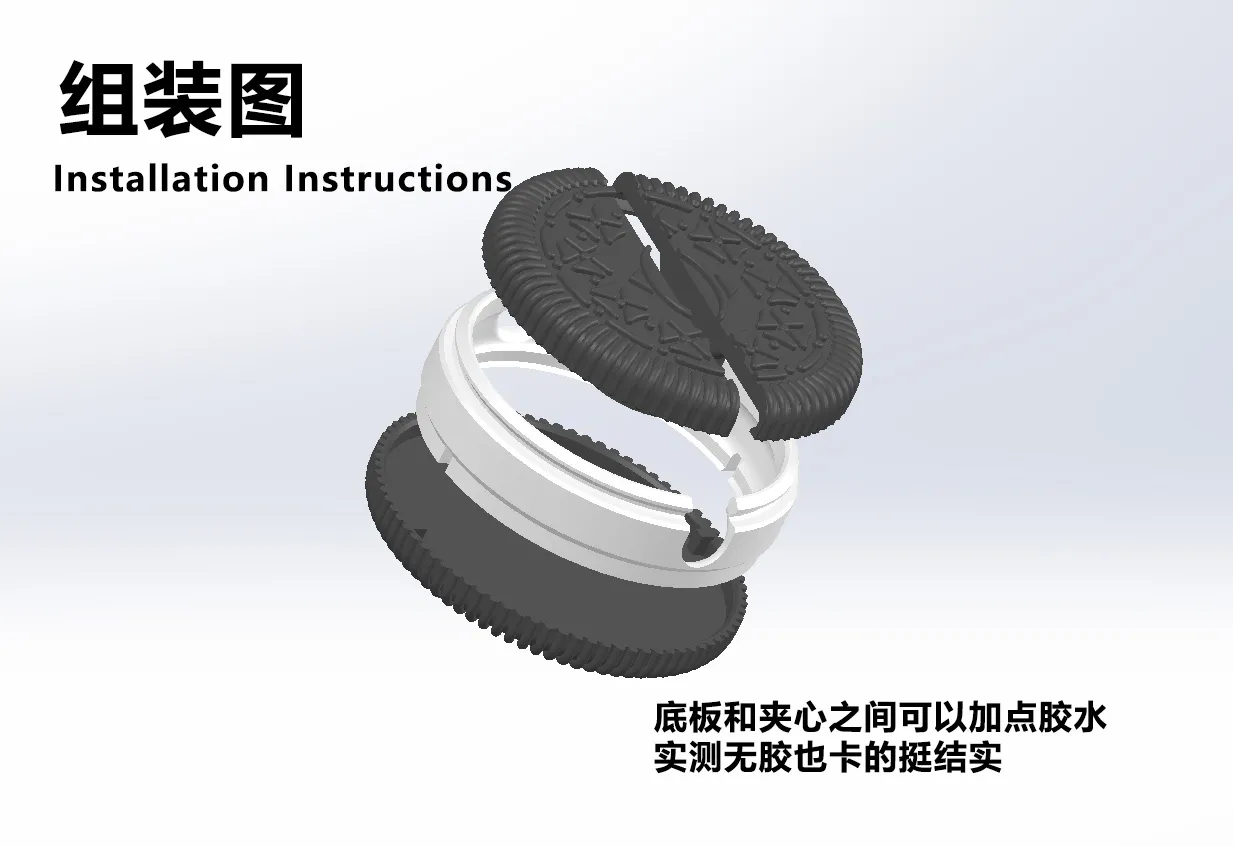

Installation Instructions:
To facilitate printing, all parts are disassembled The compact structure does not allow for snap-fit connections, so glue is required for installation (The black ring has a front and back, with the rounded side facing up and the flat side facing down)
You can refer to this GIF for usage instructions

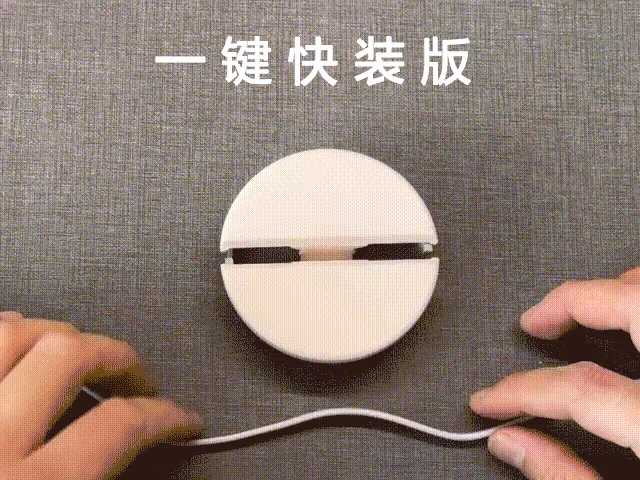

One-click quick install version https://makerworld.com.cn/zh/models/803469#profileId-779333
While making the mini version, inspiration struck, and I modified it into the Oreo style
If you need the large cable winder, you can access this link
