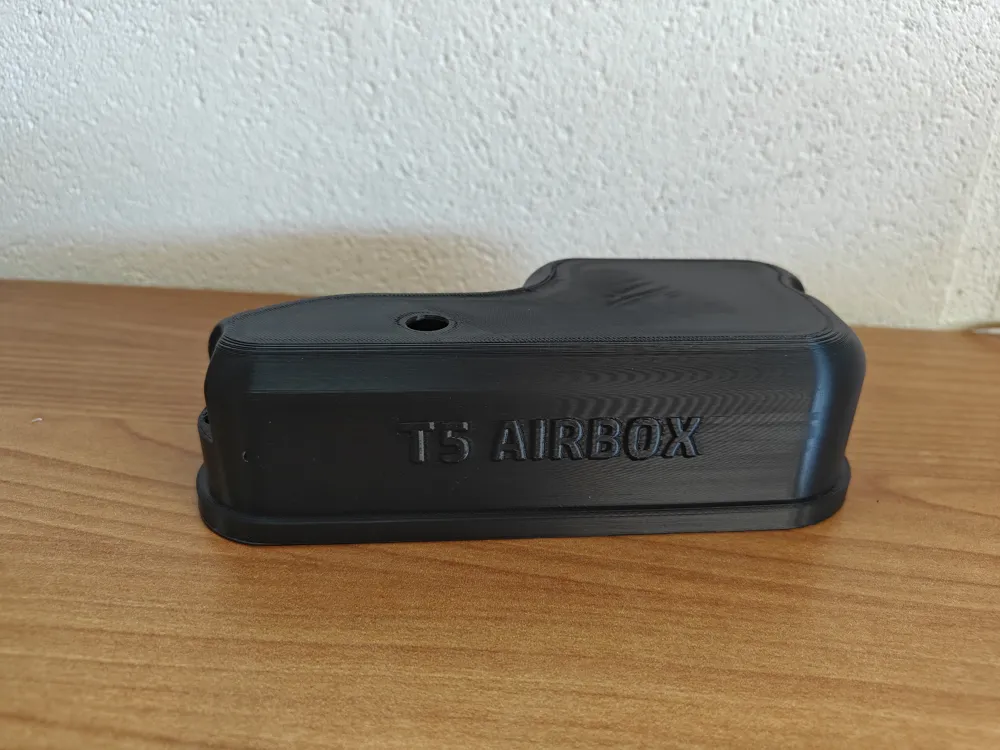

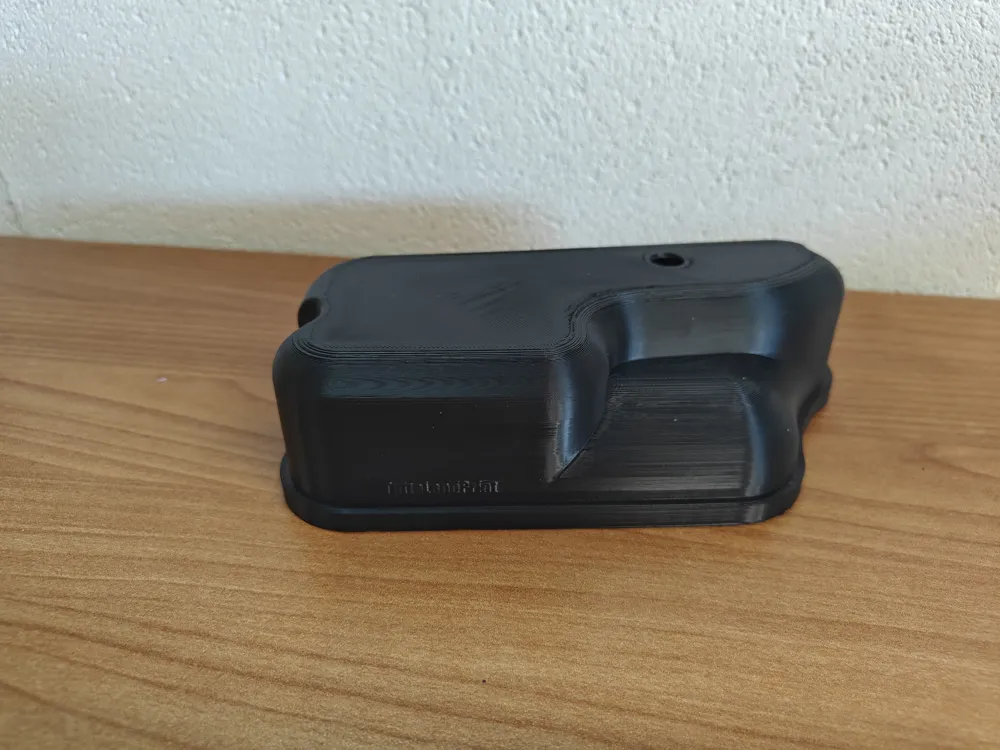

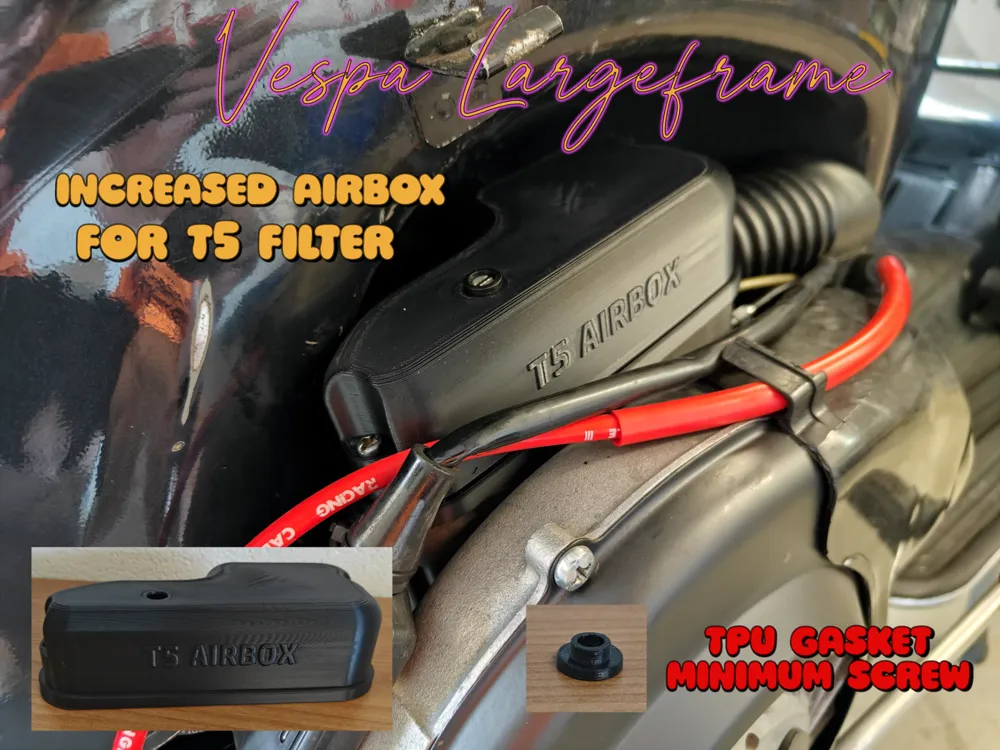

Enlarged Airbox for T5 Filter - Vespa Largeframe

This project is an enlarged airbox specifically designed to accommodate the T5 filter on Vespa Largeframe engines. The goal is to provide optimized airflow for enhanced configurations while maintaining compatibility and ease of installation.

✔️ Compatible with T5 filter
✔️ Increased volume for improved engine breathing

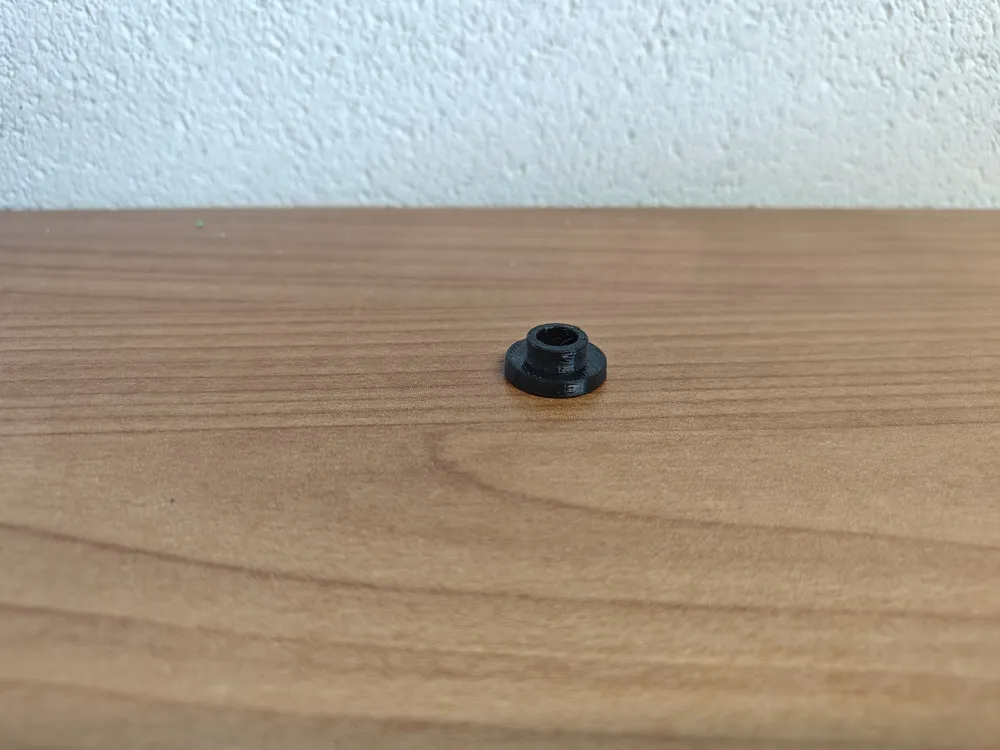

✔️ Includes a TPU gasket for the idle screw, ensuring a perfect seal and eliminating unwanted vibrations.

The print is designed for mechanical strength and precision detailing, perfect for real-world road use or racing configurations.

Printing recommendations:

Recommended material: ASA for the airbox, TPU for the gasket
Layer height: 0.2 mm
Possibility of modifying the text directly in Bambu Studio

Perfect for those seeking to enhance their Vespa engine performance without sacrificing clean, functional style.

If you are looking for other Vespa accessories click here

Membership

Want to earn money selling 3D prints of my models on MakerWorld? 🚀 Join my Commercial License Program and gain official permission to sell physical copies of my designs ✅ Transparent and protected license ✅ Genuine and authorized earnings

Join

vespa

vespa accessori

piaggio

airbox carburator dellorto

italy

dellorto

Comment & Rating (22)

@Chriss821

Unfortunately, the lid does not fit the Vespa T5 Otherwise the print is really good

The designer has replied

Show original

@user_3095042432

The cover is for vespa px with T5 filter, sorry it doesn't work on other other other models

@Chriss821

Replying to @user_3095042432 :

This is a Vespa T5 with an original filter

Show original

@Michele1976

Hello If I understand correctly, this carburetor float bowl cover only has straight edges. Just like your lifting device. However, all of our carburetors do not have a straight edge (see picture). Do you perhaps have another version? Best regards Michele

Show original

@user_2799889830

Hello, congratulations on the project, I wanted to ask if you have the same for Vespa px with mixer that is slightly different. Thank you

The designer has replied

Show original

@user_3095042432

Hello thank you very much, no I'm sorry I only have the version without a mixer, I don't have a Vespa with a mixer available to design it

Show original

@user_2799889830

Replying to @user_3095042432 :

What do you need

Show original

@user_3095042432

Replying to @user_2799889830 :

I would need the bottom part of the carburetor, considering that before I got all the measurements right, I printed several. Since I don't have a scanner, I started with a top-down photo scaled and then modeled the shape, then the various fine-tunings, including mounting it on the vest for clearance and even the shock absorber's end of travel. I crushed a few before I got it right. I did it more as an exercise and the satisfaction of having printed it myself. I would have been faster to buy one already made🤣

Show original

@billetokens

hello! I have a question and would like to know why when I print it, 3 printing plates come out, two of them are the box itself, one in petg and another in ASA. Could you tell me if both need to be printed to manufacture this product?

The designer has replied

Show original

@user_3095042432

Hi, in the same project I inserted two profiles, one PETG and the other ASA. It is enough to print one. I recommend ASA due to the temperatures.

@user_337673448

Hello Tutoland The print was great is there a possibility to get a Step file to be able to adapt it Unfortunately I cannot create a CAD file in this case by reconstructing the net grid Thank you in advance

Show original

@BenPac17

I anticipate that I am a novice my question is how can I modify the writing

The designer has replied

Show original

@user_3095042432

You can modify the text from your PC using Bambu Studio

Show original

@Hygge

Print Profile

0.2mm layer, 4 walls, 25% infill

Hello....your print profile is fine in itself...the print worked great so far, but why don't you place the air filter box "Face down" on the print bed.....?.....then the box surface would have a nicer appearance from the print bed's impression and you could save almost all the support inside the lid, only a little support would still be necessary for the overhang at the lid's edge Could you change your print profile in that regard..??...would that be feasible Best regards Hygge 👋🏻 👋🏻

(Edited)

The profile uploader has replied

Show original

@user_3095042432

Hi, thanks for the advice, I printed the test parts as you said, but printed that way the spokes come out very badly and the overall aesthetic is much worse.

@user_337673448

Hello the print was great Is there a way to get a STEP file, I would like to adapt it for the carburetor flap with separate lubrication? Regards

Show original

@user_1661379625

Print Profile

0.2mm layer, 4 walls, 25% infill

The profile uploader has replied

@user_3095042432

Thank you for the print and the comment

Show original

@ginoS

Print Profile

0.2mm layer, 4 walls, 25% infill

The profile uploader has replied

@user_3095042432

Thank you for the print and the comment

Show original

@Xely_1988

Print Profile

0.2mm layer, 4 walls, 25% infill

The profile uploader has replied

@user_3095042432

Thank you for the print and the comment
