4 Furrow Plow 1:20 Scale
Print Profile(1)
Description

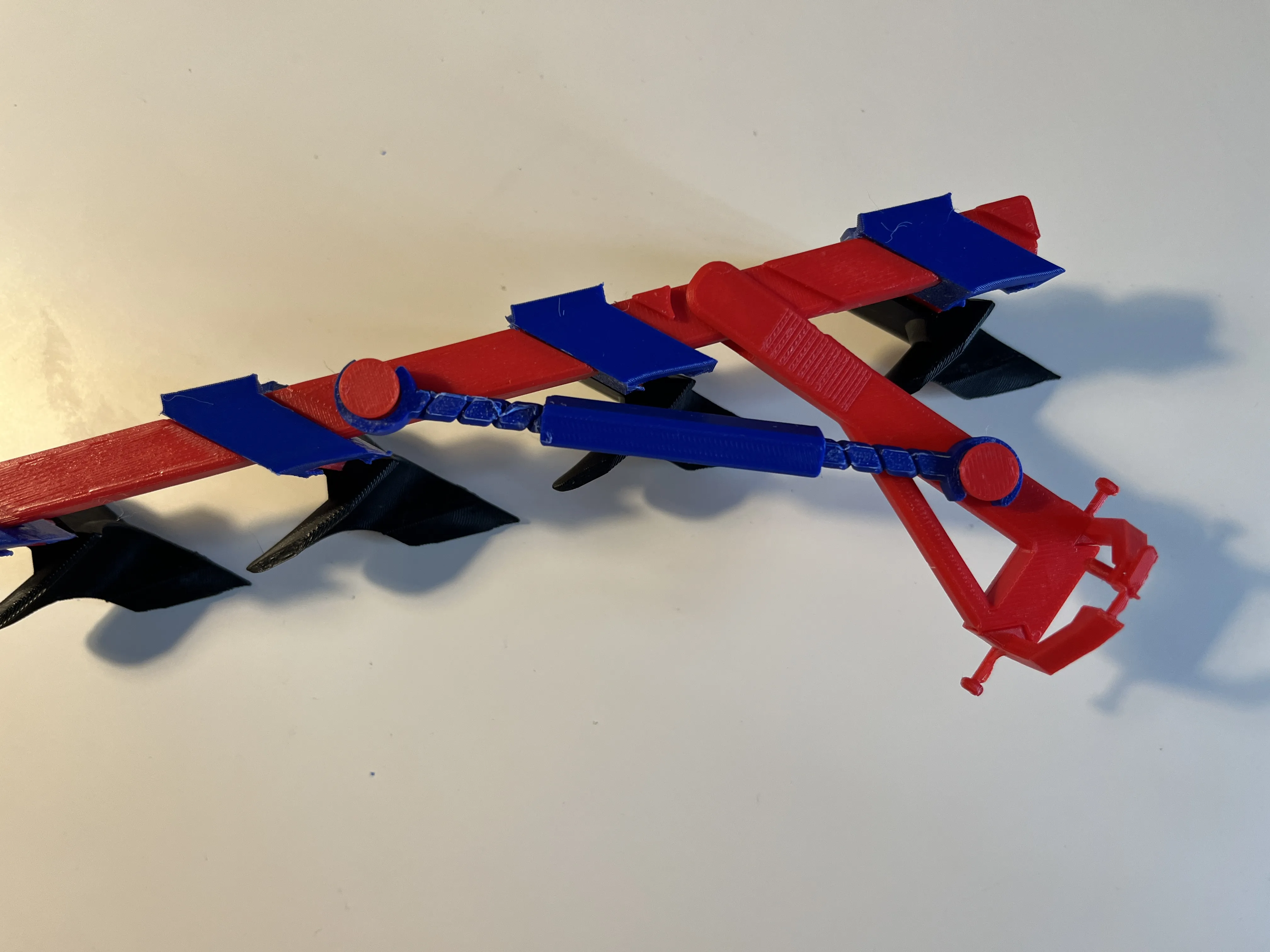

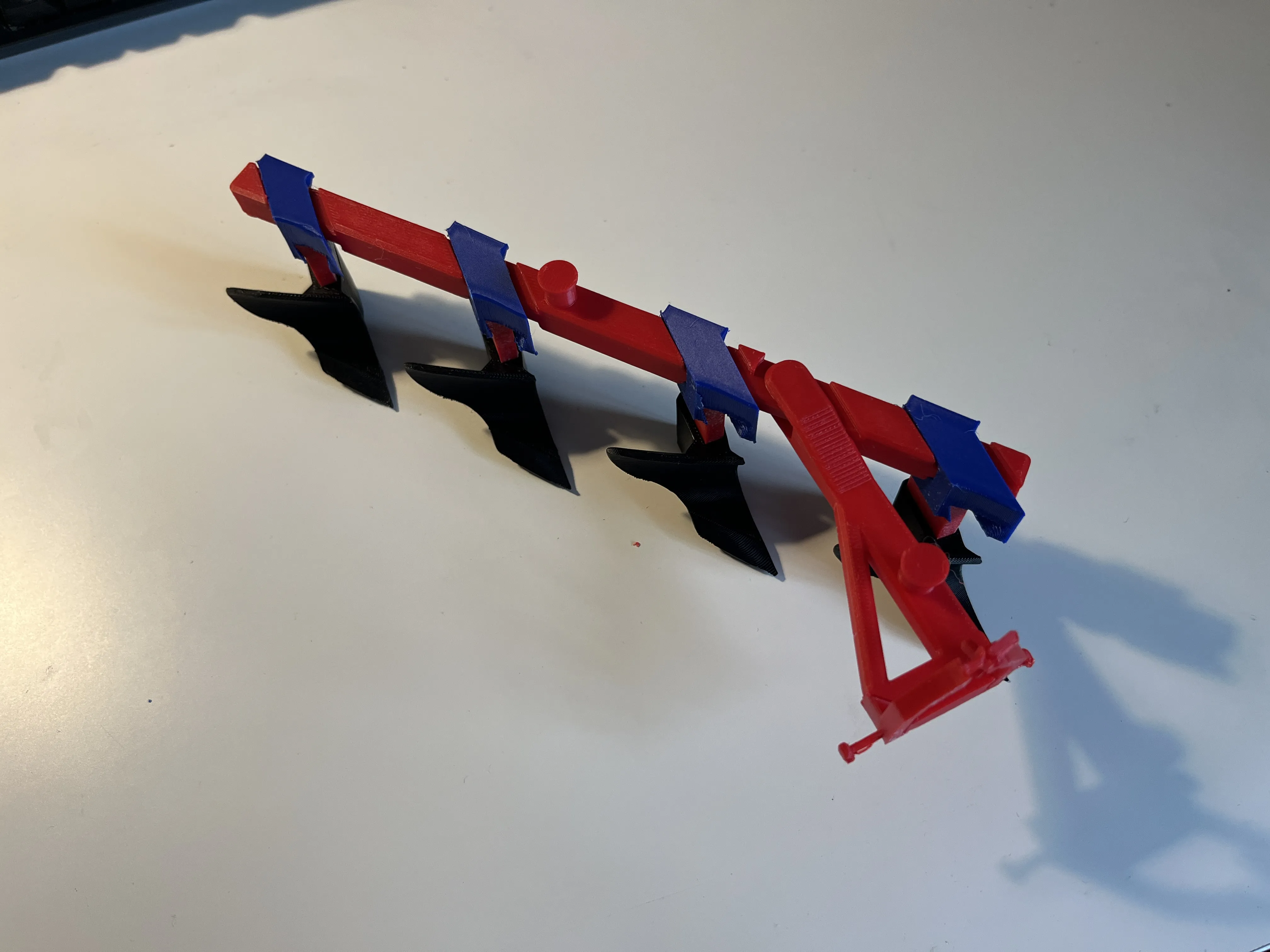

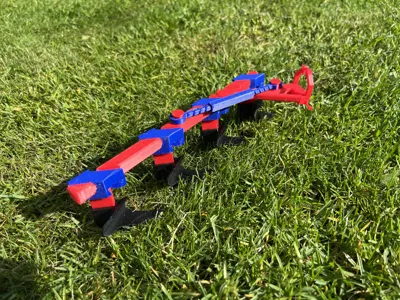

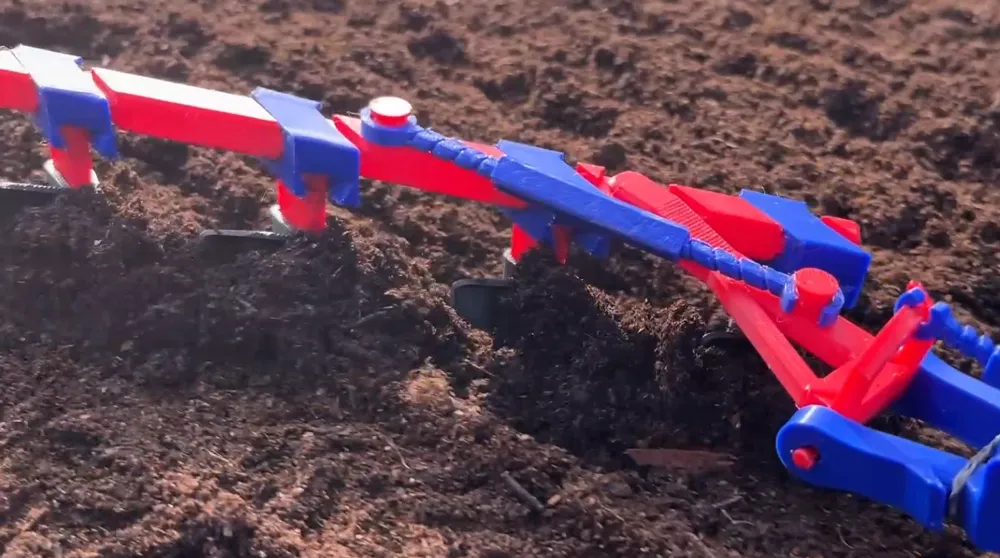

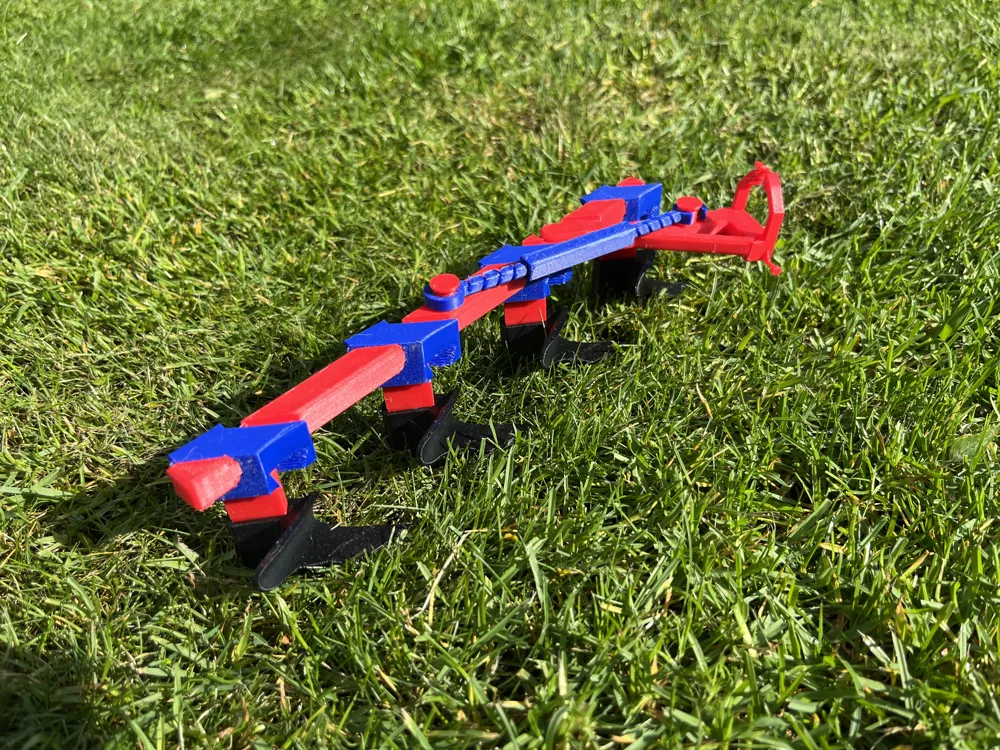

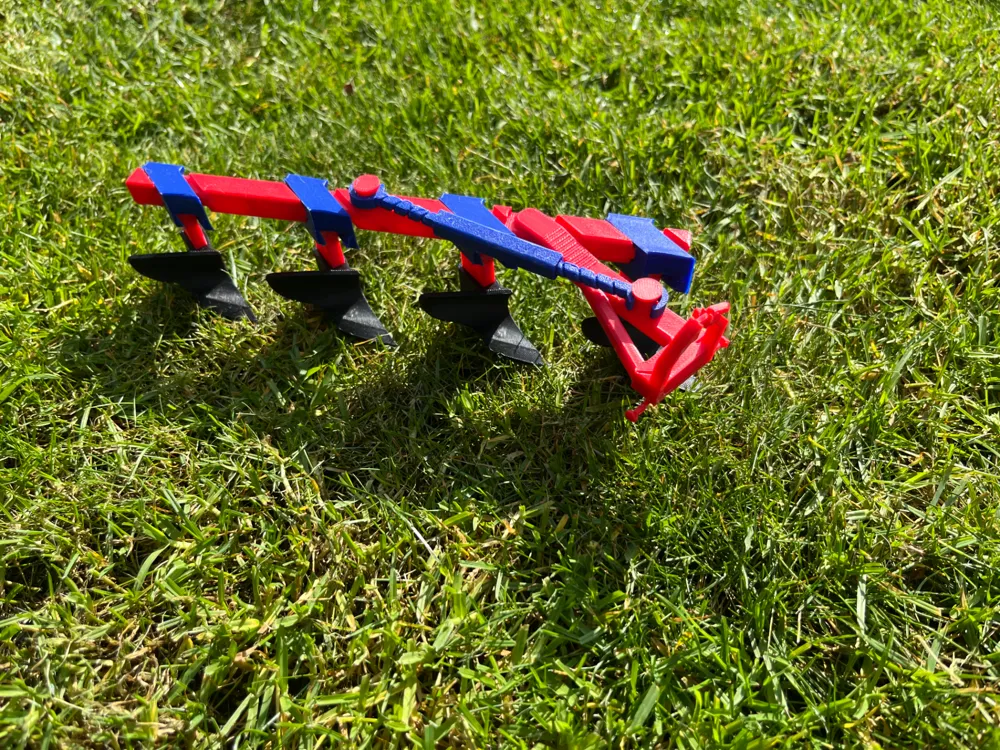

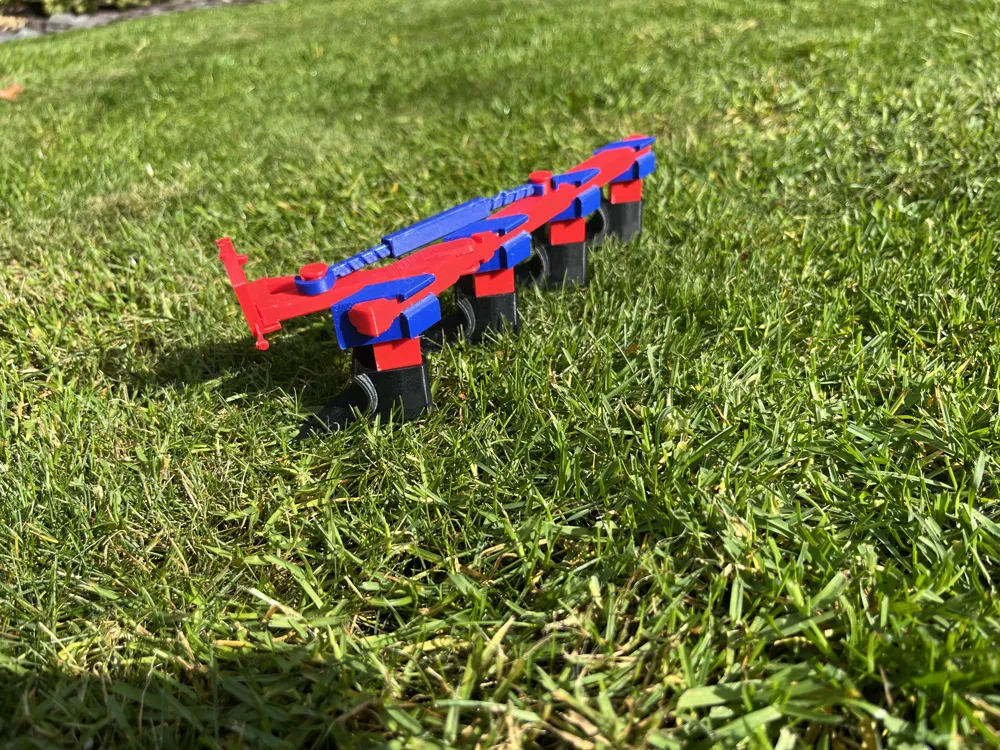

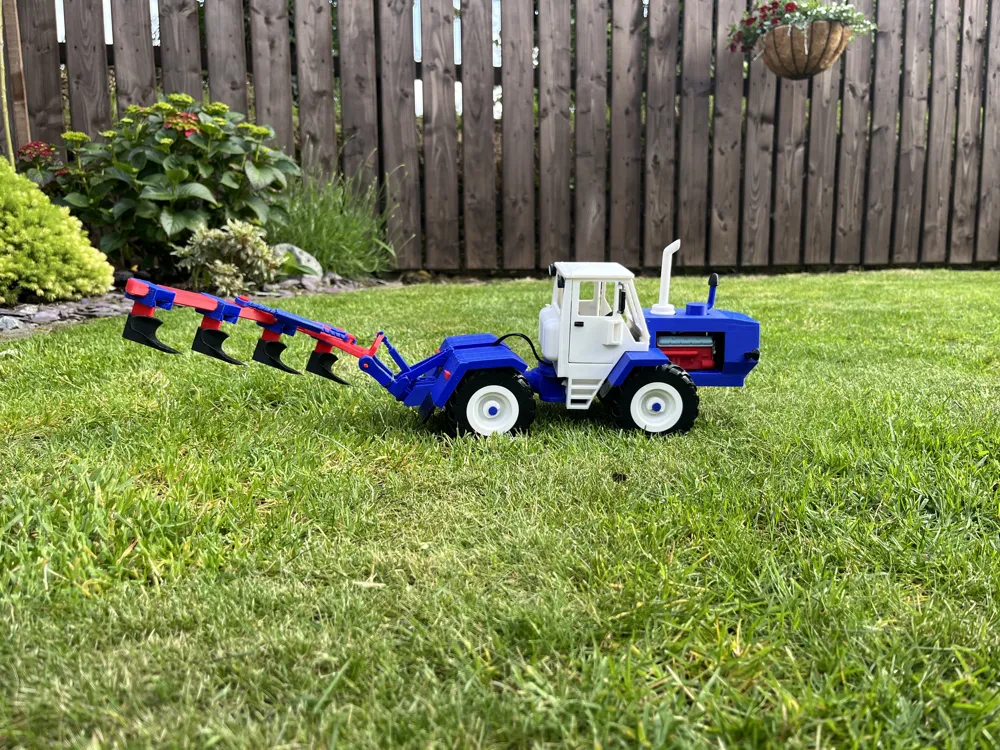

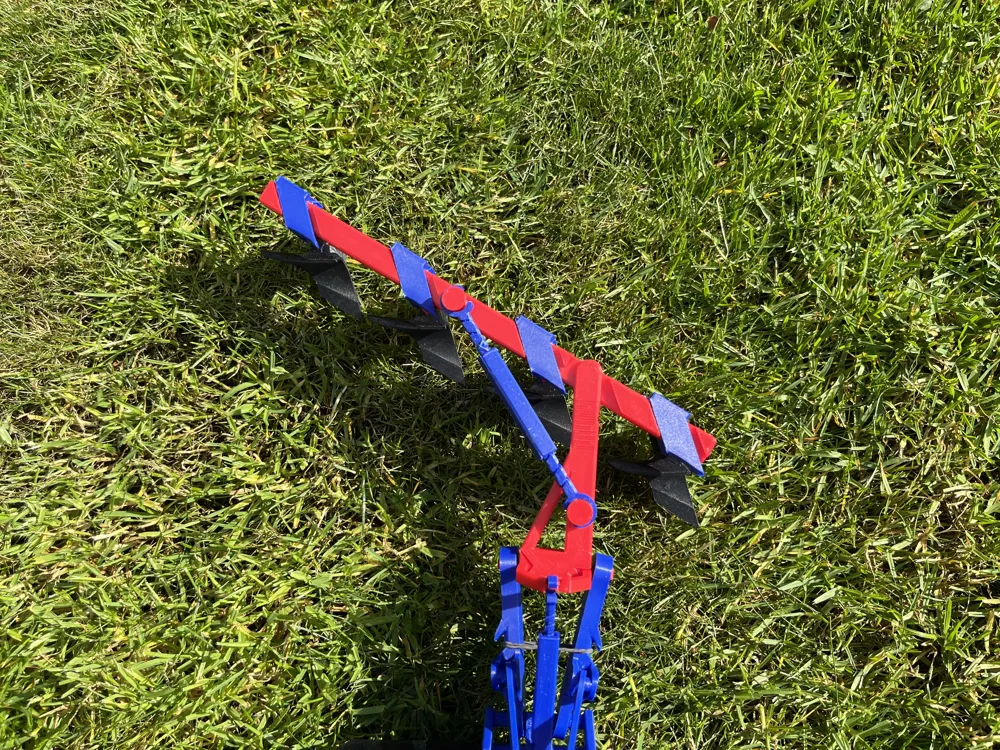

A simple 4 furrow plow that goes with my T-150K Tractor and works with its 3-Point Linkage.

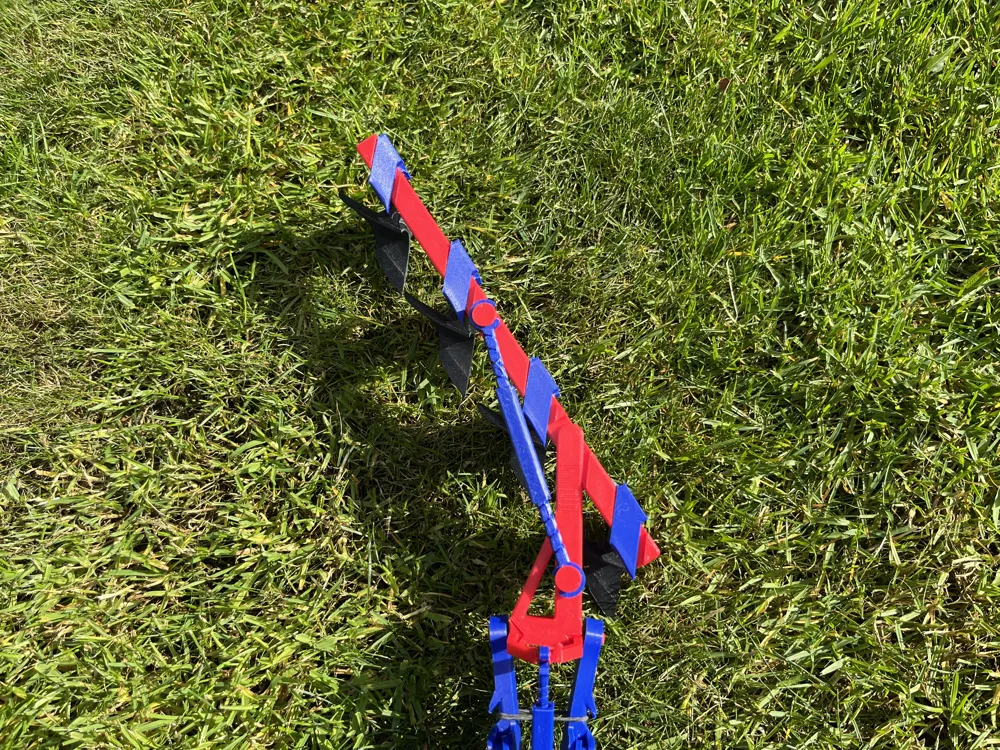

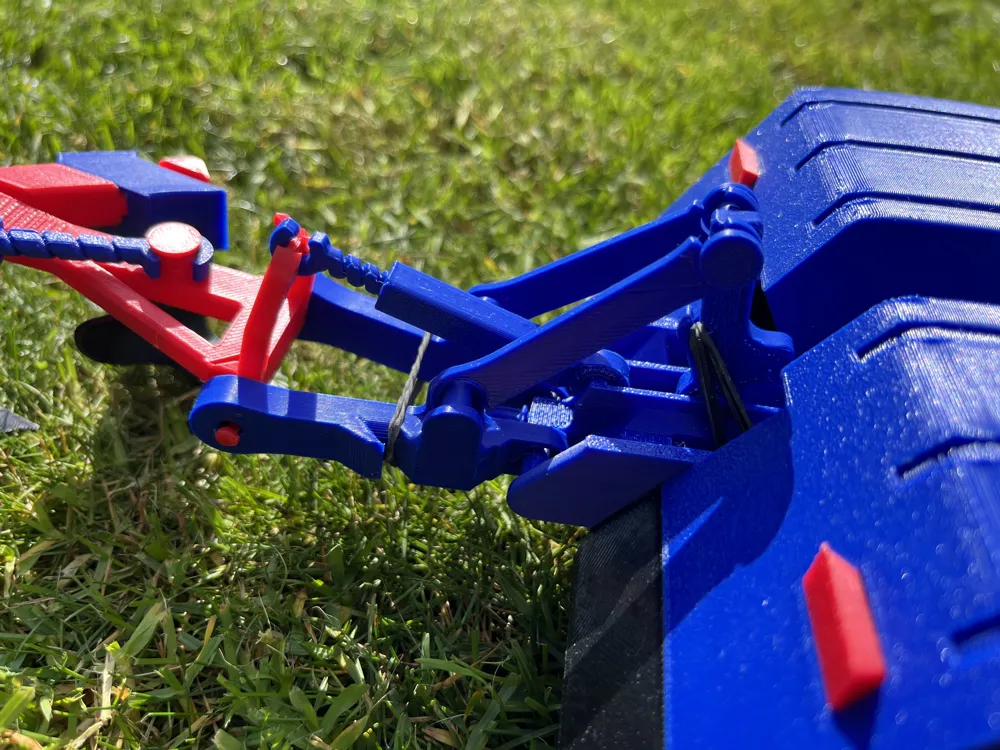

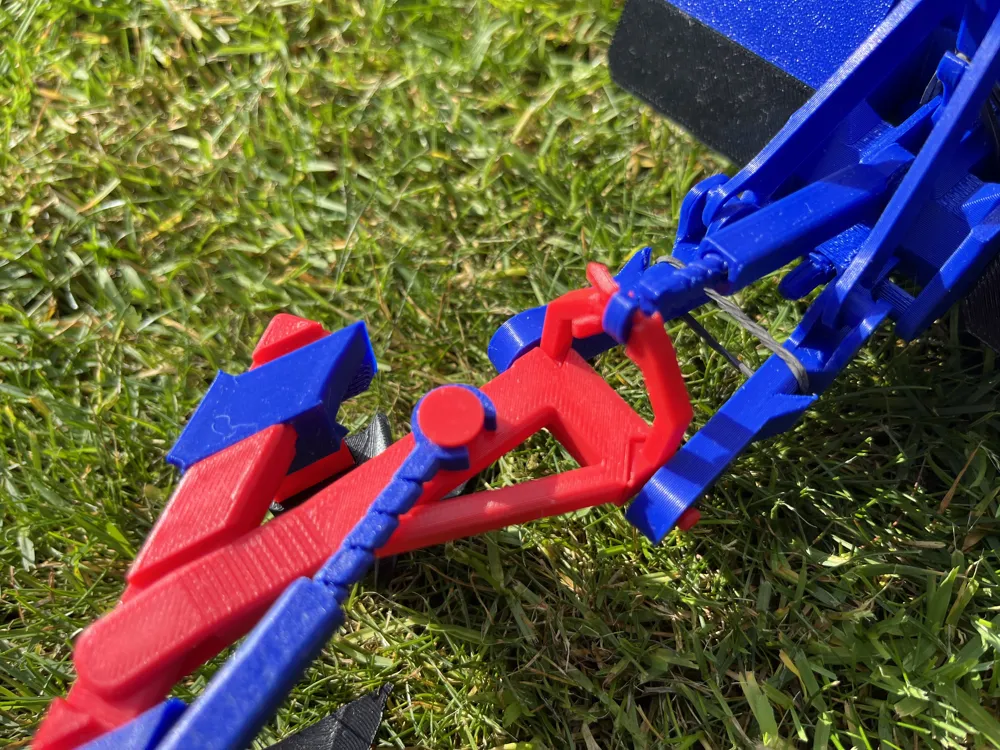

To attatch simply Couple the lower arms followed by the top link, use the print in place latch to lock the top link in place to prevent it from coming off.
T-150K tractor that is compatable with the plow:
Assembly:

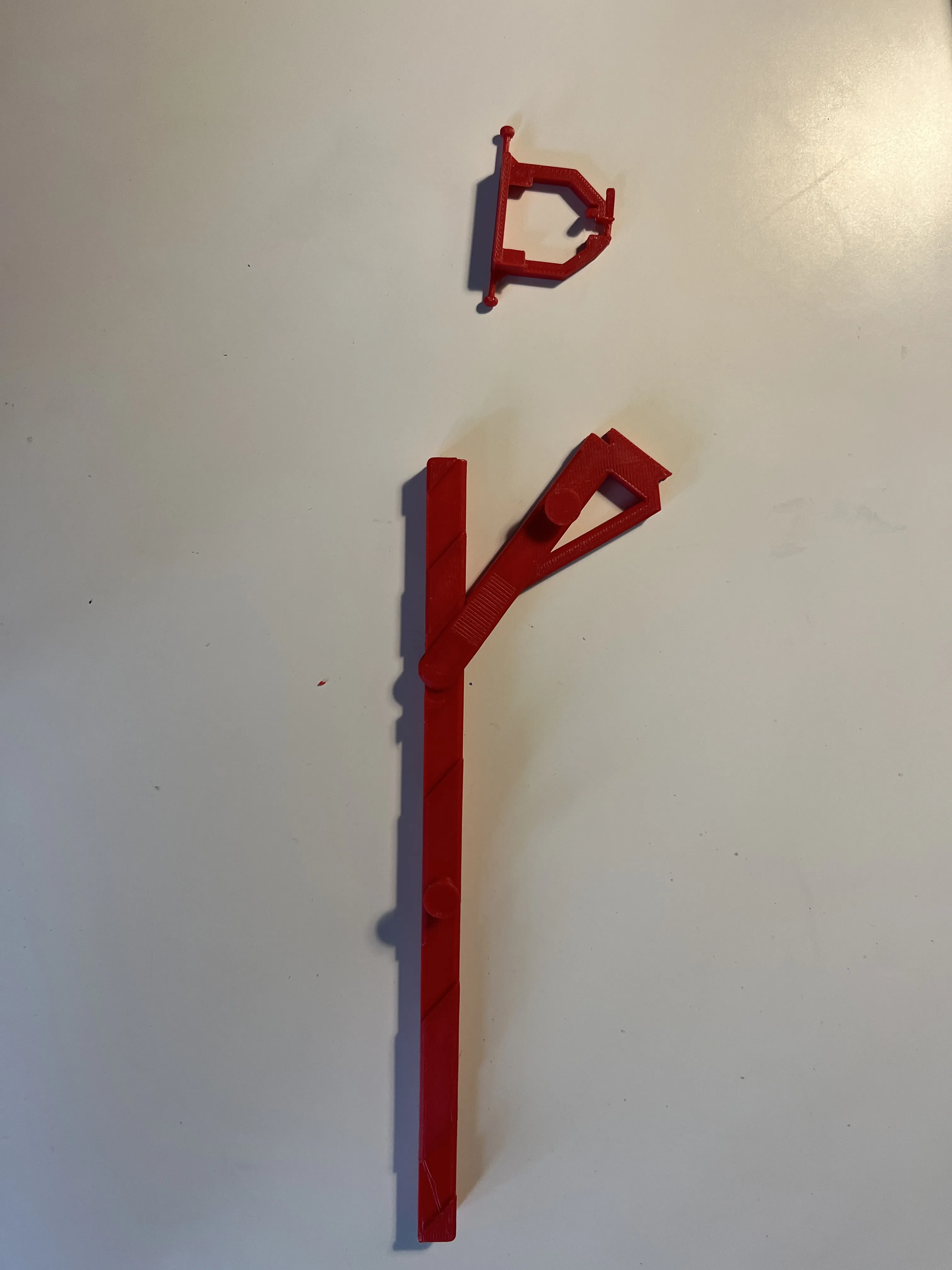

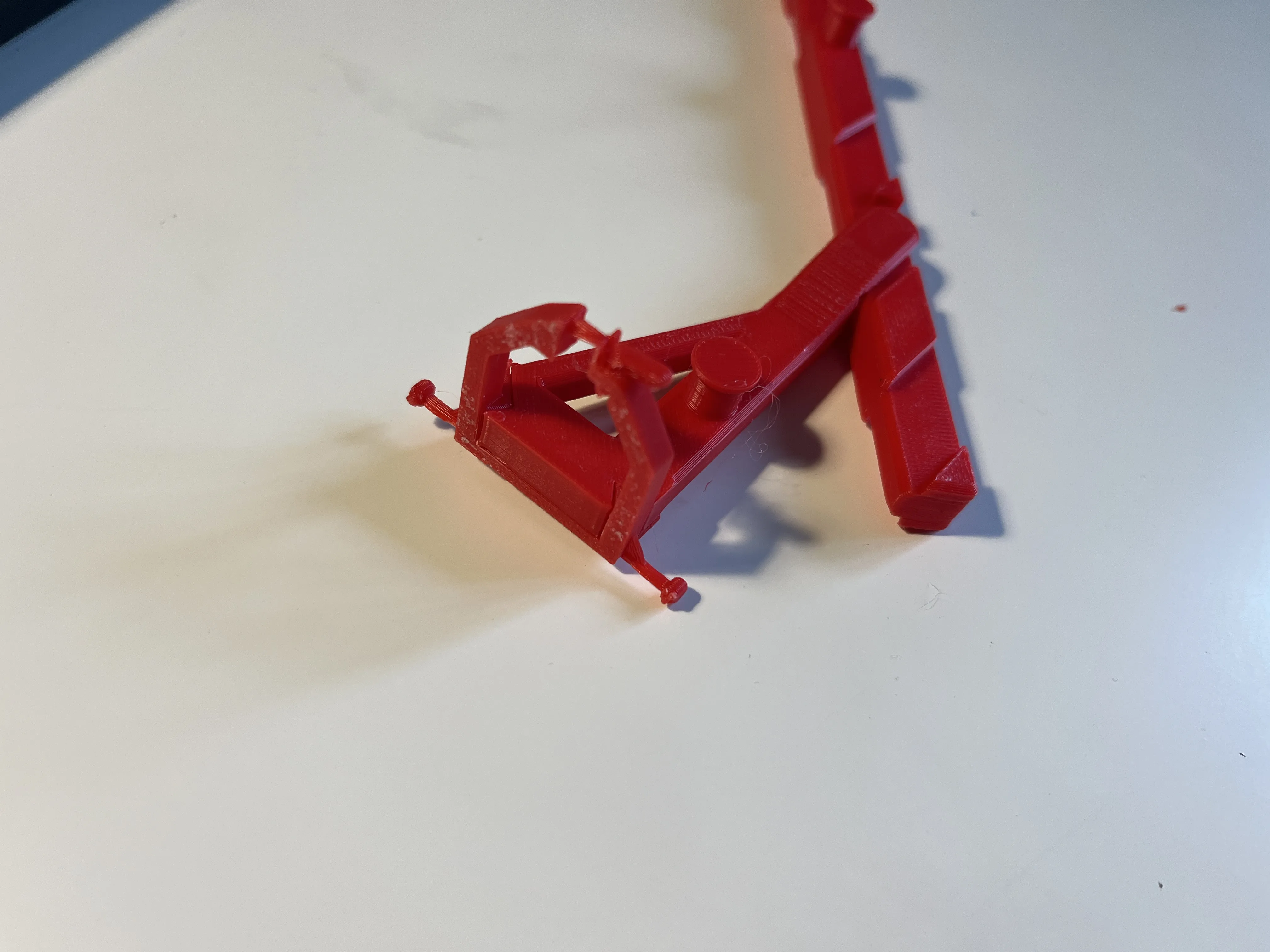

- Hook up the 3 Point Frame with the Main frame.

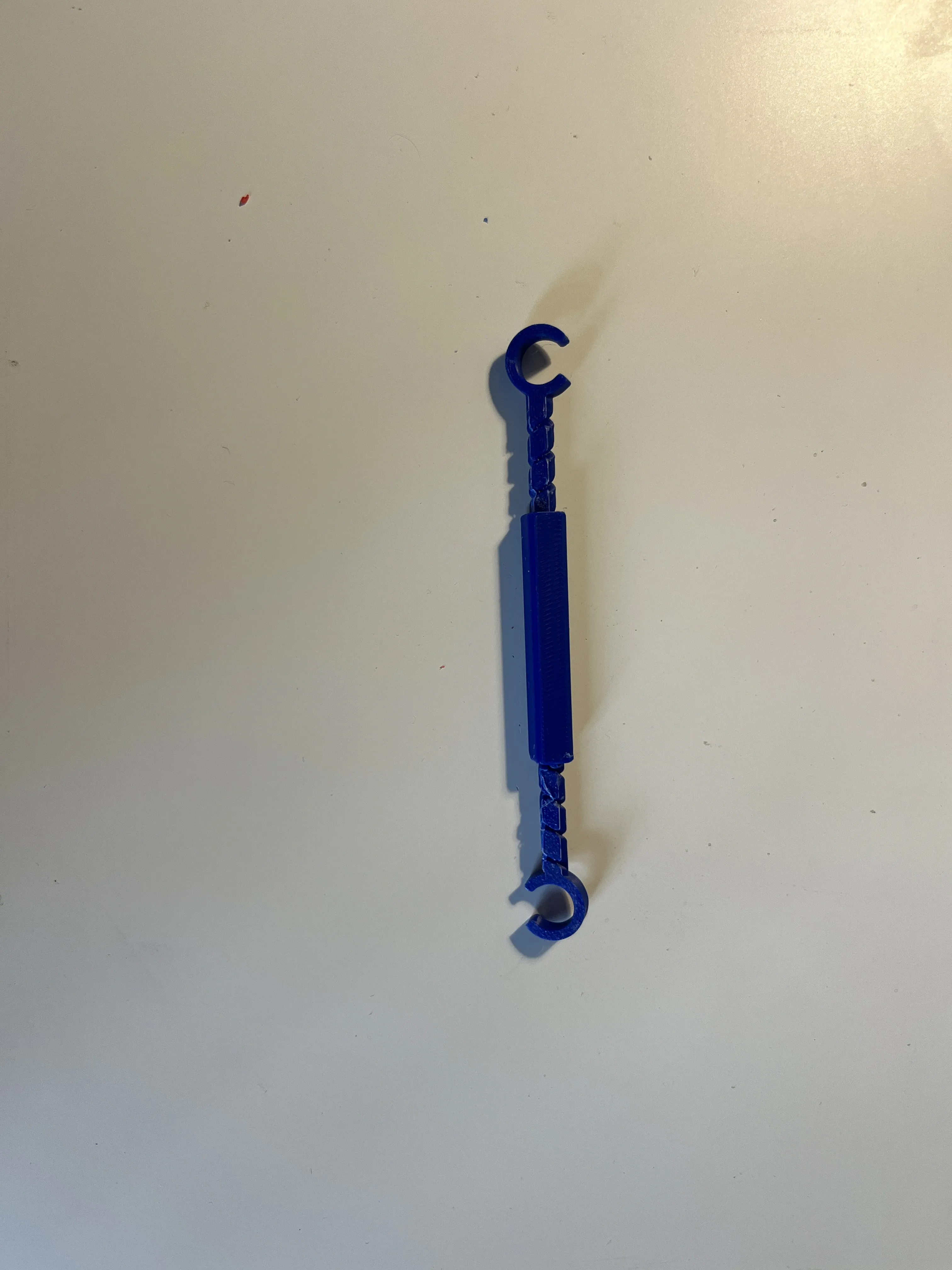

2. Thread the adjustment screws into the main adjustment body. (One thread is clockwise and the other is counter clockwise)

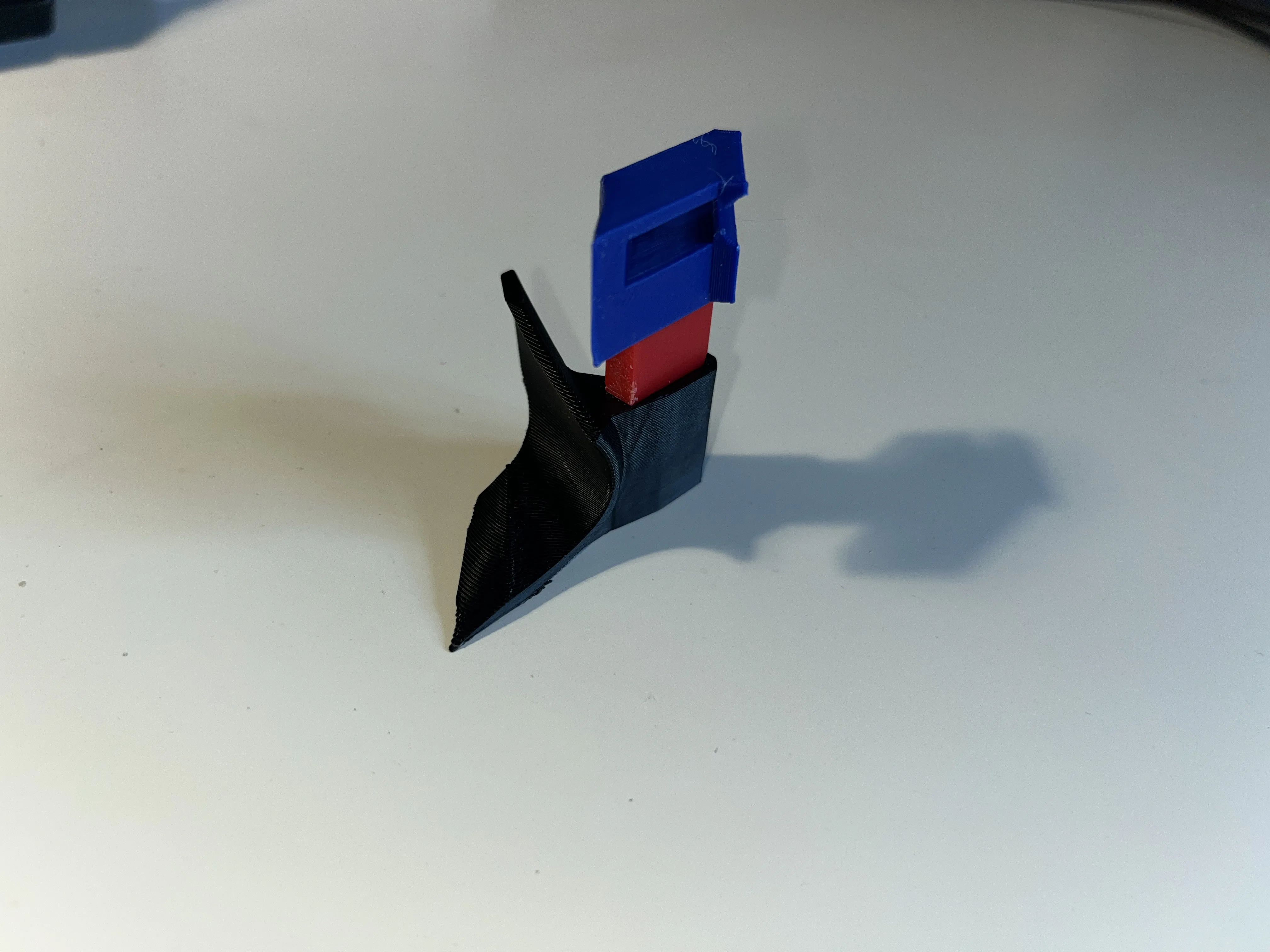

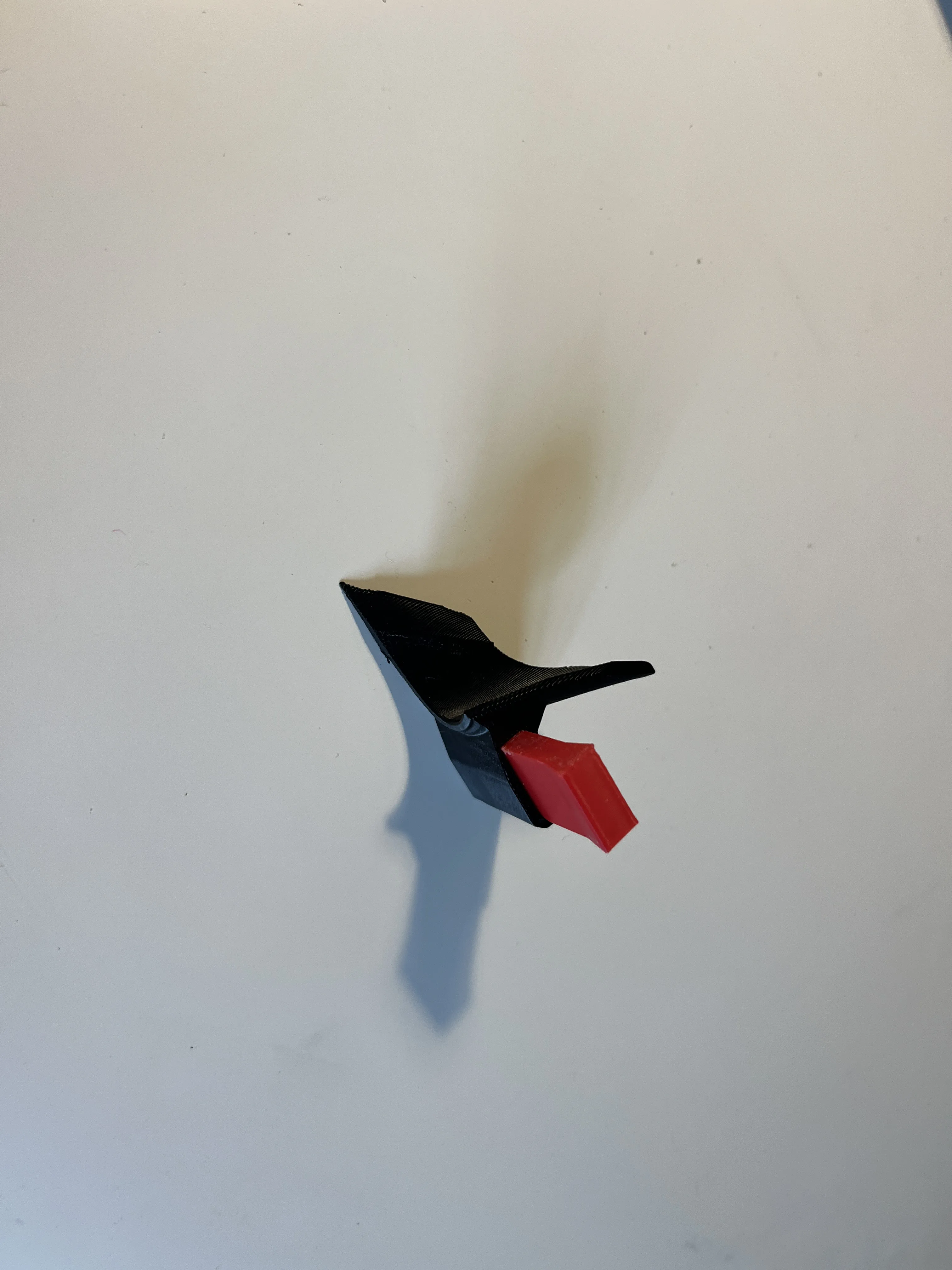

3. Connect the moldboard("Plow part") with the arm using glue x4

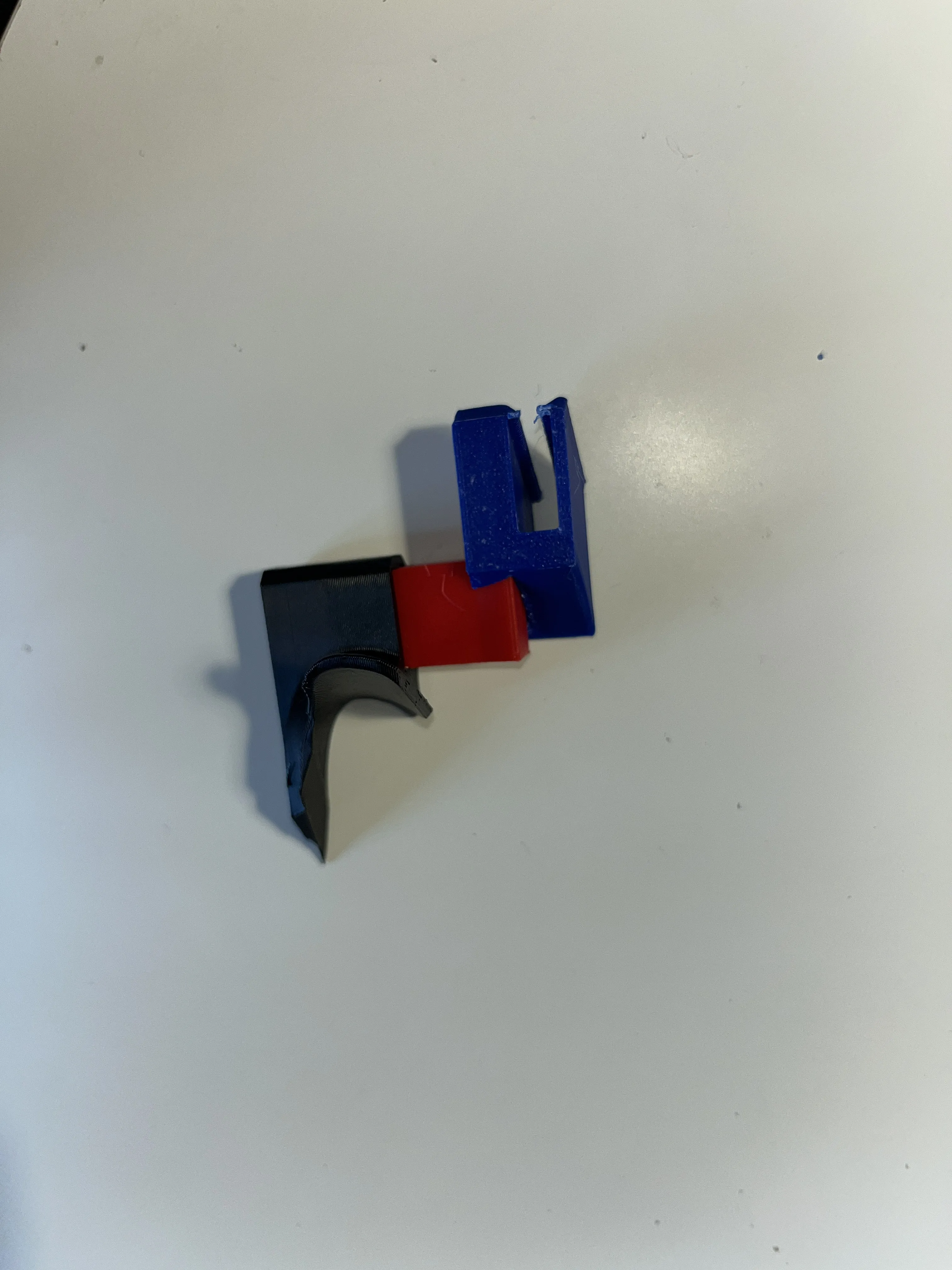

4. Slide the assembly into the clip.

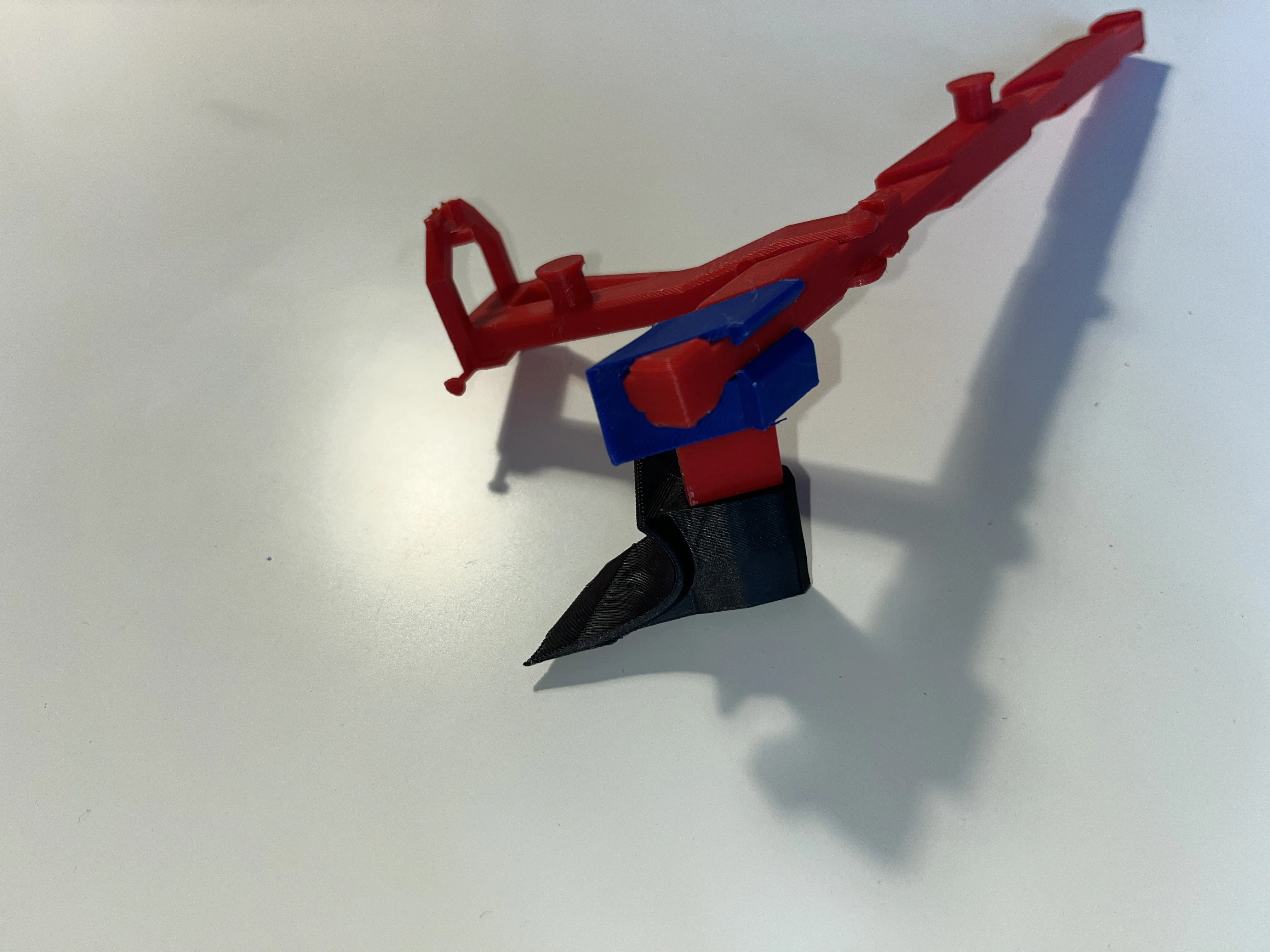

5. Then push on the Assembly onto the frame x4
6. Finaly attatch the adjustment screw to the two mounting points.
