Xray X4 Horizontal Body Post Hole Filler 4mm

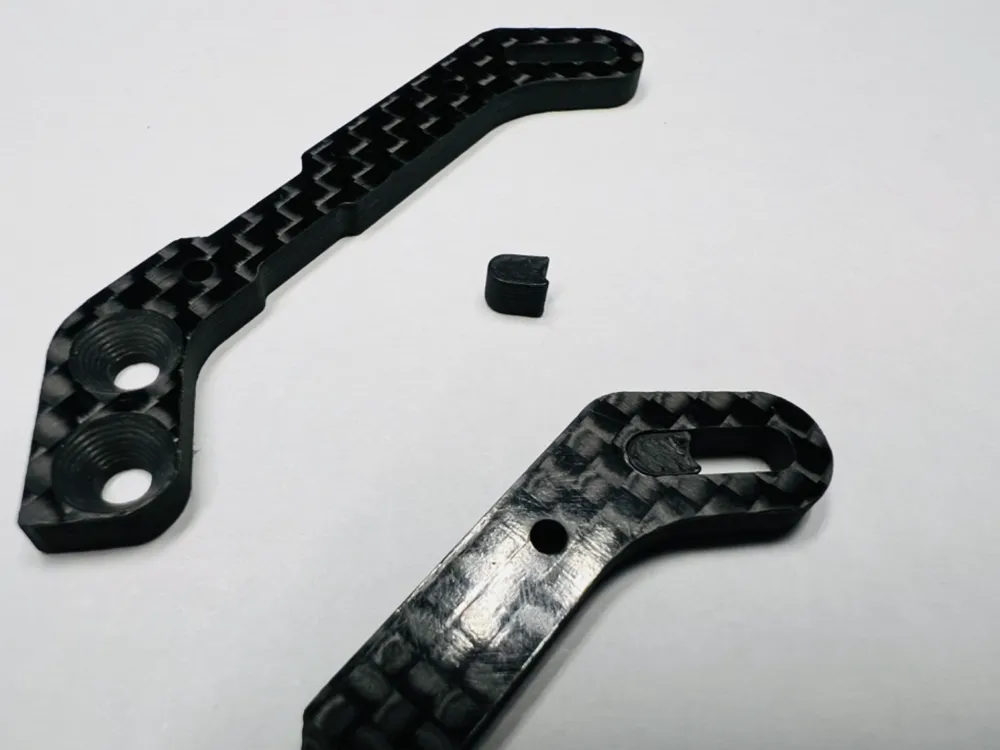

If you've ever damaged an Xray 301381 Graphite Body Post Holder, this piece may help salvage that expensive part.  Inserting this filler piece at the bottom of the slot with stop the horizontal post from sliding downward

Technically, I'm showing this in an aftermarket Vigor part VG-TH202-XBM that does not have the 5 position spaces - it's just a smooth slot.  To use it in the OEM Xray part, you may have to either modify the part or, carefully sand the slot in your Xray part to remove the 5 positions

This part will position the screw 4mm up from the bottom of the slot and, when combined with the Xray horizontal rear body post hole template (or my 3d printed version) should give you a 65mm rear body height on an Xtreme Speciale

You can use this to either salvage a damaged part or use it to help prevent the screw from moving down in a crash.

Bye the way, if you don't ever adjust the screw position on your horizontal rear body posts, a think layer of CA glue will help re-inforce it so that you may never need this part

I printed it in PLA with 100% fill
