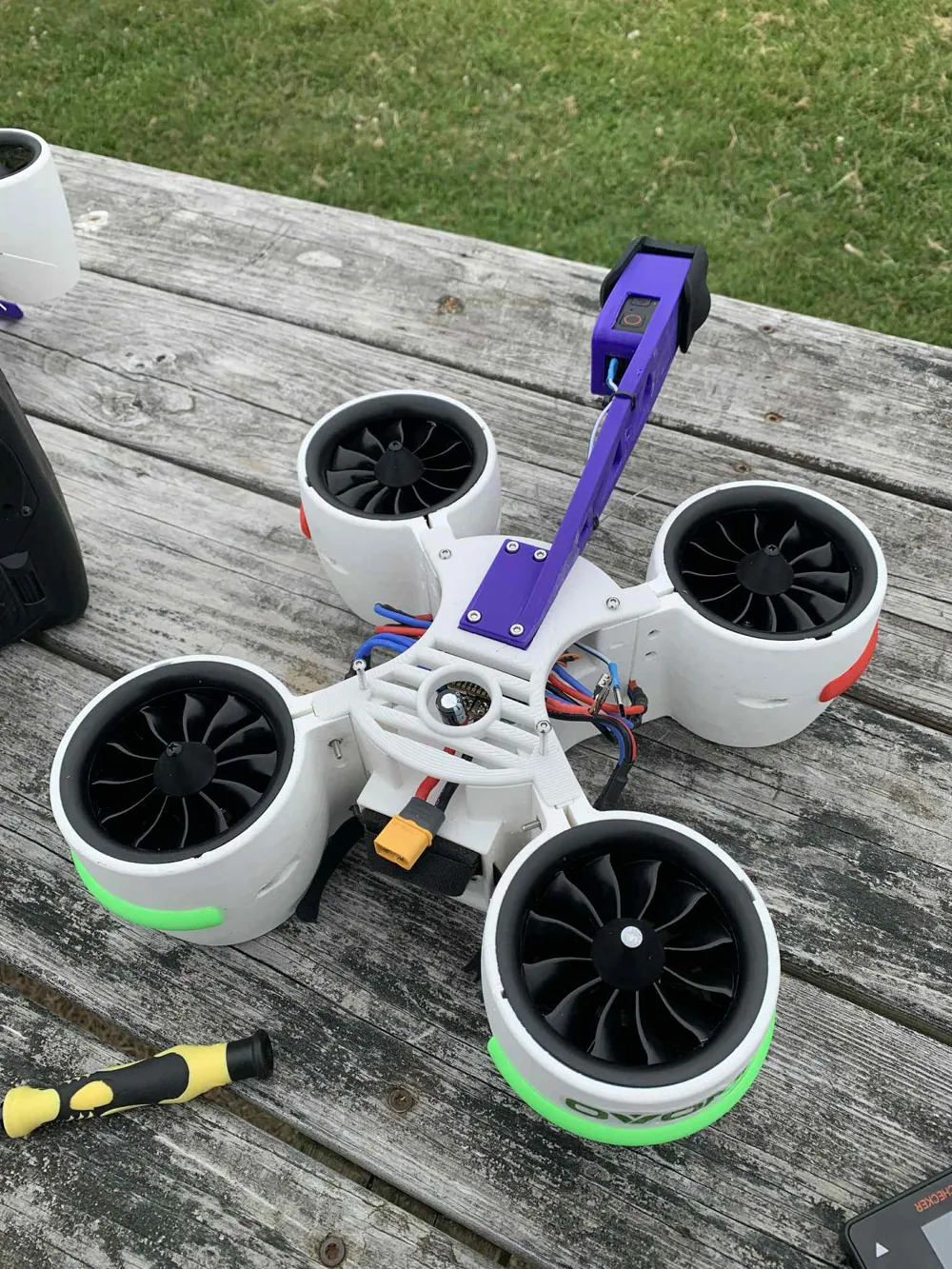

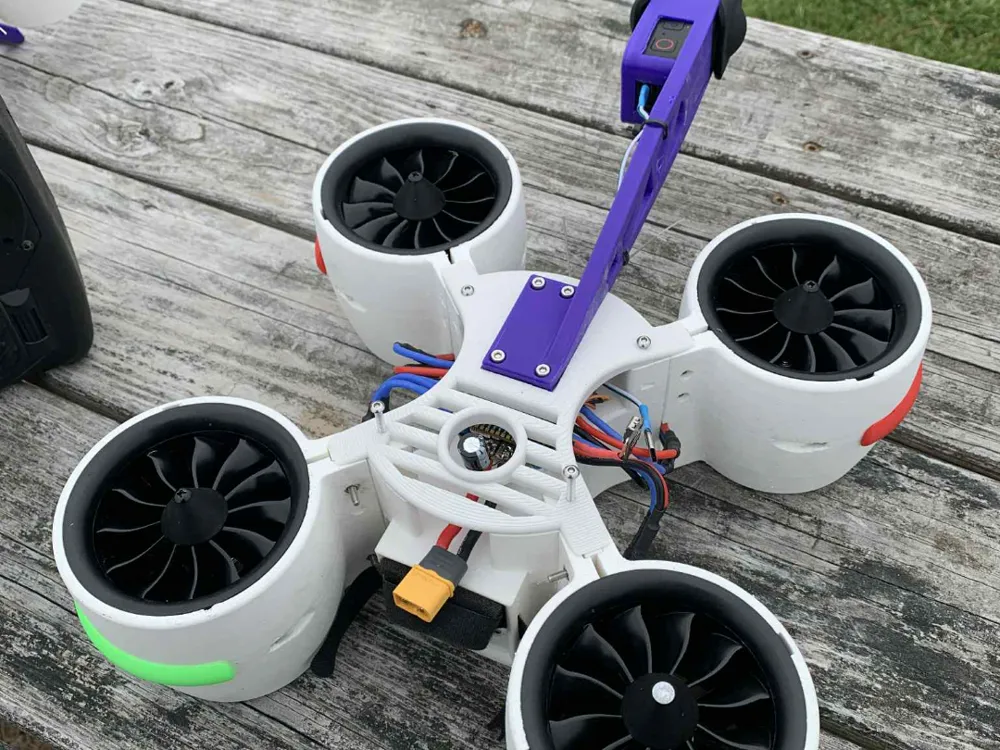

Quadcopter 70mm EDF.
Designed on Onshape.
Printed on BambuLab X1C printers
PLA Aero - for core body and nacelles.
TPU for camera ARM + shock absorber TPU 64D
Model components:
- 70mm EDF Brushless Motor 2800KV CCW/CW
- 4S LiPo Battery 14.8V 9000mAh 120C
- JHEMCU RuiBet 60A 65A 4in1
- GF30F722-ICM F722 FC
- Spektrum SRXL2 DSMX Remote Serial Telemetry Receiver, SPM4651T
- some USB-C Male/Female to connect the camera to the FC if needed
Camera:
Insta360 One RS stripped from battery (connected to the main FC board) with 360 lenses,
or Go 3S with mount and dedicated cover
