Subaru Slave Cylinder Holder

Print Profile(1)

All
P1S
A1
A1 mini
P1P
H2D
X1
X1E
X1 Carbon
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.24mm layer, 2 walls, 15% infill
0.24mm layer, 2 walls, 15% infill
Designer
35 min
1 plate

Open in Bambu Studio
Boost
3
5
0
0
4
4
Released

Description

Holds the slave together when it is removed to ensure the piston doesn't fall all the way out, by using a zip-tie to hold it in place.

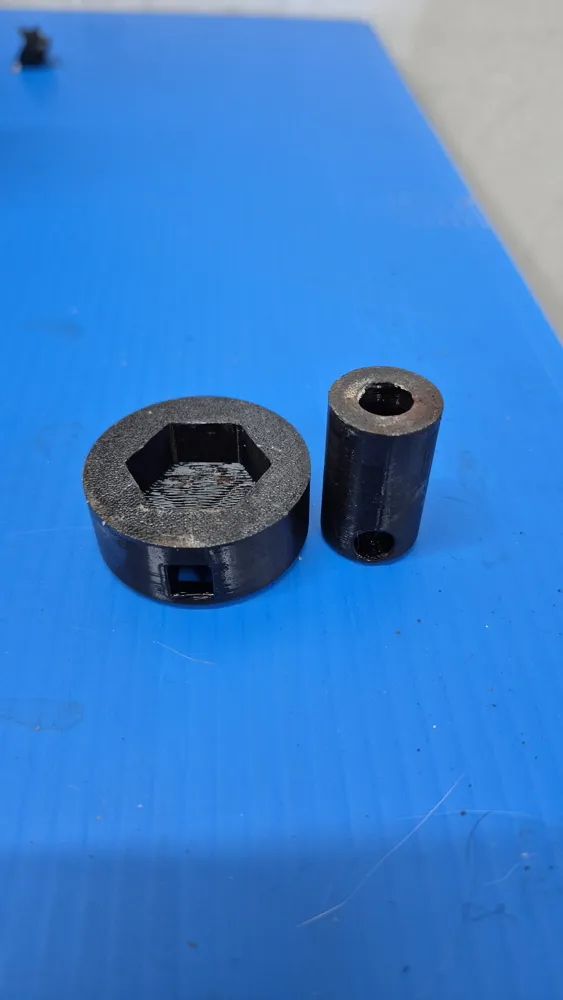

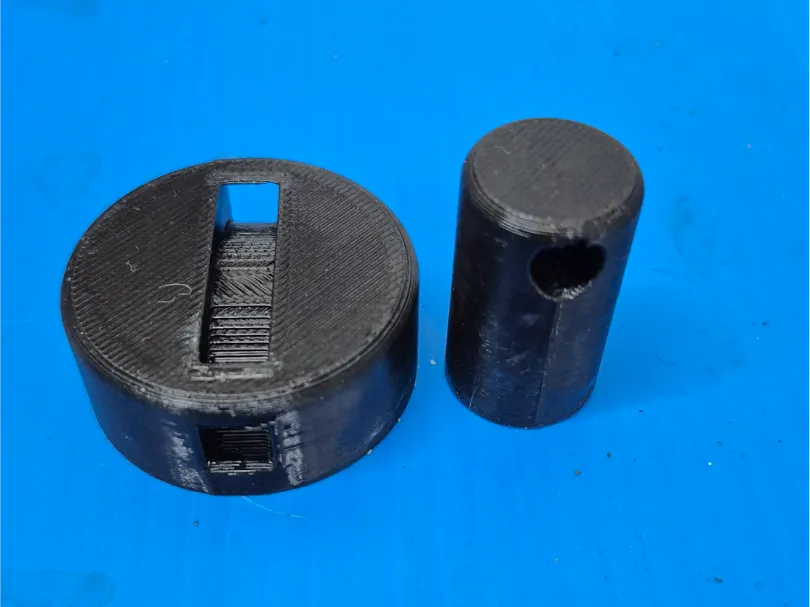

2 Caps, one for each side; Small cap goes on the push rod on the piston side, Large cap goes on the back cap of the slave cylinder.

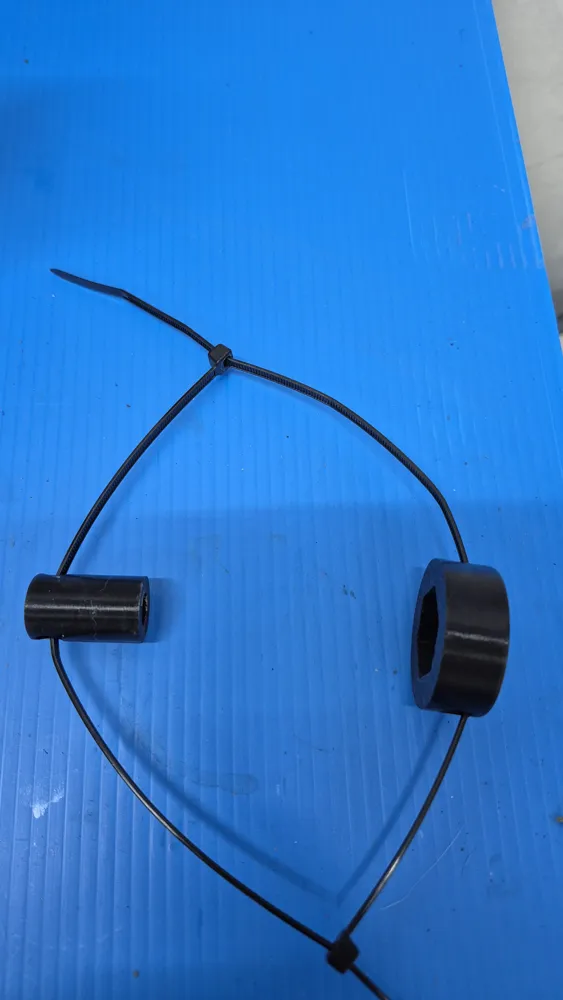

Run a long zip tie or chain of zip-ties between the 2 caps and tighten to ensure piston stays in place.



DO NOT PUSH CLUTCH PEDAL WHEN SLAVE CYLINDER IS REMOVED. THIS TOOL WILL NOT PREVENT THE PISTON BEING PUSHED OUT UNDER PRESSURE.
