Airbrush Gun Holder
Print Profile(1)
Description

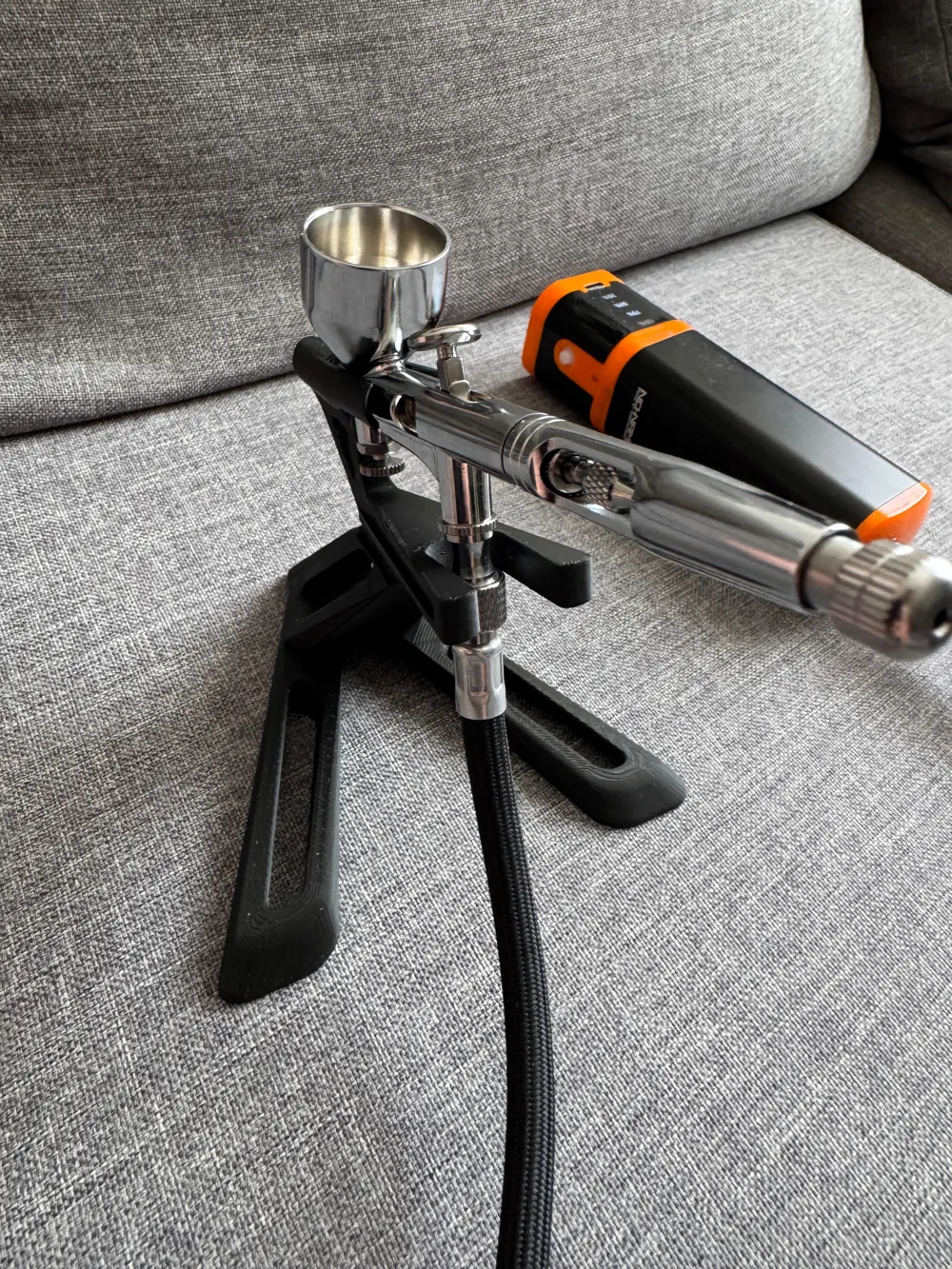

Holder for airbrush gun

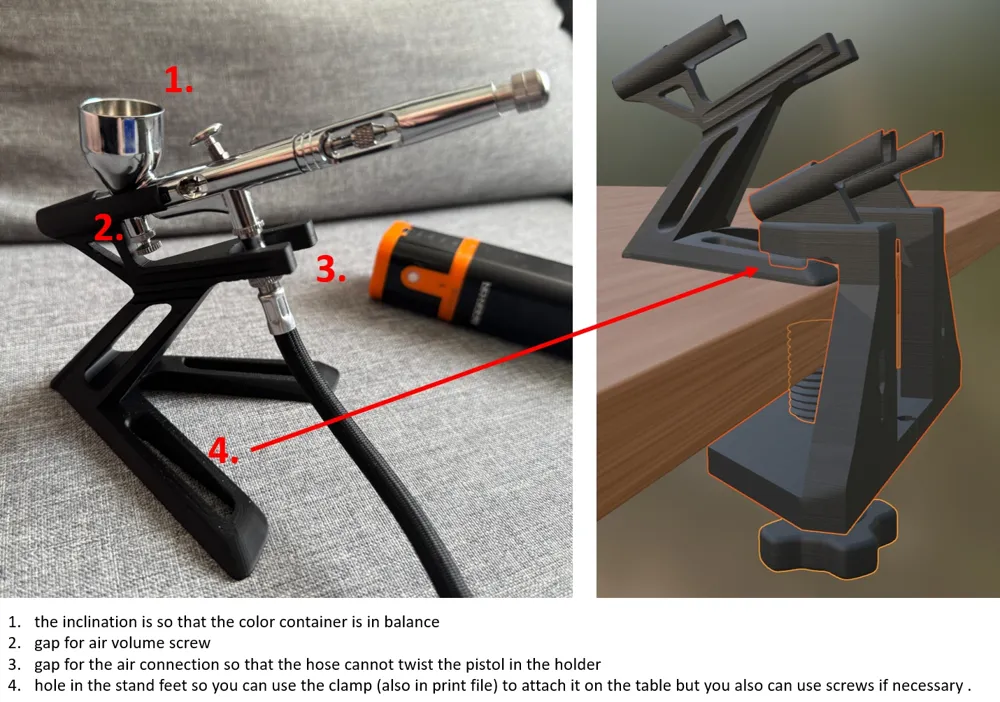

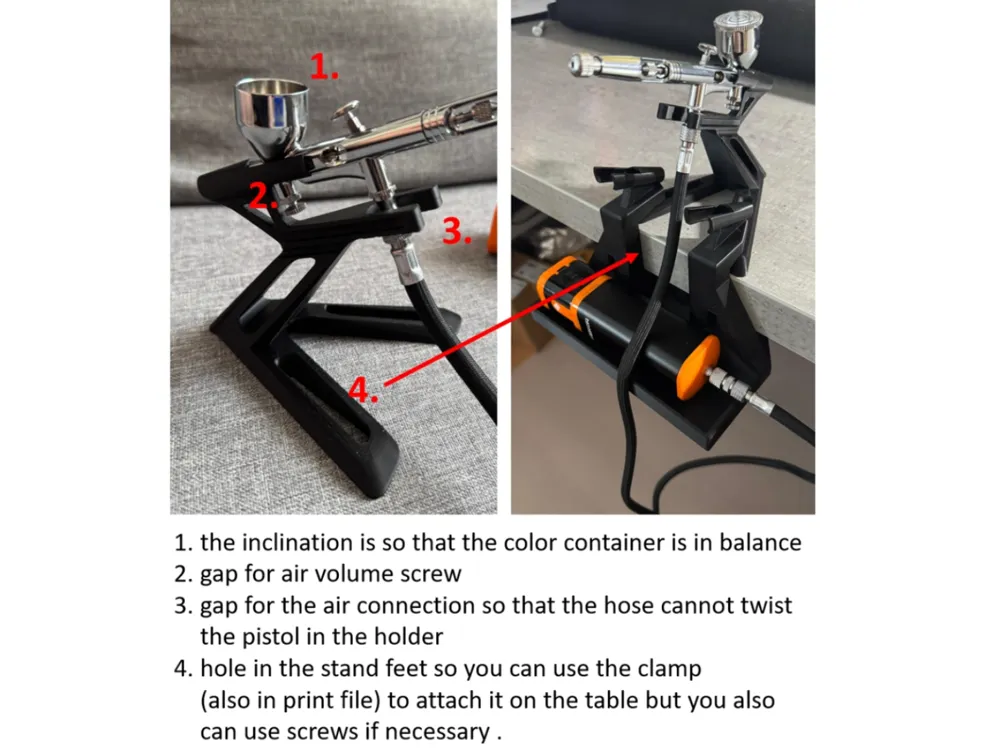

Advantages:

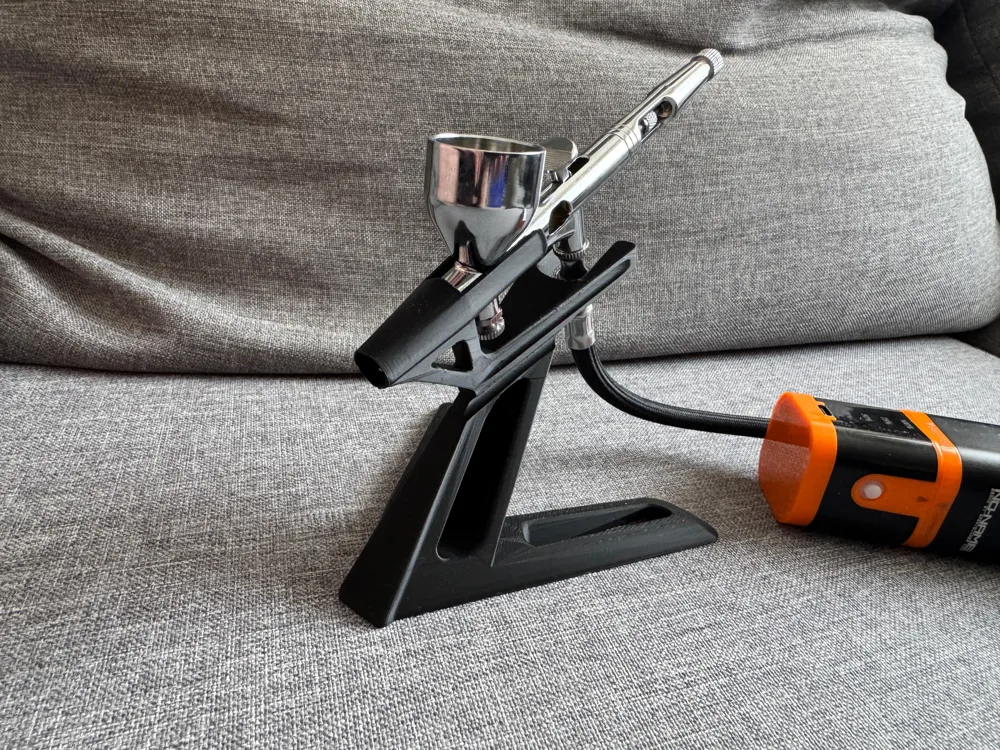

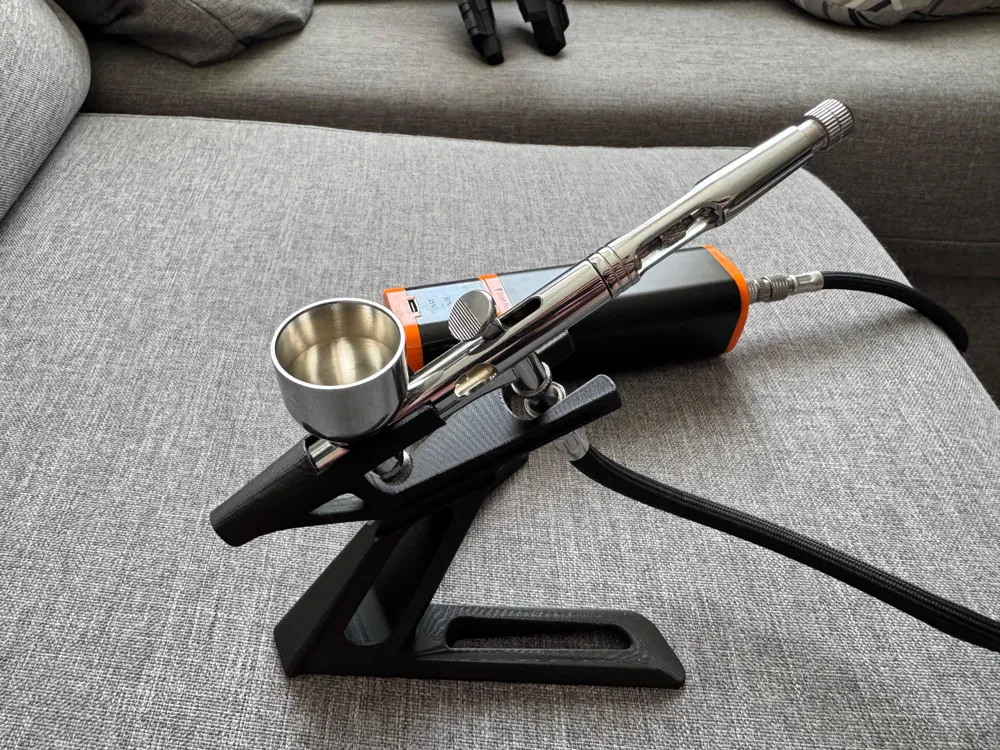

1. The tilt ensures the paint cup remains level
2. Recess for the air volume screw
3. Recess for the air connection so the hose cannot twist the gun in the holder
4. Recesses in the stand feet so the holder can be attached with the table clamp (included in the print file) or screwed down if necessary
Dimensions:
Holder = 112mm * 106mm * 93mm

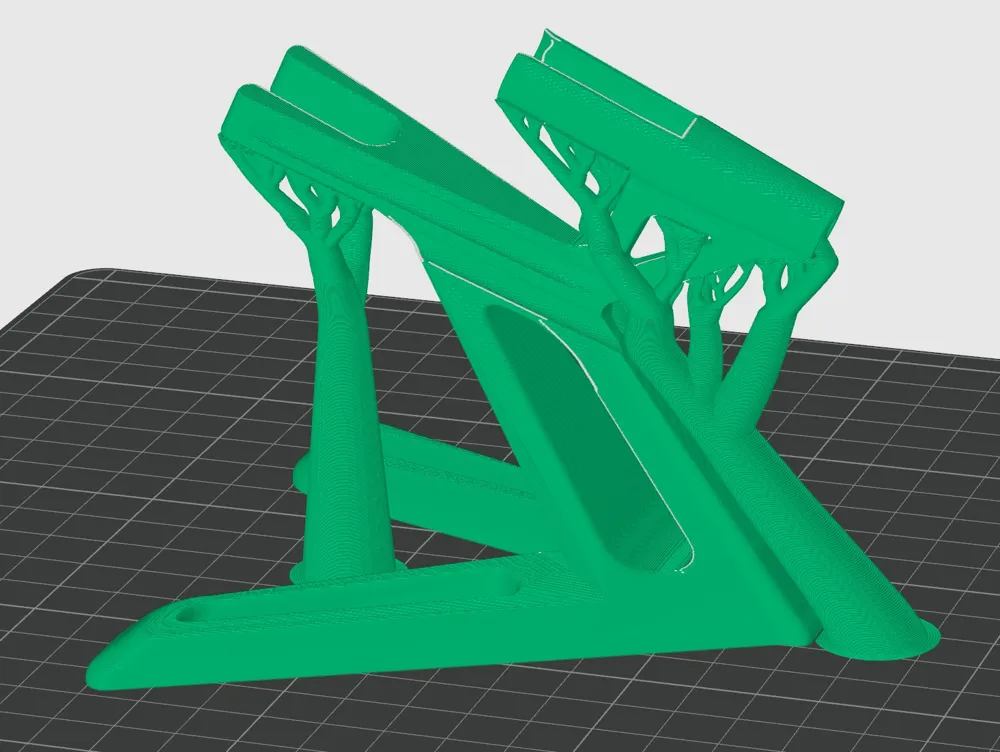

If the print takes too long, variable layer height can be removed
Print time with variable layer height: 5 hours (better surface finish)
Print time without variable layer height at 0.16mm layer height: 3h 45min

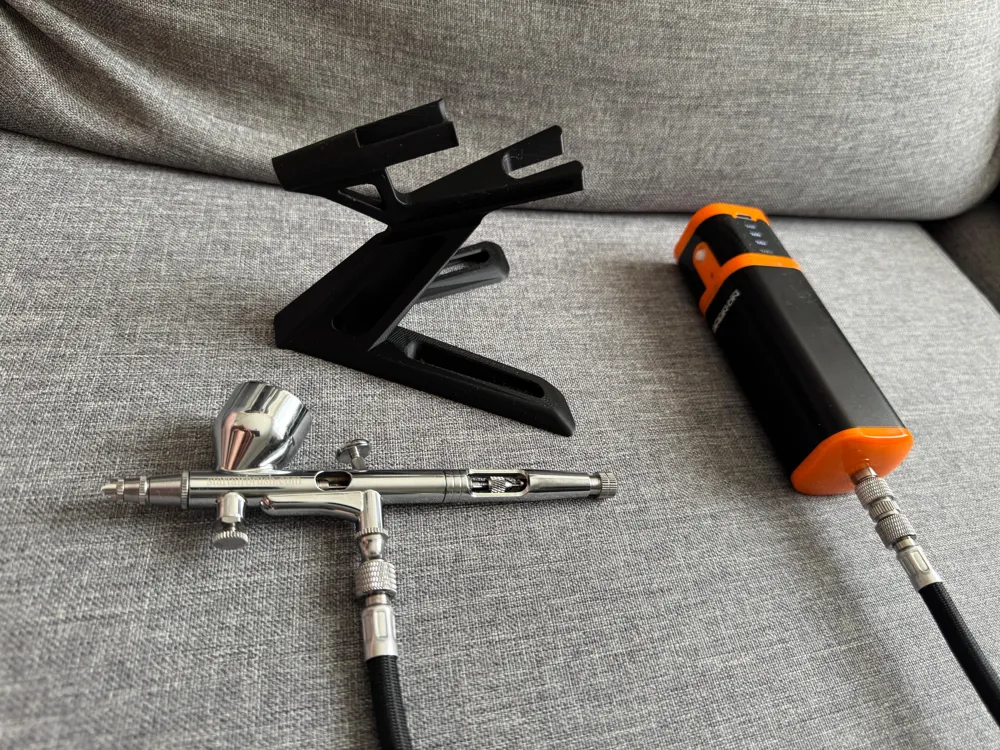

→ The gun is included with a cordless airbrush set (spraygunner.com or Ebay)
Brand: “No Name”

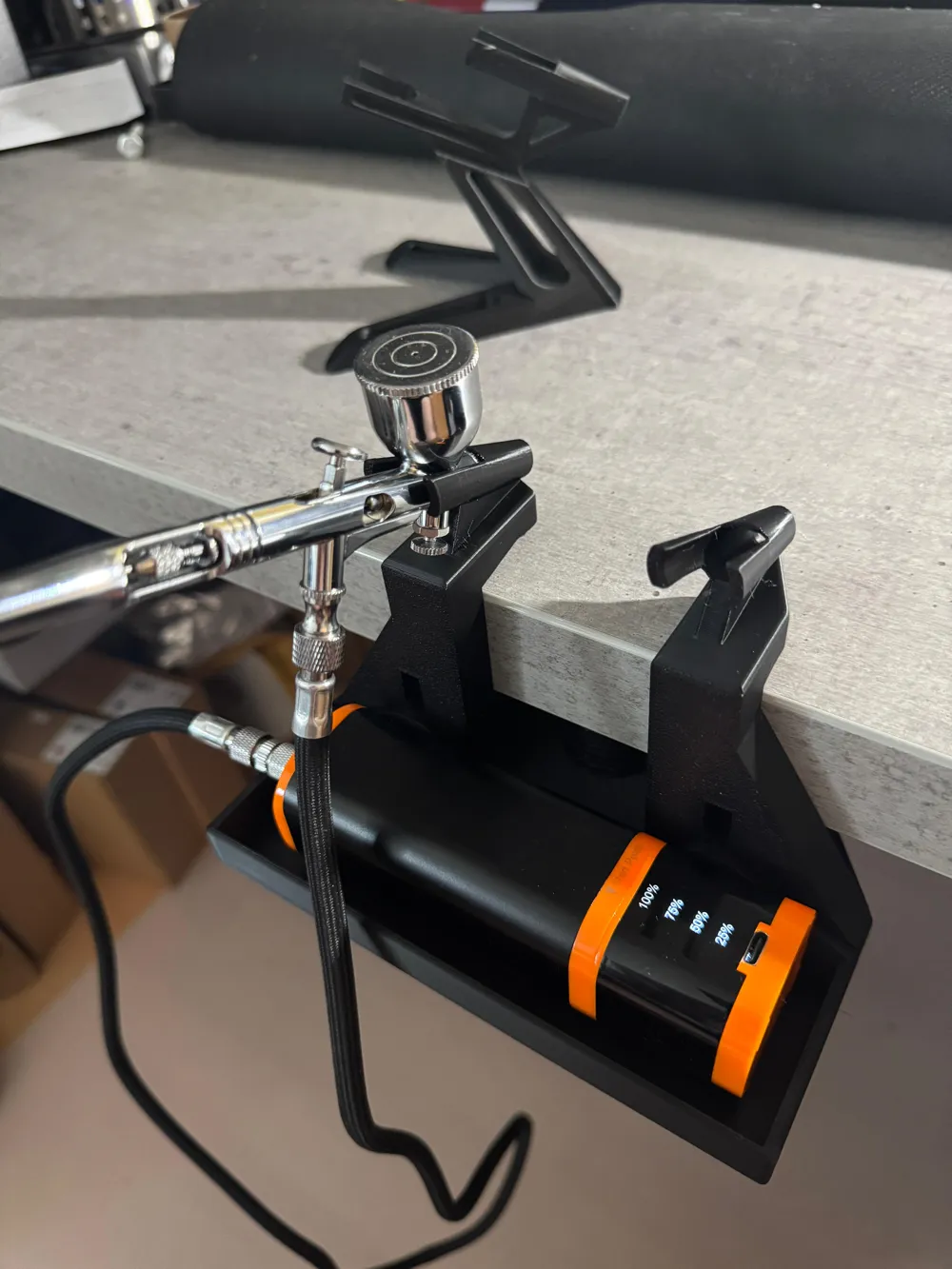

Major Update for the Holder (2025-07-30):

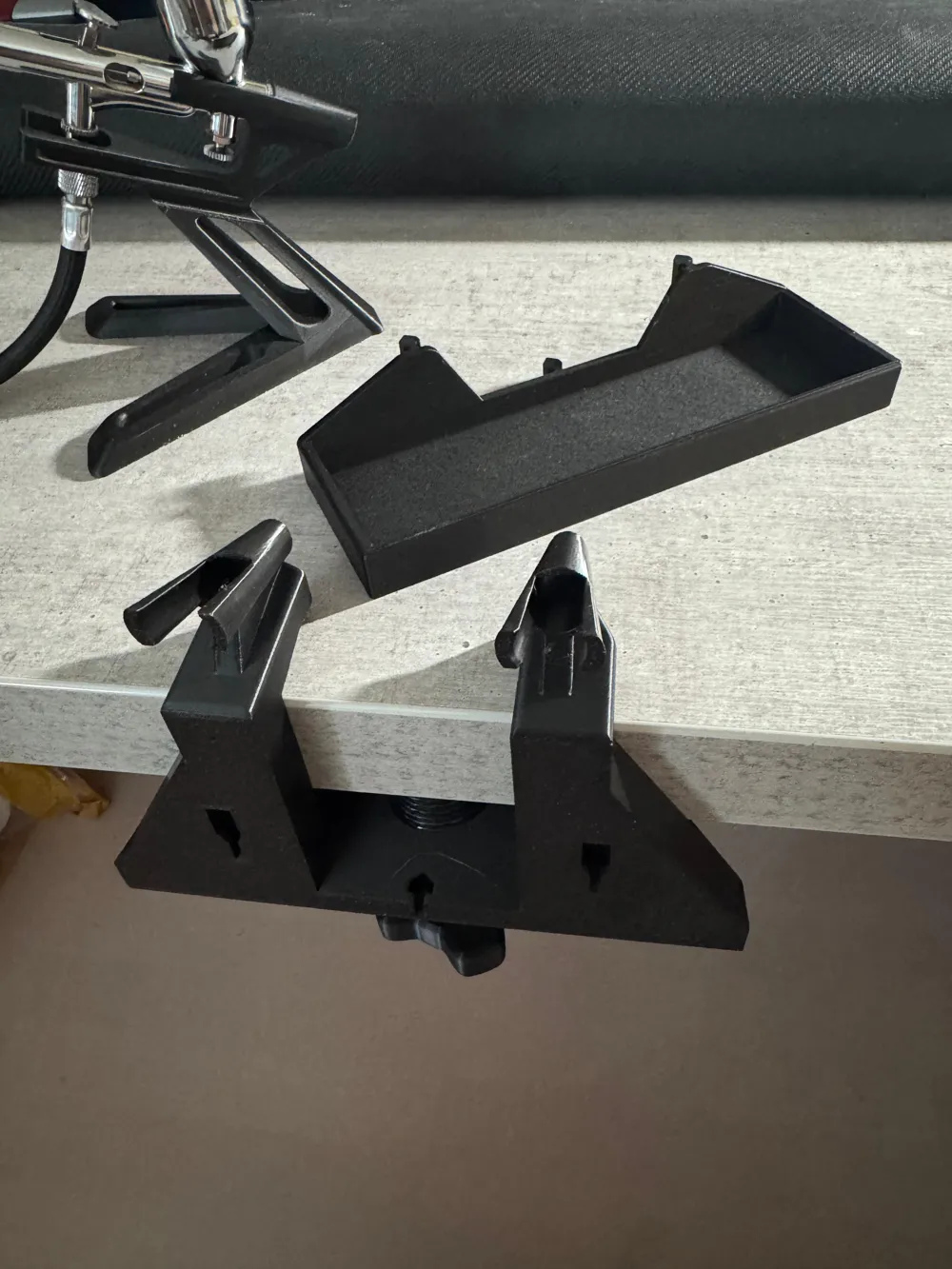

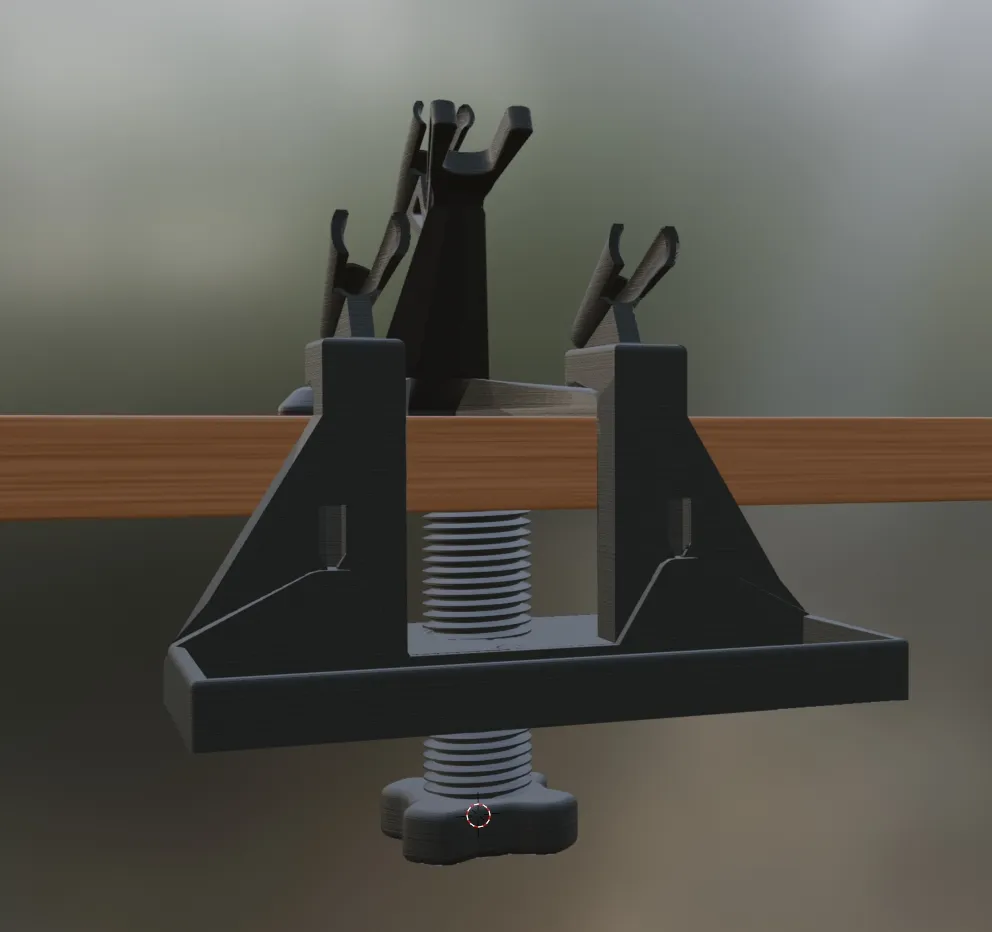

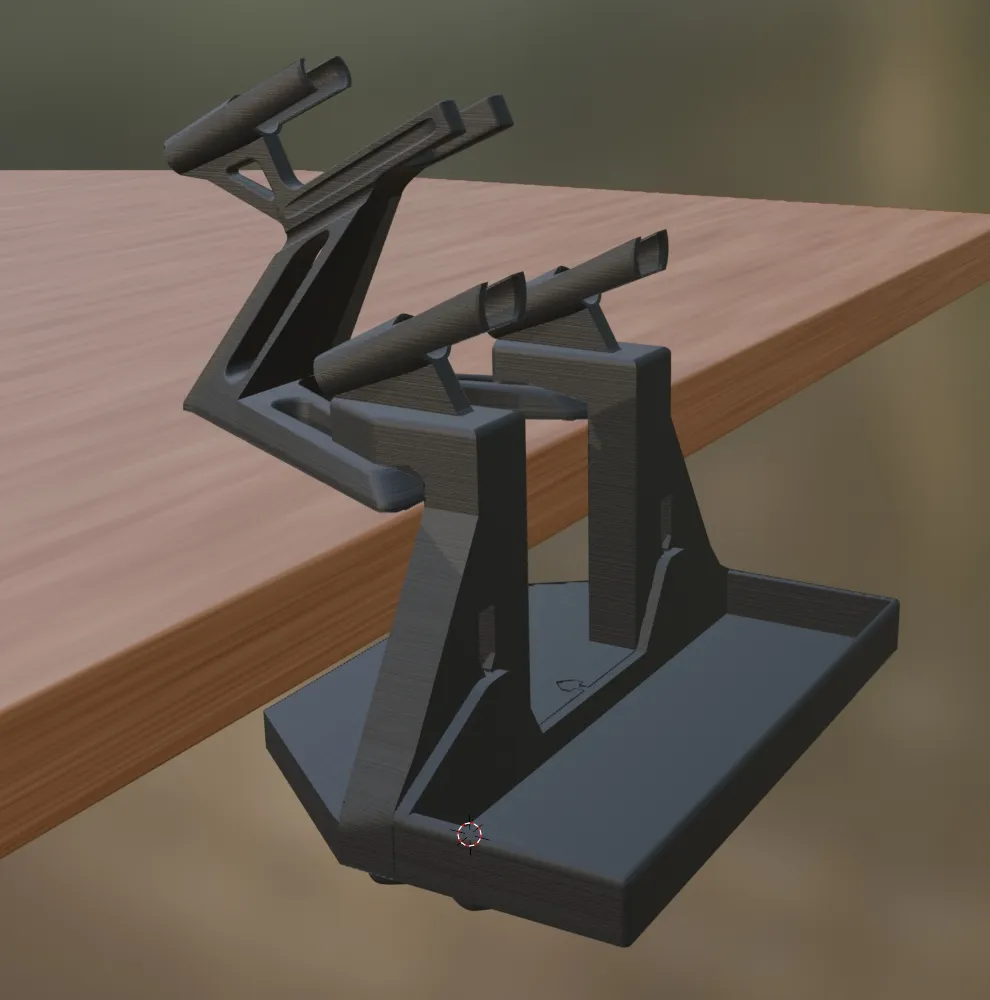

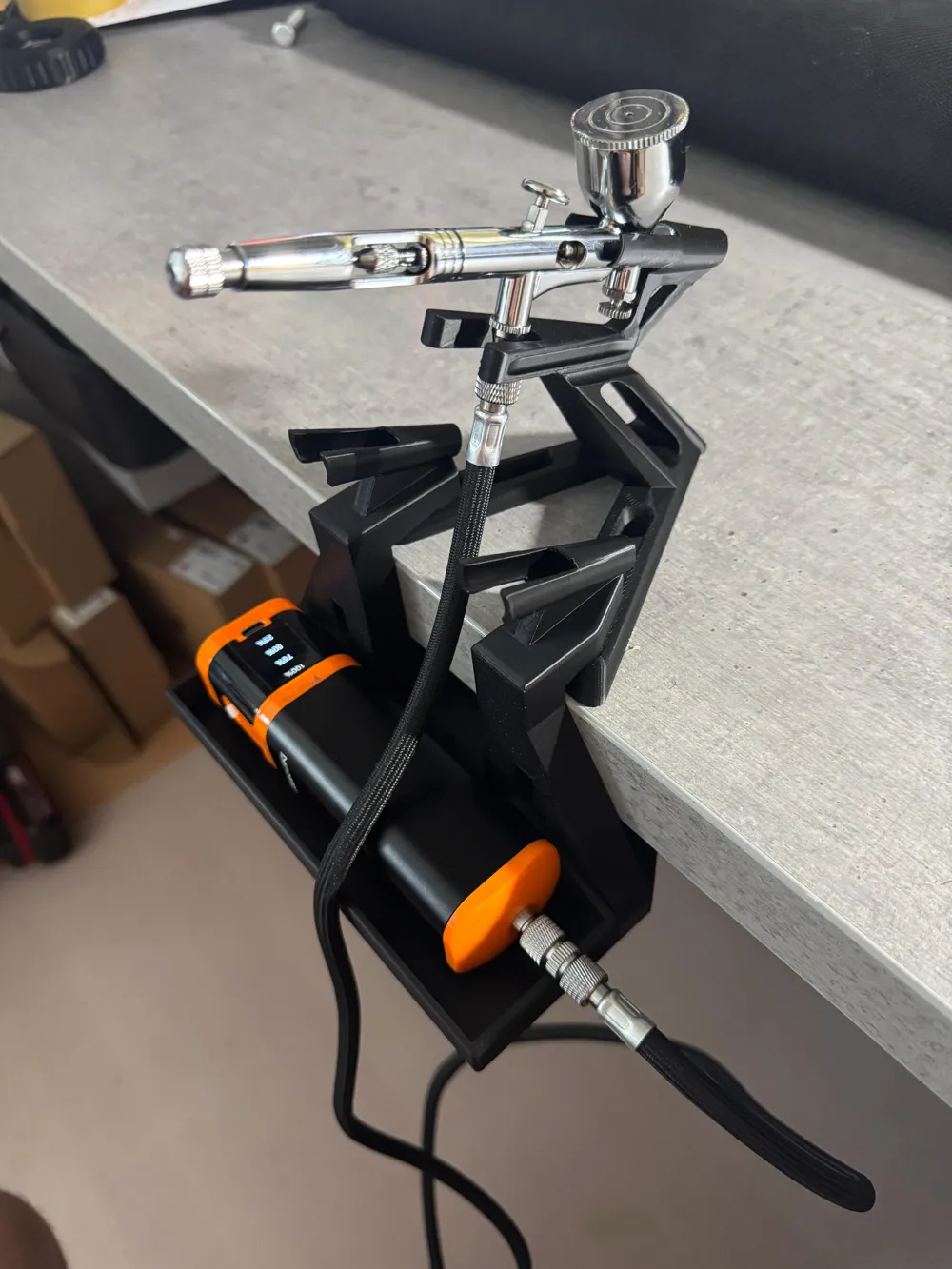

A table clamp for securing the holder is now included
The clamp can hold two additional airbrush guns
A tray for hanging can be attached to the clamp
Under the screw, there is a hole for an 8mm Allen key if you have a very thin tabletop and don't want to twist for too long
The clamp with the holders can also be used as an airbrush holder without the stand

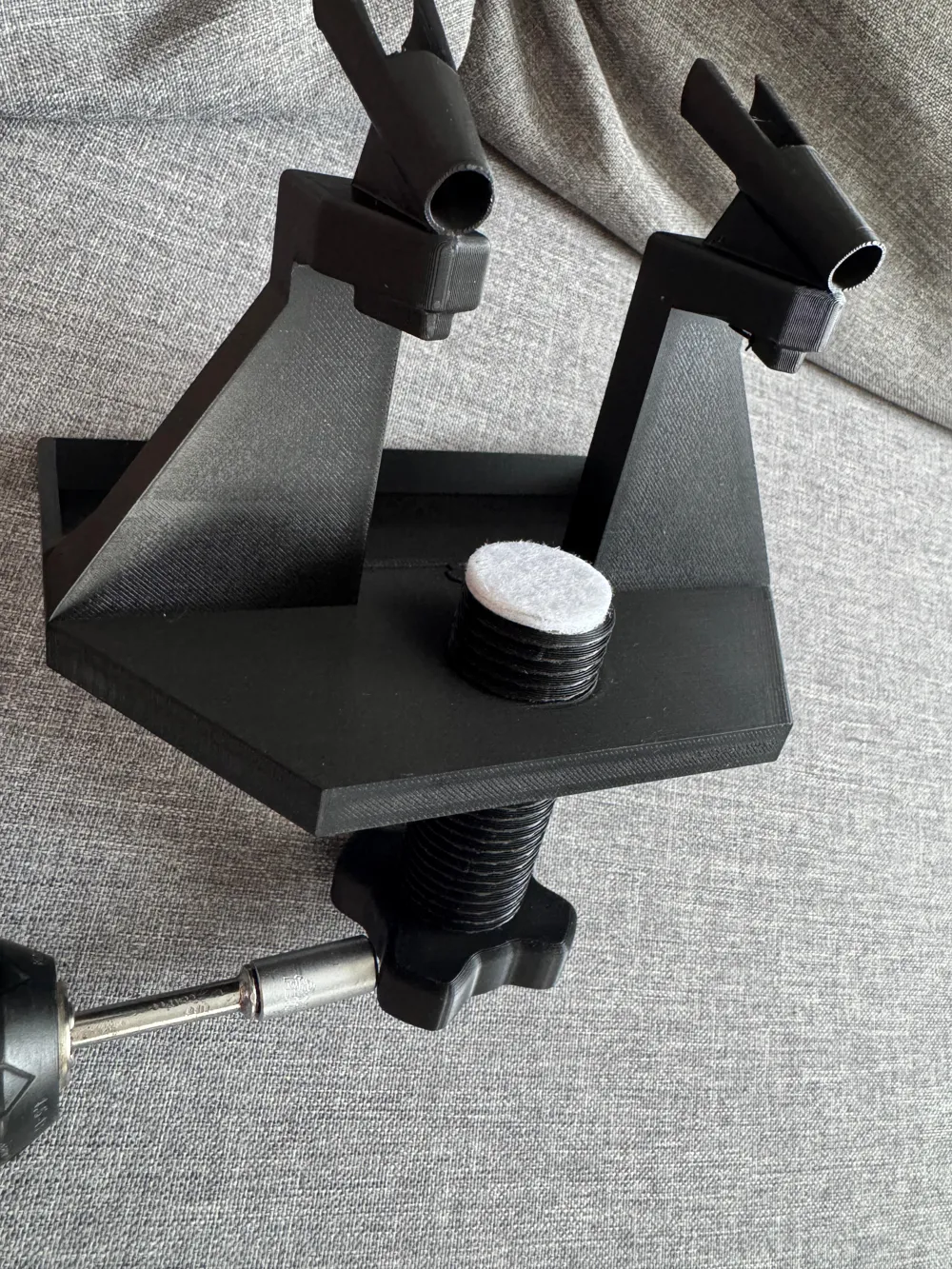

I recommend gluing a felt pad to the top end of the screw
These are usually glued under table or chair legs and are available in any hardware store. 👍
Dimensions:
Tray = 170mm * 55mm * 15mm
Clamp = 170mm * 65mm * 120mm
Screw knob = max diameter 58mm * 15mm
Screw thread = diameter 30mm * 80mm

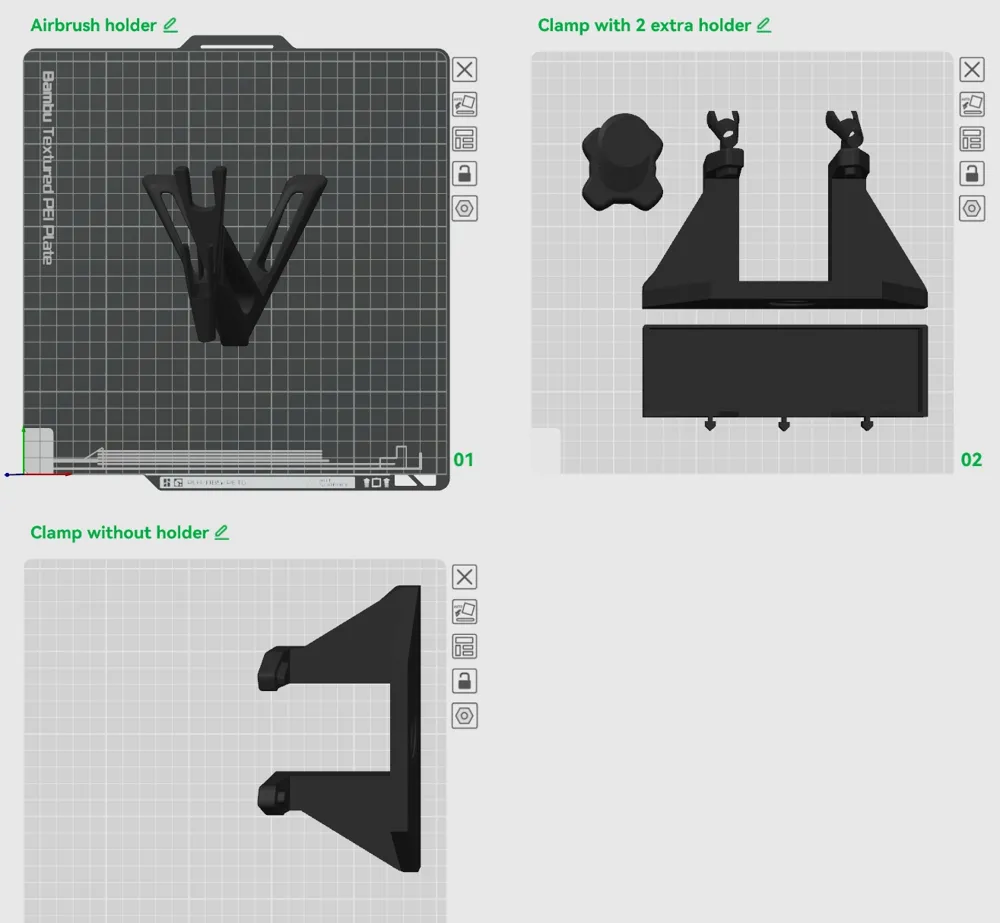

The clamp is also available without airbrush gun holders in case someone only needs the table clamp with the tray
Update 2025-10-18:
The recess for the air connection has been enlarged, providing more space forward
Mesh surface optimization
Print profile optimization: The layer height is now variable to achieve a better surface finish
Update 2026-05-04:

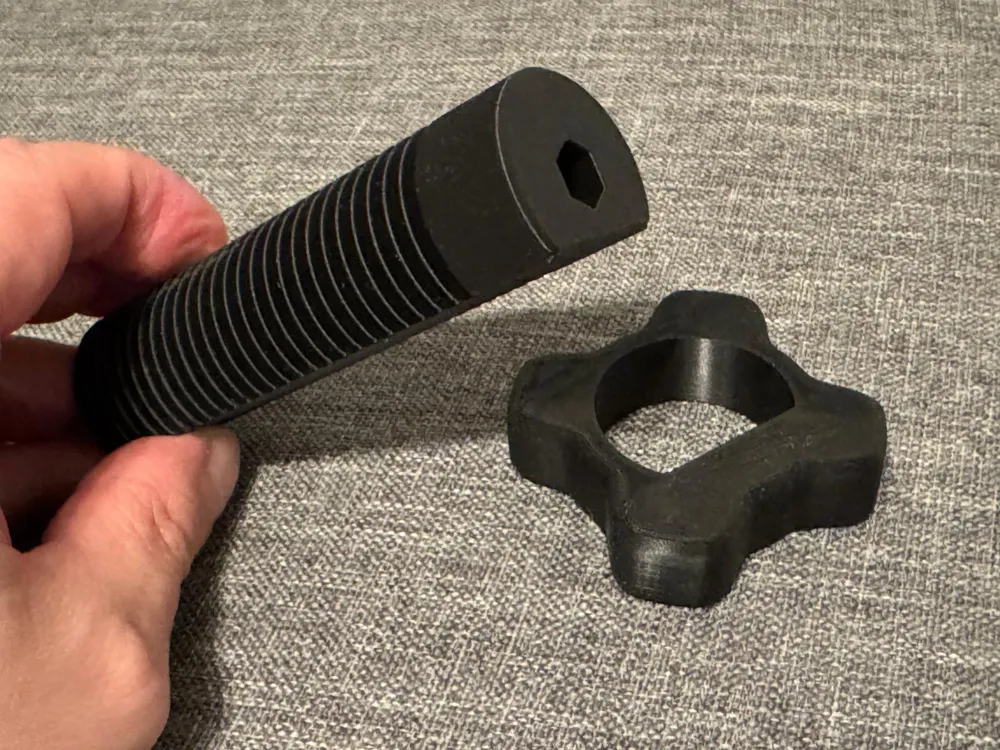

Screw clamp optimization. The screw can now be printed flat and without support filament, making it more stable
However, the handle must be glued on (if needed)
Please give me feedback on the diameter for the gun nozzle, I'd be interested to know if all airbrush guns fit
I would be very happy about a rating as a lot of work went into this model, thank you very much. 😀
Boost Me (for free)
If you have a boost to spare, feel free to use it on this model 😉👍
