Modular beer bottle carrier
A practical beer bottle carrier for 6 x 0.5 liter bottles.
It consists of 10 parts: 1 base plate, 2 intermediate plates, 1 center handle, and 6 supports.
All parts can be assembled without screws.
The center handle is available in two lengths. The large center handle part can only be printed on the H2D.
Assembly:

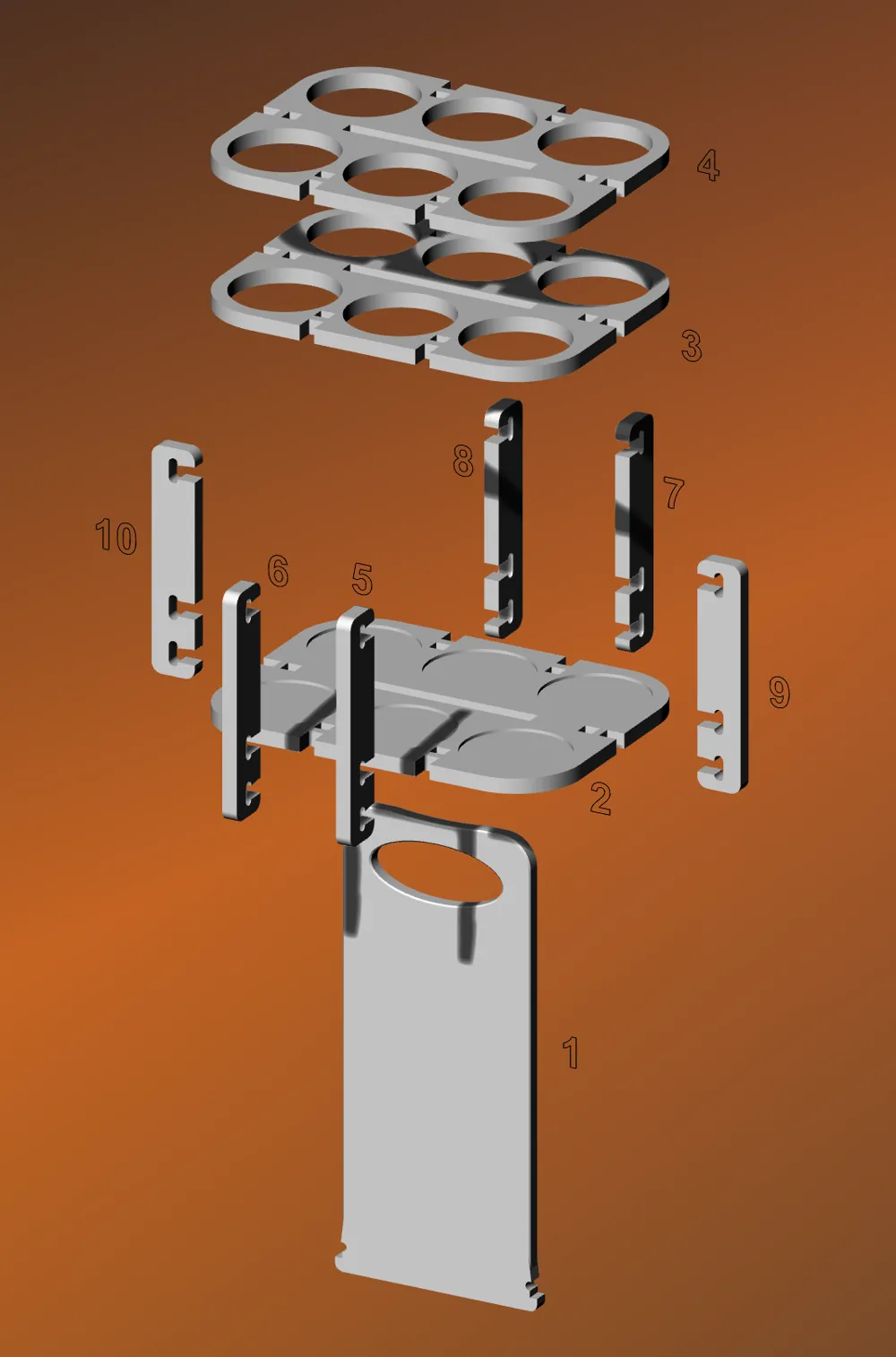

Press the center handle part No. 1 into the base plate No. 2 from below, be careful, it is a bit difficult until it snaps into place. Pay attention to the correct side, circles in the direction of the handle recesses.
Then slide the 2 intermediate plates No. 3 and No. 4 onto the center handle part and press on the 6 side supports No. 5-10. Finished…
Have fun with it.
Please leave a like and boost if you like my designs. I would also be very happy about new followers.

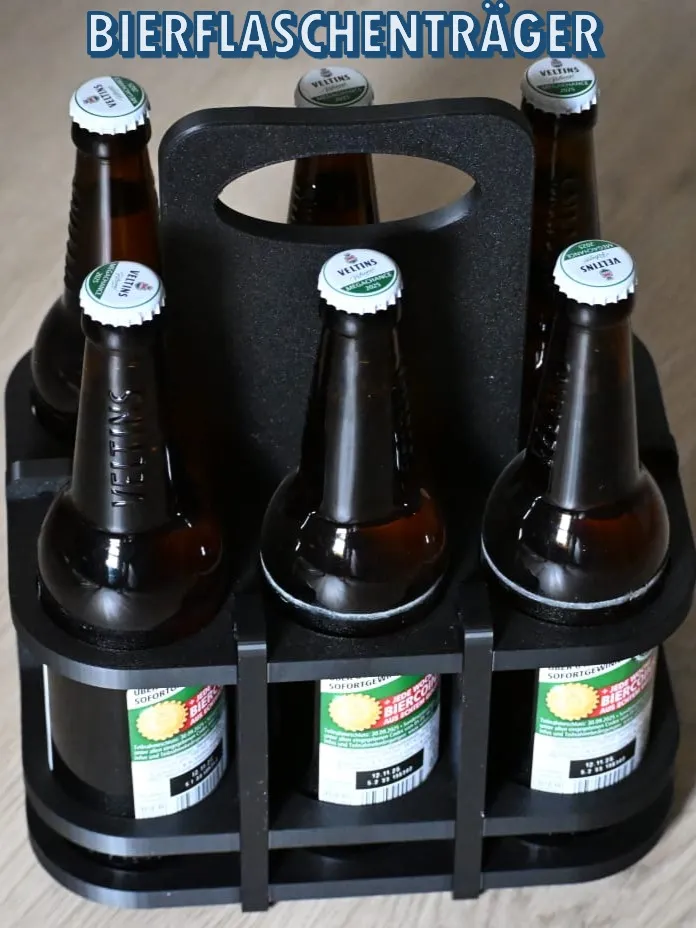

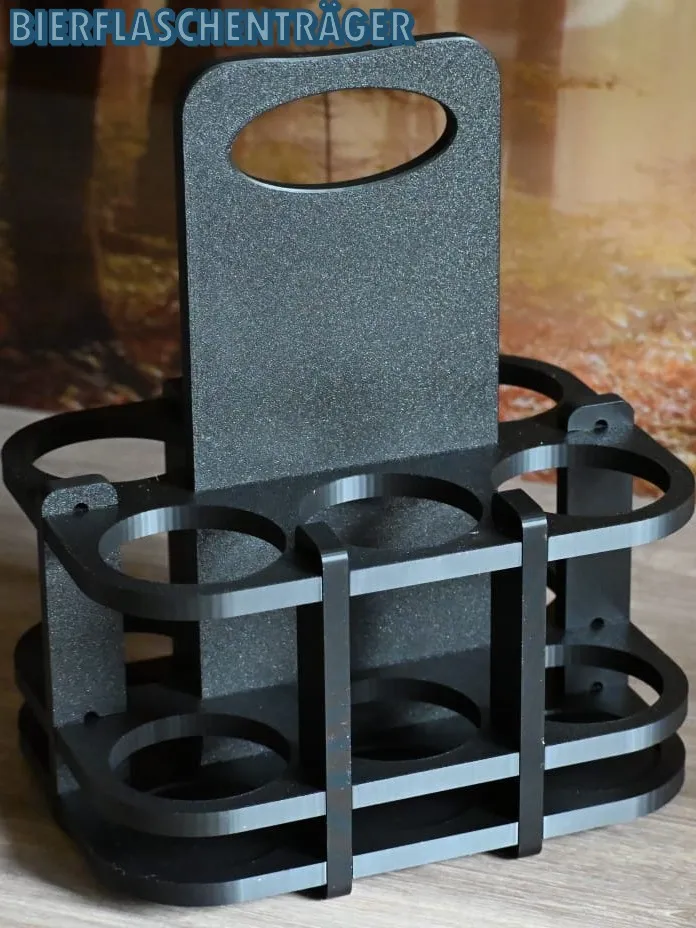

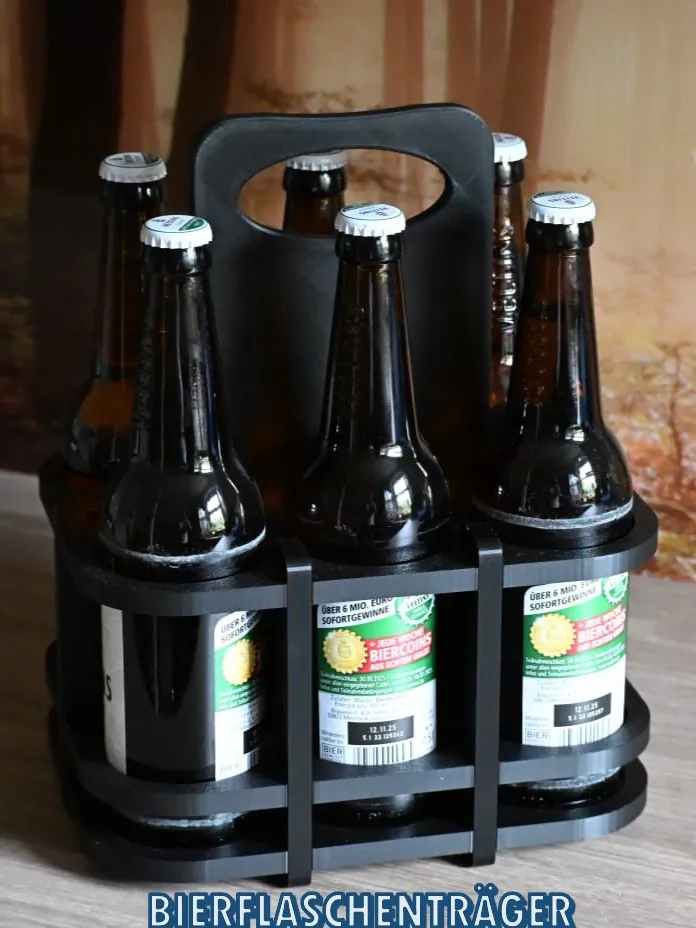

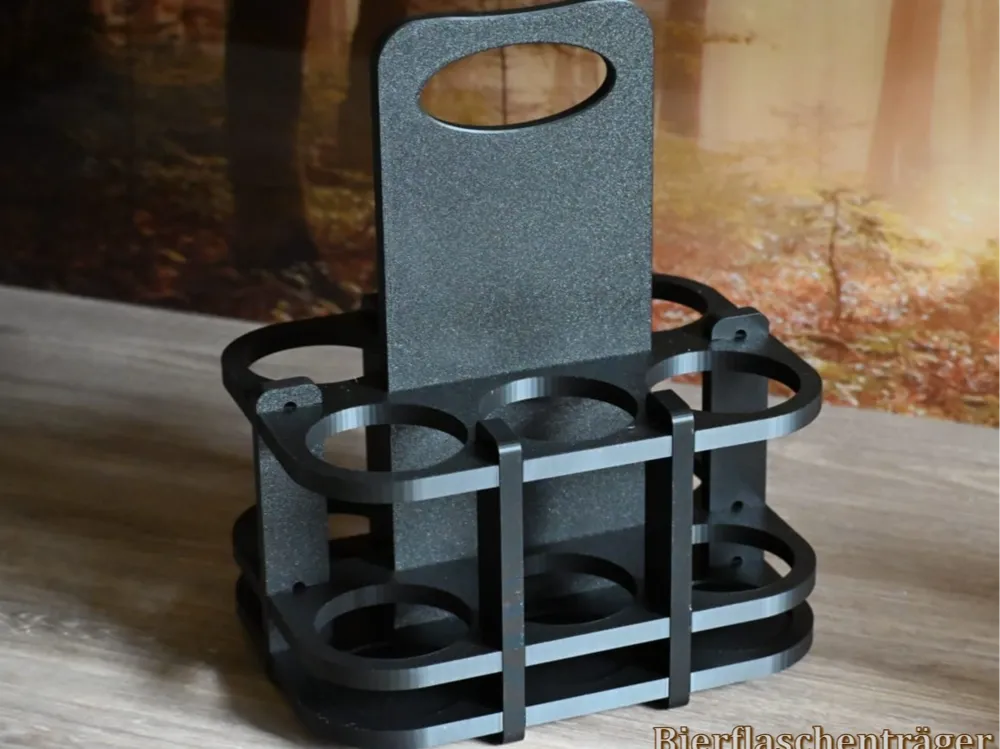

All images are from the original 3D print.
The print was made from Bambulab PLA black.
- 0.40 mm nozzle
- Fill density 15%
no supports
- All uploaded photos show the model printed by me and are copyrighted.
