V3 Direct-Insertion TF SD Card, USB Flash Drive, Card Reader, and M.2 SSD Storage Case

         The V3 direct-insert version is an extension of the V2 pop-up version V3 and V2 have differences in volume and layout, but they are not significant The most important difference is that the V3 direct-insert version is purely 3D printed V3 does not require additional accessories but also does not have the pop-up capability (The V2 version requires purchasing a self-ejecting card slot, which can self-lock and self-eject) The TF card in the V3 version can be directly inserted into the slot Due to too many subdivisions on the V2 page, it became difficult to understand and choose, so V3 is presented separately If you like the V2 version with a self-ejecting card slot, you can also click my personal homepage to download and print it

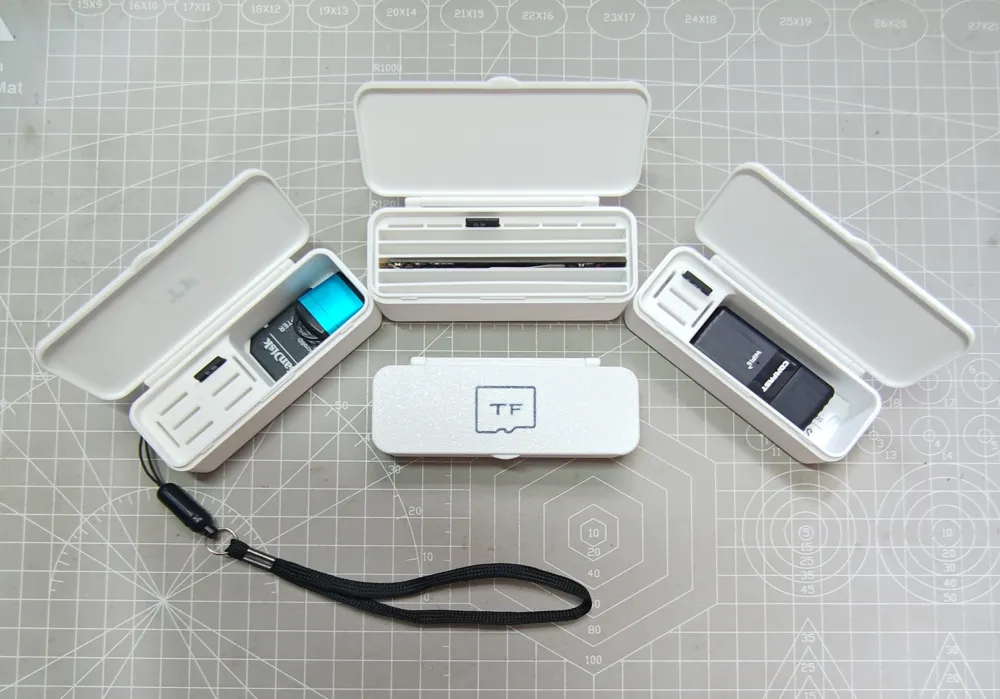

        V3 is an exquisite, compact, and highly capacious portable storage box for TF memory cards, USB drives, card readers, micro SD cards, and M.2 SSDs It is easy to install and material-saving The flip-top installation requires no hardware When installing the flip-top, first align and insert one side, then firmly press the other side from bottom to top to insert it There are hidden snaps between the lid and the box body, making it quite secure It can withstand daily use and falls from normal height

        Important note: After printing, you should check for any residue inside the slot and whether the card can be fully inserted This is very important as it concerns the safety of your card Before closing the box, also check if anything is not in place Cards are valuable, data is priceless, please handle with care

       Tested with PLA and PETG, both can be printed normally

       If you have any questions or good ideas, please leave a comment to discuss Please be kind~~

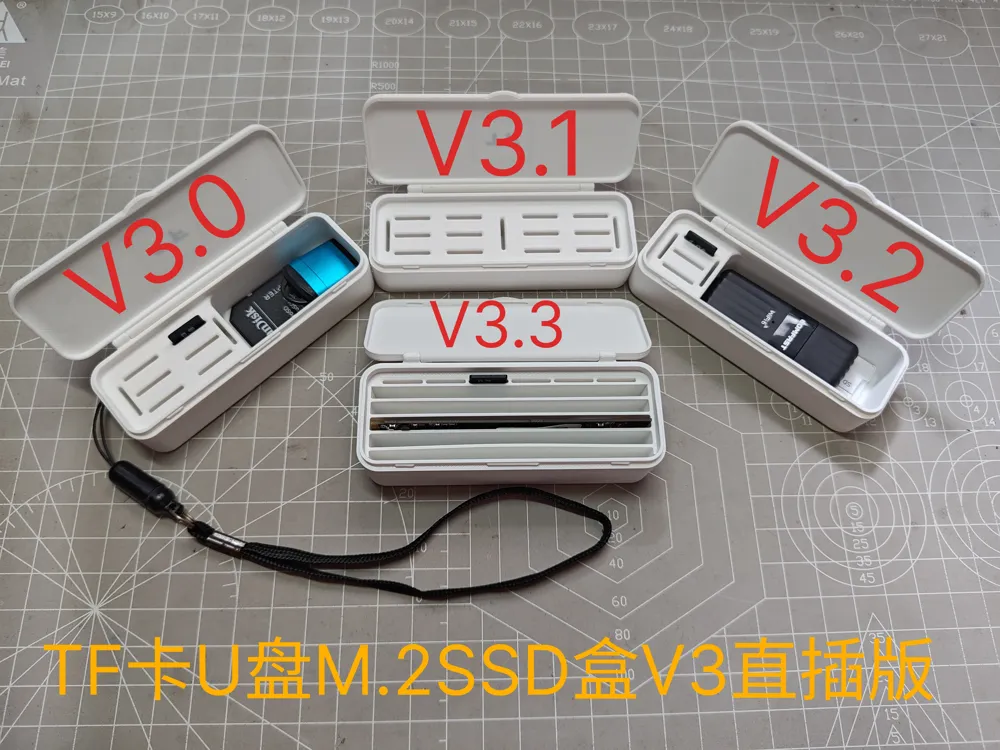

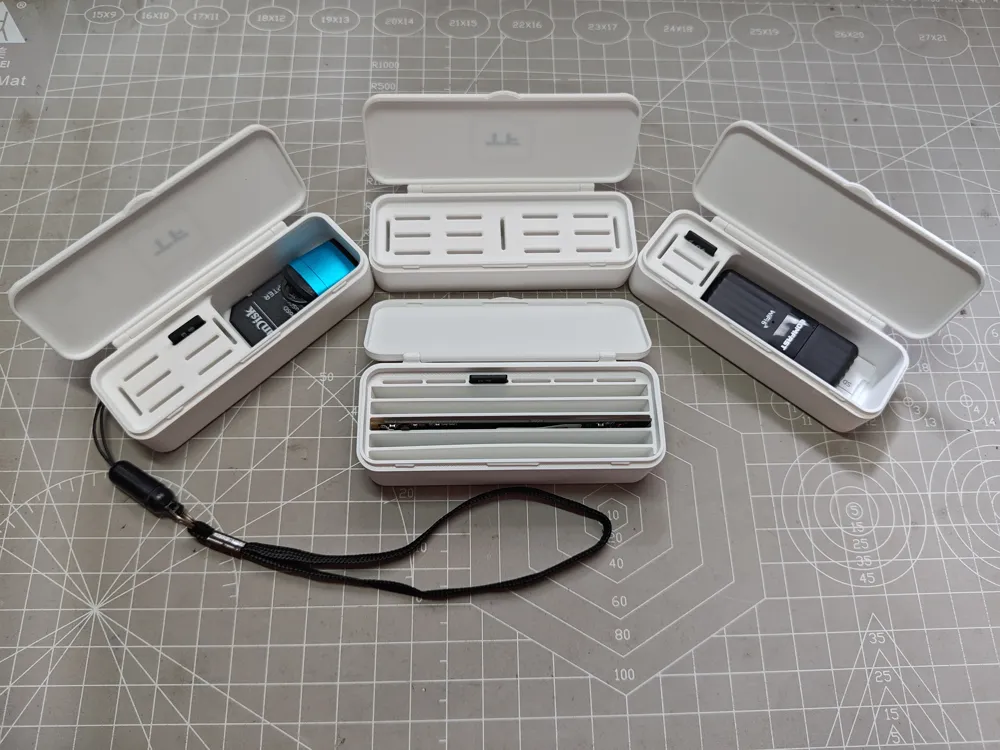

       Divided into five print profiles:

       1. Collection of V3.0, V3.1, V3.2 monochrome print no-icon version (M.2 SSD cannot be placed)

       2. Collection of V3.0, V3.1, V3.2 multi-color print with TF icon version (M.2 SSD cannot be placed)

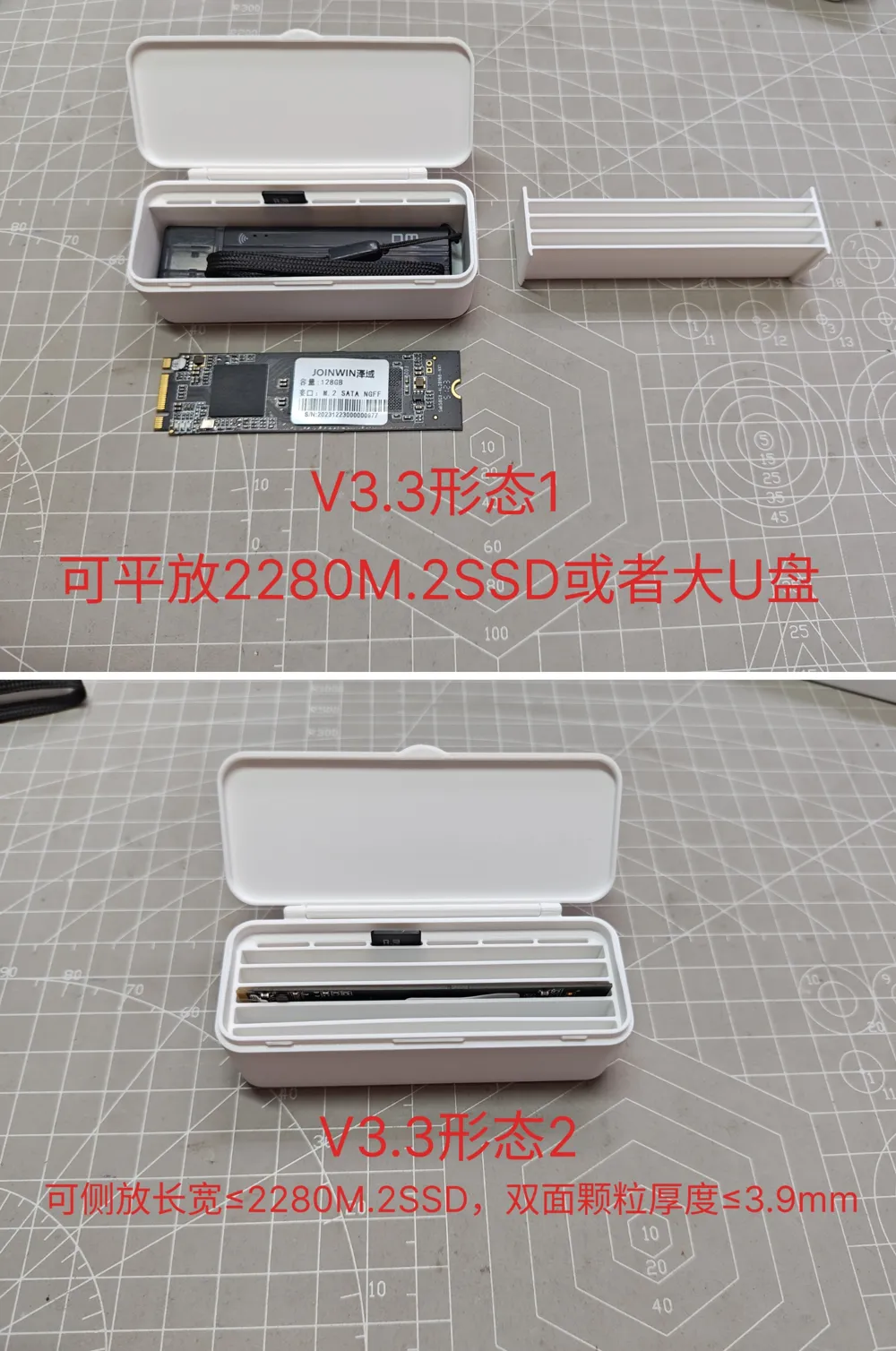

       3. V3.3 monochrome no-icon version (Can hold M.2 SSDs with length and width ≤2280 specifications or USB drives of similar size)

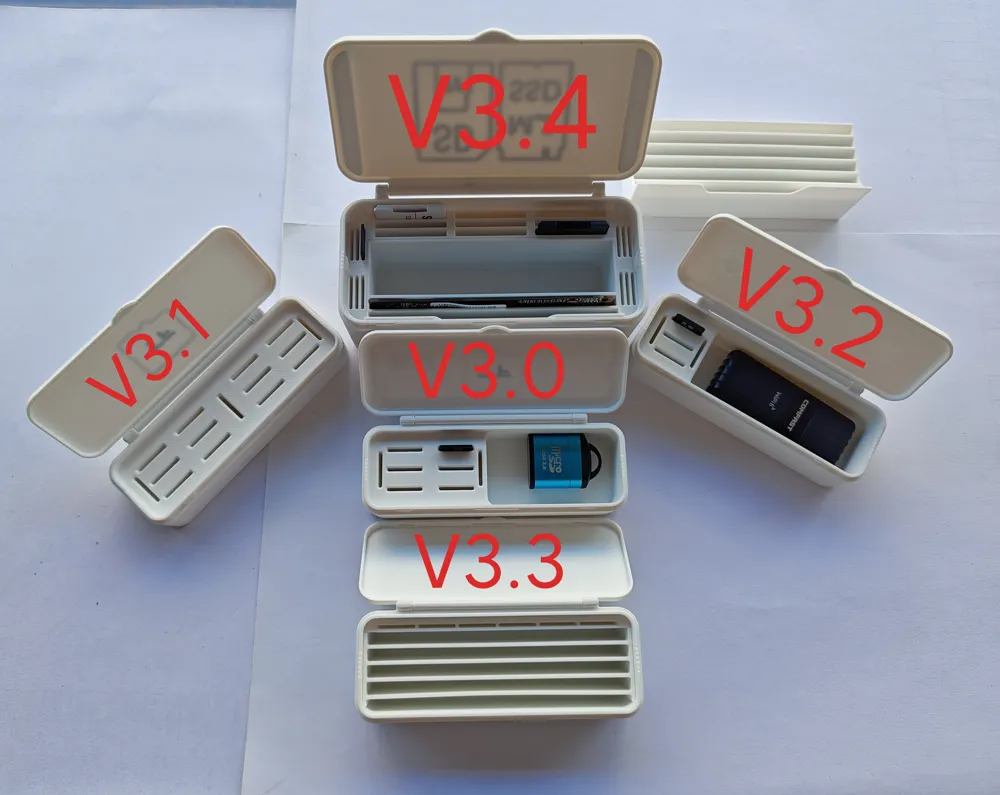

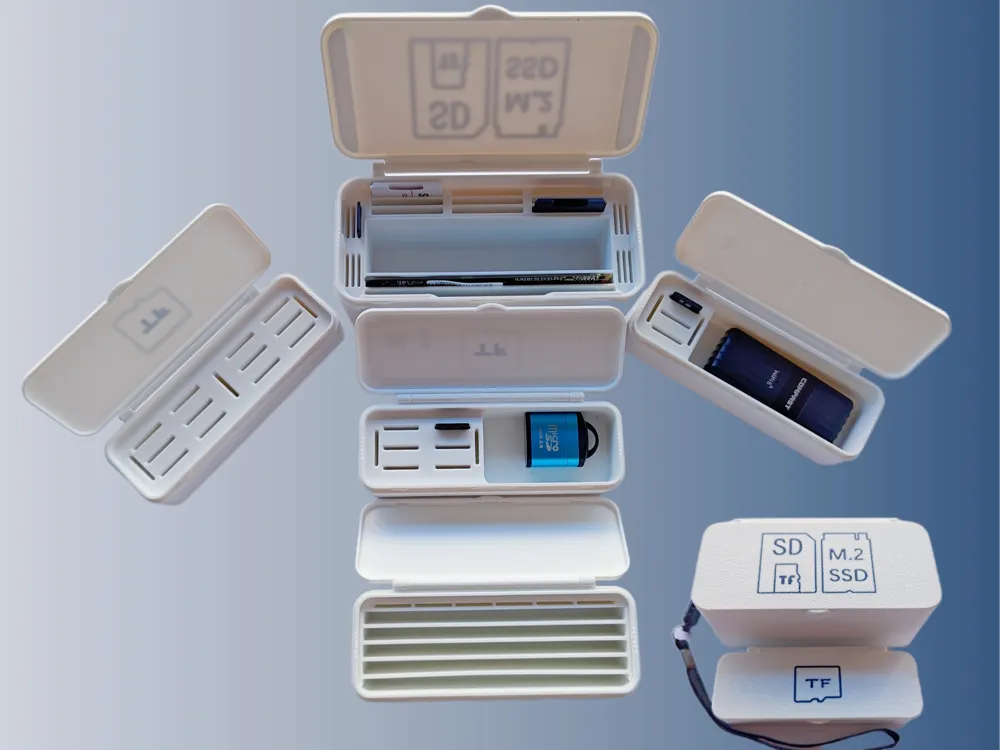

       4. V3.4 plate 1 monochrome, plate 2 multi-color with icon/V3.4ENL enlarged version plate 3 monochrome, plate 4 multi-color with icon, plate 5 V3.4 monochrome Empty Box, plate 6 V3.4ENL enlarged version monochrome Empty Box

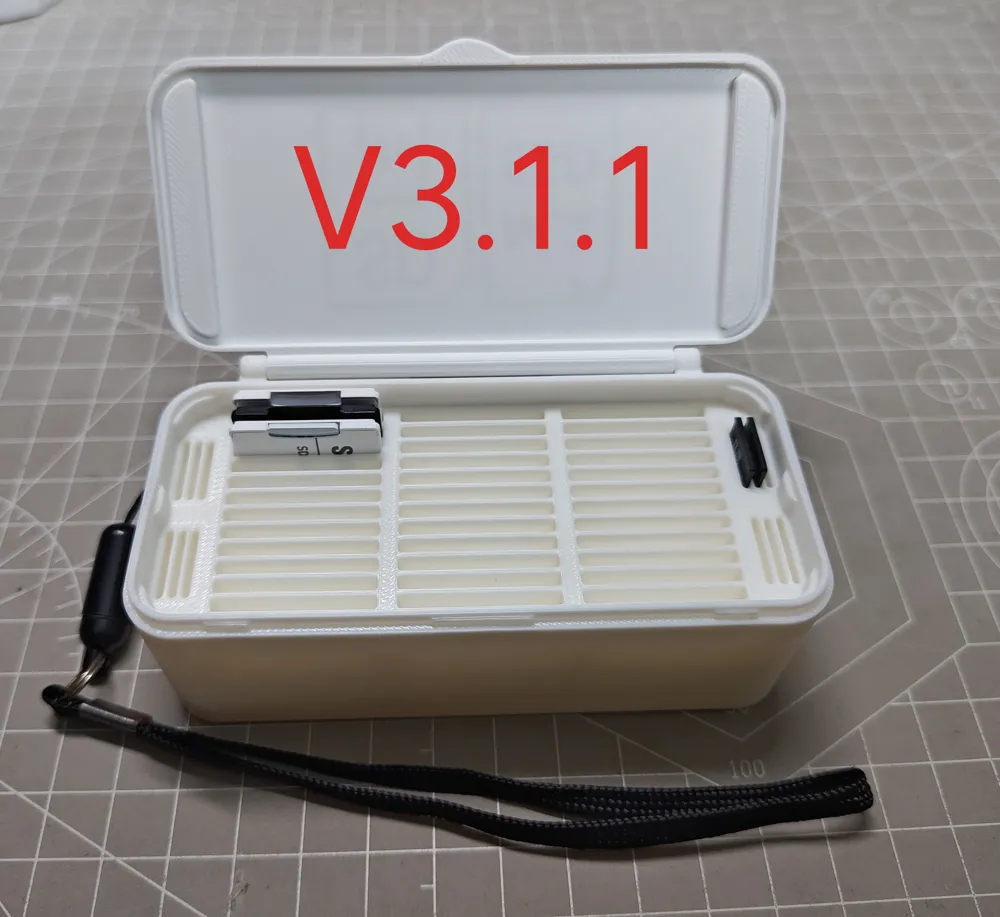

       5. V3.1.1 monochrome, stores 39 standard SD cards and 12 TF cards (M.2 SSDs and USB drives cannot be placed)

↓Historical update information (can be ignored!)

       Updated on 25/9/13, added V3.1.1 print profile, it can store 39 standard SD cards and 12 TF cards

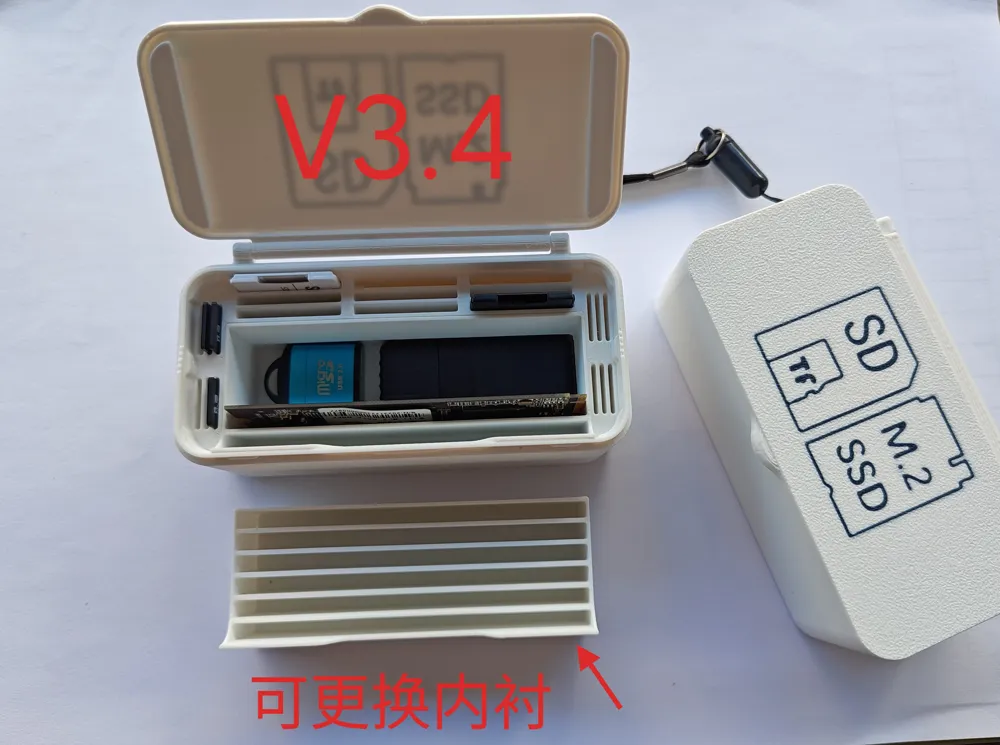

       Updated on 25/7/4, added V3.4 print profile, total volume is slightly larger than V3.0, can insert 9 large SD cards and 12 micro SD (TF) cards The remaining space can be customized with liners Currently, 2 liners have been uploaded: 1. Can hold 2 M.2 SSDs of ≤2280 specifications sideways and some large USB drive card readers 2. Can hold 6 M.2 SSDs, with an additional hidden space underneath (Print profile 4)
