Vertical stand for AMS Lite with adjustable legs
Print Profile(1)
Description
Boost Me (for free)
Your boost will motivate me to dedicate more time to bringing better and more refined models to the community.

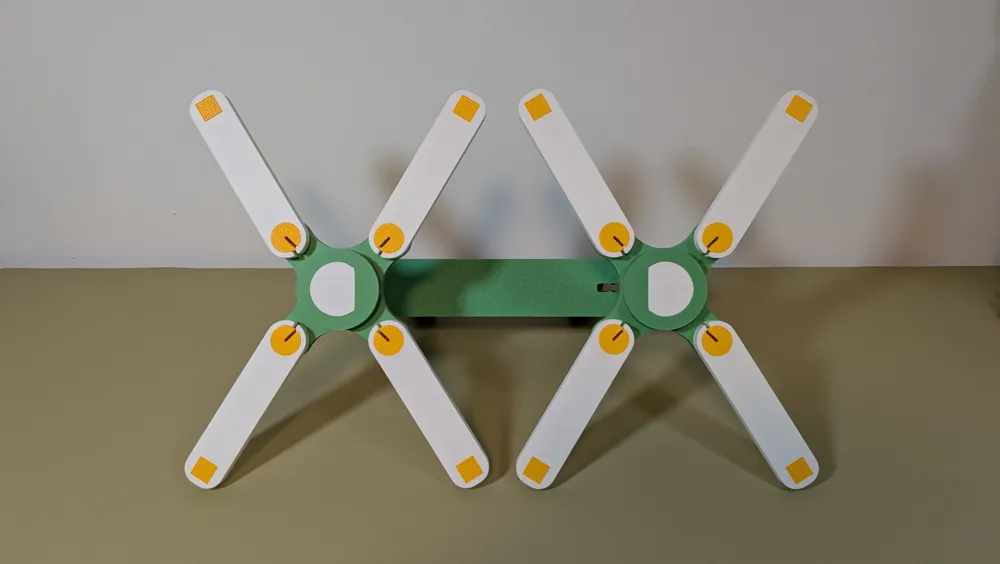

This vertical stand is compatible with most AMS enclosure cases and is designed to hold the AMS Lite in the upright position. The stand features adjustable leg angles and offers two different leg lengths to enhance stability during printing.

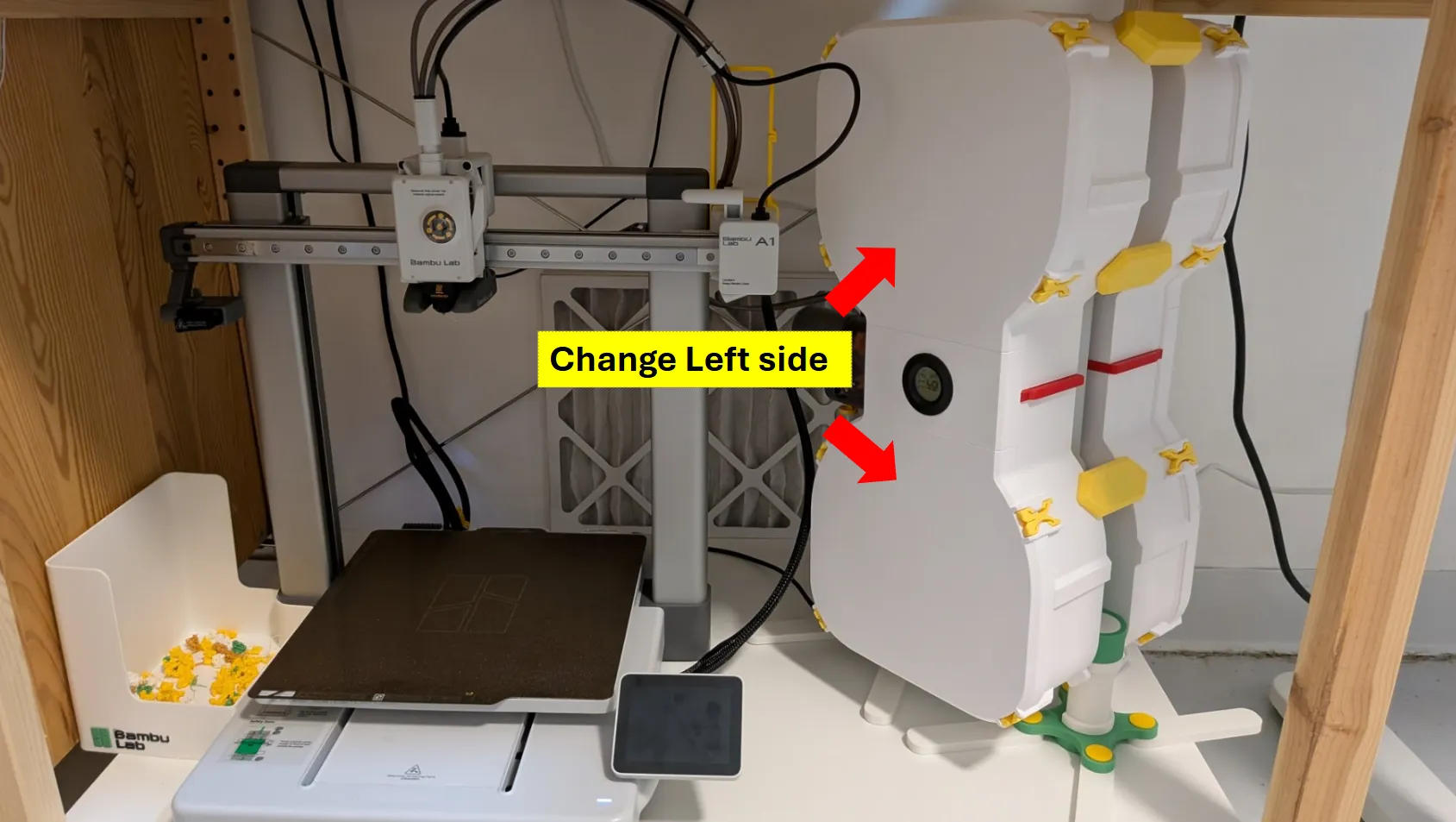

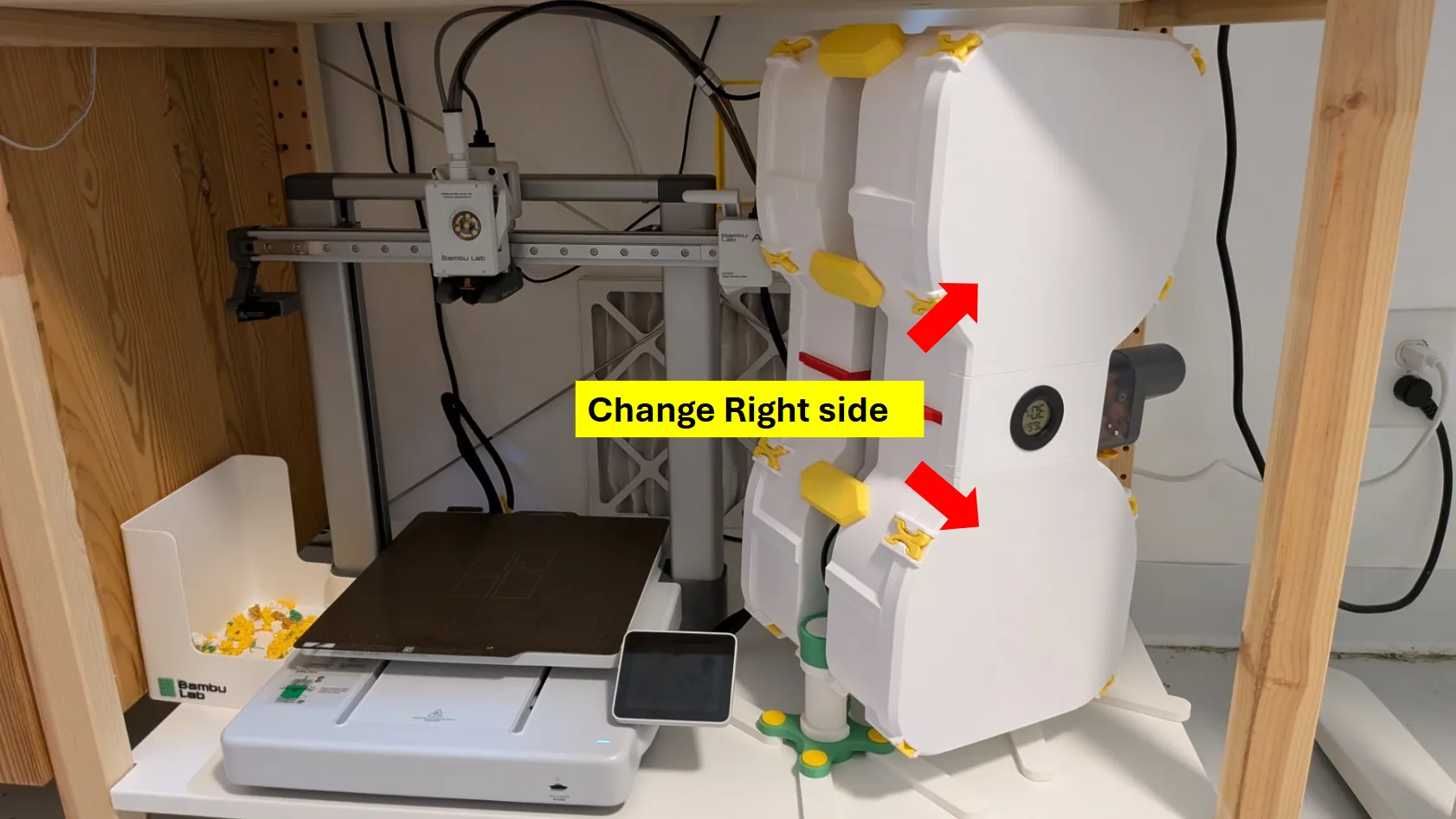

Additionally, this design allows for convenient filament replacement from either side of the AMS. The AMS Lite needs to be positioned with the filament tubes facing backwards. No extra cables or tubes are required. All are using factory-default hardware.
Please note: If you use this stand, you will likely also need this cable limiter clip：

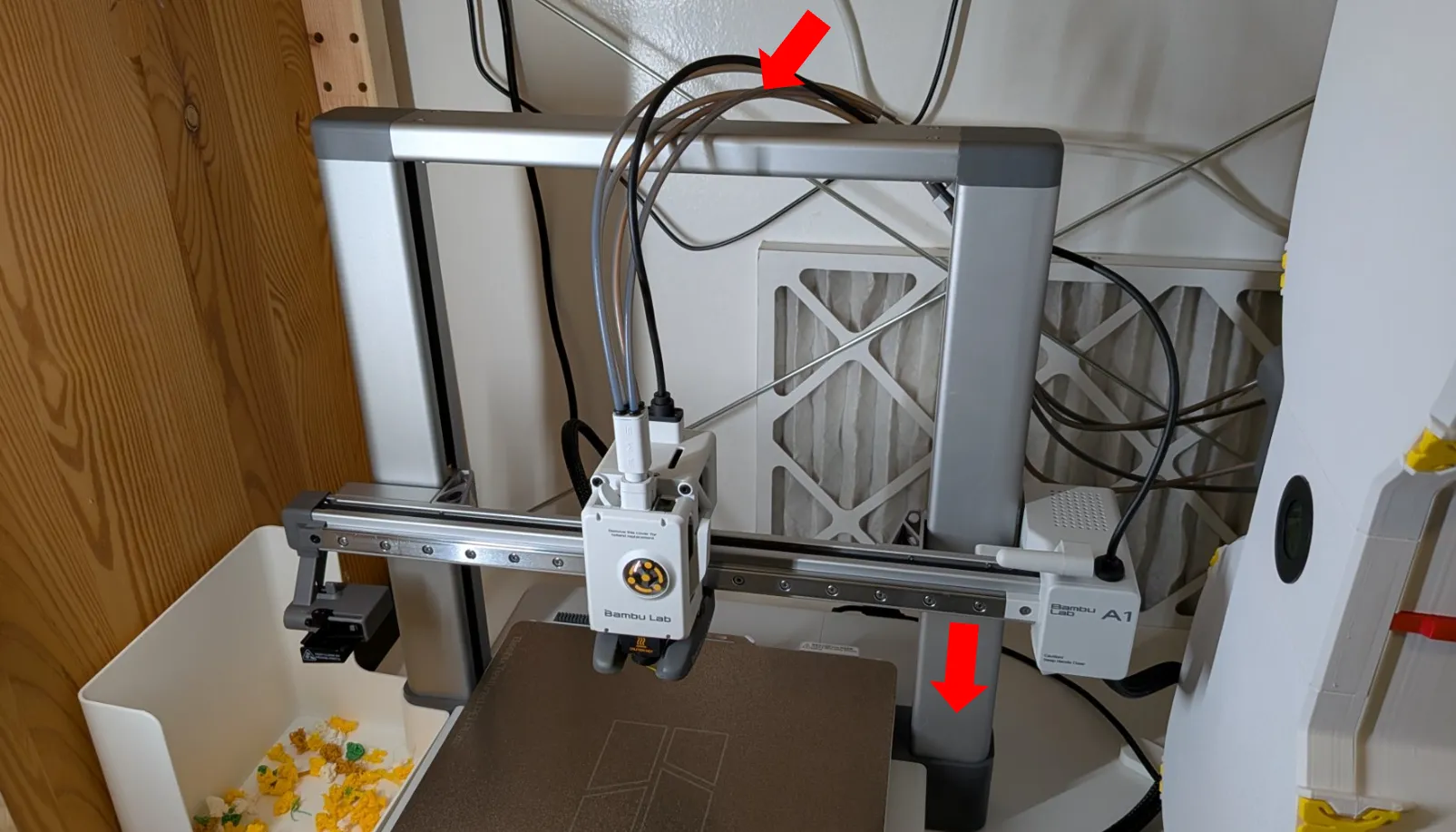

Without it, the AMS filament tube may get stuck on the top of the gantry when the printhead moves from its highest to lowest position.

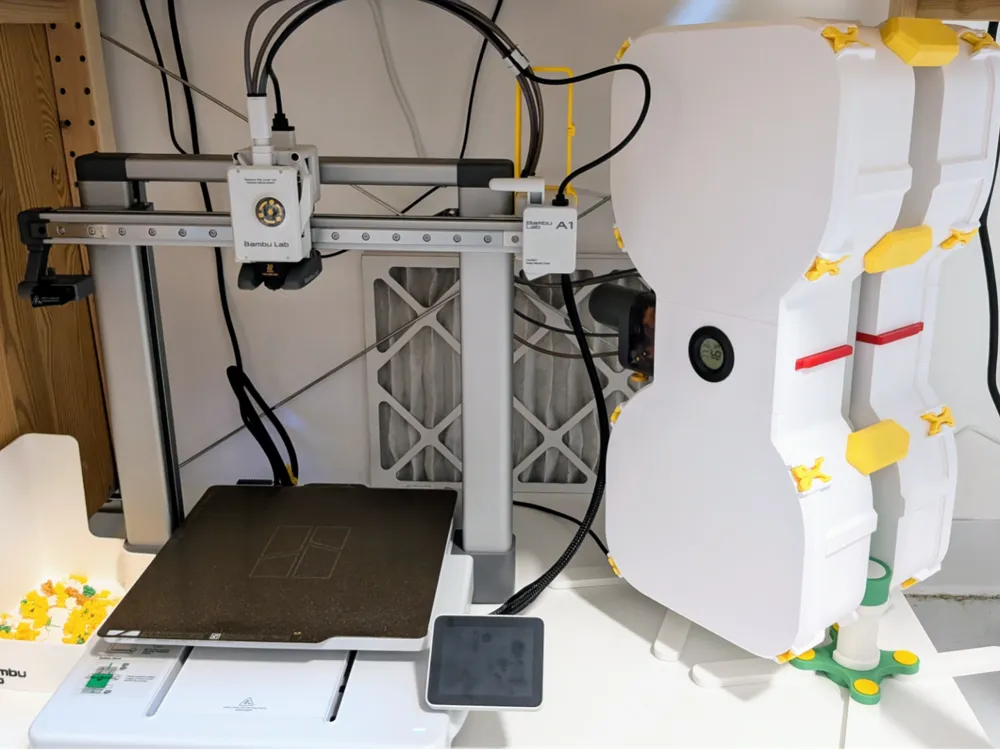

The following two AMS enclosures have been tested and confirmed to be compatible with this stand.
https://makerworld.com/en/models/1171679-ultimate-filament-spool-enclosure-type-02#profileId-1180009
===Assemble Instruction===

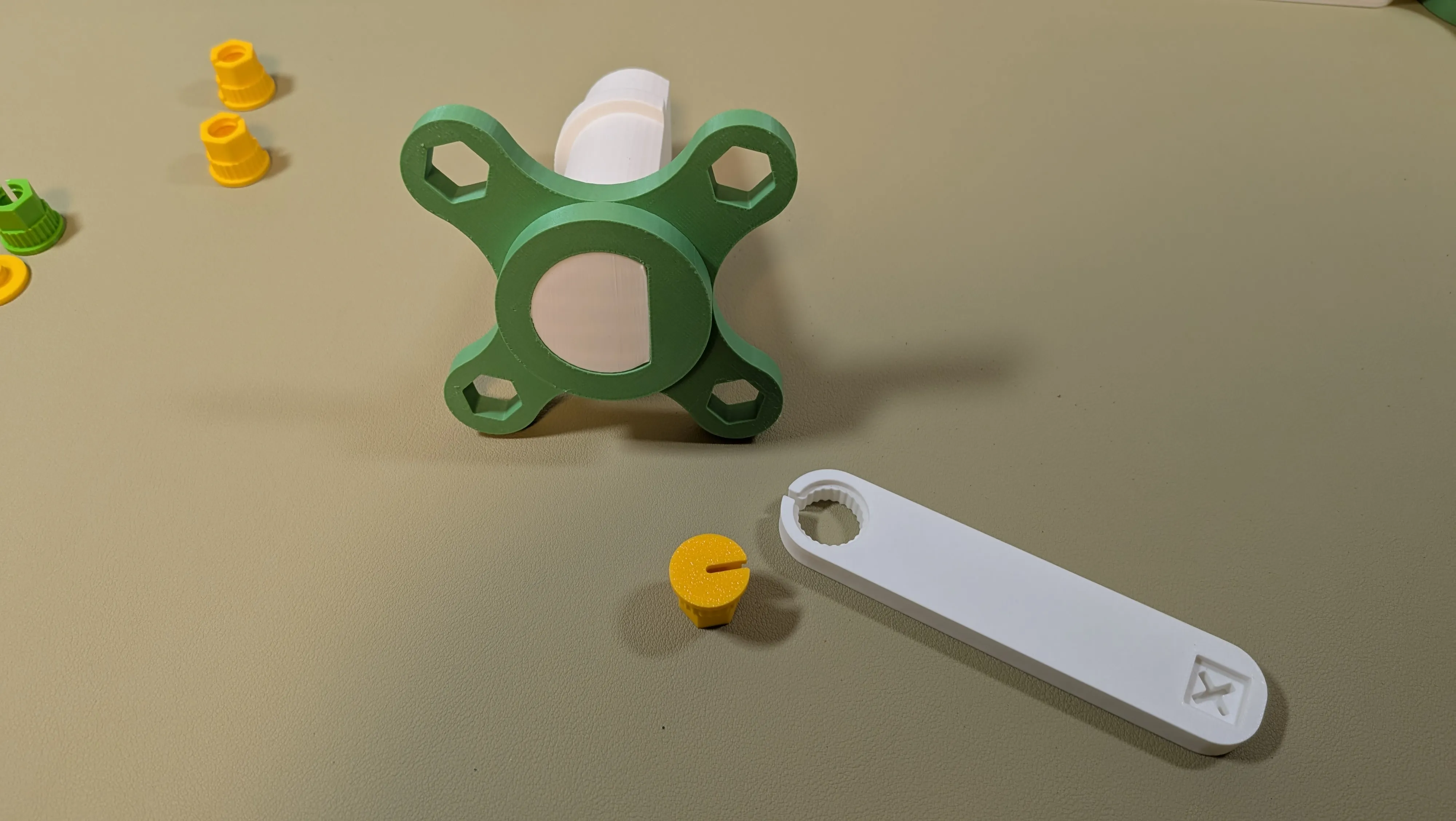

Assemble from here first.

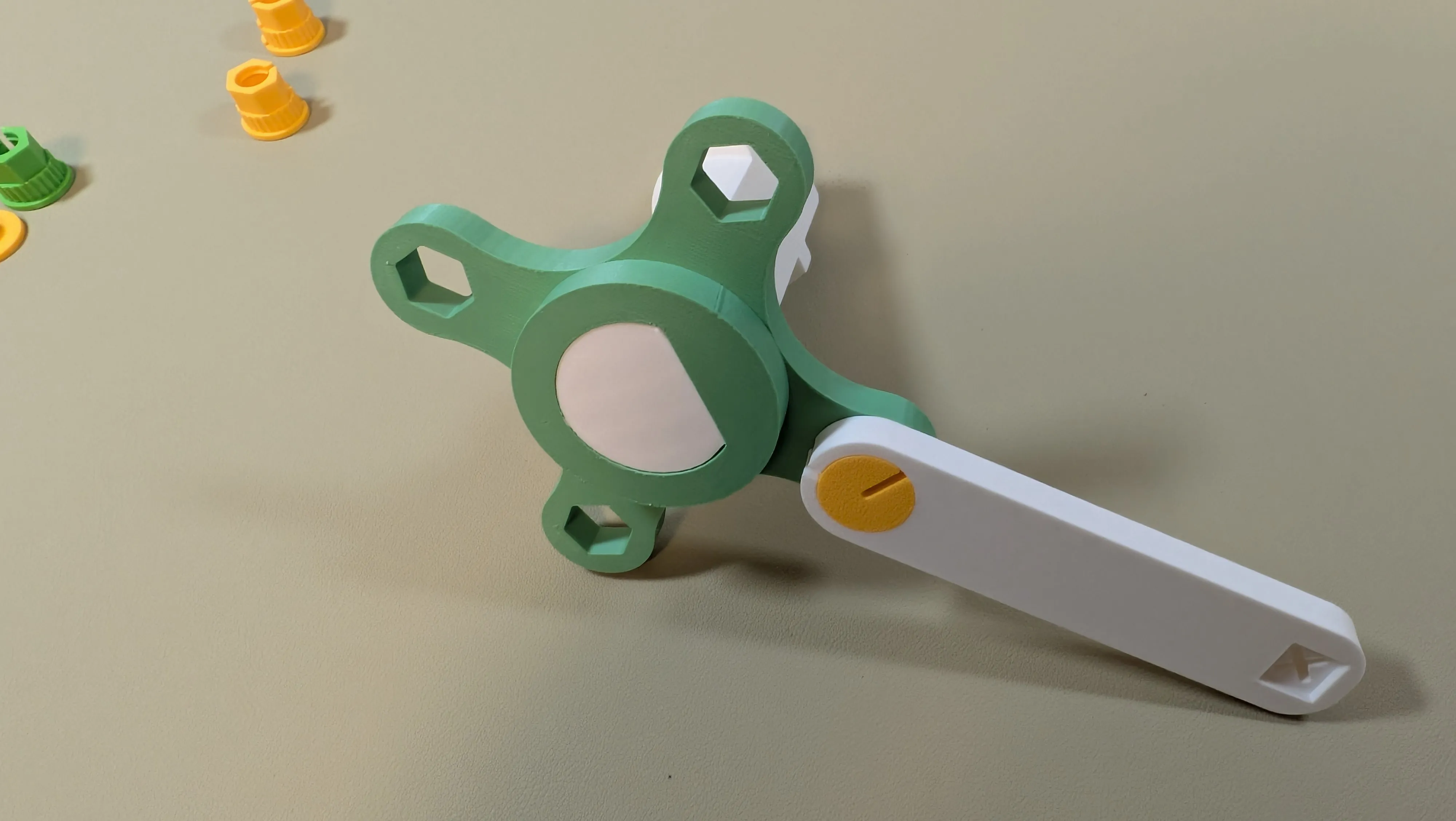

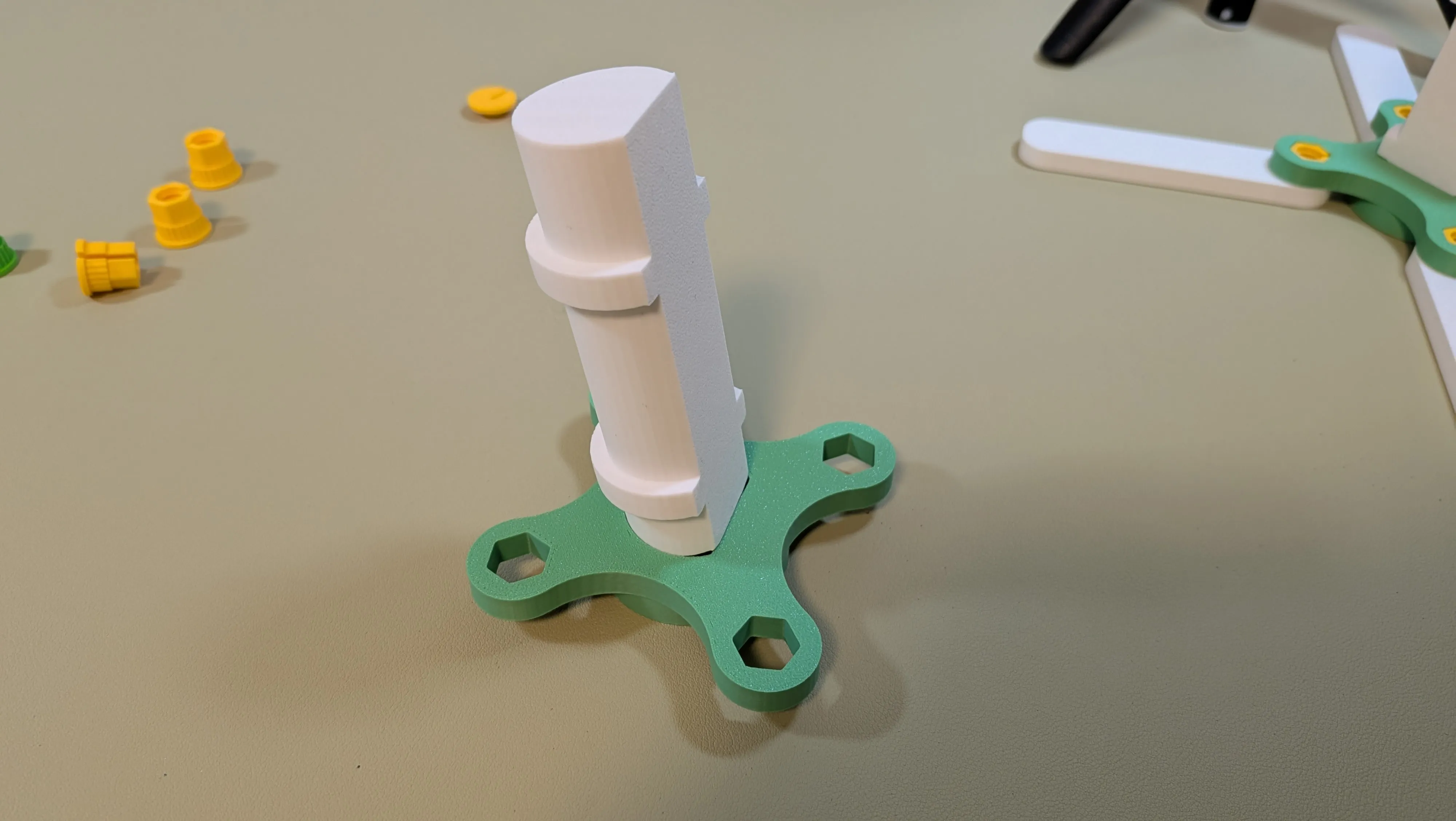

Attach the long or short leg to the base.

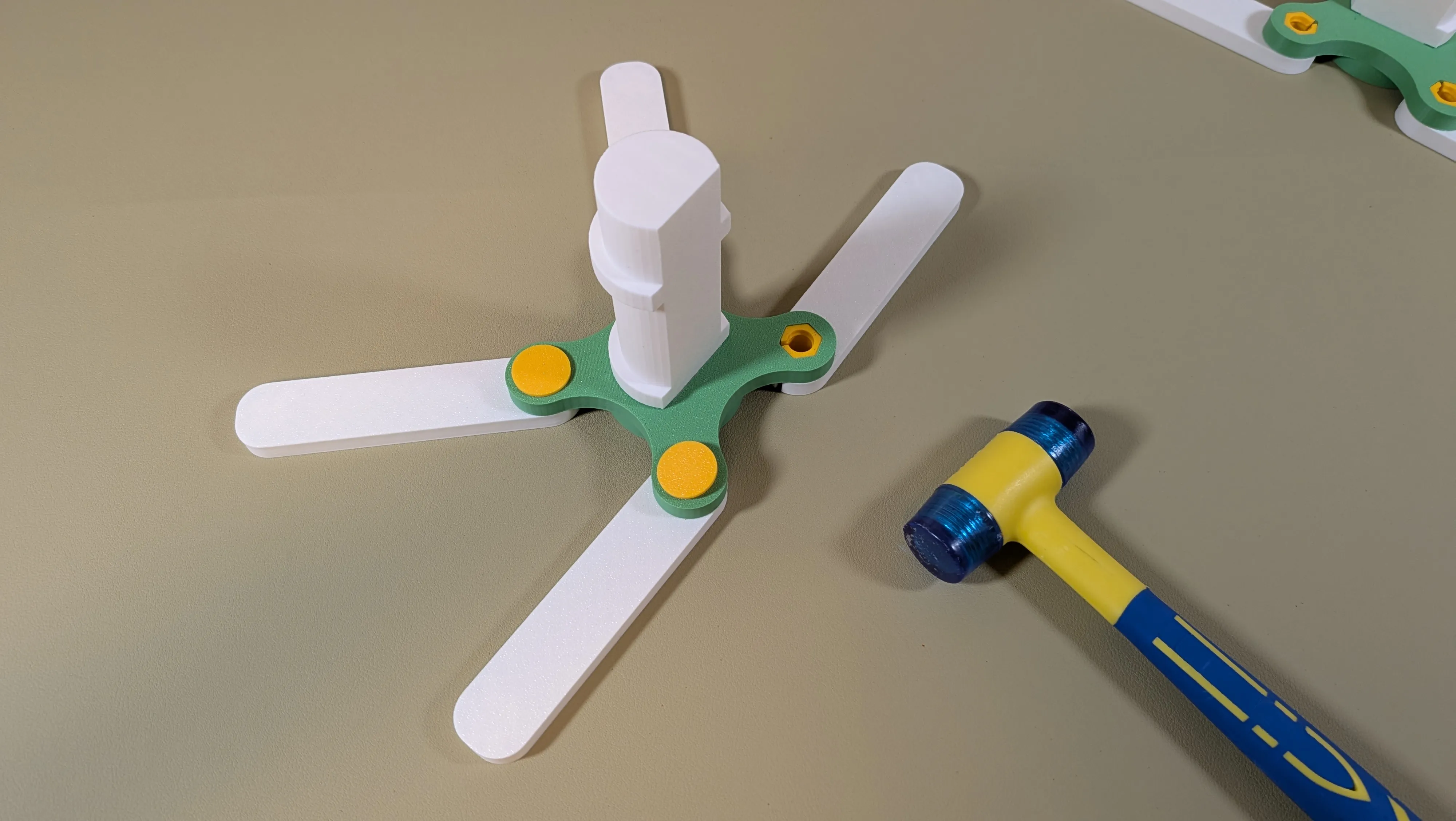

Snap in the cap on the top. (Or hammer in)

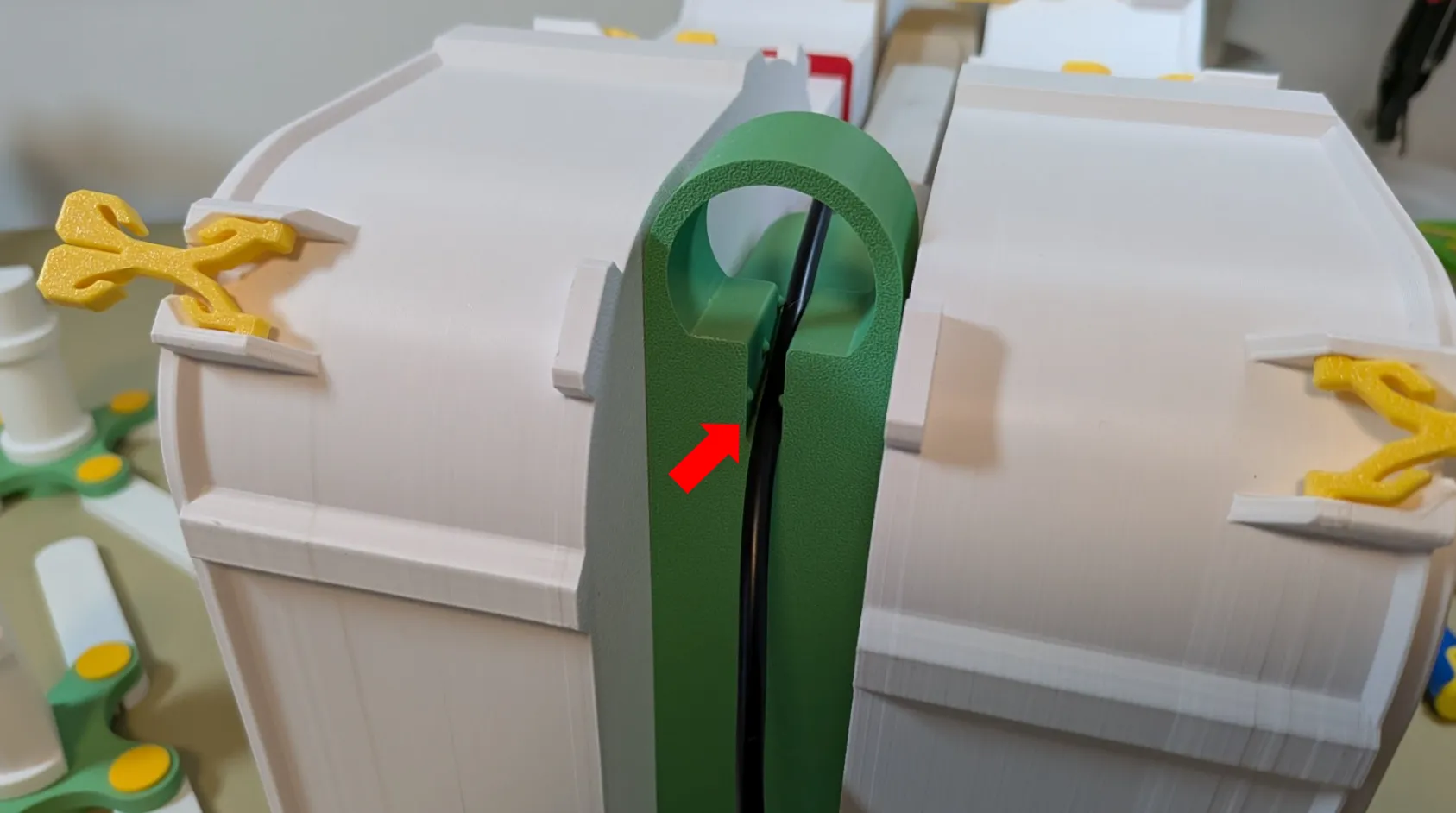

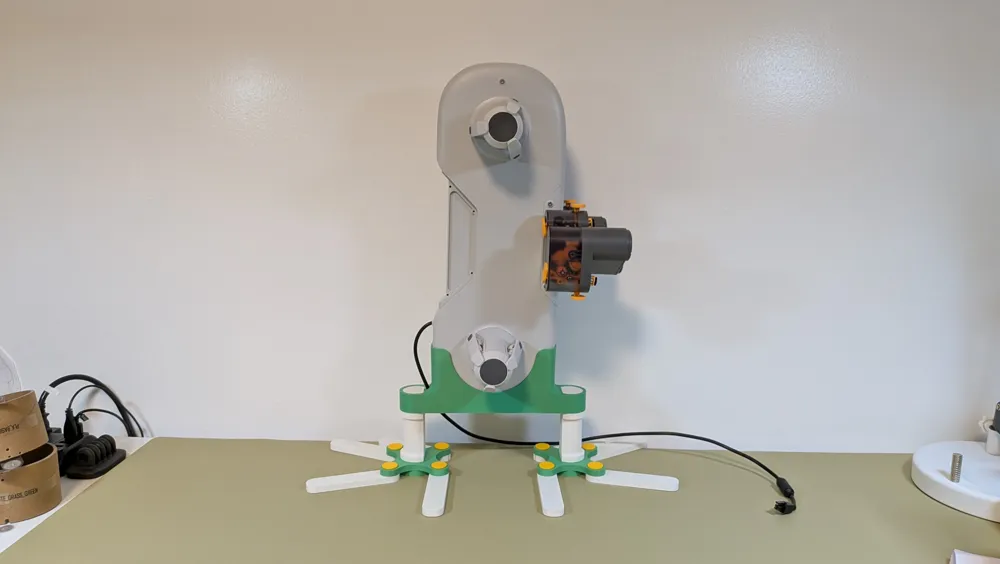

Insert the AMS Lite into the holder, and then insert the AMS cable into the cable clip.

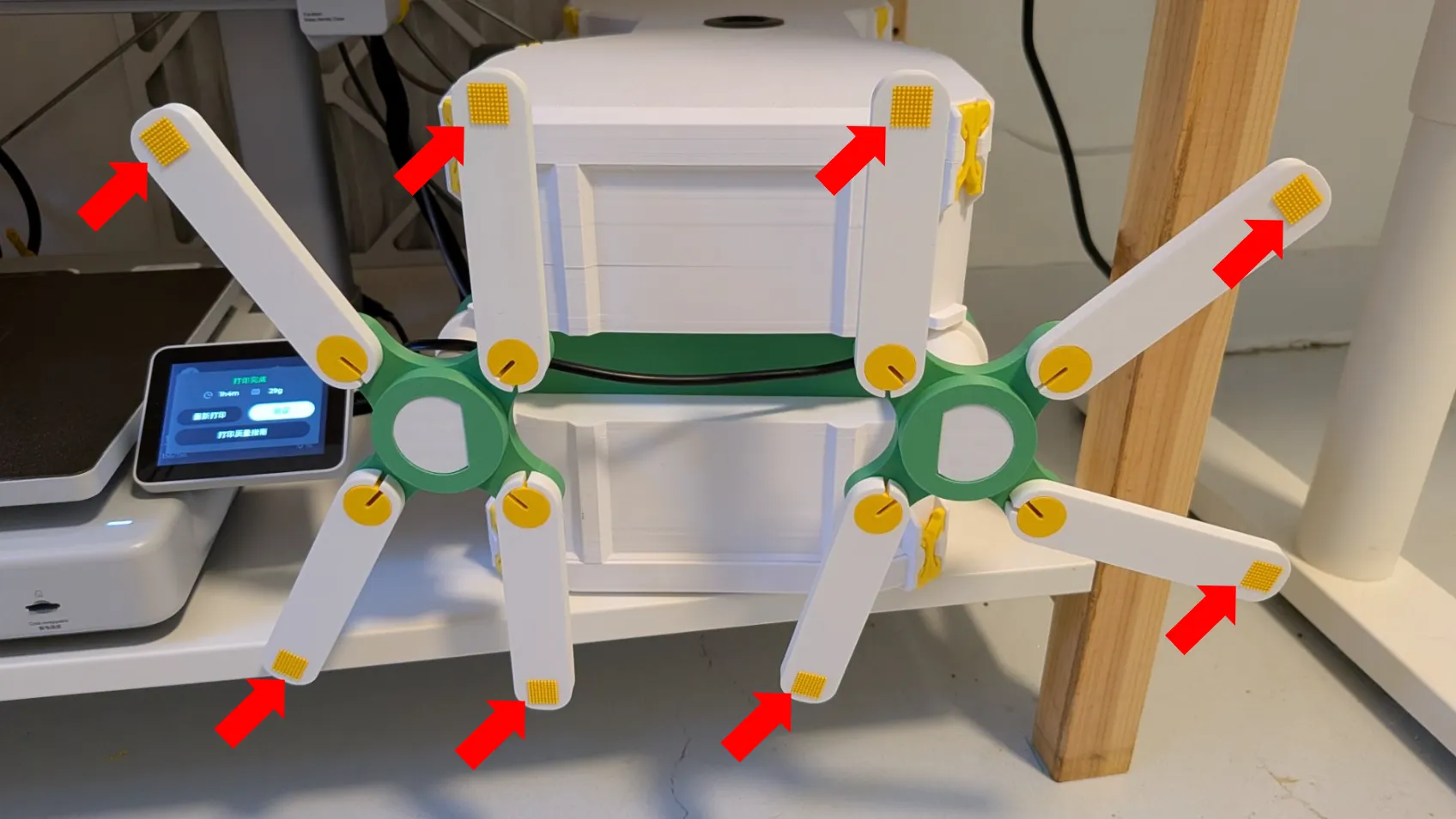

Pads are optional. It may help a little if your table surface is too smooth.
