Embedded pass through nut knob for 1/4" nut
Print Profile(2)
Description

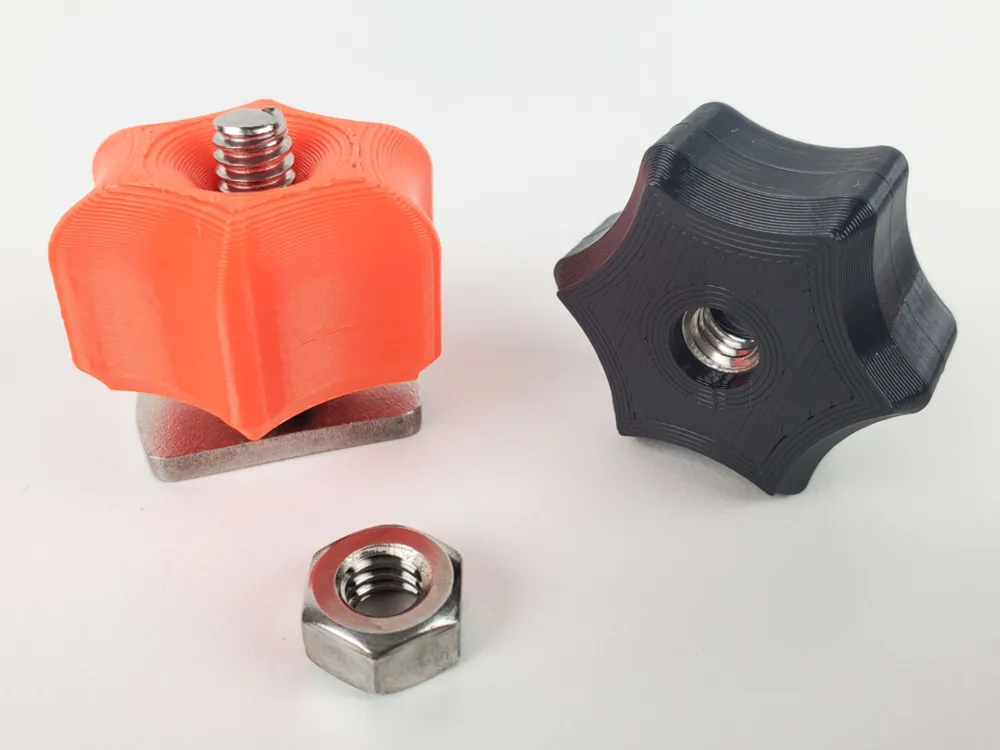

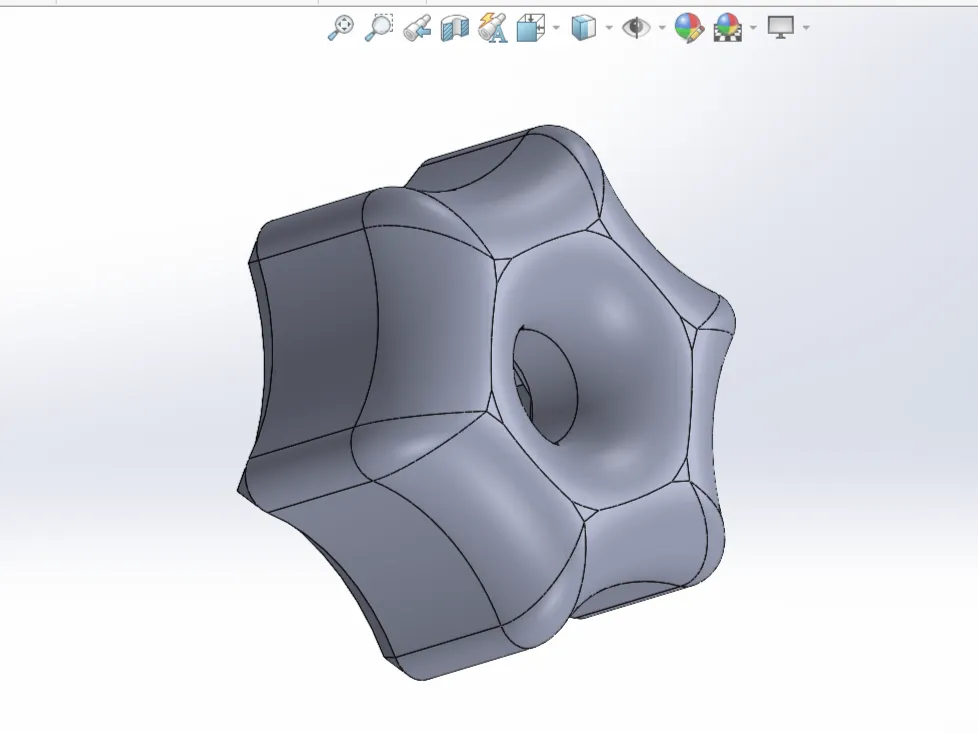

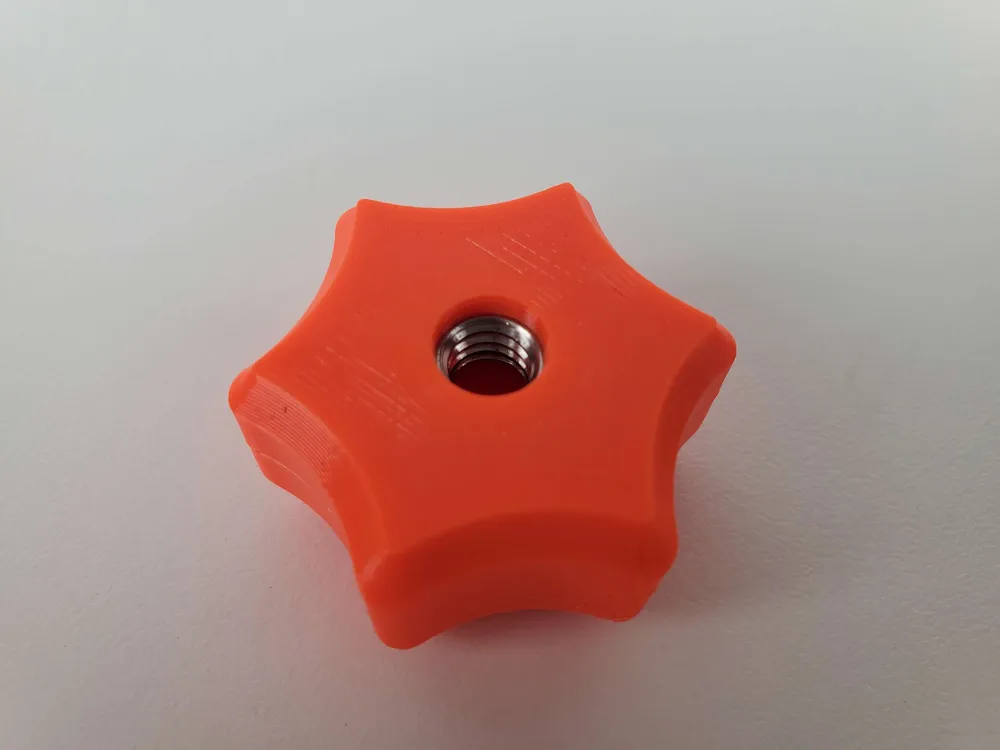

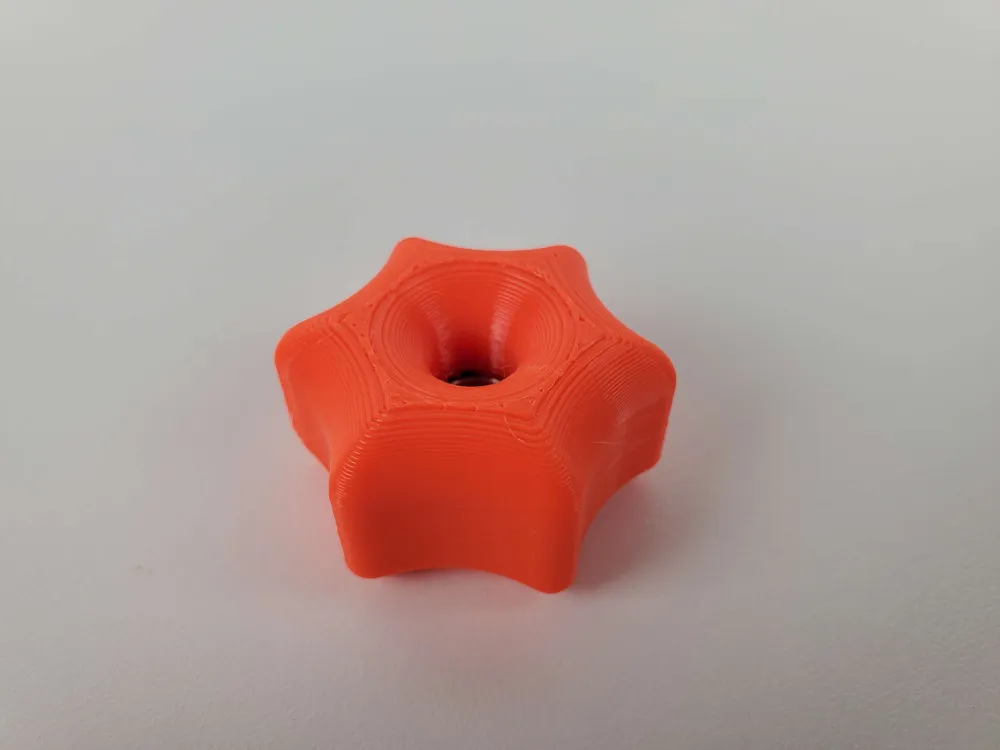

Small nut knob for ¼"-20 nut. Knob is designed to work specifically at .2mm layer height to embed the nut into the knob while still allowing bolts to travel through it. The print will pause at the correct layer to insert the nut, make sure the nut is flush with the top of your print before resuming. For reference, the ¼"-20 nuts that I use have a thickness of 5.44mm or 0.214" and an outer diameter of 10.97mm or 0.432" measuring on the flats.
I'm using this with PETG for Kayak accessories on T-tracks, but it can work for other things too.
