6x6 Extension for Axial SCX10

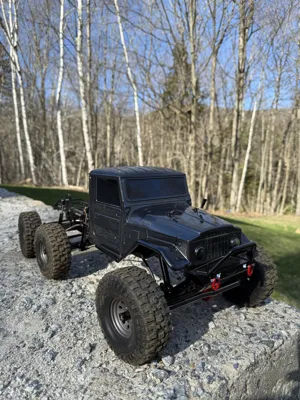

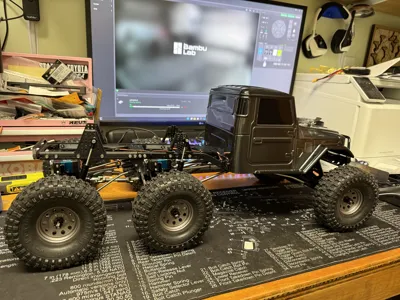

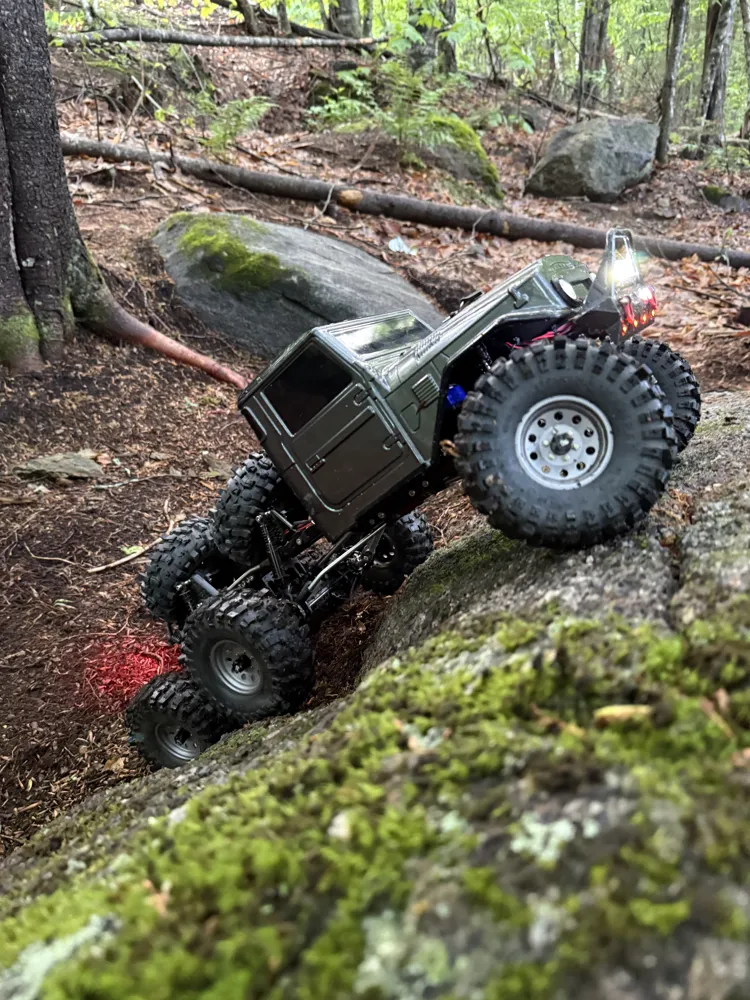

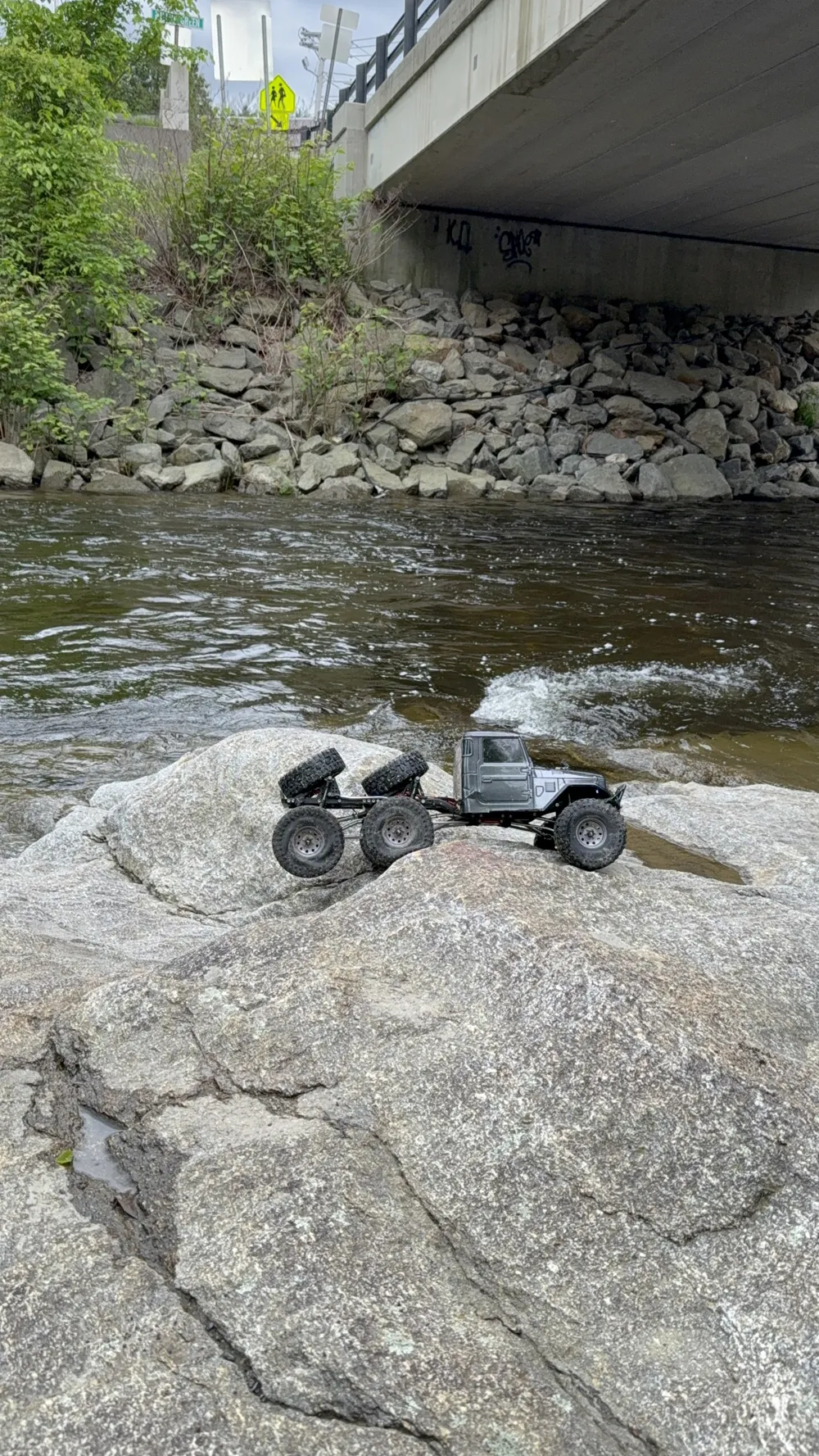

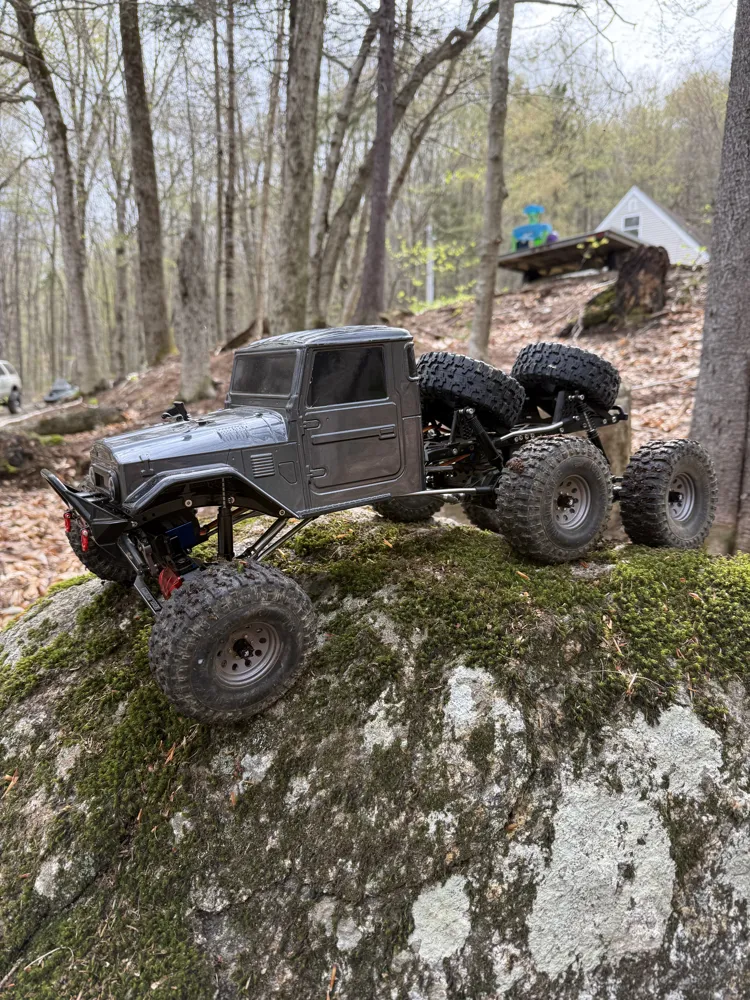

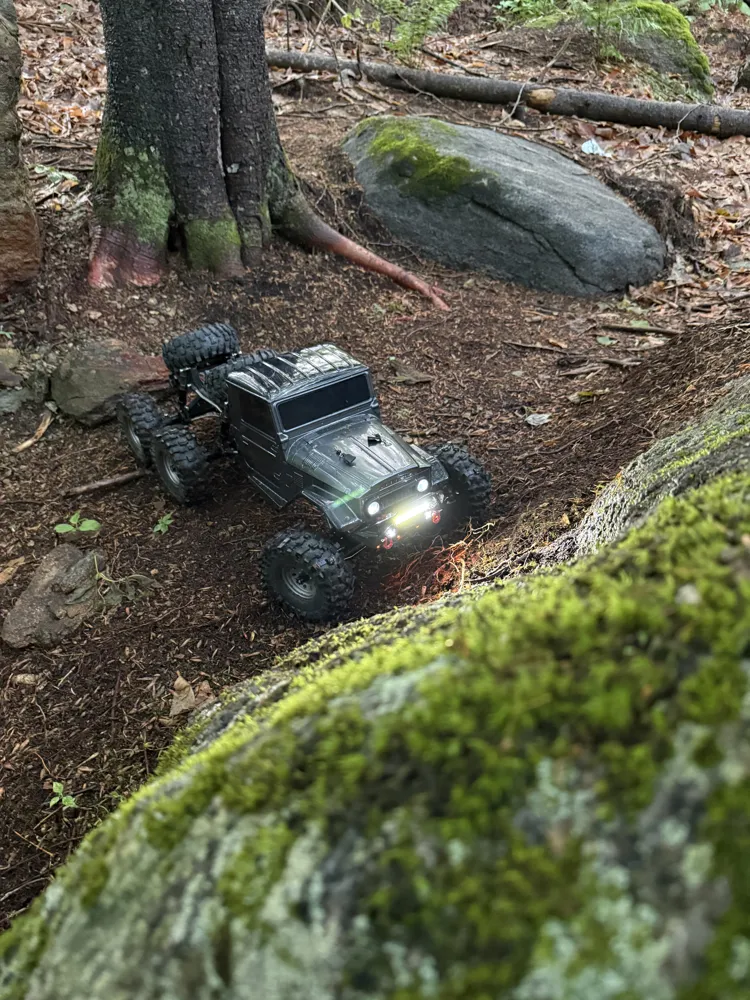

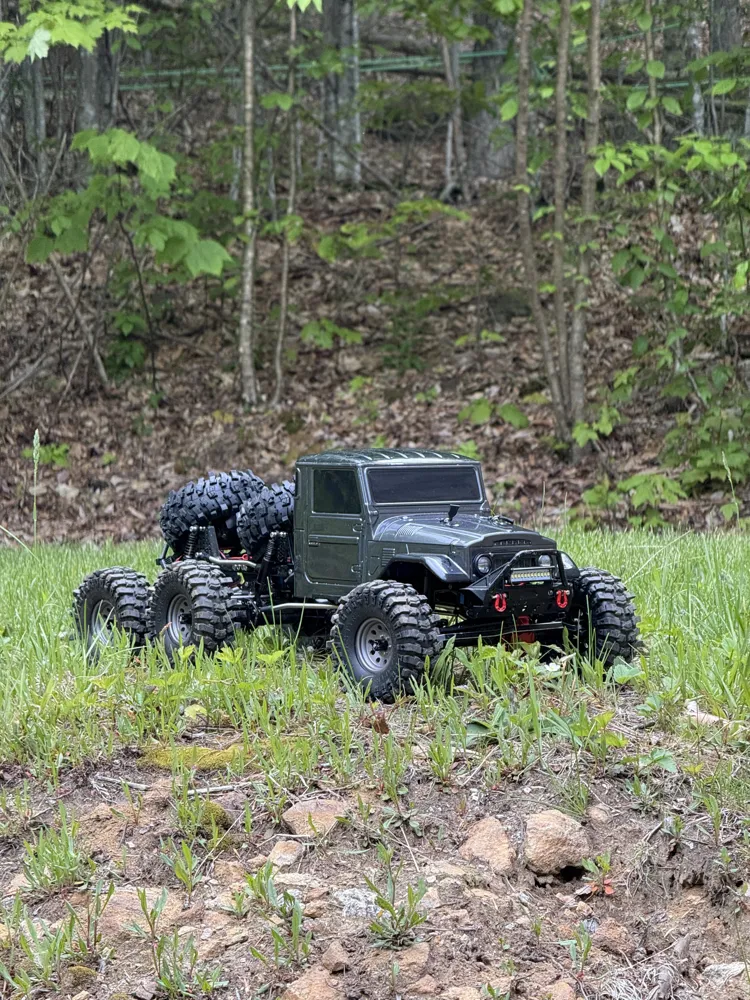

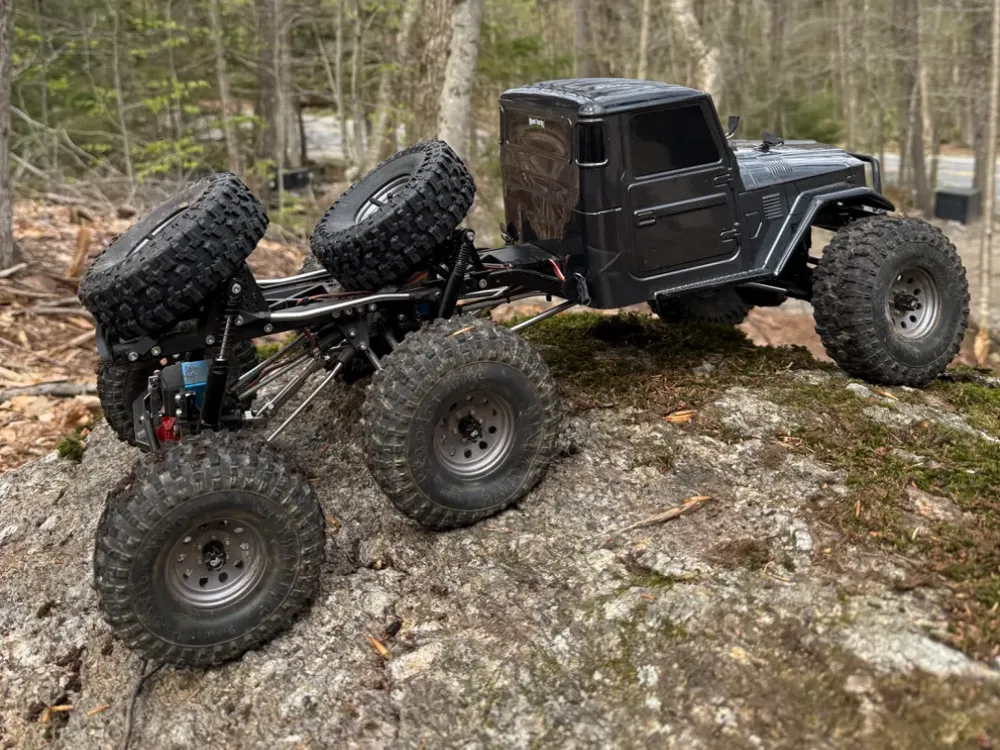

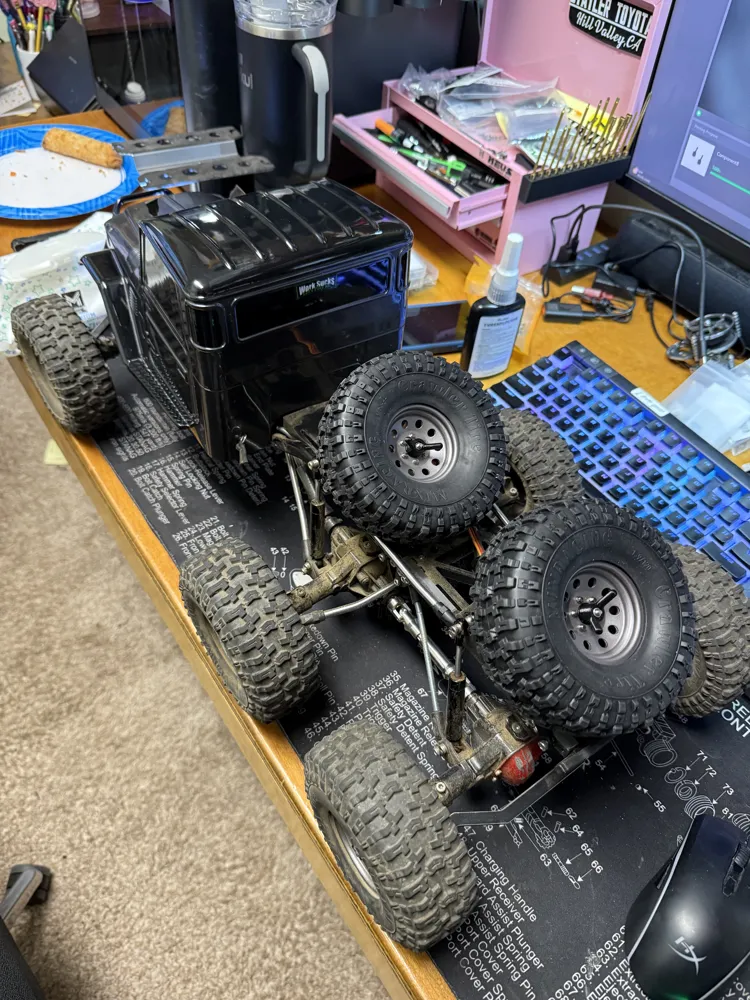

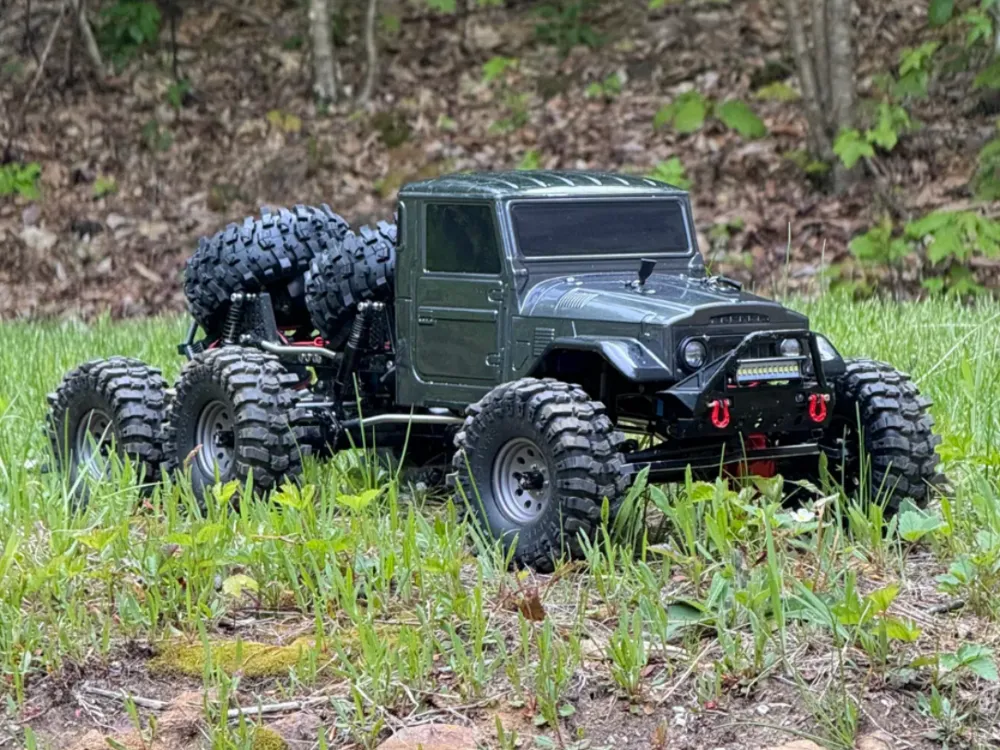

I originally made this just for myself but had a few people ask for it. I wanted to make my SCX10 Honcho a 6x6 (this is an OG Honcho from 2015 but i believe should work with the SCX10.2) This replaces everything behind the transmission for cross members and bumpers. I semi copied the stock shock tower size but not perfectly. I have it running on 1.9s but longer links and angled shocks you could get bigger 1.9s or 2.2s. The front axles are using stock scx10 links. The rear most links I just made up with threaded rod for now until I settle on the length I want.

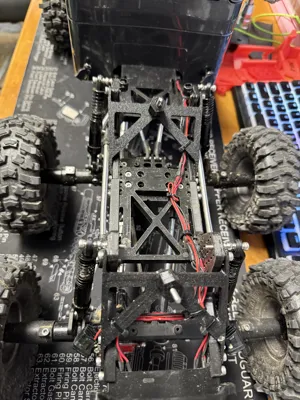

First Plate: 6x6 Extension

Second Plate: Tire Carrier

Third Plate: Rear Bumper

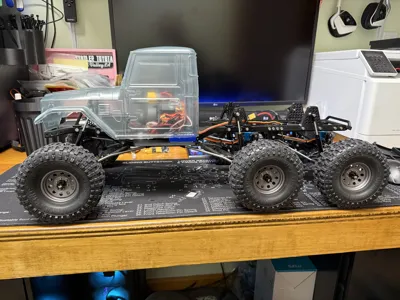

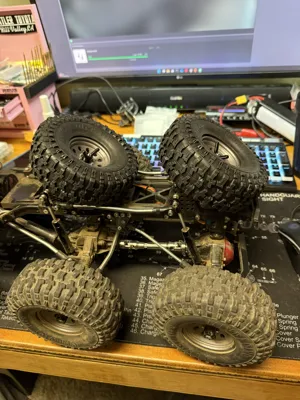

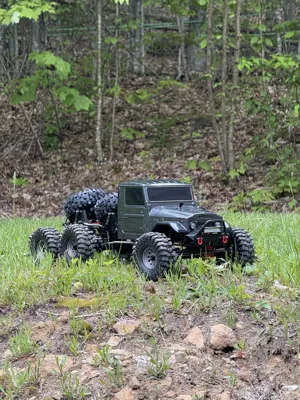

This is a cab only truck for me. You could make a bed or print the second plate. It has tire carriers with hex spacers and a wing nut you can put a m3 lock nut in. The hex stays on the tire carrier with a 35mm or so (i believe, been a while since I did this) m3 bolt and a nut in the hex.

Everything is m3 bolts and nuts.

Stock bumpers should fit but I haven't had a stock bumper in YEARS and I made one anyway.

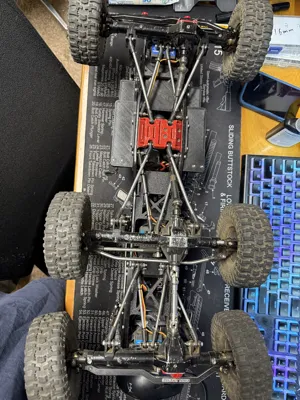

I'm on ar60s with the middle axle running the output off the Axial Bomber Parts Tree AX31317. It's kind of hard to come by now though. Only a few sites have it. You could get any 6x6 axle set, maybe a trx4 set. I'll link a few at the bottom. I was 6 wheel steering also, but that got old and was annoying to keep trimmed.

M3 Hardware: https://amzn.to/44ivxDG

AR60 Bomber 6x6 differential output: https://amzn.to/44ivnfy

6x6 Axles: https://amzn.to/4kTQwn9

6x6 Axles: https://amzn.to/4lokBeC

6x6 Portal Axles: https://amzn.to/4eihzWN

6x6 Portal Axles: https://amzn.to/4egYmVo
