Haas Chip Tray Scoop
IP Report
Print Profile(1)
0.24mm layer, 2 walls, 15% infill
Designer
4.9 h
1 plate
Open in Bambu Studio
Boost
21
47
4
1
44
14
Released
Description
For Haas CNC mills/turning centers without an auger. Designed an Verified for a 2001 Haas VF-5.

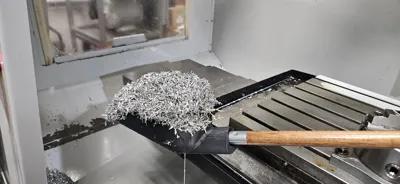

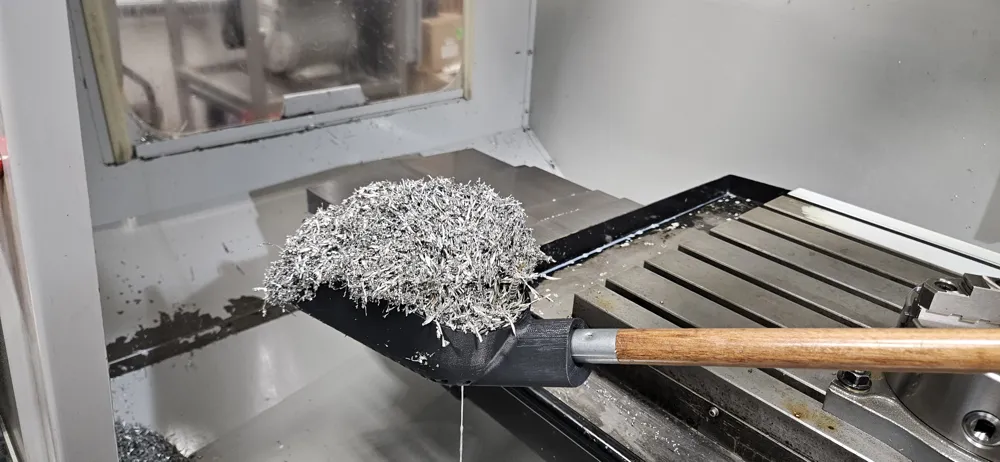

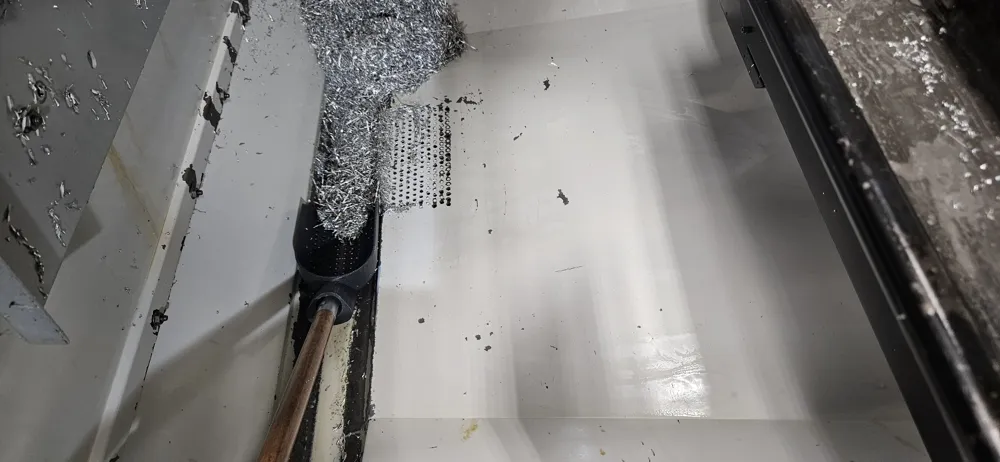

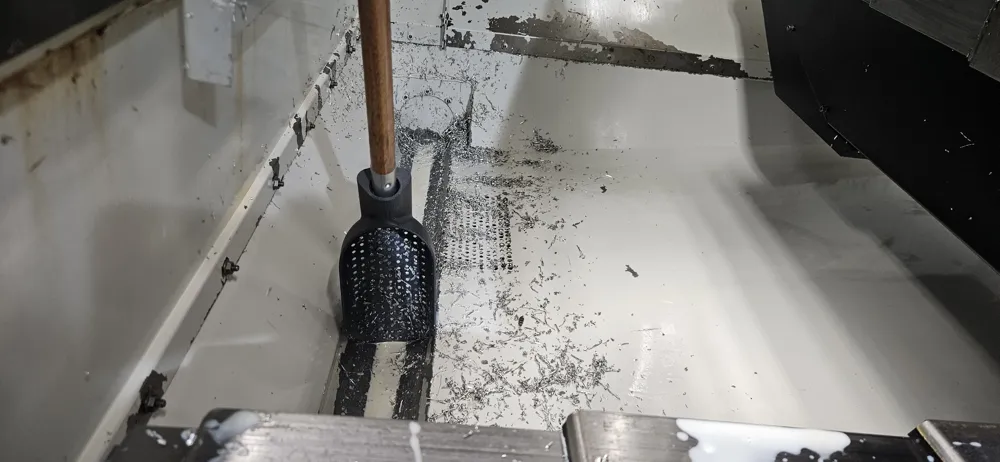

The scoop was designed around a ~4" Diameter to fit perfectly in the circular part of the chip tray where the auger should be. Makes removing chips much easier. Fits a standard mop handle ( roughly ACME 3/4 -5TPI) with some extra clearance.

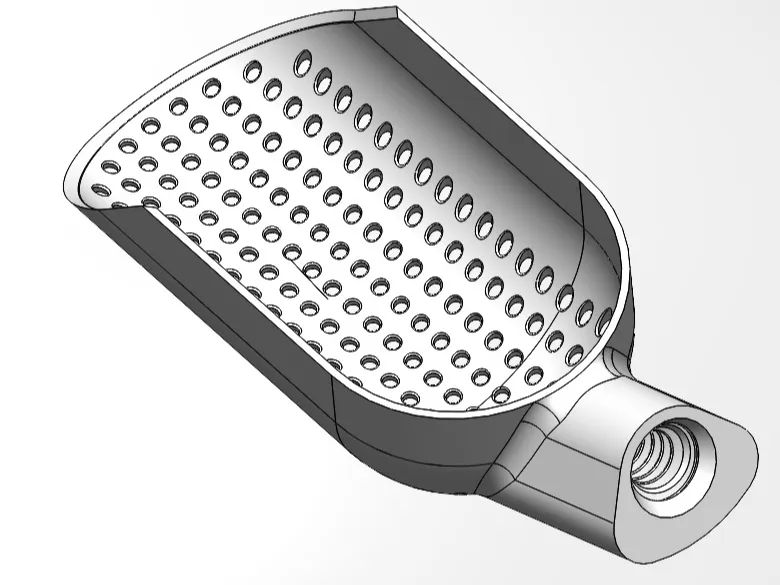

Holes were added to drain coolant from the chips.
