Outdoor Weather-Proof Mount for TP-Link Deco
Boost Me (for free)
If you like my project, press BOOST Me.
Thank you

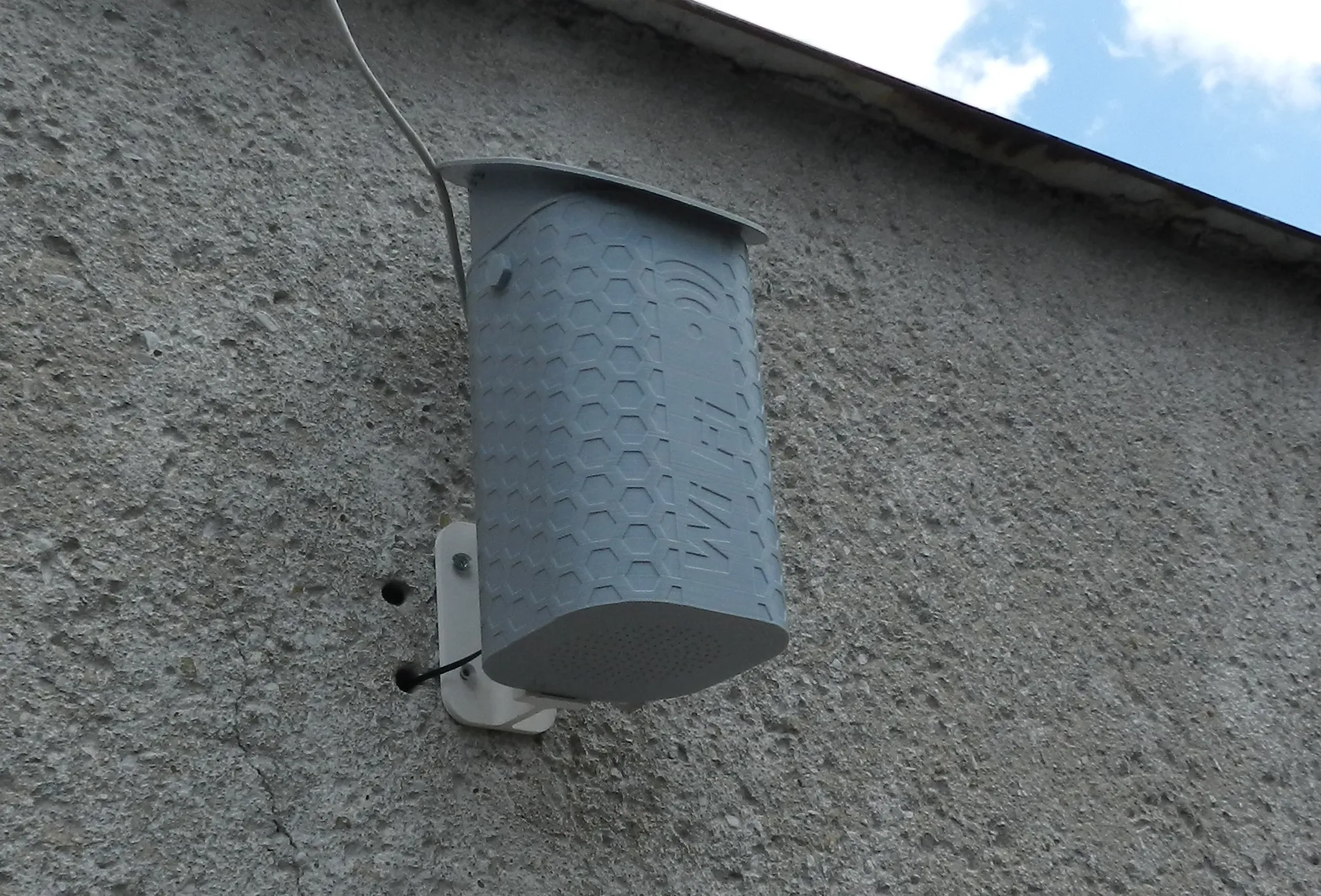

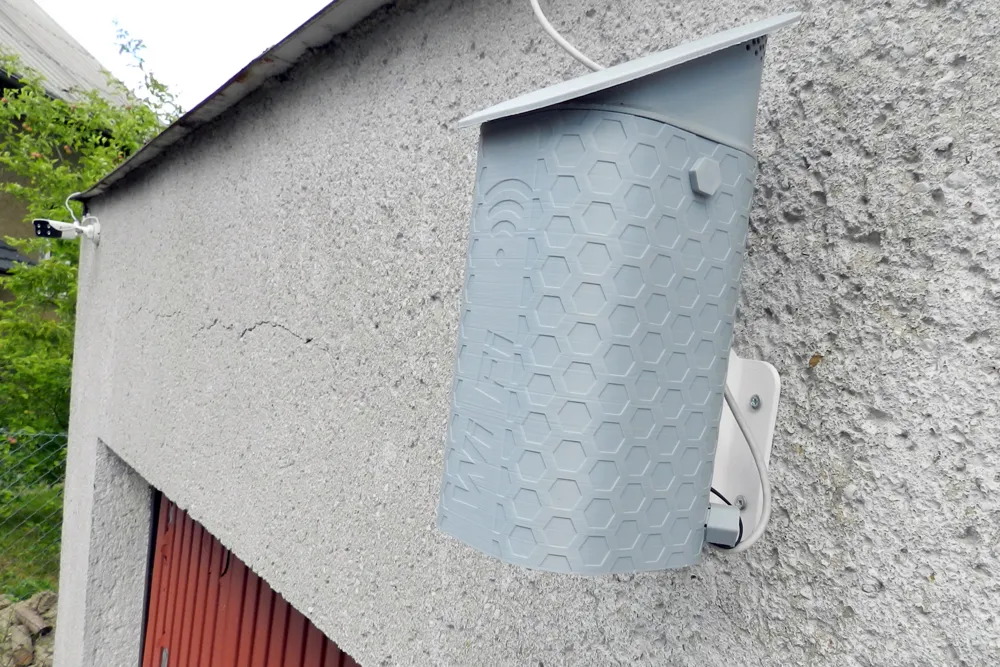

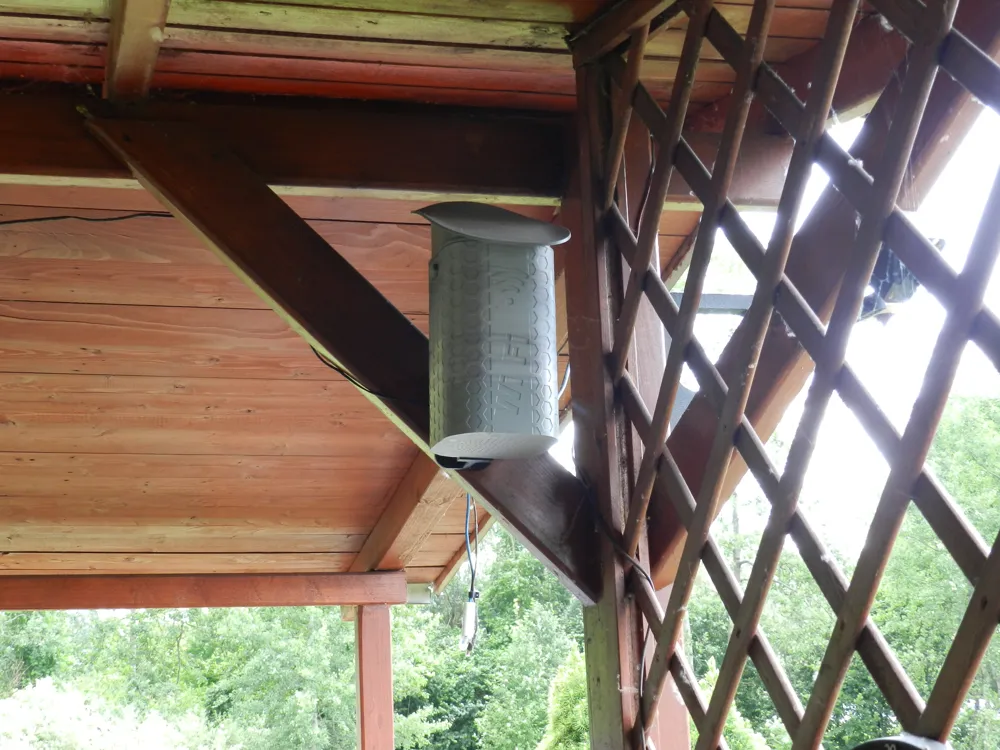

DecoShield protects your TP-Link Deco node from rain, direct sunlight and knocks. The cylindrical enclosure with honeycomb texture promotes airflow, while the slanted cap deflects water and acts as a sun-shade. The included wall bracket lets you mount the unit to masonry, poles or wooden beams in seconds.
Compatibility
Designed for cylindrical Deco:
- Deco M4 - Deco E4 - Deco P9 - Deco E3 - Deco S7
Key features

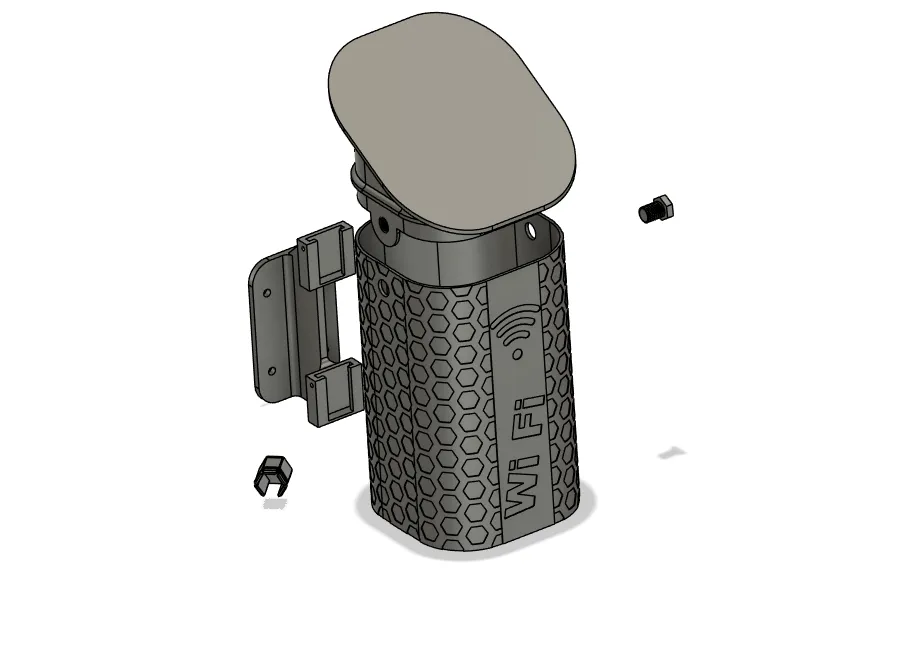

- Sealed cylindrical body with ventilation and screw-on lid.
- Removable roof cap for easy service access.
- Built-in cable exit with hex plug (fits M16 cable gland).

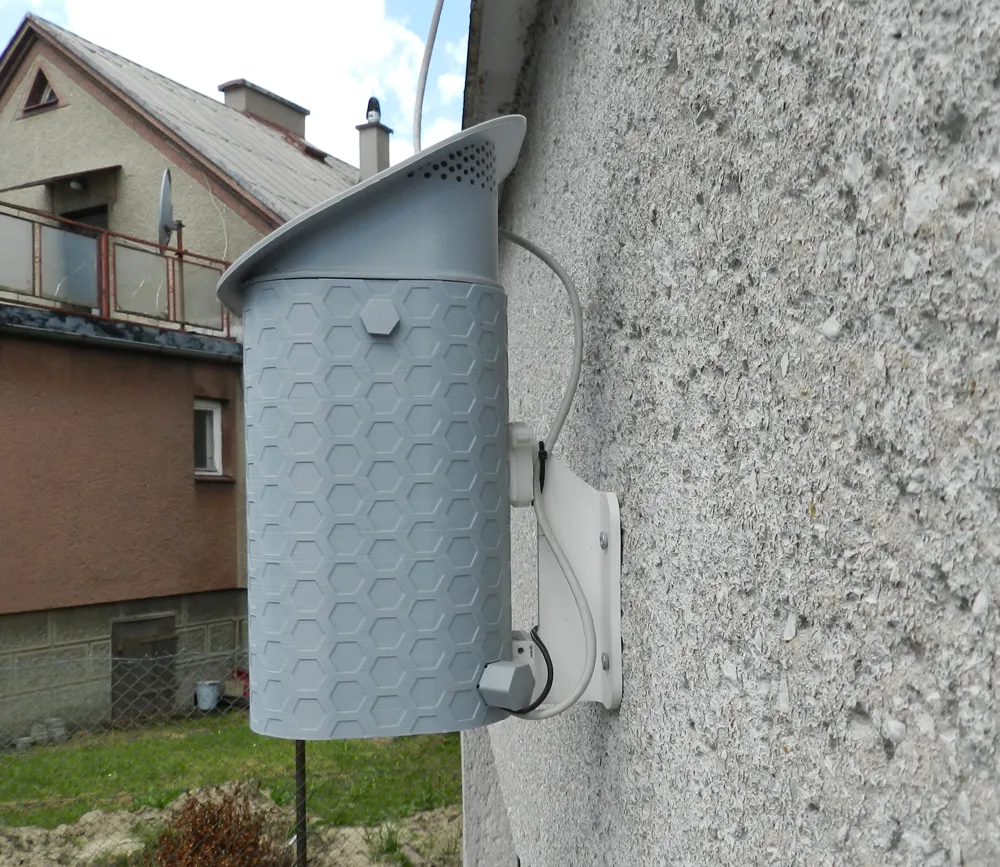

- Wall mount with two Ø 5 mm screw holes and a slide-lock clamp to prevent the enclosure from slipping out.
- Internal anti-rotation rib keeps the Deco node aligned.
