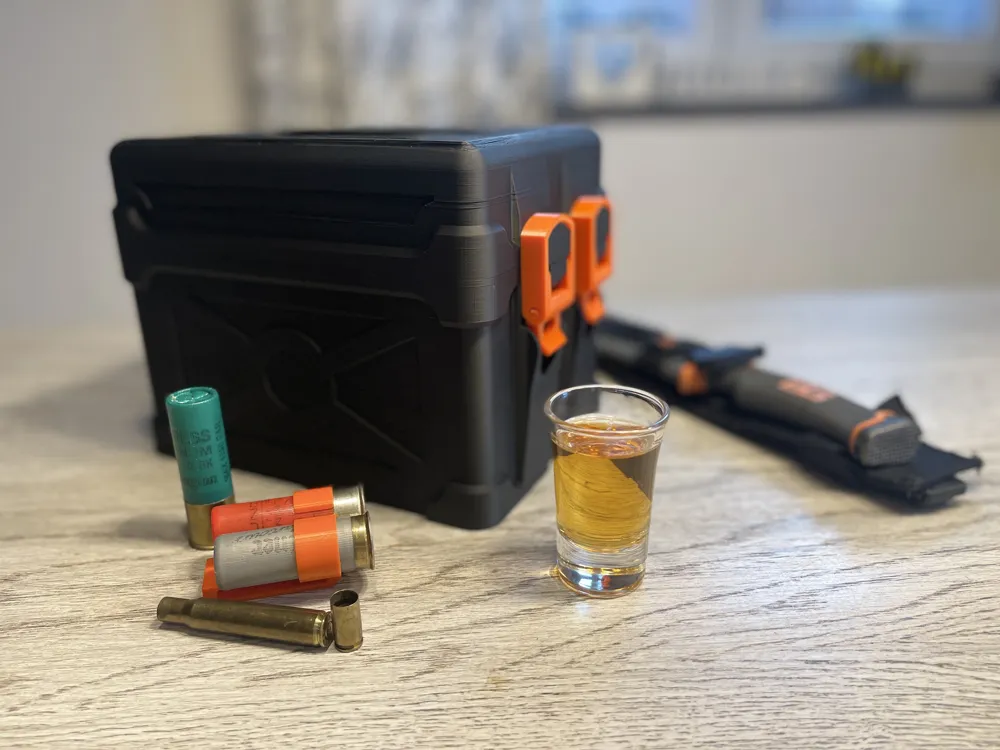

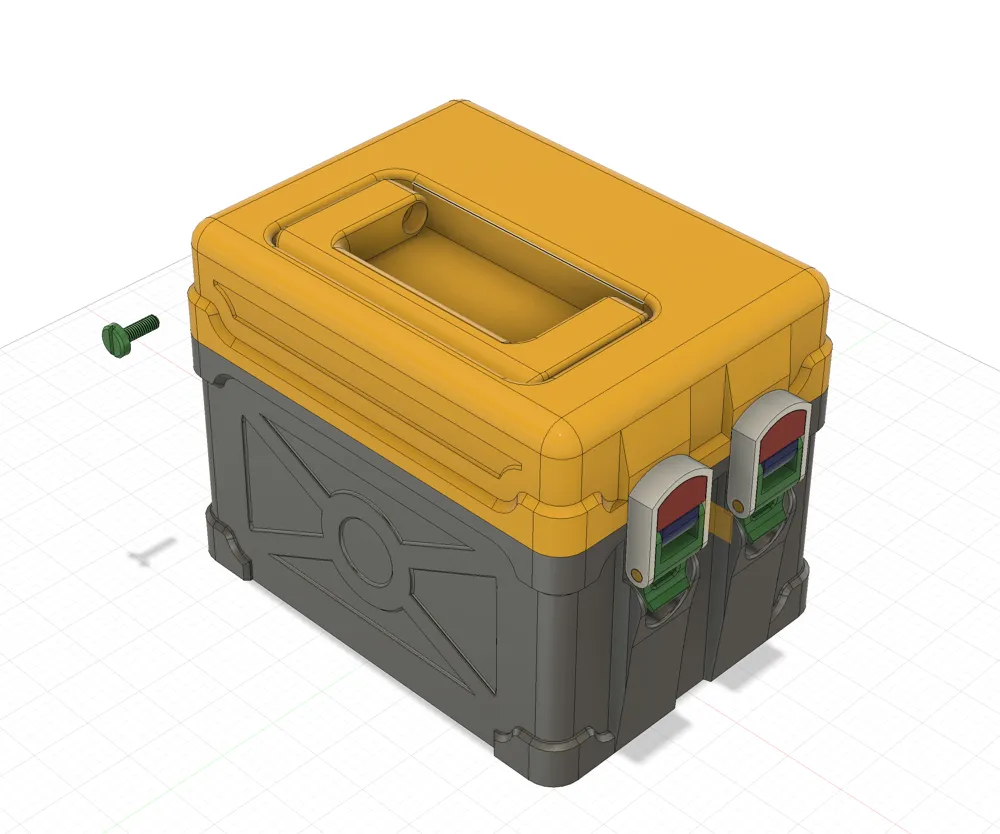

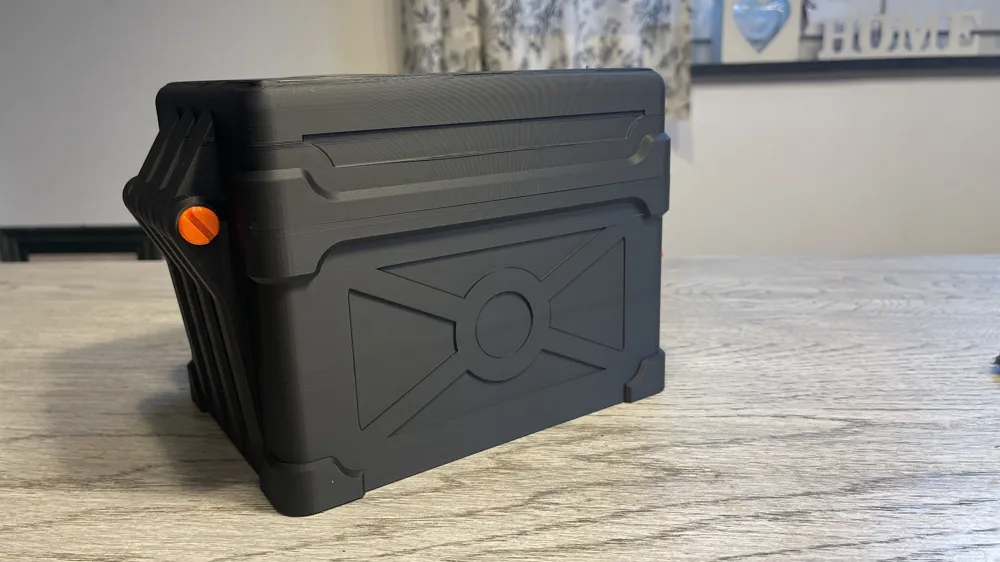

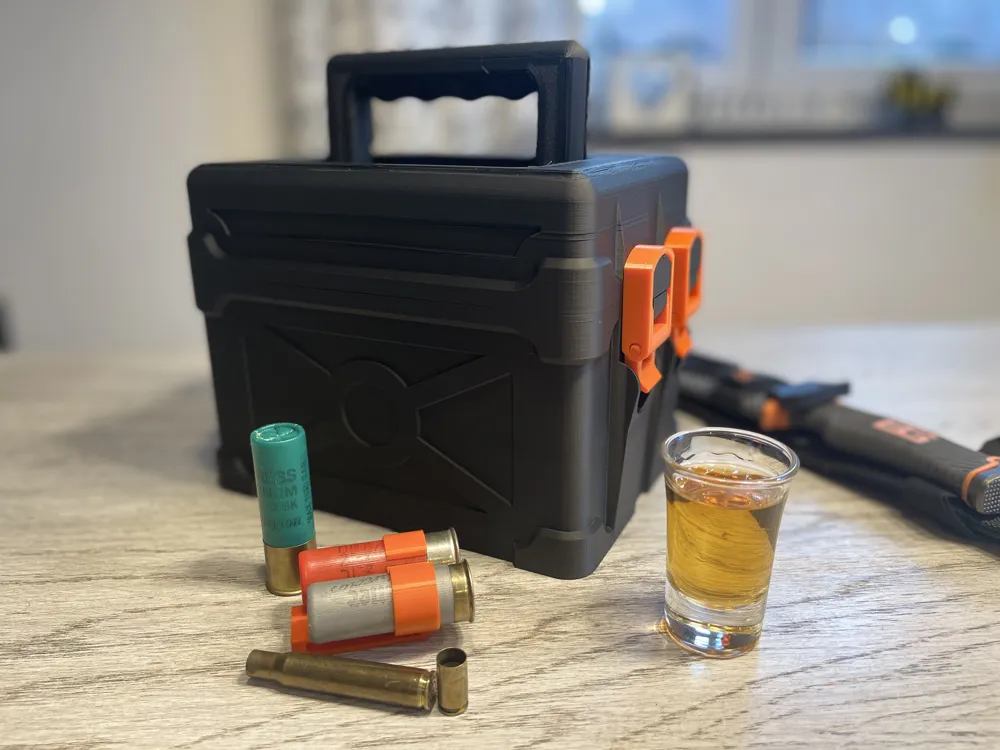

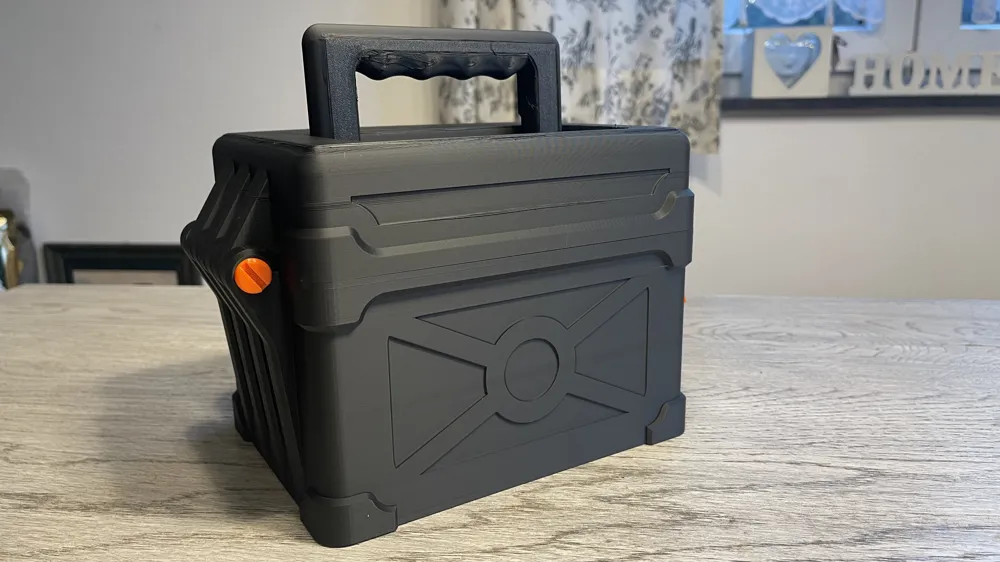

Big Universal Ammo Box

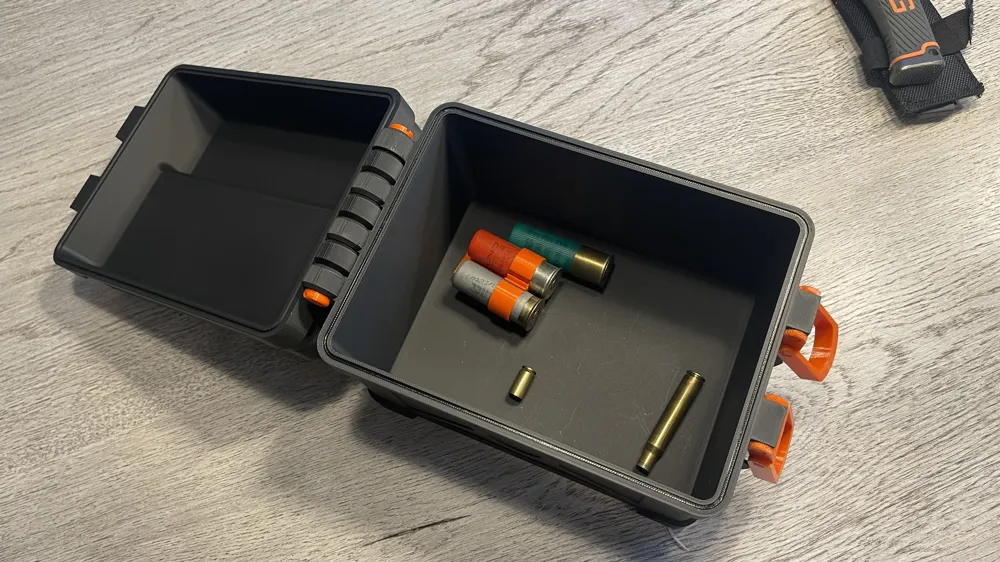

A robust tactical box, ideal for storing ammunition

Includes a TPU seal

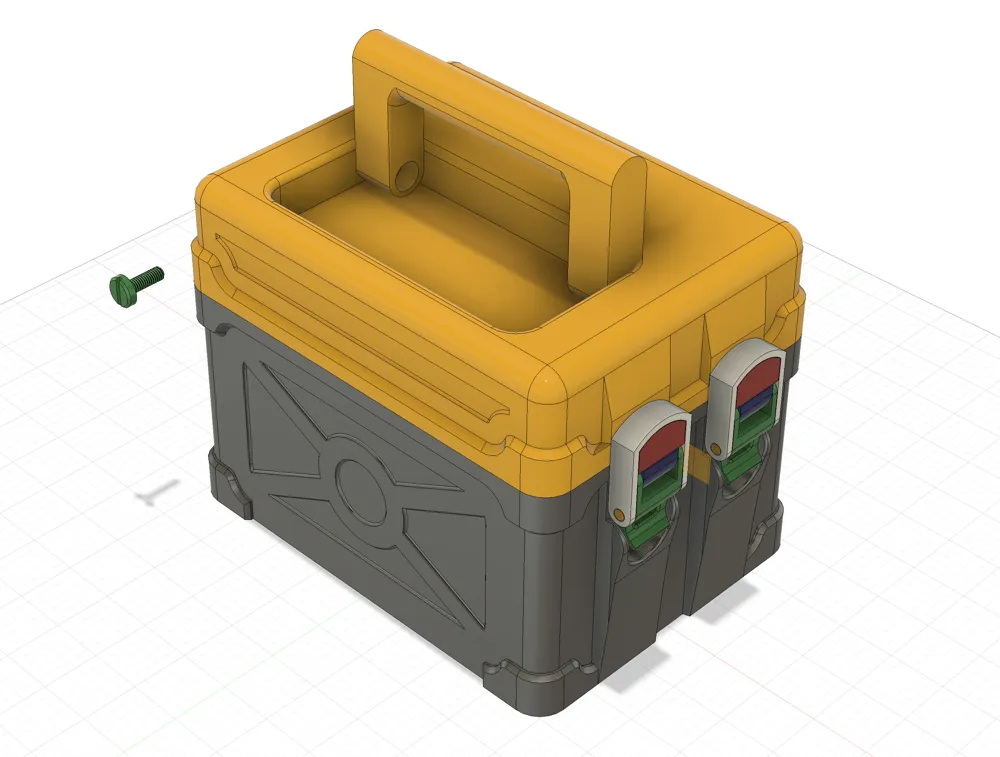

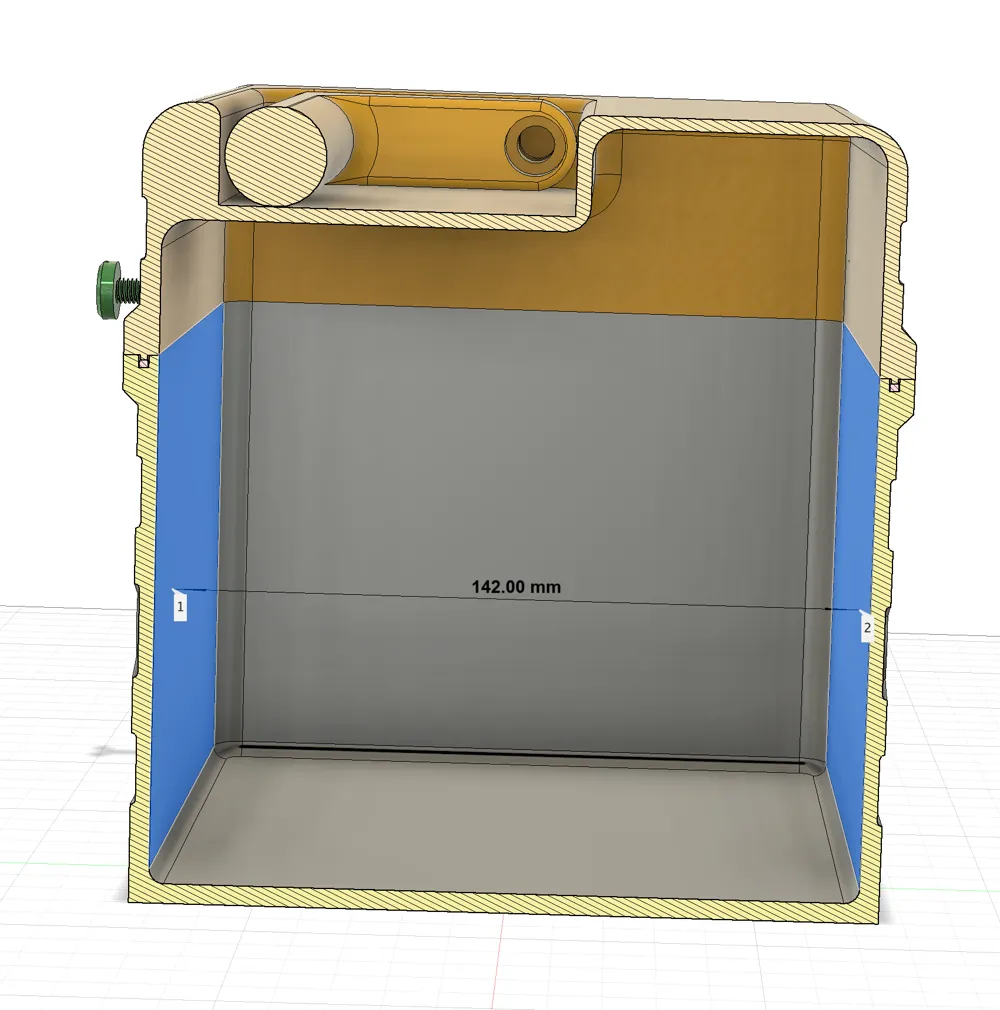

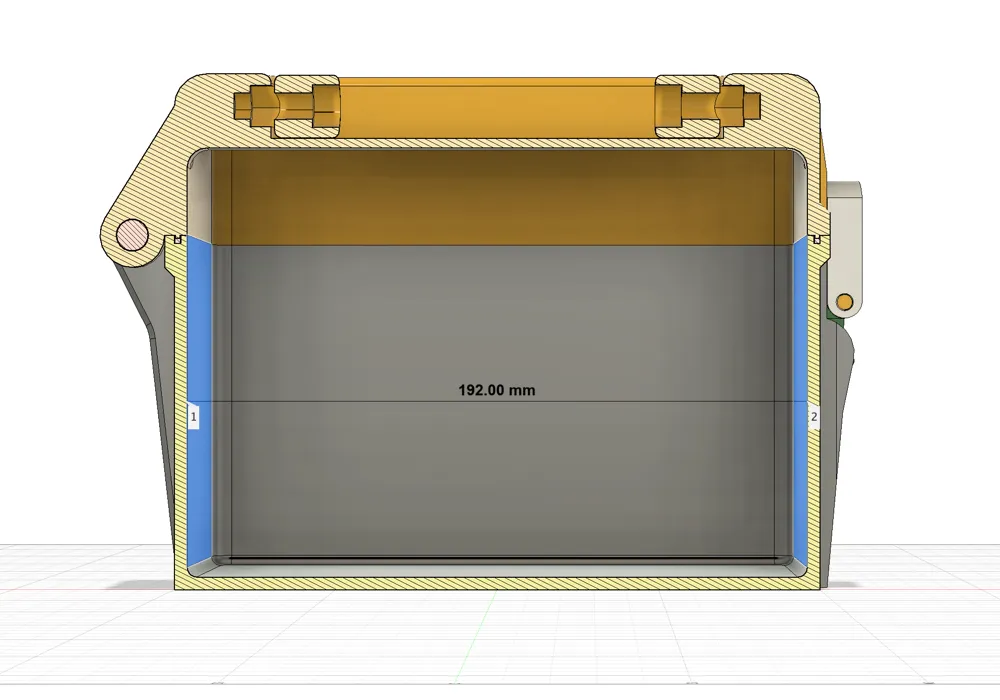

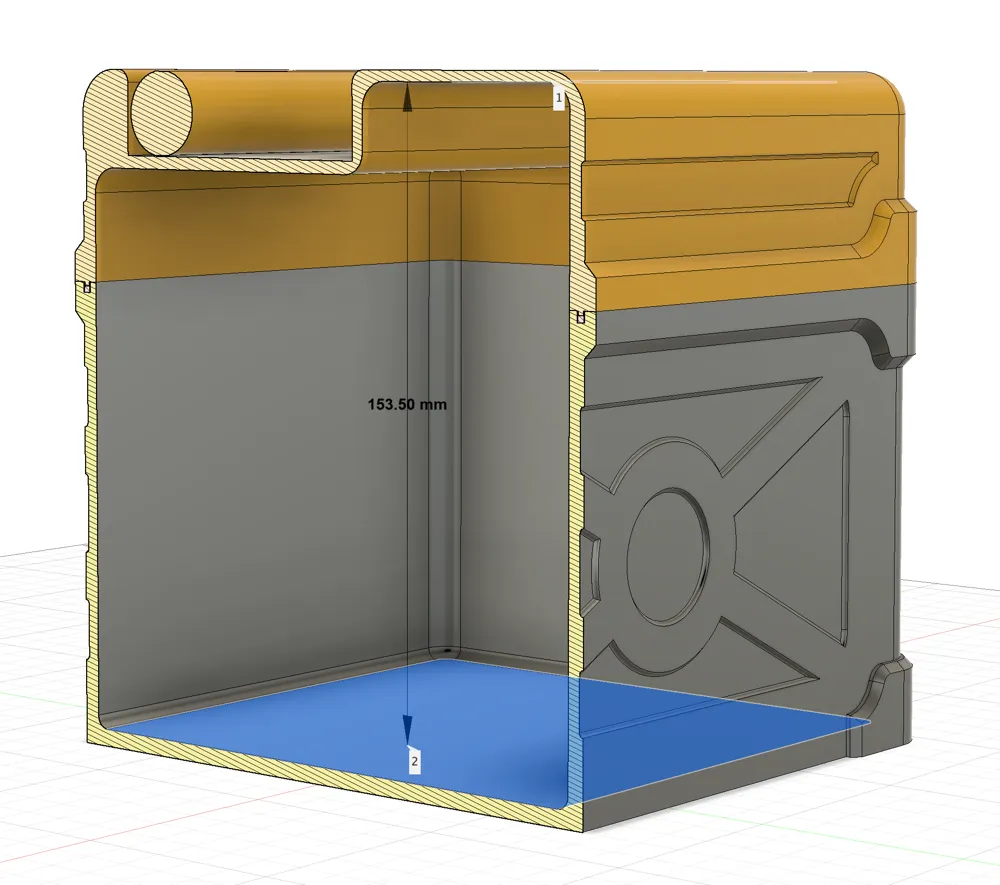

The box measures approximately 240mm x 160mm x 155mm (external dimensions) and requires only two M8 x 20mm cylinder head screws and two M8 nuts

If you like this box, check out my other slightly smaller ammunition box

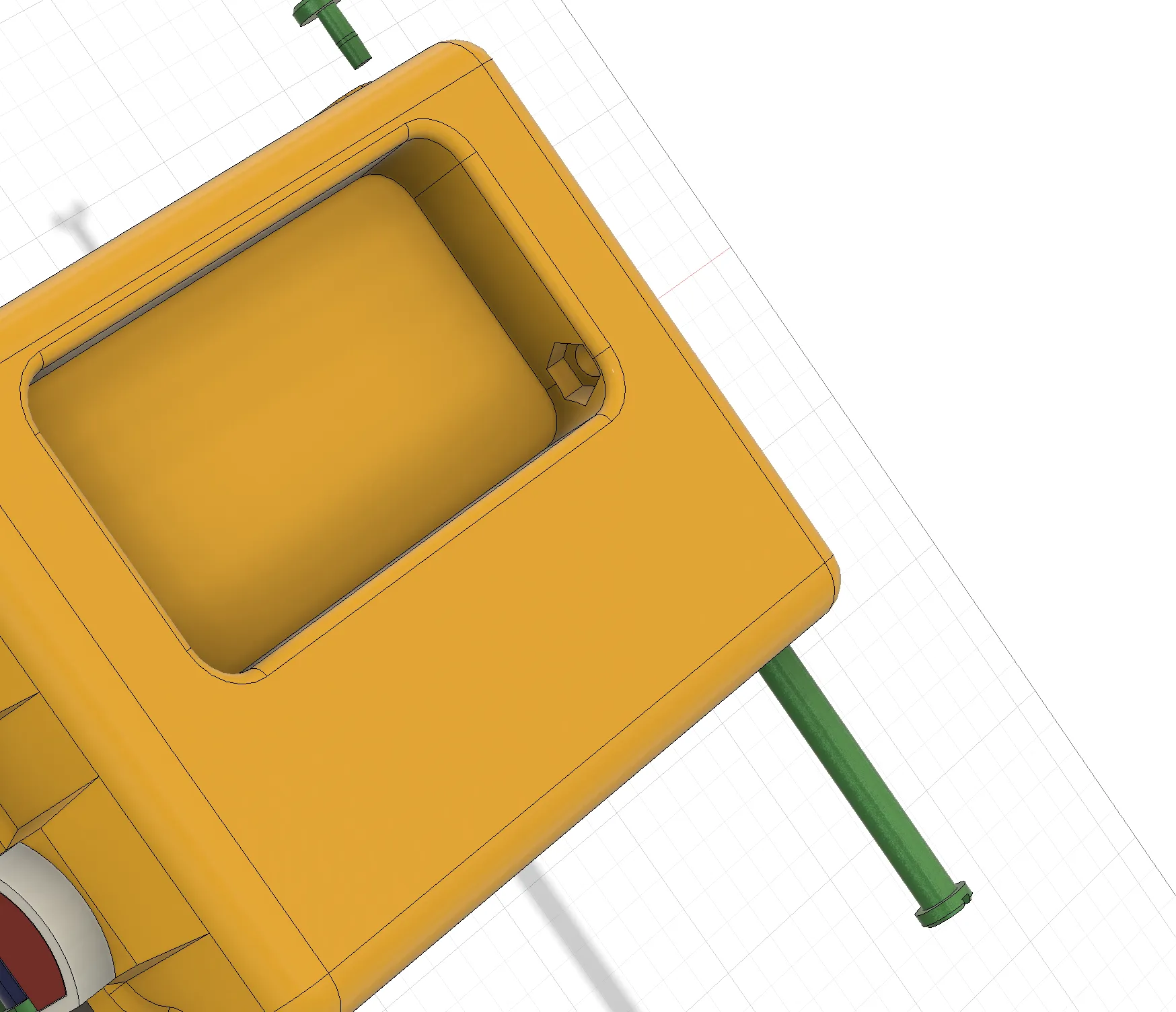

Insert an M8 hex nut on each side of the lid

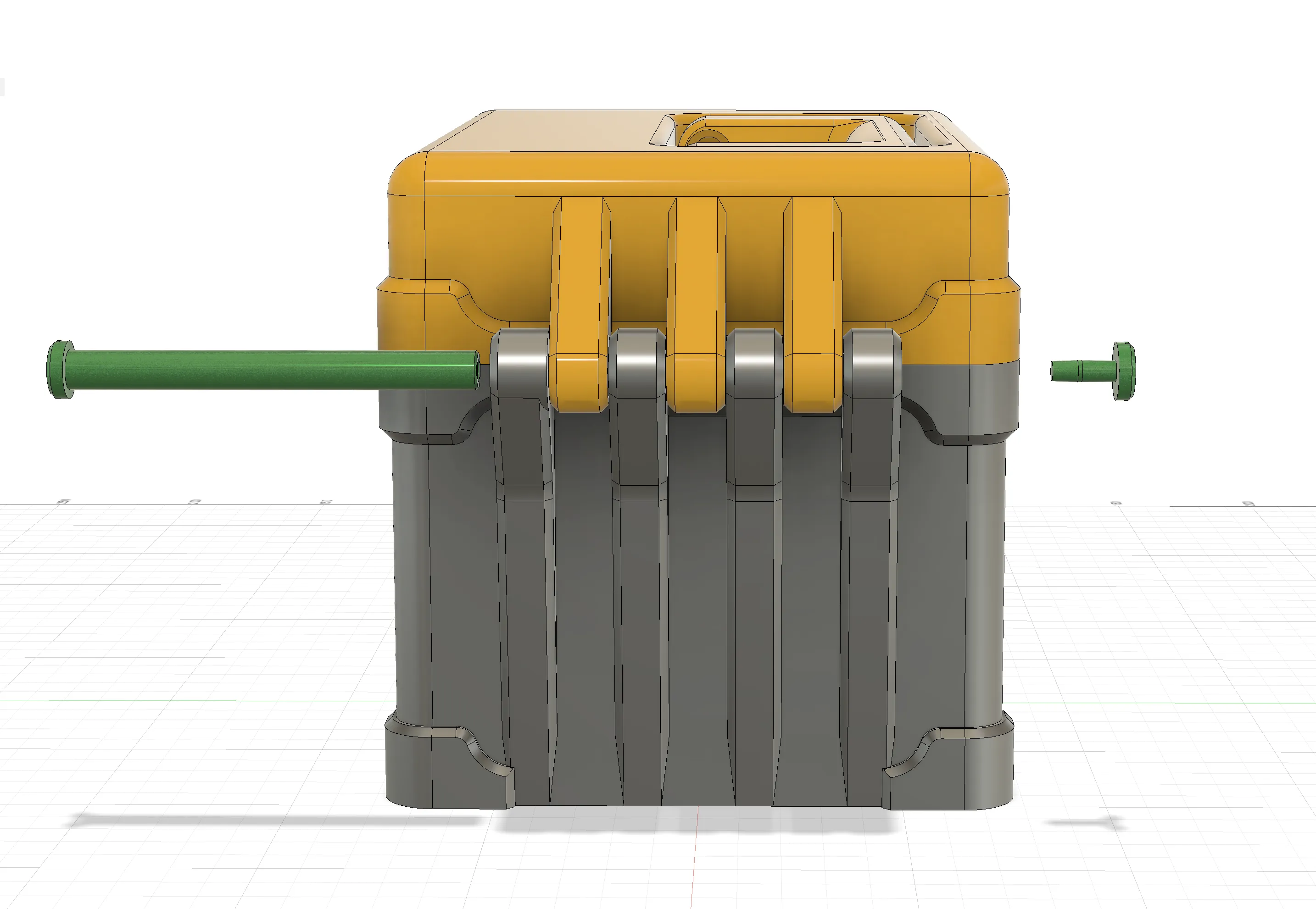

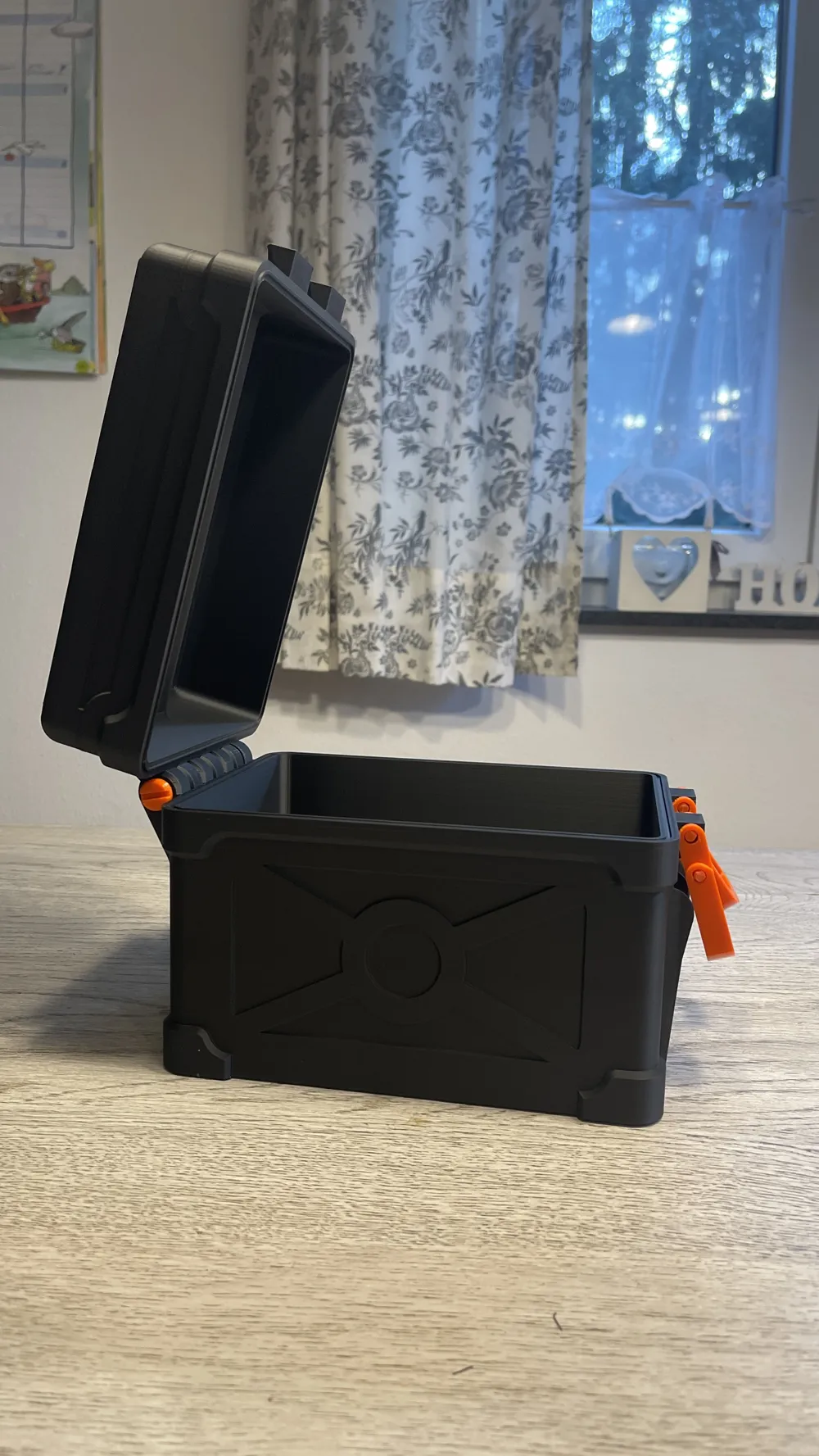

Insert the pin through the hinge and, from the other side, insert the retaining pin. It is best to glue the two parts together with superglue

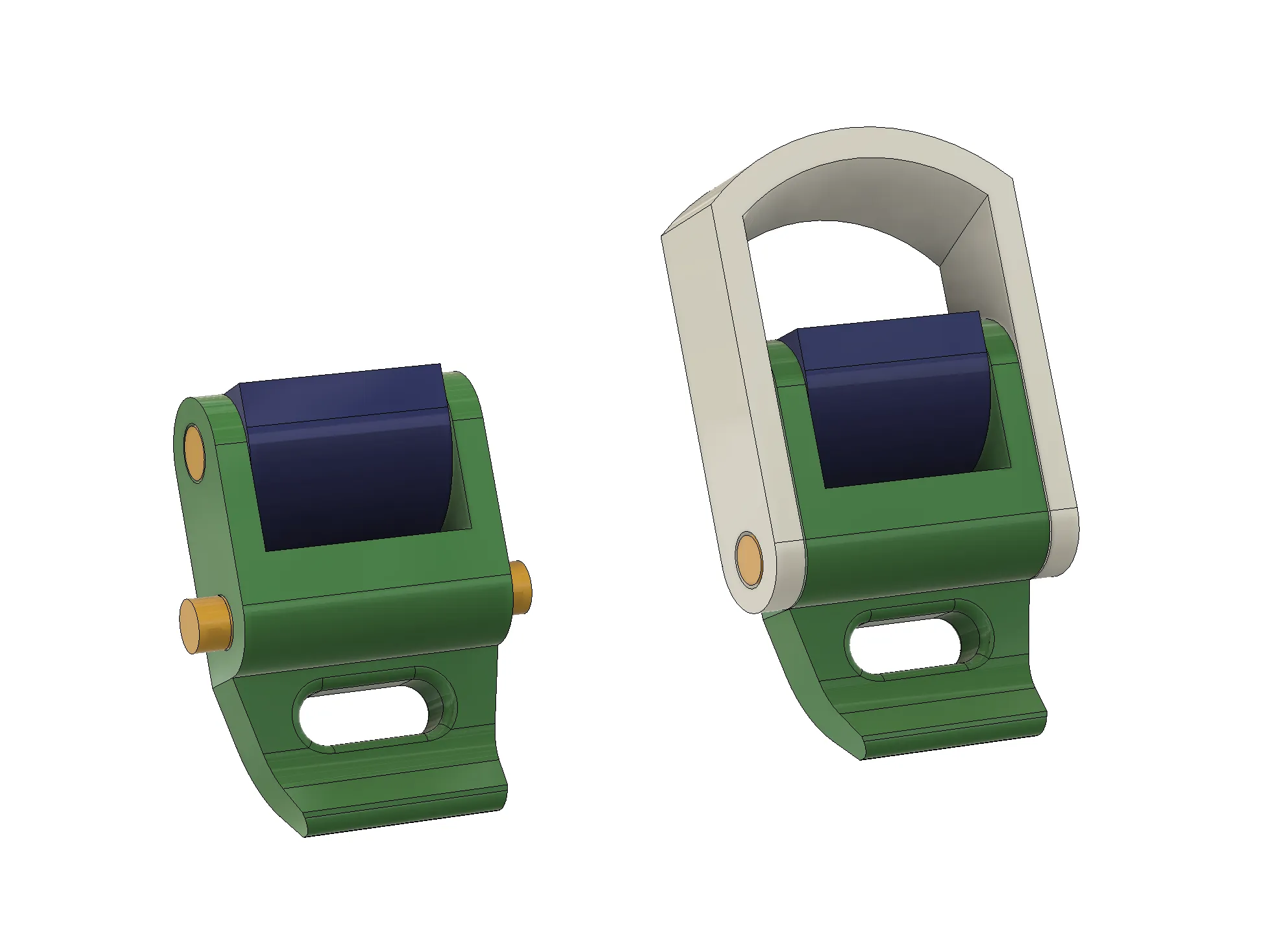

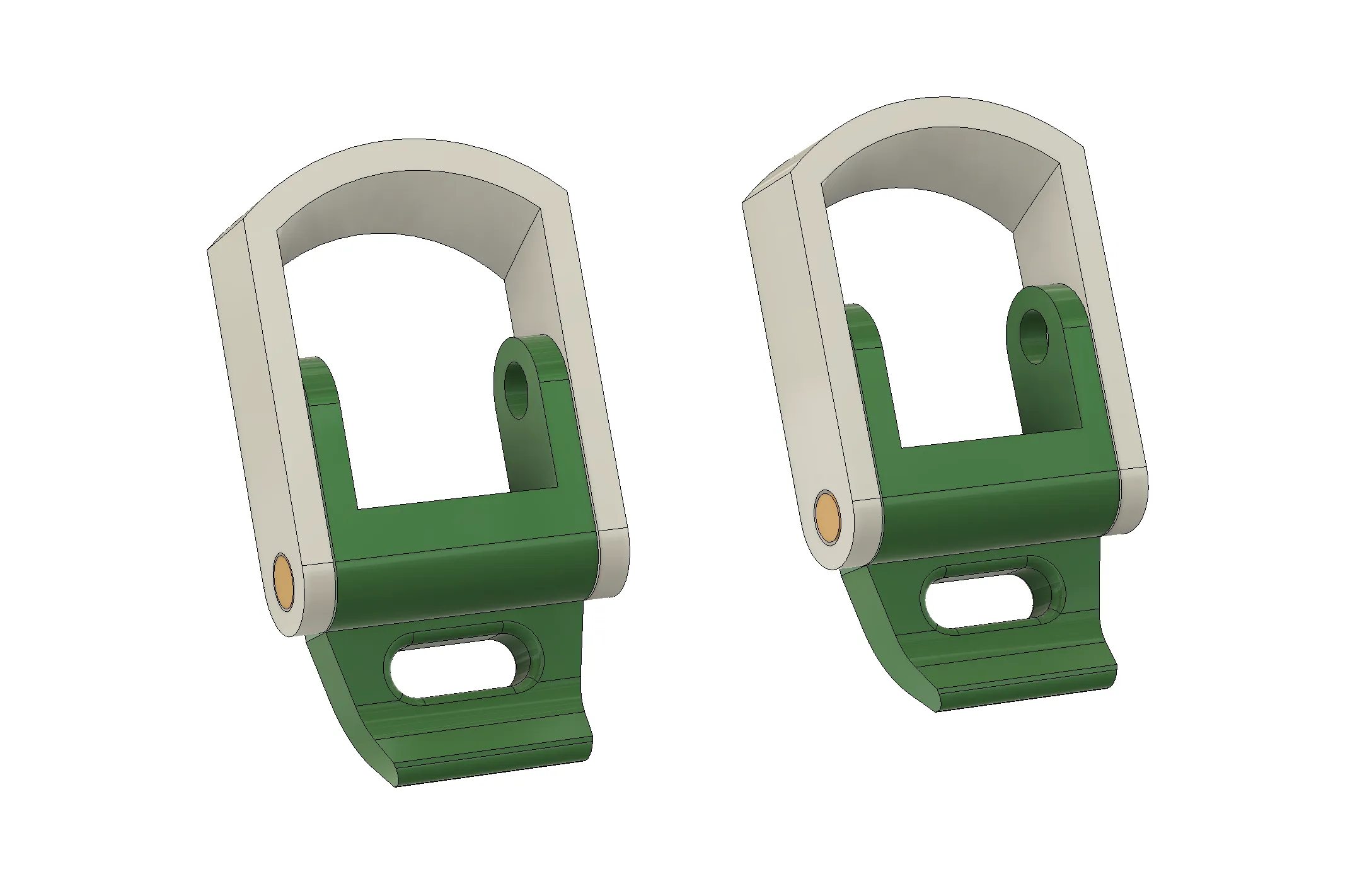

First, assemble the bracket (white) with the lever (green) using the longer pin. It may be difficult; lay both parts on their sides and use a hammer. Proceed cautiously

Important !!!!

The bracket has a thicker side at the radius on top. This must absolutely face the box

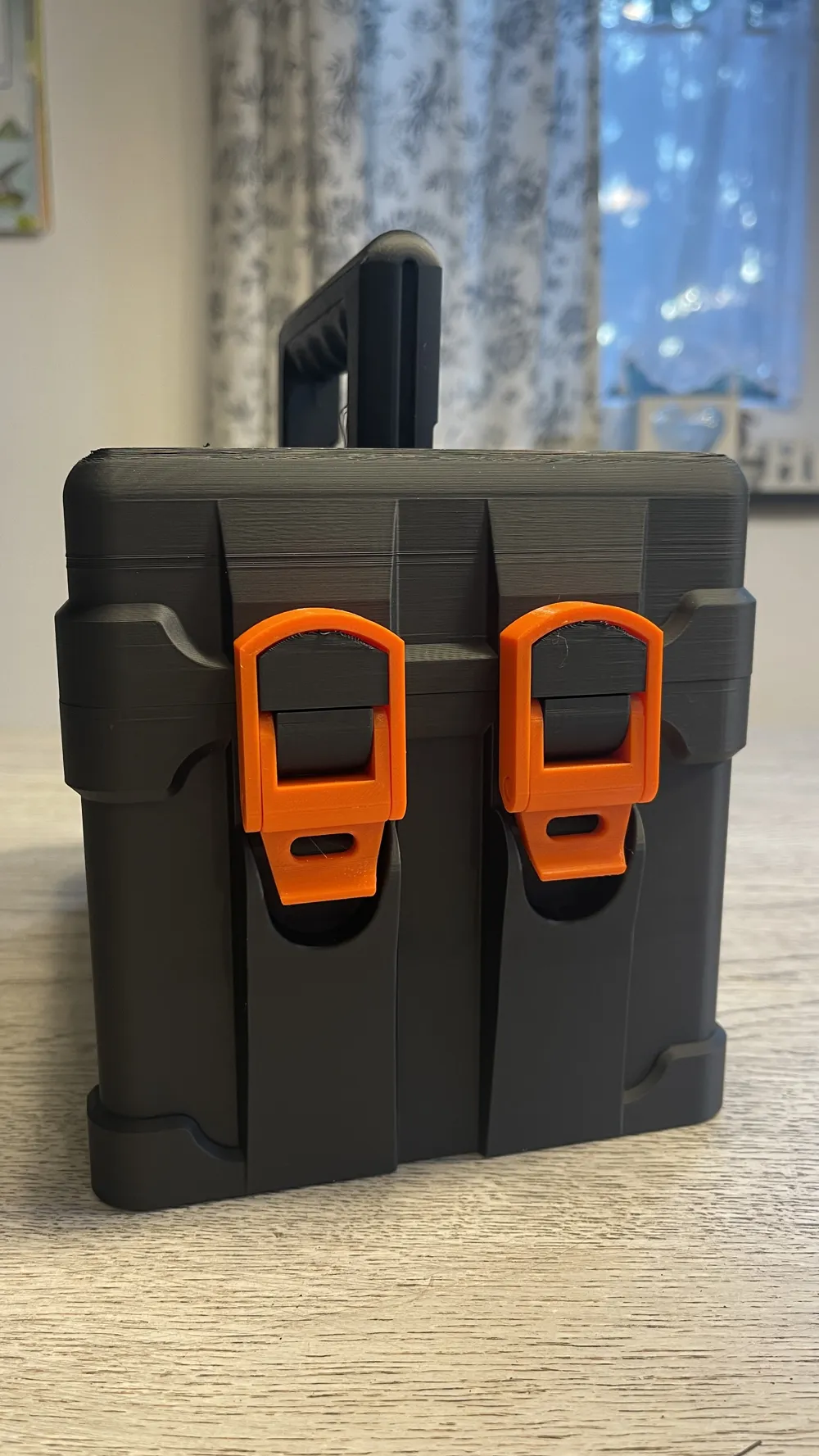

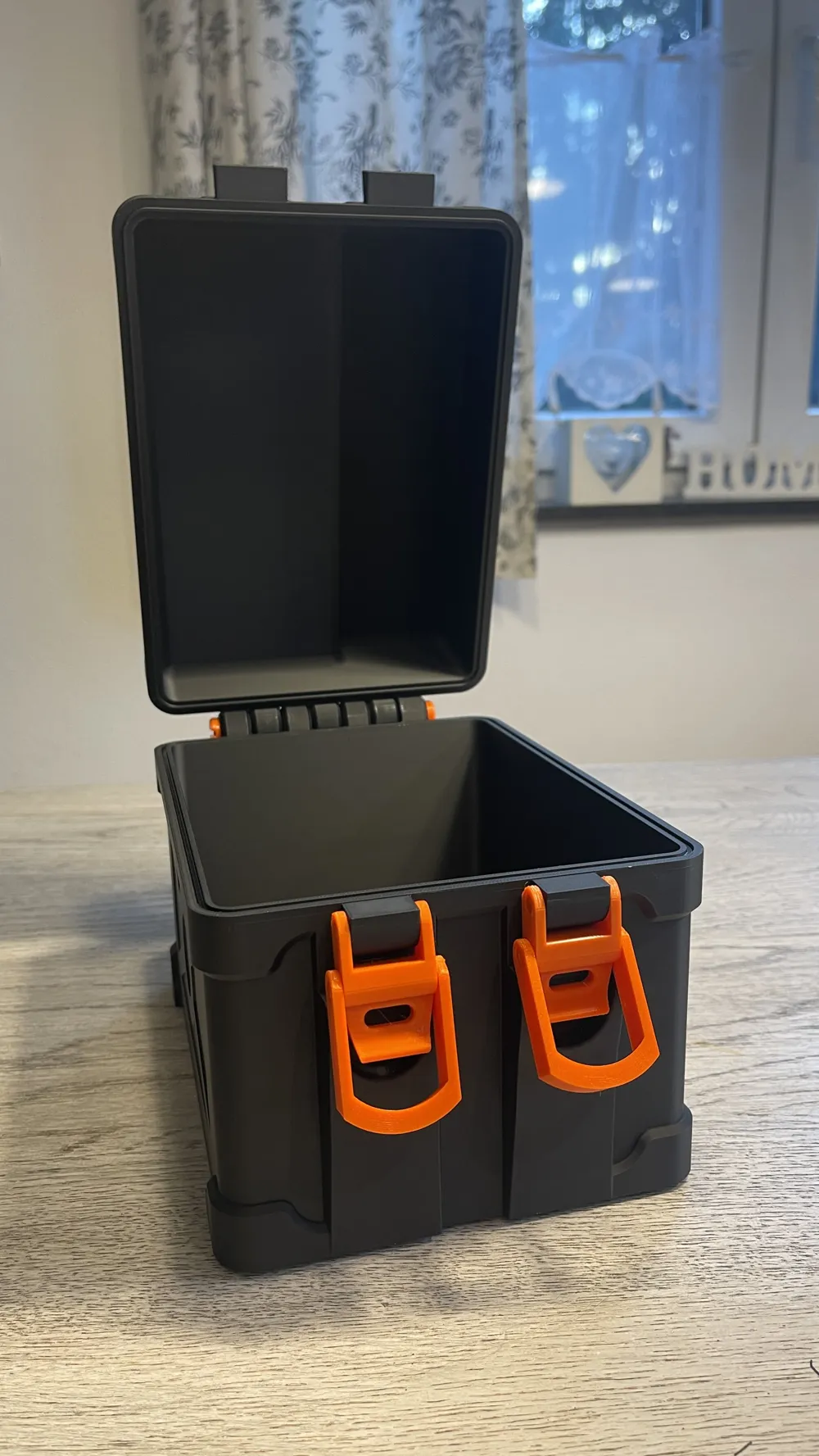

Now you can attach the clasp with the shorter pins to the box

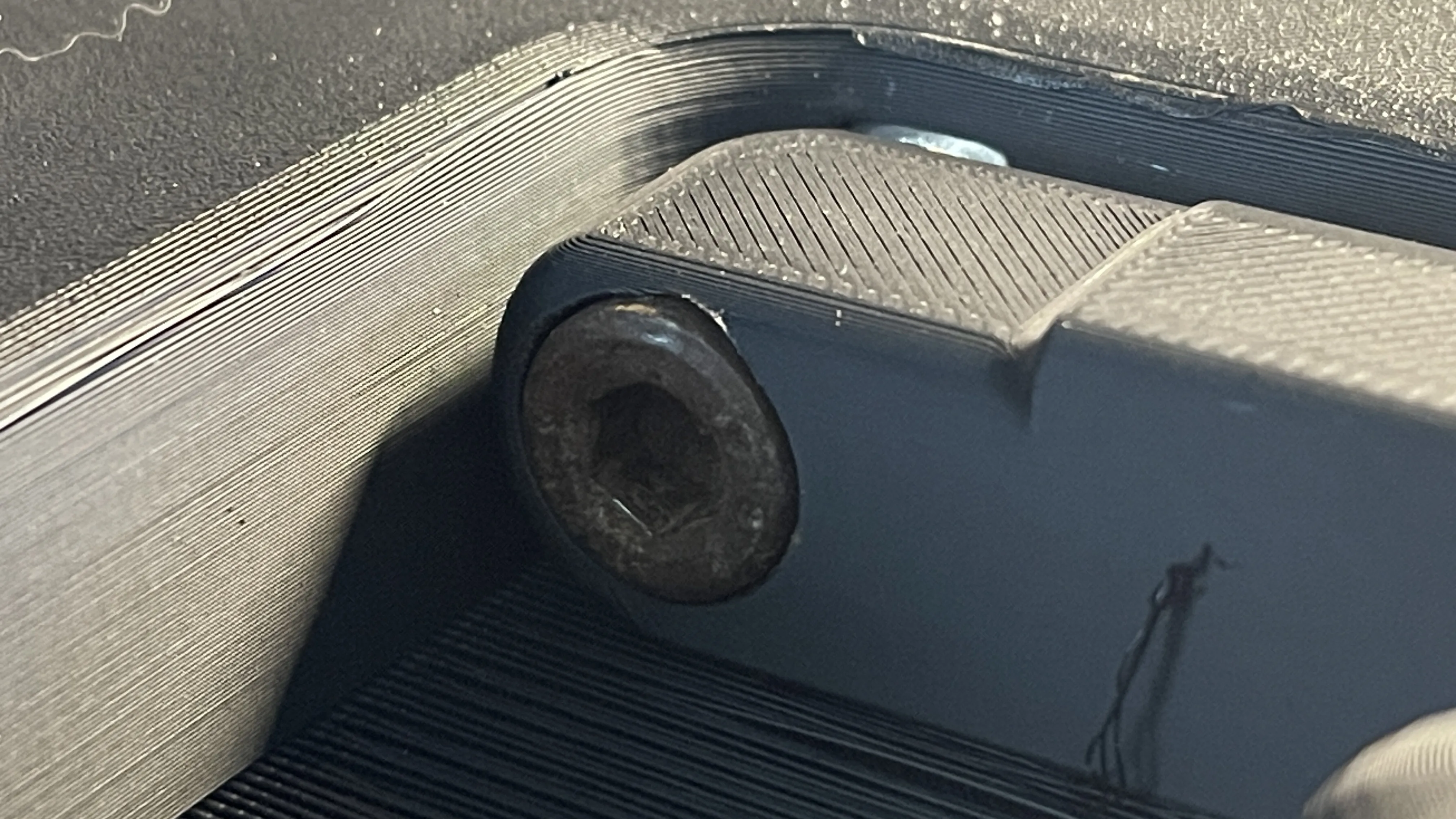

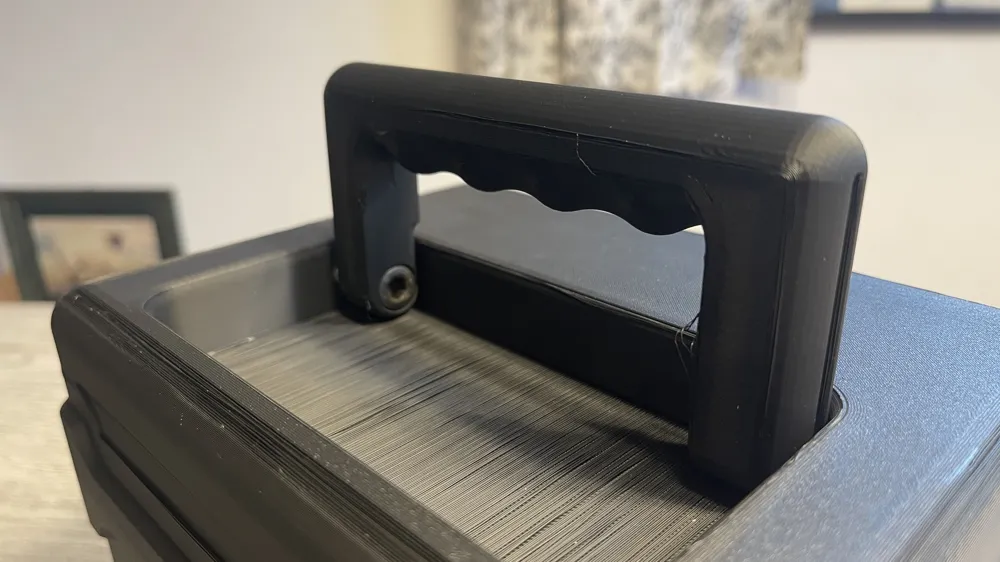

2x M8 x 20mm cylinder head screw + 2x M8 nut

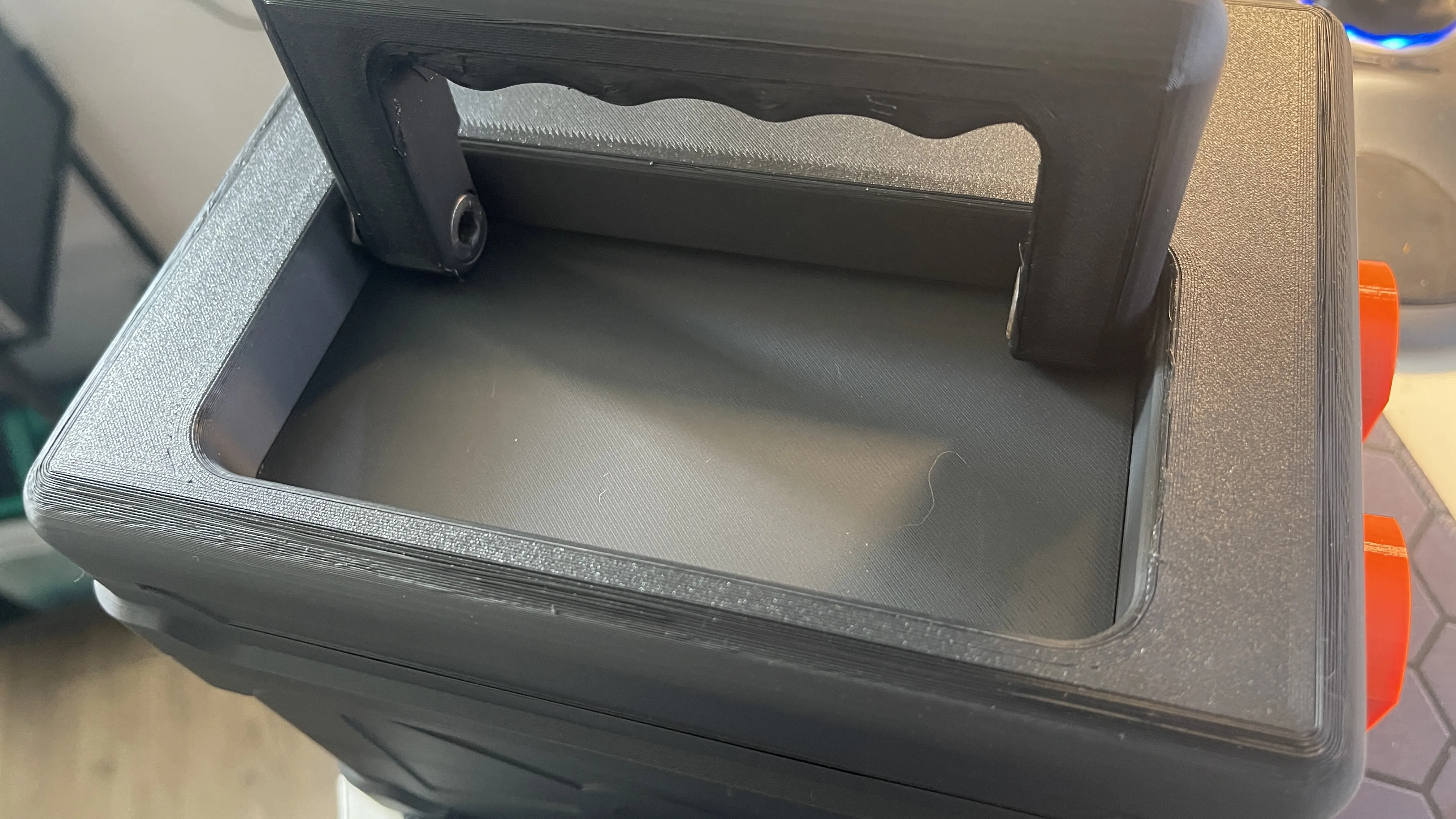

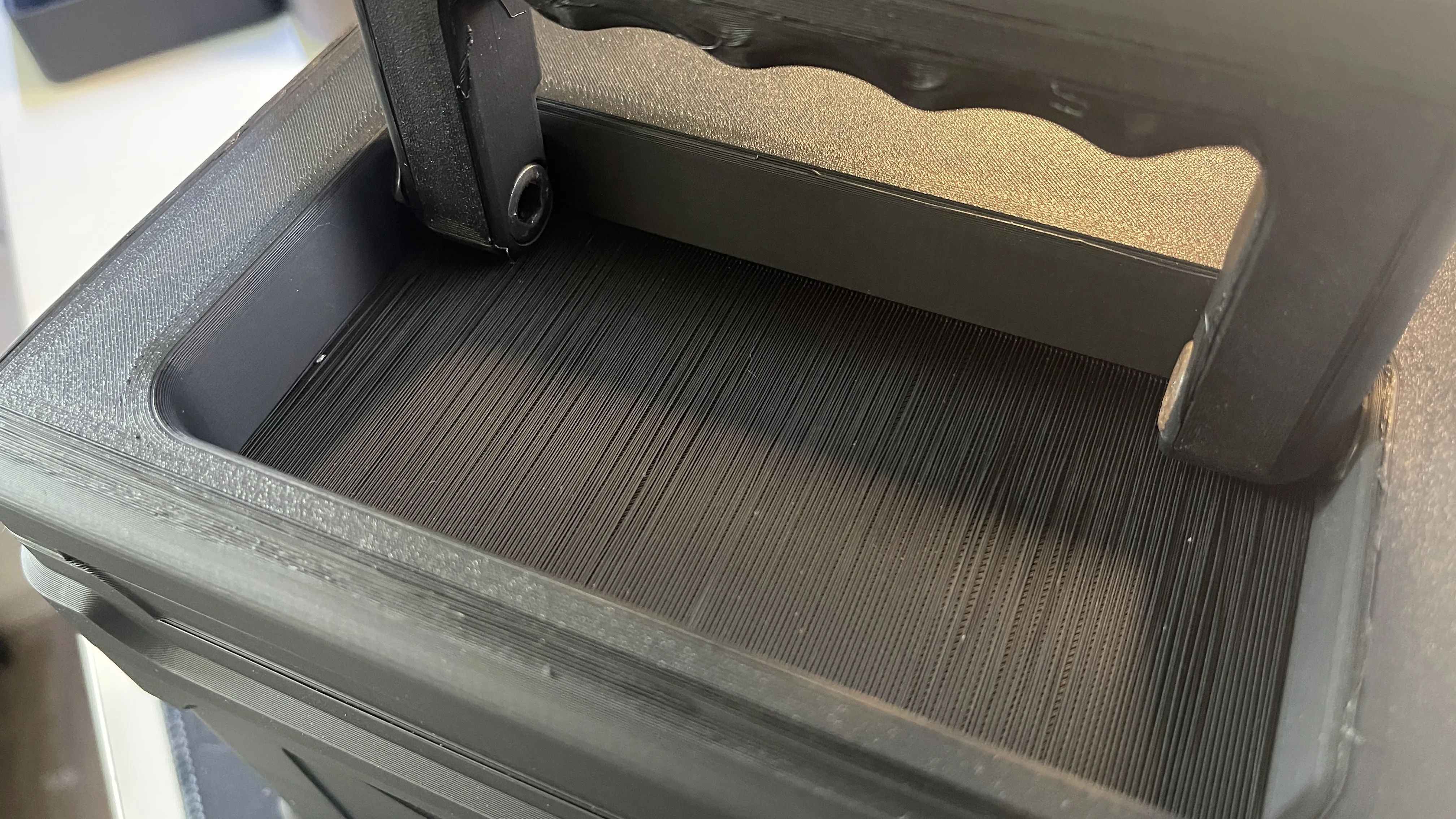

Thin plate to conceal the unsightly surface caused by support structures

Use Superglue

Feel free to modify (remix) or sell this model! I hope you enjoy it
