Precision Picatinny Monopod (Fully 3D Printable)

Hello everyone !

Check also precision front bipod for ARCA or Picatinny rail:
https://makerworld.com/pl/models/1806415

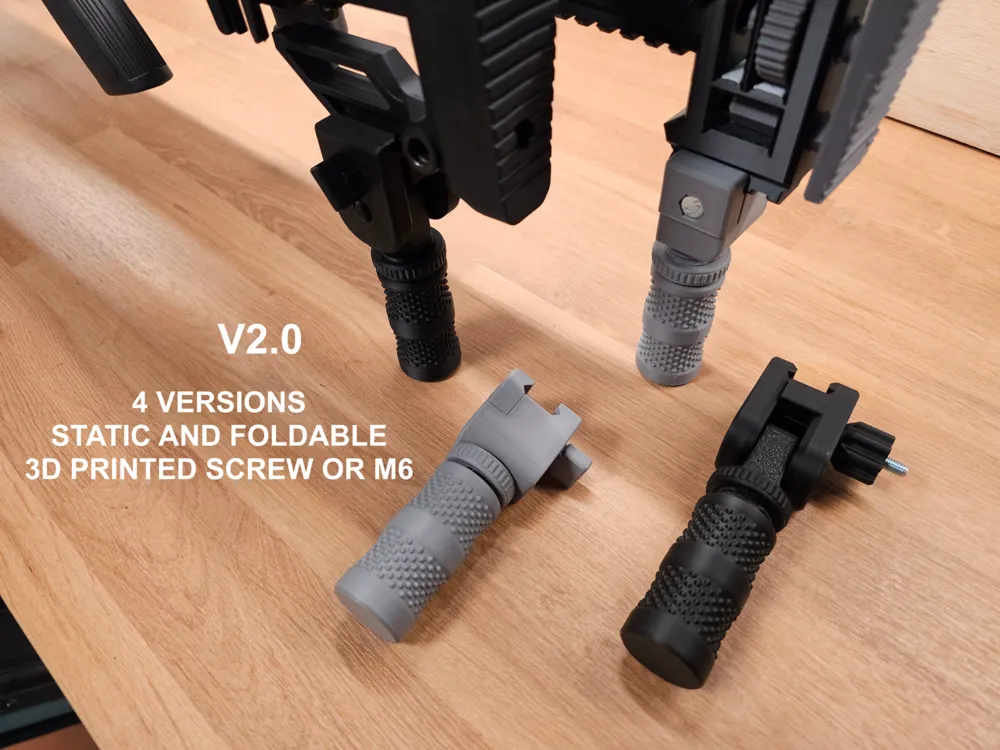

UPDATE 08.09.2025: Version 2.0 now available

Alongside the foldable version, a static version has also been added – which should be even more stable.

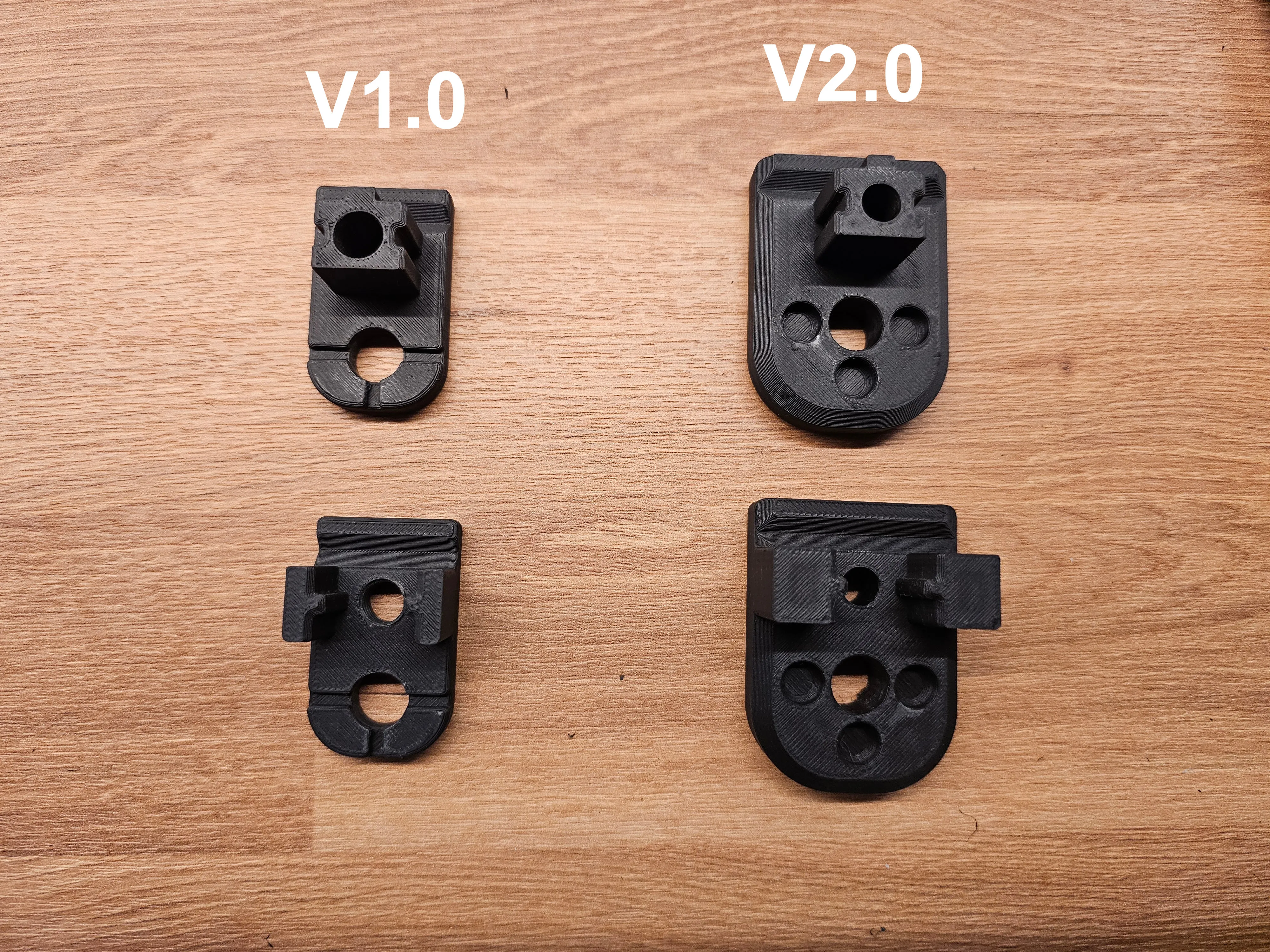

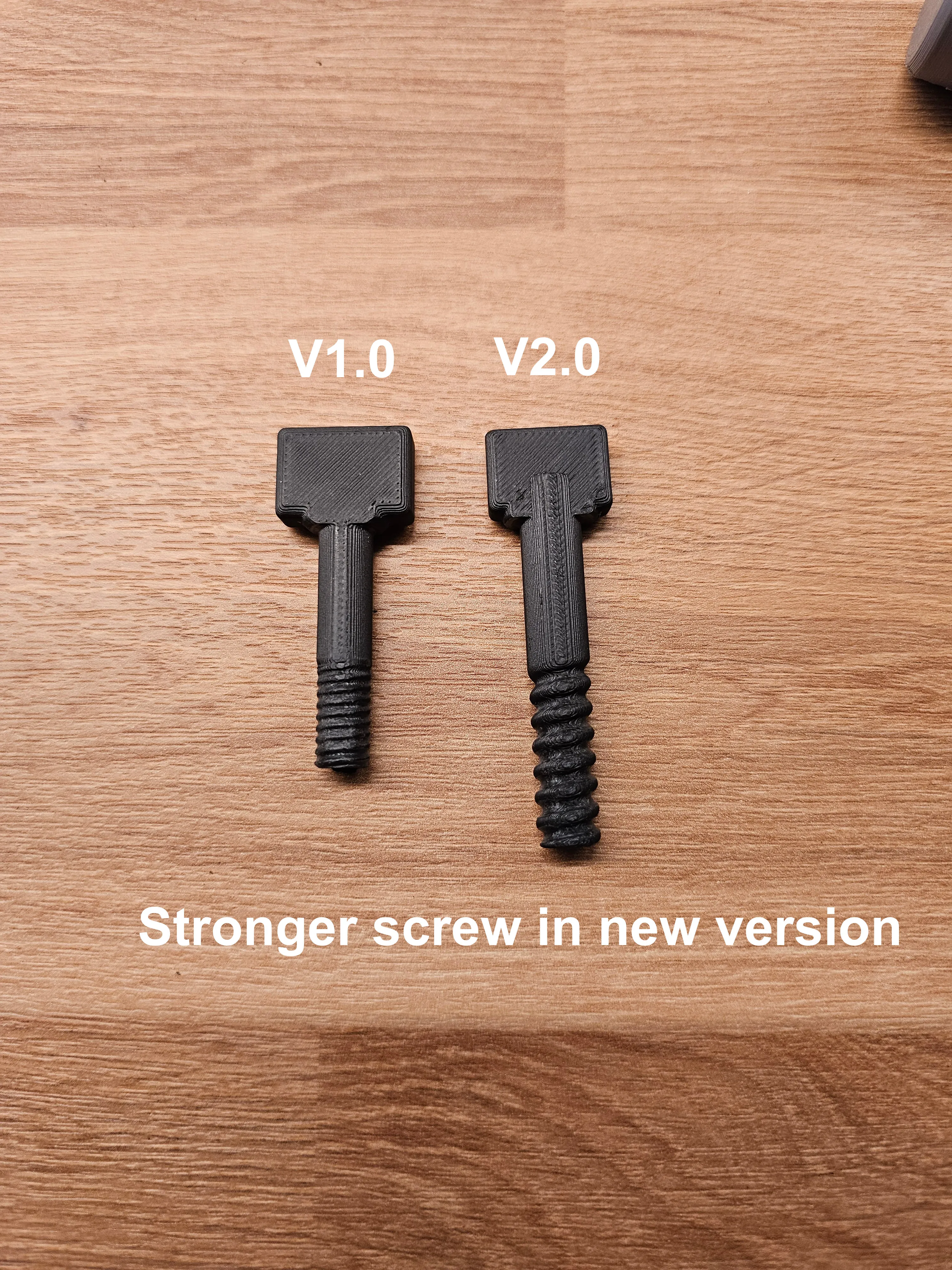

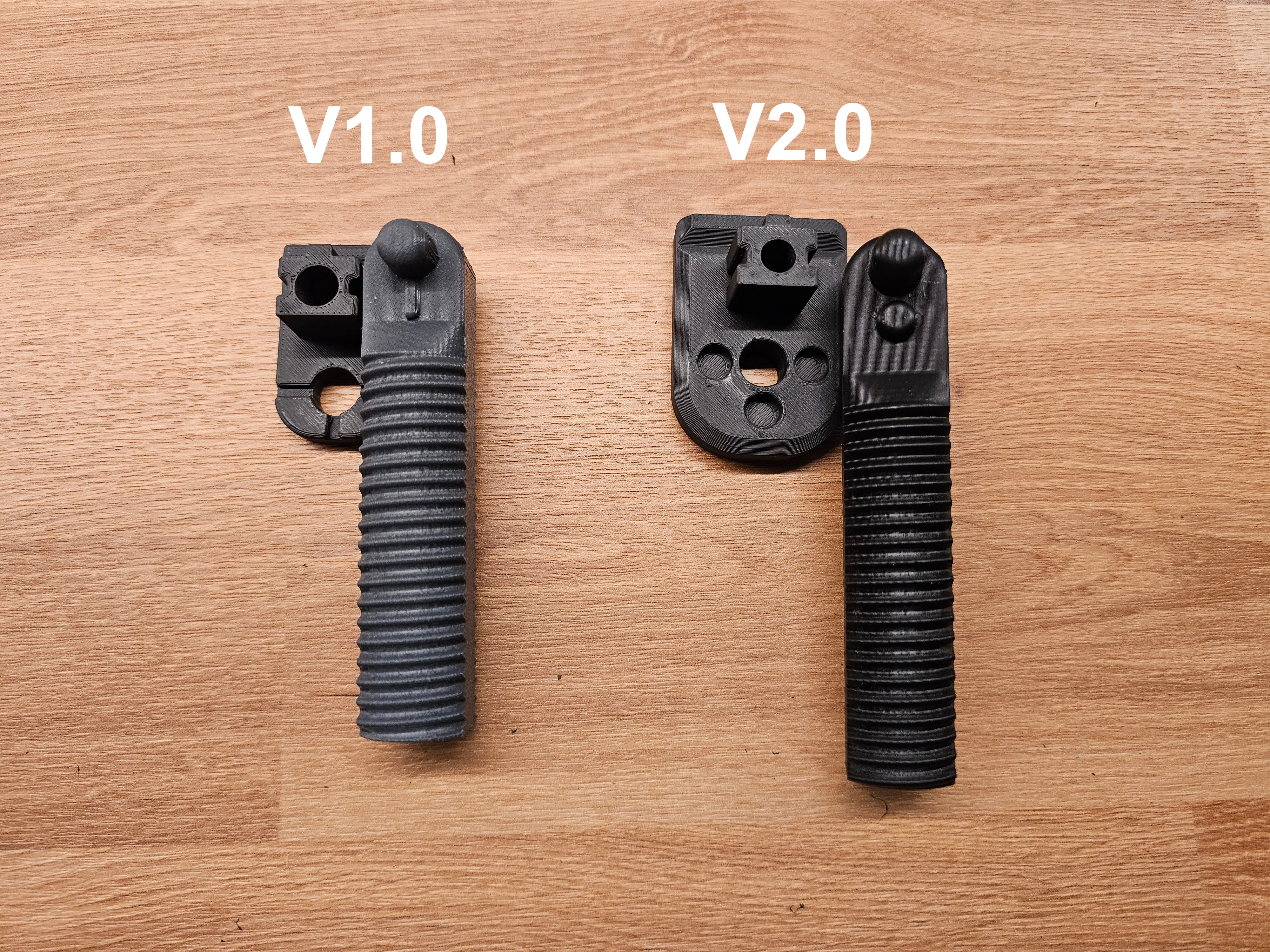

The foldable version has been reinforced and improved with a stronger locking mechanism.

Range of adjustment:

static version: 10,5cm to 15,5cm
foldable version: 12,5cm to 17cm

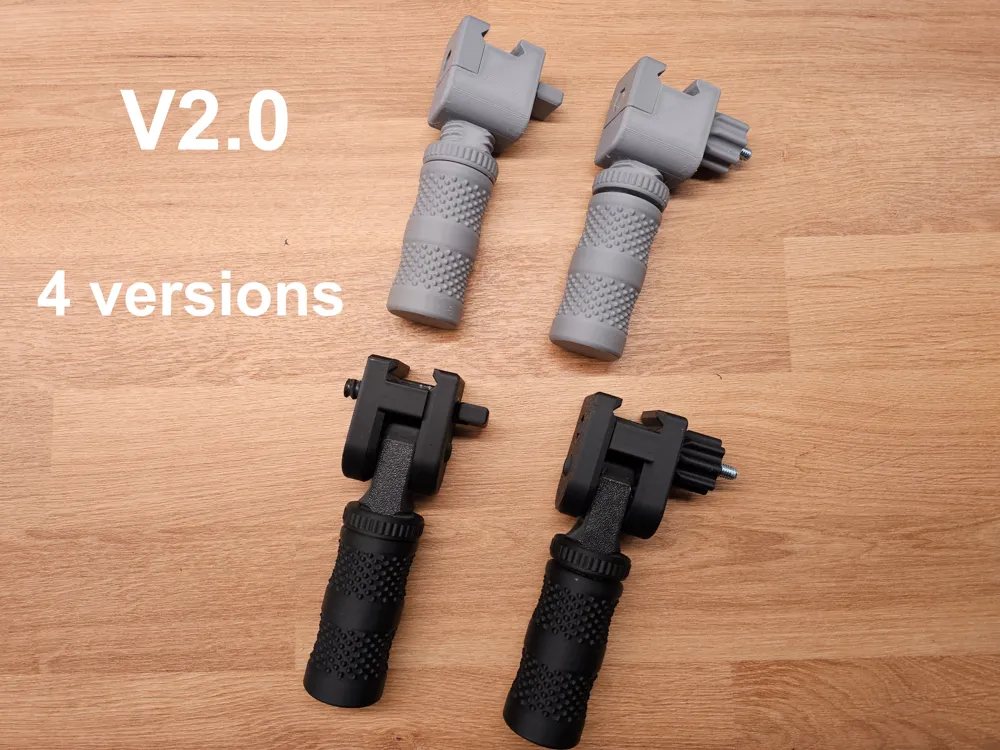

Both the static and foldable versions come in two variants:

• fully 3D-printable

• with space for an M6x50 screw (the photos show an M6x60)



  Check new improvements:

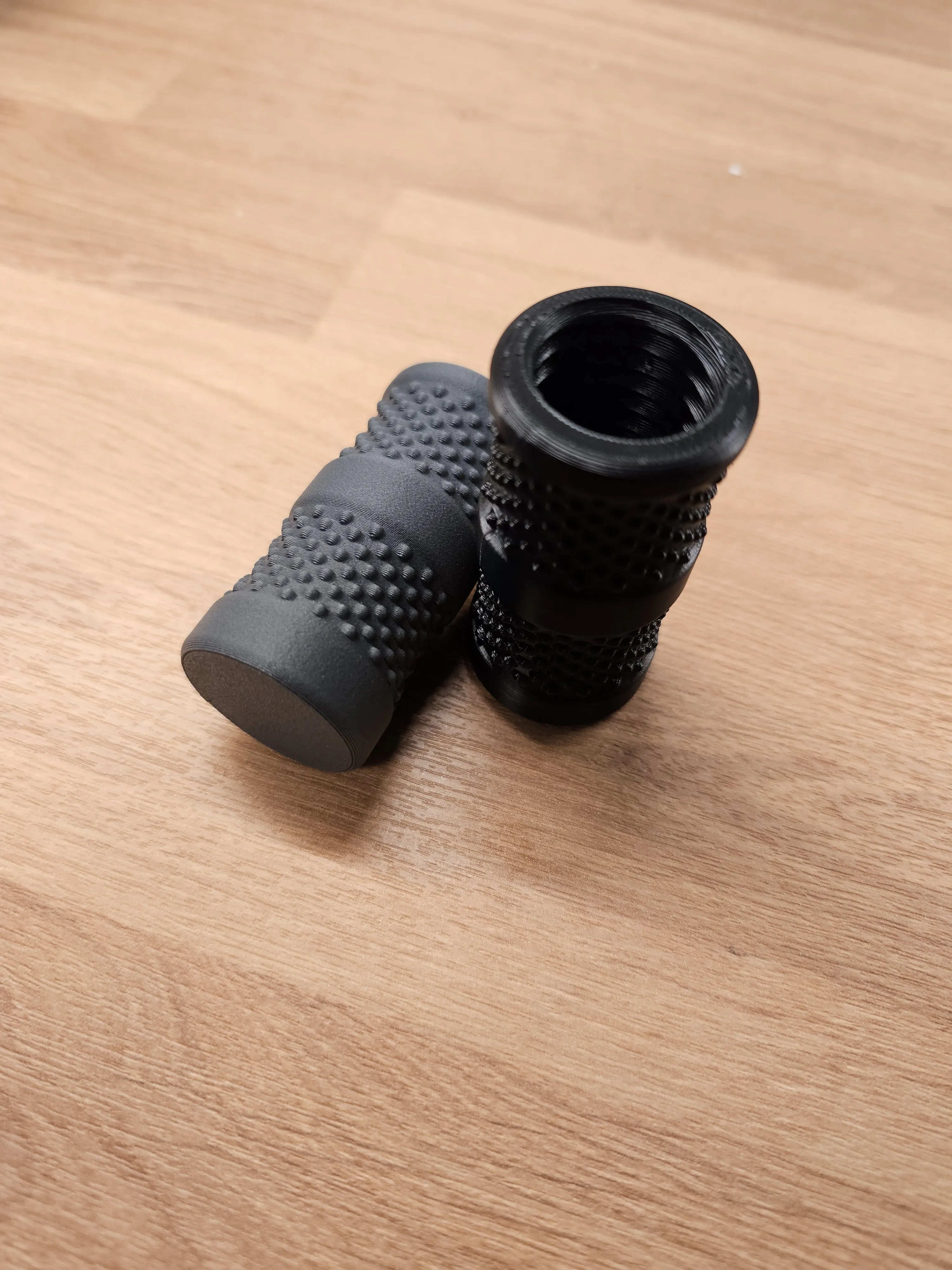

Update 06.09.2025: Added flat base leg (for long version)

There are two plates in the print profile:

• Plate 1 is at 100% scale.
• If the screw is too tight, use Plate 2, which is scaled to 101% in the X and Y axes.

UPDATE 28.06.2025: Uploaded small version adjustable from 10cm to 12.5 cm

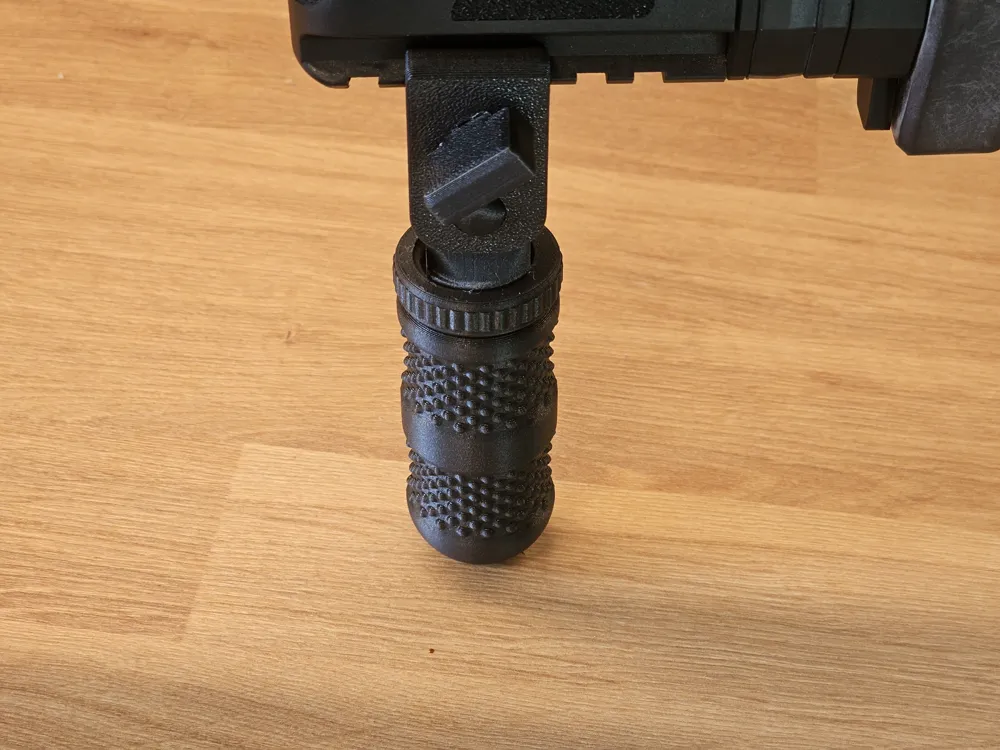

A fully 3D-printable, foldable monopod designed for direct mounting to a Picatinny rail — no extra hardware, screws, or metal parts required. This monopod features adjustable height ranging from 12.5 to 17 cm, making it ideal for various shooting positions and environments.

Key features:

• Fully 3D-printed — no additional parts needed
• Height adjustable from 12.5 cm to 17 cm (or 10cm - 12.5 cm for small version)
• Spherical foot for improved surface contact and stability
• Perforated leg for enhanced grip and more tactile height adjustment
• Integrated lock nut to securely hold the chosen height

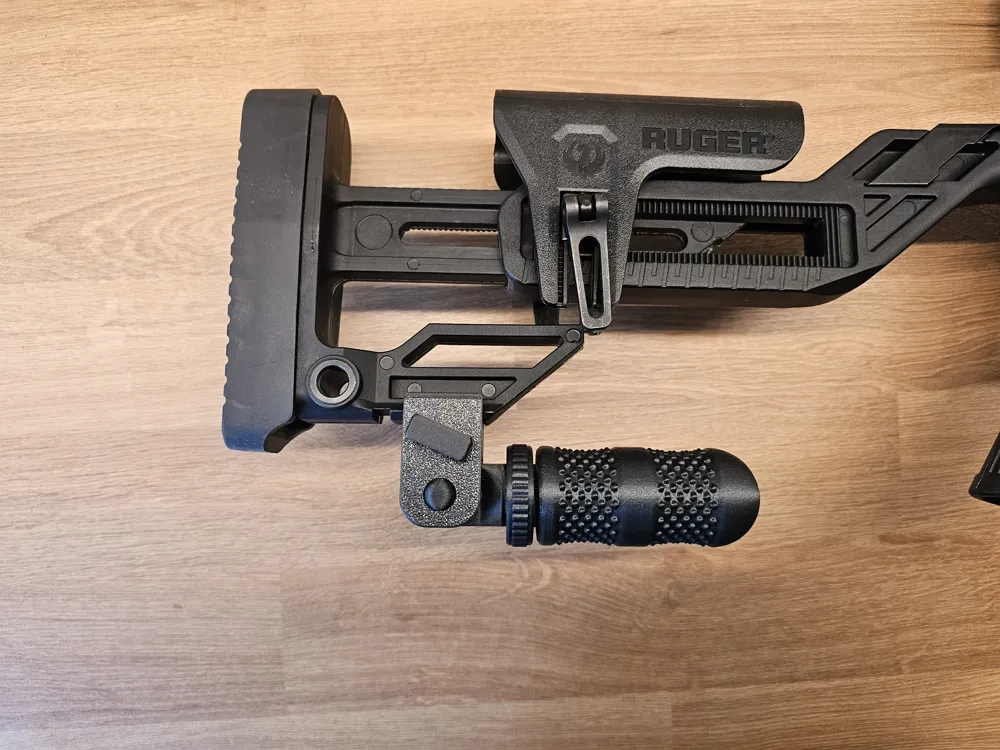

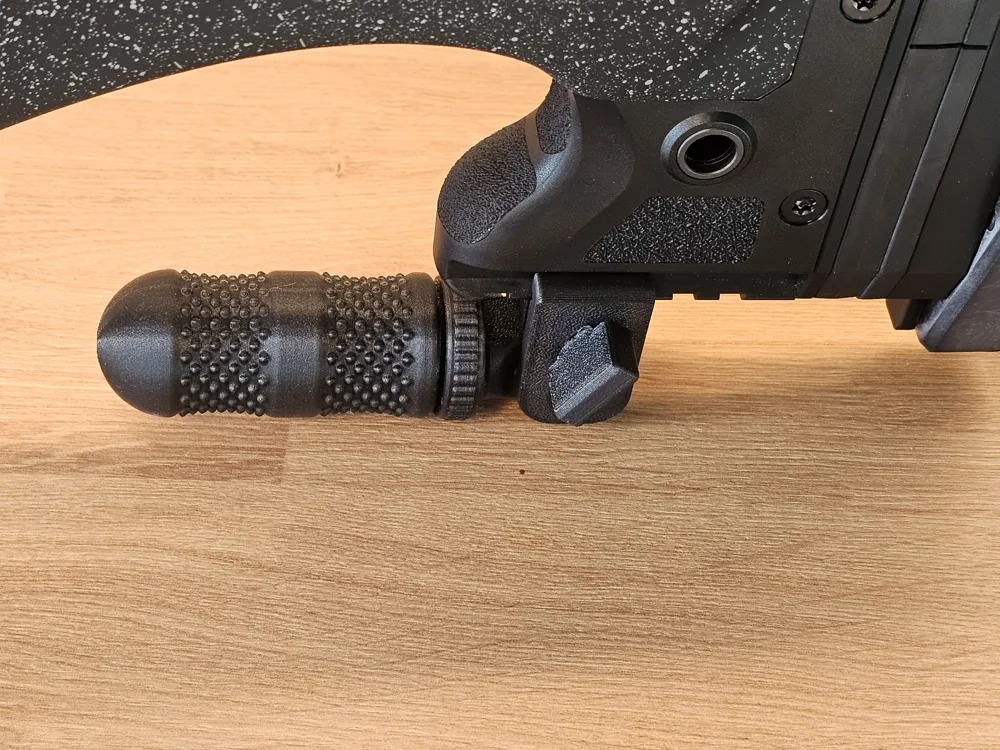

• Folding mechanism activated by loosening the rail mounting screw
• Built-in positioning notch allows setting the leg at 0°, 90°, or 180°

This design is optimized for printing with materials like PLA-CF (carbon fiber reinforced PLA) for increased strength and flexibility. However, for smaller calibers or non-recoil setups, standard PLA will also perform well.

Ideal for sport shooters, airsoft players, or hobbyists looking for a compact and practical monopod without relying on metal parts.
