Mark 4 V2 10" FPV side plates and mounts
Print Profile(1)
Description

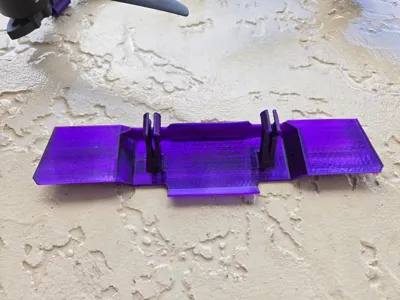

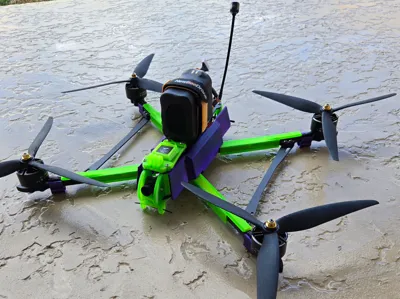

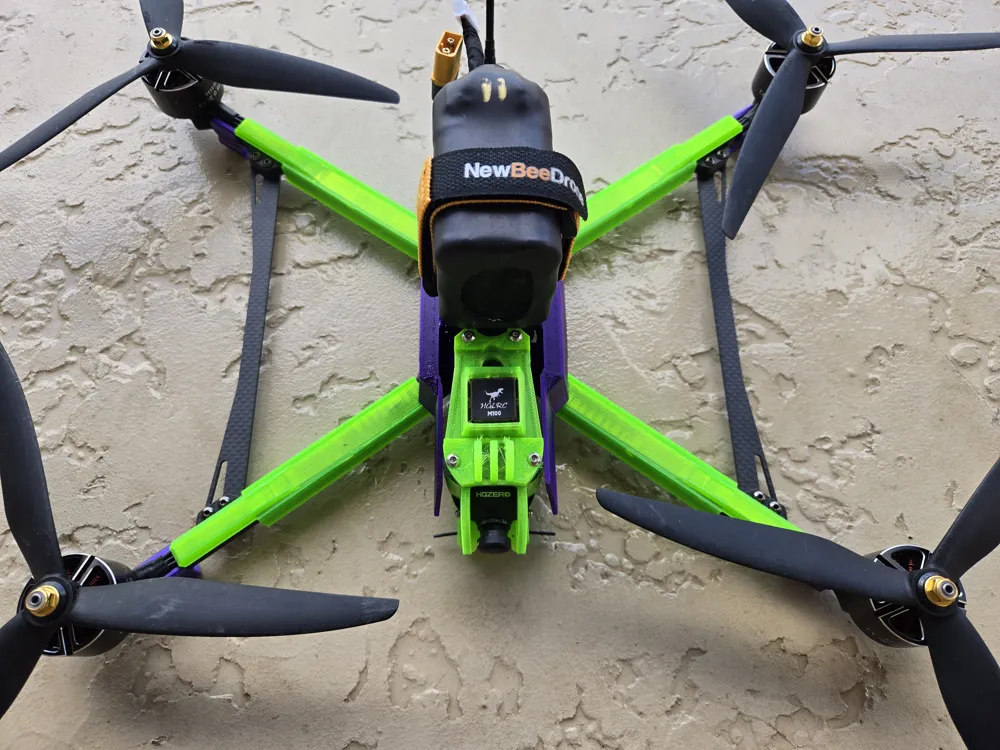

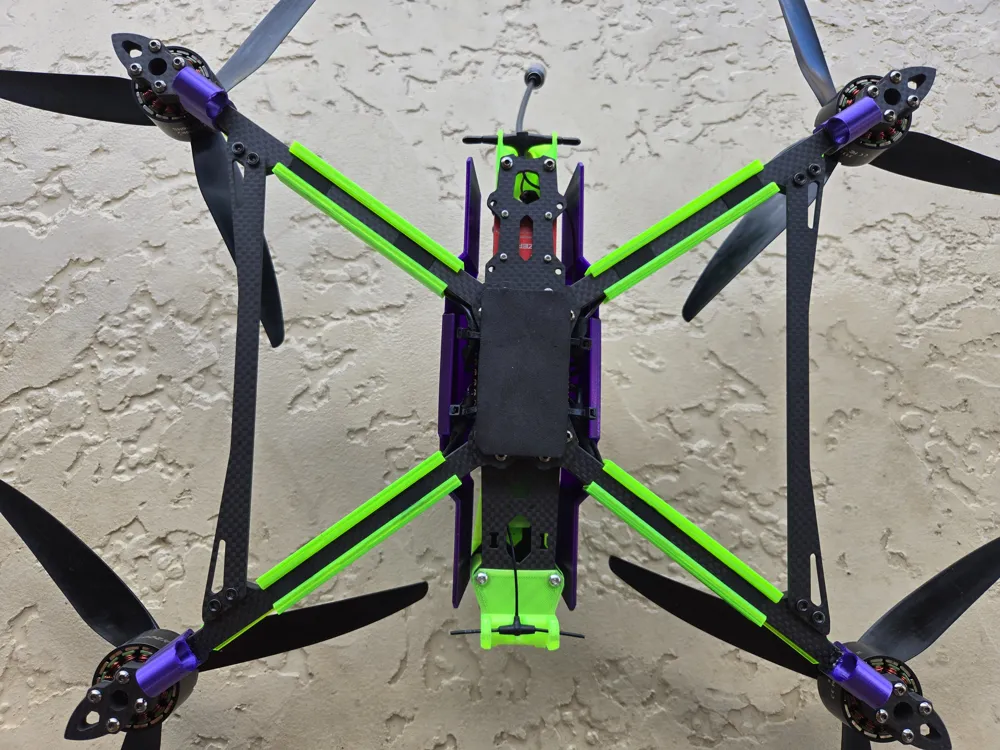

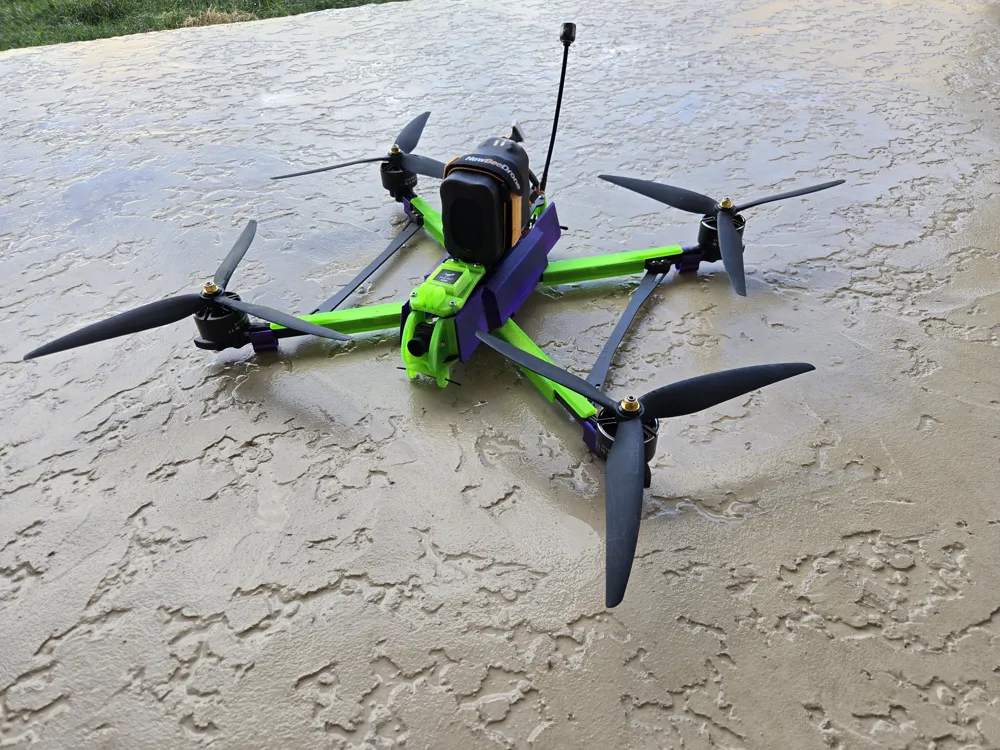

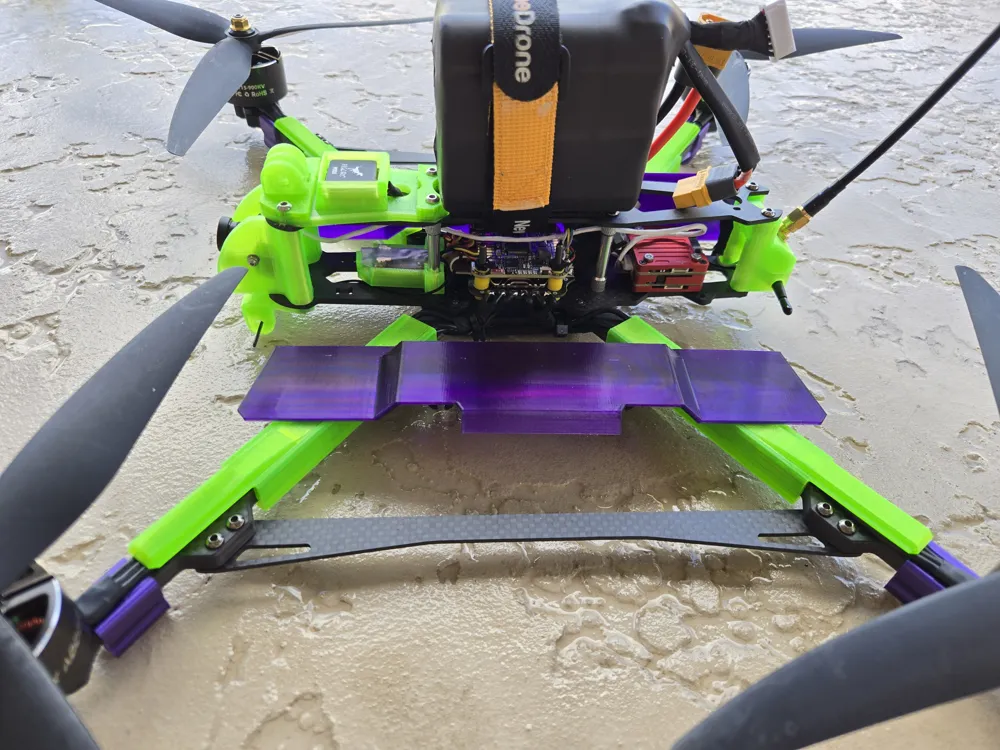

All the mounts you'll need for the Mark4 V2 clone frame. I have two of these frames and they are slightly different so no guarantee that these will be a perfect fit. It took many remakes but I was able to make the side plates with enough tolerance to fit both of the frames I've got. You'll notice the front GPS/GoPro mount also has two sets of holes. The GPS mount is for an HGLRC M100 friction fit but may fit others. Motor wire covers and side plates snap on. There is a TPU part that I made for an ELRS receiver to fit neatly using the standoffs in the frame. I found a camera switcher also fits on the mount perfectly. The feet will snap on over the arms but I'd recommend a dab of E6000 adhesive to hold them securely.

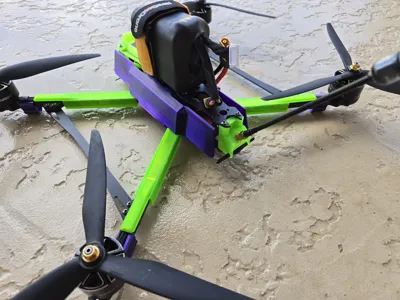

UPDATE: 10/5/25 - I added landing feet, refined the rear antenna mount a bit, and made the switch to the simpler, more sleek side plates. The side plates will work on the 7" frame as well.
