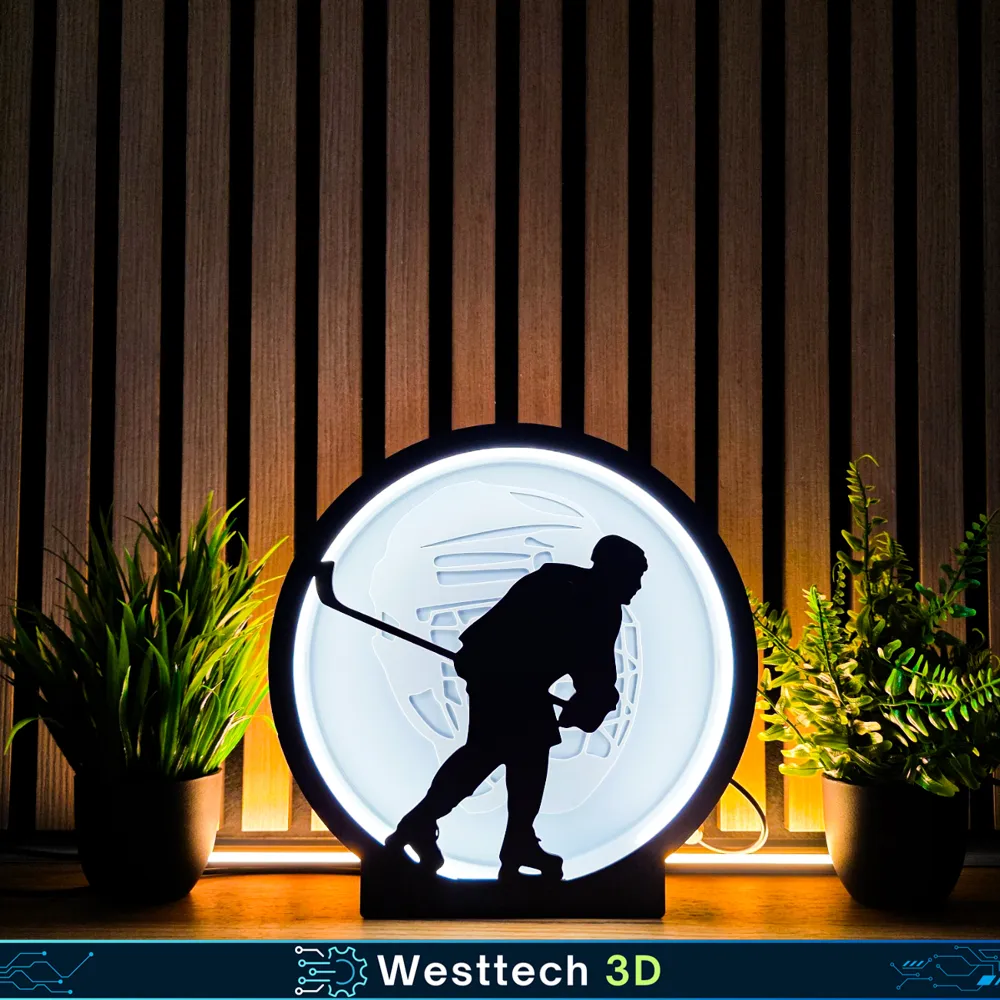

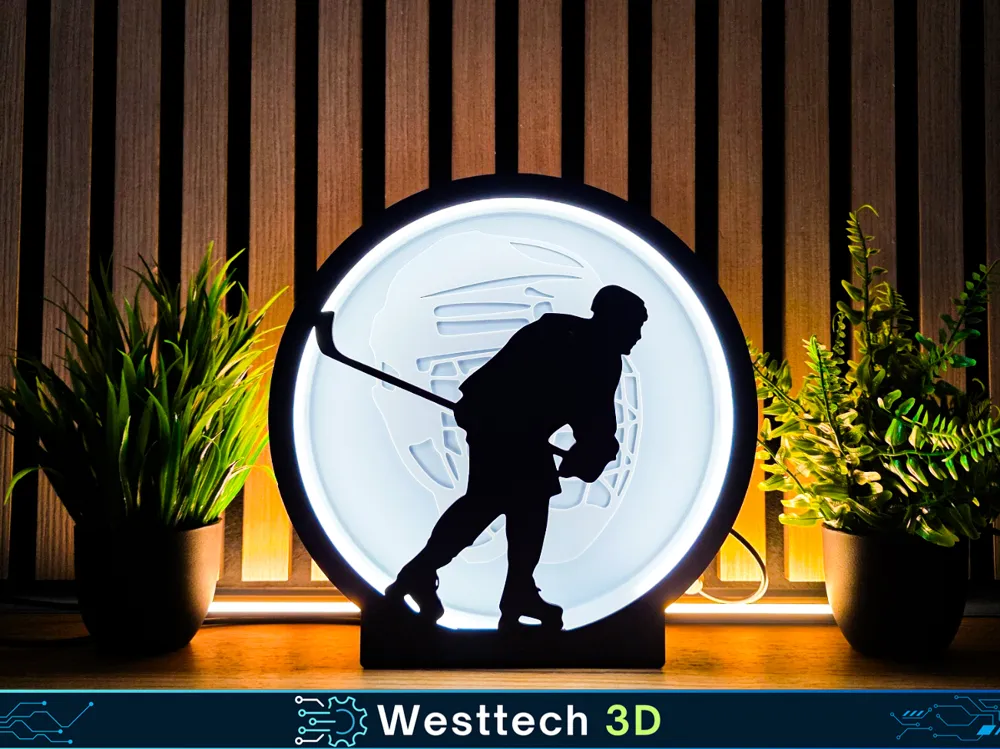

Ice Hockey Lamp

Ice Hockey Lamp – Stylish & Easy to 3D Print

Here you will find a stylish lamp that you can easily print yourself – perfect for creating an atmospheric ambience at home.
Two versions are available:

🧷 Version 1: Glued

🔩 Version 2: Screwed

______________________________________

🛠️ Recommended Print Settings:

🔲 Main Part

• Optimal layer height: 0.16 mm for fine details
• Time-saving alternative: up to max. 0.20 mm

🪵 Back Panel with Diffuser

• Recommended: 0.20 mm
• Maximum: 0.24 mm
• This ensures a particularly soft, pleasant light – ideal for a cozy atmosphere.

💡 Note on the back panel:

• The back panel is intentionally slightly loose, as I glue it before shipping.
  If you would like a tighter fit, you can enlarge the back panel in the slicer by 0.5% to 1% – just try what works best for you!

🔧 Details of the glued version

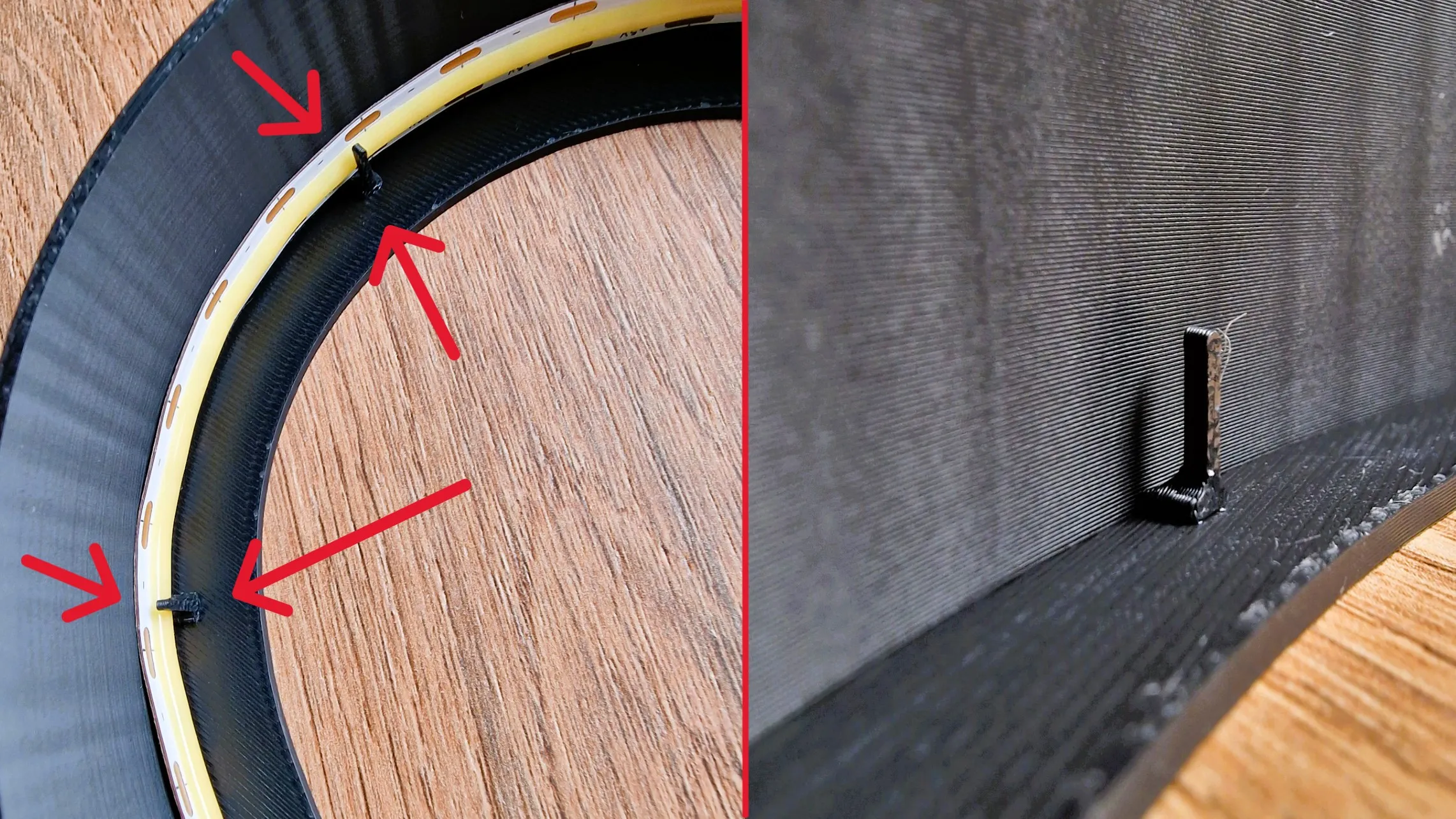

• LED Holder: This should be fixed with some plastic adhesive.

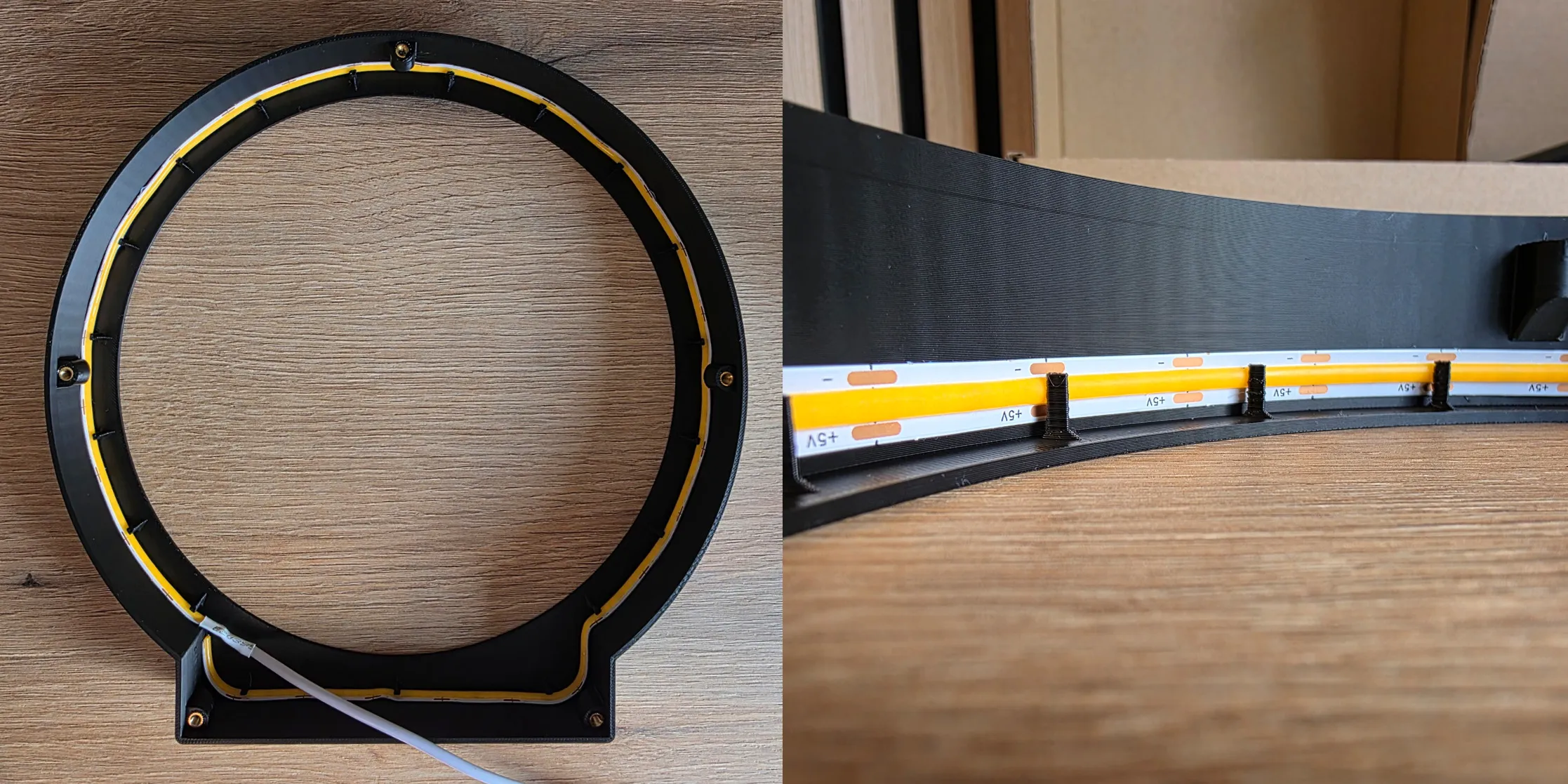

• LED Strip: Simply insert – the adhesive surface on the back usually holds them well.
  The printed support prevents the strips from detaching when heated (e.g., by COB LEDs).

• Recommended length of the LED strip: at least 74 cm

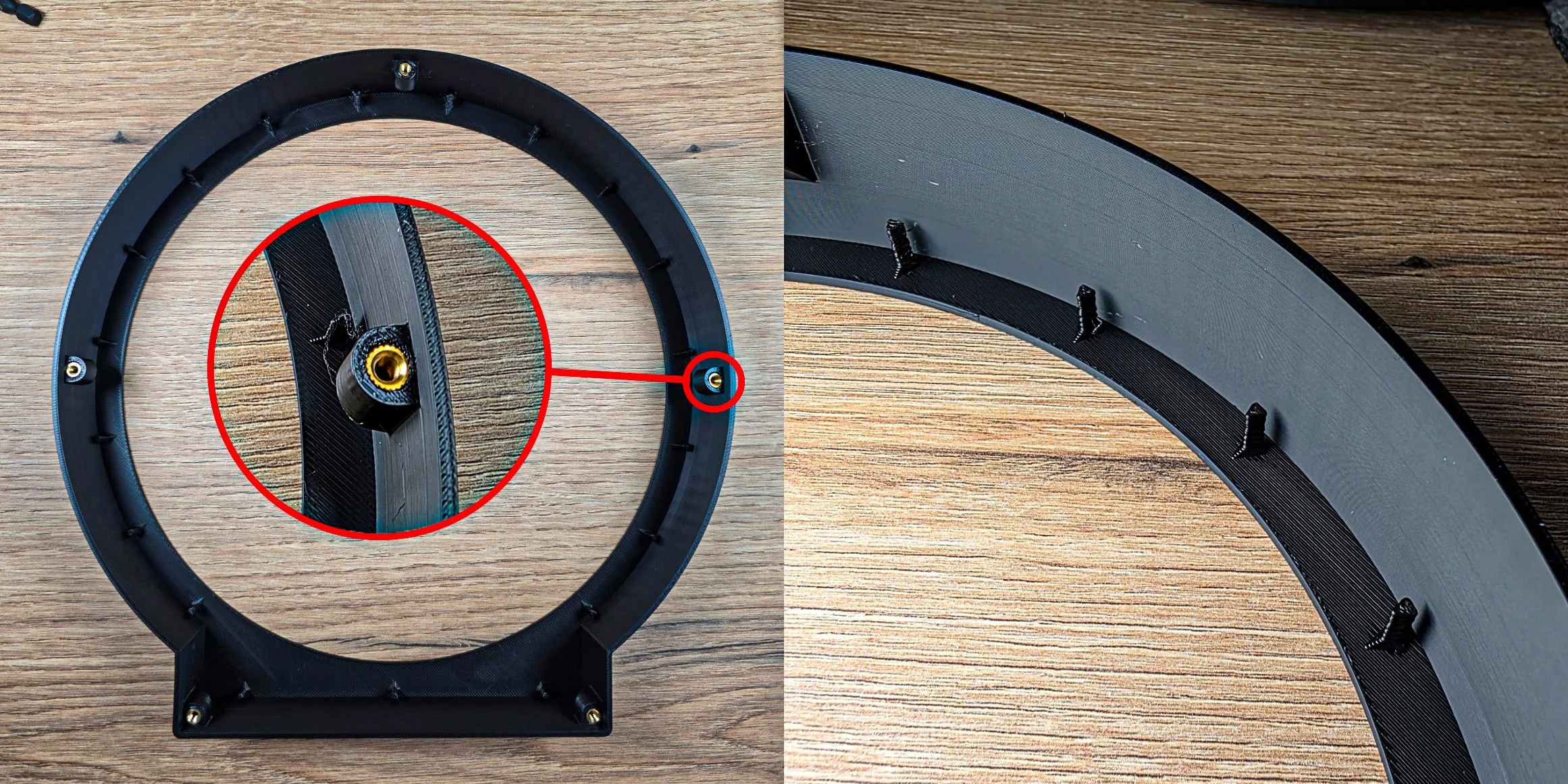

🔩 Details of the screwed version 🔩🪛

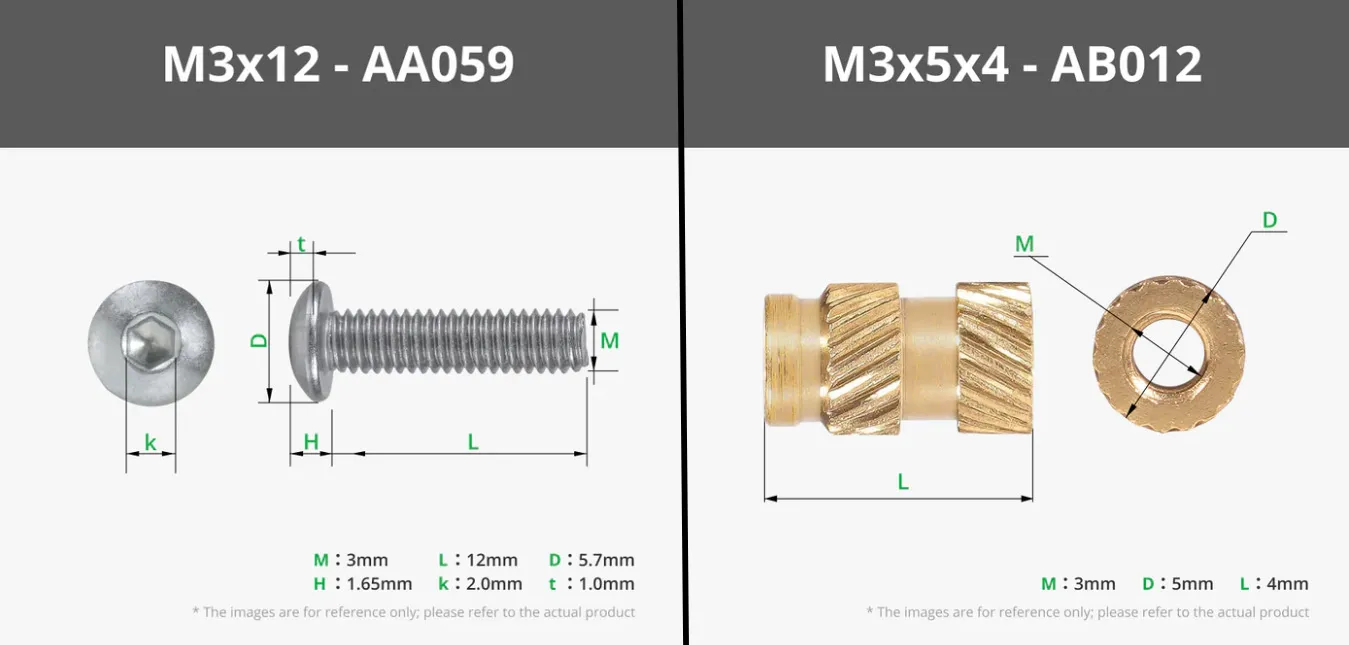

• Required accessories:
  • 5x M3x6 threaded inserts
  • 5x M3x12 screws

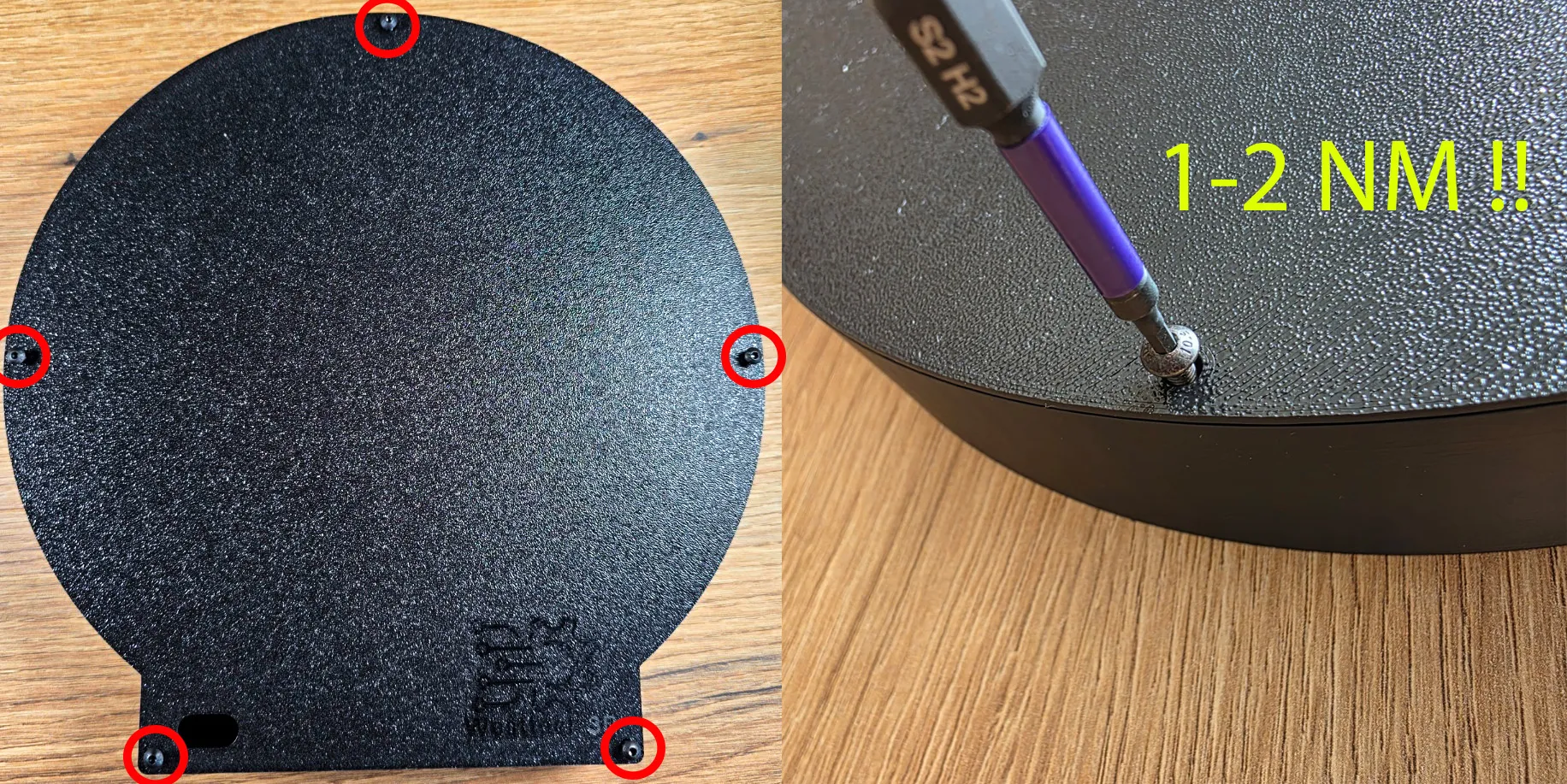

• 🔧 Tip: Please do not tighten the screws too much to avoid damage.

I wish you much joy with printing and crafting! If you have questions or want to share your result, I look forward to your feedback!
Happy Printing!
