"Coolinator"—775 Motor 280mm Fan

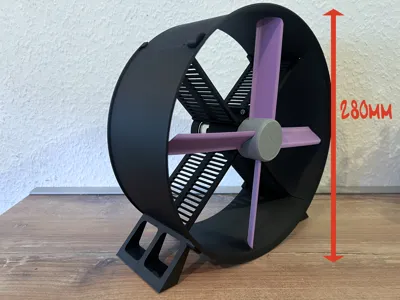

The "Coolinator" is a 775 Motor based Ø 280mm Ventilator

Requirements:

6x M4 x 12mm screws (optional 2x hex-head-screws)

4x M4 washers

2x M4 nuts

Assembly:

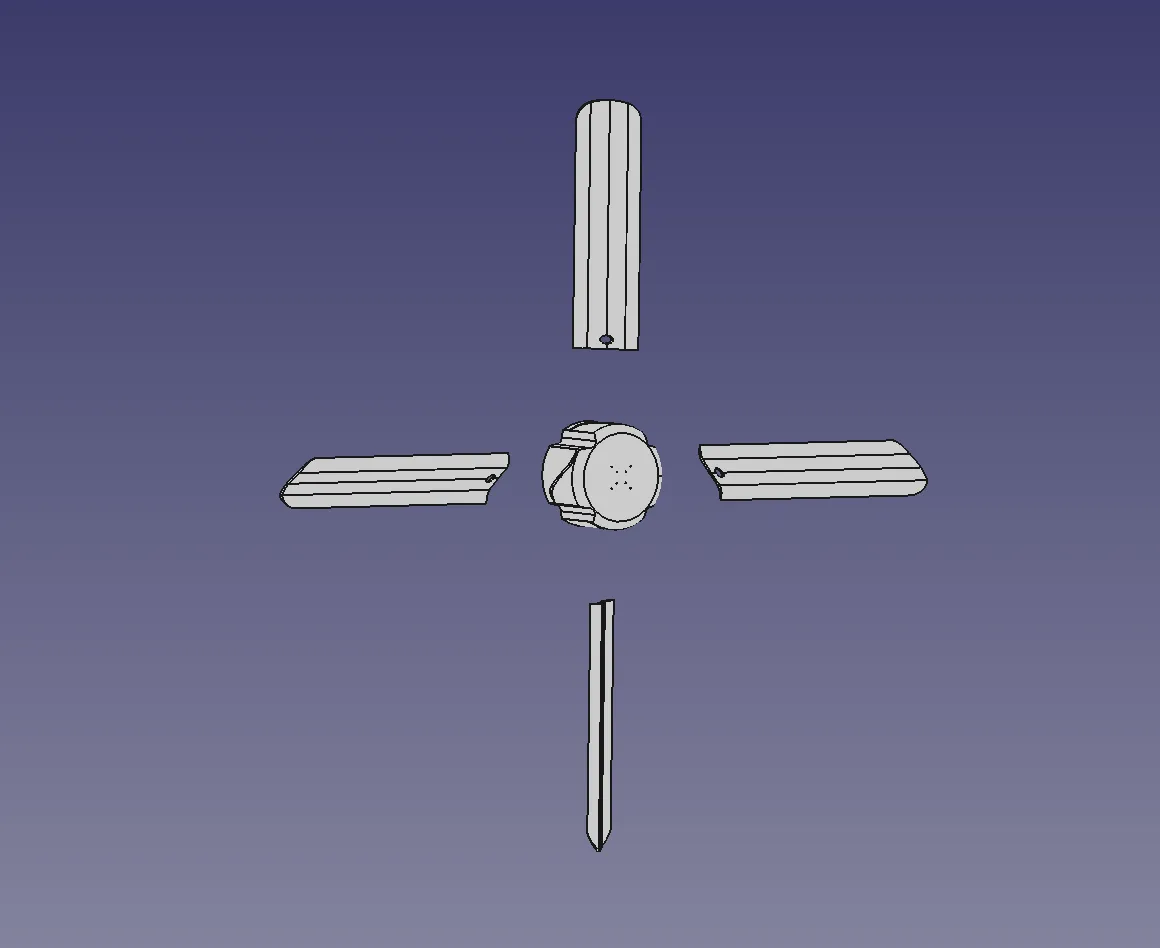

The rotor is put together and the wings are fixed with 4x M4 x 12mm screws

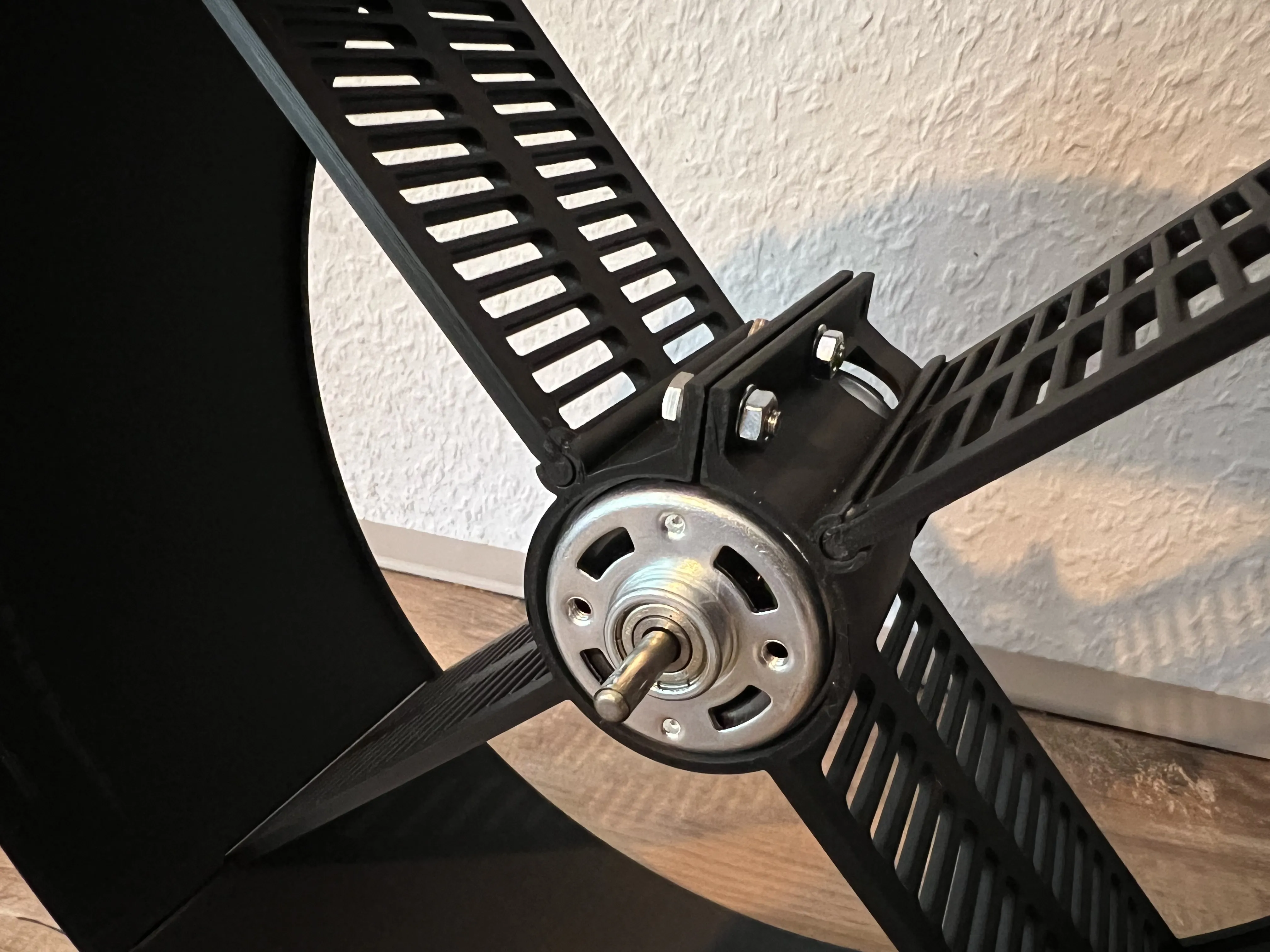

The Motor is placed in the stand and fixed with 2x M4 x 12mm screws (including washers and nuts)

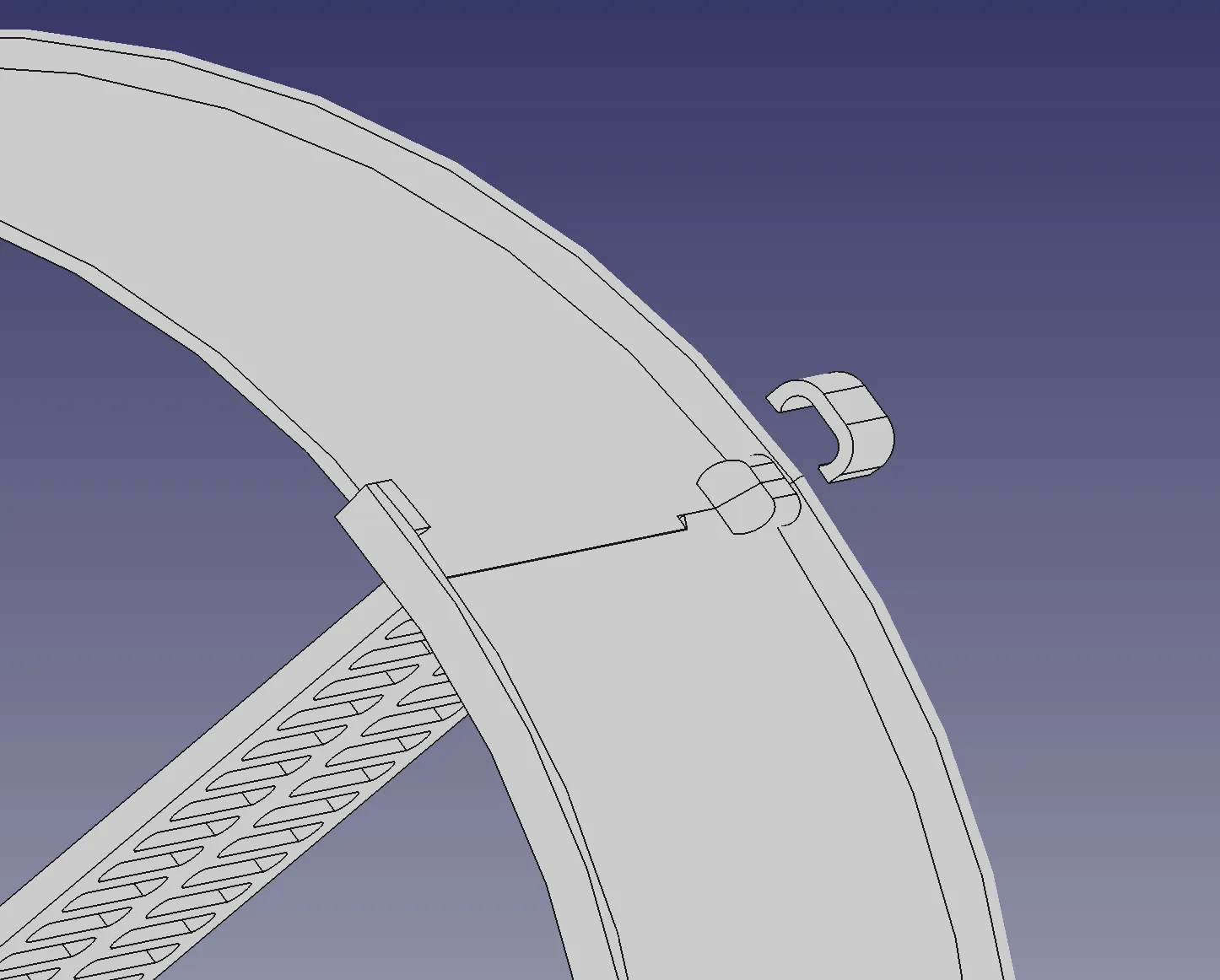

The top part is clipped into the middle and the side parts are put together and fixed with 4x clamps

Done!

WARNING: There is no safety mesh. Don't put things into the ventilator. Please use with a motor controller 12V, min. 10A with max. PWM 30% duty cycle. There is no warranty for any damages!

Update 2025-07-28:

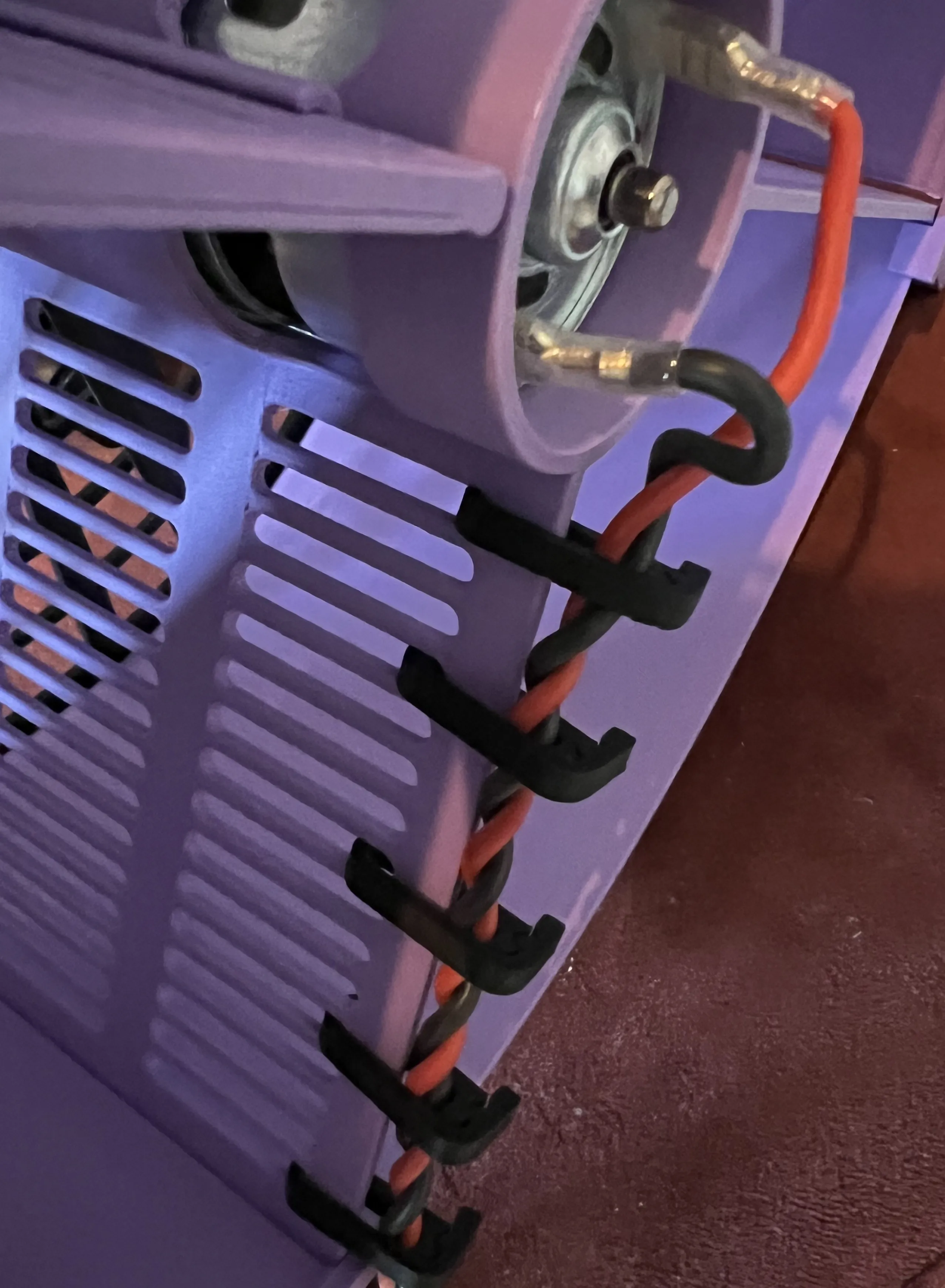

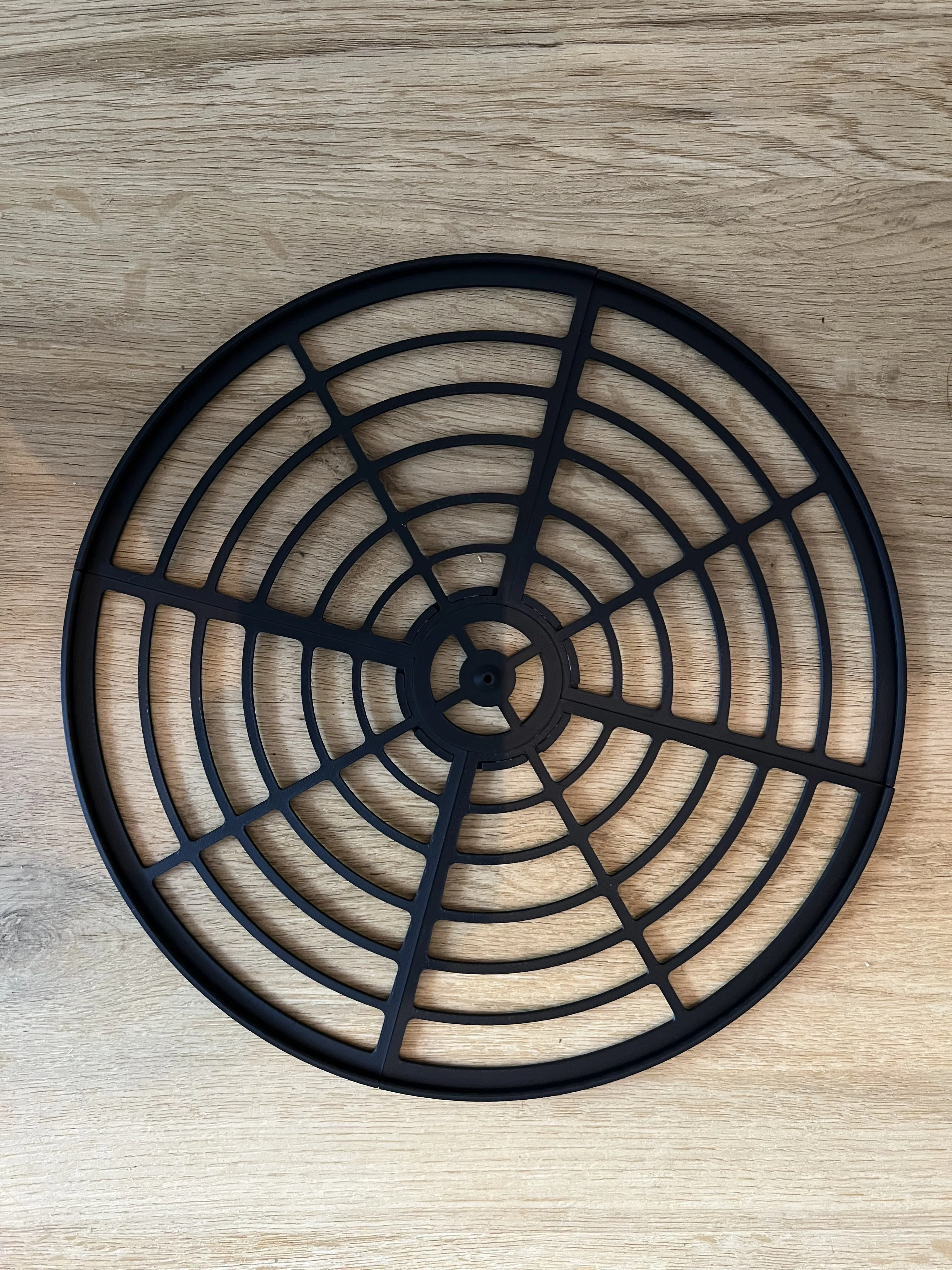

A print profile for cable ties and a safety mesh were added:
