【Porsche】Porsche 911 Carrera 4S All-wheel drive high-performance supercar Assembly/Movable Wheels

【Special Notes for F1 Models】

1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!

4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!

【Read Before Printing!!! Warm Tips】

It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.

Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.

---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------

Porsche 911 Carrera 4S: All-wheel drive high-performance benchmark (992.2 generation, latest 2026)
Equipped with a 3.0T horizontally opposed six-cylinder turbocharged engine, delivering 450 horsepower, accelerating from 0-100km/h in just 3.6 seconds (3.4 seconds with optional Sport Chrono package).
Iconic frog-eye headlights, sleek fastback lines, and widened rear fenders form the classic design language, with hidden door handles enhancing aerodynamic performance.
Standard all-wheel drive system and rear-wheel steering technology demonstrate "razor-sharp precision" in corners.
The wide body design paired with through-type taillights not only inherits the design genes of the original 901 from 1963 but also interprets modern sports car aesthetics through technological elements such as active spoilers.

Painted version:https://makerworld.com.cn/zh/models/1494802-porsche-bao-shi-jie-911-carrera-4s-ke-xian-tu-zhua#profileId-1631400

Model Description

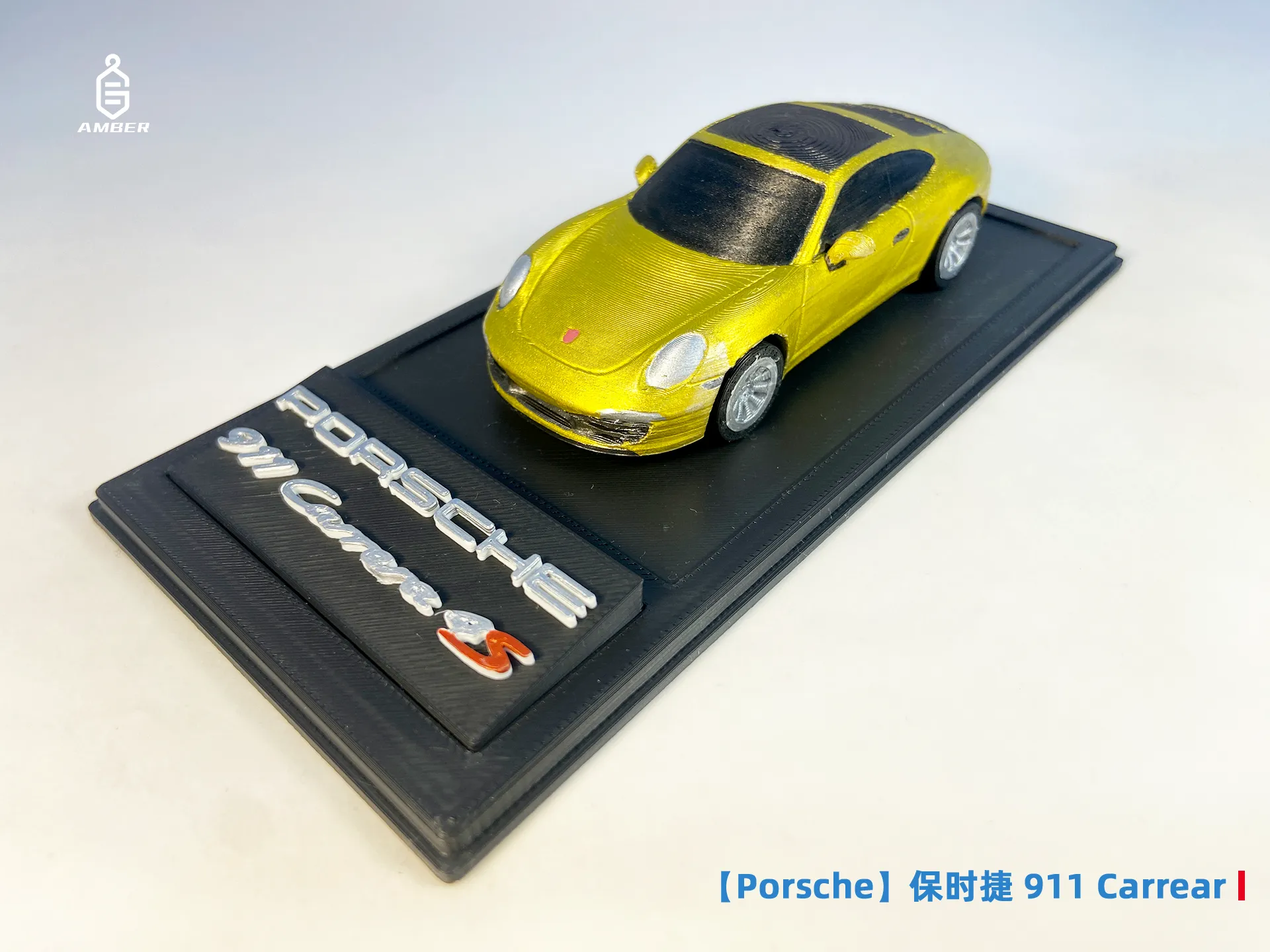

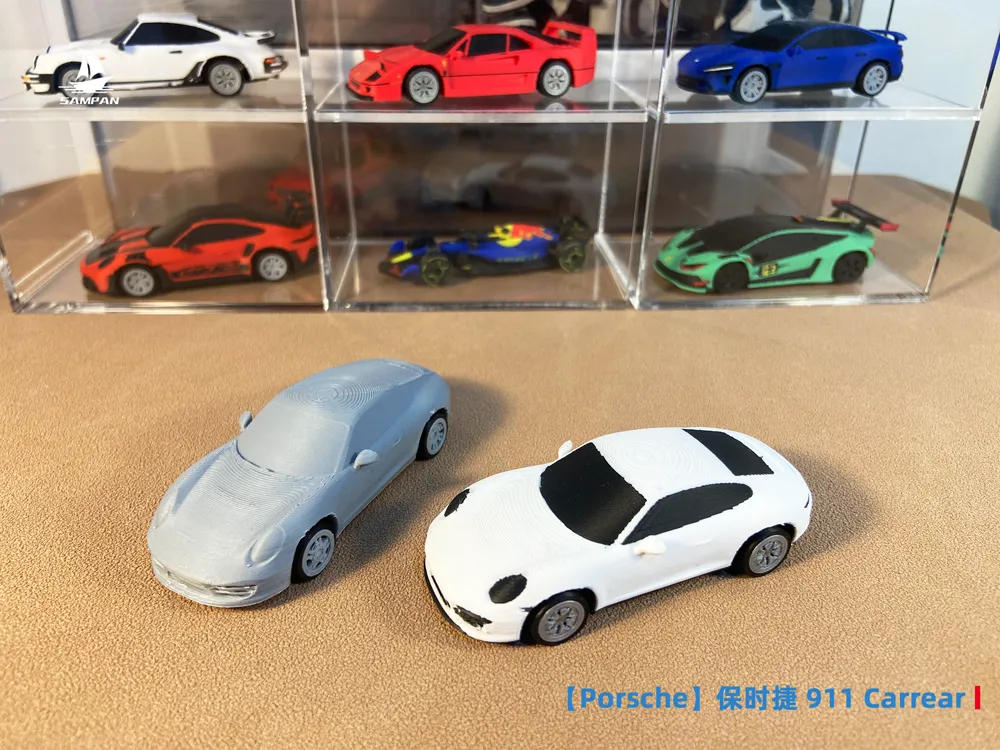

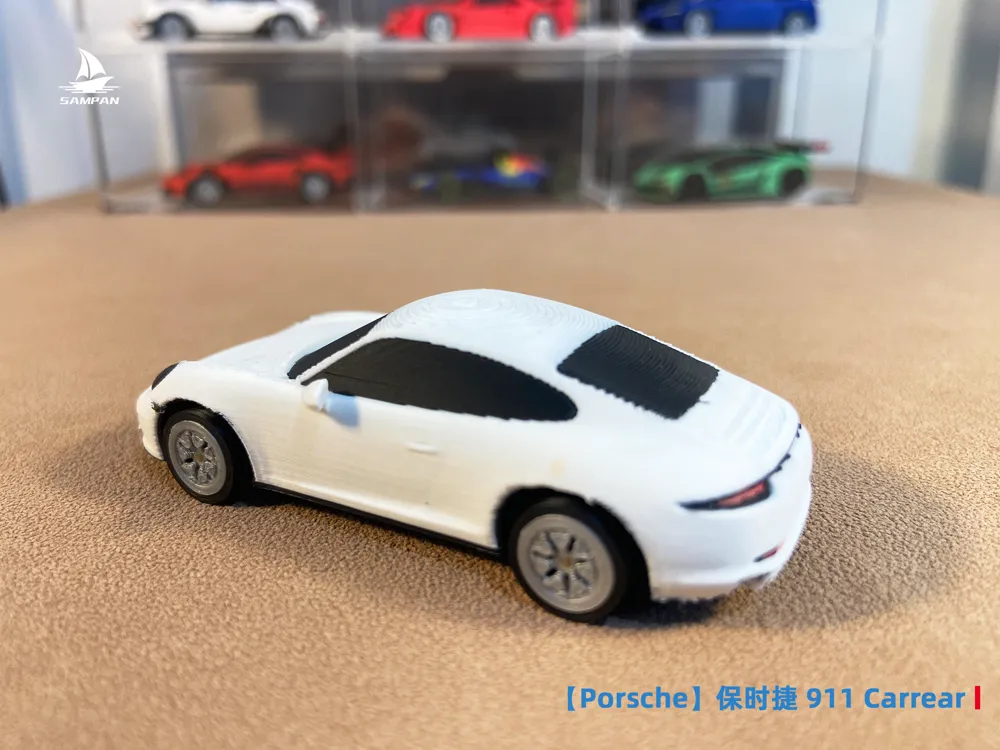

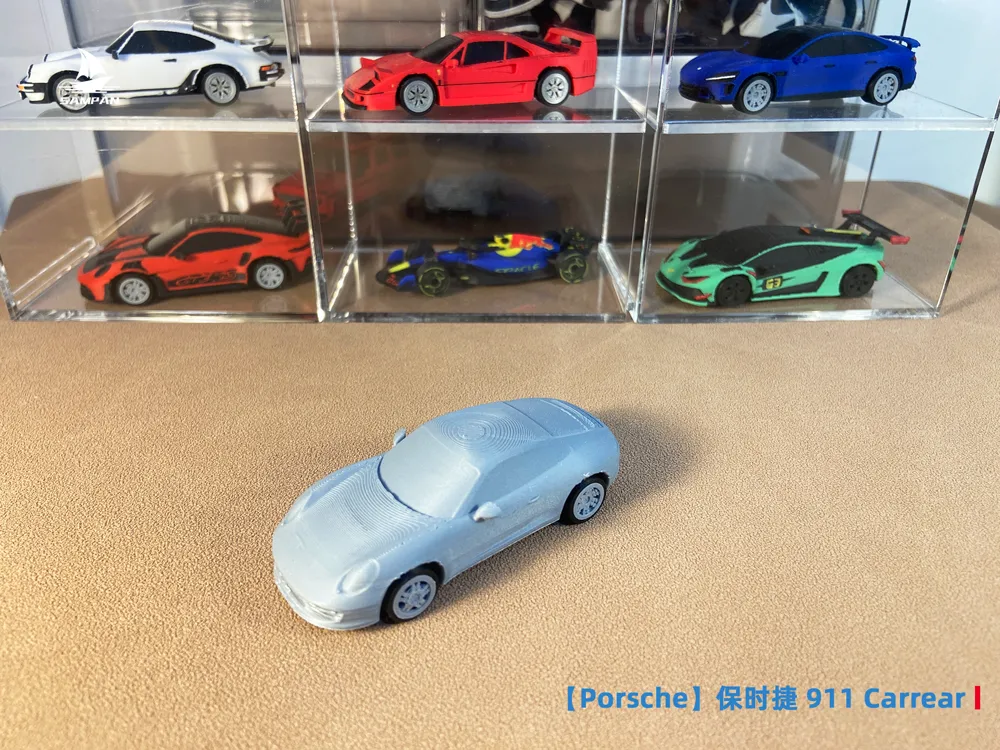

- Includes single-color and multi-color print profiles: Single-color can be painted and decaled. Multi-color print profiles can be printed directly (uses more filament, takes longer), or used as a reference for single-color painting

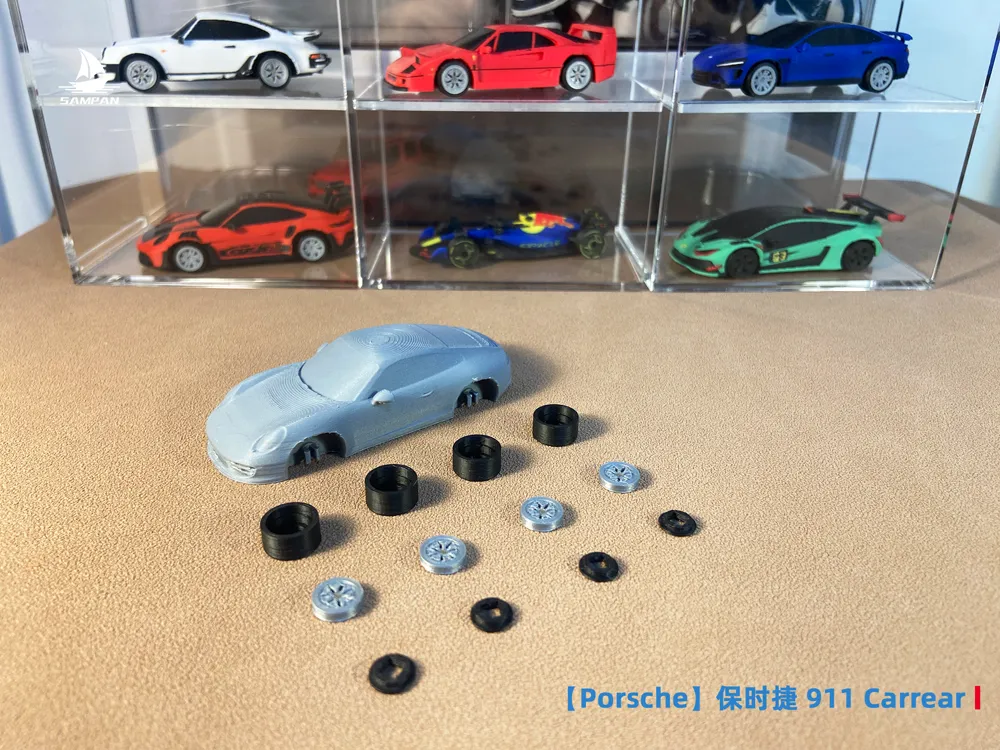

- Wheels are movable, assembly is glue-free

- Replaceable with a variety of wheel hubs from this account. You can browse the homepage and download your favorite wheel hub styles

Dimensions
- 1/64 scale

- 1/43 scale: Scale the model by 150% for clearer details
- Slicing files use minimum printer size settings. You can adjust the number of models printed at once according to your printer size to save time and filament

FDM Print Settings

- The physical model was printed using the A1 mini's 0.4mm nozzle, 0.12mm layer height, and official PLA. Using equipment, parameters, and filament with higher specifications will yield better results (Assembly might be too tight or too loose; you can compensate by adjusting the XY outer contour dimensions of the components, or use sanding tools and 409 glue for processing and connection)
- Infill density: 15%. To increase the model's heft, adjust infill density to 100%

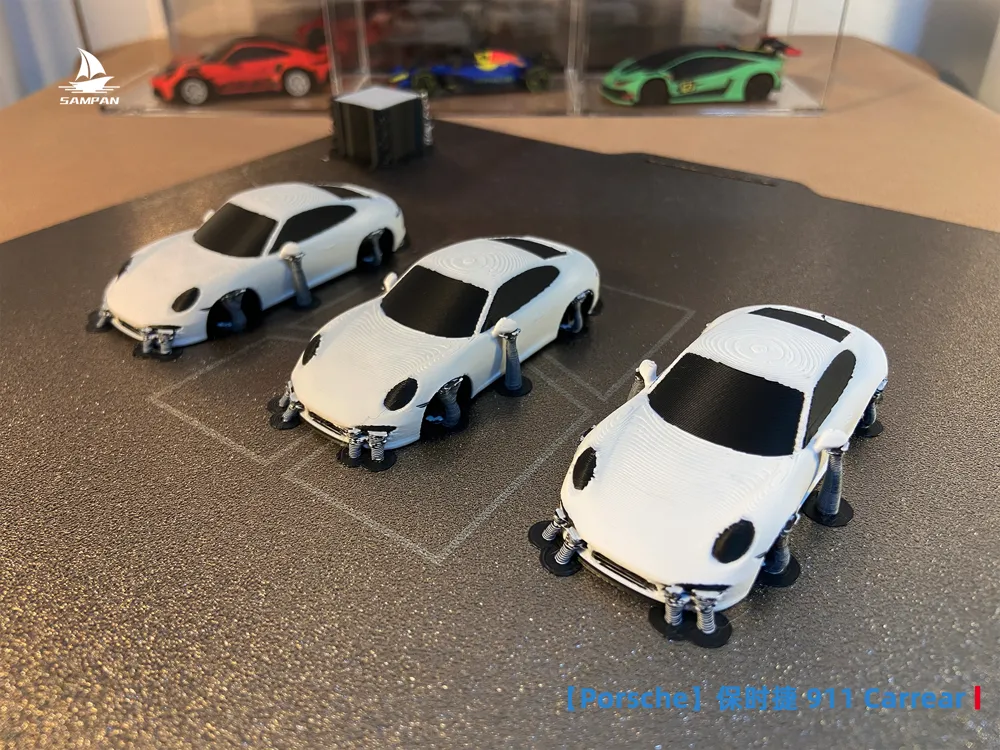

- Supports: A combination of normal and tree supports was used

- Various painted versions will be released later. Follow the account to get the latest updates.

- You can also adjust parameters and print according to your own printing experience

Support Removal Instructions

- The model is small, and supports have been added in critical areas. Support removal requires the use of sprue cutters and tweezers. Breaking by hand will likely cause structural damage, especially to the rearview mirrors and rear wing.

- Tip: To ensure successful removal of supports from multi-color models and avoid breakage, you can first print a single-color model for practice to understand the model and support structure, then remove supports from the multi-color model (If breakage occurs, 409 glue can be used for connection)

Single-Color Painting Reference

- Sanding: (Optional) Sand in the order of 400-600-800 grit

- Painting: Paint with acrylic paint brushes (For issues with layer lines bleeding at edges, apply the main color over a large area first, then paint the edges)

- Polishing: Polish with a soft cloth to give acrylic paints a glossy finish

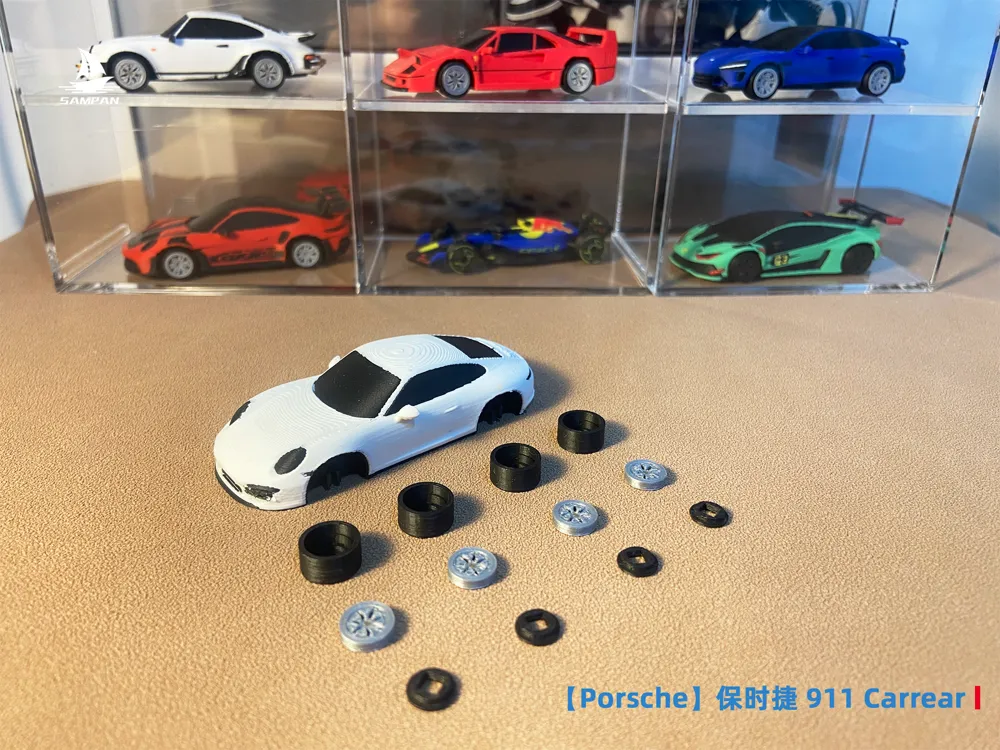

Assembly Instructions

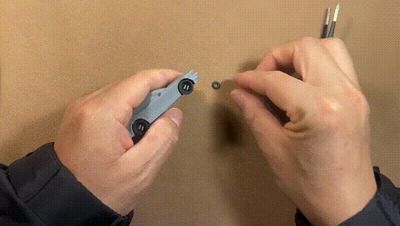

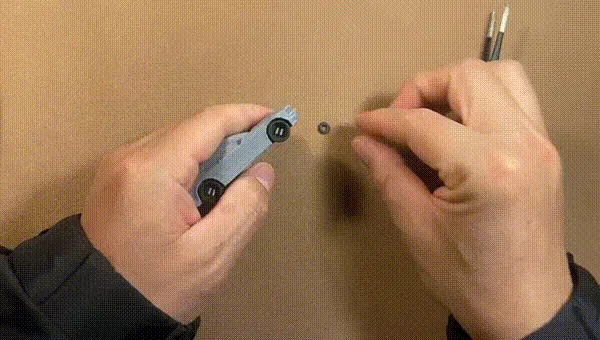

- For long-term stability, the wheels require appropriate force for installation, and initial rotation will be tighter. After a few uses, they will become more flexible. See GIF demonstration for wheel installation

- To facilitate the installation of wheel calipers, a dedicated wheel caliper installation tool was designed and produced, Link: 64 Scale Wheel Caliper Installation Tool by SAMPAN Replica - MakerWorld

Visit the author's homepage to see all vehicle models, welcome to like and follow!

Hope to see more friends share your printing photos, I'm curious what kind of works you will print!

We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
