Description

Boost Me (for free)

BOOSTS are appreciated & FOLLOW for attachment updates

Membership

This is a perfect product to sell at you local market.

Join

BETA VERSION

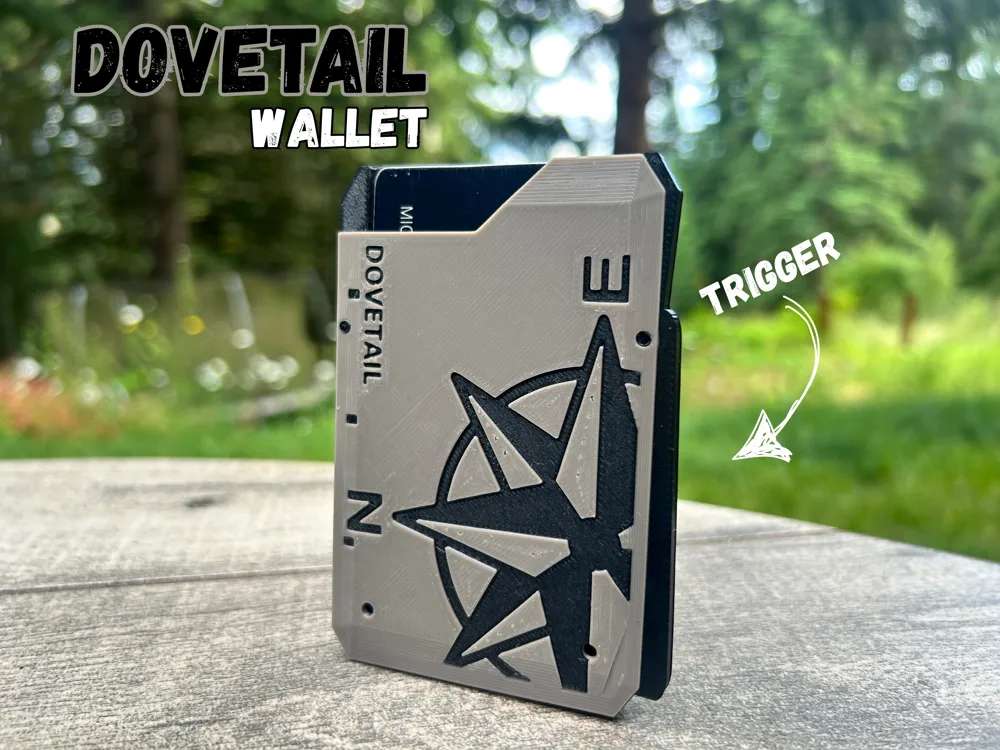

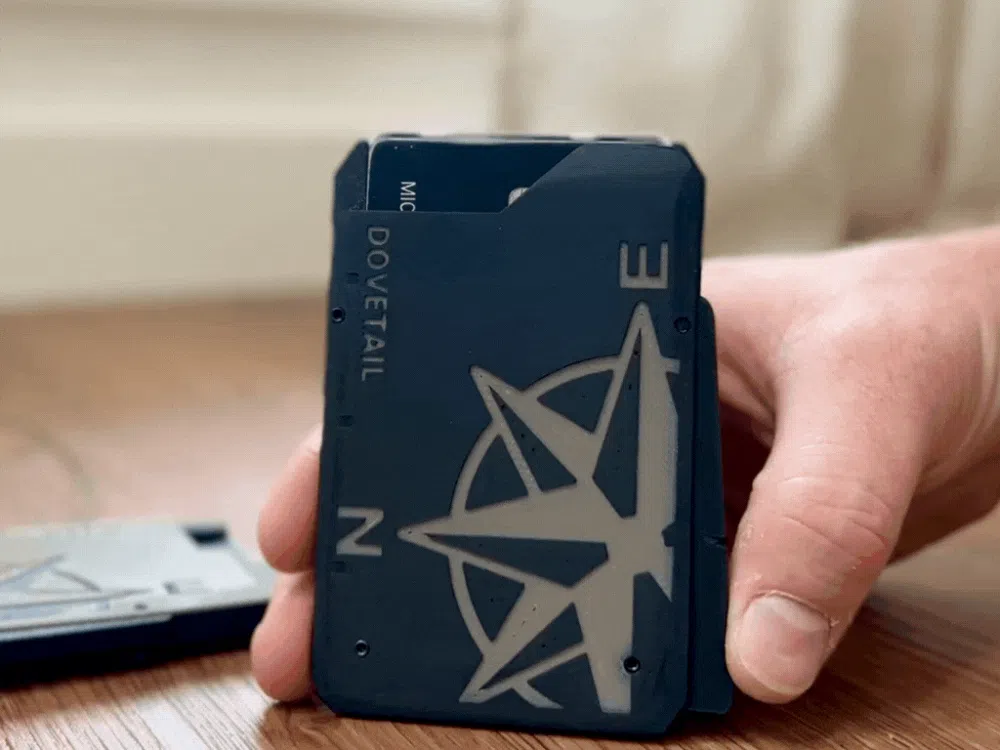

The Dovetail Wallet was designed to be a modular (customizable) solution to fit different peoples EDC. The dovetail rail lets attachments click in and change the entire function. The mechanism driving the cards is a spring loaded trigger, designed to be pressed by the palm of your hand. On the top of the trigger is a card lock that keeps cards in place even when the wallet is turned upside down. There is an optional flexible strap that bolts on the back to hold cash.

Attachments

Key ring - Check the Attachment Pack profile! (If this is too confusing I will make a new listing for it)
Canister - Link coming soon
Ferro Rod - Link coming soon

!!Press the trigger 100 times before use!! A drop of printer lubricant on the gears can help

Message me any feedback and I will adjust the model. It will have some quirks in the beginning. ALSO if you have any attachment suggestions let me know.

Hardware:

4 x Screws M3-8mm
Optional - 1 x Spring 5mm x 10mm (I used 2 and intertwined them to give more of a retraction)

Optional- strap

4 x Screws M2- 4mm

1 x Elastic Strap 1inch wide x 3ish inches

Features:

Built in ruler - 4inches

Money Strap

Trigger card slide

Printing:

Nozzle: 0.4mm

Layer height: 0.8mm (for esthetics)

PLA, PETG, or ASA (My favorite)

No supports needed

I would reccomend leaving the orientation.

Assembly Instructions

A little about me

I am a 5th grade teacher who spends his summer 3D modeling and printing for side income. This wallet stemmed out of the idea that 3D prints CAN be functional. Being in education, my routine and EDC change frequently, and so should the functionality of my wallet! I will be rolling out a ton of attachments that cater to my lifestyle, but also want to consider you or your customers. Let me know if their are any attachments that you desire and I will add them to the list.

Commercial Licensing (Market Selling)

Wallets at farmers markets, Saturday markets, and Etsy are a huge success. If you want to sell prints of my models please subscribe to my membership.

Updates

6/25 Size of spring changed to 5mm x 10mm - Works Great
6/22 Beta Version Posted
