Nasal Rinse Bottle Drier - Version 2

Modular & Compatible with MAOEVER and NeilMed Bottles

My allergies are getting worse, and my doctor has me doing nasal rinses 2-3 times a day. Not my favorite thing, but skipping it isn’t an option. I made this bottle drying rack to keep things hygienic between uses, because letting water sit in a bottle all day just invites bacteria.

Then my dad wanted one too… but he uses a NeilMed bottle. So, I redesigned the whole thing to make it modular and compatible with both NeilMed and MAOEVER bottles!

___

What’s New in Version 2:

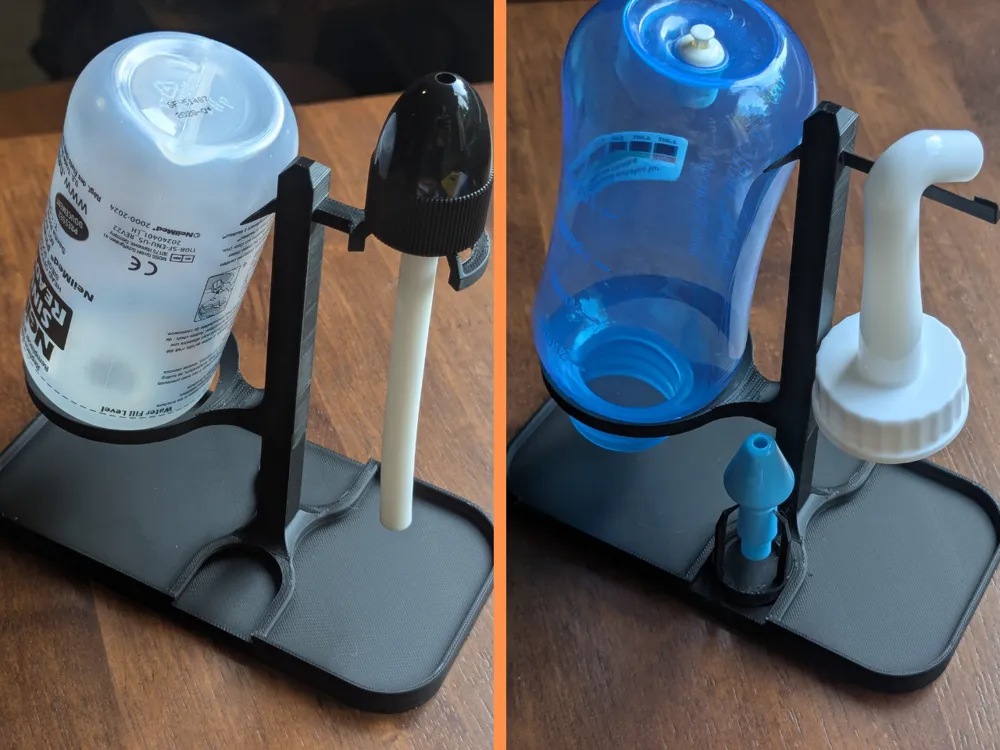

• Dual-bottle support - Works with MAOEVER or NeilMed brands
• Better airflow - Slight slope and stand-off design to encourage drying
• More modular - Swappable parts make redesigns for other bottles easy. Make your own, or let me know!

___

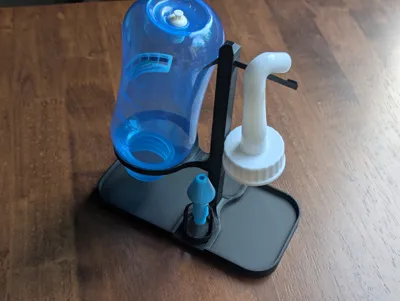

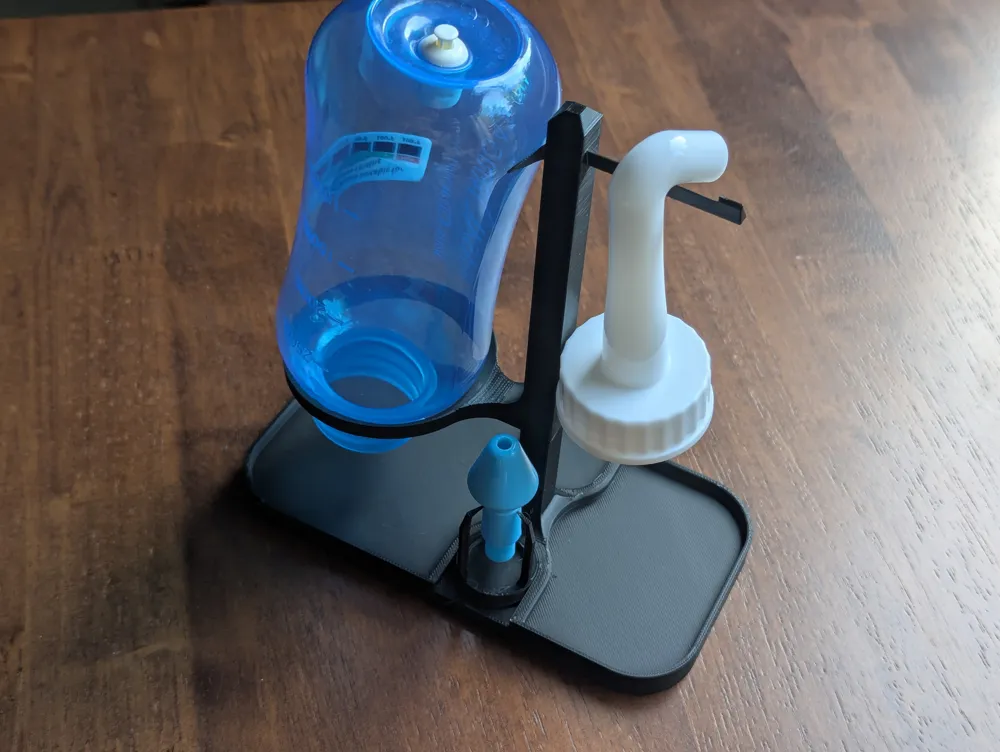

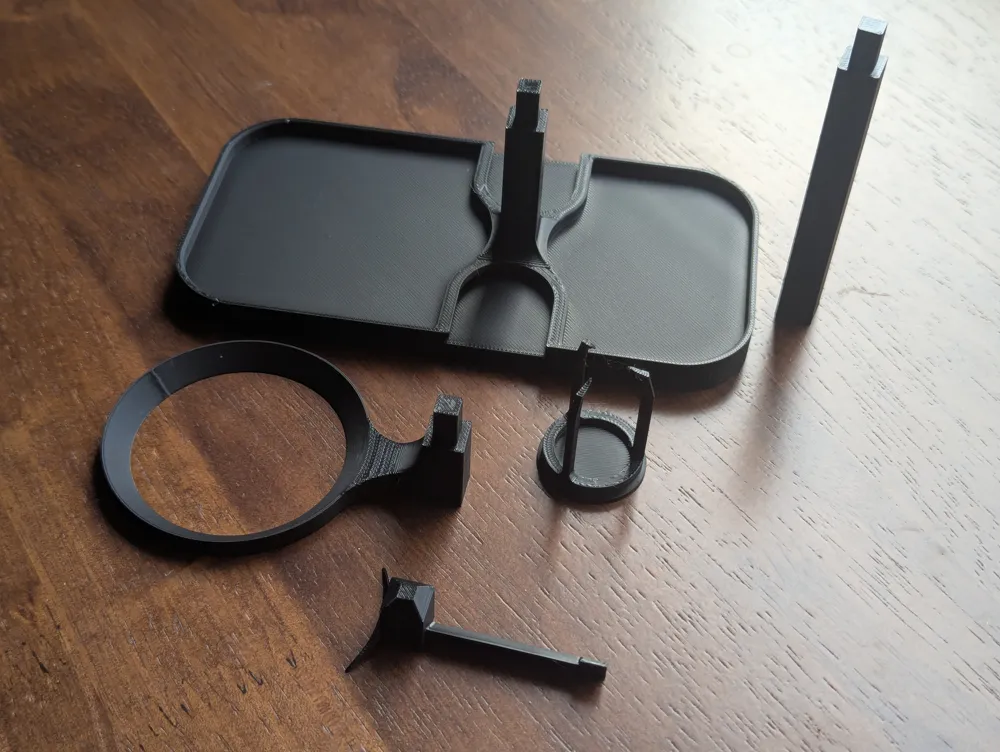

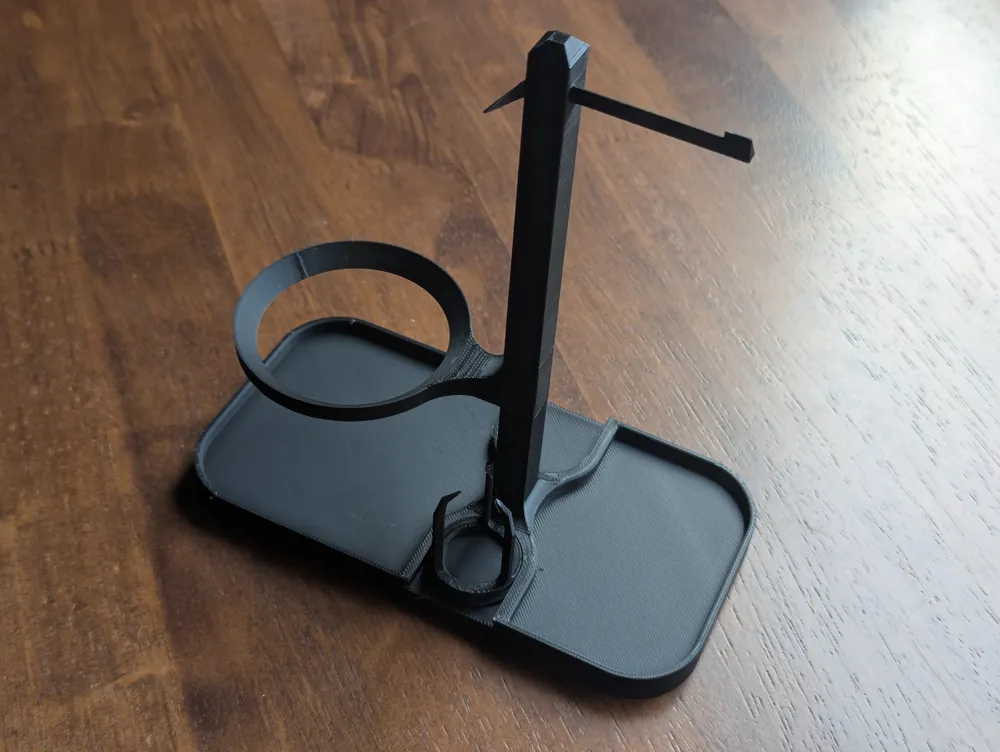

MAOEVER Profile Includes

• base
• bottle holder
• 8 cm extension
• MAOEVER top
• nozzle holder

___

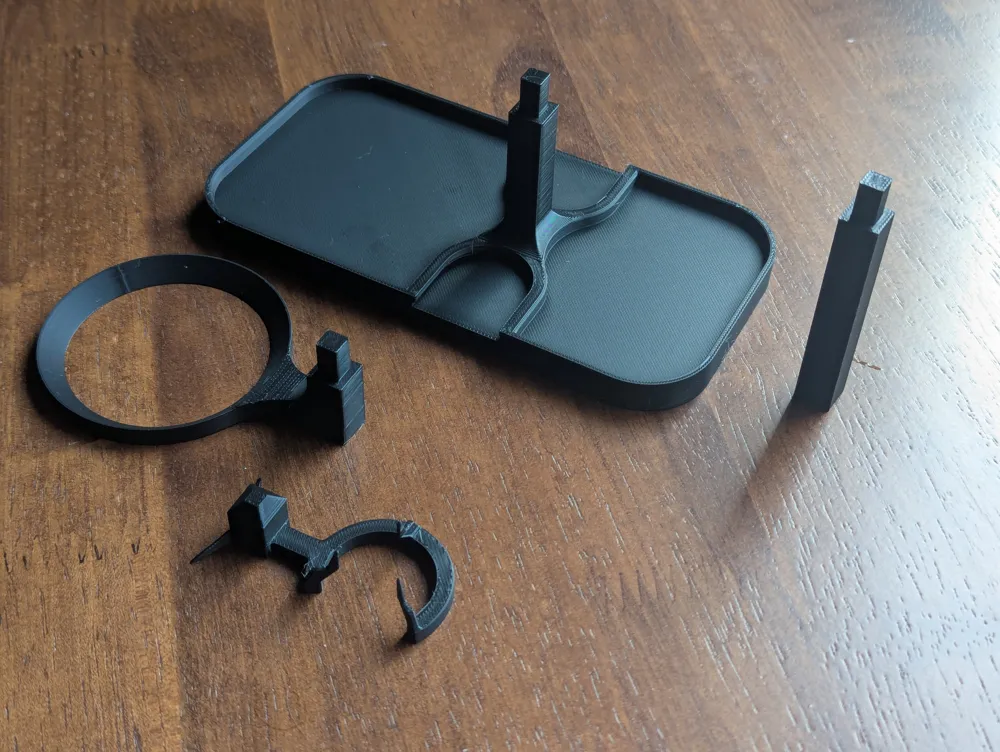

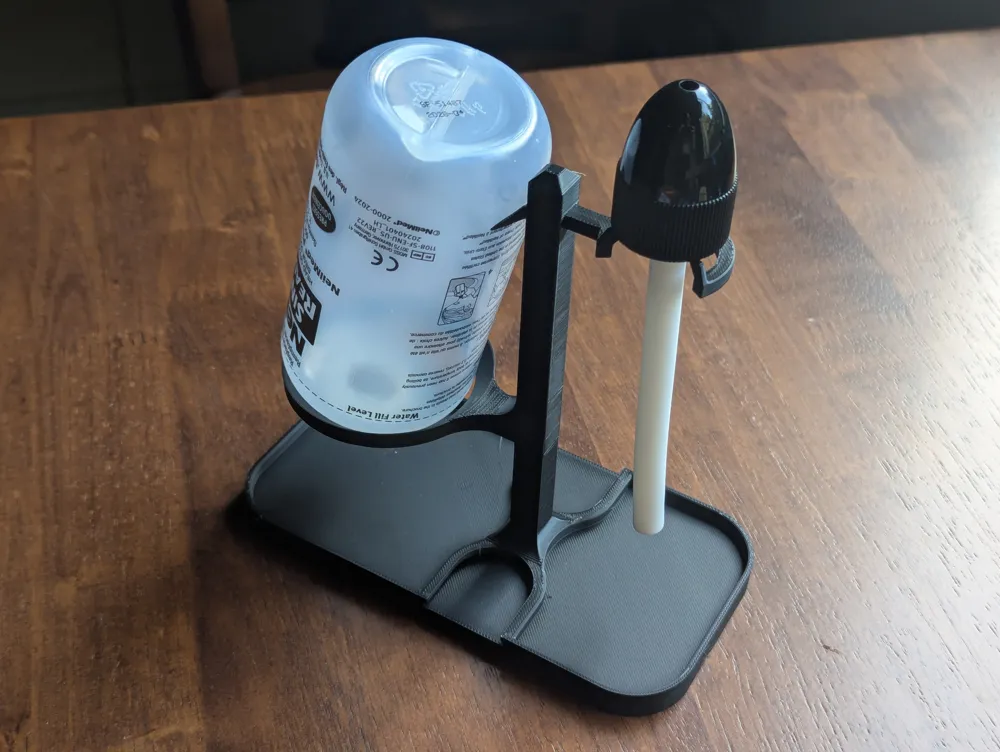

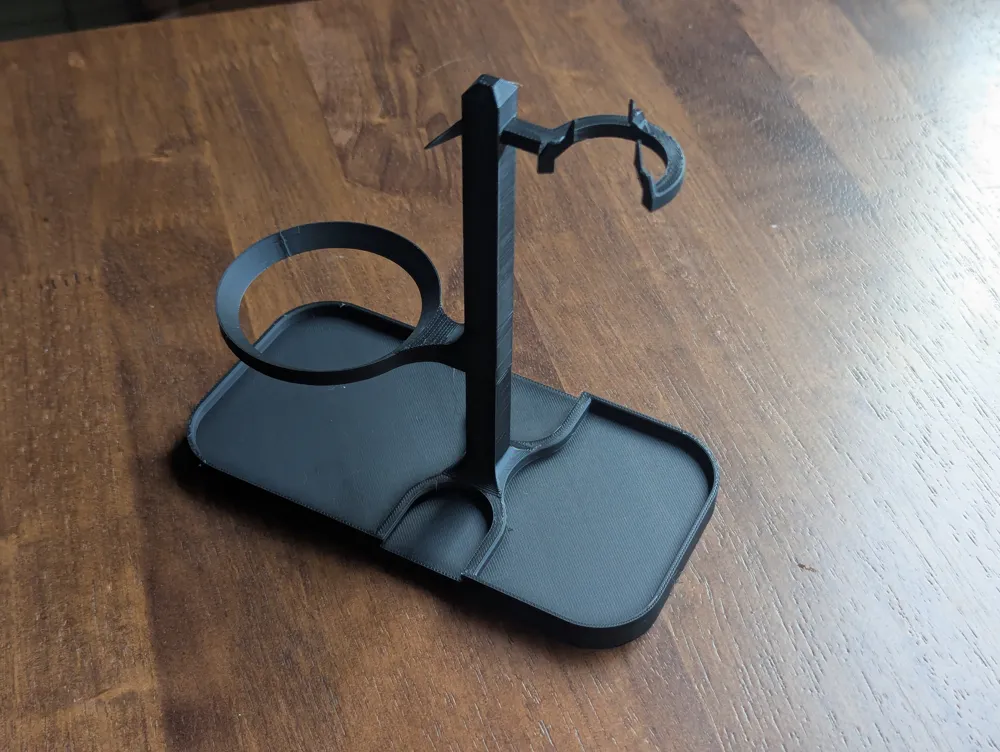

NeilMed Profile Includes

• base
• bottle holder
• 6 cm extension
• NeilMed top

___

Print Settings

• Printer tested: Bambu P1S
• Filament: Voxel PLA+
• Layer height: 0.2 mm
• Top/Side Layers: 2
• Bottom Layers: 3
• Infill: 10% gyroid
• No supports needed

I like printing the base at 50% infill to give it a little extra weight, but that's optional.

*Tip: If the base slides around on you, I found some adhesive rubber bumper pads worked a treat!

___

If you end up adapting this for a different bottle, I’d love to hear about it!
