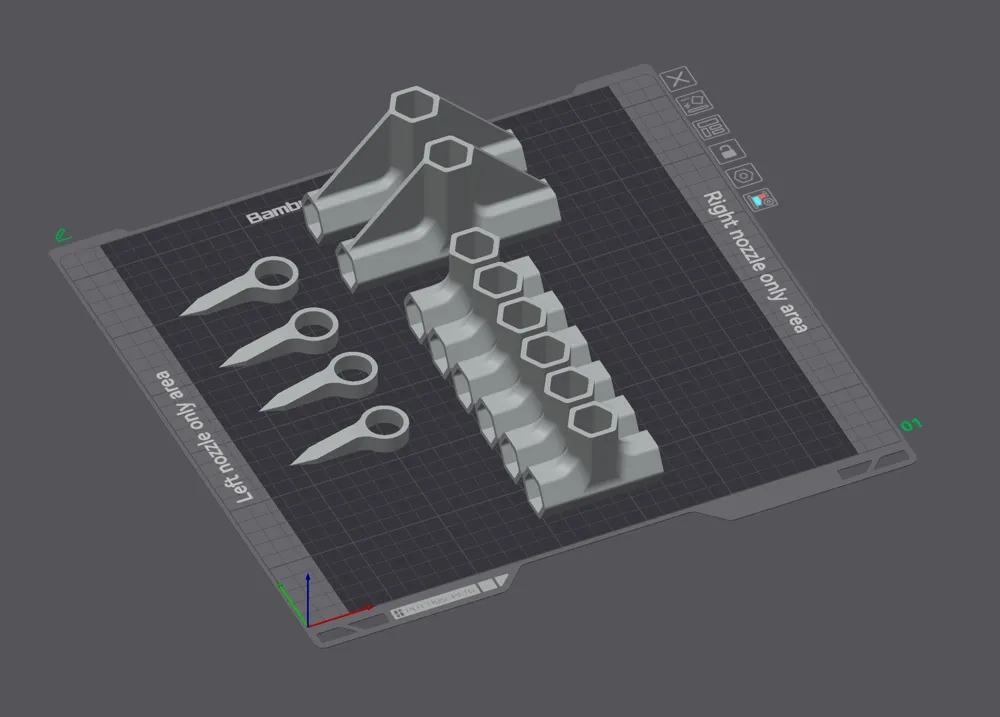

0.24mm layer, 5 walls, 25% infill
Designer
8.4 h
1 plate
Open in Bambu Studio
Boost
170
357
8
3
147
40
Released
Description
Connectors to build a cheap set of FPV drone gates using 20mm PVC pipes. Ideal for IGOW challenges and races.

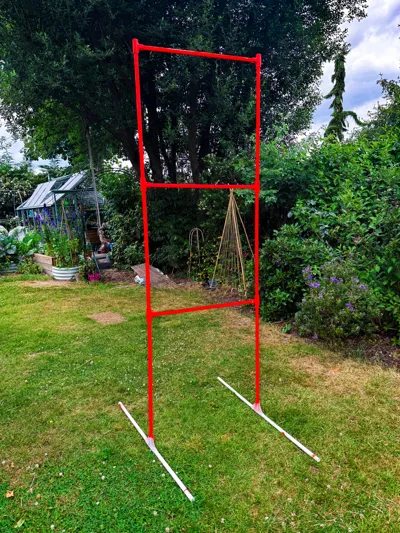

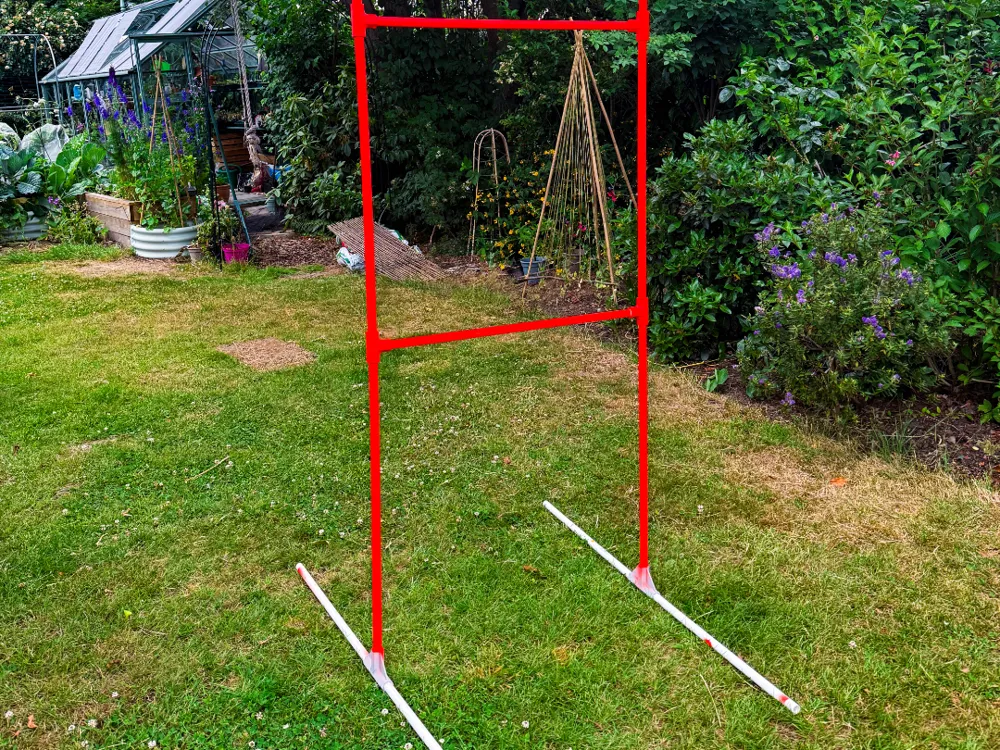

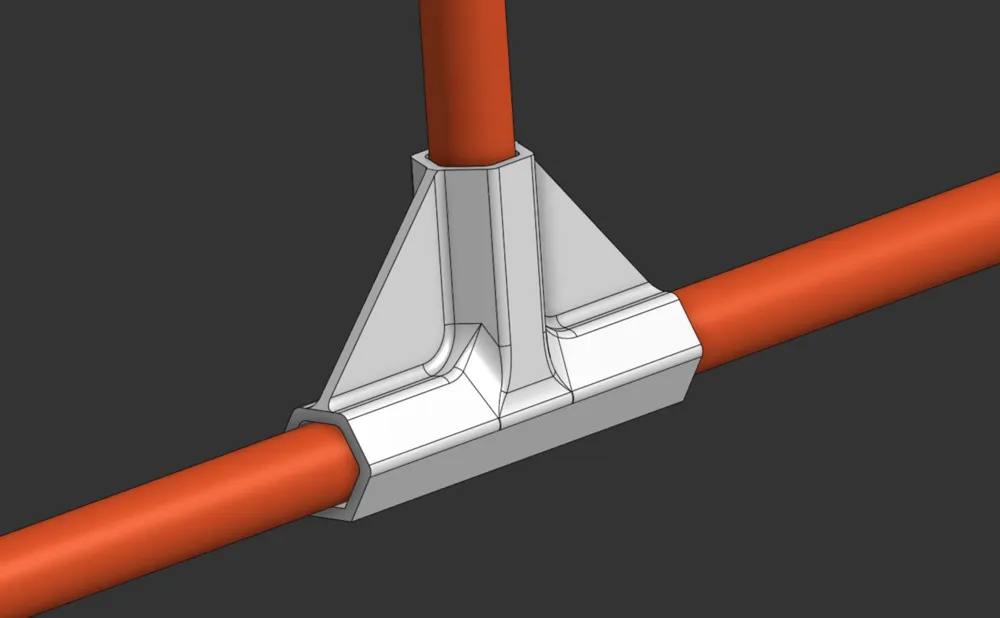

These connectors are easy to print but strong. The set includes all the T junctions required for a “TGS” or Triple Gate Stack aka 3 Gate Ladder. To make sure it's race spec, use 28" (71cm) 20mm PVC pipe segments. Mix and match to make different size gates.
The full OnShape model can be found here: https://cad.onshape.com/documents/ed9336dc618af5b0a77fae7f/w/2bcb5dff56410c9c0de5784a/e/8860041833d4155cb4b3ebea?renderMode=0&uiState=68580beed3d6e04d2f7952e5
