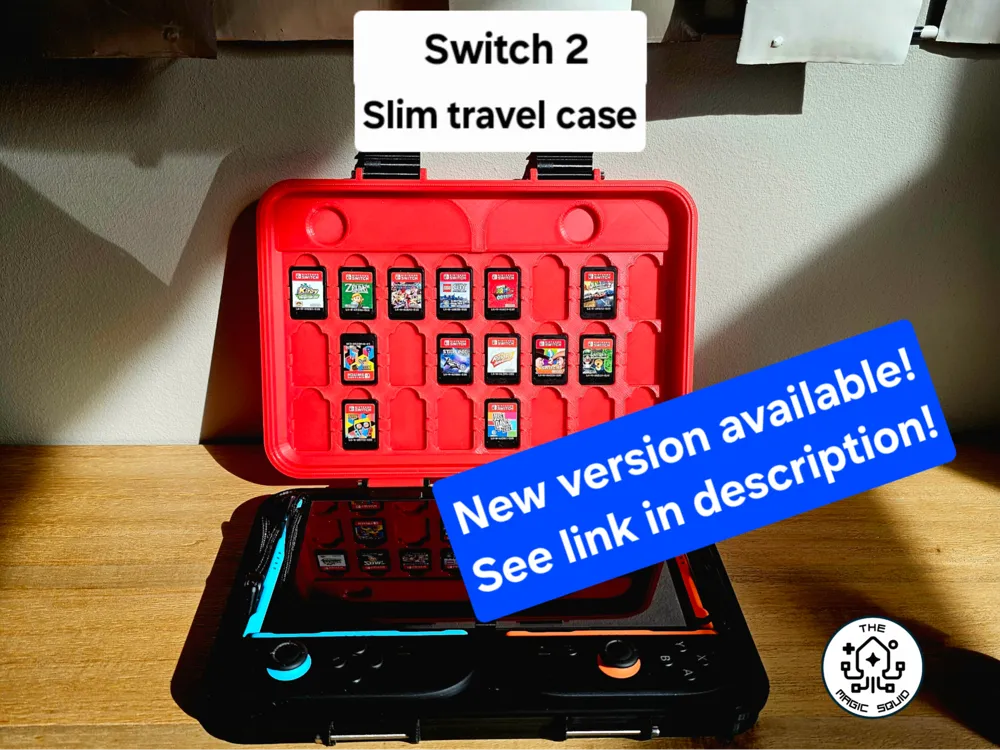

Switch 2 - Slim travel case

☕ Like my designs? Keep the magic brewing — buy me a coffee at buymeacoffee.com/the.magic.squid.3d 🦑✨

STOP!

🚀 A new and improved version is now available!

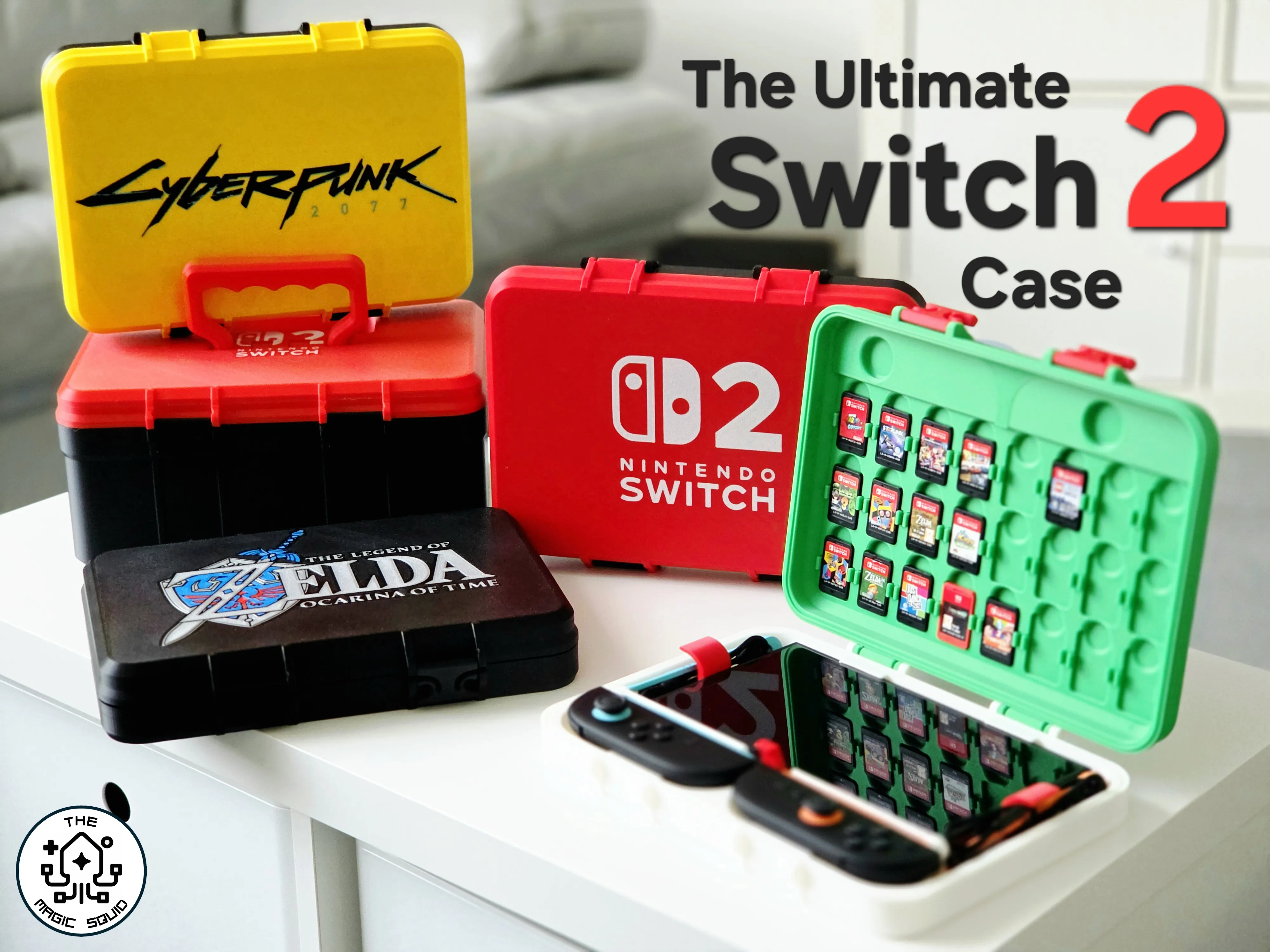

The Nintendo Switch 2 Travel Case Ultimate Edition has officially replaced this model and includes major improvements:

✅ Completely screwless assembly
✅ Stronger and more durable design
✅ Improved game cartridge retention system
✅ New print-in-place handle lid option
✅ Unified Standard and XXL versions

If you're planning to print this case, I highly recommend using the Ultimate Edition instead.

👉 Download it here: https://makerworld.com/en/models/2944330-nintendo-switch-2-case-ultimate-edition#profileId-3298002

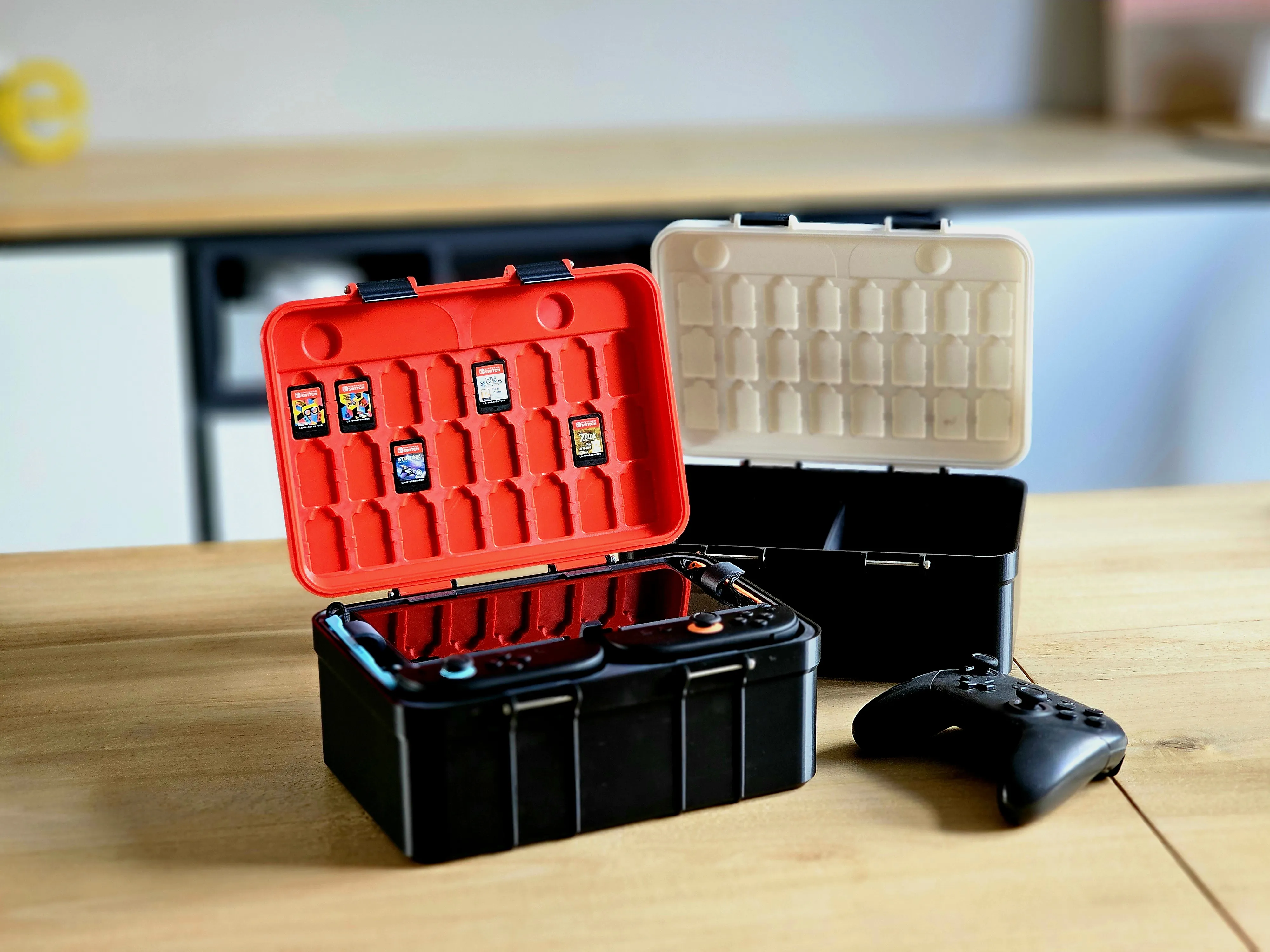

🔔 Update – New XXL Version Available!

A new XXL version of this case is now available!
It’s based on the same design as the Slim model but with a much deeper base and extra space for your charger, additional Joy-Cons, or up to two Pro Controllers.

💡 The lid is exactly the same as on this Slim version — so if you already printed this model, you can upgrade to the XXL base without reprinting the lid!
👉 Check out the XXL version here!

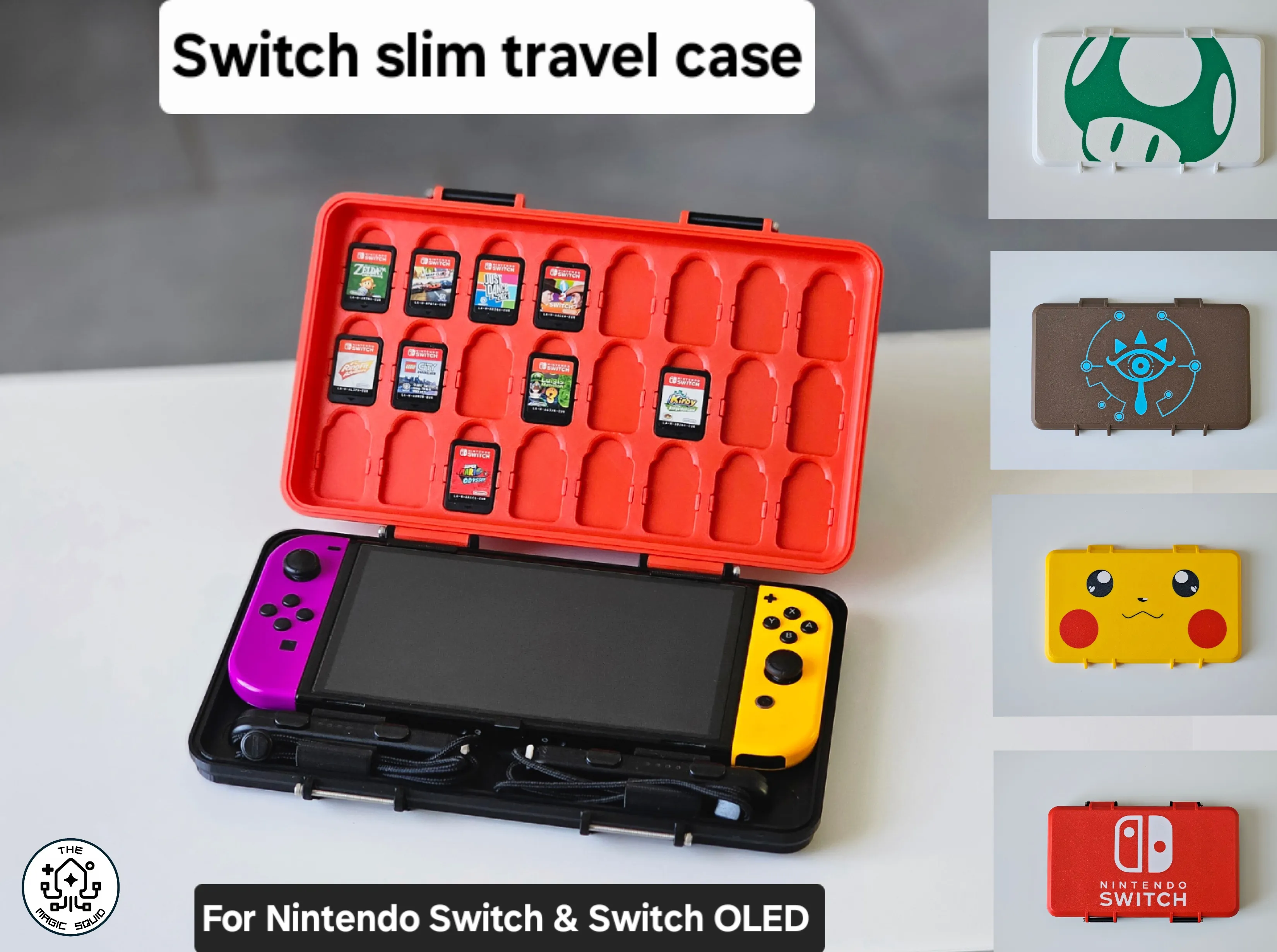

News 6th September 2025: As many of you requested it, I created a Switch 1 / Switch OLED version of my travel case! Available by clicking on the picture below! Thanks everyone for your support!!

News 11th September 2025 — Switch 2 Case V2 available

Thanks to everyone who printed the model and shared suggestions—this update focuses on your feedback.

What’s new?

• Wrist-strap retainers added
  Two optional inserts (found on Plate 3) slot into the base V2 to keep the strap/loop (“dragonne”) neatly in place.
• Joy-Con bays refined
  Reworked contours improve retention and help prevent accidental button presses during transport.
• Screw ports redesigned
  New hole geometry reduces the number of rotations needed when fastening.
  Install screws from the outside toward the inside.

-------------------------------------------------

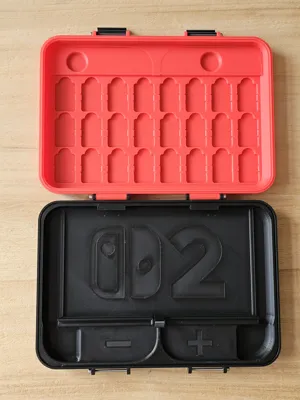

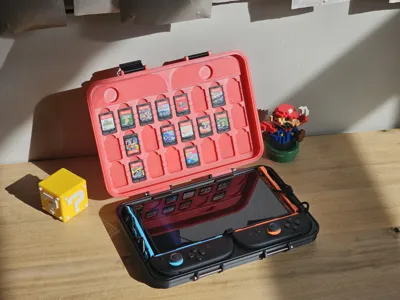

🎮 Ultimate Travel Case for Nintendo Switch 2 🚀
Keep your Switch 2 safe and stylish wherever you go!

📏 Size: 25.5 x 18 x 4 cm
🧩 Fits:

• The Switch 2 console
• 2 Joy-Cons
• 2 wrist straps
• 24 game cartridges

🔩 Assembly: Requires 6 × M3 x 40mm screws

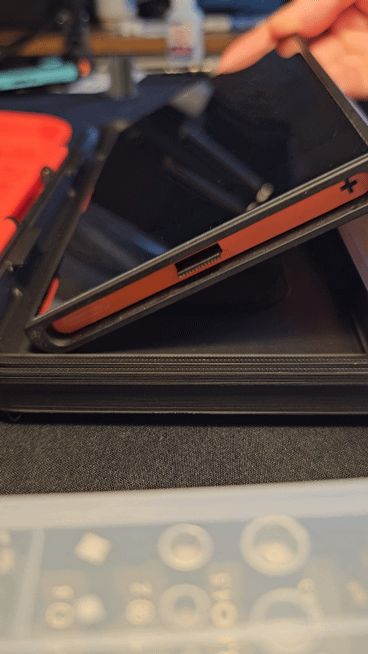

🧷 The console locks in place with a custom clip that prints separately for strength and versatility.

• Print the clip on its side for better layer adhesion
• Consider PETG or ABS for more durability
• Easy to replace if ever needed

🛡️ Worried about scratches? No need!

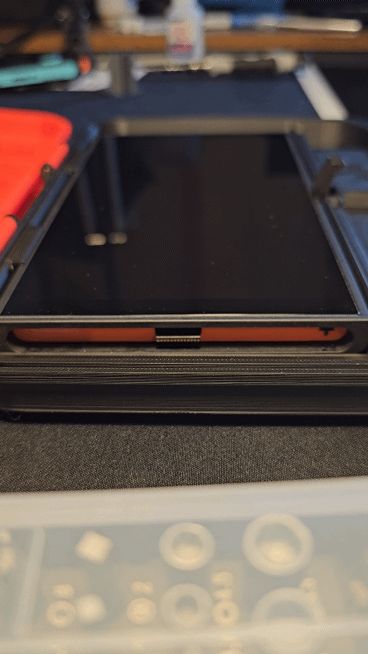

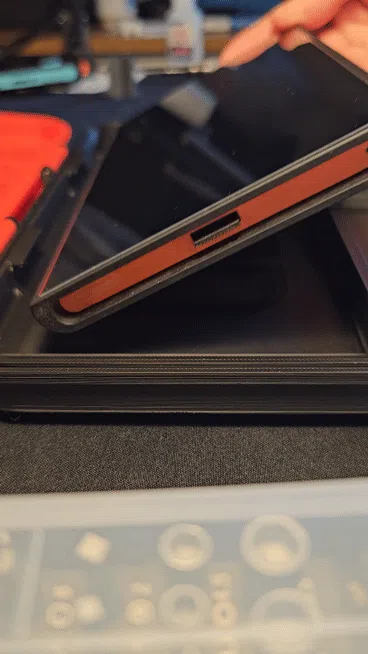

• The screen never touches the securing mechanism – it’s completely safe.
• Once inserted, the console doesn’t move at all inside the box.

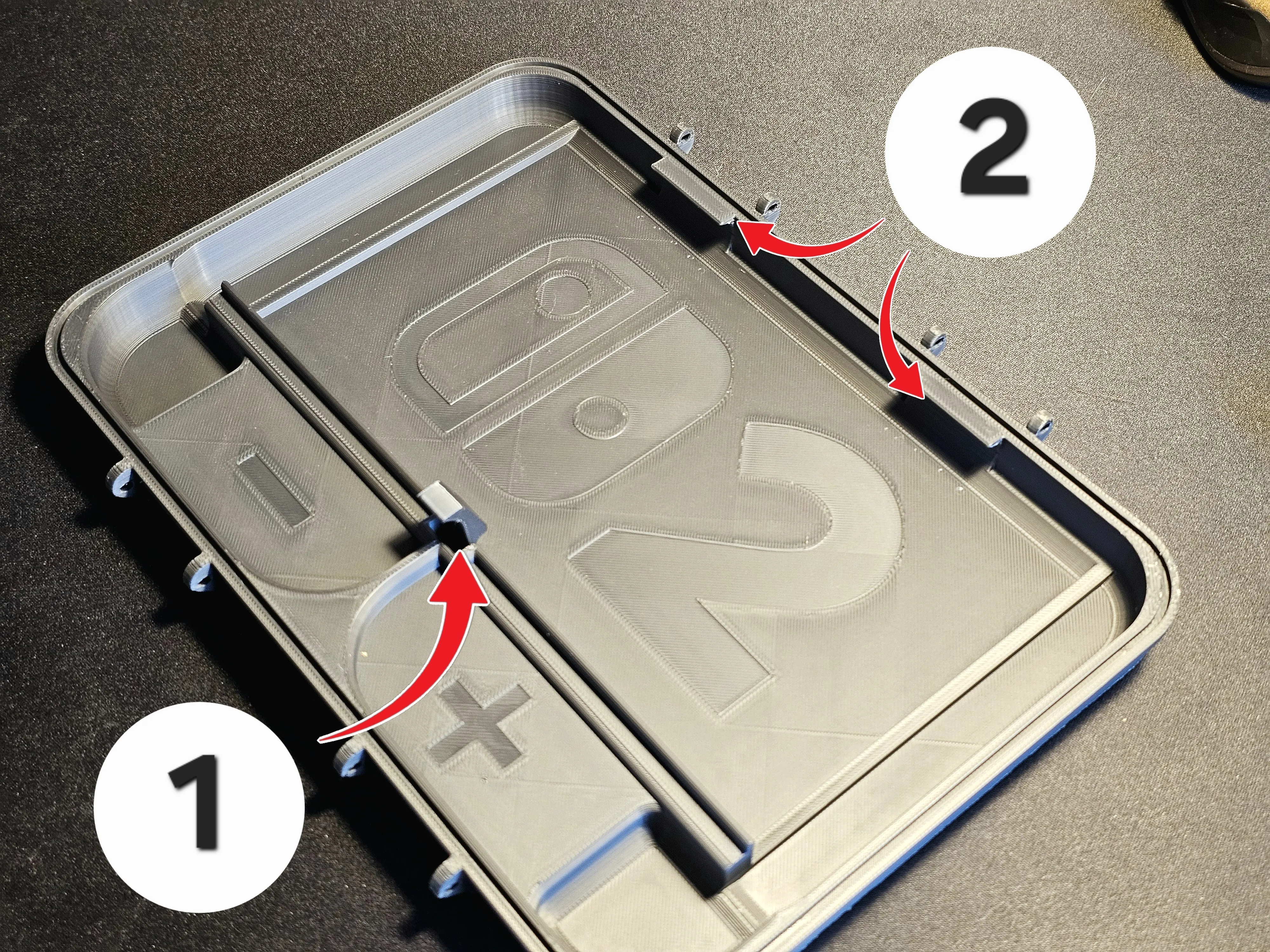

• You can press the locking rod (① on the photo) manually when inserting or removing the console to avoid any friction. And even if it touches slightly, it slides perfectly along the print layers.
• Still concerned? You can:
  • Print part ① in a softer material like TPU
  • Add small pieces of foam tape or felt to the support notches (② on the photo)

I’ve tested this with my own Switch 2 and found zero marks or scratches – it’s safe and solid for everyday use! 👍

🧵 Main body prints perfectly in PLA, no supports required.

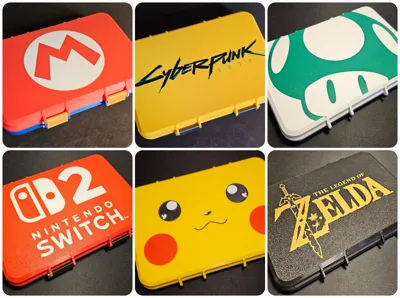

🎨 Multiple design variants available – feel free to ask if you'd like a custom version!

I designed this box to safely carry my Switch 2 on the go – it’s compact, practical, and so convenient! Whether you're commuting, traveling, or just organizing your gaming gear, this case has you covered.

💬 I'd love to hear your feedback!

---------------------------------------------------------------------------------------------------------------
