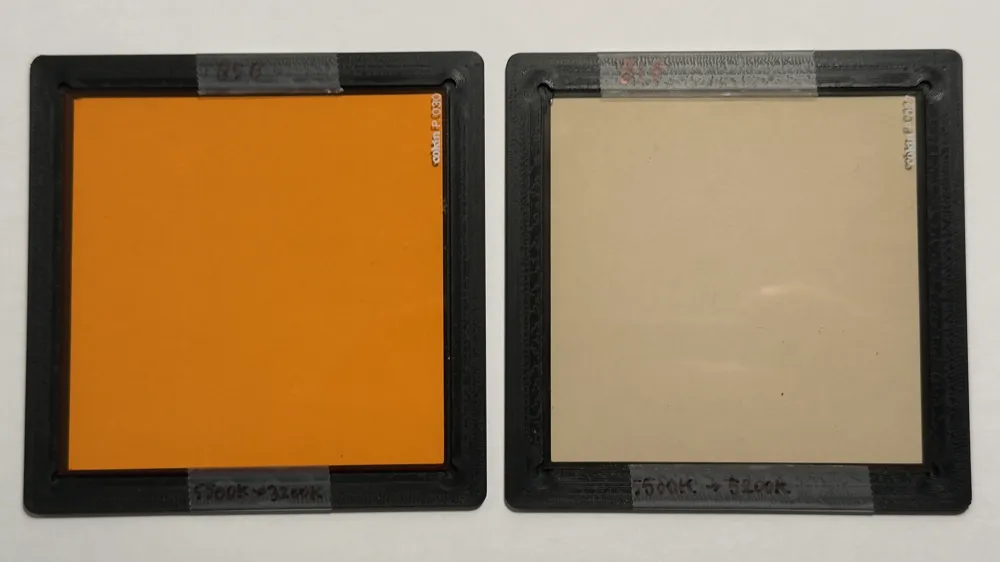

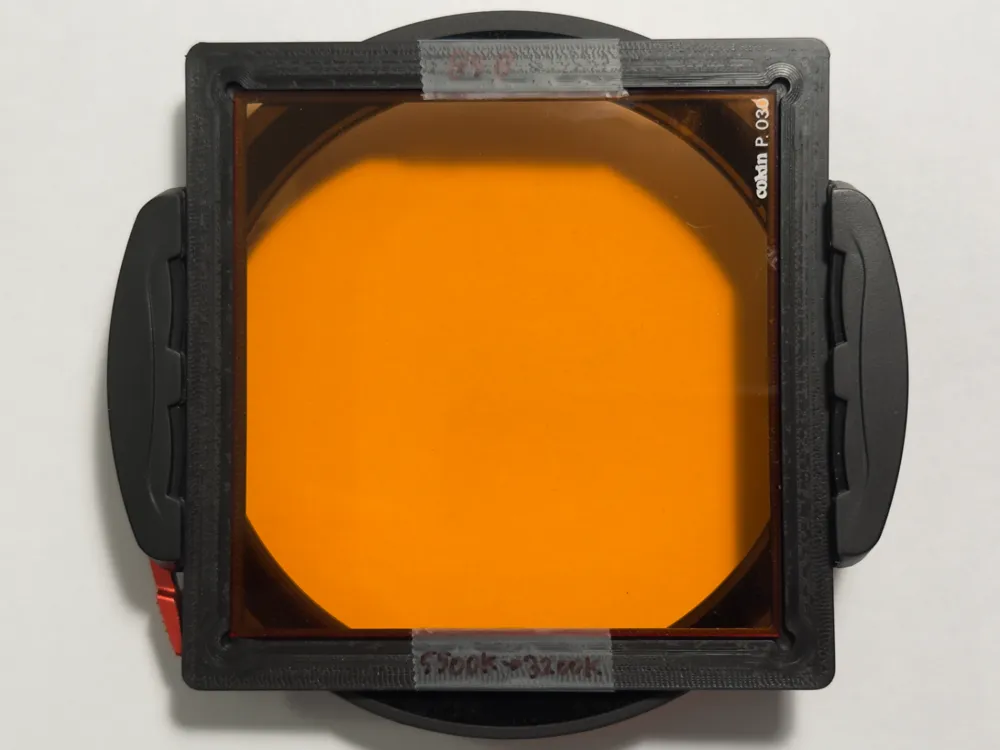

Adapter to use Cokin P photo filters in standard 100mm filter holders, like the Haida M10-II (tested) and Cokin Z (not tested).
The Cokin P filters are typically 85mm square and 1.6mm thick. The 100mm filters are 2mm thick, so they fit within the frame. One of my filters was only 83.5mm, so I also added a slightly tighter variant in the 3MF file.
I tested with PLA an PETG and found that PLA works better, because it is more rigid.
Onshape model: https://cad.onshape.com/documents/c4d56530277d0ff1e1a3e119/w/ee858133b63d118b509369fa/e/f17bb5053365340511737a61?renderMode=0&uiState=6856cc90b4768847a49b0cc7
