0-100V adjustable power supply enclosure, designed for repurposed chargers, auxiliary power supplies, and adjustable boards.

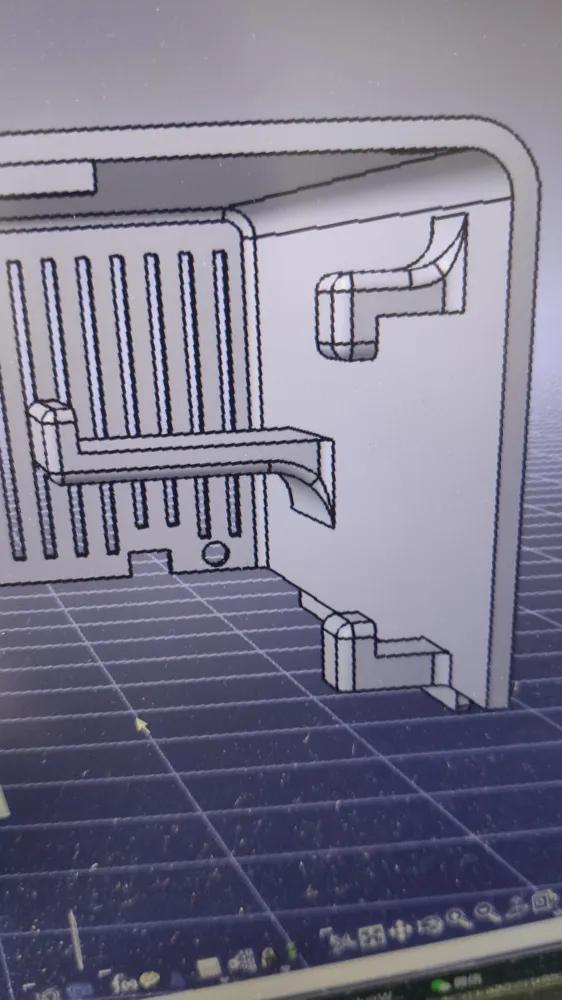

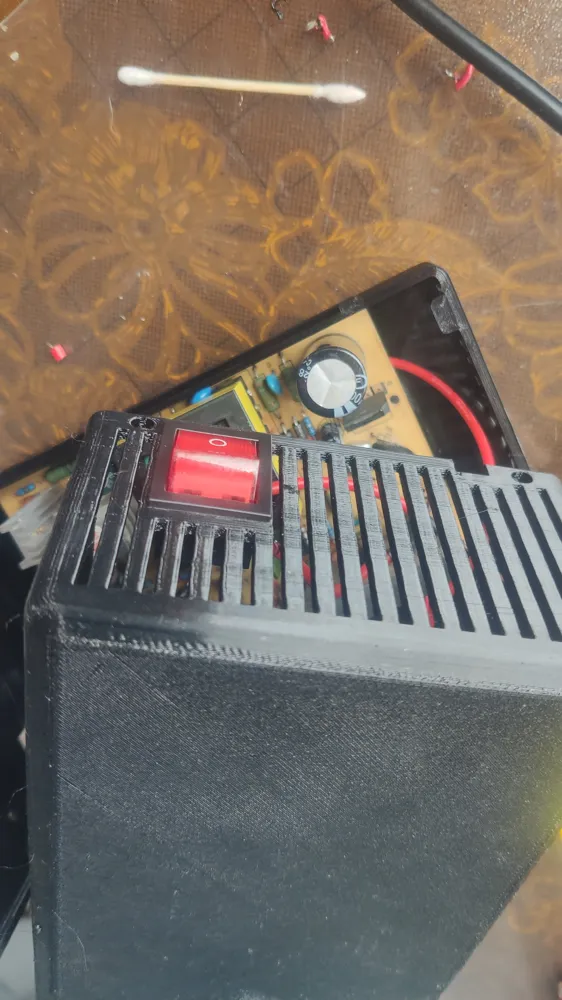

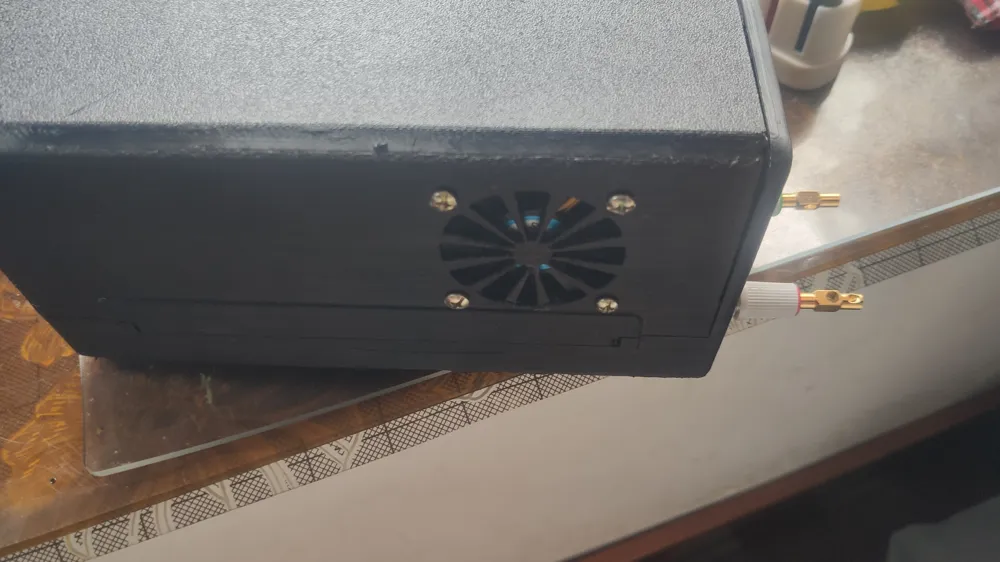

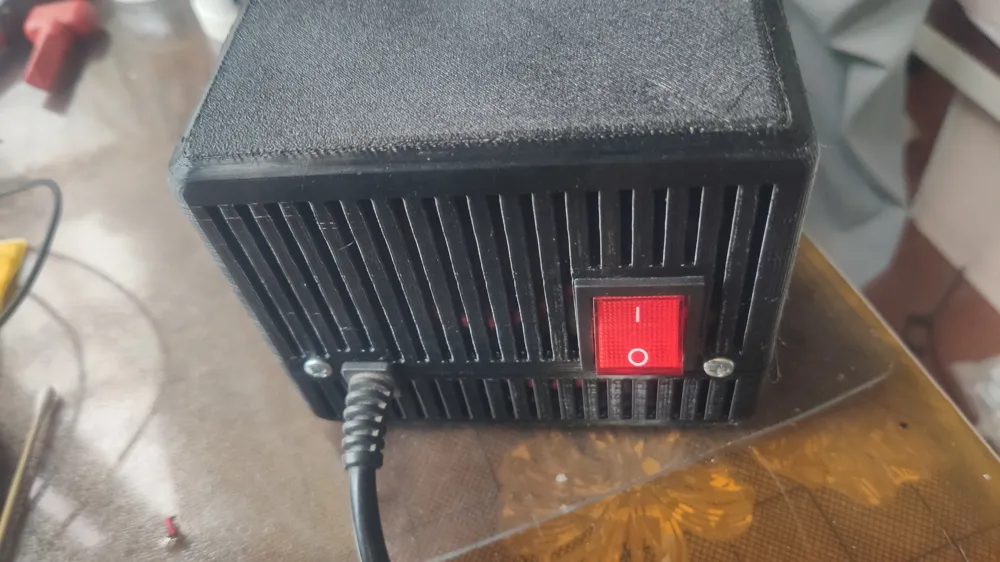

Length 120CM, width 100CM, depth 200CM. The auxiliary power supply and circuit board are mounted on the side, the fan is placed on the side, and a power switch is added to the rear.

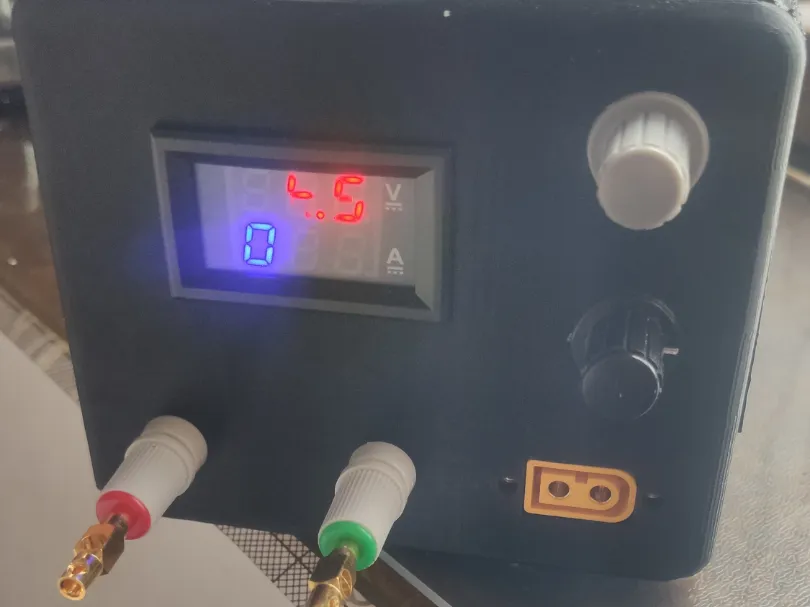

The output consists of two studs, plus two XT60 connectors.
Hardware
Four M5 self-tapping screws to secure the enclosure.
Four M4 studs with nuts to secure the fan.
Two M2.5 studs to secure the XT60 connector.
Two self-locking cable ties can be used to secure the circuit board to the grid.
