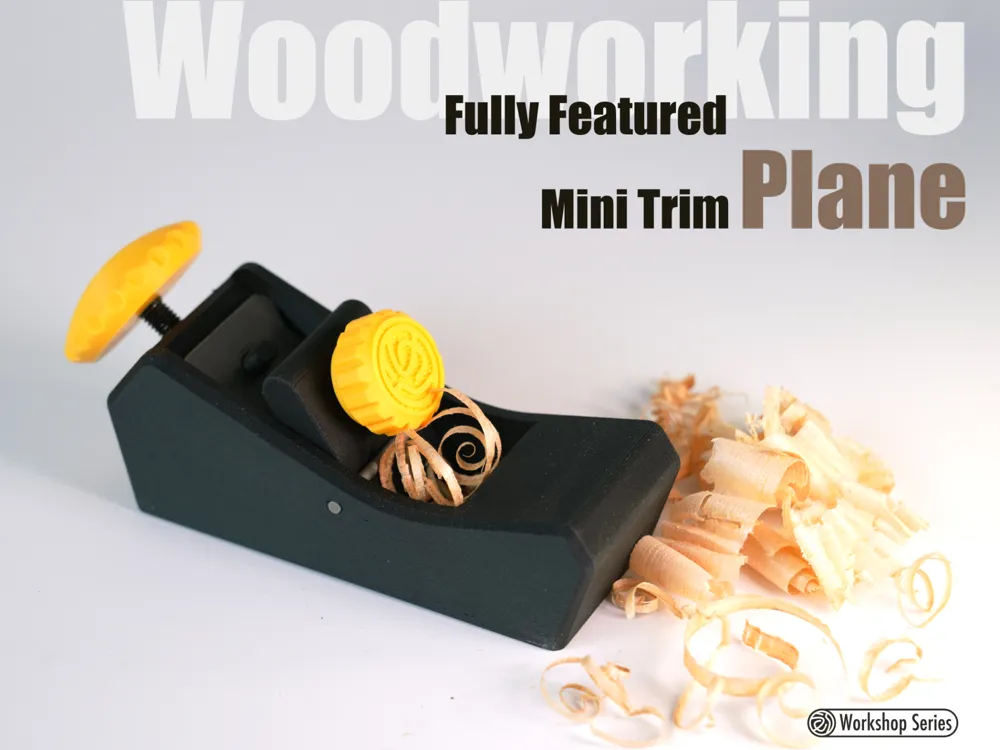

Mini Trim Plane|Full-featured|Mini Woodworking Trim Plane
Print Profile(1)
Description
Full-Featured Mini Woodworking Trim Plane|Full-Featured Mini Woodworking Trim Plane

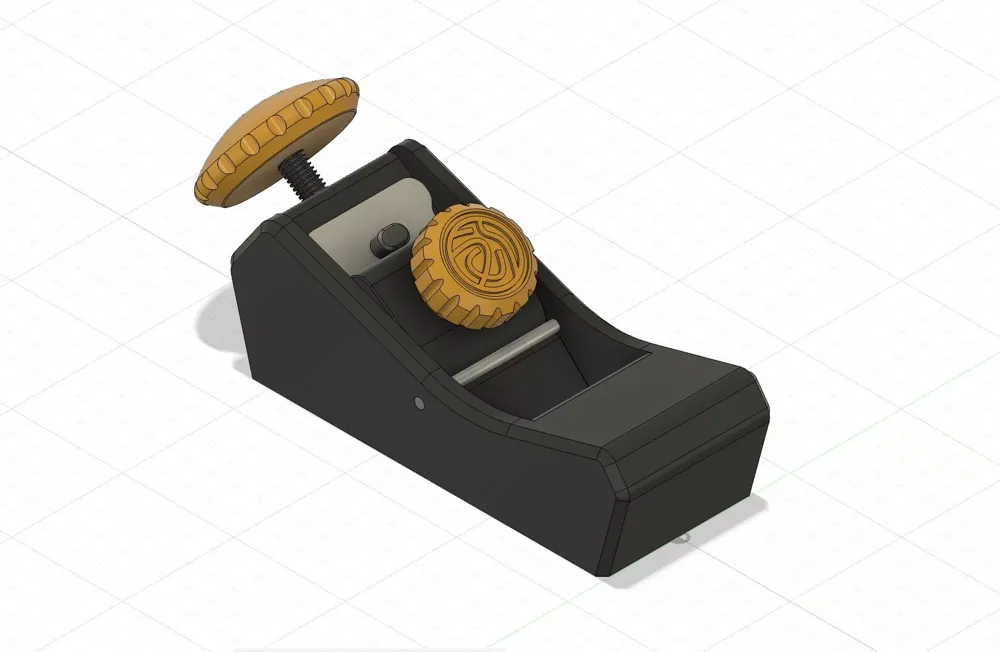

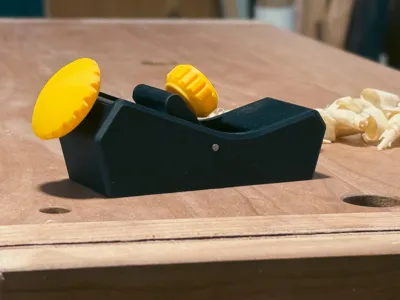

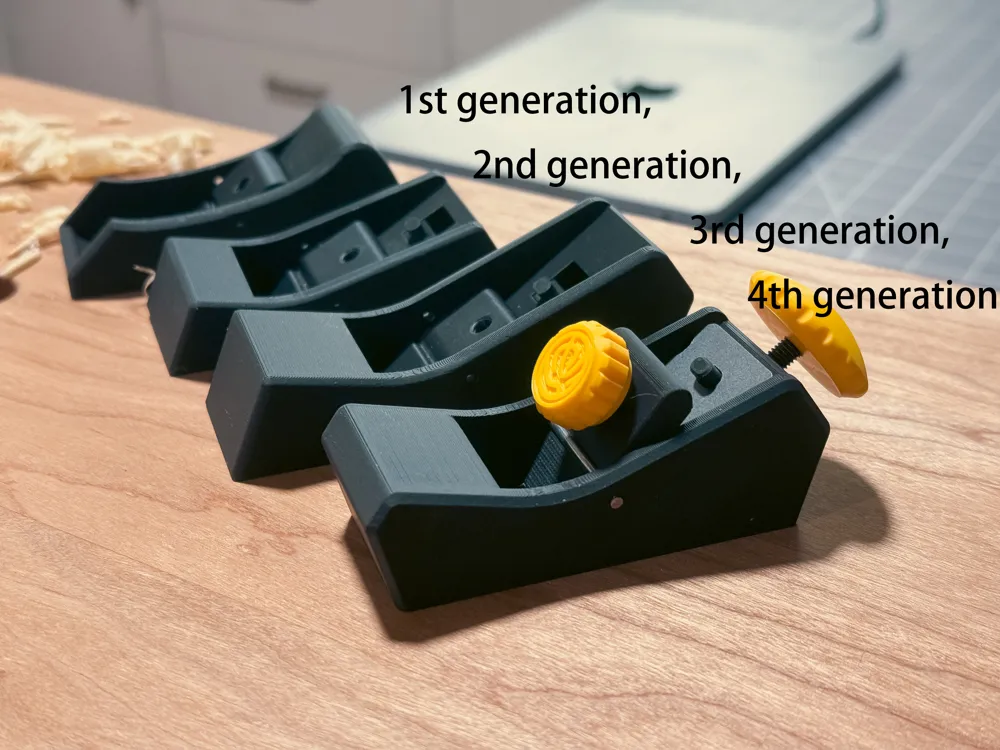

This is a low-angle mini woodworking trim plane, finalized after 4 iterations, achieving all standard functions of a European woodworking plane, and planes very smoothly.

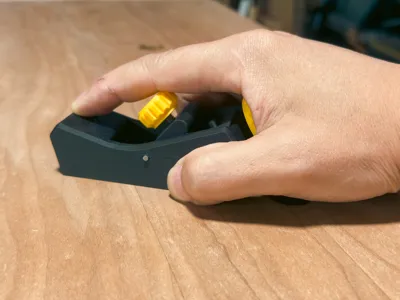

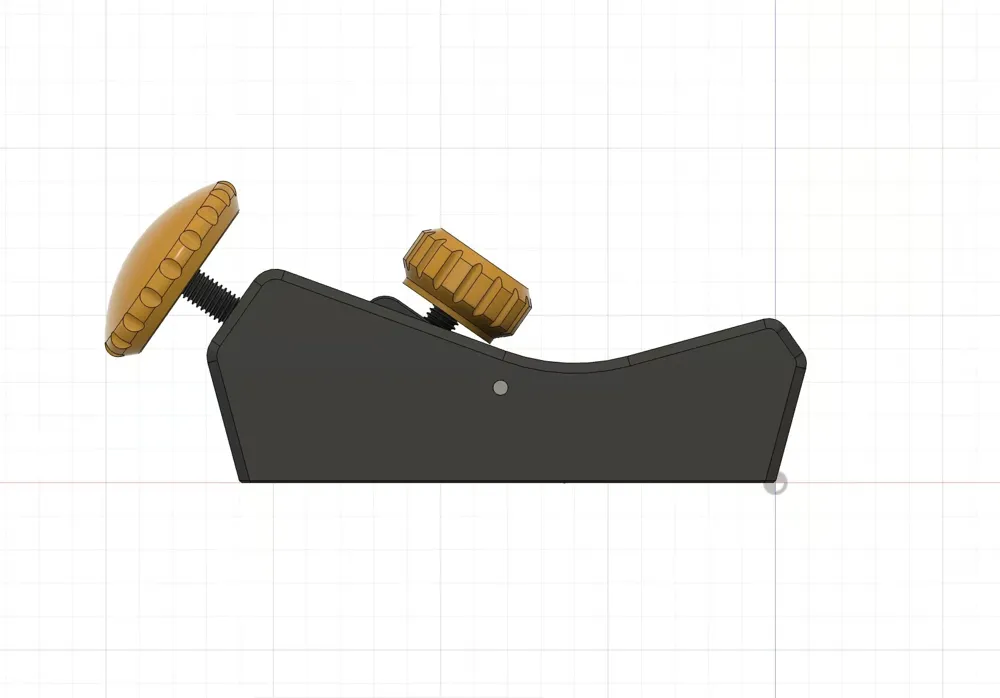

- Curved design suitable for finger pressure and palm pushing

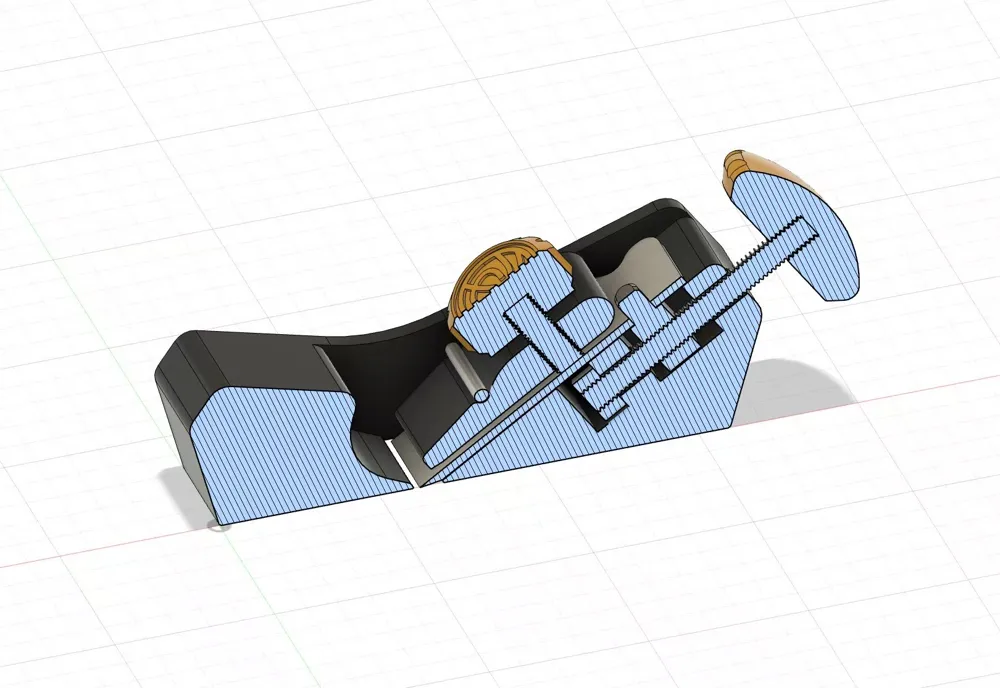

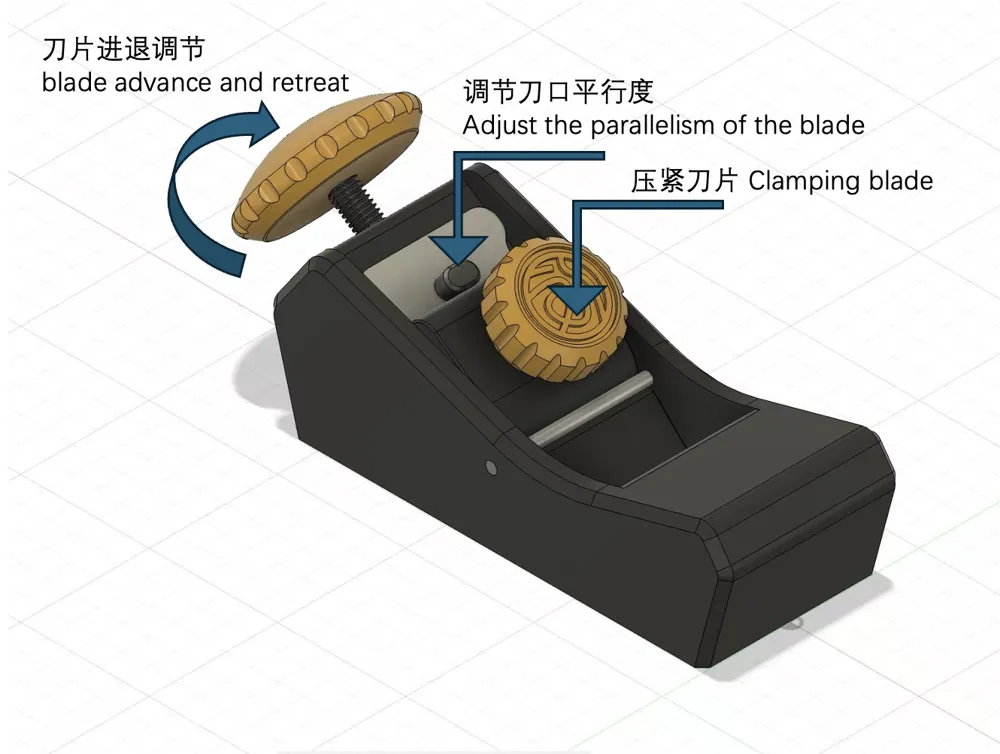

- Blade depth precisely adjusted by the rear nut
- Blade parallelism can be slightly adjusted by the lever on the sliding pin
- 35-degree frog, 25-degree blade bevel
- Blade installed face up (bevel down) will achieve 35-degree low-angle planing
- Blade installed face down (bevel up) will achieve 60-degree high-angle planing (scraping)
Please properly tighten the blade when adjusting it

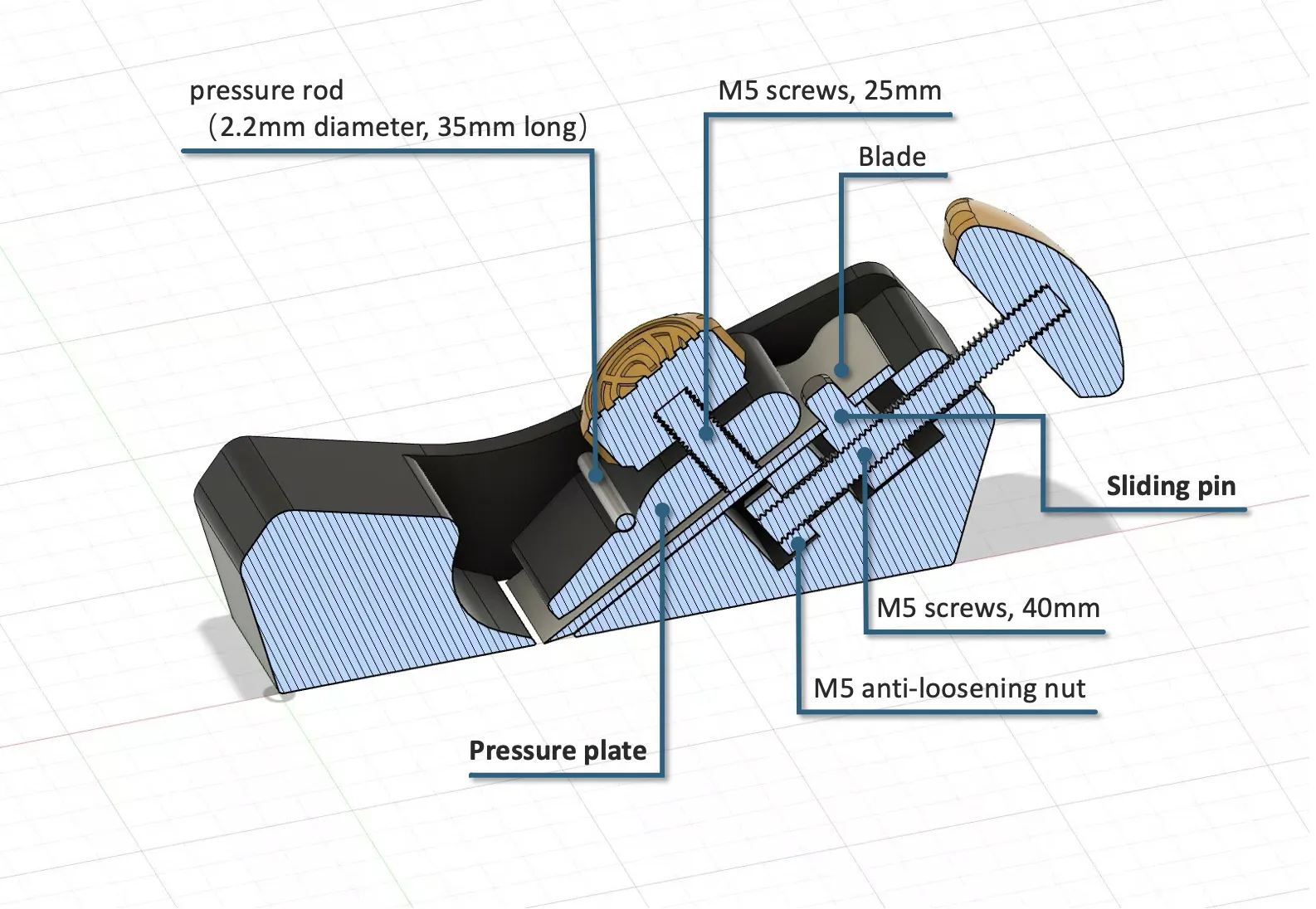

Other materials needed:
1, Blade (I bought it at Home Depot, also found a link on Amazon: https://www.amazon.com/-/zh/dp/B000LNTGTM/ref=sr_1_40?__mk_zh_CN=%E4%BA%9A%E9%A9%AC%E9%80%8A%E7%BD%91%E7%AB%99&)

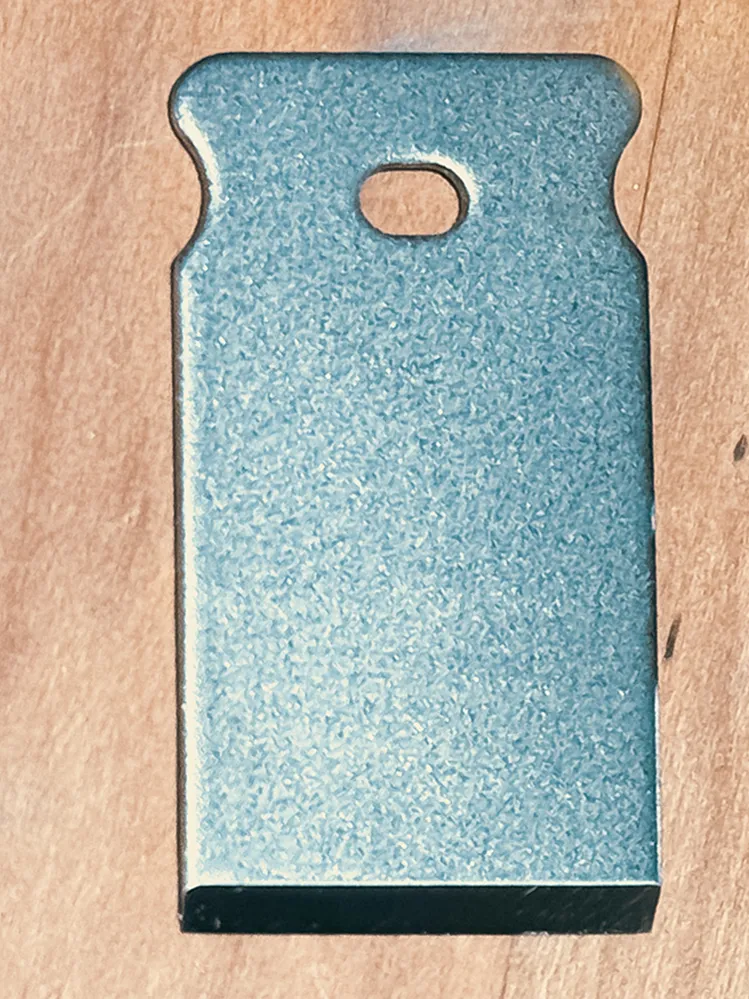

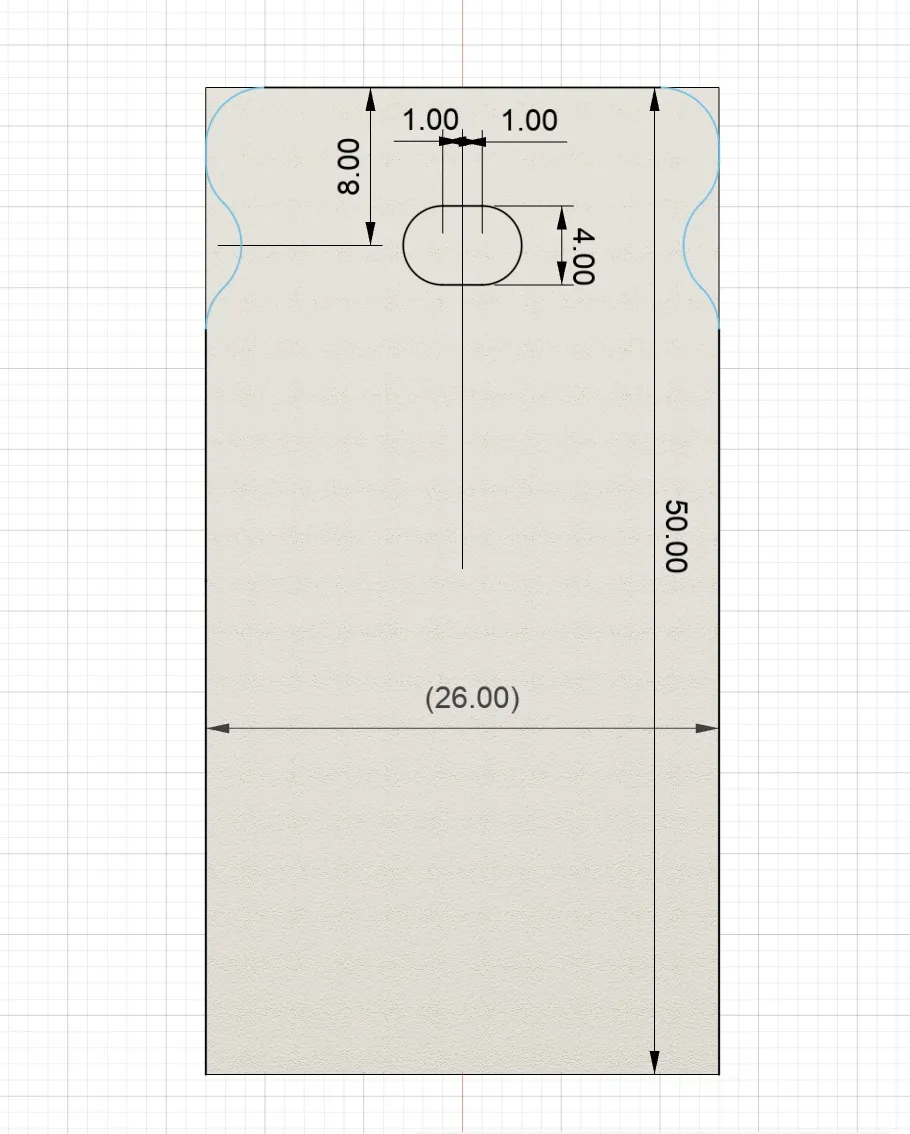

26mmX50MM, 1.5mm thick, 25-degree bevel angle, hole dimensions as follows:
2, Two M5 (5mm) threaded rods, 25mm and 40mm long respectively
3, 2.2mm diameter, 35mm long steel rod as a pressure bar
4, One M5 self-locking nut
5, If the threads of the pressure plate and sliding pin feel tight, please tap them with an M5 tap
The matching box is here: https://makerworld.com.cn/zh/models/1337035-mi-ni-mu-gong-xiu-bian-bao-de-he-zi-box-for-mini-w#profileId-1441316
The first generation mini woodworking plane has simple functions and is available here: https://makerworld.com.cn/zh/models/1301656-mi-ni-bao-mini-plane#profileId-1397312
Boost Me (for free)
Thank you for your support . Happy printing.
