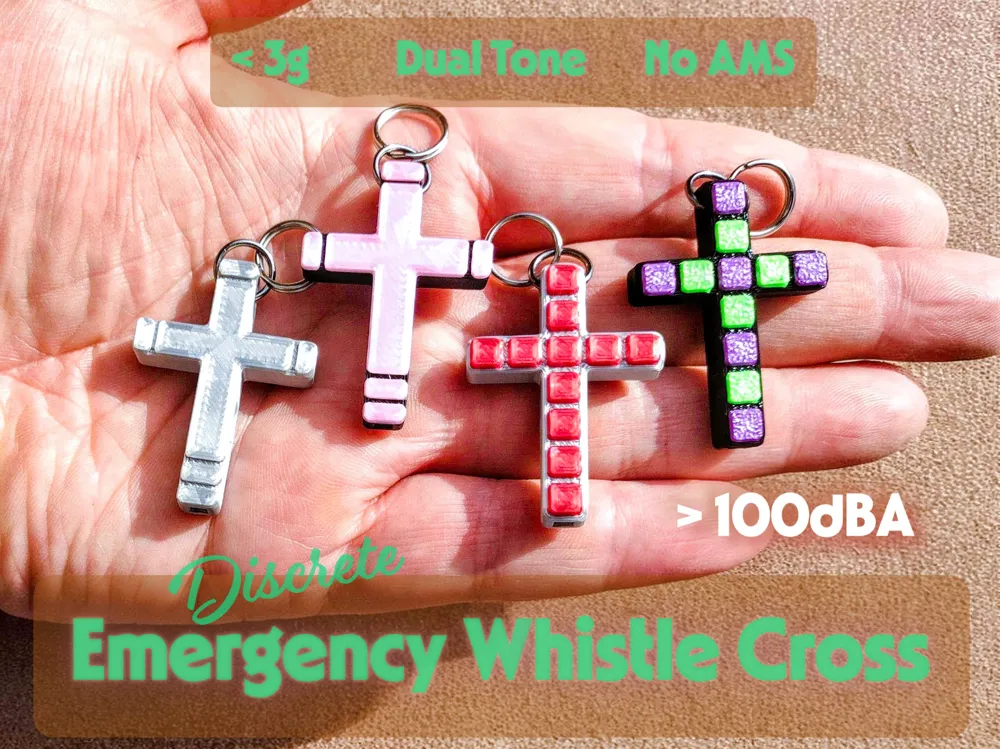

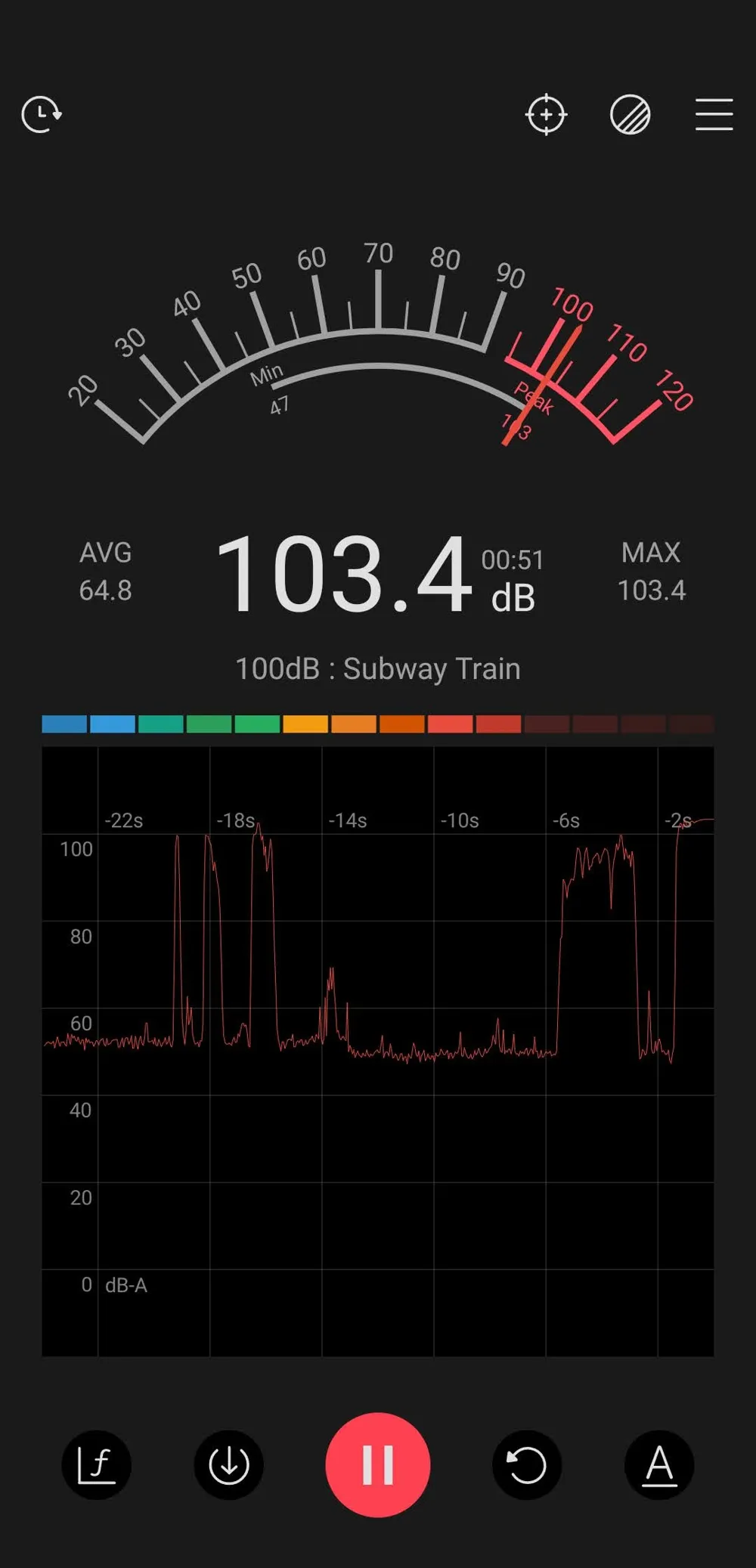

Help protect a loved one with this extremely loud dual tone micro emergency whistle, hiding in plain sight on a necklace or keychain disguised as a cross! Less than 3g, only takes a few minutes to print but can easily reach over 100dBA!

Please check out my matching whistles:

Discrete Emergency Whistle Pendant: https://makerworld.com/en/models/1535011

Micro Safety Whistle: https://makerworld.com/en/models/1534868

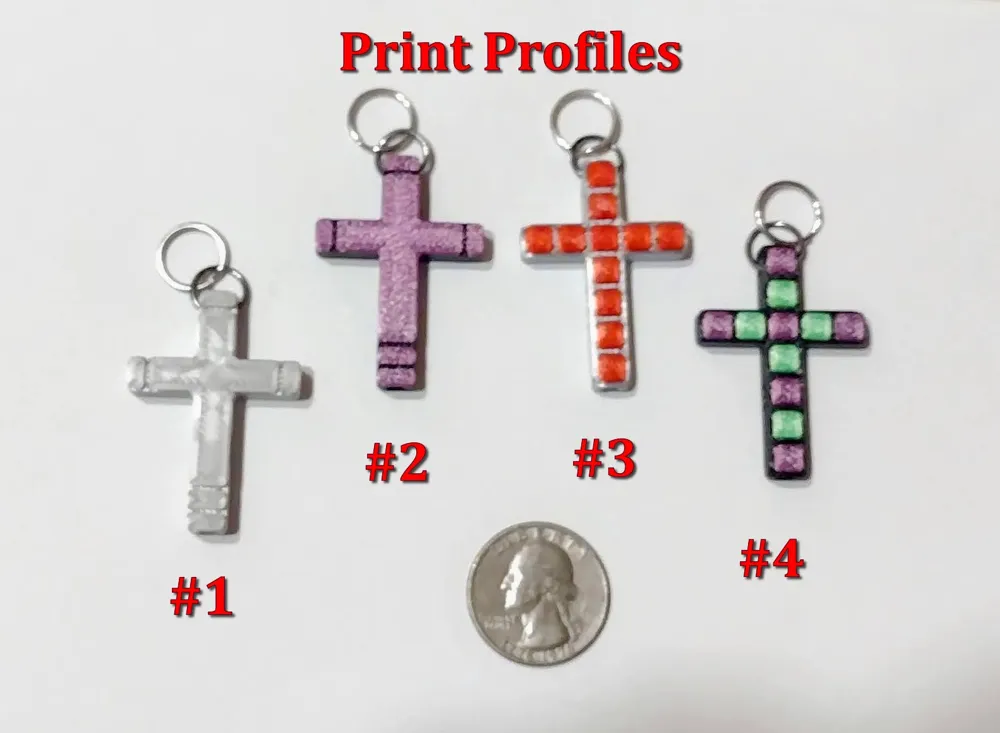

Scaling tested pretty good between 85 to 120%, but 110% was set to default for reliablity and shrieking sound. Printed dimensions are aprox 1.4" x 1.2" x 0.30" (46mm x 6mm x 1.8mm.) Jump rings between 8 and 14mm will work, along with 0.5 and 1 inch split rings.

To be printed facedown so the finish side is textured to match your choice of build plate.

If you like, please hit like and follow! Once we hit the required number to be able to allow commerical printing rights, we will be doing so at a very low price of $2 a month.

Comment & Rating (15)

@user_2081221537

Print Profile

Notched Solid Color

Great print and perfect for my kids and their friends to stay safe. Blew it to make sure it worked and hurt my own ears!

The profile uploader has replied

@lotts_creations

That's awesome, I'm glad you like it. I test my prints too and despite knowing it's going to be loud whistle, I still jump every time! Extra thanks for not only being the first to rate it, but you posted a pic too. Most appreciated.

@user_2081221537

Replying to @lotts_creations :

Thank you for the print! Cannot wait to get out the beads and cords to make pendants and keychains with the kids (probably the adults too) for both this one and your straight pendant. https://makerworld.com/en/models/1535011 I will try to post some pictures once we get that done too.

(Edited)

@Knighten71

does it sound like a coaches whistles? that what I’m looking for actually.

@tracy10681

Print Profile

Notched Solid Color

@rosenbergshmuel

Print Profile

Faceted Dual Colors

(Edited)

Other Issues:It is very hard to get a good seal and blow the whistle.

The profile uploader has replied

@lotts_creations

I don't understand your comment

@rosenbergshmuel

Replying to @lotts_creations :

I edited it. Hard to get a good seal, not deal.

@lotts_creations

Replying to @rosenbergshmuel :

A good seal? are you referring to bed adhesion or layer cohesion? I assure you it's not the print profiles fault, I've printed over a hundred of them now on 5 different brands of printers in over 20 different brands of filament. But I'll more than gladly help you overcome whatever issue you may be having to have a successful print. First up, are you using the provided print profile without changing anything except for filament brand and color on the left top side of Bambu Studio? The default 3 wall, 45 degree overhang are important. And needlessly using the paint bucket to change colors could of missed a small edge.

@user_2019517966

Print Profile

Notched Solid Color

@Freak55

Print Profile

Faceted Tri Color AMS Required

@user_293128794

Print Profile

Faceted Dual Colors

@user_87983484

Print Profile

Notched Solid Color

No more
