[Panrock Universe] Rapid Flow-1 Pulse Water Gun: 5 shots per second, dominate the battlefield!
Print Profile(3)
Description
Membership
If you think my model is great and want to print it out and sell it, or if you'd like to treat me to two lattes this month, please subscribe to me!
“Have you heard of the ‘Rapid-1’ rapid-fire blaster? …No? Well, now you have.”
It all began with my missing two local water gun competitions…
Another story of regret that keeps gnawing at me!!!
But one day, my son suddenly wanted a water gun…
Great, I’m motivated to create one~~~~
Now, grab this and let them feel your power!

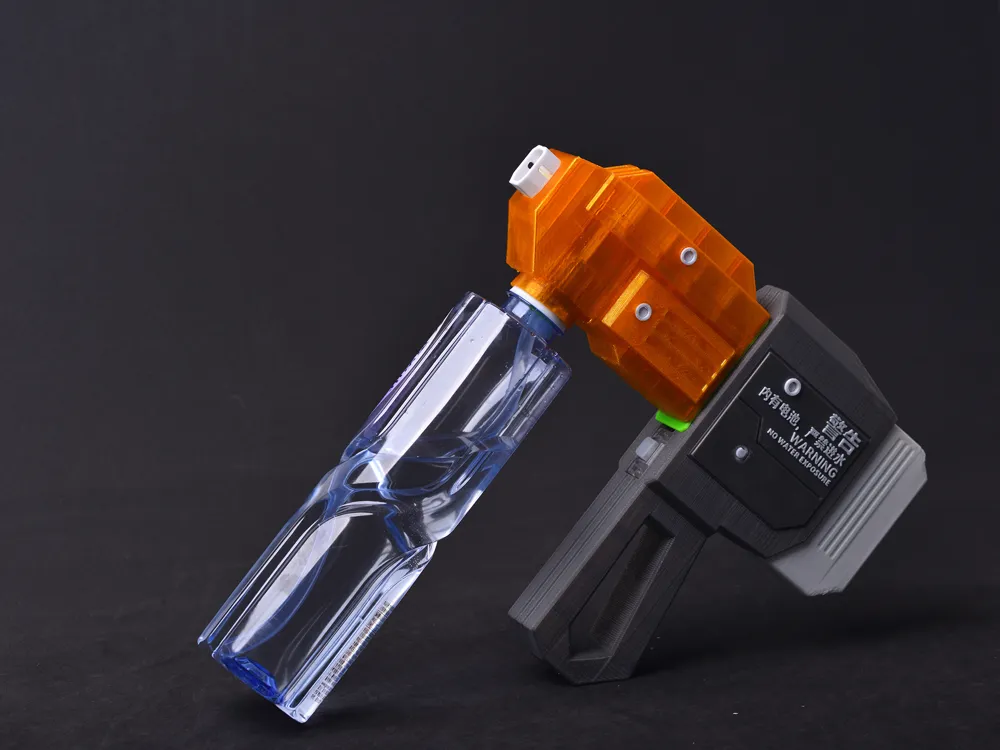

- A rapid-fire pulse electric water pistol

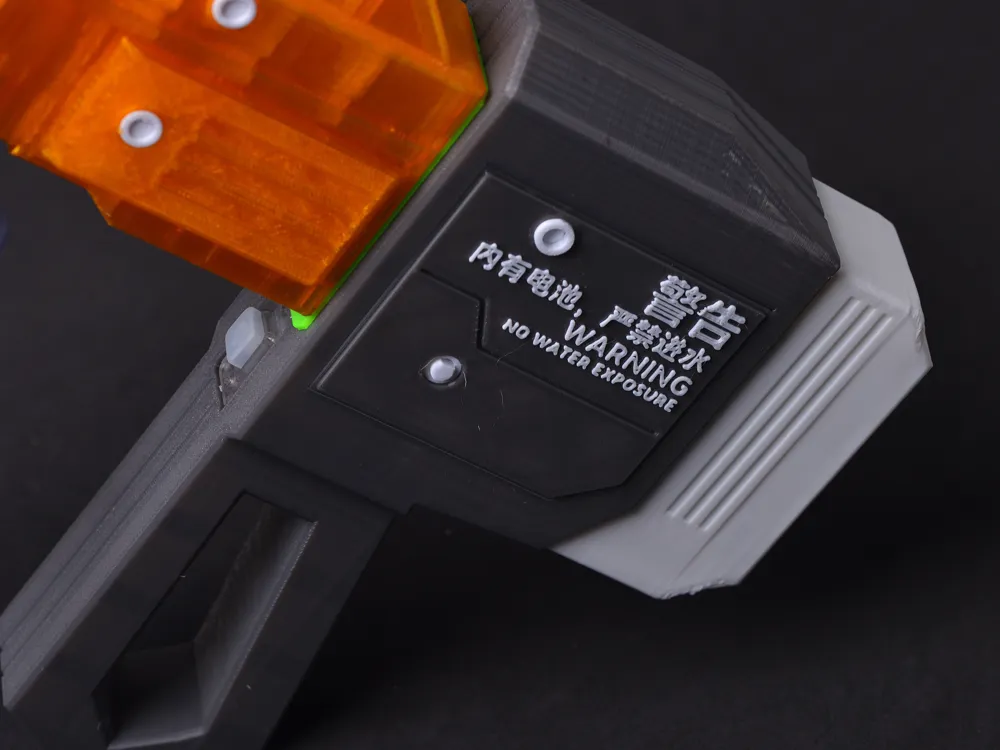

- Fully assembled design, requiring no hardware, incredibly easy to print (only the logo and warnings require multicolor printing)

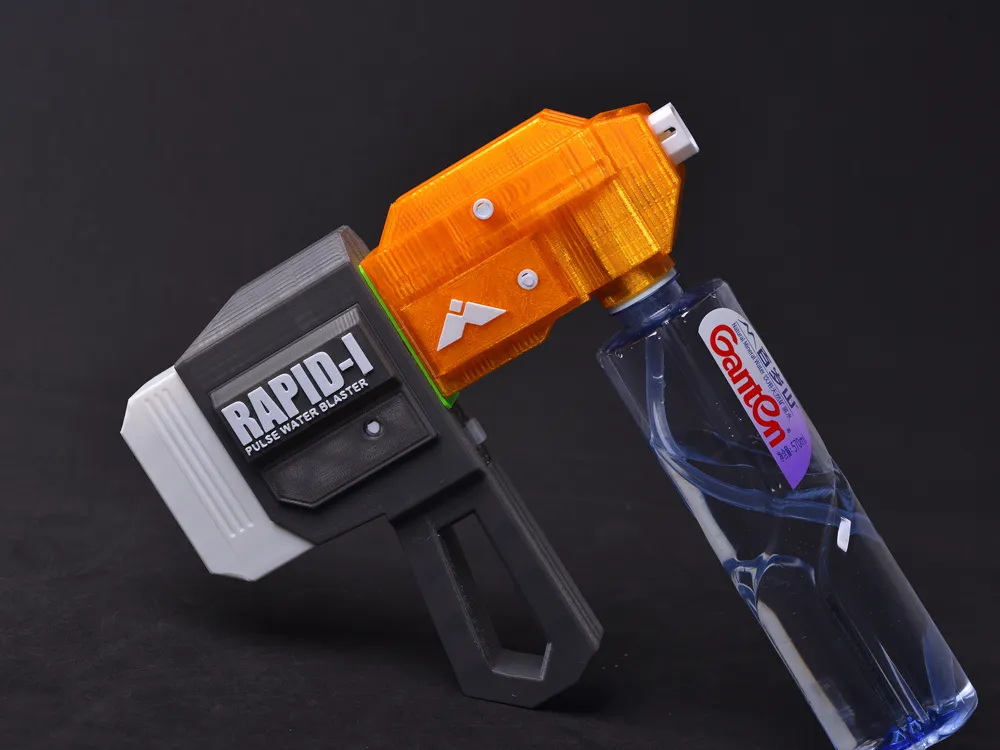

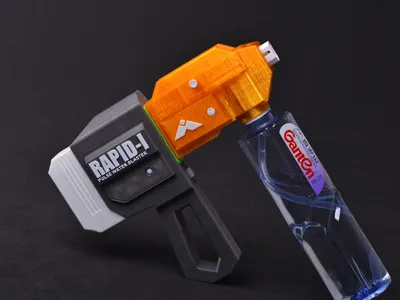

- Bottom-feed design, compatible with mainstream small-mouth mineral water bottles

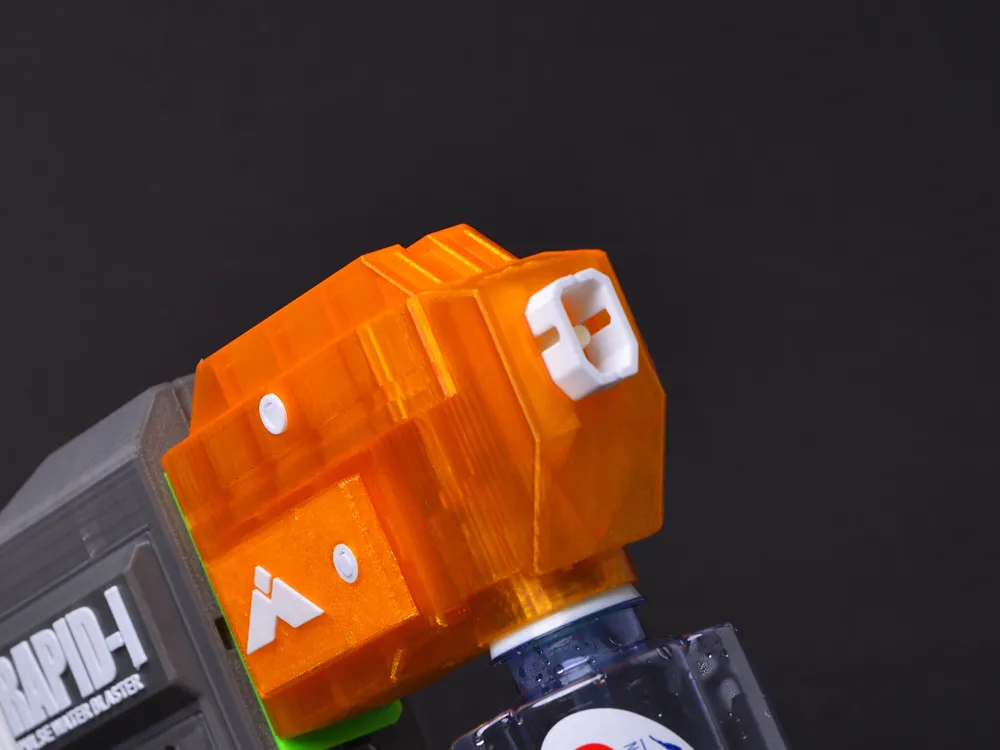

- Divided into a front section 【water pump area - wet zone】 and a rear section 【battery area - dry zone】
- Waterproof design: I originally intended to use TPU, but considering not everyone has it (hahahaha), I opted for the more convenient PETG solution
- The screw cap includes a PETG plug; significantly improved waterproofness can be achieved by wrapping a small amount of PTFE tape
- A PETG isolation layer is positioned between the wet and dry zones; for enhanced waterproofness, you can still wrap some PTFE tape
- Non-printed materials list:
- Water gun head: I bought one randomly from Taobao, model Heng Likuan SQ-04 7.4V water gun head
- Battery: 7.4V 1200mAh battery with protection board (500mAh/1200mAh capacity is acceptable; the key is 7.4V voltage)
- Trigger switch: waterproof tactile switch
- One water intake tube
- One roll of PTFE tape
- A stylish mineral water bottle

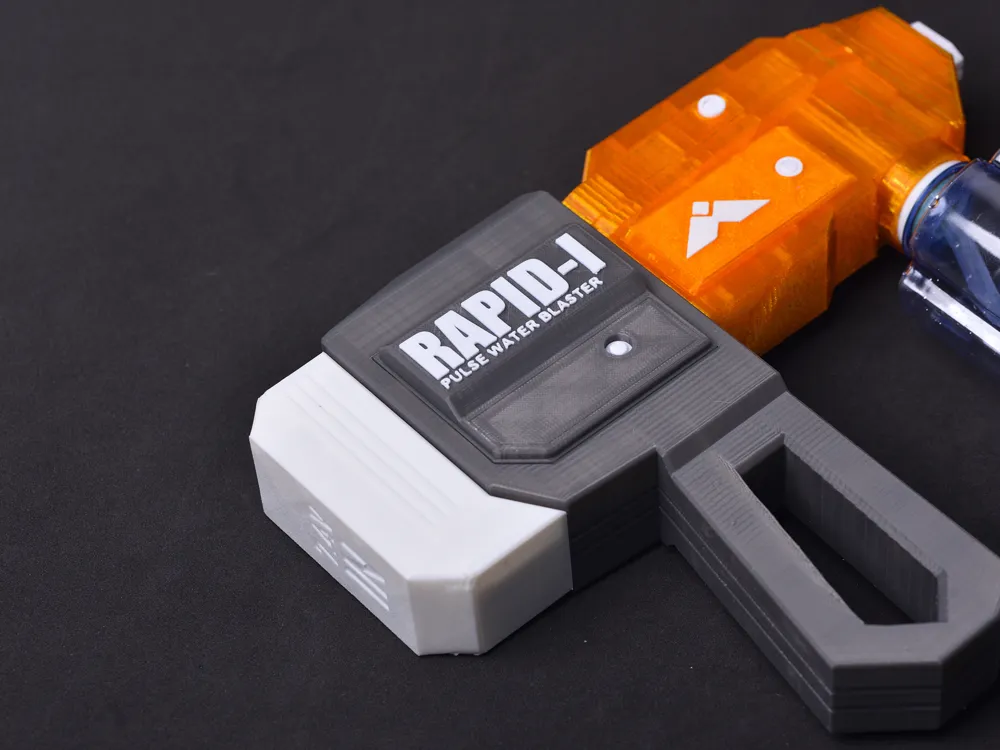

- Update 2025.6.24: A narrower grip has been added based on user feedback for easier handling by smaller hands
- Update 2025.6.25: V1.2 - My apologies! The grip opening was incorrect in the previous version, unfortunately, the update wasn’t successfully applied to the configuration, which explains why some users reported the grip being too large; it had me puzzled for a while~~~ It's now perfectly sized… apologies again

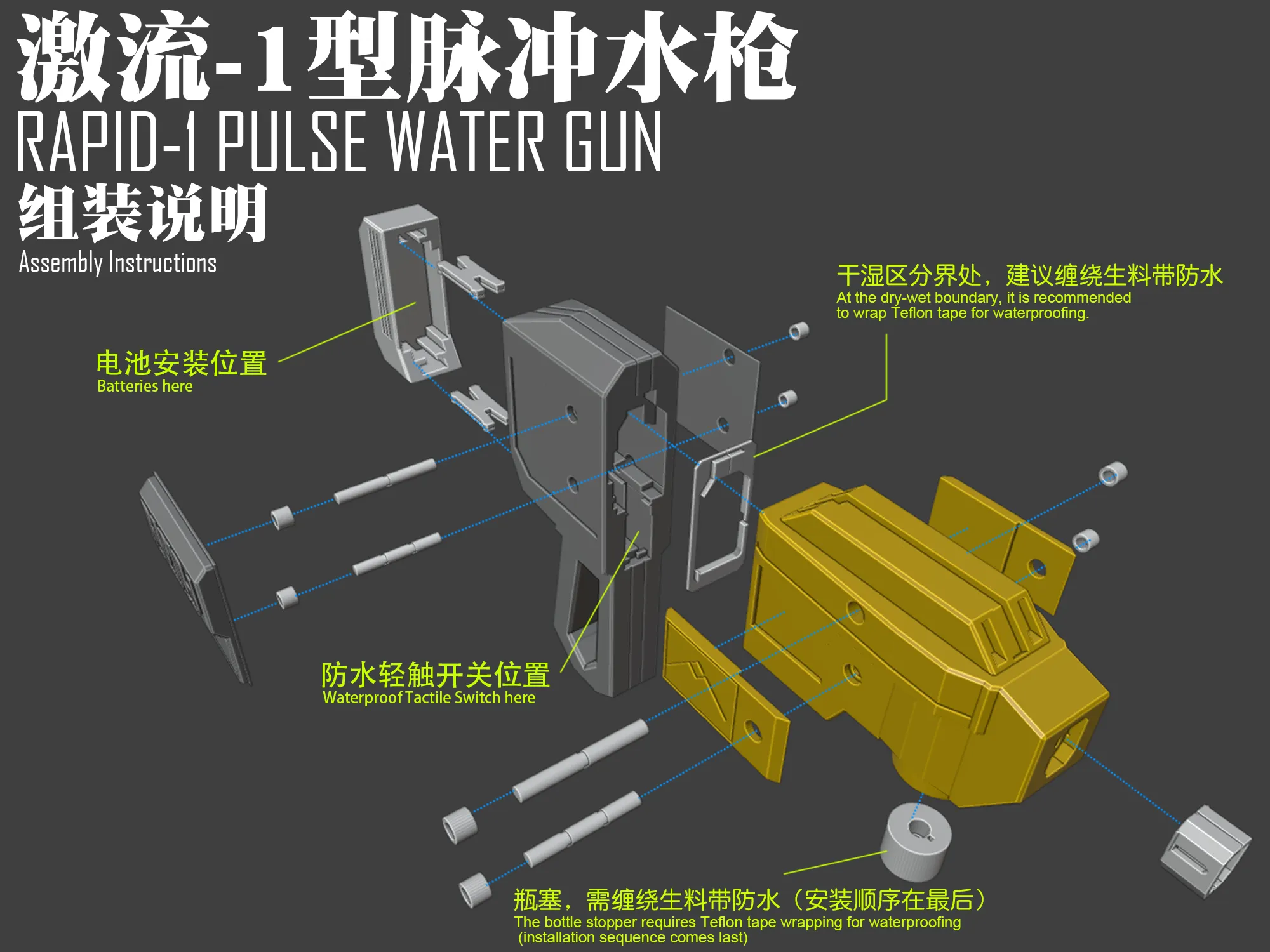

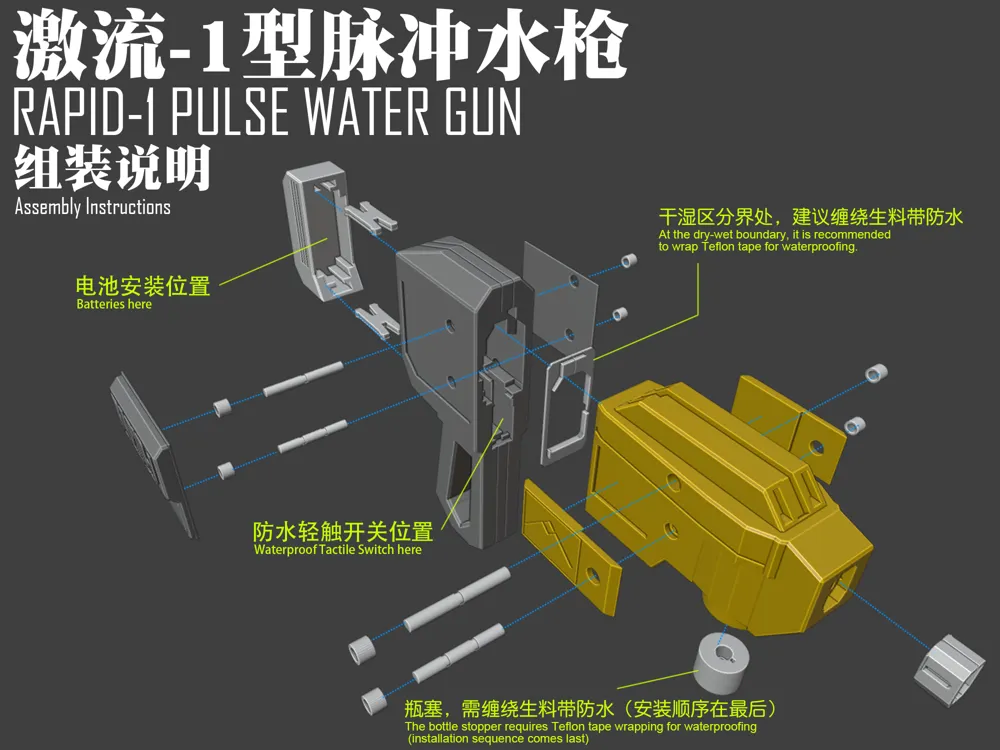

——Brief assembly instructions——
