Description
Boost Me (for free)
This is my first design since returning to the community after a three-year hiatus. My previous works were always created entirely by hand without drawings, and the craftsmanship had many limitations. The purpose of returning now is to explore more design methods to realize various designs that I couldn't perfect in the past
The transparent paper airplane corresponds to my last video project from when I left the community in 2022. I hope this next chapter can have a proper beginning and end
Details video for this work: [Self-developed: 3D printed remote control transparent paper airplane]

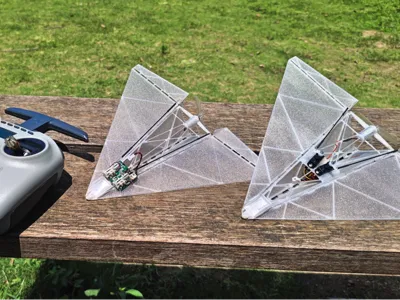

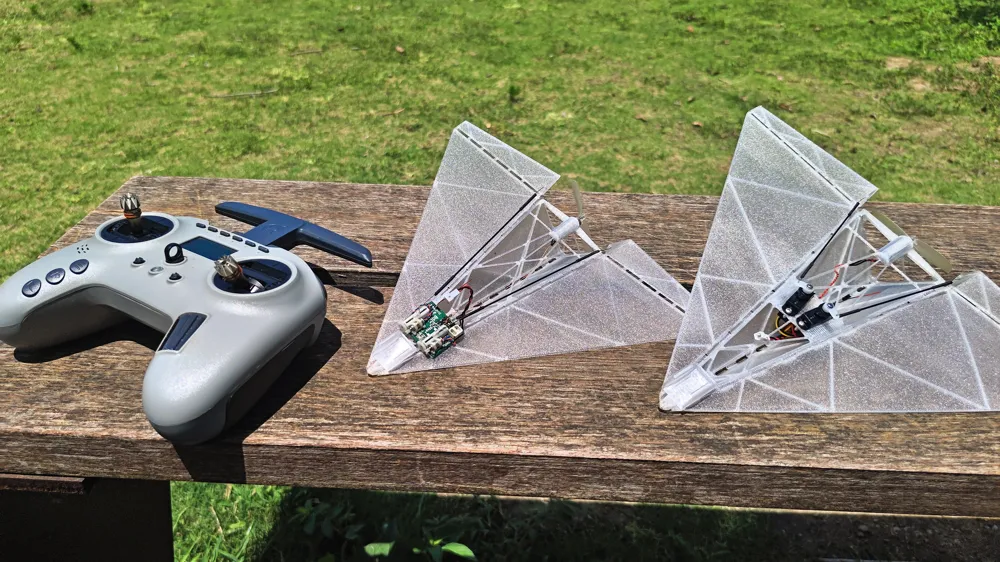

Currently, two versions have been made, and the compatibility list is as follows:
(1) Mini version (higher cost):
Integrated 5A brushed dual linear servo receiver board x1
8520 coreless motor x1
60-65mm propeller x1
3.7V 50-150mAh lithium battery x1
Remote control equipment with 3 or more channels x1
0.5-1.0mm carbon rod x1
0.5-0.8mm steel wire x1
2mm heat shrink tubing x1
(2) Regular version (cost-effective):
2.7g rocking arm servo (cheap from an online marketplace) x2
8520 coreless motor x1
5A brushed ESC x1
60-65mm propeller x1
3.7V or 3.85V high voltage 100-300mAh lithium battery x1
Remote control and receiver equipment with 3 or more channels x1
0.5-1.0mm carbon rod x1
0.5-0.8mm steel wire x1
2mm heat shrink tubing x1
In the future, when I have time, I will also create more compatible versions based on feedback from players

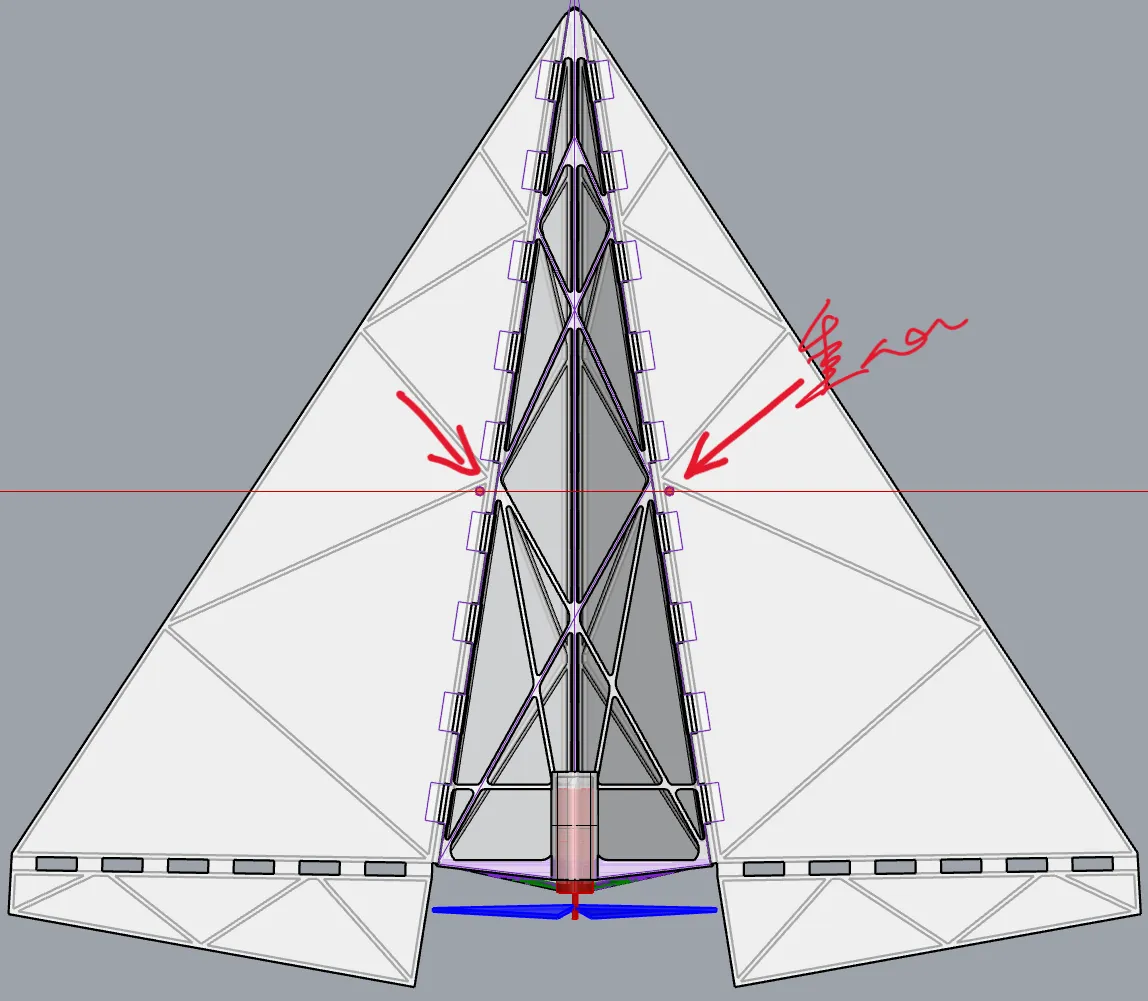

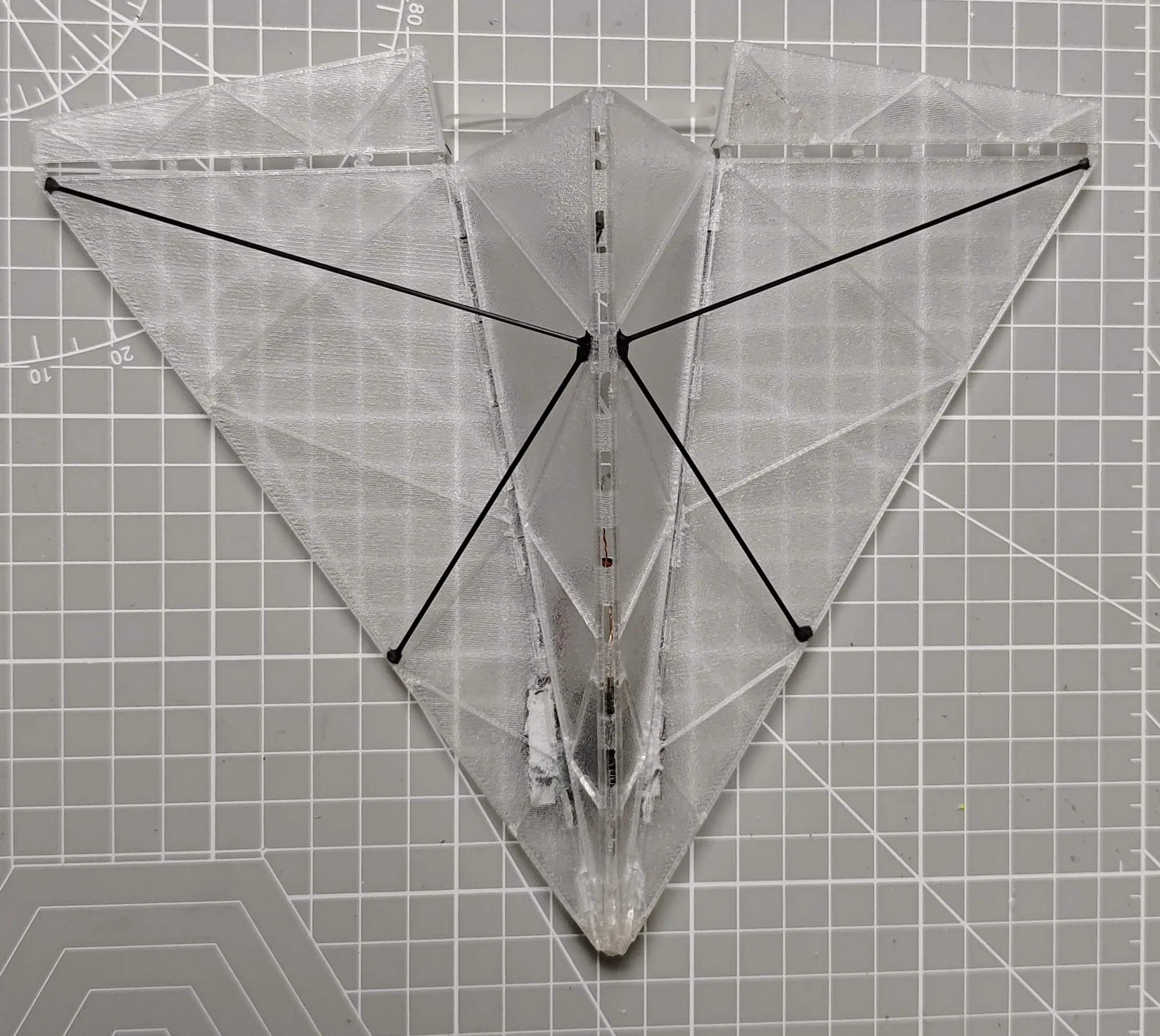

Carbon rod reinforcement points diagram:
