Bike Frame Mount
Print Profile(1)

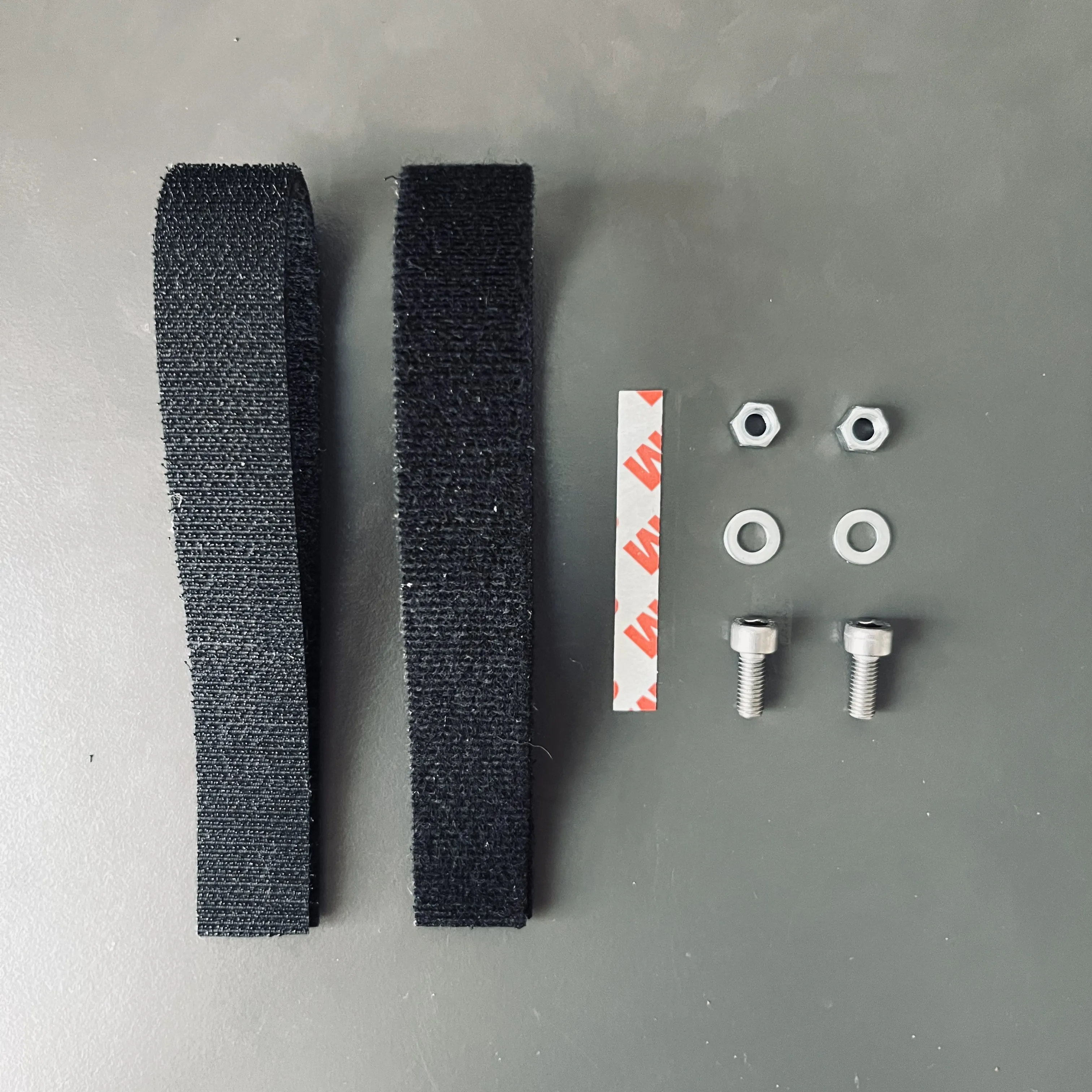

Bill of Materials
- M5x12 mm Screws x 2:
- M5 standard Hex Nuts x 2:
- M5 Flat Washers x 2:
- Velcro Double-side straps x 2: Length of the tube circle + 30 mm
- Double-side tape 20 x 75 mm x 1: It can be the most basic, necessary for friction
Description
Universal frame mount

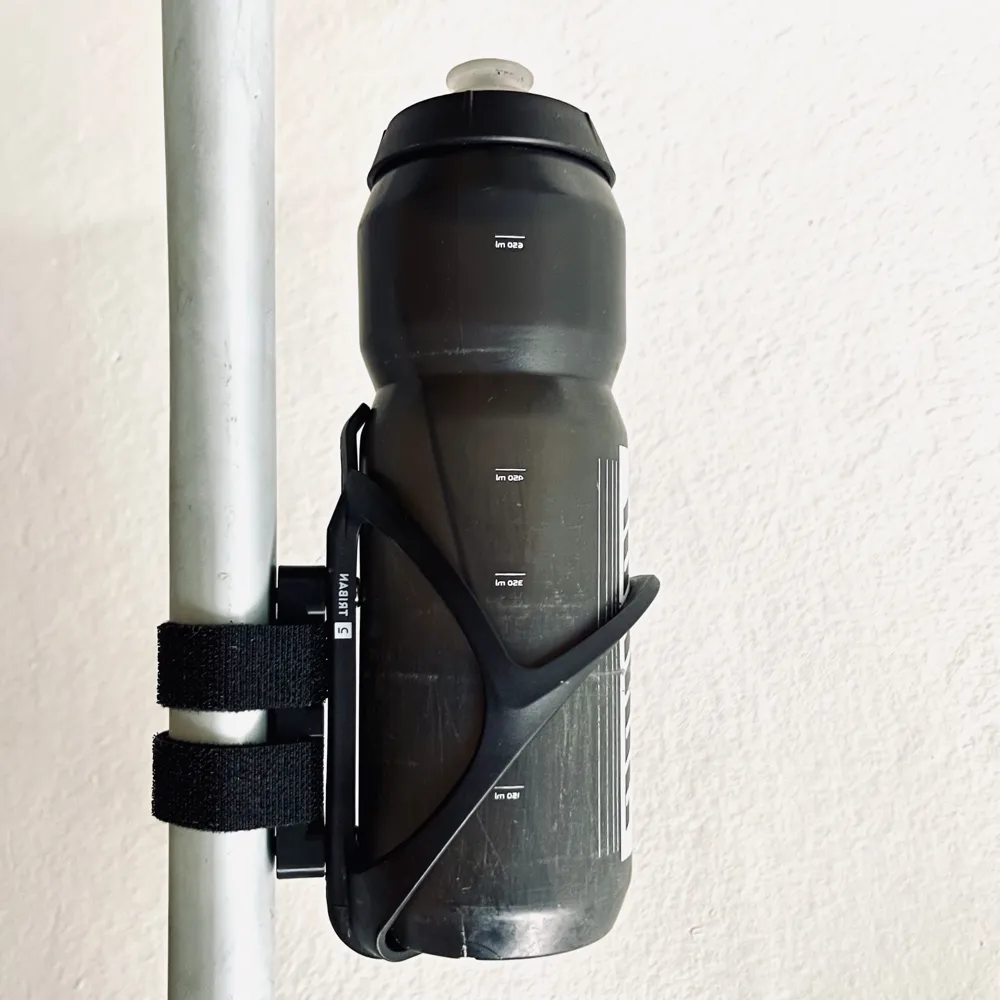

This is a universal frame mount designed for bicycles without built-in bottle cage braze-ons. It allows you to securely attach a bottle cage, mini pump, tool holder, or other accessories directly to your bike frame using Velcro straps
🔩 Hardware
2x - M5x12 mm Screws
2x - M5 standard Hex Nuts
2x - M5 Flat Washers
2x - Velcro Double-side straps (Length of the tube circle + 30 mm)
1x - Double-side tape 20 x 75 mm (It can be the most basic, necessary for friction)
😺 Printing
Material - PETG, ABS, ASA (don't use PLA due to it's low melting temperature)

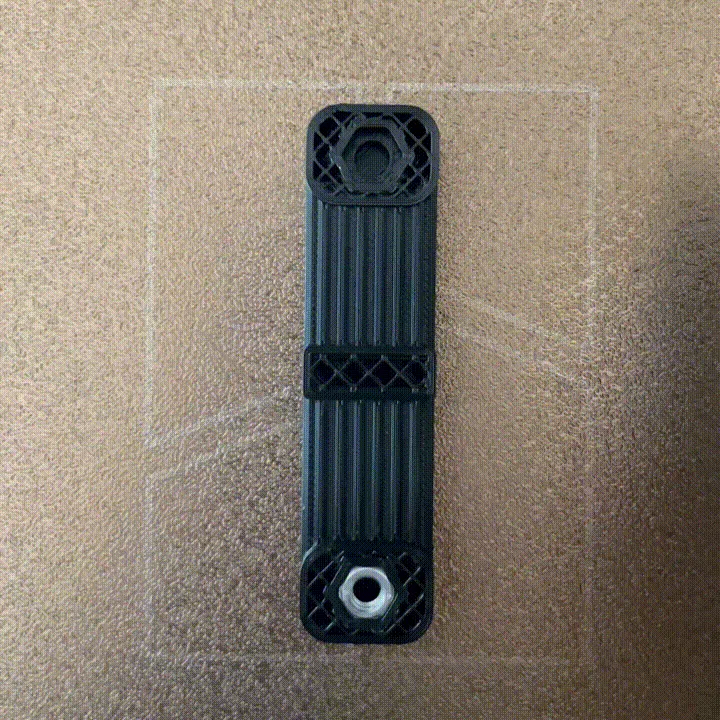

Insert nuts while pause and resume printing (print profile includes it)
🪛 Assembling

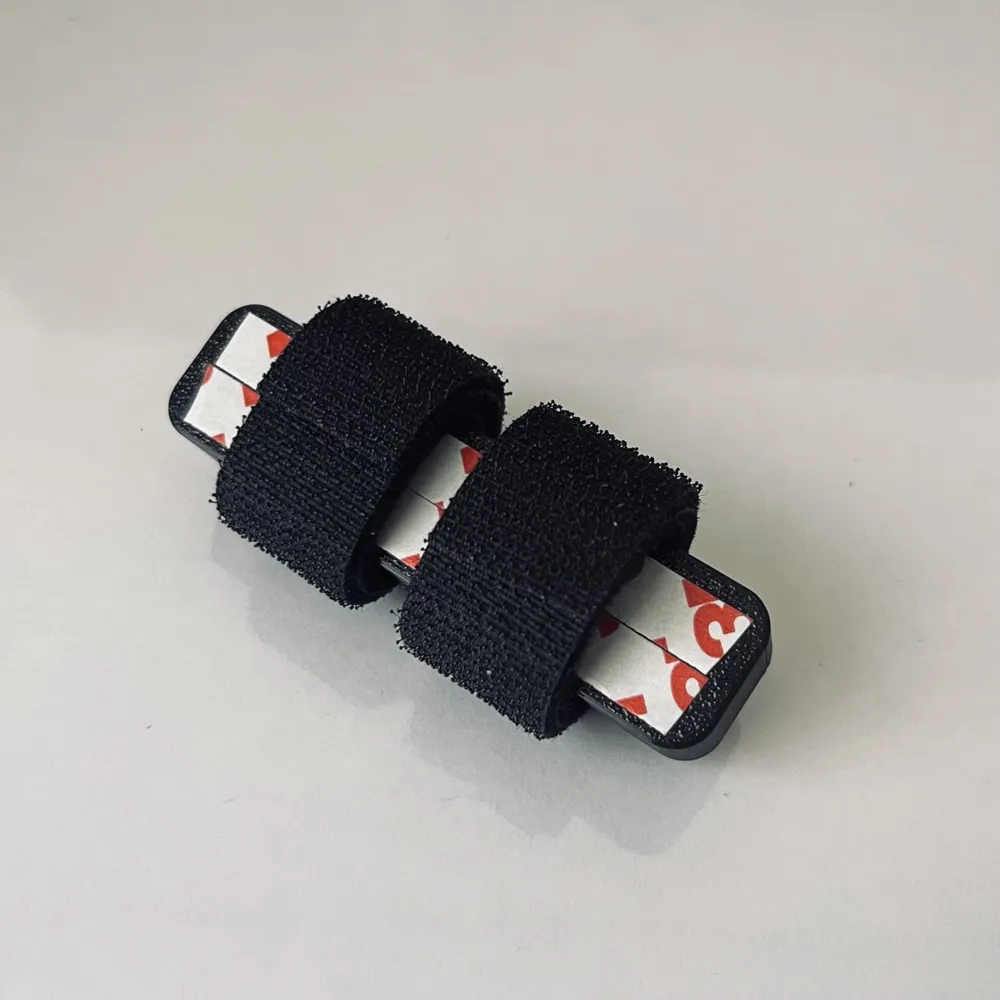

- Using double-sided tape, stick the holder to the frame
- Tighten with Velcro strips

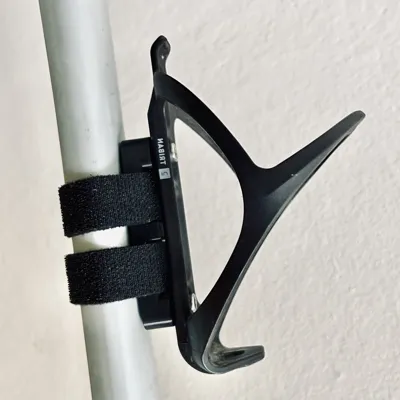

- Screw the bottle cage or other accessory to the mount
