Clips for AMS cables and PTFE tubes H2
Print Profile(2)
Description

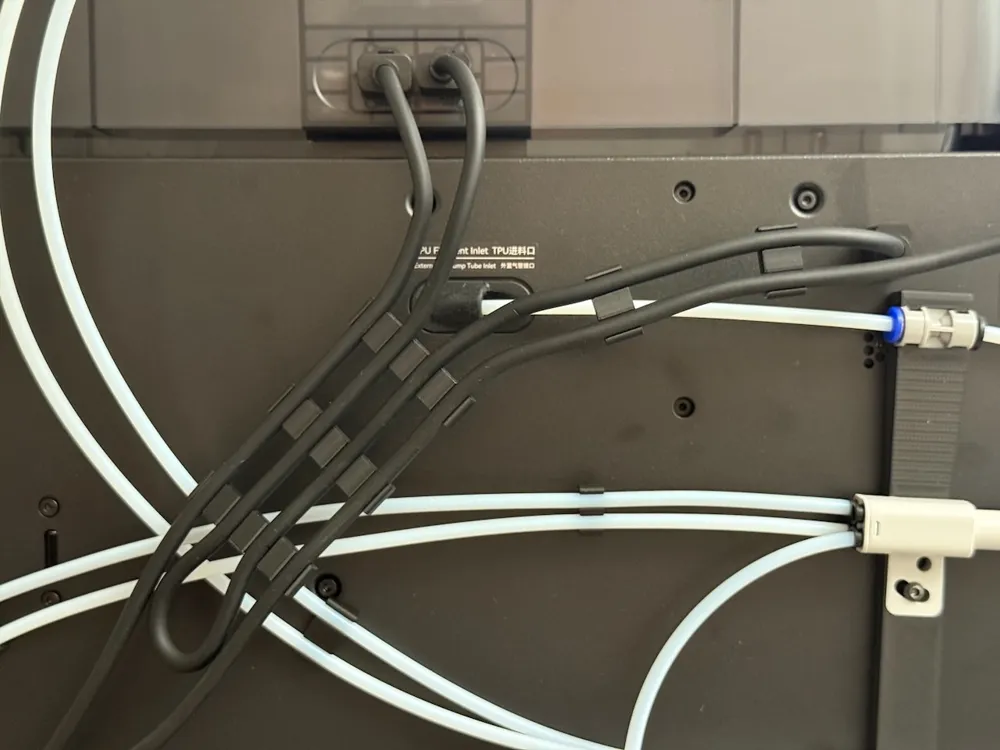

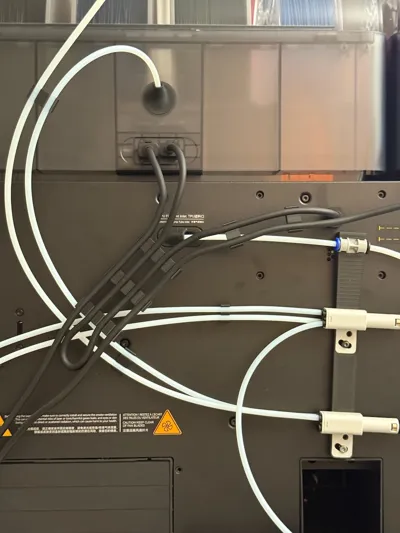

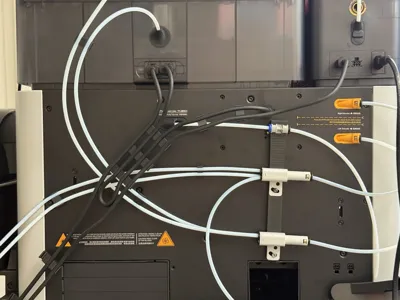

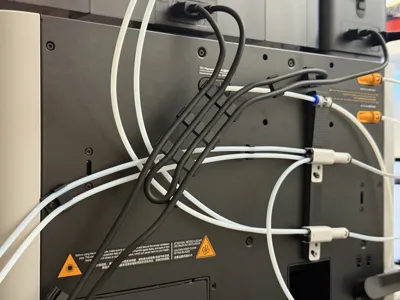

These holders are designed to guide AMS cables and PTFE tubes neatly, tidily, and with consistent spacing. They can be easily inserted into PTFE tubes or AMS cables, allowing for quick assembly and equally simple disassembly. Ideal for structured and flexible cable routing.
Features:
Tidy routing: The holders ensure that cables and tubes run parallel and at a fixed distance.
Easy handling: Tool-free plug-in assembly; ideal for frequent modifications or maintenance.

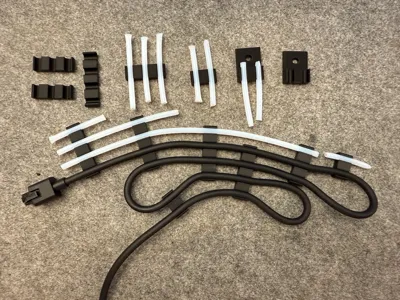

Variety of combinations: The holders are available in three sizes – for four, three, or two tubes/cables.
Compact & versatile: Optimized for all common combinations of AMS cables and PTFE tubes.
Suitable for: H2D, H2S, H2c and H2
Available combinations:

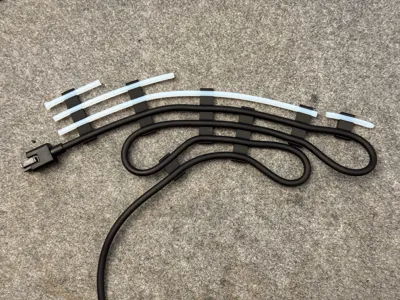

Holder for 4 lines:
4x AMS
3x AMS, 1x PTFE tube
2x AMS, 2x PTFE tubes
1x AMS, 3x PTFE tubes
4x PTFE tubes

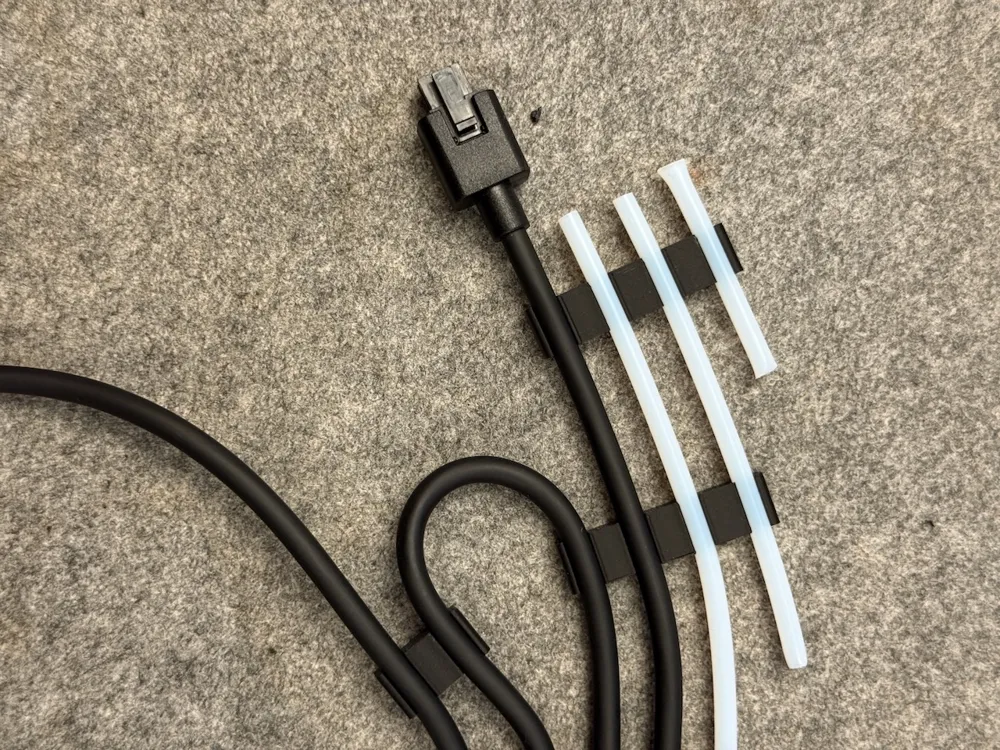

Holder for 3 lines:
3x AMS
2x AMS, 1x PTFE tube
1x AMS, 2x PTFE tubes
3x PTFE tubes
Holder for 2 lines:
2x AMS
1x AMS, 1x PTFE tube
2x PTFE tubes
Screwable variants (with M3 fastening):
2x PTFE tubes with screw mount (M3)
2x AMS with screw mount (M3)
As an addition to the 4-in-1 PTFE Adapter
https://makerworld.com/de/models/1431920-h2d-4-in-1-mount-with-tpu#profileId-1489071
https://makerworld.com/de/models/1318316-h2d-mount-for-4-in-1-ptfe-adapter-v1-5#profileId-1353873
