25 Santa Fe Rear Camera Mount

Print Profile(1)

All
X1 Carbon
A1
X1
H2D
P1P
P1S
X1E
A1 mini
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.20mm layer, 2 walls, 15% infill
0.20mm layer, 2 walls, 15% infill
Designer
1.4 h
1 plate

Open in Bambu Studio
Boost
19
75
0
1
26
12
Released

Description

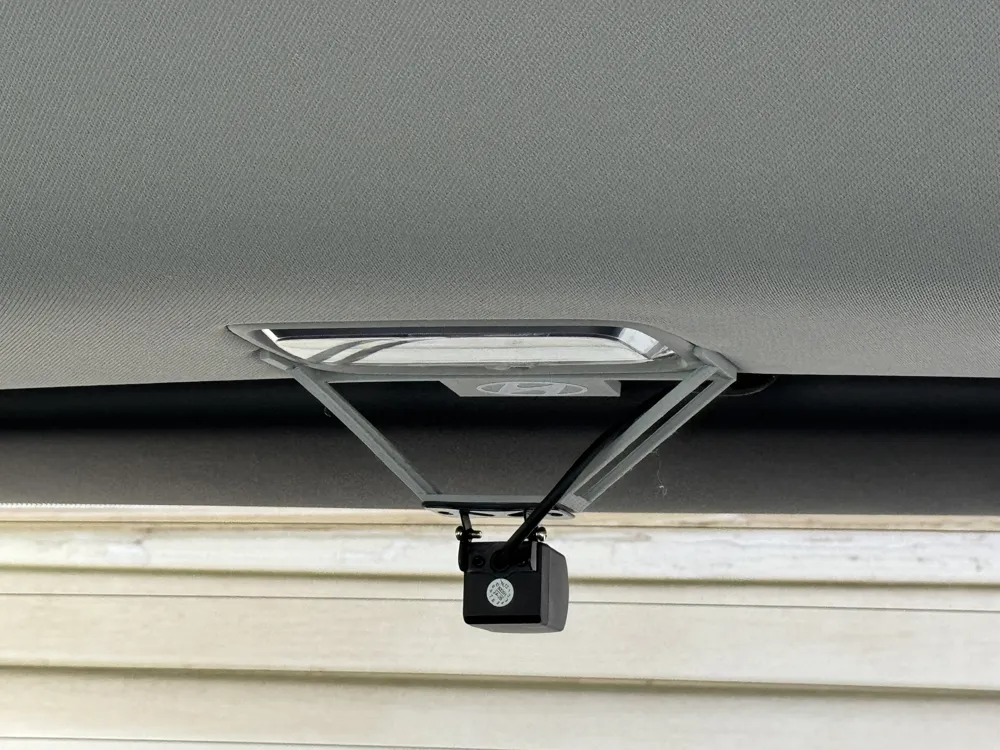

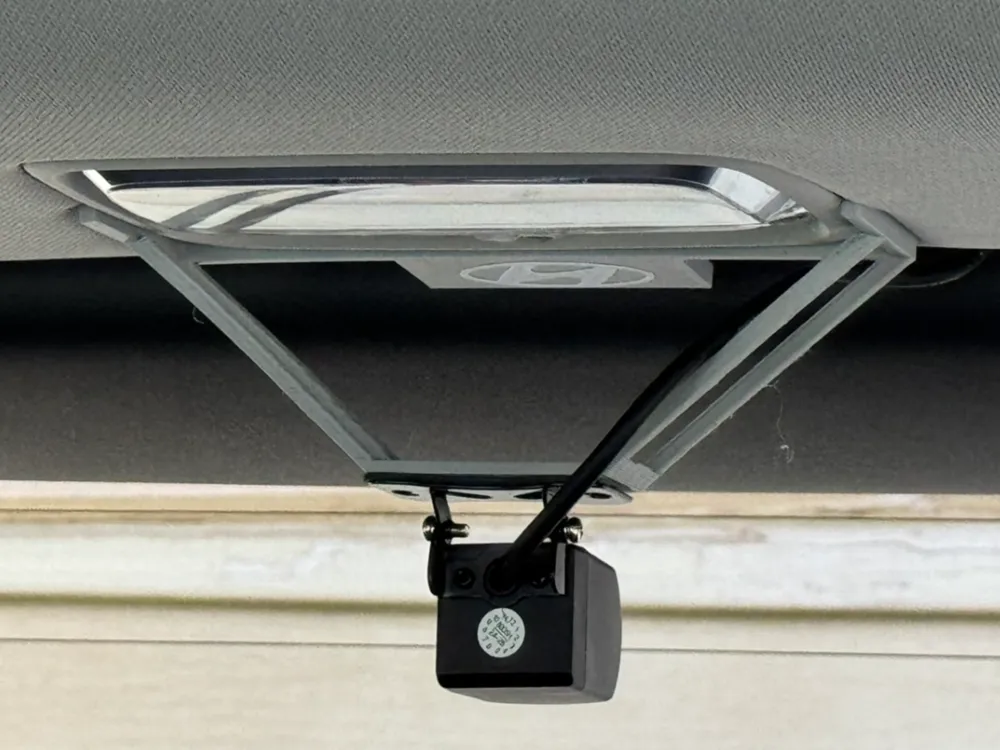

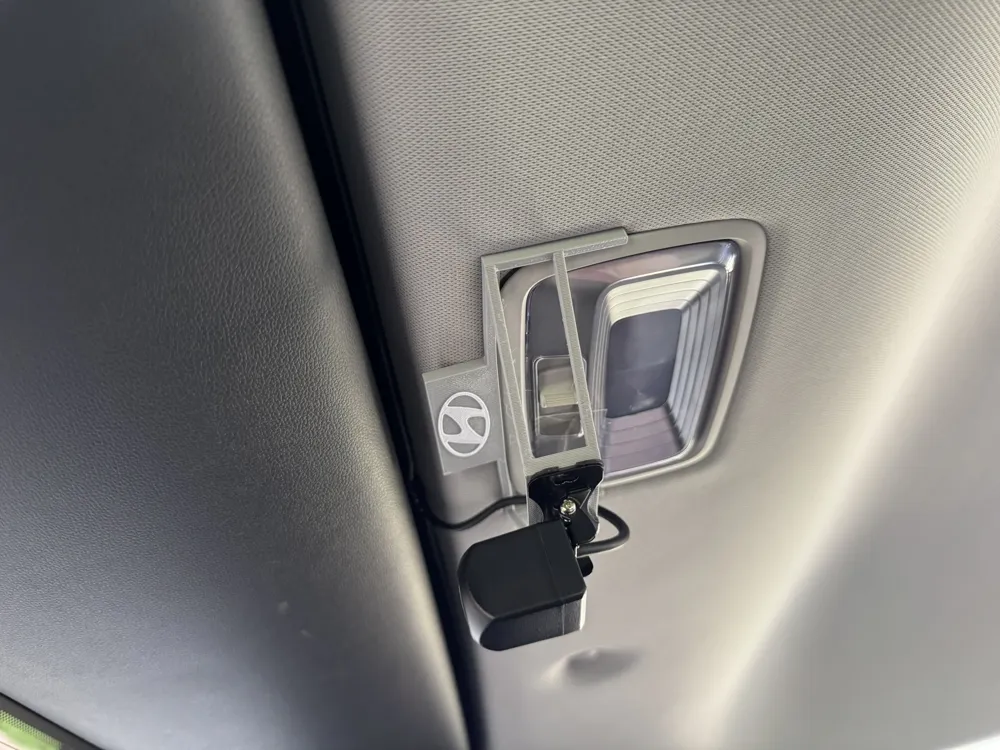

I wasn't able to find a rear camera mount for our Santa Fe that was able to mount and be low enough to completely see through the rear window. I designed a simple mount that slips between the rear roof light headliner that allows the camera to dip just below the window frame and not need to be glued or screwed to the interior. it's mounted with 4 strong posts making it very stable and I've added the Hyundai logo for some extra style.



Be sure to use PETG / ASA /ABS or some other high heat filament. PLA will become soft and melt in the interior heat of a car.  I recommend printing with a brim enabled as the thinner base can have adhesion issues.



I will add a logo-less variant shortly for those that want a good basic mount.
