Description

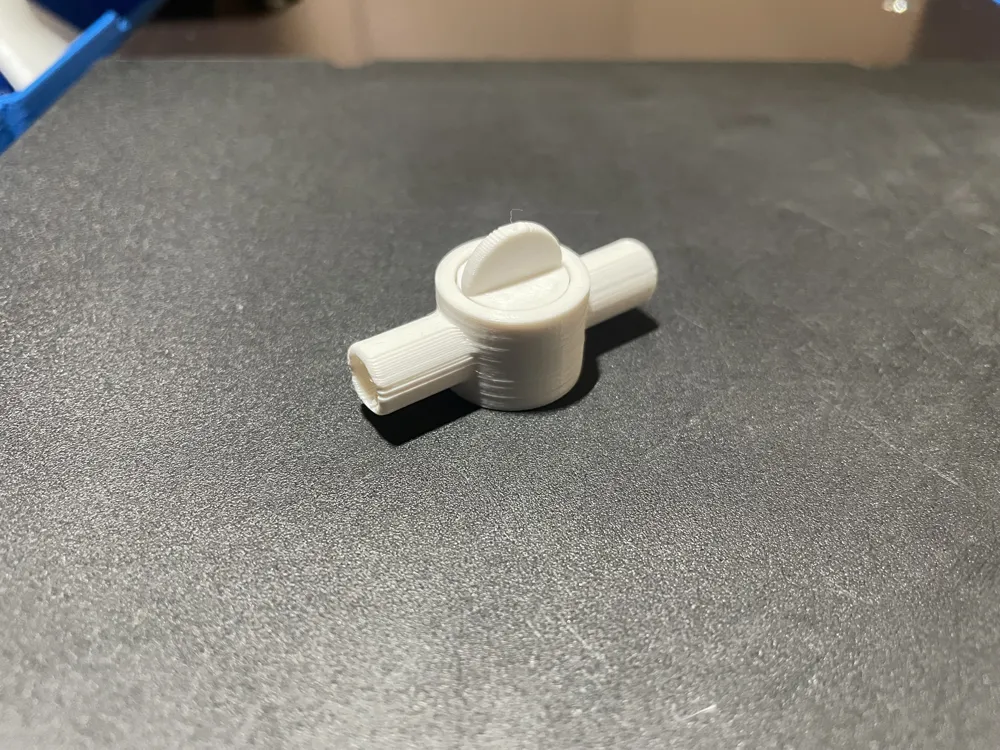

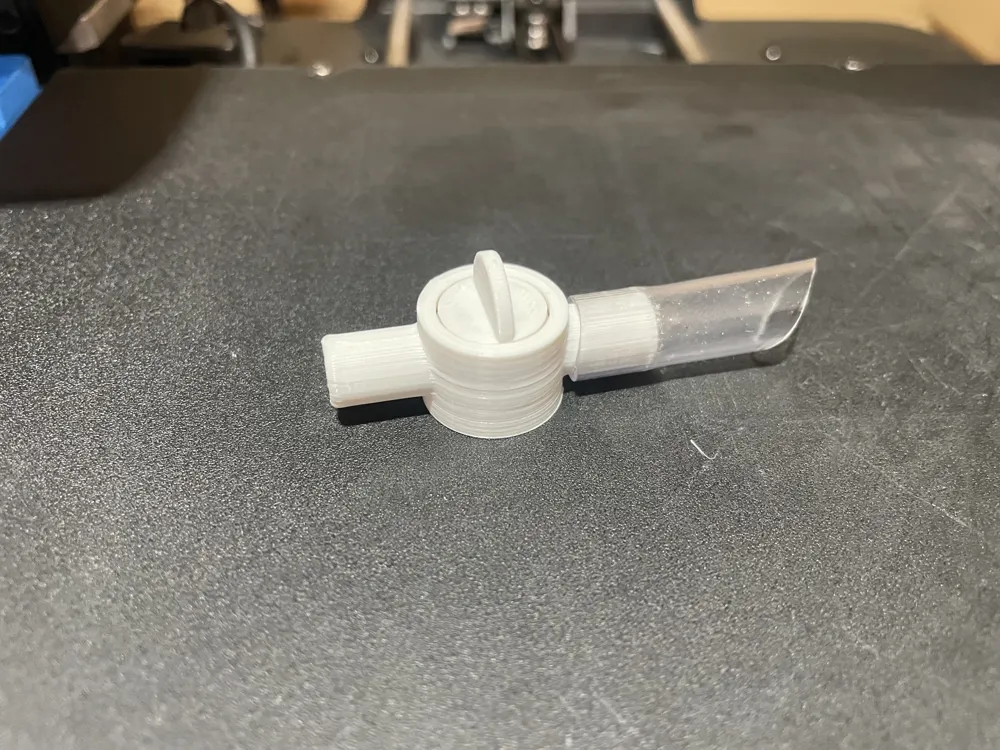

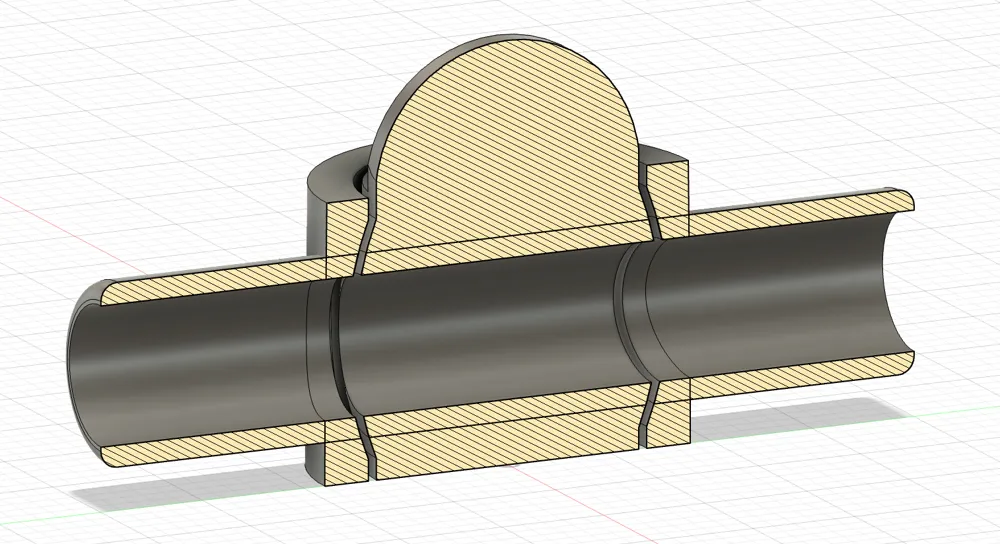

It's a printed in place rotary valve used to connect 9mm flexible tubes (Inner diameter = 7mm). The tolerance between moving parts is 0.4mm. I also made a 0.3 and 0.5mm tolerance version.
The 0.4mm version prints well on my Ender 3 v3 SE.
The 0.3mm is better for Bambulab.
I use this valve for my ants farm. It's really useful during maintenance when you need to disconnect parts of your ants farm.
The F3D file is parametric.
Be careful ! It can easily cut in half an ant when closing.
Do not try this system on aquariums. It is not watertight.
