Rasp. Pi HQ Camera to C-Mount Lens Adapter Ring
Print Profile(1)
Bill of Materials
Description

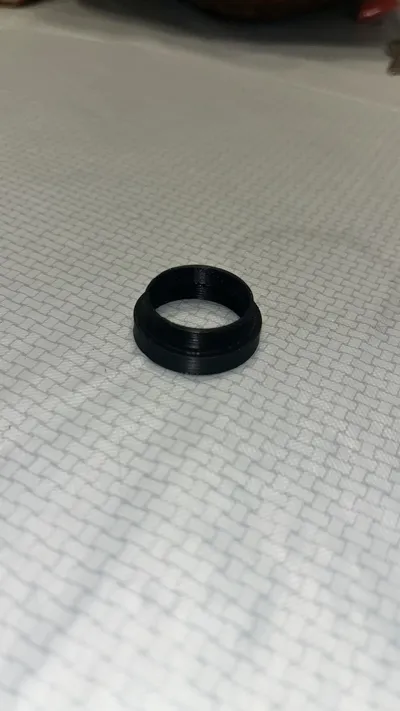

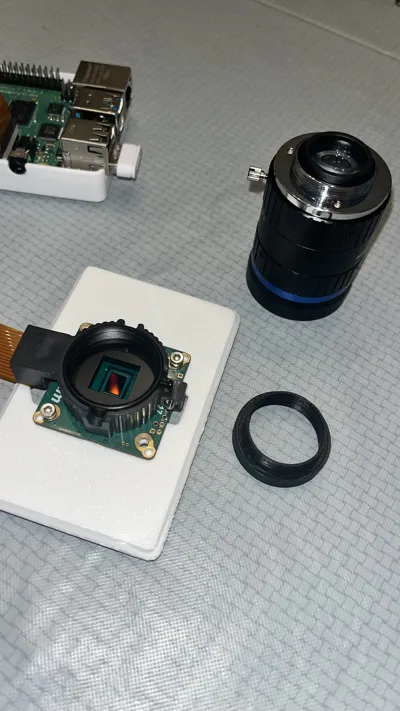

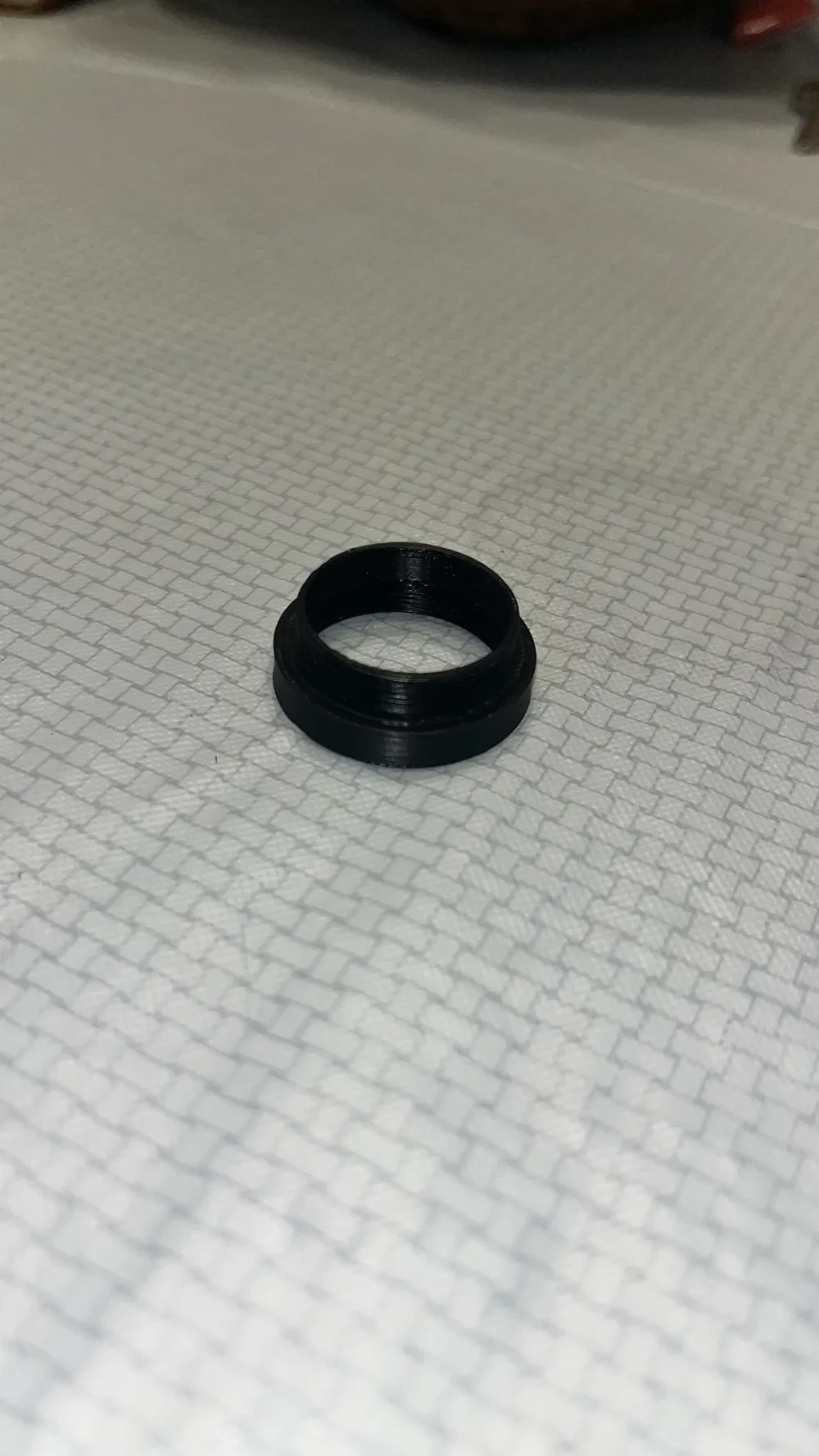

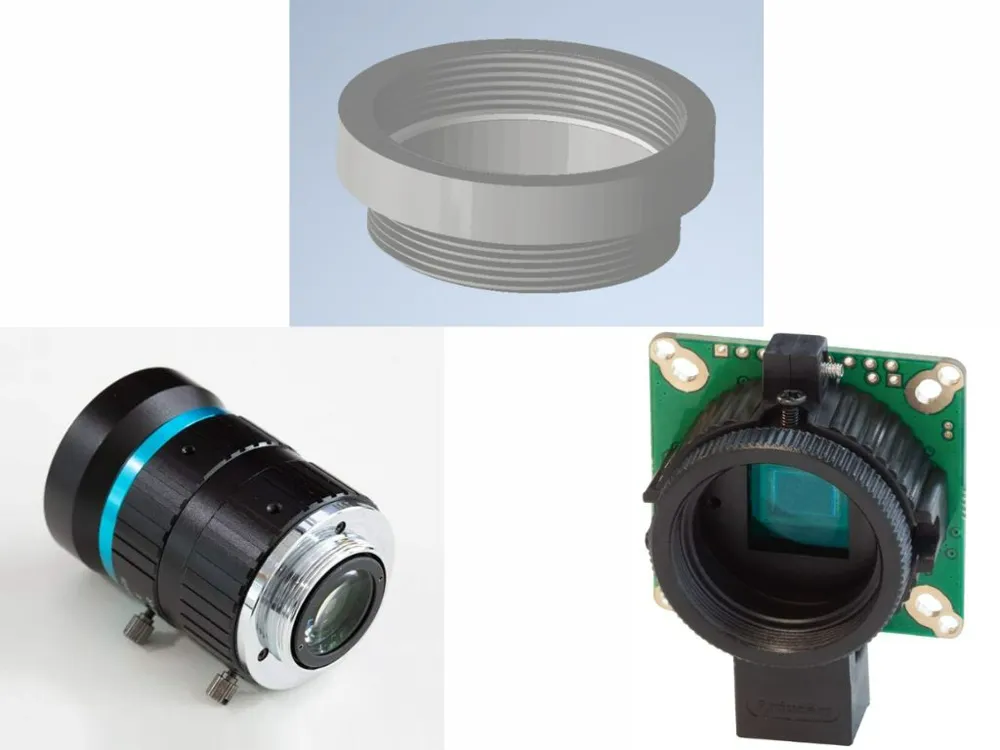

This is a precisely threaded adapter ring designed to connect the Arducam 12.3MP IMX477 HQ Camera for Raspberry Pi (Pi 4B/3B+/Zero 2W) to a C-mount or CS-mount lens, such as the 16mm manual-focus lens sold with the Arducam kit. The model ensures a secure fit without wobble, saving you the struggle of mismatched threads or shaky mounts.

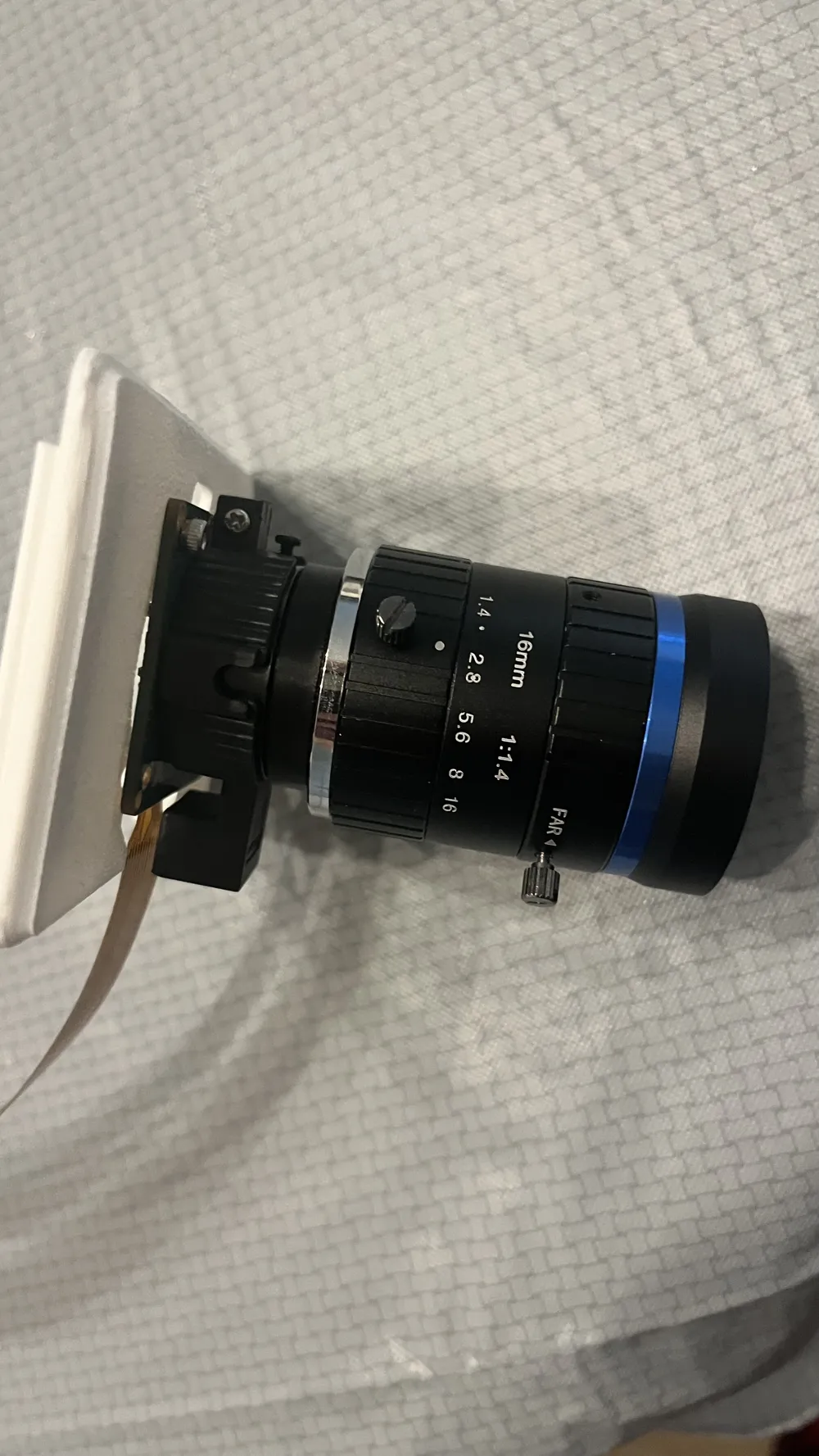

I made this after struggling with poor thread alignment — now it fits flush, seats tightly, and allows easy focus adjustment on the Pi camera. Print it, twist it on, and you're ready to shoot.
Please keep orientation of print the same. Based on the criteria of the print, you will have frays INSIDE the print. Simply pull on them and you are good to go.
Materials:
Arducam for Raspberry Pi HQ Camera: https://rebrand.ly/c1070b
Arducam C-Mount Lens 16mm: https://rebrand.ly/d28ccc
Raspberry Pi 4 4GB Basic Kit: https://rebrand.ly/ea8f21
Filament: Use black; any other color could possibly distort picture quality.
