Glidebait V2
Print Profile(3)
Bill of Materials
Description

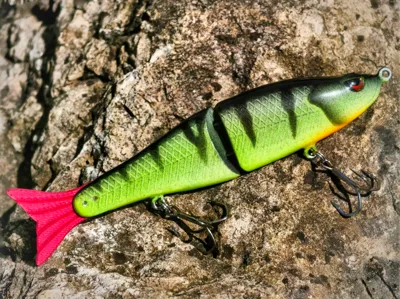

Easy to print and build glidebait. 10 minute build time and great action! Build in air chambers.
At 100% scale the lure is 145mm long with 36g.
Boost Me (for free)
If you like my work, i would appreciate a boost ;)
What you need:
-5 stainless steel screwed eyes M2
EU: https://lureparts.nl/de/produkt/16-mm-schraubosen-aus-edelstahl/
US: https://www.lurepartsonline.com/Stainless-Screw-Eyes?quantity=1&custcol_other_style=9&custcol11=308 (3/4" .062" wire)
-1.2mm stainless spring steel wire
-superglue
-8mm sticker eye (cut in half)
-4x 2g lead balls https://tinylink.net/zJ3Lu
How to build:
-put the lead balls into the holes and fill them with epoxy
-add some super glue to the threads and screw in the 5 eyelets (us screws need to be shortened)
-don´t screw the eyelets on the joint all the way in. leave about 4mm
-use the 1.2mm wire to join the 2 parts and the fin to the tail
NOTE: These stencils have many and extreme overhangs, and removing the support is difficult, time-consuming, and requires sanding. If that's not worth it to you, you shouldn't print them!
