Desktop Pet Enclosure (Compatible with Sngels_wyh's STM32 Smart Desktop Pet v1.1)
Print Profile(1)
Description
Introduction

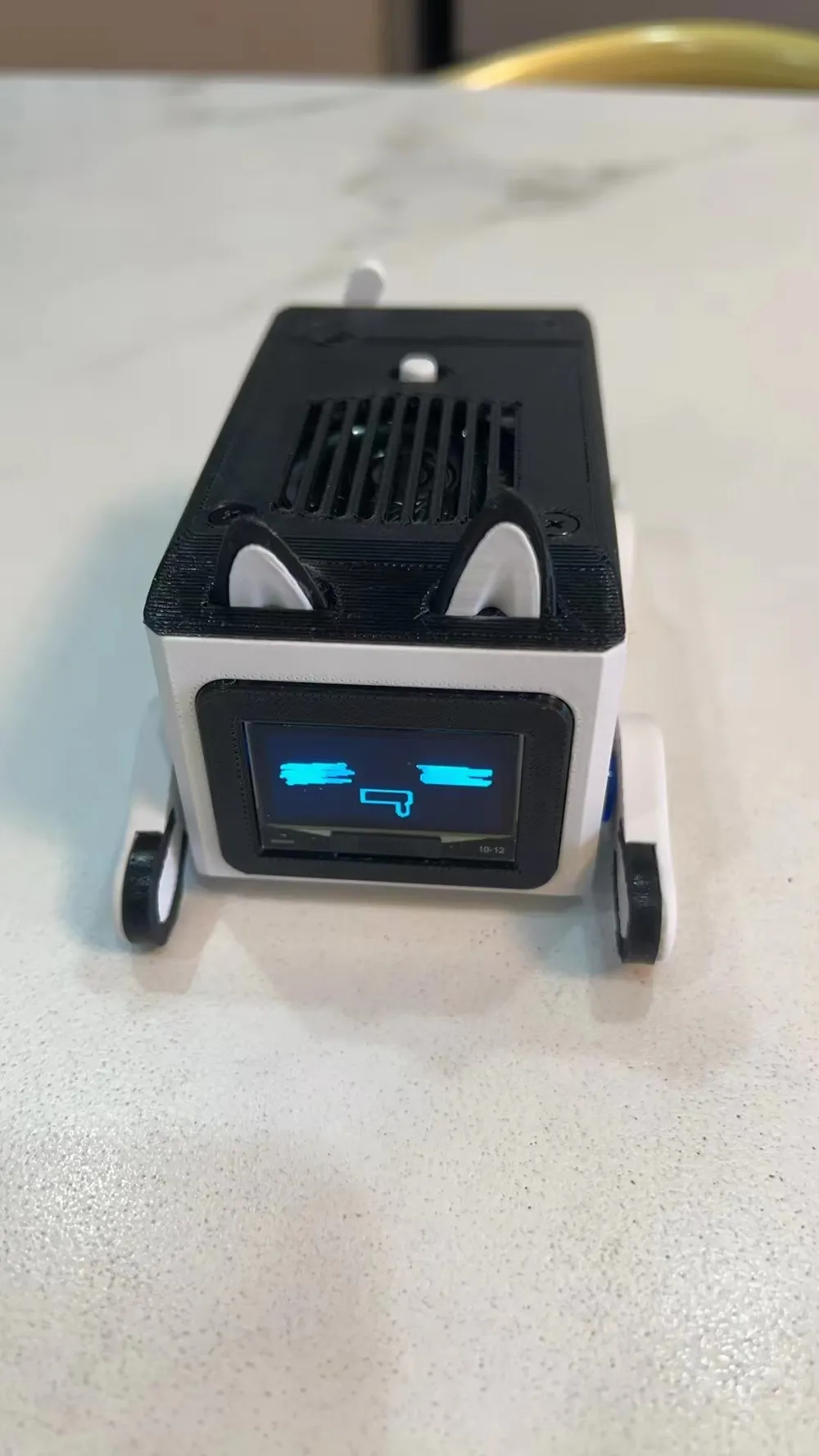

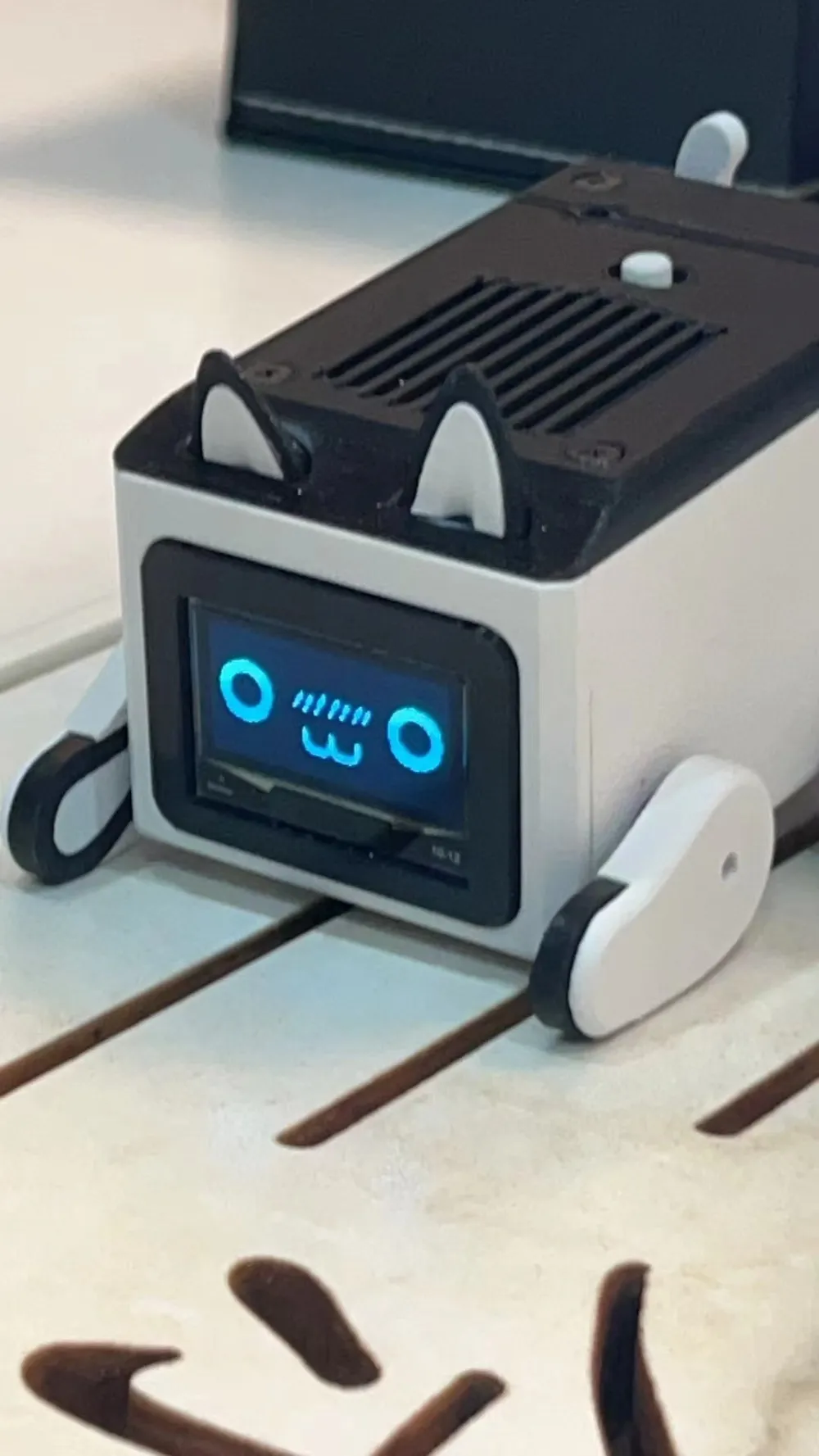

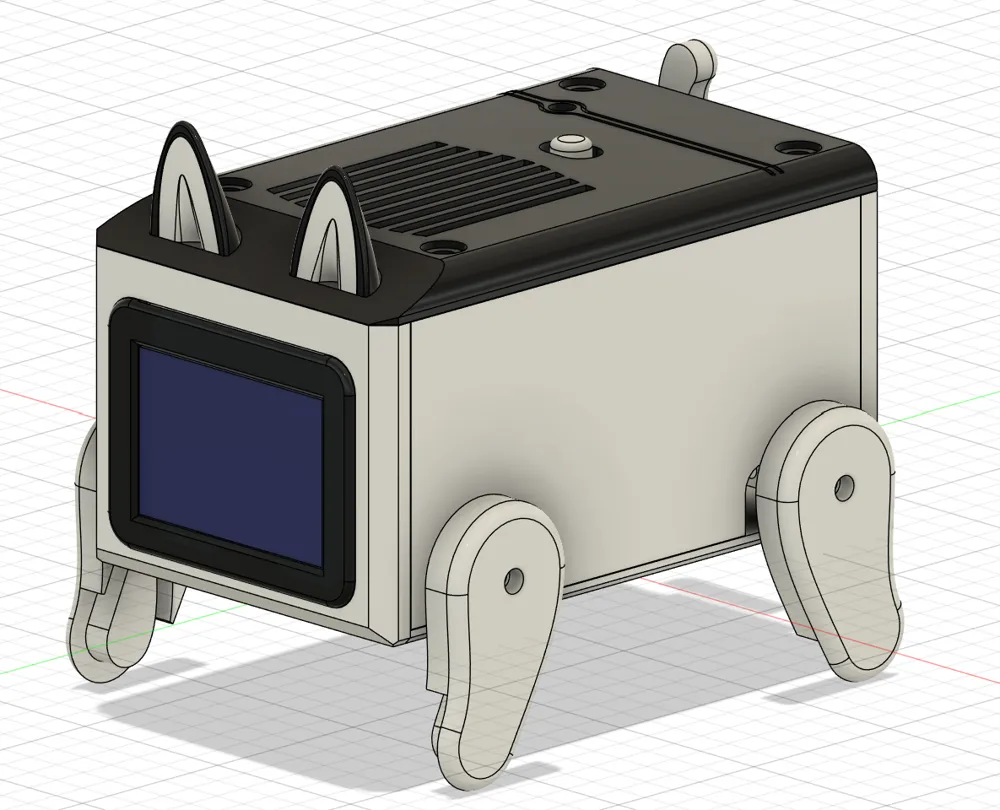

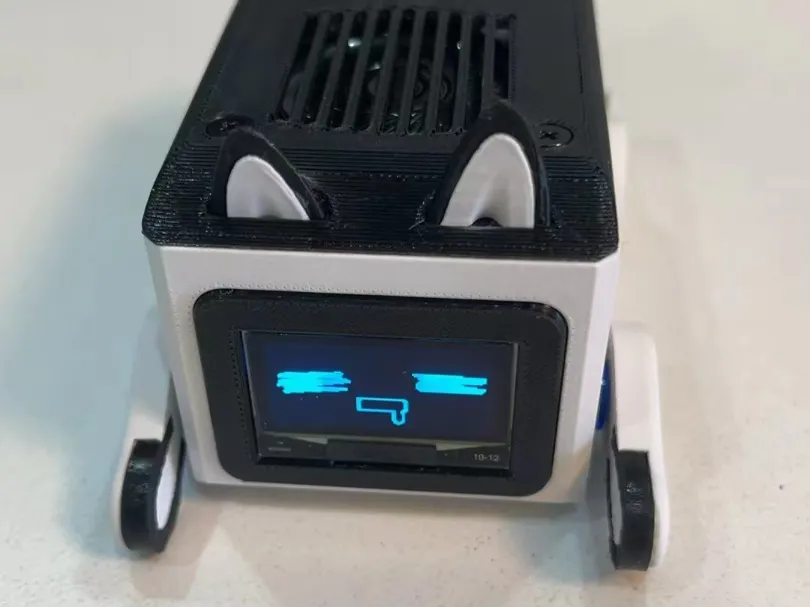

A husky-style enclosure has been created.
Installation issues may arise due to the use of different kits. The links to the kits I purchased are attached below for your reference.
Due to a lack of debugging skills, the model's legs were lengthened without adaptation, resulting in an unsmooth gait.
Welding tolerances are reserved for the switch hole and charging port.
Printing
Any material can be used; I used a mix of PETG and PLA due to availability.
Due to issues with the Cura software, sending the print file sometimes fails, the problem being with the ears (this can be solved by printing the ear models separately).
To ensure a smooth top surface, more supports need to be removed from the black top cover.
Installation

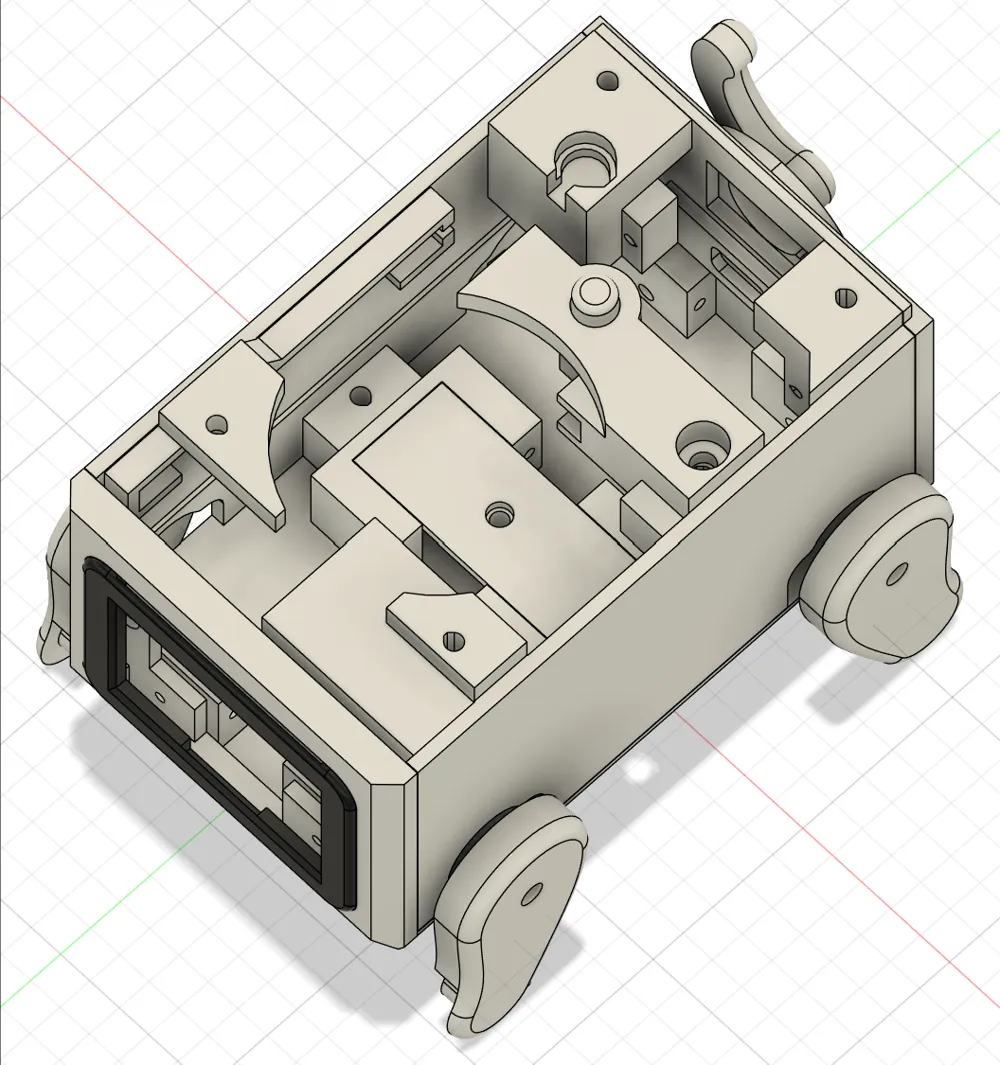

The model's structure is simple; anyone capable of soldering circuit boards should be able to install it, hence no installation video is provided.
It's advisable to shorten the servo signal wire and create new DuPont headers.
The overall structure is compact, requiring patience during assembly.
Anti-slip strips need to be cut and applied to the limbs.
Accessories
Name | Model | Quantity | Remarks |
Kit | v1.1 | 1 | |
Self-tapping screws | M3*6 | 14 |
|
Other screws | - | - | Included with the servo |
Anti-slip rubber strips | 36*4*3 | 4 | Purchase a whole sheet and cut to size |
