6L80-90 Transmission Turbine Seal Sizer
IP Report
Print Profile(2)
0.2mm layer, 6 walls, 15% infill
Designer
1.4 h
1 plate
0.2mm layer, 6 walls, 25% infill PLA Version
Designer
1.7 h
1 plate
Open in Bambu Studio
Boost
7
24
0
2
39
23
Released
Description
REQUIRED!!!!: YOUR SHRINKAGE MUST BE PROPERLY CALIBRATED FOR DIMENSIONAL ACCURACY!

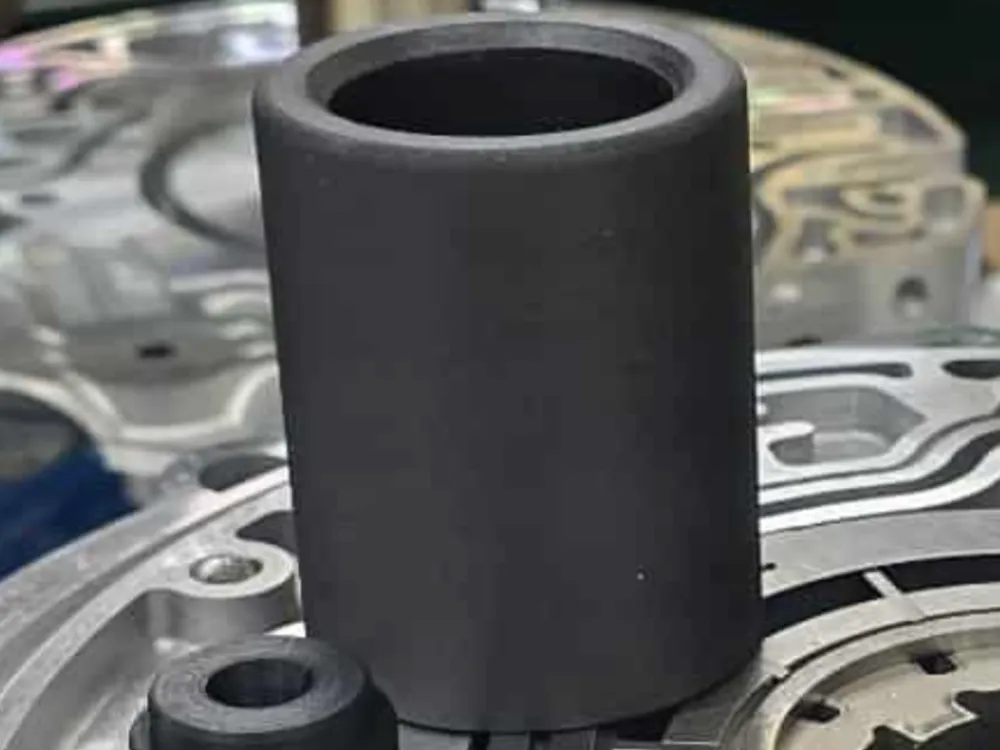

This Specialty Tool is used to properly size your Input seals on the 6L80/90 Transmissions during the rebuild procedure.

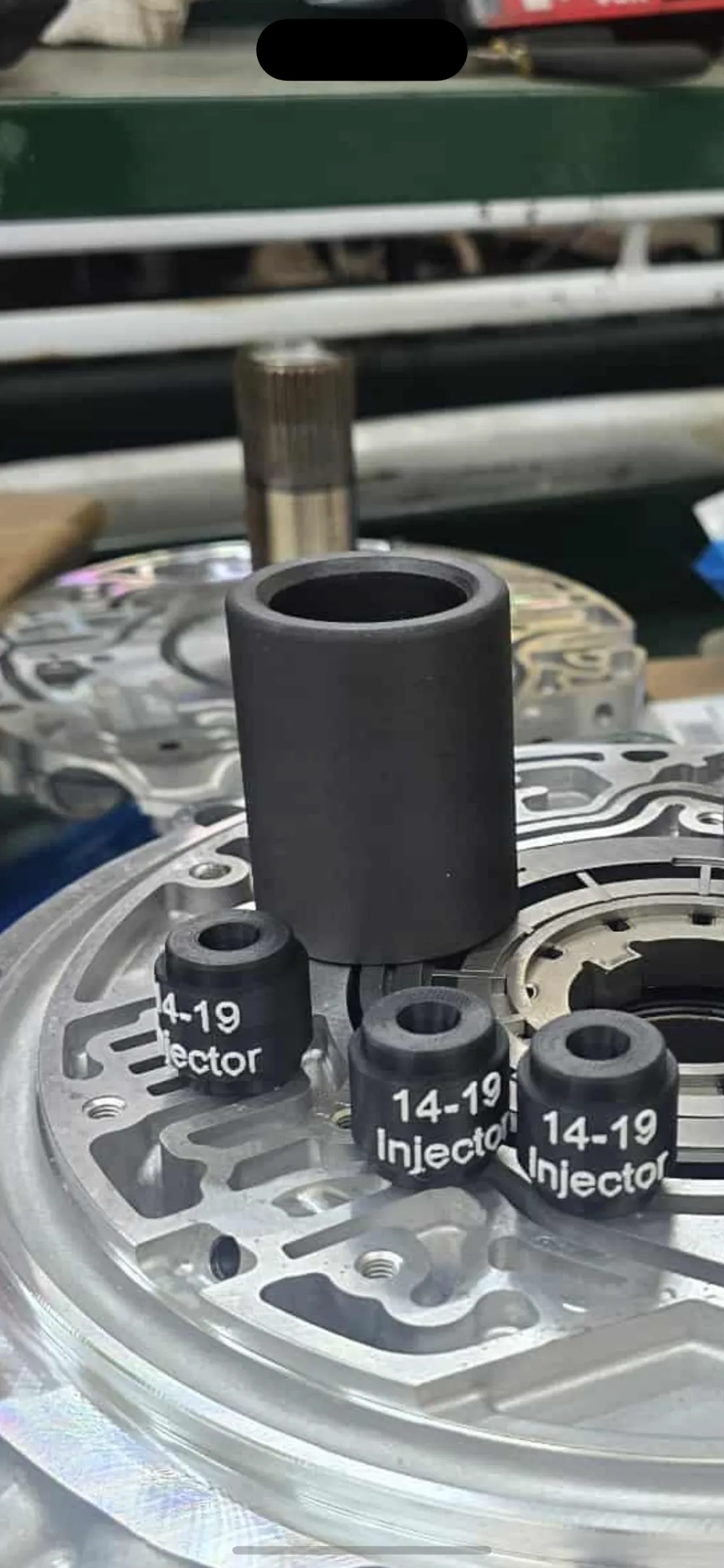

I made mine and many others out of PA6-CF from Polymaker.

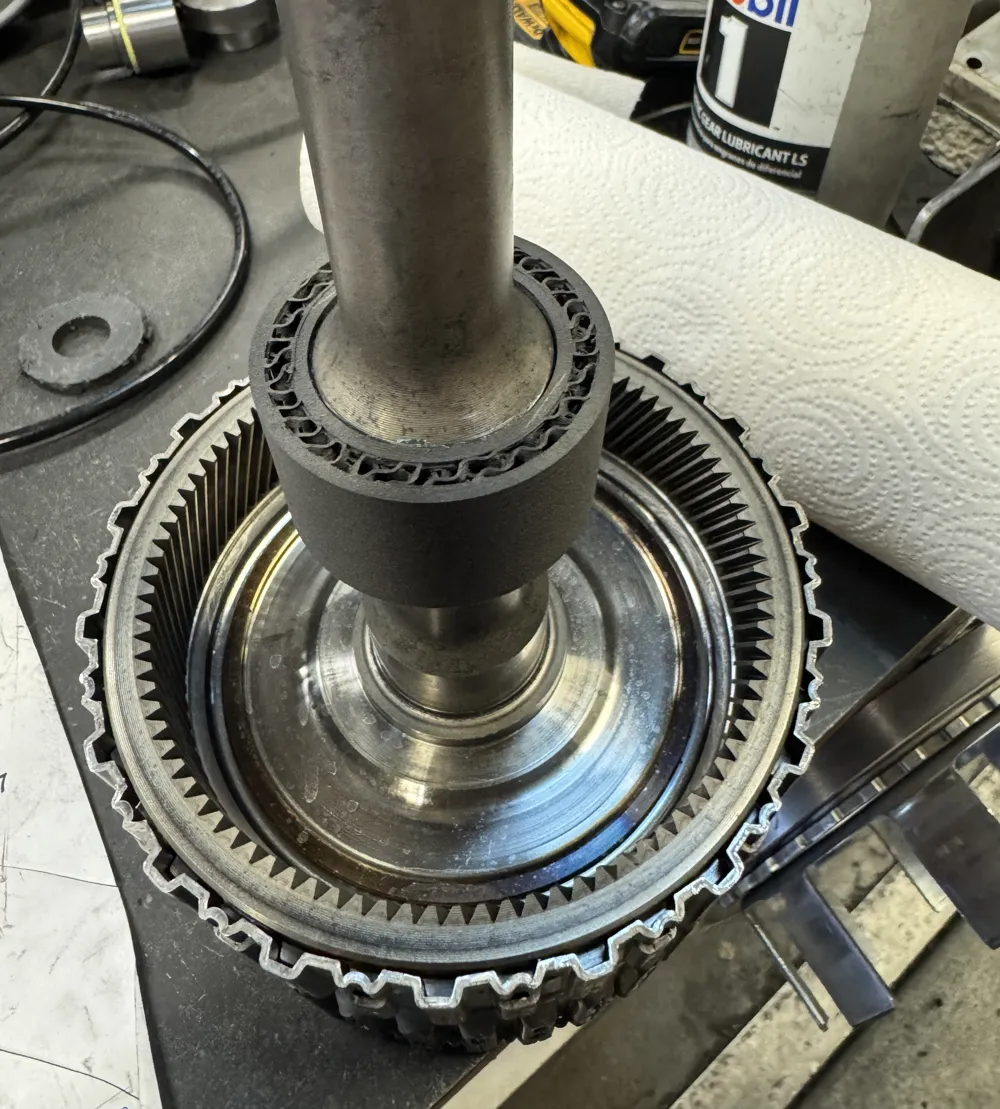

The Side the arrows point to is the side that goes towards the seals. A thin coating of BLUE GREASE (ASSEMBLY GOO) is used on the seal sizer to ensure the sizer slides smoothly and doesn't tear the seals.

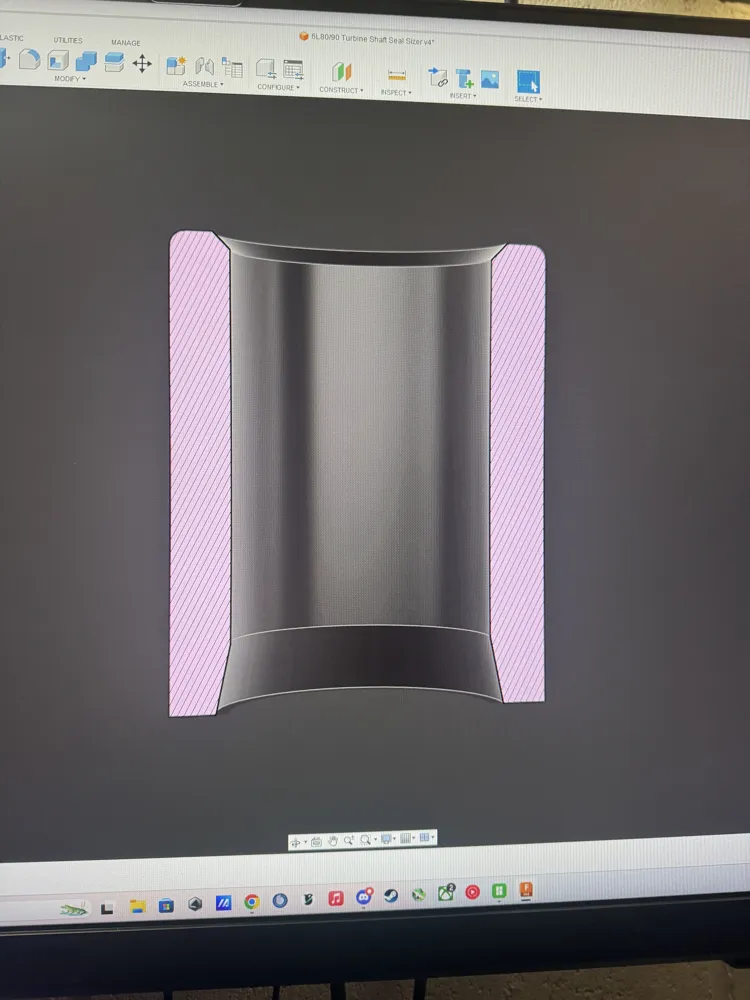

The STEP File is included for ease of modifications.
