Air vent for oblong air conditioner
Print Profile(1)
Description
Hello,

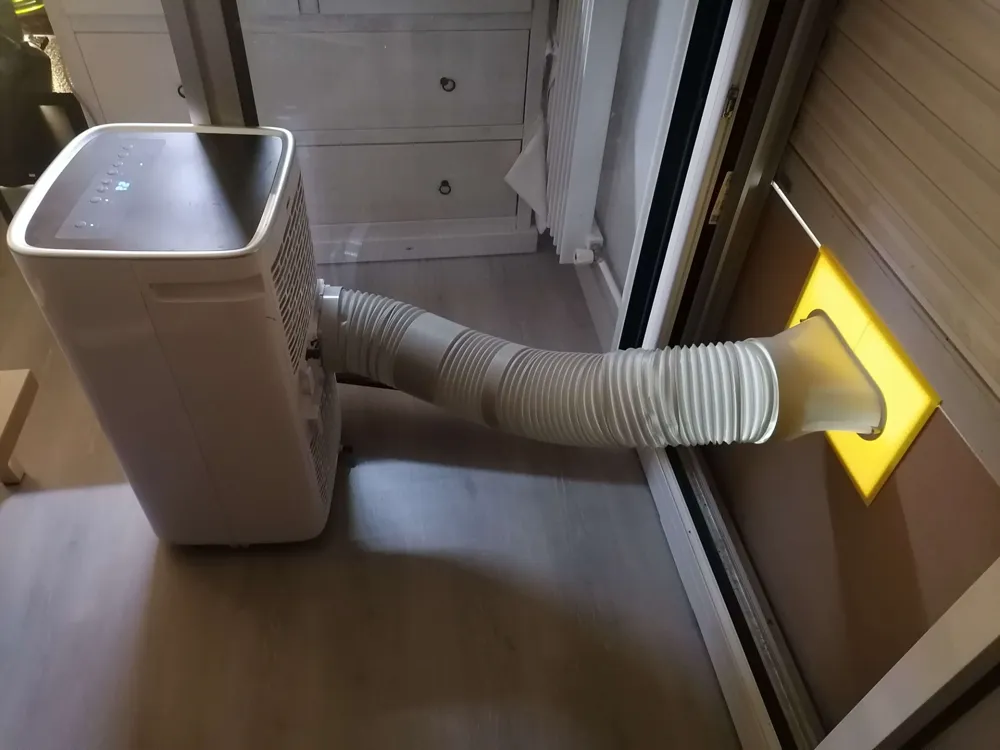

Attached you will find an air vent system for an air conditioner.
It prints in two parts and features slots for sliding in the hose nozzle. A 30 x 20 cm opening is required. For my part, insertion was a little difficult, as the air conditioner hose nozzle was almost too wide, slightly separating the two parts of the printed piece.
Slides are provided on the model: the tubing nozzle inserts directly, requiring no glue or screws.
For the wooden board:
I measured the horizontal opening of the window, then went to Leroy Merlin to purchase the board. I requested a custom cut, both for the board size and for the 30 x 20 cm opening.
⚠️ To avoid any fitting problems, you can request a slightly larger opening: 30.2 x 20.2 cm. This will ease insertion of the piece, but it will no longer be held as firmly.
