Double Reduction Linear Motor
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
4.6 h
3 plates
Open in Bambu Studio
Boost
135
204
2
3
106
28
Released
Bill of Materials
List other parts
- Button Head Screw x 1: M4x16
- Button Head Screw x 1: M3x10
- Button Head Screw x 1: M3x25
- Button Head Screw x 1: M3x6
- Flat Washer x 2: 3mm
- Threaded Rod x 1: M5x200mm
- Hex Nut x 3: M5
- Hex Nut x 1: M4
- Ball Bearing x 2: 3x6x2.5
- Ball Bearing x 2: 5x11x4

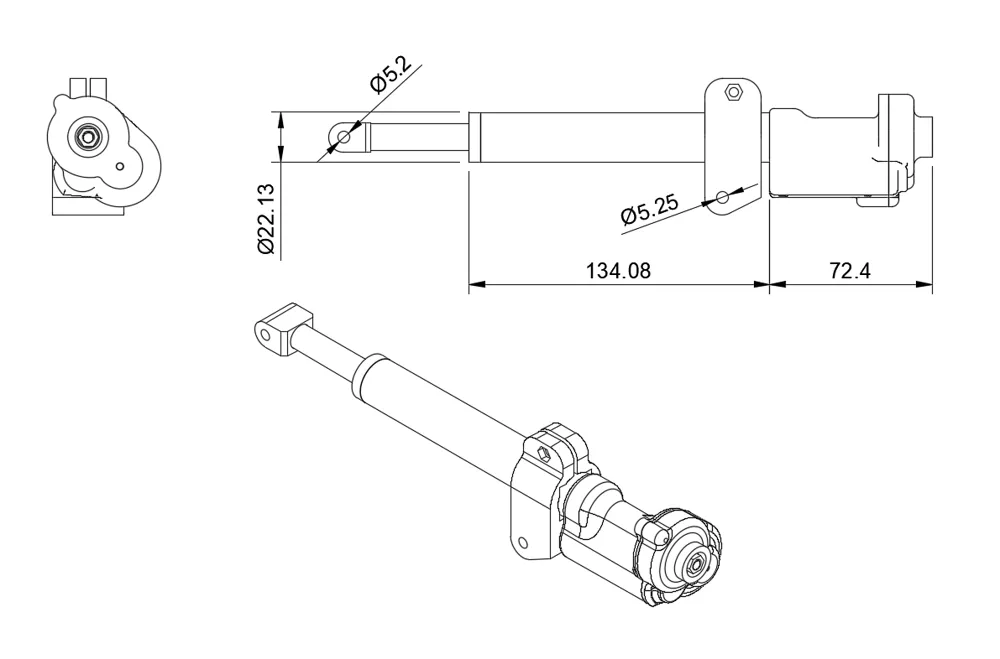

- Motor, Brushed DC x 1: Size 180, See Drawing
Description

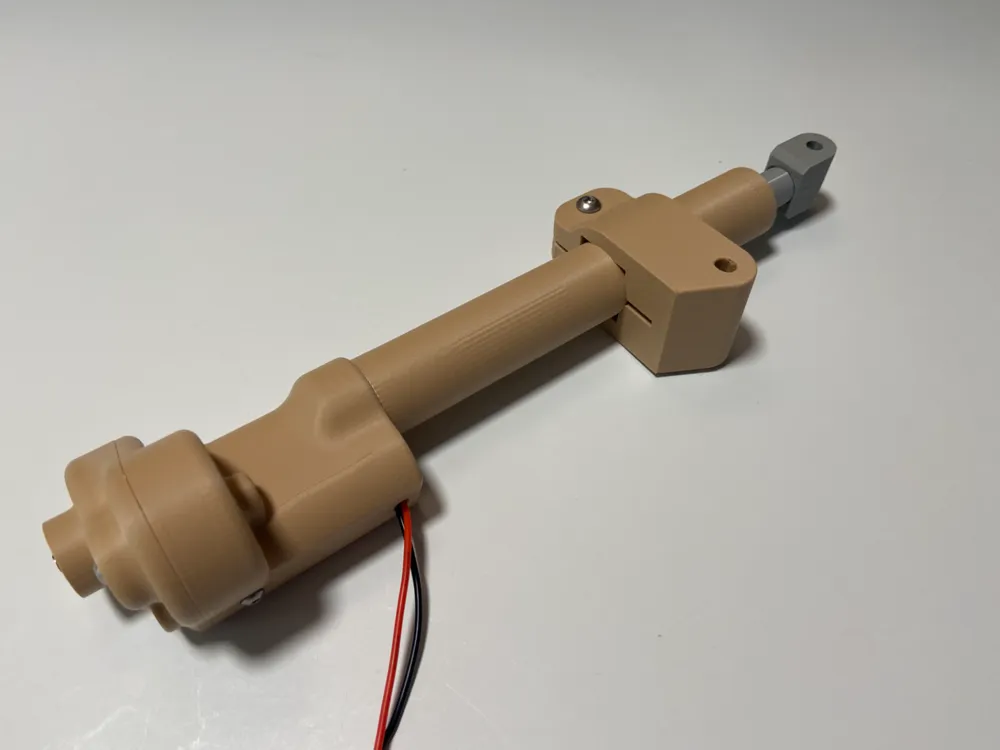

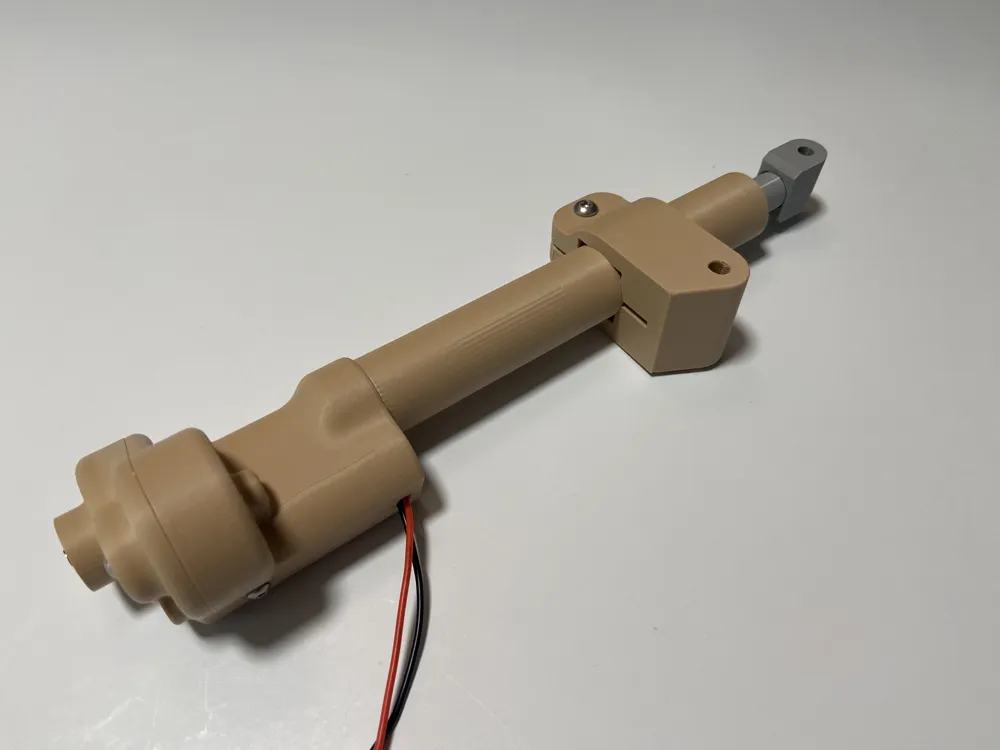

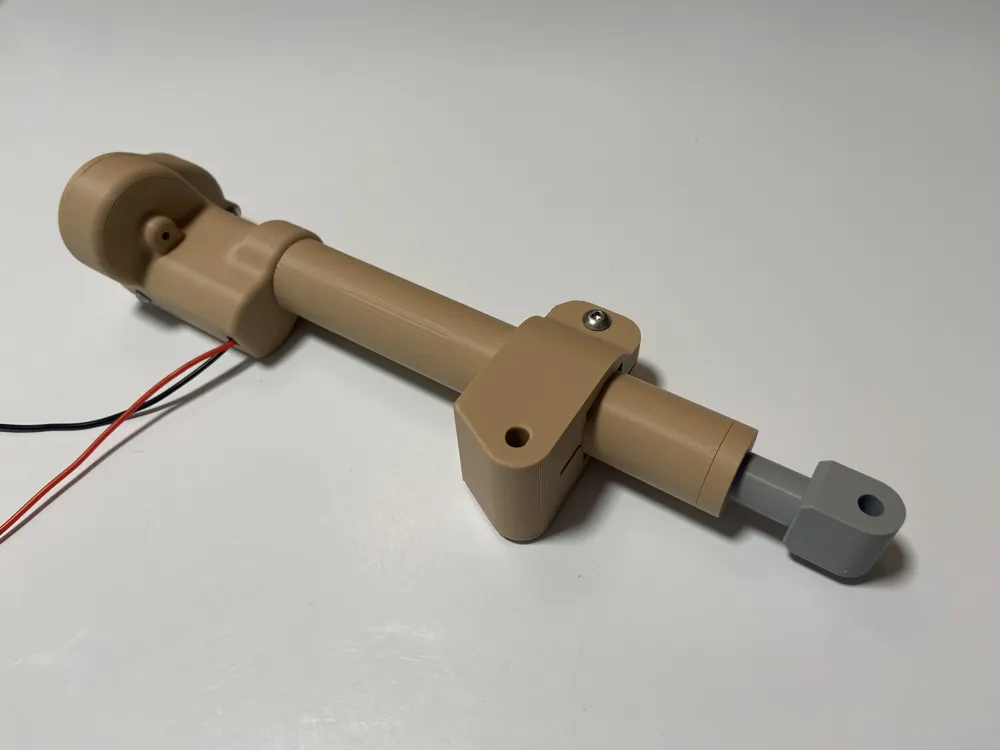

This linear motor uses a brushed size 180 motor of your choice to rotate a standard 5mm threaded rod. See Assembly Instructions for details.
