Miter Jig 90 degree for Ridgid Bandsaw slot, L&R
Print Profile(2)
Description

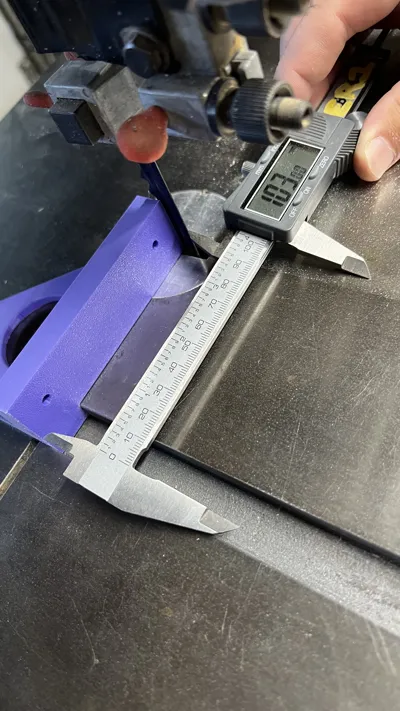

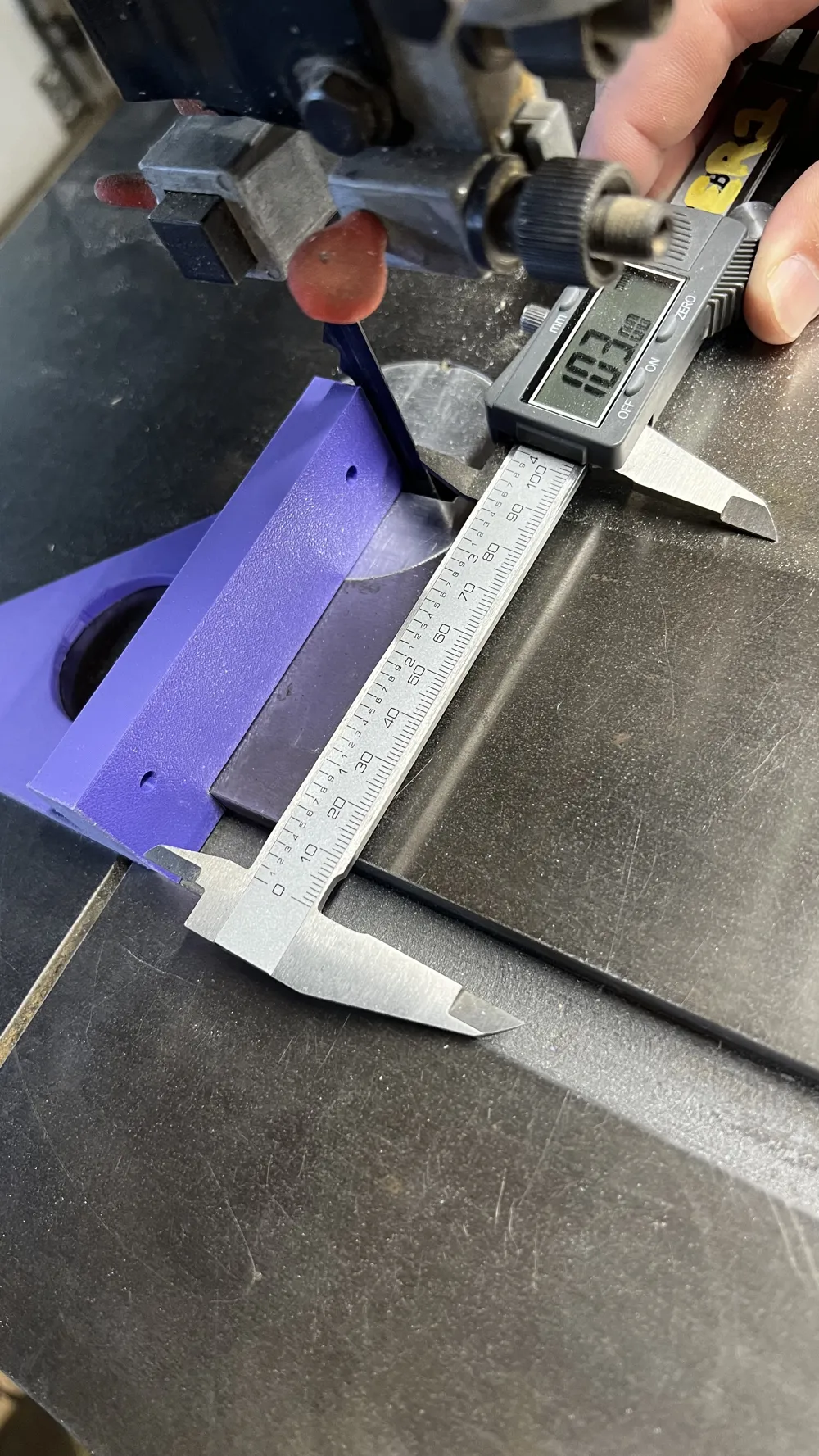

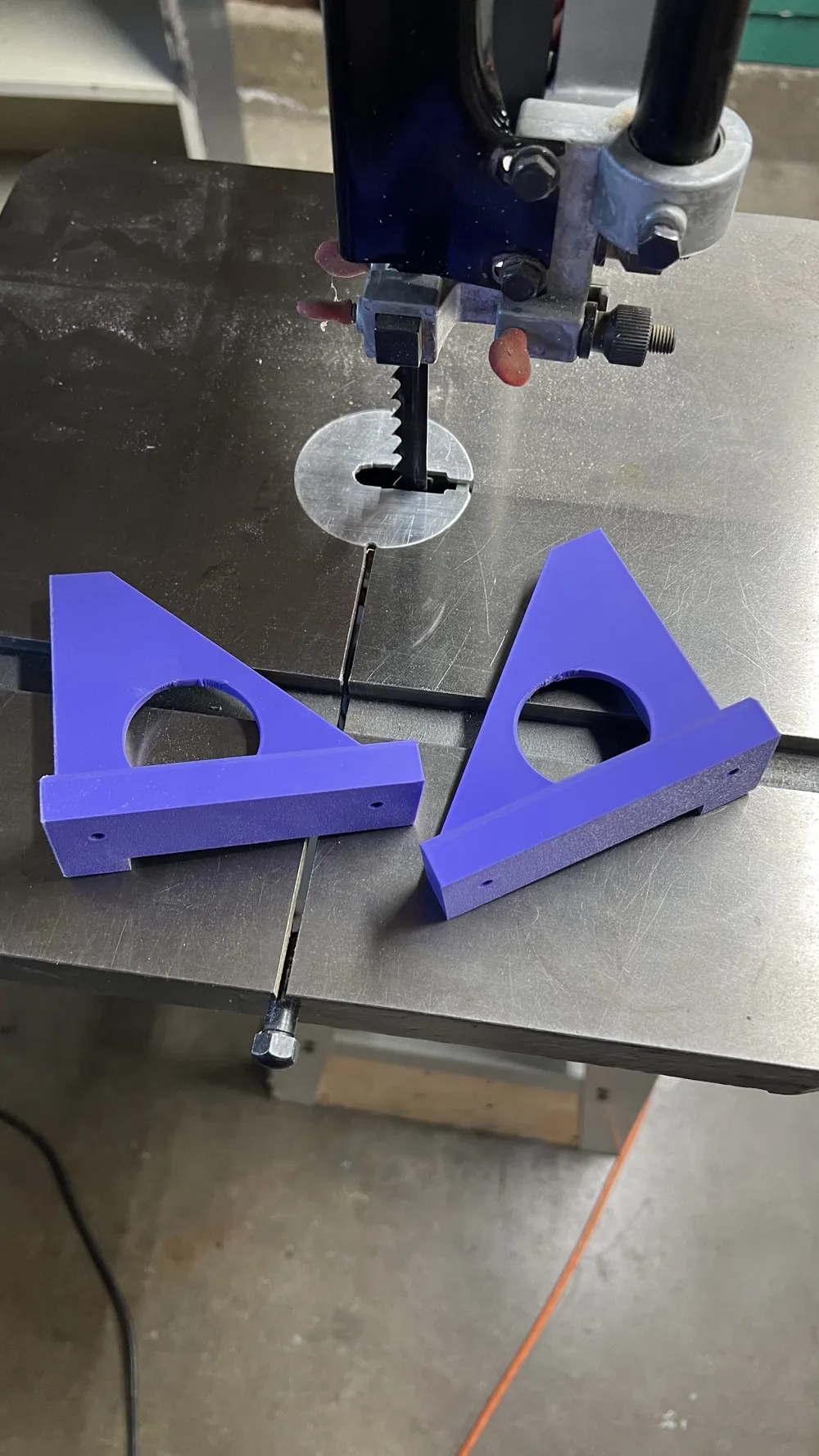

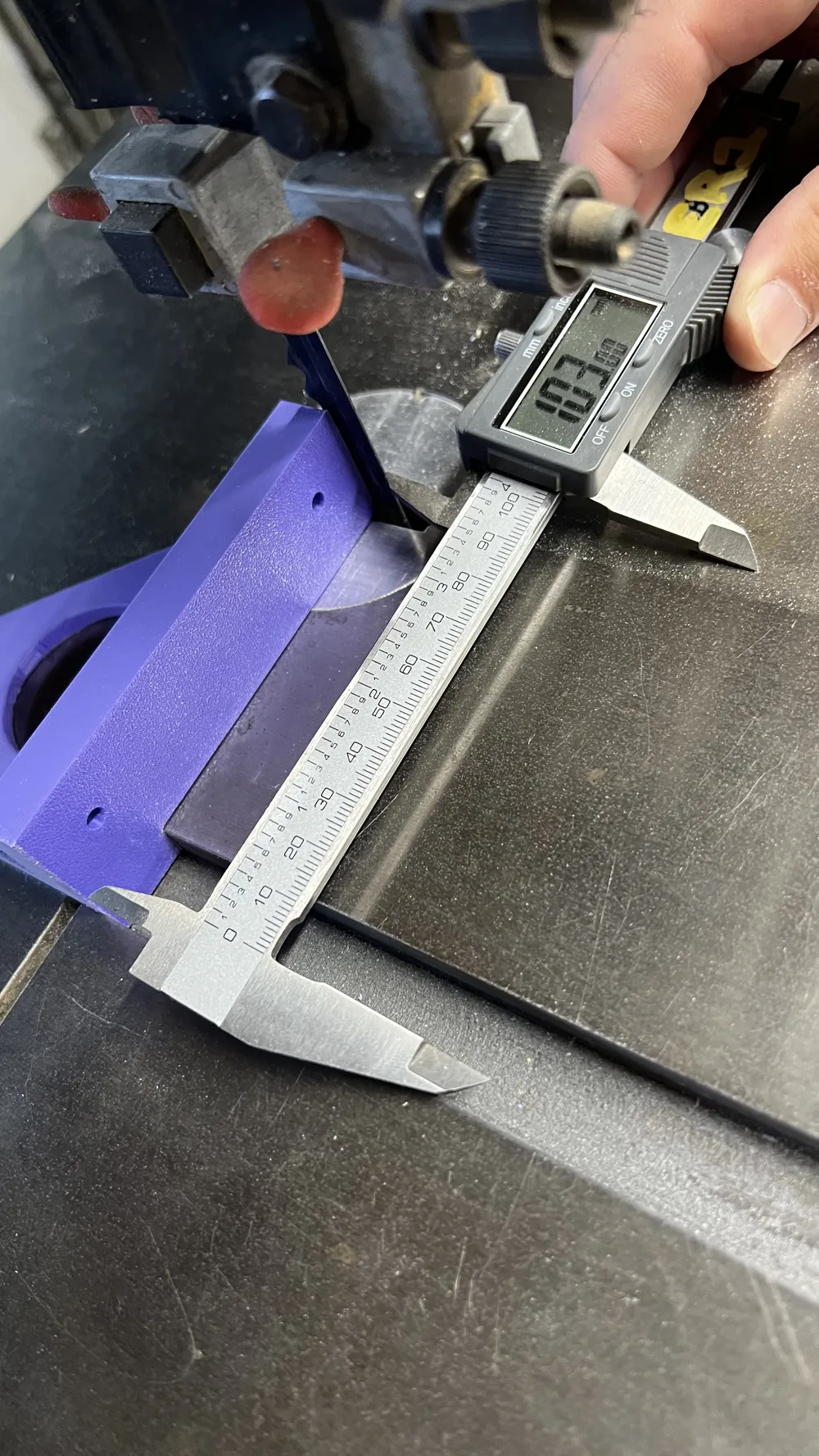

UPDATES- it had been reported to me that this miter jig also works with Jet JWBS-14 bandsaw and Dewalt table saw (model tbd). based on my own experience with dewalt table saw miter slots, I would double check the slot widths with a digital caliper before printing. I have uploaded a second mirrored print profile to use on tools with miter slots on the opposite side. PLEASE double check the orientation before you print.
Description-

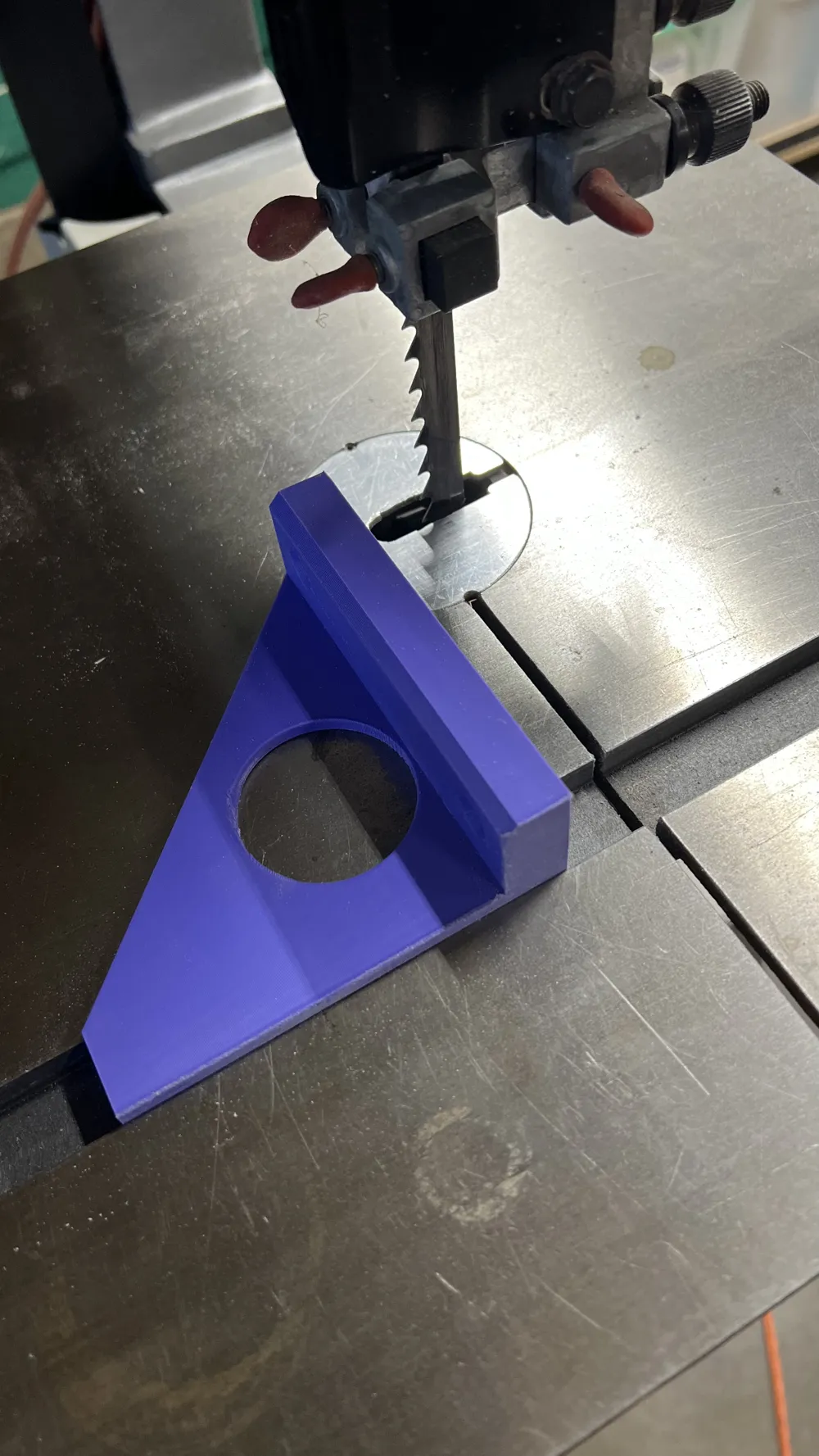

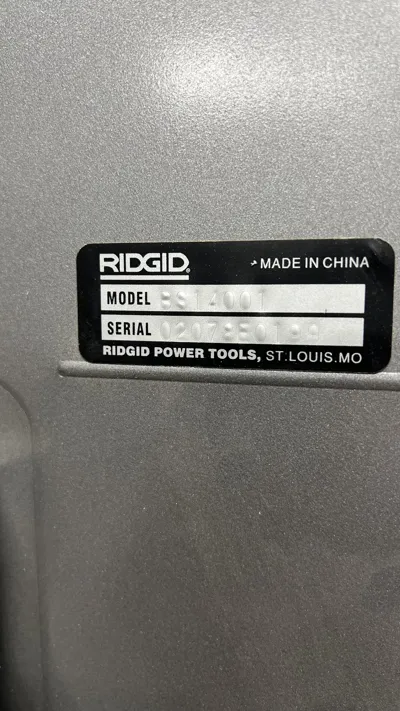

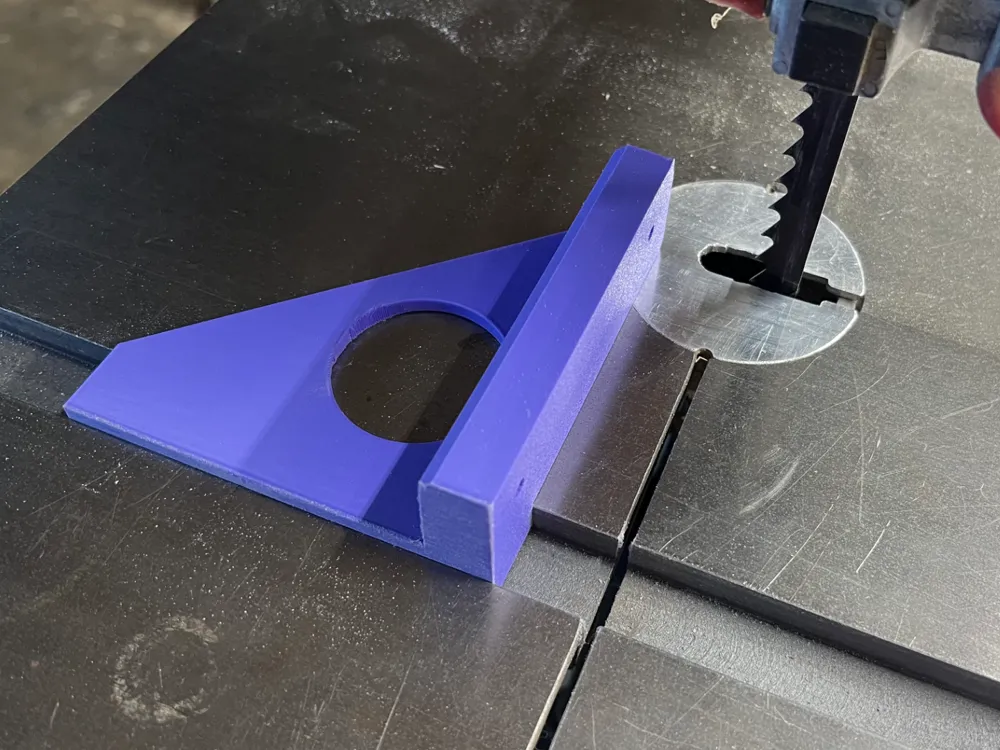

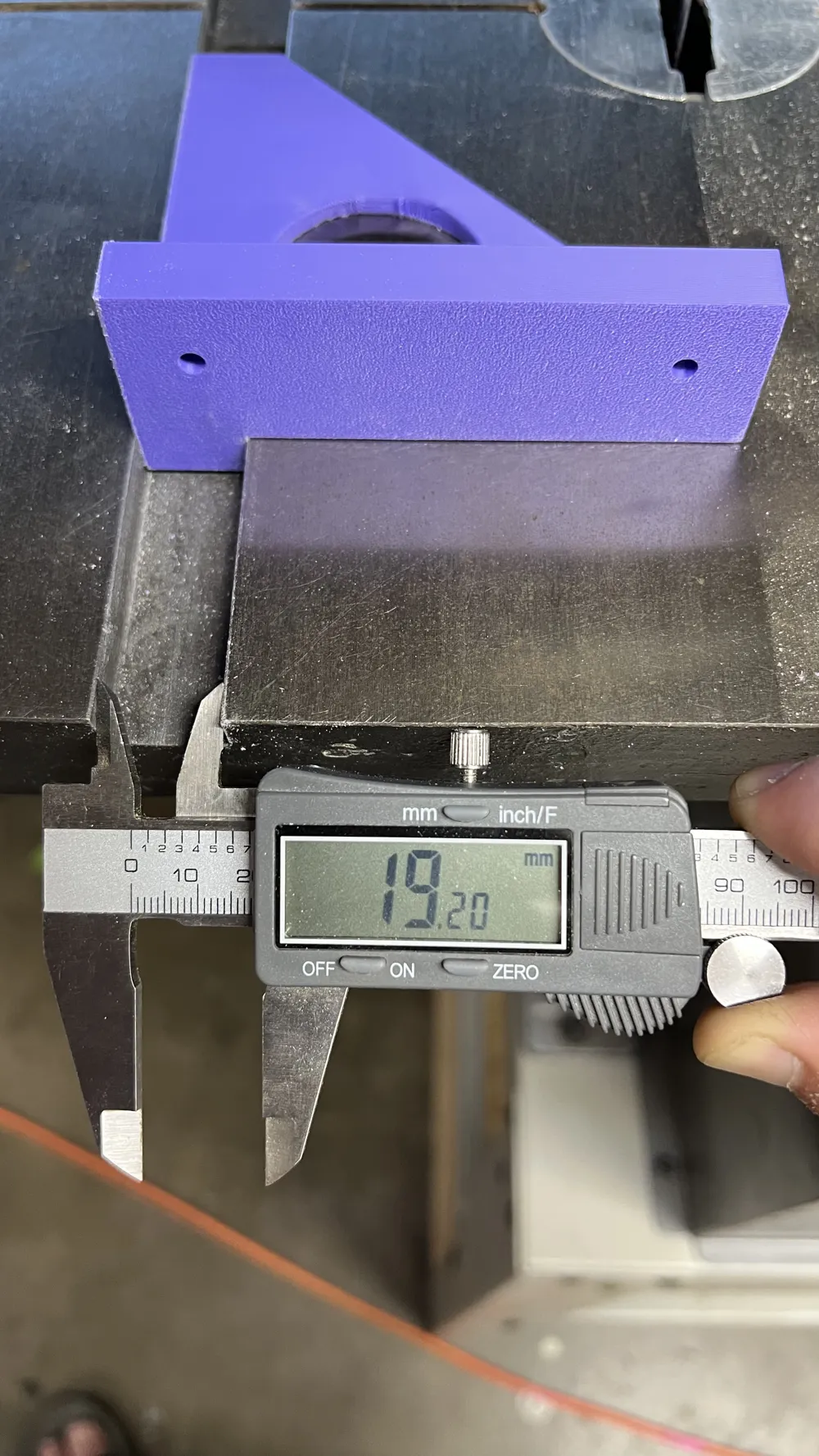

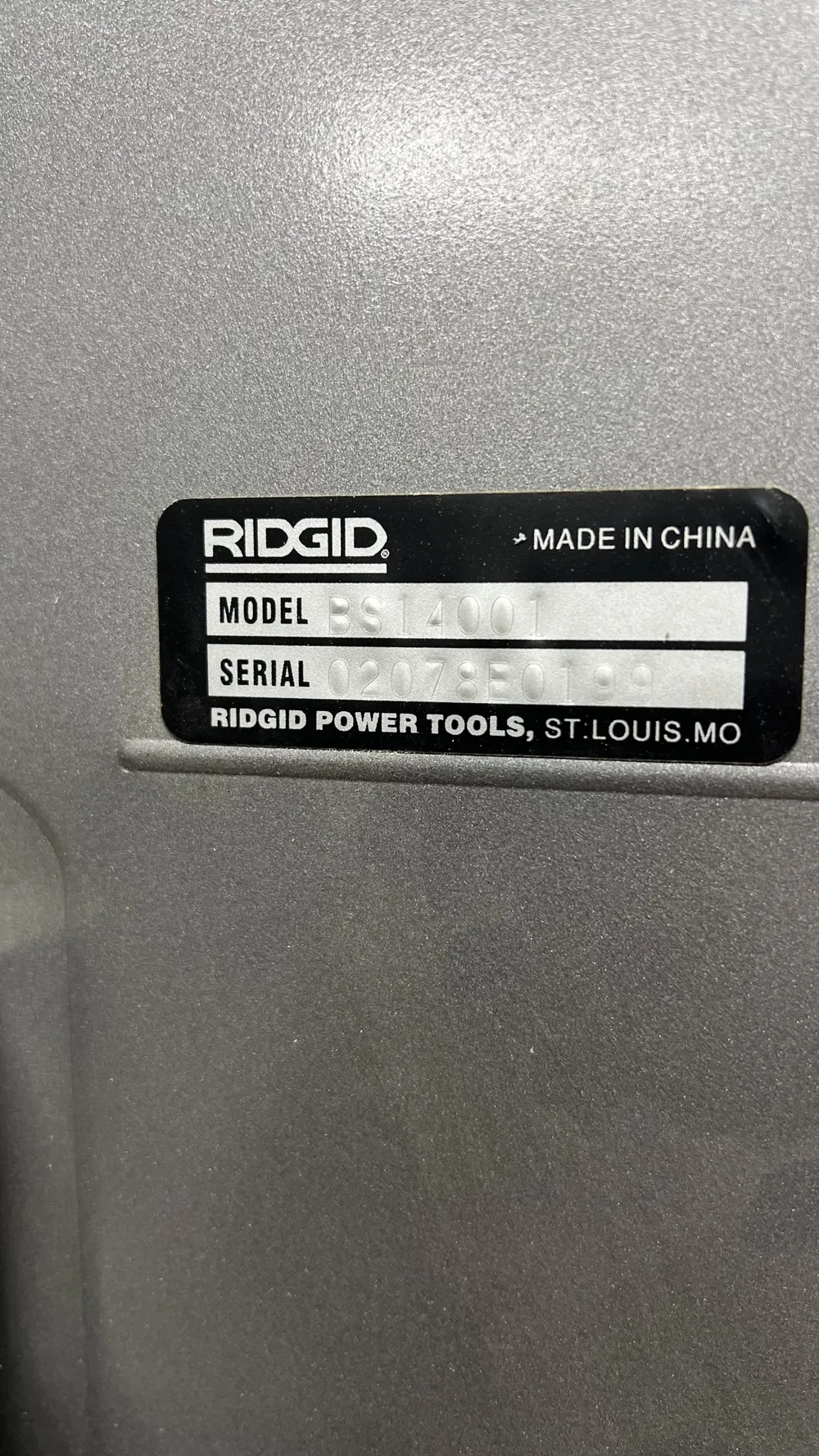

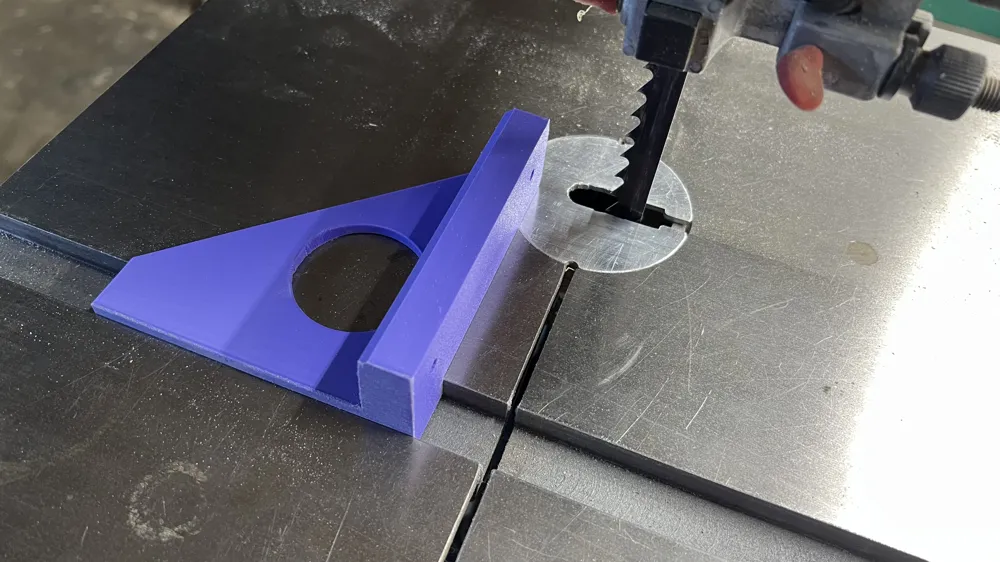

simple miter jig at 90 degrees for my ridgid bs14001 bandsaw. miter bar was made at 19.15mm and needed a little sanding to get it to slide nicely, which is what I wanted for this part so there is no play. face has countersunk holes for #6 screws to attach sacrificial block. if this model is useful to you please give me a five-star rating and a BOOST
Boost Me (for free)
I like boosts for free filament
