Airtight Protective Case for MicroSD, SD, USB
Print Profile(2)
Description
Airtight Protective Case for MicroSD, SD, USB
Features:
Storage for: 8 MicroSD, 5 SD, 4 USB.
Recommended Filament: PETG and TPU for the gasket.
Dimensions: 65mm x 130mm and 28mm wide.
Keychain or pendant can be attached.
ASSEMBLY

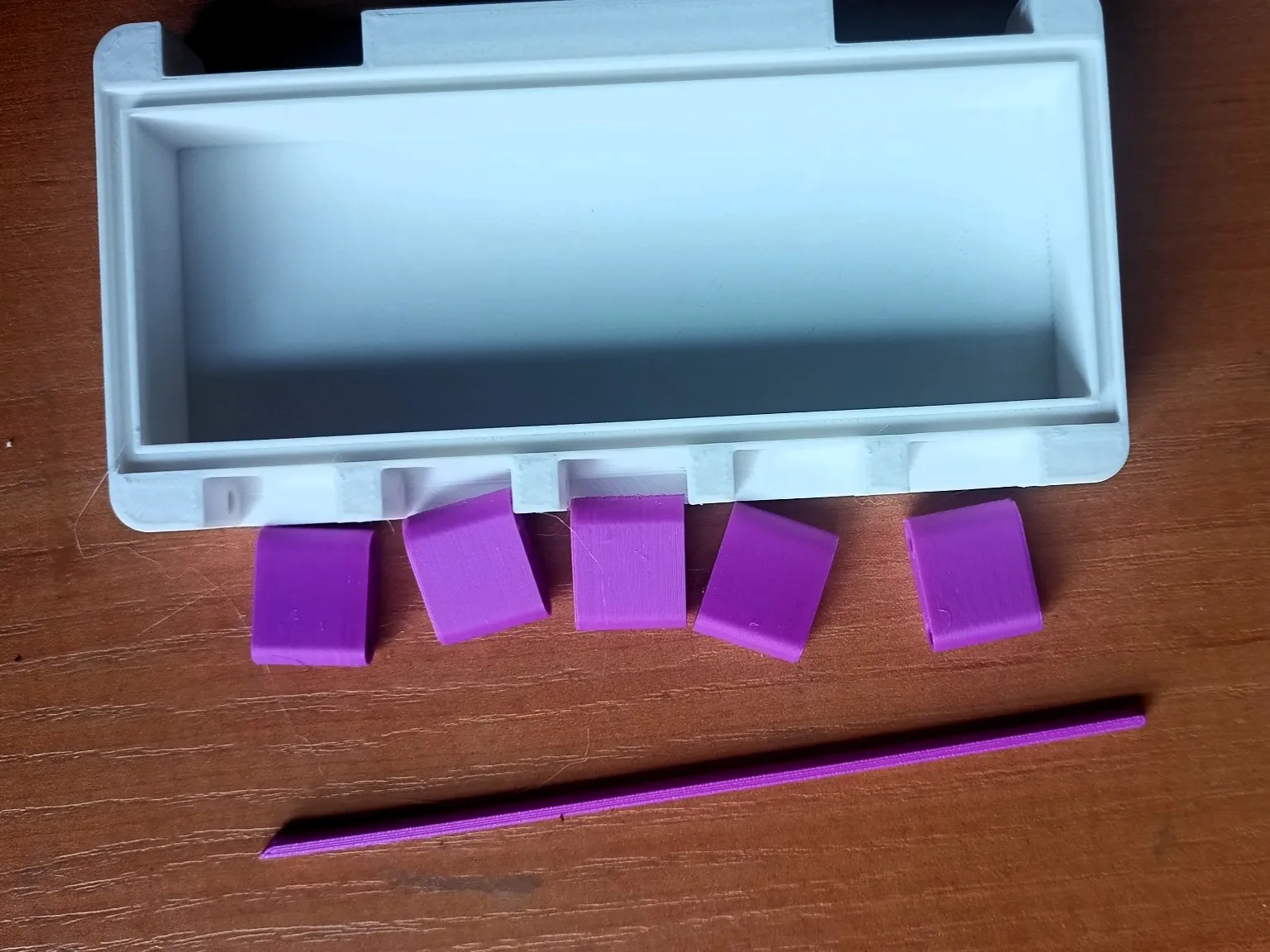

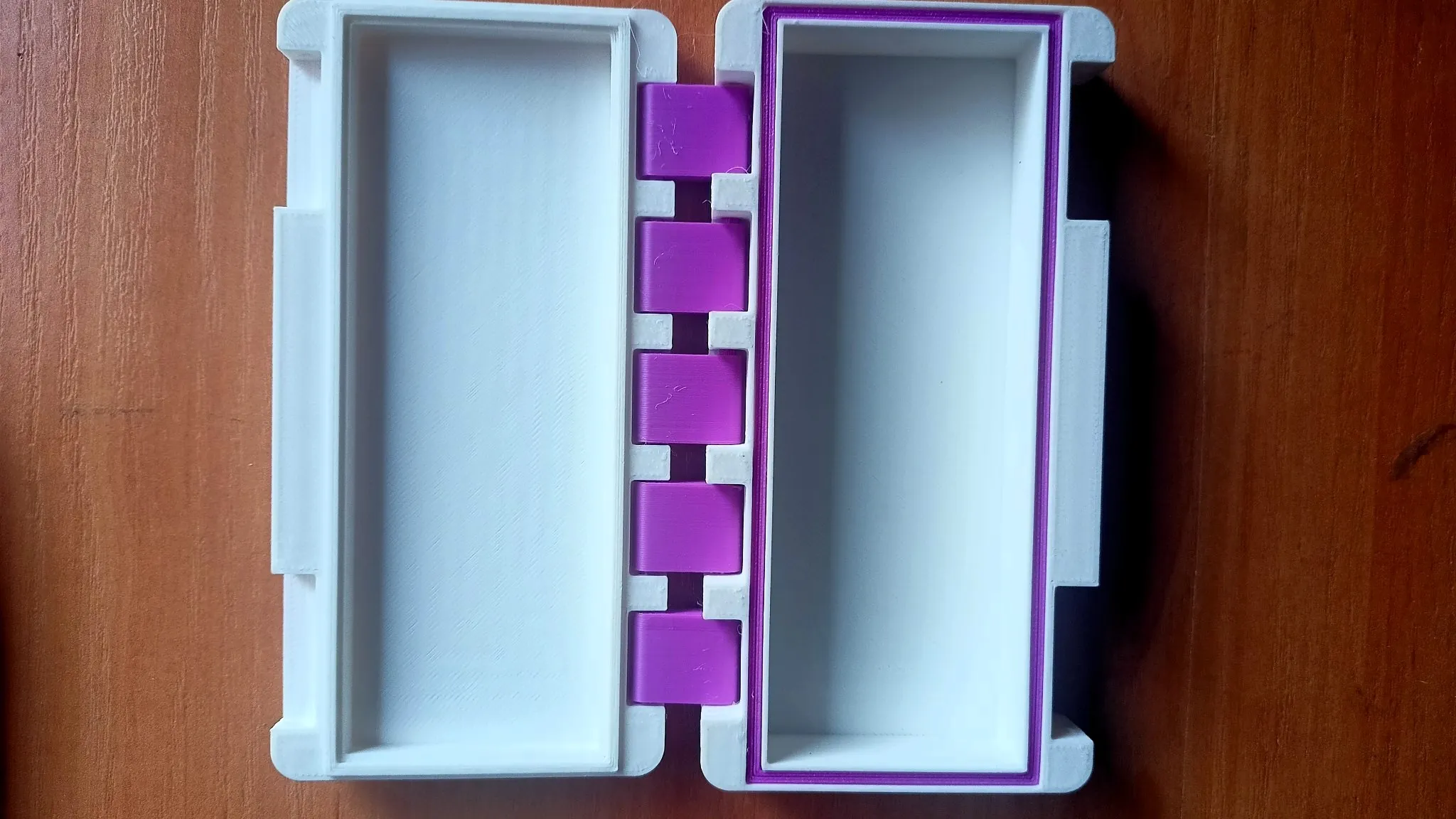

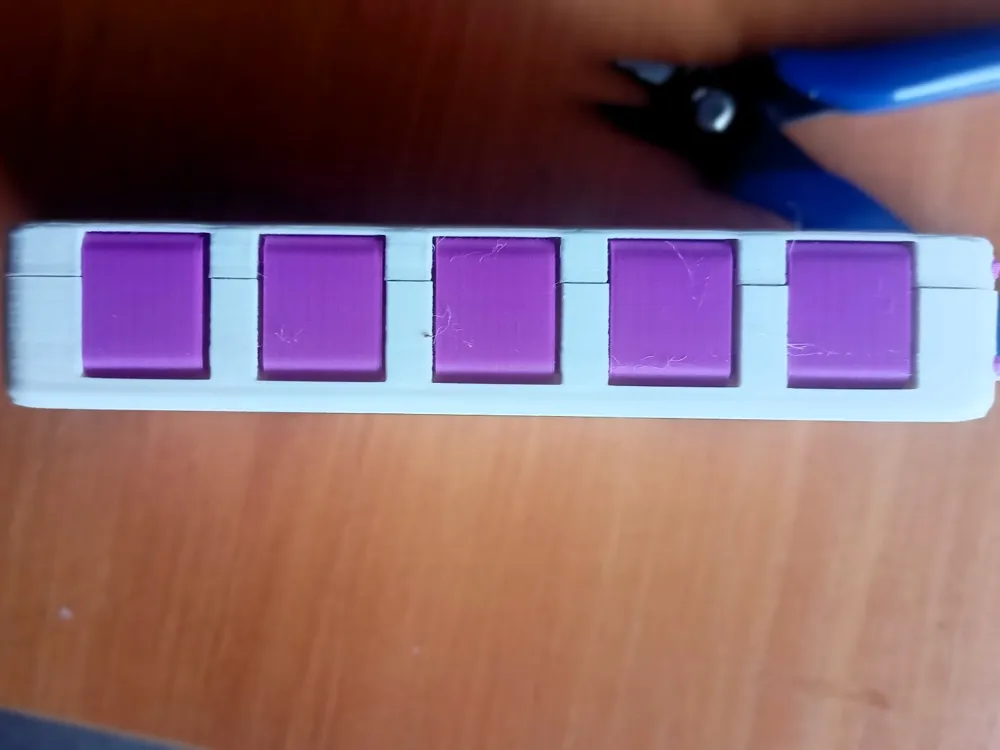

1) Place the 5 hinge parts in the holes of the body

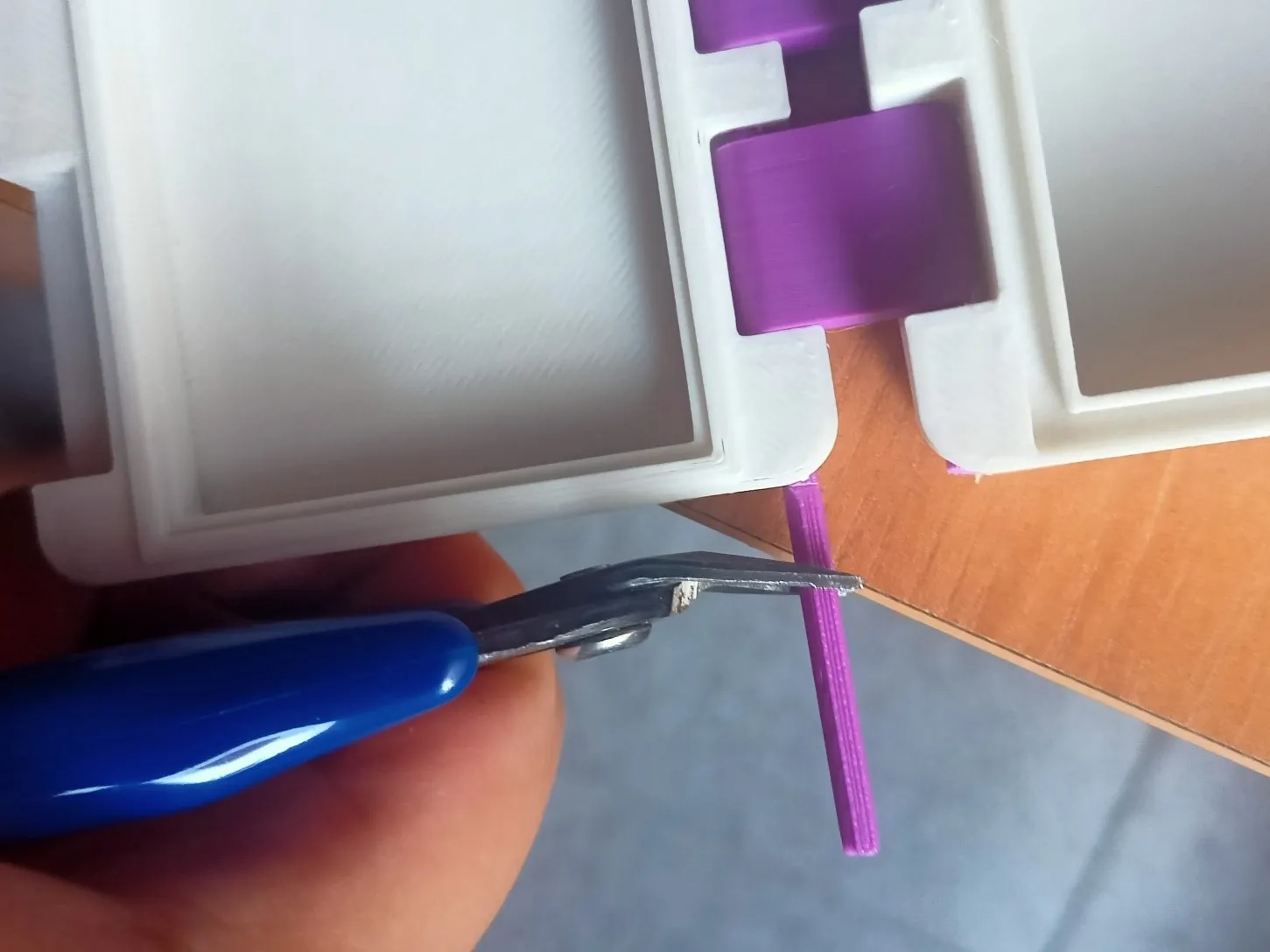

and pass one of the pins through the hole, always passing the tip first.
You can use tweezers to push the pin.
Do the same on the lid.

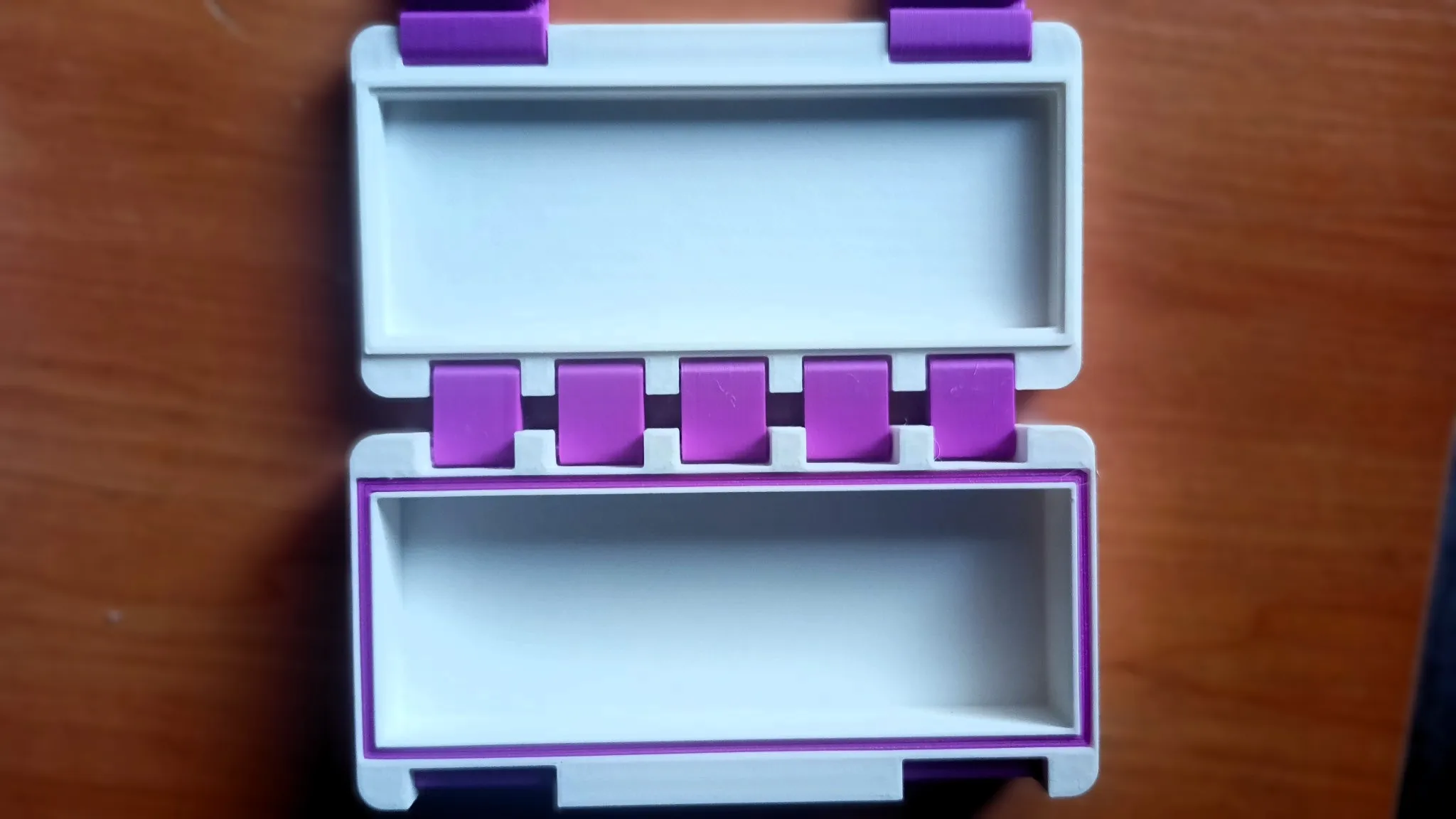

2) Place the gasket in the body recess.

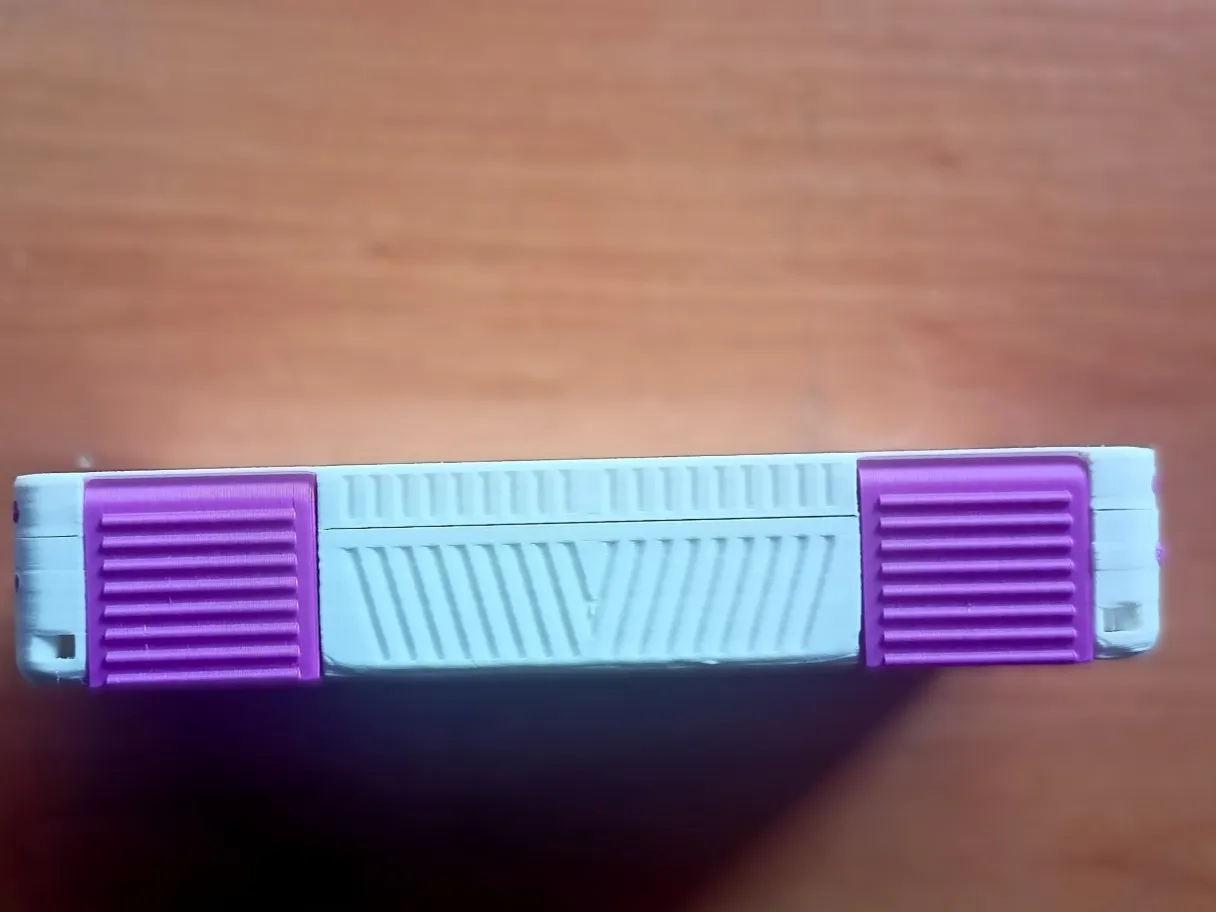

3) Place the latches on the lid with the pins.

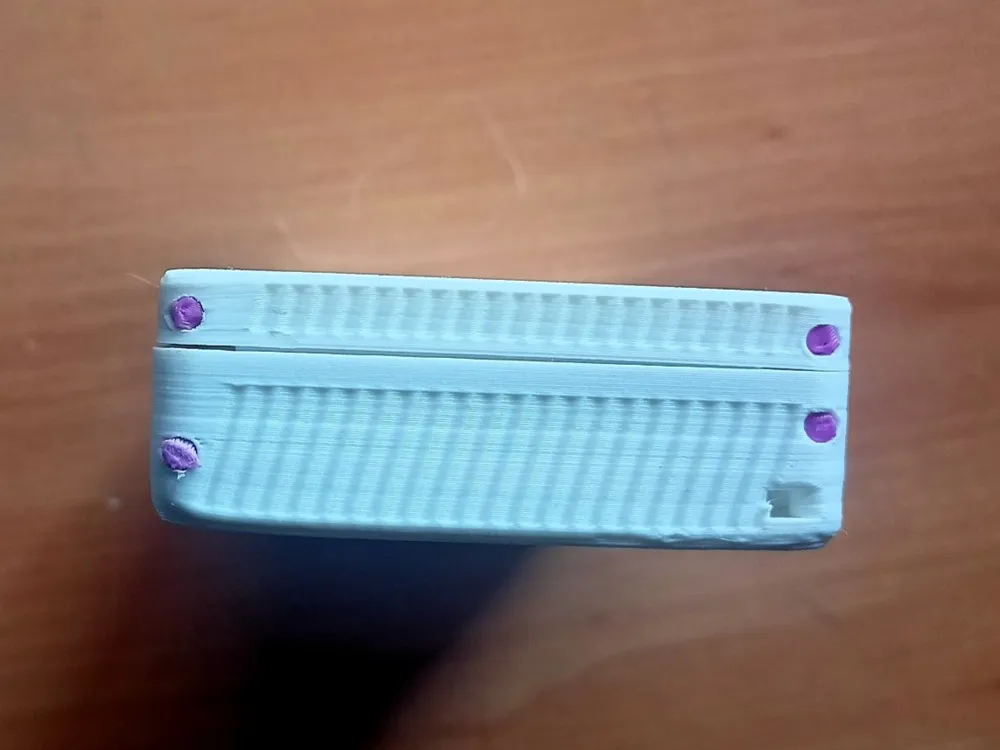

4) Now insert the body pins that will close the box.

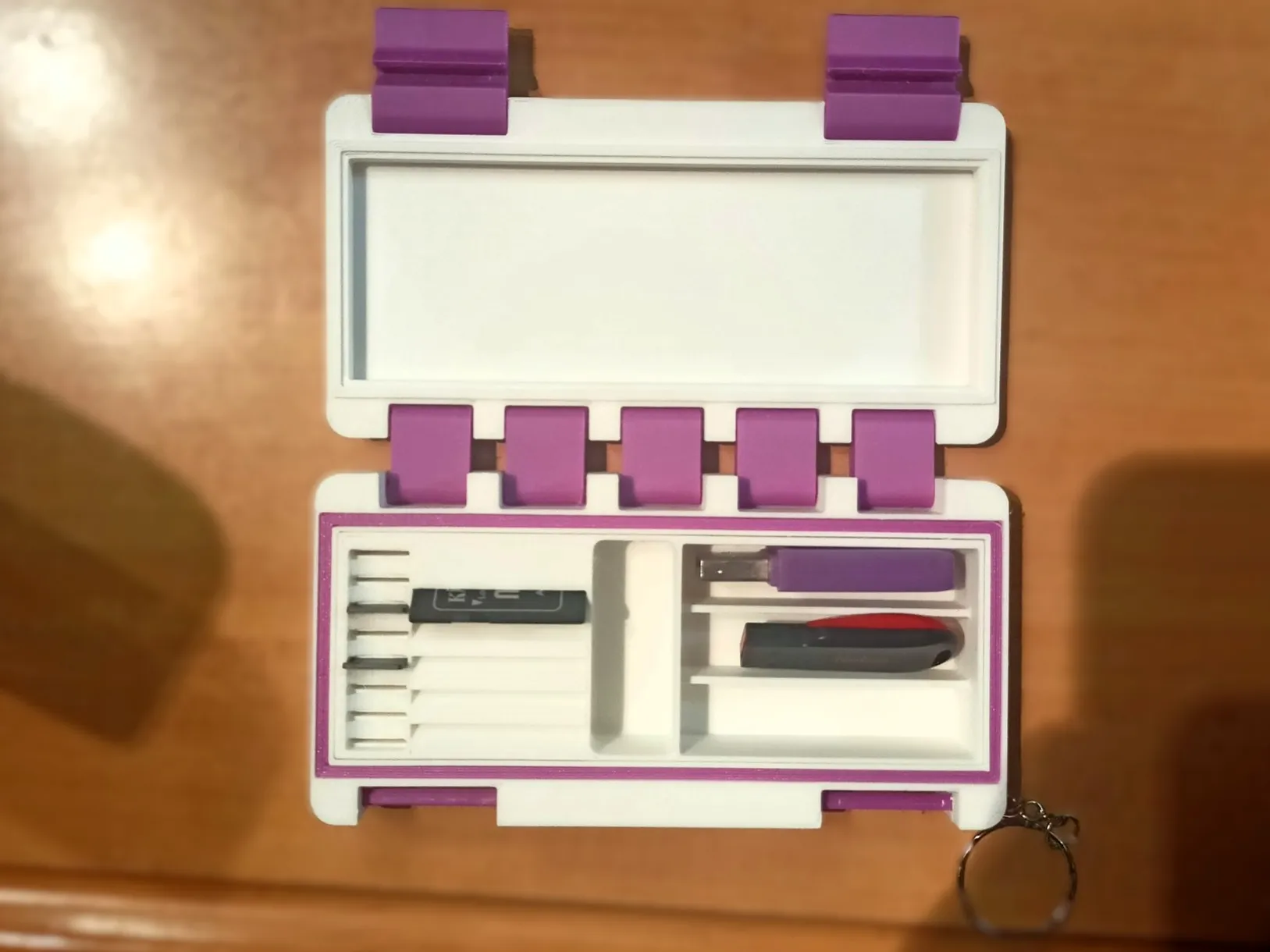

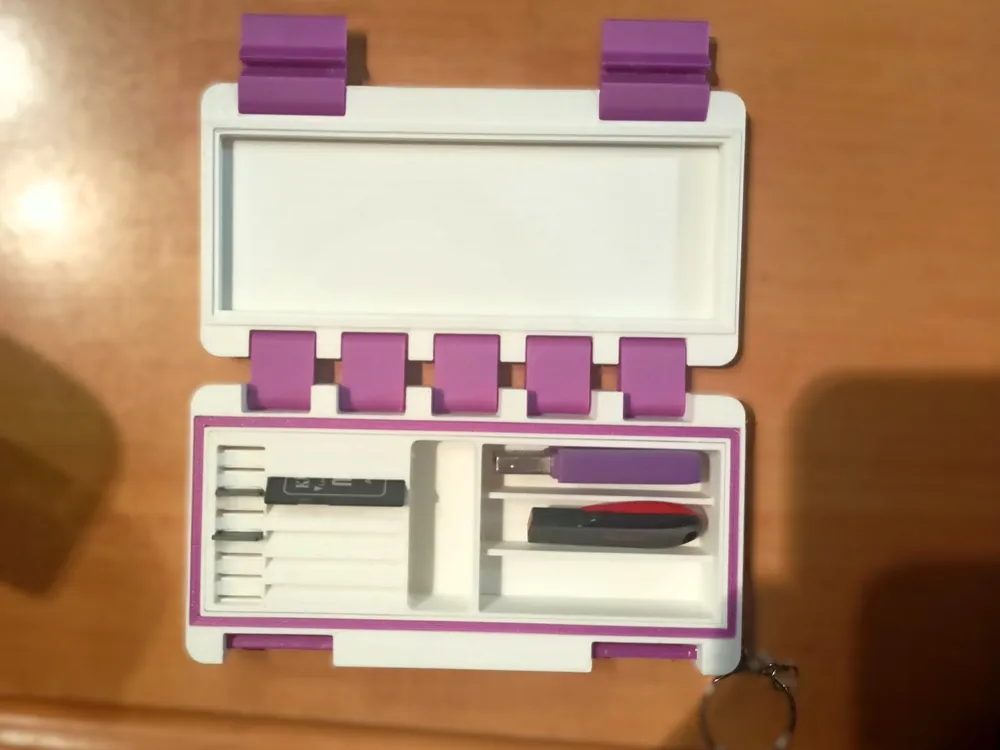

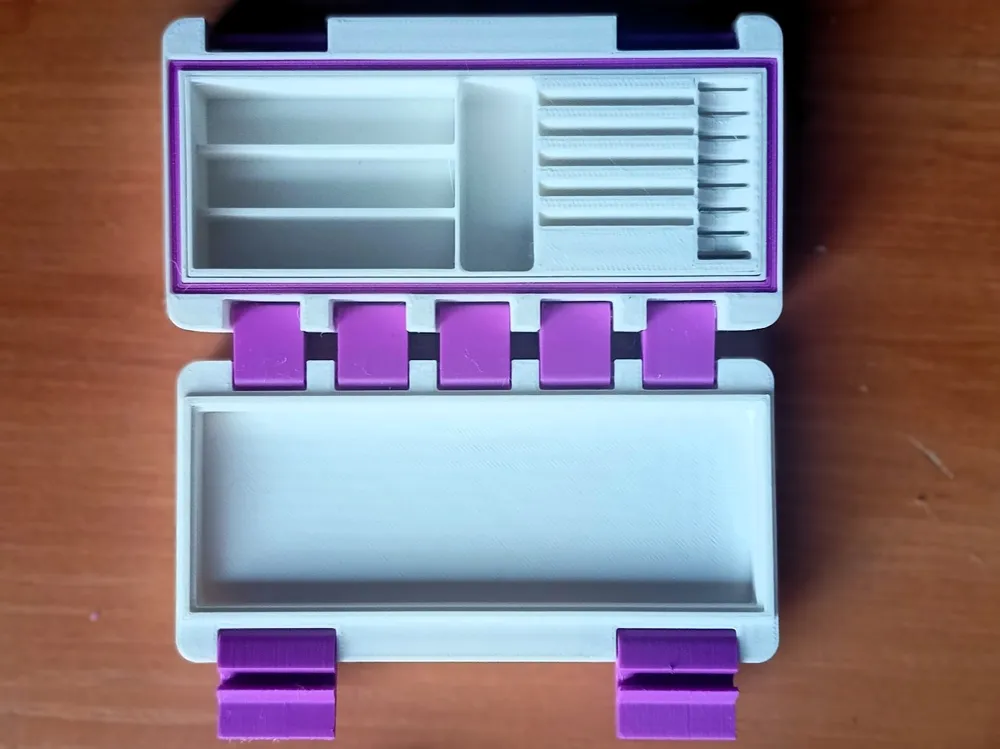

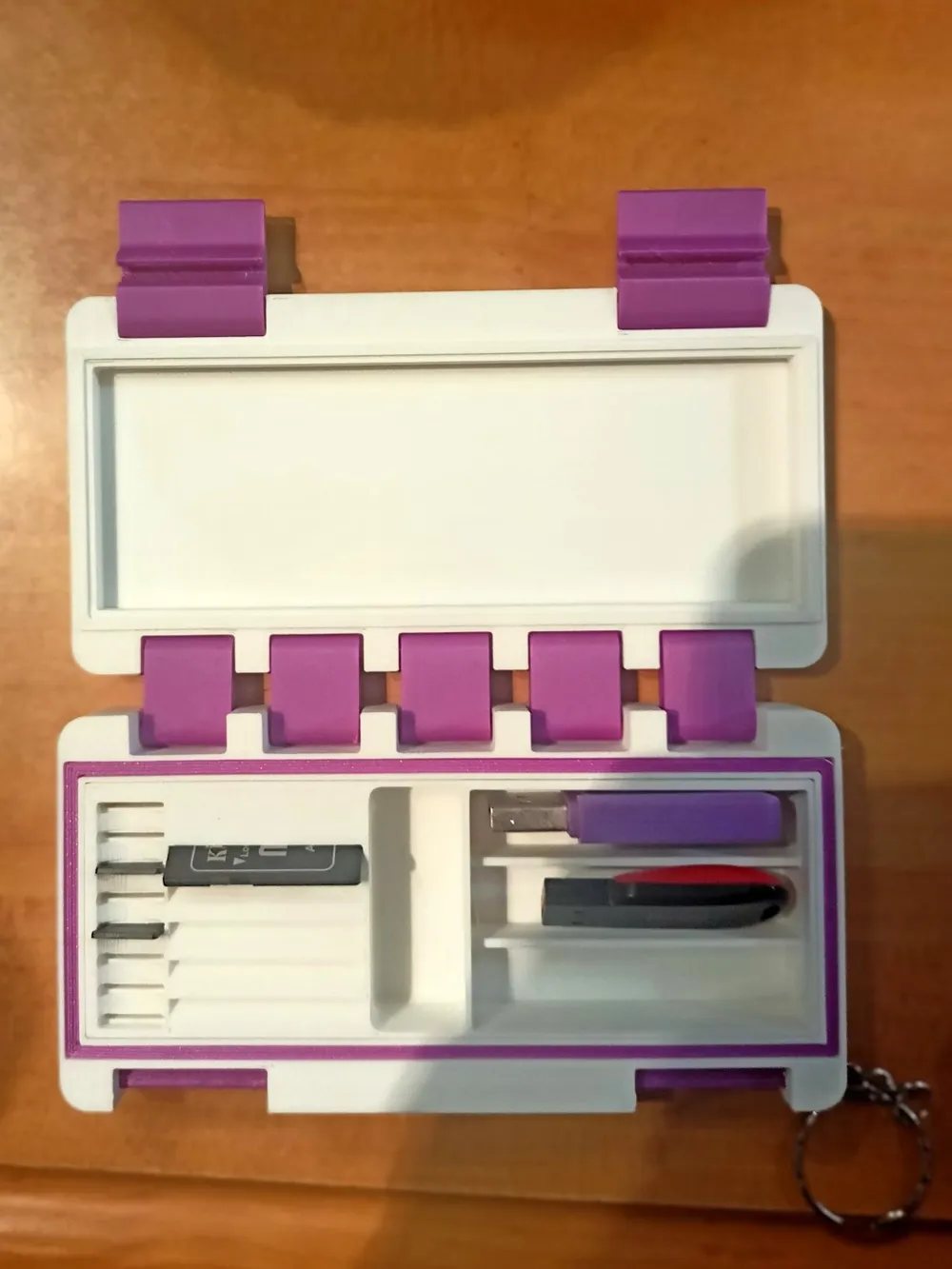

5) Finally, place the card organizer in the body.
Note: You can put a keychain ring in the bottom hole.
