Description

A custom 4x2 Gridfinity display designed for the Xiaomi Wiha Screwdriver Kit (not compatible with the Xiaomi Electric Precision Screwdriver Kit).

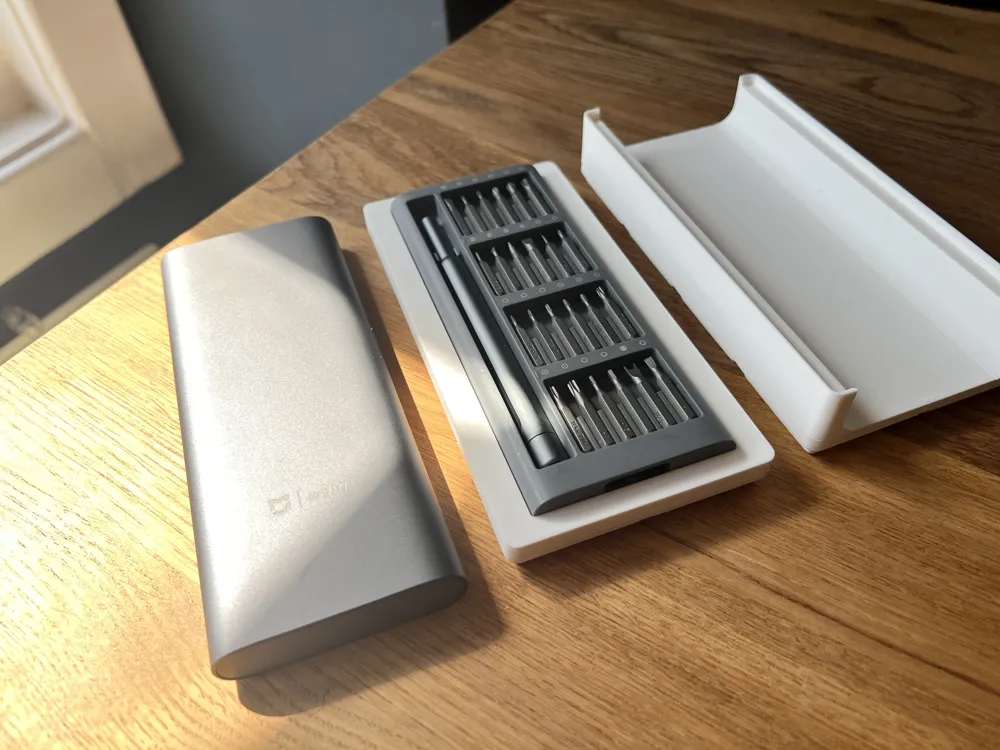

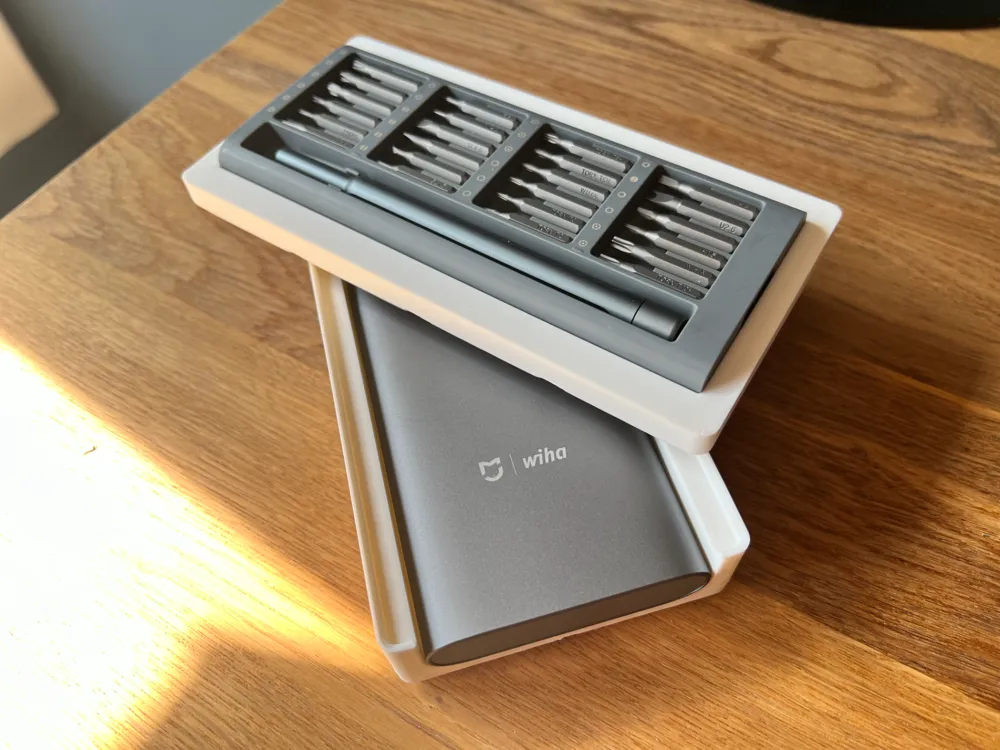

The display is organized in two layers:

Top layer: Displays the screwdriver and bits for quick and easy access.
Bottom layer: Holds the original case.

Boost Me (for free)

Love Gridfinity as much as I do? Consider giving this a boost 🚀

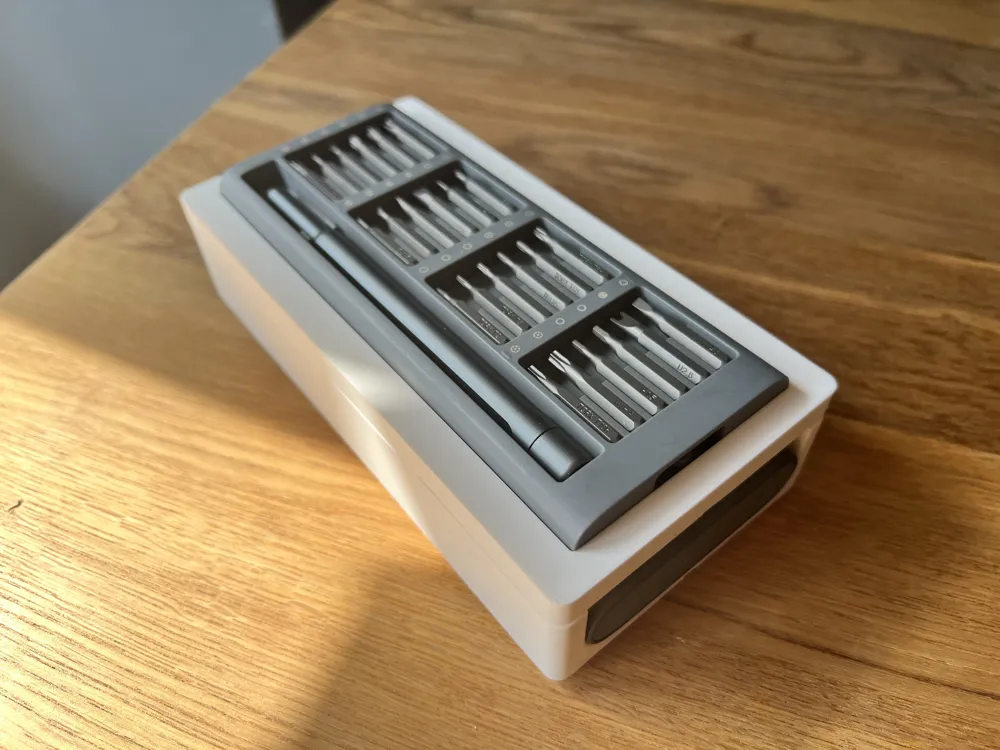

The case is exactly four Gridfinity units long, so the bottom bin has open sides to allow it to slide in. This also means it isn't held in place very securely — it's best to position the display between other Gridfinity bins to keep everything aligned.

Included in the download:

Plate 1: Case bin (bottom layer)
Plate 2: Display bin without lip (not stackable)
Plate 3: Display bin with lip (stackable)

Comment & Rating (16)

@LetMe_Print

Print Profile

0.2mm layer, 2 walls, 15% infill

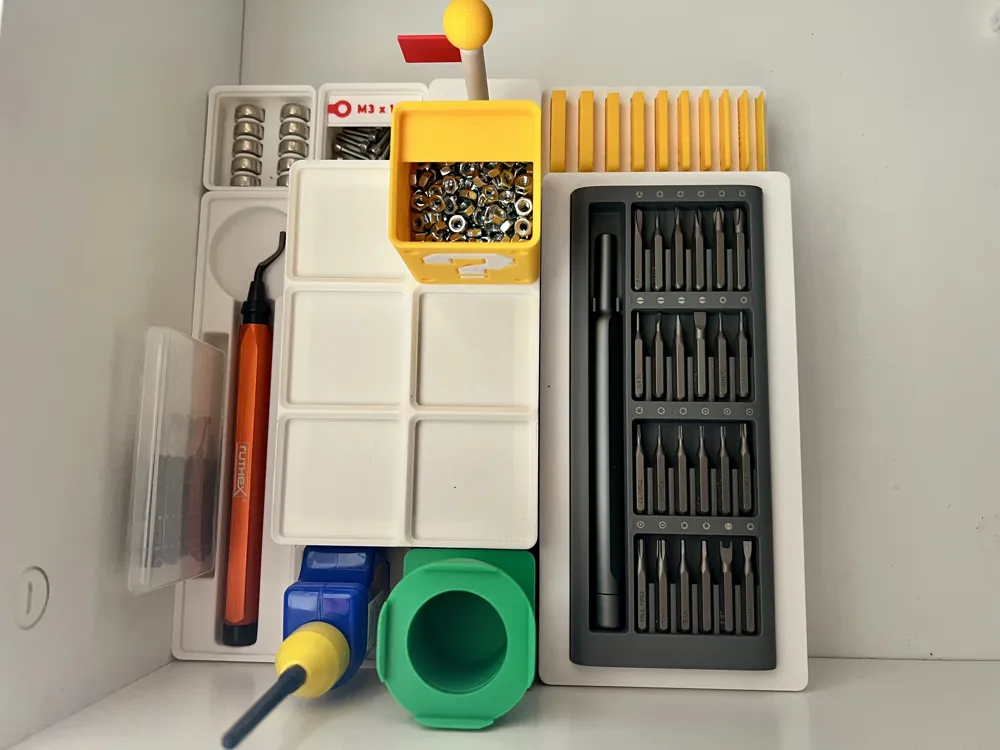

I’ve added this Gridfinity solution to my desk drawer, which I’ve already personalised with a Gridfinity system. You can view it here: https://makerworld.com/en/models/145324-desk-drawer-modular#profileId-1824919)

The profile uploader has replied

@layer_and_grain

Looks great and love the combination with the Gridfinity drawer

(Edited)

@SizoAtom

Print Profile

0.2mm layer, 2 walls, 15% infill

It fits perfectly with the rest of the gridfinity containers

Show original

@urielbaray

Print Profile

0.2mm layer, 2 walls, 15% infill

Great design

@Ejahr

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

@v3nix

Perfect.

@user_436832776

Print Profile

0.2mm layer, 2 walls, 15% infill

didn't print the display case for now. but the case fits perfectly

@j3tang

when stacked, the setup as it is is approx. 6u tall for anyone who wants to know. I needed a 7u tall to match other heights in my setup and extended the lip version to get the overall height to 7u. By extending the difference (about 7mm) at the top piece’s lip this also allows you stack other bins on top even with the screwdriver set nested inside.
